USER MANUAL LFK819W ELECTROLUX

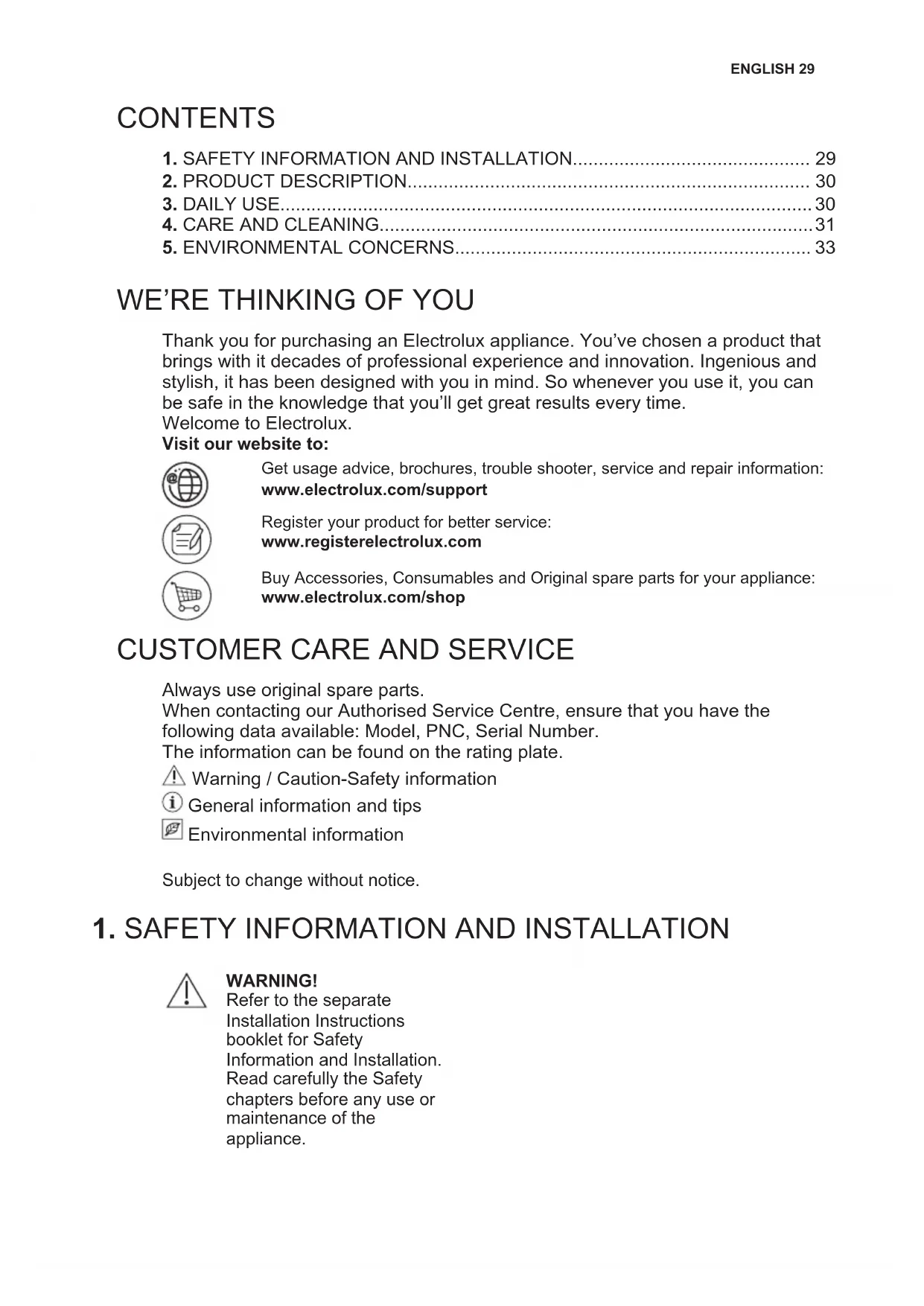

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Register your product for better service: www.registerelectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

Lamp Turns the lights on and off.

First speed / Off The motor switches to first speed level. Second press turns off the appliance.

Second speed The motor switches to second speed level.

Third speed The motor switches to third speed level.

Maximum speed The motor switches to maximum speed level. After 5 minutes appliance switches to third speed.

Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.

Hob²Hood Indicator of the function to control hood from hob. For some models the symbol present on the control panel.

Check the recommended speed according to the table below. While heating up food, cooking with covered pots. While cooking with covered pots on multiple cooking zones or burners, gentle frying. While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners. While boiling and frying big quantities of food without a lid, big humidity. It is recommended to leave the hood operating for approximately 15 minutes after cooking. To operate the hood:

switch on the appliance.

2. If needed, change the speed by

pressing the desired button. www.electrolux.com30The hoods light works independently to other hood functions. To illuminate the cooking surface press the light button

To turn off the appliance press the first speed button again.

3.2 Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob. For more information how to use the function refer to the hob user manual.

3.3 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned. Refer to cleaning the grease filter in care and cleaning chapter. Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter. To reset the function press the button for 3 seconds. To activate or deactivate function:

1. To activate function press the button

for 3 seconds. If the function is activated, the indicator flashes two times.

2. To deactivate function press the

button for 3 seconds. If the function is deactivated, the indicator flashes ones.

The appliance is supplied with a remote- control. The connection is originally enabled. To connect or disconnect remote- control:

1. Switch off the appliance.

for 3 seconds. The indicator on control panel flashes twice if function is enabled and once if disabled.

4. CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent. After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels. Clean stains with a mild detergent. ENGLISH 31Keep the hood clean Clean the appliance and grease filters each month. Clean the inte‐ rior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter noti‐ fication is on. Refer to Filter notification in daily use chapter. Grease filters can be washed in a dishwasher. The dishwasher must be set to a low temperature and a short cy‐ cle. The grease filter may discolour, it has no influence on the per‐ formance of the appliance. Charcoal filter The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Charcoal filter is washable, clean or regenerate the filter after ap‐ proximately every two months. Refer to leaflet included in the ac‐ cessory.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side. To clean the filter:

1. Pull the cover to open it.

2. Press the handle of the mounting clip

on the filter panel underneath the hood (1).

3. Slightly tilt the front of the filter

downwards (2), then pull. Repeat the first two steps for all filters.

4. Clean the filters using a sponge with

non abrasive detergents or in a dishwasher. The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

5. To mount the filters back follow the

first two steps in reverse order. Repeat the steps for all filters if applicable.

4.3 Cleaning the charcoal filter

To remove the filter:

1. Remove the grease filters from the

appliance. Refer to "Cleaning the grease filter" in this chapter.

2. Remove the clips holding the filter

3. Wash the filter bed in hot water

without using detergent or use a dishwasher. Set the dishwasher without using rinse aids or any other detergents. The dishwasher cannot be filled with dishes.

4. Leave the filter bed to dry or use an

oven. WARNING! Risk of burns! Refer to safety chapter in oven user manual. Set the oven for 10 minutes in the maximum temperature of 60°C.

5. To install the filter, perform the steps

in reverse order. The filter has to be fully dried before installing it back into appliance. Replace the filter bed every 2 years or when the cloth is damaged.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. ENGLISH 33CONTENIDO
