USER MANUAL 37537 HAMILTON BEACH

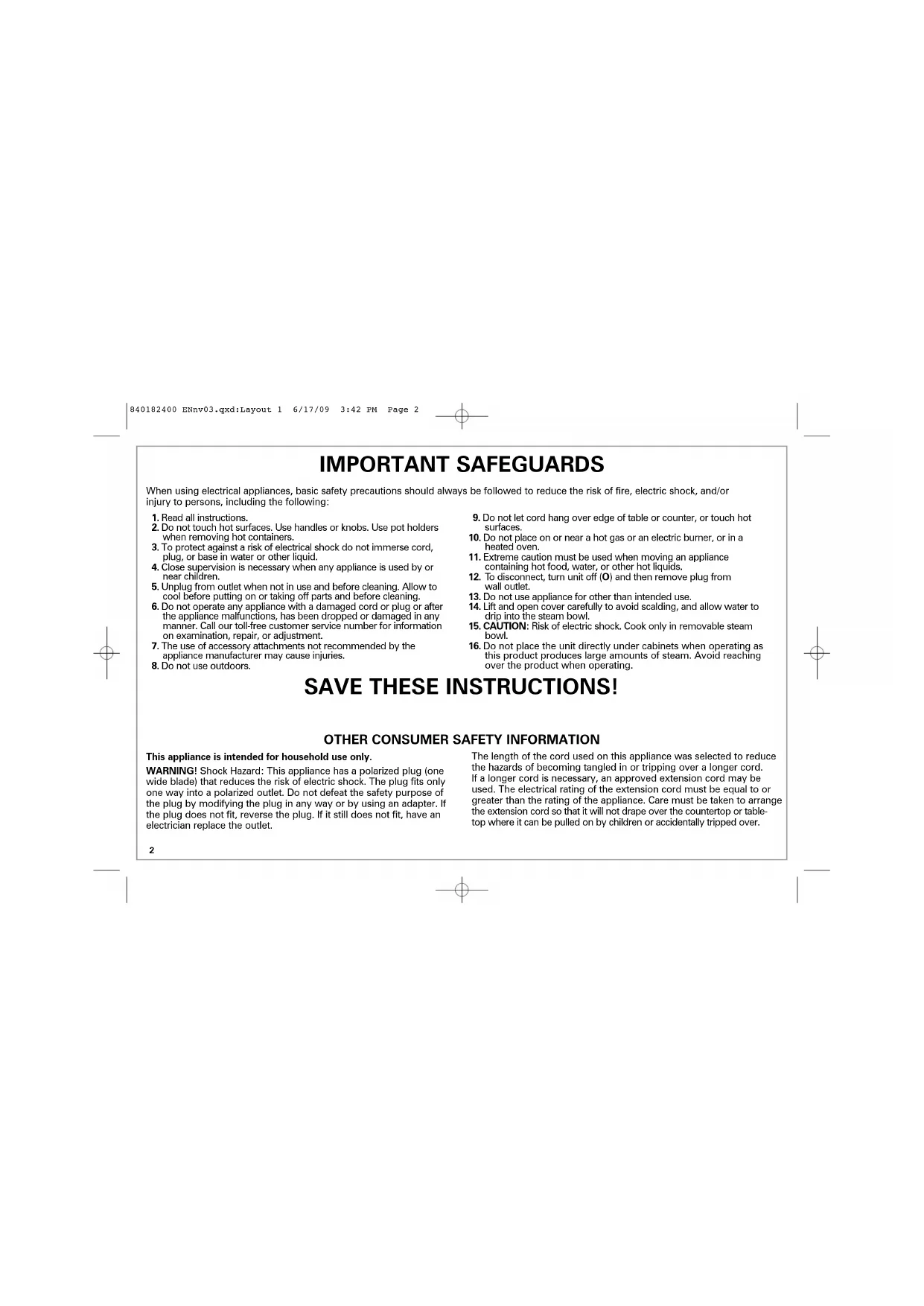

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs. Use pot holders

when removing hot containers.

3. To protect against a risk of electrical shock do not immerse cord,

plug, or base in water or other liquid.

4. Close supervision is necessary when any appliance is used by or

5. Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after

the appliance malfunctions, has been dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

8. Do not use outdoors.

10. Do not place on or near a hot gas or an electric burner, or in a

11. Extreme caution must be used when moving an appliance

containing hot food, water, or other hot liquids.

12. To disconnect, turn unit off (O) and then remove plug from

13. Do not use appliance for other than intended use.

14. Lift and open cover carefully to avoid scalding, and allow water to

drip into the steam bowl.

15. CAUTION: Risk of electric shock. Cook only in removable steam

16. Do not place the unit directly under cabinets when operating as

this product produces large amounts of steam. Avoid reaching over the product when operating. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: SAVE THESE INSTRUCTIONS!

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or table- top where it can be pulled on by children or accidentally tripped over. 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 23 Lid Control Panel Water Reservoir Fill Marks Heating Element Rice Bowl Upper Steam Bowl (with removable divider) Lower Steam Bowl Drip Tray NOTE: Both the upper and lower steam bowls may be used as an egg tray. Removable Collar Parts and Features Water Reservoir 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 34 How to Steam

Fill water reservoir to MAX line. BEFORE FIRST USE: Wash lid, rice bowl, steaming and drip trays, and removable collar in warm, soapy water. Dry thoroughly. Wipe interior of water reservoir with a damp, nonabrasive cloth. Never operate steamer without water in the reservoir, or use a liquid other than water for cook- ing purposes, since this may damage the unit.

Steaming bowls may be used three ways:

• 1 single steaming bowl, see (a) above

• 2 multitiered steaming bowls together but separate compartments; place larger food in the lower steam bowl, see (b) above

• 2 steaming bowls with removable divider removed for larger foods, see (c) above To cook rice: Ensure water reser- voir is filled to MAX line. Place rice and water into rice bowl; then insert rice bowl into lower steaming bowl. A good ratio for cooking rice is 2 parts water to 1 part rice.

Press ON/OFF button or COOK TIME button to initiate steaming cycle. To adjust the desired cooking time, press the up or down arrows. NOTE: If no adjustment is made to cooking time, the unit will begin steaming after approximately 5 seconds.

A beep will sound when steaming is complete. The unit will switch to WARM mode for up to 1 hour. 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 56

How to Set Delay Start Timer NOTE: Raw meat should NEVER be cooked using Delay Start Timer. Visit www.foodsafety.gov for more informa- tion on safe food handling. Ensure water reservoir is filled to MAX line; then place food in steaming bowls. See How to Steam. Press DELAY TIME button. The display will flash 0.5 hours as the default delay time. Press up or down arrows to set delay time. After approximately 5 seconds, the display will show the selected delay time in hours and the unit will begin to count down. After the delay time expires, steamer will switch to cooking mode and steam for selected cook time. Press COOK TIME button and then up or down arrows to set cooking time. See How to Steam for more information.

• Cooking/steaming will begin once the unit has completed the delay time countdown.

• The steamer will switch to Warm mode for up to 1 hour after cooking ends.

• If the water level in the steamer becomes to low, it will switch OFF and flash “– –.” Fill the unit with water to the MAX line, then push the ON/OFF button to restart the steamer. 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 67 Steaming Chart TYPE OF FOOD WEIGHT OR NUMBER OF PIECES APPROXIMATE COOKING TIME Green Beans, cut or whole 12 oz. (350 g) 12–16 minutes Broccoli, florettes 8 oz. (225 g) 18–20 minutes Cabbage (sliced) 16 oz. (450 g) 16–18 minutes Carrots (thinly sliced) 16 oz. (450 g) 20 minutes Corn on the Cob 3–5 ears 25 minutes Potatoes, whole, red skinned 24 oz. or 1-1/2 lbs (675 g) 35–45 minutes Squash, summer yellow and zucchini 16 oz. (450 g) 12–14 minutes Clams, in shell 16 oz. (450 g) 12–14 minutes Lobster, tails 2–4 16–18 minutes Mussels, fresh 16 oz. (450 g) 14–16 minutes Oysters, fresh 48 oz. (1400 g) 18–20 minutes Shrimp, in shell Medium 16 oz. (450 g) 12–14 minutes Large/jumbo 16 oz. (450 g) 16–18 minutes Fish Whole 1/2 to 3/4 lb. (225 g to 350 g) 18–25 minutes Steaks 16 oz. (450 g) / (about 1 in [2.5 cm] thick) 20–25 minutes Chicken Breasts 2 pieces, 8 oz (225 g) each 26–30 minutes Hot Dogs 16 oz. (450 g) 10–16 minutes Eggs Soft-cooked 1–12 eggs 12–15 minutes Hard-cooked 1–12 eggs 15–18 minutes Steamer Cooking Time (approximate). Steamer will switch to WARM after cooking time, indicating food is cooked. Serving Size = 3/4 cup (175 g) 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 78 Cleaning Electrical Shock Hazard. Do not immerse base in water or other liquid. w WARNING 1 2 3 DISHWASHER-SAFE Unplug unit and allow all parts to cool completely. Rice Steaming Chart TYPE OF RICE AMOUNT OF RICE AMOUNT OF WATER APPROXIMATE COOKING TIME White, long grain 1 cup (250 ml) 1 to 1-1/2 cups (250 to 375 ml) 20–25 minutes Brown 1/2 cup (125 ml) 1 cup (250 ml) 42–45 minutes Steamer Cooking Time (approximate). Steamer will switch to WARM after cooking time, indicating rice is cooked. Serving Size = 3/4 cup (175 g) 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 89 Troubleshooting PROBLEM Drip tray and/or steaming bowls tilt/ are unstable. Unit will not turn on. Delay start time too short/too long. Steaming takes too long/little or no steam. Rice cooked in rice bowl is under/overcooked. Unit beeps and displays “

Unit does not shut off after steaming. Food not cooked uniformly. Food done in bottom tray, but not done in top tray.

PROBABLE CAUSE/SOLUTION

• Drip tray installed incorrectly. Reorient the drip tray by looking for the marking on the handle of the drip tray that reads “RIGHT” and place tray properly onto base.

• Check to ensure unit is plugged in.

• Adjust to a shorter or longer delay time.

• Removable collar not properly installed in water reservoir. Readjust removable collar to fit around heating element.

• Heating element has accumulated deposits. Clean by putting 5 Tbsp. white vinegar into water reservoir; then fill water reservoir with tap water to the MIN line. Turn unit on and set timer for 5 minutes. Allow liquid to cool and then wash/dry all pieces thoroughly.

• Water level is too low, lid not placed on steam bowl, or removable collar not properly installed. Ensure only one steaming bowl is used and/or readjust removable collar to fit properly around heating element. Ensure lid is placed securely on steam bowl.

• Not enough water in reservoir. Add water to reservoir so it is between MIN/MAX lines.

• Unit has switched to Keep Warm mode. Turn steamer off if desired, or allow unit to keep food warm until ready to eat.

• Steaming bowl overcrowded with food. Leave enough space for adequate steam flow.

• Food cooks faster in bottom tray. Always place the longer cooking food items in lower tray. Or, place one tray (with the longer cooking food) onto the base and let steam first; then later add the second tray with the shorter cooking food. Try not to block steam holes. 840182400 ENnv03.qxd:Layout 1 6/17/09 3:42 PM Page 9This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use. We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty
