USER MANUAL 40898 HAMILTON BEACH

Please don’t return your product to the store. Call us first – our friendly associates are ready to help you. 840139600 Ev02.qxd 3/21/06 5:47 PM Page 12

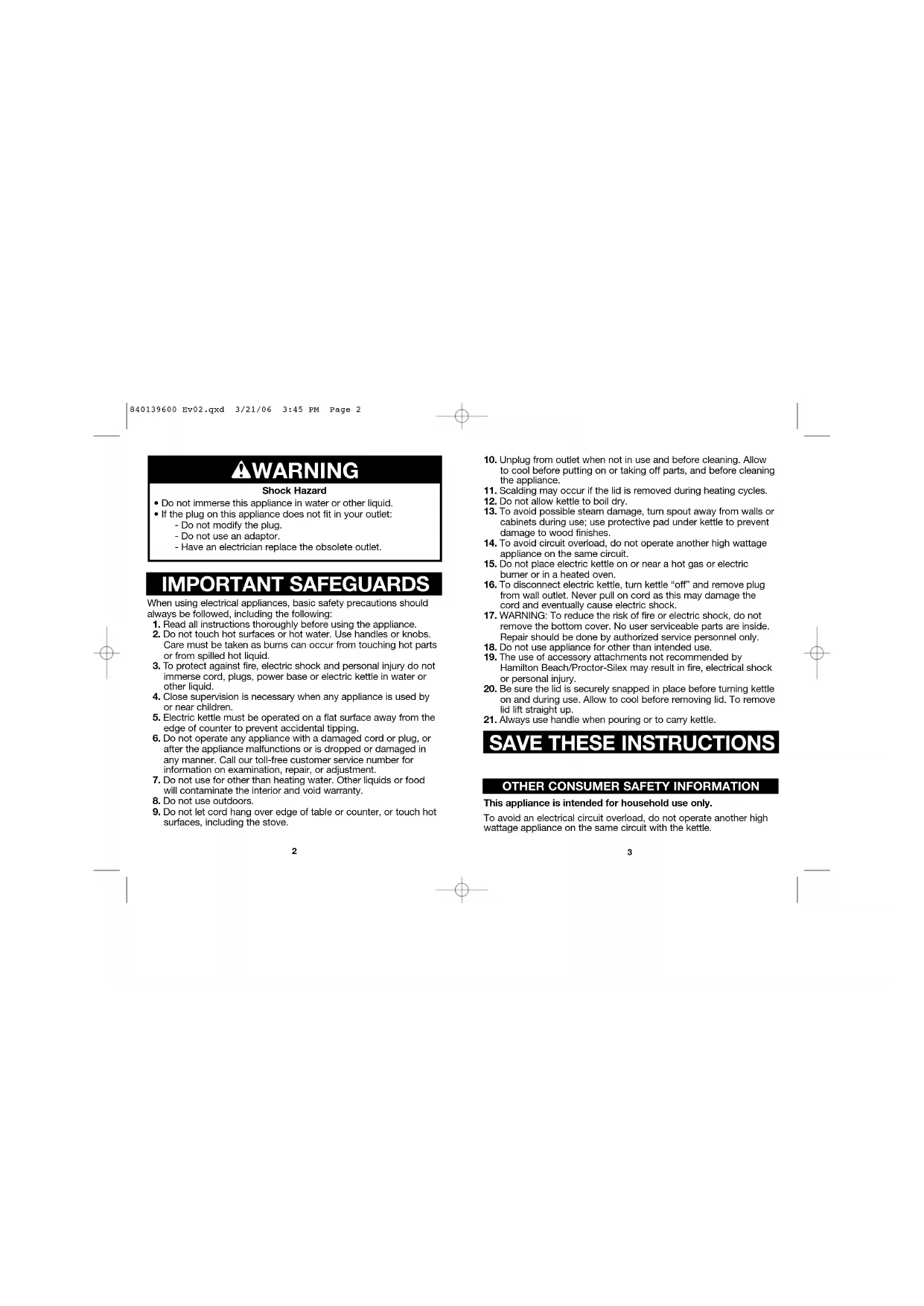

SAVE THESE INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly before using the appliance.

2. Do not touch hot surfaces or hot water. Use handles or knobs.

Care must be taken as burns can occur from touching hot parts or from spilled hot liquid.

3. To protect against fire, electric shock and personal injury do not

immerse cord, plugs, power base or electric kettle in water or other liquid.

4. Close supervision is necessary when any appliance is used by

5. Electric kettle must be operated on a flat surface away from the

edge of counter to prevent accidental tipping.

6. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. Do not use for other than heating water. Other liquids or food

will contaminate the interior and void warranty.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

surfaces, including the stove.

10. Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts, and before cleaning the appliance.

11. Scalding may occur if the lid is removed during heating cycles.

12. Do not allow kettle to boil dry.

13. To avoid possible steam damage, turn spout away from walls or

cabinets during use; use protective pad under kettle to prevent damage to wood finishes.

14. To avoid circuit overload, do not operate another high wattage

appliance on the same circuit.

15. Do not place electric kettle on or near a hot gas or electric

burner or in a heated oven.

16. To disconnect electric kettle, turn kettle “off” and remove plug

from wall outlet. Never pull on cord as this may damage the cord and eventually cause electric shock.

17. WARNING: To reduce the risk of fire or electric shock, do not

remove the bottom cover. No user serviceable parts are inside. Repair should be done by authorized service personnel only.

18. Do not use appliance for other than intended use.

19. The use of accessory attachments not recommended by

Hamilton Beach/Proctor-Silex may result in fire, electrical shock or personal injury.

20. Be sure the lid is securely snapped in place before turning kettle

on and during use. Allow to cool before removing lid. To remove lid lift straight up.

21. Always use handle when pouring or to carry kettle.

This appliance is intended for household use only. To avoid an electrical circuit overload, do not operate another high wattage appliance on the same circuit with the kettle.

• Do not immerse this appliance in water or other liquid.

• If the plug on this appliance does not fit in your outlet: - Do not modify the plug. - Do not use an adaptor. - Have an electrician replace the obsolete outlet. 840139600 Ev02.qxd 3/21/06 3:45 PM Page 25 Parts and Features

2. Anti-Scale Mesh Filter

5. Cord Wrap (can exit to left

or right of handle) The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the kettle. If the appliance is of the grounded type, the extension cord should be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

OTHER CONSUMER SAFETY INFORMATION

Using Your Electric Kettle BEFORE FIRST USE: Remove plastic bag from outside kettle and any packaging that may be inside the kettle. Fill the kettle to the MAX indicator inside kettle and bring to a boil until kettle shuts off automatically. Discard water and repeat the process. Rinse out the kettle 2 or 3 times. The ket- tle is now ready for use. To Remove Kettle Lid:

1. Press button on handle to open lid.

2. Press button on underside of lid to release hinges on

inside of kettle and pull straight up. To Replace Kettle Lid: Align notches on side of lid with hinges on inside of kettle and snap securely into place. 840139600 Ev02.qxd 3/21/06 3:45 PM Page 47

1. Remove from power base before filling.

2. Fill the kettle with the desired amount of water. Make sure

the kettle has at least 8 ounces (250 ml) of water. Do not fill above the MAX fill line. If filled above the MAX fill line, water will be emitted through the steam vents at the base of the kettle during the boil cycle.

3. Press and hold button on bottom of lid while inserting

notches on lid into tabs on kettle wall. The mesh filter must align with the spout. Make sure that the lid is in place and the kettle or power base is standing on a level surface. If lid is not in place, auto shut-off will not operate.

4. After filling the kettle with water, place it on the base so

that it is correctly engaged.

5. Plug into the outlet and turn on (l).

7. After use, unplug the kettle and empty.

Anti-Scale Mesh Filter NOTE: Do not remove the anti-scale mesh filter from the lid. Scale is caused by lime and calcium in hard water. The mesh filter will prevent these suspended particles from being poured out of the kettle. To ensure optimum performance of the filter it should be periodically cleaned. To clean the filter, rinse it under running water and brush with a soft brush. An old, clean toothbrush works well. If Your Kettle Boils Dry The heating element is protected by two automatic safety devices. If your kettle is accidentally switched on without being filled with water, or is allowed to boil dry, the kettle will automatically switch off. You should:

• Unplug the kettle and wait about 20 minutes for the element to cool down.

• Refill the kettle, then use as normal and check that the kettle functions correctly. wWARNING Burn Hazard

• Do not overfill as boiling water can escape spout.

Avoid contact with escaping steam.

• Carefully carry unit holding hot water. Use handle only.

• Do not pour toward or over people.

• Allow to cool before removing lid or cleaning unit. 840139600 Ev02.qxd 3/21/06 3:45 PM Page 69 Customer Service If you have a question, call our toll-free customer service number. Before calling, please note the model, type, and series numbers and fill in that information below. These numbers can be found on the bottom of your appliance. This information will help us answer your question much more quickly.

MODEL:_____________ TYPE:_____________ SERIES: ______________

This warranty applies to product purchased in the U.S. or Canada. LIMITED WARRANTY This product is warranted to be free from defects in material and workmanship for a period of one (1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-Silex and Traditions products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer’s instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

If Your Kettle Does Not Work Make these simple checks before calling the toll-free customer service number:

• Have you switched the power switch button to the “on” ( l ) position?

• Has the kettle been accidentally switched on without being filled with water or allowed to boil dry? Wait 20 minutes and try again.

• Is kettle plugged into the outlet and firmly seated in base?

• If the kettle heats but does not boil, it might need descaling. Cleaning Your Kettle

1. With kettle unplugged, empty any remaining water and

rinse. Allow kettle to cool.

2. To avoid scale/lime deposit build-up, empty kettle after

3. Wipe the exterior of kettle with a damp cloth. Do not use

abrasive scouring pads or powders as they may scratch the smooth surface of the kettle. NEVER IMMERSE THE KETTLE IN WATER OR OTHER LIQUIDS. 840139600 Ev02.qxd 3/21/06 3:45 PM Page 811
