Product type	TV stand
Brand	LG
Model	AMST21BB
Compatibility	LG TVs 43", 50", 55" (models 43UR762H, 43UN342H, 43UN662M, 43UM662H, 50UR762H, 50UR765H, 50UN342H, 50UN662M, 50UM662H, 55UR762H, 55UR765H, 55UN342H, 55UN662M, 55UM662H, 50/55UR767H, 50/55UR777H)
Dimensions (W x D x H)	570 x 303 x 244 mm
Weight	3.2 kg
Rotation angle	20° left or right
Wall mounting	Compatible with wall mount (not included)
Desk mounting	Possible with M5 screws (type A, not supplied) or provided mounting kit (type B)
Material	Steel and plastic
Color	Black
Maximum supported weight	Not specified, but designed for compatible TVs
Care and cleaning	Wipe with a soft dry cloth. Do not use abrasive products or solvents.
Safety	Do not let children climb or hang on the stand. Install on a flat, stable surface. Two people required for moving.
Spare parts and repairability	Contact LG customer service for replacement parts.
General information	Manual available in several languages (FR, EN, DE, ES, etc.). Weight of stand only.

Frequently Asked Questions - AMST21BB LG

Which TV models are compatible with the AMST21BB stand?

The AMST21BB stand is compatible with LG TVs of the series 43UR762H, 43UN342H, 43UN662M, 43UM662H (43 inches), 50UR762H, 50UR765H, 50UN342H, 50UN662M, 50UM662H (50 inches), 55UR762H, 55UR765H, 55UN342H, 55UN662M, 55UM662H (55 inches), as well as models 50/55UR767H and 50/55UR777H.

How to assemble the stand?

To assemble the stand, place the TV upside down on a soft surface (cloth). Attach the stand using the provided screws. Make sure the screws are tightened but not over-tightened. Follow the steps in the manual: first attach the base, then the arm to the TV.

What is the maximum weight capacity of the stand?

The maximum weight capacity is not explicitly stated in the manual, but the stand is designed for the listed compatible TVs. For a 50-inch model, the TV weight is approximately 13-15 kg (check your TV specifications). The stand is made of steel, so it can safely support this weight.

Can I mount the stand on the wall?

Yes, the stand is compatible with wall mounting. Use a suitable wall mount (not included). Follow the instructions: insert the eye bolts at the back of the TV, fix the wall brackets on the wall, then connect with a strong cord. Make sure the wall can support the weight.

How to clean the stand?

Clean the stand with a soft dry cloth. Do not use abrasive products, alcohol, or solvents, as they may damage the finish. For stubborn stains, lightly dampen the cloth.

Is it possible to adjust the TV angle?

Yes, the stand allows a rotation of 20 degrees left or right. Adjust the angle according to your viewing preference. Be careful of your fingers during adjustment to avoid pinching.

Does the stand come with the necessary screws?

Yes, the stand comes with the necessary screws for assembly. For desk mounting (type B), screws, washers, and nuts are provided. For wall mounting, accessories are not included.

What if a part is missing from the package?

If a part is missing, contact LG customer service or the retailer where you purchased the stand. Have the model number (AMST21BB) and proof of purchase ready.

Are there any important safety precautions?

Yes: two people are required to lift or move the TV. Do not let children climb on the stand. Install on a flat, stable surface. For wall mounting, ensure the wall is solid. Tighten the screws correctly without forcing.

Where can I find the user manual?

The manual is available for free on notice-facile.com in PDF format. You can download it in French, German, English, Spanish, Italian, etc. If your language is not available, you can request a translation by email.

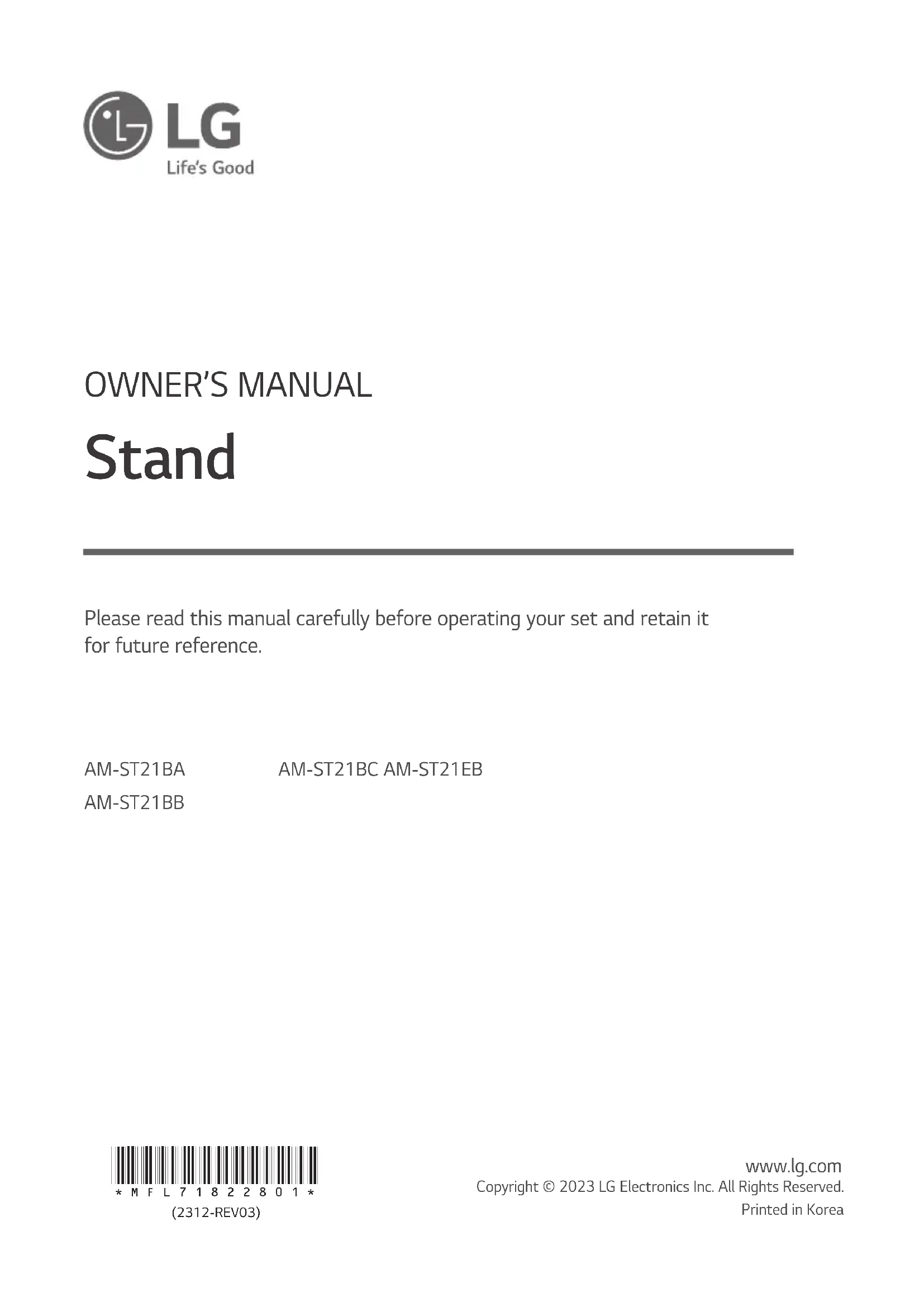

USER MANUAL AMST21BB LG

Please read this manual carefully before operating your set and retain it for future reference.

AM-ST21BA

AM-ST21BC AM-ST21EB

AM-ST21BB

* Image shown may differ from your product.

Safety instructions

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please read these safety precautions carefully before using the product.

- When lifting or moving the product, at least two people are required due to the heavy weight of the product.

- The product may fall down, causing a malfunction or injury.

• Do not let children hang on or climb onto the product.
• The product may fall down, causing an injury or even death.
• Do not install the product in a place which is unstable or vibrating or a place where the product is not completely supported such as a shaky shelf or a tilted place.

- The product may fall down or overturn, causing an injury or malfunction.

• Put the product on a flat and firm floor.
- The product may fall and cause an injury.
- When moving or handling a product assembled with the Stand, be cautious about damaging the exterior of the product.
- When there is a stain or fingerprint left on the surface, wipe it off gently.

- When removing a stain, do not use excessive force. Wiping with excessive force may cause scratches or discoloration on the product.

Assembling and Preparing

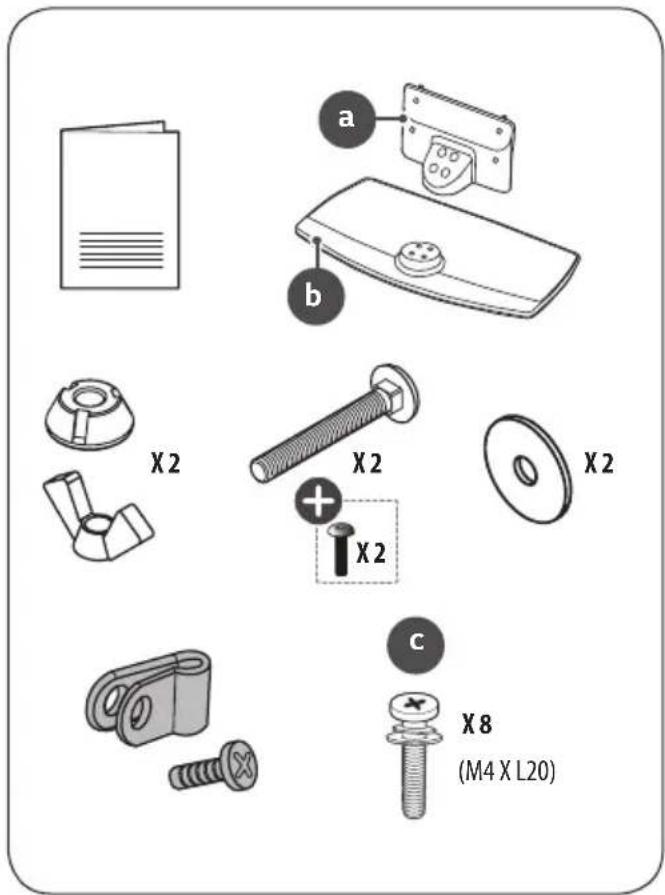

Accessories

a b X2 X2 X2 X2 c X8 (M4 X L20)

: Depending on country

How to Assemble the Stand

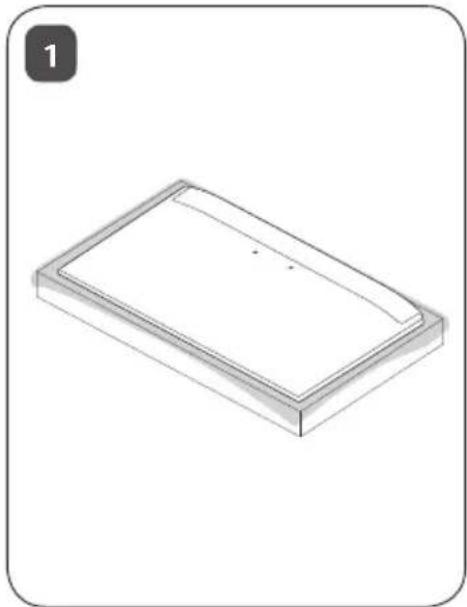

• When assembling the stand, put the product on a table or a flat floor with its screen facing downward. Here, first put a soft and fluffy cloth on the place, and then put the product on top of it to prevent the screen from being damaged.

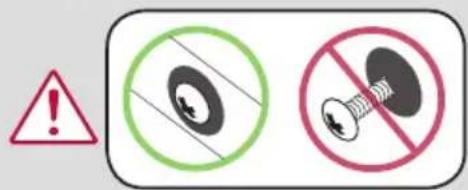

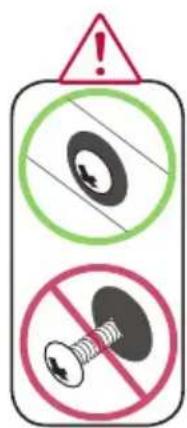

• When assembling the stand, check if the screws are completely fastened. (If they are not completely fastened, the product may lean forward after being installed.) Avoid fastening the screws with excessive force because otherwise the joint part of the screws may be worn out, and the screws might come off.
• When assembling the product, do not use foreign substances (oil, lubricant, etc.) on the screws.
• It may cause damage to the product.
• Before installing a wall mount support, disassemble the Stand by conducting the method to assemble the stand in a reverse order.

Isometric view of a rectangular object with a flat top and rounded bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

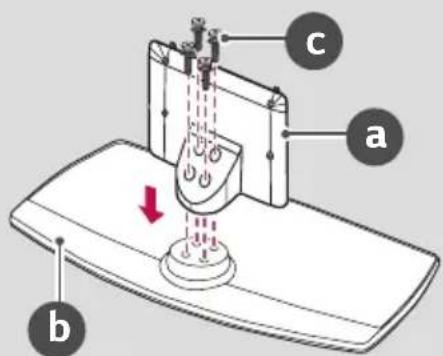

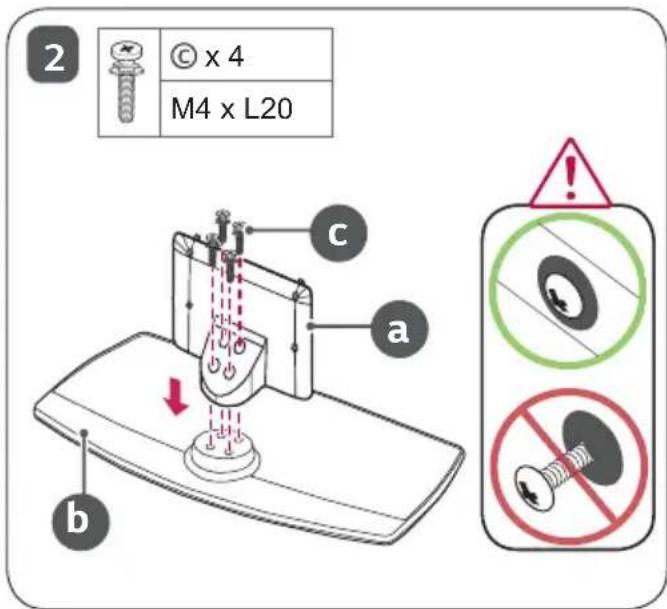

2 x 4 M4 x L20 a b c

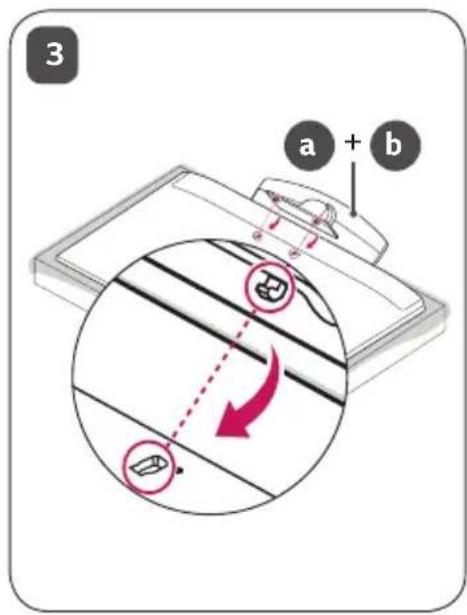

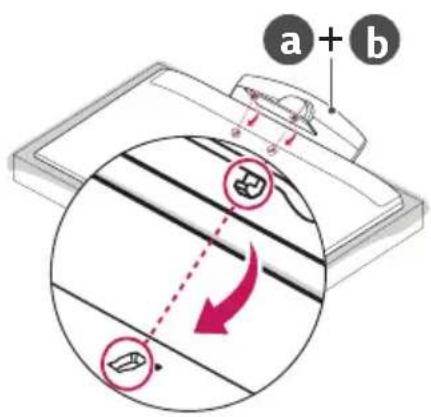

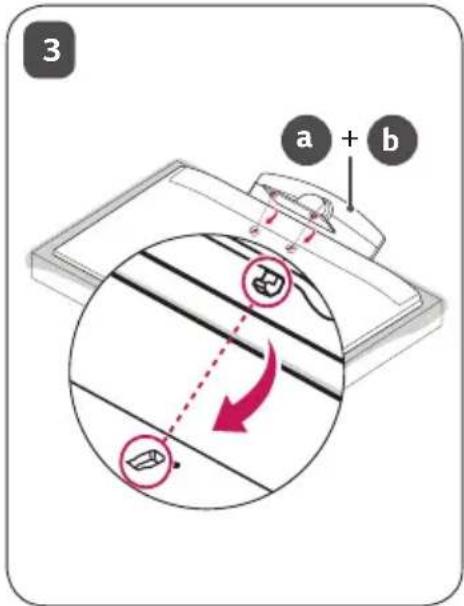

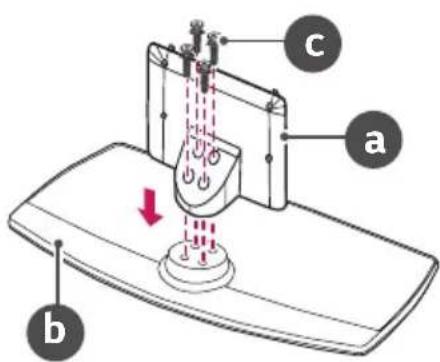

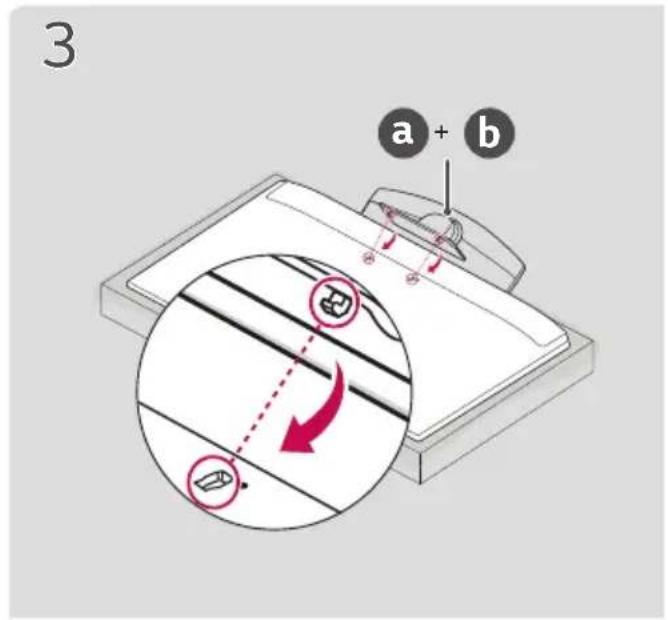

3 a + b

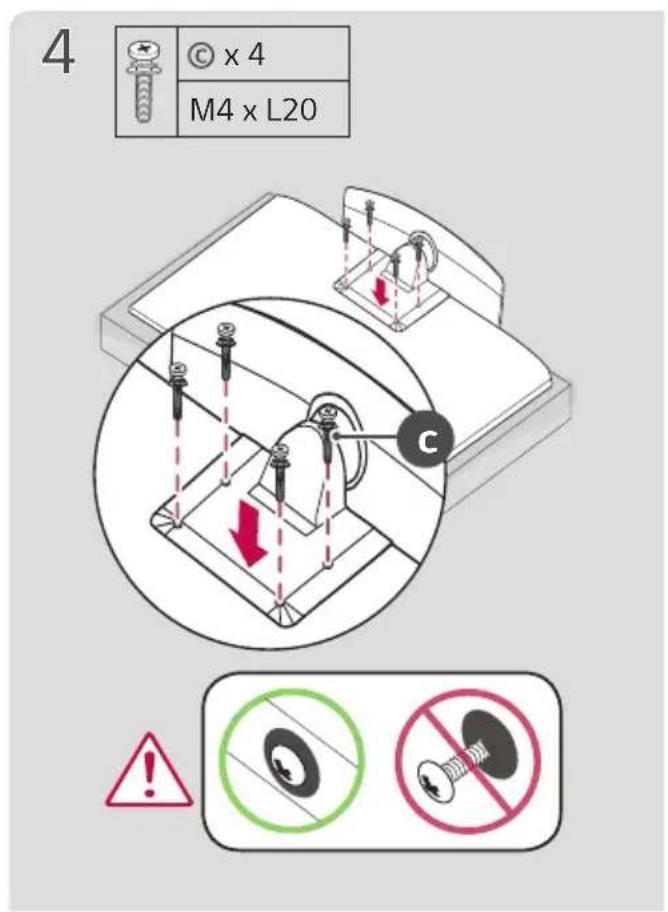

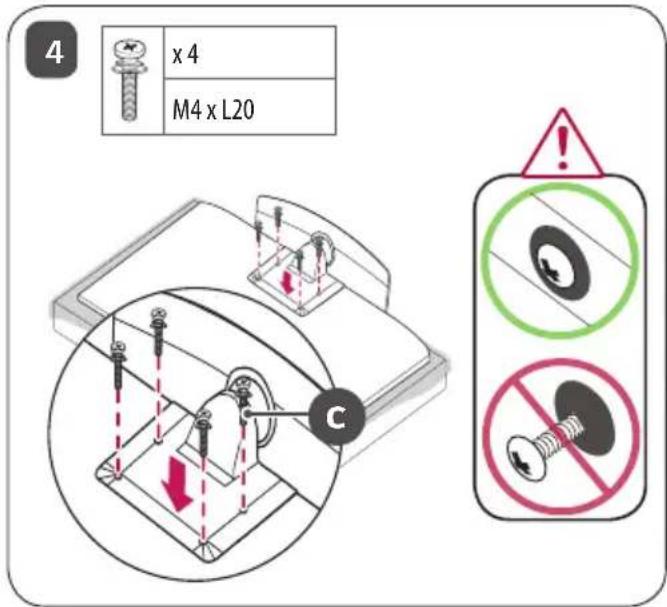

4 x 4 M4 x L20 C

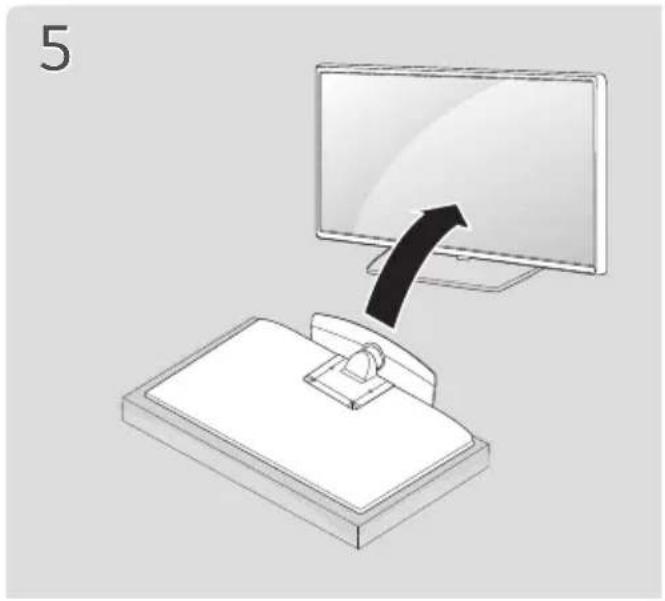

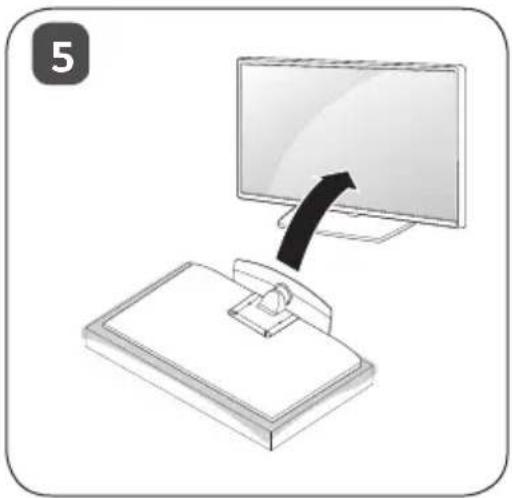

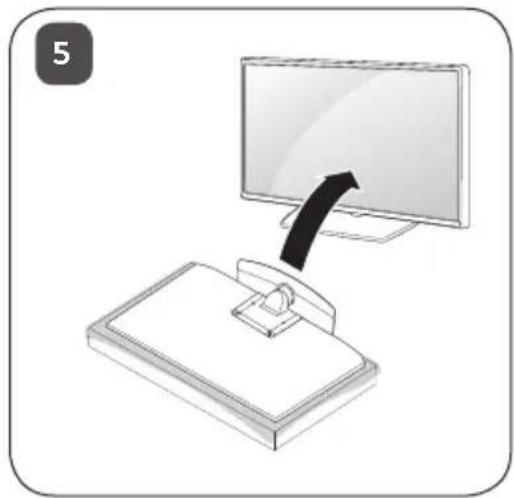

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

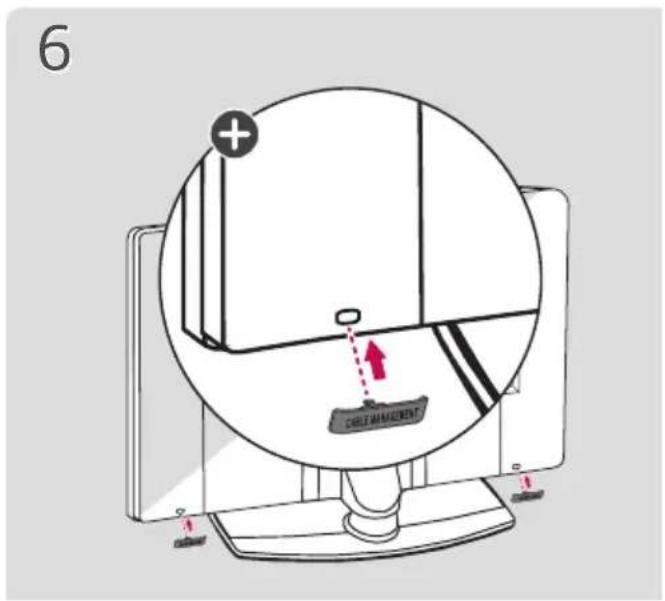

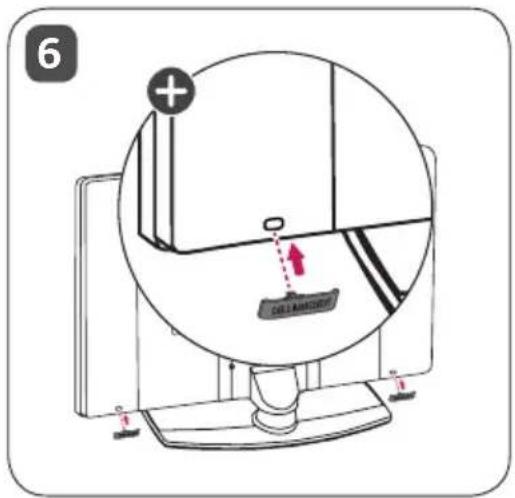

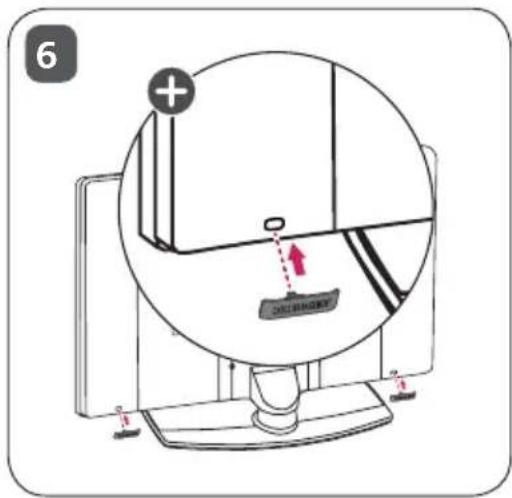

6 +

7

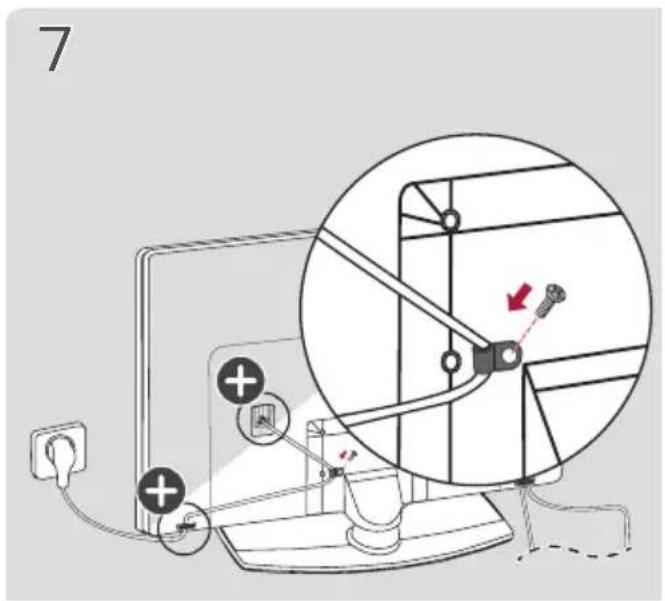

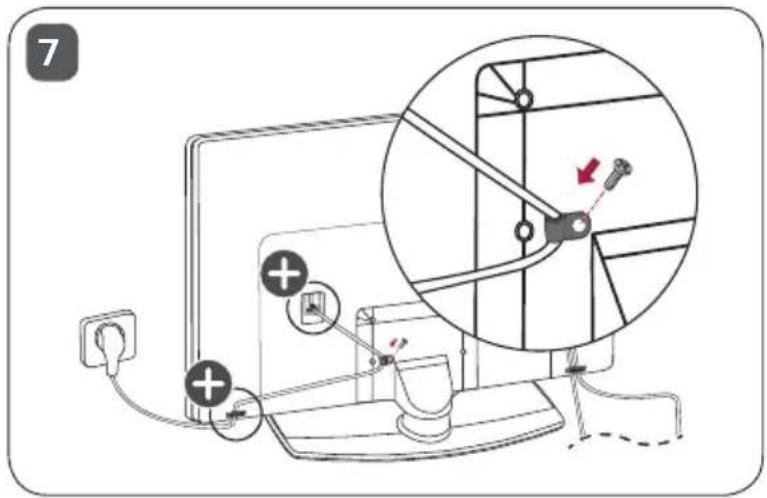

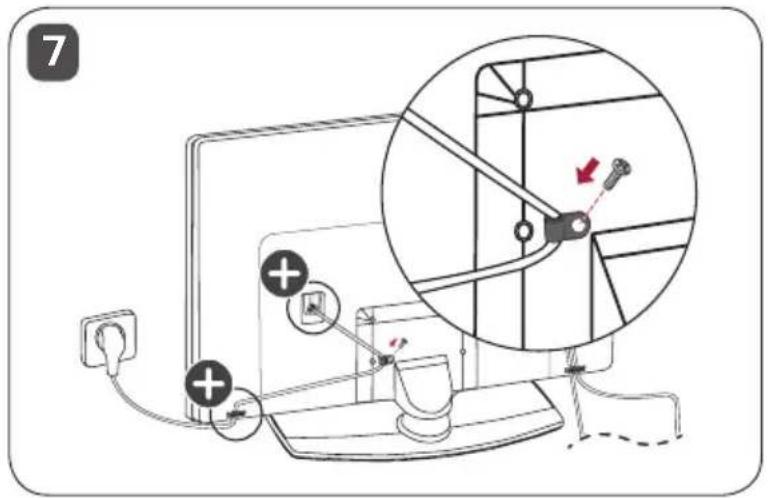

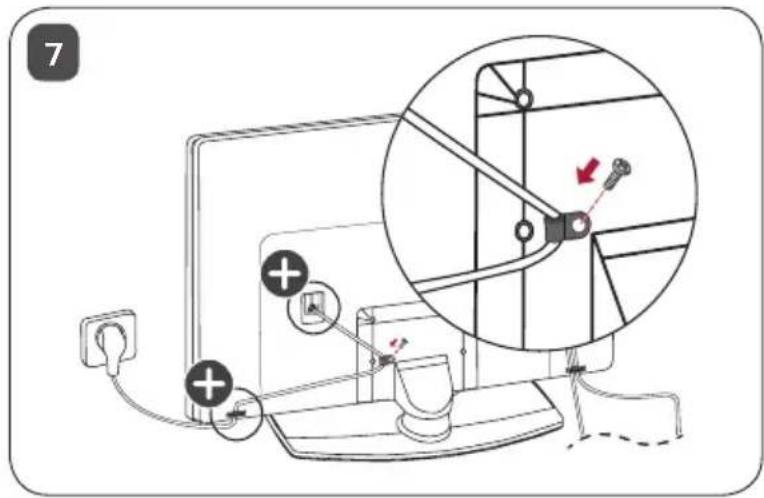

The cover and cable holder are provided as TV accessories. (Depending on Model.)

Mounting on a Table

1 Lift and tilt the TV into its upright position on a table.

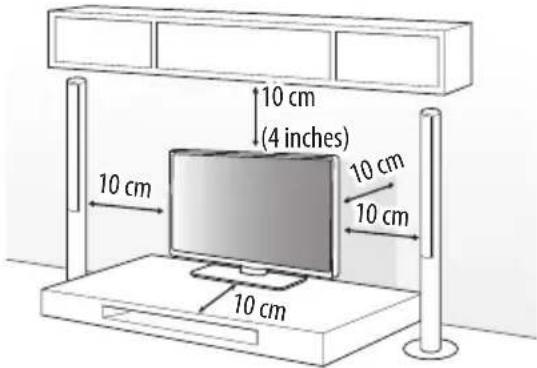

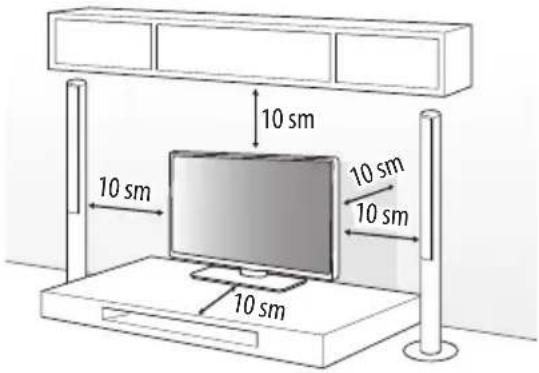

- Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

10 cm (4 inches) 10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

- Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

- If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

- Do not use any unapproved items to ensure the safety and product life span.

- Any damage or injuries caused by using unapproved items are not covered by the manufacturer's warranty.

- When assembling the stand, ensure that all of the provided screws are attached. If the screws are not fully tightened, the product may tilt or tip over, resulting in damage. Tightening the screws with excessive force may cause them to come off due to abrasion of the screw joint.

- Only use the authorized stand and wall mounting bracket made specifically for LG products.

- Pursuant to Consumer Protection Law, LG Electronics will not be held responsible for any product malfunction, material damage or injury caused by using products not authorized by LG Electronics.

Attaching the TV to a Desk

(Depending on model)

The TV should be attached to a desk so it cannot be pulled in a forward/ backward direction, potentially causing injury or damaging the product.

A type

Diagram of a vehicle's front view with dashed lines indicating perspective or perspective alignment (no text or symbols)

4-Screws

(Not supplied with TV)

Stand Desk

- Screw: M5 x L (*L: Table depth + 8\~10 mm (0.31\~0.39 inches)) ex) Table depth: 15 mm (0.5 inches), Screw: M5 x L25

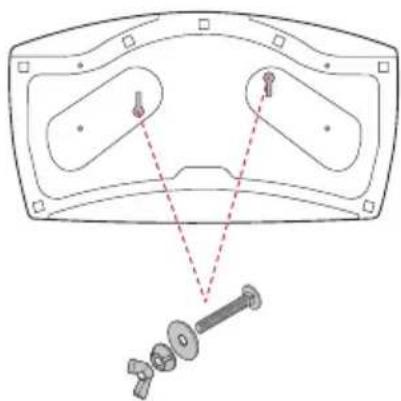

B type

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no text or symbols)

2-Screws for Stand Fixing,

2-Washers for Stand Fixing,

2-Nuts for Stand Fixing (Supplied with TV)

Stand Desk

Securing the TV to a Wall

Diagram showing a monitor with an electrical socket connected to a vertical line, with two magnified insets highlighting the socket's internal structure.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

- Use a platform or cabinet that is strong and large enough to support the TV securely.

- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Adjusting the Angle of the TV to suit view

Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20° 20°

- When adjusting the angle of the product, watch out for your fingers.

- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Specifications

AM-ST21BA
Model		43UR762H43UN342H43UN662M43UM662H
Width x Depth x Height	(mm) 570 x 303 x 237
	(inches) 22.4 x 11.9 x 9.3
Weight	(kg) 3.2
	(lbs) 7.0

AM-ST21EB
Model		50/55UR767H50/55UR777H
Width x Depth x Height	(mm) 570	x 303 x 232
	(inches) 22.4	x 11.9 x 9.1
Weight	(kg) 3.2
	(lbs) 7.0

AM-ST21BB
Model		50UR762H50UR765H50UN342H50UN662M50UM662H
Width x Depth x Height	(mm) 570 x 303 x 244
	(inches) 22.4 x 11.9 x 9.6
Weight	(kg) 3.2
	(lbs) 7.0

AM-ST21BC
Model		55UR762H55UR765H55UN342H55UN662M55UM662H
Width x Depth x Height	(mm) 570 x 303 x 244
	(inches) 22.4 x 11.9 x 9.6
Weight	(kg) 3.2
	(lbs) 7.0

LG

Life's Good

The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service.

Model

Serial no.

MANUEL D'UTILISATION

Support

a b X 2 X 2 X 2 X 2 c X 8 (M4 X L20)

: Selon le pays

Comment assembler le support

Isometric view of a rectangular electronic component or tray with a flat top and side gap, labeled with number 1 (no text or symbols on the object itself)

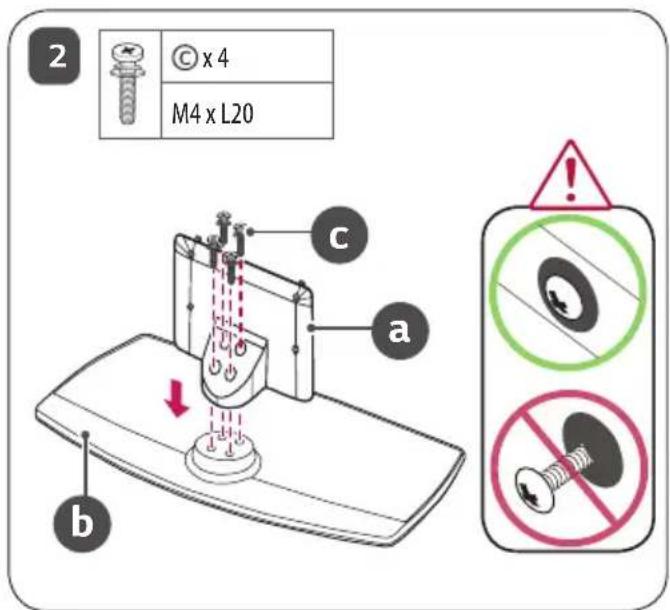

2 © x 4 M4 x L20 a b c

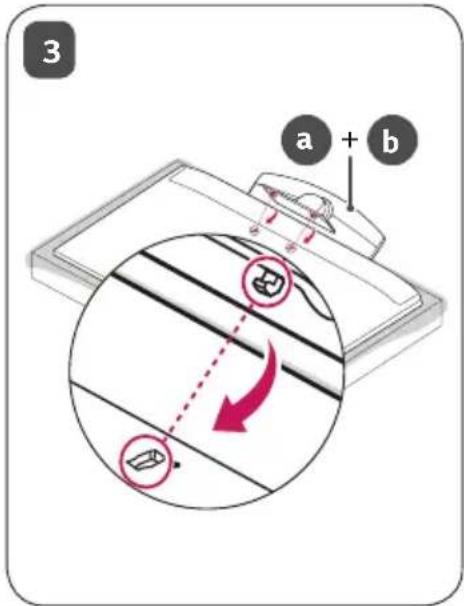

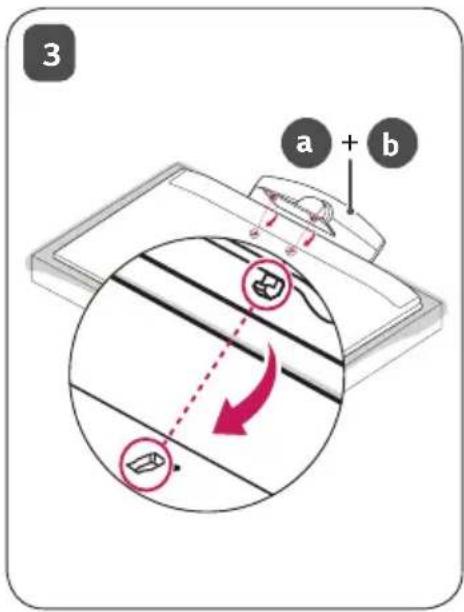

3 a + b

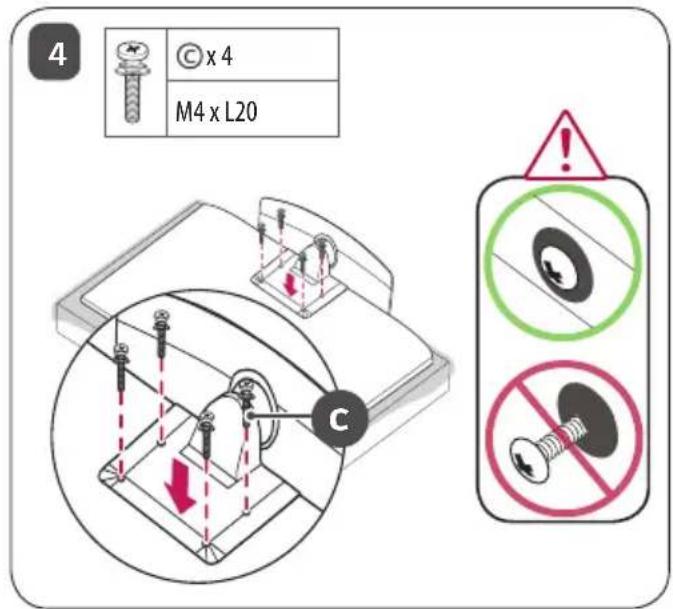

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

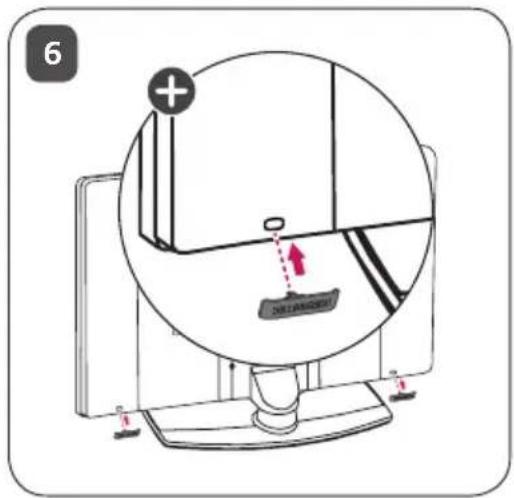

6 SALPROM

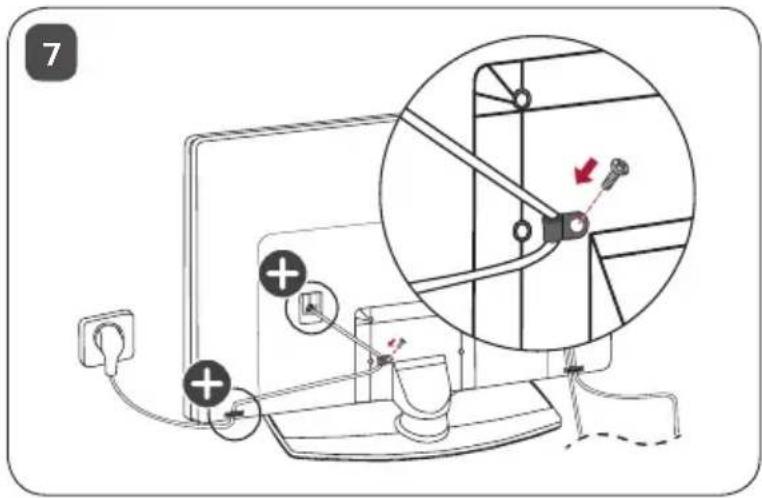

7

Support Bureau

Technical diagram of a mechanical assembly with labeled parts and a dashed line indicating alignment or connection (no text or symbols present)

Support Bureau

Diagram showing a monitor with a cable and a key inserted into a vertical pipe, with magnified insets highlighting the cable's tip and key insertion.

a b X 2 X 2 X 2 X 2 c X 8 (M4 X L20)

: Abhängig vom Land

Isometric view of a rectangular object with a flat top and rounded bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

2 © x 4 M4 x L20 a b c

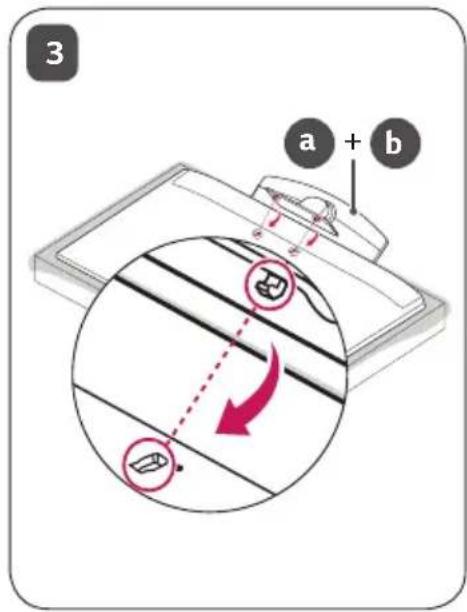

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a flat surface (no text or symbols)

6 SALPROM

7

Diagram of a device interior with two central components and dashed red lines indicating alignment or measurement points (no text or symbols present)

4 Schrauben

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no text or symbols)

Diagram showing a monitor with an elliptical lens and two close-up insets illustrating the lens's internal structure.

a b X 2 X 2 X 2 X 2 c X 8 (M4 x L20)

Isometric view of a rectangular object with a flat top and rounded bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

2 © x 4 M4 x L20 a b c

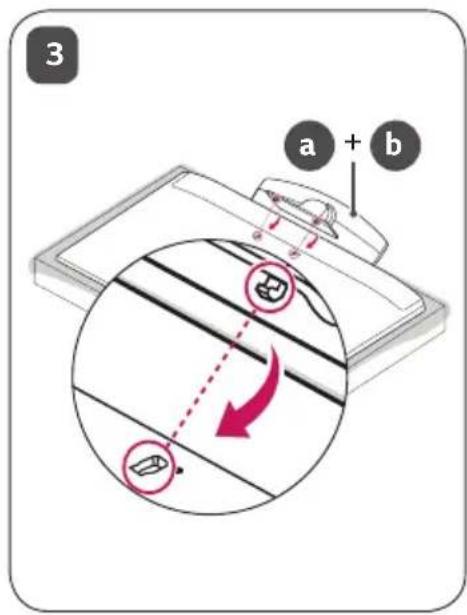

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no text or symbols)

Diagram showing a monitor with an electrical contact sensor and its close-up view of the device's internal structure.

a b X 2 X 2 X 2 X 2 c X 8 (M4 X L20)

Isometric view of a rectangular object with a flat top and rounded bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Diagram of a vehicle's rear window with two internal compartments and dashed red lines indicating perspective or perspective views (no text or labels)

4 tornillos

Technical diagram of a mechanical component with alignment lines and mounting holes (no text or labels)

Diagram showing a monitor with an elliptical shape and two hand-drawn tools below, illustrating a mechanical or electrical setup.

a b X 2 X 2 X 2 X 2 c X 8 (M4 x L20)

: Selon le pays

Isometric view of a rectangular object with a flat top and a flat bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Technical line drawing of a mechanical component with dashed alignment lines and no visible text or symbols

4 vis

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no text or symbols)

Diagram showing a monitor with an electrical contact sensor and its close-up view of the device's internal structure.

a b X 2 X 2 X 2 X 2 c X 8 (M4 x L20)

: Según del país

Isometric view of a rectangular electronic component or tray with a flat top and rounded edges (no text or symbols)

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Diagram of a vehicle's front view with dashed lines indicating sensor or sensor paths (no text or labels)

4-Tornillos

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no text or symbols)

Diagram showing a monitor with a circular icon and two close-up insets illustrating electrical connections or components.

a b X 2 X 2 X 2 X 2 c X 8 (M4 x L20)

Isometric view of a rectangular object with a flat top and rounded bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Diagram of a vehicle's front view with dashed lines indicating perspective or perspective alignment (no text or symbols)

4 винта

Technical diagram of a mechanical assembly with labeled parts and alignment lines (no text or symbols)

Diagram showing a monitor with an elliptical shape and two close-up insets illustrating mechanical components or connections.

a b X 2 X 2 X 2 X 2 c X 8 (M4 X L20)

: Mamlakatga bog'liq

Taglikni yig'ish bo'yicha ko'rsatmalar

Isometric view of a rectangular object with a flat top and a flat bottom, labeled with number 1 in the corner (no text or symbols on the object itself)

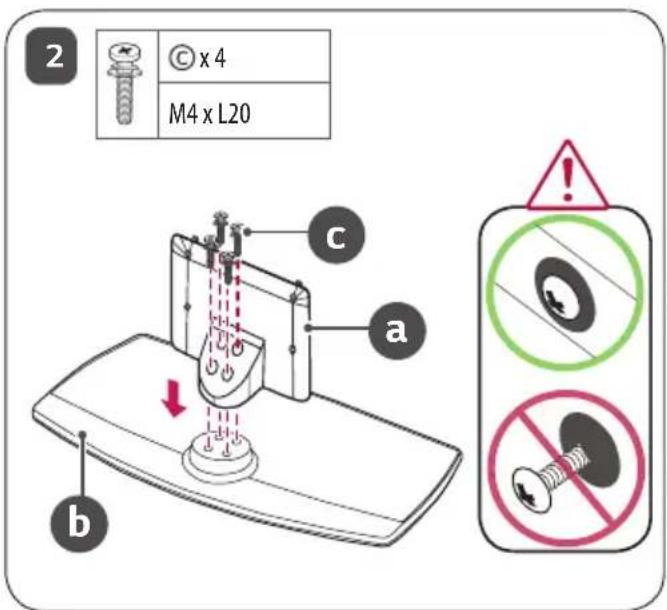

2 © x 4 M4 x L20 a b c

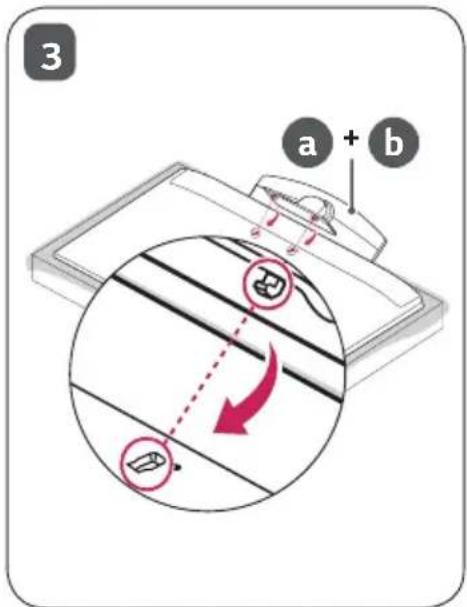

3 a + b

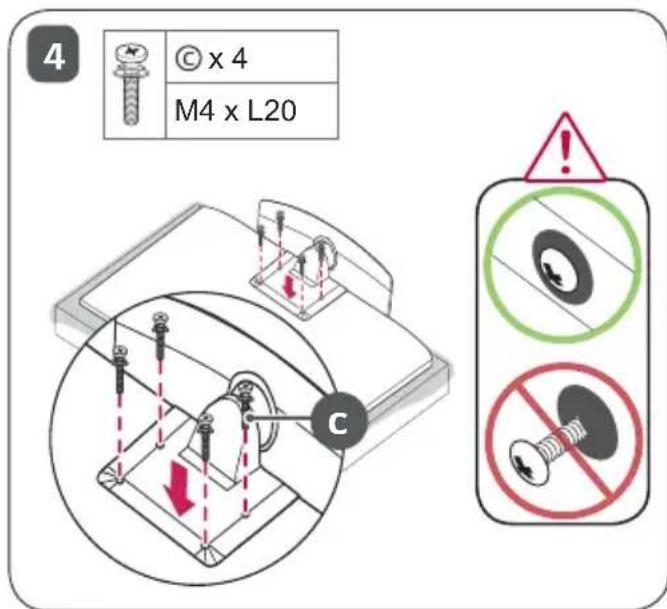

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 SALPROM

7

Qopqoq va kabel ushlagichi televizor aksessuari sifatida yetkazib beriladi. (Rusumga qarab.)

Stol ustiga o'rnatish

1 Televizorni ko'taring va uni vertikal holatga keltirgan holda stol ustiga qo'ying.

- Yetarlicha havo aylanib turishi uchun devor bilan televizor orasida (eng kamida) 10 sm masofa qoldiring.

10 sm 10 sm 10 sm 10 sm

2 Quvvat manbai shnurini rozetkaga ulang.

• Mahsulotni yig'ish paytida burama mix qismlariga begona moddalarni (moylar, moylash materiallari, va hokazolar) qo'llamang. (Bunday qilish mahsulotga shikast yetkazishi mumkin.)
• Agar siz televizorni tayanchga o'rnatmoqchi bo'lsangiz, mahsulotning ag'darilib ketishining oldini olish bo'yicha choralar ko'rishingiz kerak bo'ladi. Aks holda, televizor tushib ketishi, bu esa shaxsiy zarar xavfiga olib kelishi mumkin.
• Xavfsizlik va mahsulotning xizmat ko'rsatish davomiyligini kafolatlash uchun ruxsatnomaga ega bo'Imagan buyumlardan foydalanmang.
• Ruxsat berilmagan buyumlardan foydalanish orqali yetkazilgan har qanday zarar yoki shikastlanishlar ishlab chiqaruvchi kafolati orqali qoplanmaydi.

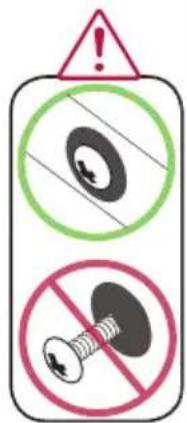

• Burama mixlarning to'g'ri kiritilganligi va mahkam qotirilganligiga ishonch hosil qiling. (Agar ular yetarli darajada mahkam qotirilmagan bo'Isa, TV o'rnatilgandan keyin oldinga qulab ketishi mumkin.) Ortiqcha ko'p kuch ishlatmang yoki burama mixlarni ortiqcha qotirib yubormang; aks holda burama mix shikastlanishi va to'g'ri qotirilmasligi mumkin.
• Faqat maxsus LG mahsulotlari uchun ishlab chiqarilgan ruxsat berilgan taglik va devorga mahkamlanadigan tayanchdan foydalaning.
• Iste'molchilar huquqlarini himoya qilish to'g'risidagi qonunga binoan LG Electronics kompaniyasi LG Electronics tomonidan ruxsat berilmagan mahsulotlardan foydalanish natijasida kelib chiqadigan har qanday nosozlik, moddiy zarar yoki shikastlanish uchun javobgar bo'Imaydi.

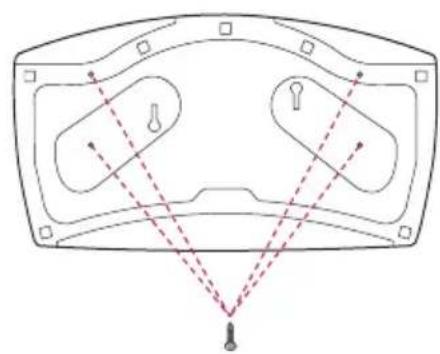

Televizorni stolga mahkamlash

(Rusumga qarab)

TV oldinga/orqaga surilmasligi va buning natijasida mahsulotga zarar yetmasligi uchun u stol ustiga mahkamlanishi zarur.

A tur

Diagram of a vehicle's front view with two internal compartments and dashed red lines indicating alignment or measurement points (no text or labels)

4 ta vint

Technical diagram showing a mechanical assembly with two circular components and a separate bolted joint (no text or labels)

Taglikni qotirish uchun 2 ta vint, Taglikni qotirish uchun 2 ta bolt, Taglikni qotirish uchun 2 ta gayka (TV bilan birga taqdim etiladi)

Taglik Stol

Televizorni devorga mahkamlash

Diagram showing a monitor with an elliptical shape and two hand-drawn tools interacting with a vertical line, illustrating a mechanical or electrical setup.

1 Teshikli boltlar yoki devorga mahkamlanadigan tayanch va boltlarni televizorning orqa paneliga kiriting va tortib mahkamlang.

a b X 2 X 2 X 2 X 2 c X 8 (M4 x L20)

Isometric view of a rectangular electronic component or tray with a flat top and rounded edges (no text or symbols)

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 +

7

Diagram of a vehicle's rear window with two illuminated windows and dashed red lines indicating perspective or perspective views (no text or symbols)

4 ГВИНТИ

Technical diagram showing a mechanical assembly with two circular components and a separate bolted component (no text or labels)

Diagram showing a monitor with an electrical contact sensor and its close-up view of the device's internal structure.

Isometric view of a rectangular frame with rounded edges and a central hole (no text or symbols)

2

Diagram of a sewing machine with labeled parts (a, b, c) and a red arrow indicating force or direction.

Warning sign with circular and crosshair symbols indicating safety risks, including a warning triangle and two circular icons with arrows.

3

a + b

4

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a circular component labeled 'C'.

Warning sign with circular and cross symbols indicating safety risks: one with a minus arrow, the other without a screw.

Illustration of a computer monitor with an arrow pointing to it, placed on a stand (no text or symbols)

6 + CALL SWITCH

Diagram illustrating a device setup with labeled components and directional arrows, likely illustrating a mechanical or electrical system.

Technical diagram of a mechanical assembly with labeled parts and alignment lines (no text or symbols)

Ayaklik Sehpa

Diagram showing a monitor with a circular icon above its screen and two close-up insets illustrating the same components.

Model ____ Seri No. ____

LG

Life's Good

Diagram showing a monitor displaying an electrical component with two close-up views of the device, one labeled '1'.

Diagram of a vehicle's front view with dashed lines indicating sensor or measurement points (no text or labels)

4 براغي

Technical diagram of a mechanical component with mounting holes and a bolt, showing alignment lines (no text or symbols)

Illustration of a computer monitor with an arrow pointing to it, placed on a flat base (no text or symbols)

6 DO NOT OPEN

7

Isometric view of a rectangular object with a curved top edge, no text or symbols present

2 © x 4 M4 x L20 a b c

3 a + b

4 © x 4 M4 x L20 C

التجمع والتحضر

a b 2 X 2 X 2 X 2 X c 8 X (L20 x M4)

Line drawing of a device with a button and mounting bracket (no text or symbols)

스텐드 사용설명서

부속품

a b

X2

X2

X8
(M4 X L20)

제품규격

모델명 폭 X 깊이 X 높이 (mm) 무게 (kg)
AM-ST21BA57	0 x 303 x 237 3.2
AM-ST21BB57	0 x 303 x 244 3.2
AM-ST21BC57	0 x 303 x 244 3.2
AM-ST21EB57	0 x 303 x 232 3.2

Illustration of hands holding a computer monitor with a smiling face icon (no text or symbols)

Cartoon illustration of a child standing on a computer monitor displaying a skull (no text or symbols present)

Illustration of a flat-screen monitor with a circular icon on the screen and sound waves below (no text or symbols)

Illustration of a computer monitor with a cartoon face on screen and a stylus resting on the side (no text or symbols)

3D rendering of a rectangular electronic component with a flat top and curved side (no text or symbols)

2

Diagram of a sewing machine with labeled parts (a, b, c) and a red arrow indicating downward motion.

Warning sign with warning symbol and two circular icons: one with a wrench and another with a screw, both marked in green and red.

3 a + b

Illustration of a computer monitor with an arrow pointing to it, placed on a bed (no text or symbols)

4 © x 4 M4 x L20 C ! No No

6 DEPARTMENT

7

Diagram showing a computer monitor with an electrical contact and two close-up insets illustrating the same electrical contact.
