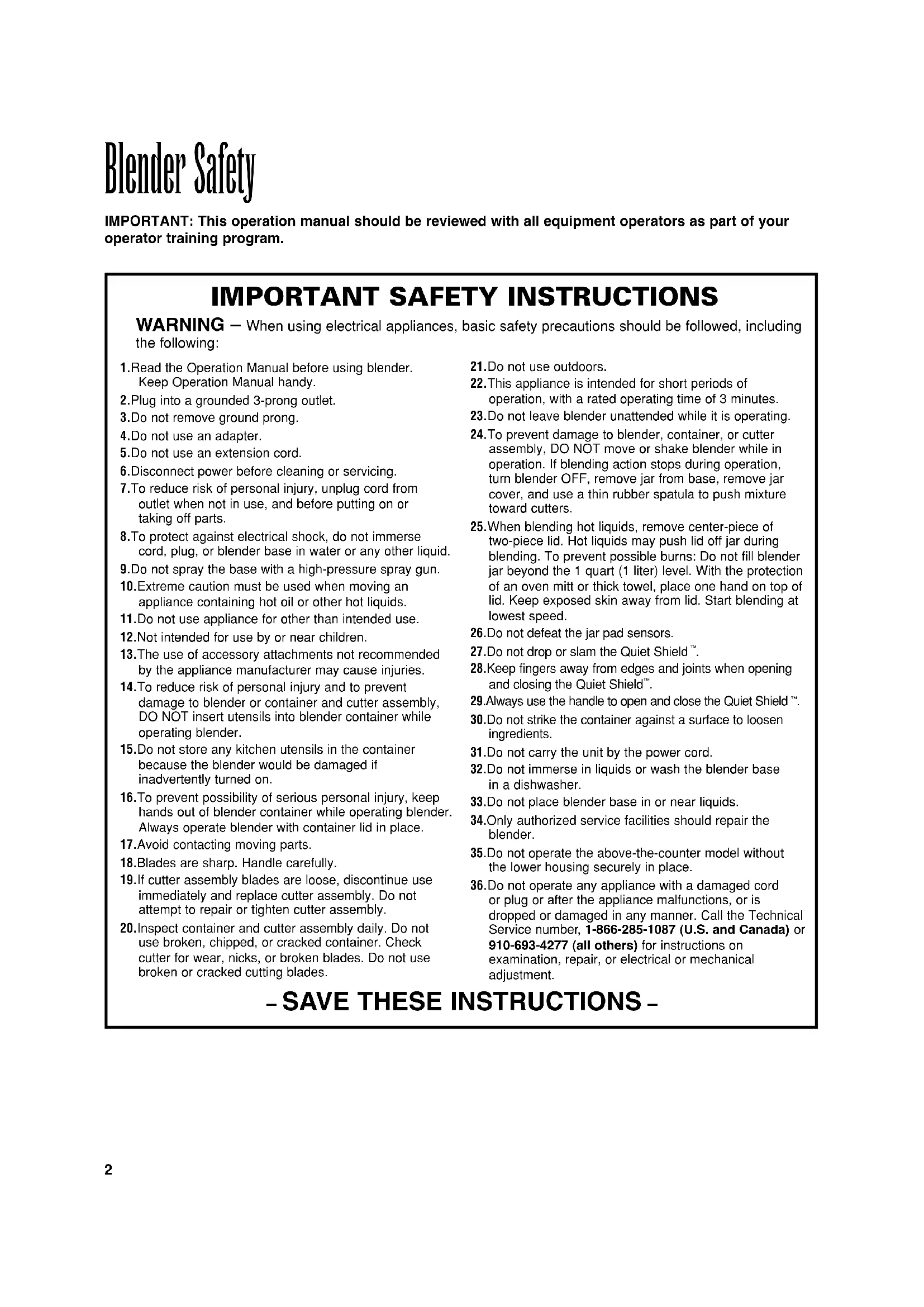

Blender Safety IMPORTANT: This operation manual should be reviewed with all equipment operators as part of your operator training program.

1. Read the Operation Manual before using blender.

Keep Operation Manual handy.

2. Plug into a grounded 3-prong outlet.

3. Do not remove ground prong.

4. Do not use an adapter.

5. Do not use an extension cord.

6. Disconnect power before cleaning or servicing.

7. To reduce risk of personal injury, unplug cord from

outlet when not in use, and before putting on or taking off parts.

8. To protect against electrical shock, do not immerse

cord, plug, or blender base in water or any other liquid.

9. Do not spray the base with a high-pressure spray gun.

10. Extreme caution must be used when moving an

appliance containing hot oil or other hot liquids.

11. Do not use appliance for other than intended use.

12. Not intended for use by or near children.

13. The use of accessory attachments not recommended

by the appliance manufacturer may cause injuries.

14. To reduce risk of personal injury and to prevent

damage to blender or container and cutter assembly, DO NOT insert utensils into blender container while operating blender.

15. Do not store any kitchen utensils in the container

because the blender would be damaged if inadvertently turned on.

16. To prevent possibility of serious personal injury, keep

hands out of blender container while operating blender. Always operate blender with container lid in place.

17. Avoid contacting moving parts.

18. Blades are sharp. Handle carefully.

19. If cutter assembly blades are loose, discontinue use

immediately and replace cutter assembly. Do not attempt to repair or tighten cutter assembly.

20. Inspect container and cutter assembly daily. Do not

use broken, chipped, or cracked container. Check cutter for wear, nicks, or broken blades. Do not use broken or cracked cutting blades.

21. Do not use outdoors.

22. This appliance is intended for short periods of

operation, with a rated operating time of 3 minutes.

23. Do not leave blender unattended while it is operating.

24. To prevent damage to blender, container, or cutter

assembly, DO NOT move or shake blender while in operation. If blending action stops during operation, turn blender OFF, remove jar from base, remove jar cover, and use a thin rubber spatula to push mixture toward cutters.

25. When blending hot liquids, remove center-piece of

two-piece lid. Hot liquids may push lid off jar during blending. To prevent possible burns: Do not fill blender jar beyond the 1 quart (1 liter) level. With the protection of an oven mitt or thick towel, place one hand on top of lid. Keep exposed skin away from lid. Start blending at lowest speed.

26. Do not defeat the jar pad sensors.

28. Keep fingers away from edges and joints when opening

and closing the Quiet Shield

29. Always use the handle to open and close the Quiet Shield

30. Do not strike the container against a surface to loosen

31. Do not carry the unit by the power cord.

32. Do not immerse in liquids or wash the blender base

33. Do not place blender base in or near liquids.

34. Only authorized service facilities should repair the

35. Do not operate the above-the-counter model without

the lower housing securely in place.

36. Do not operate any appliance with a damaged cord

or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Call the Technical Service number, 1-866-285-1087 (U.S. and Canada) or 910-693-4277 (all others) for instructions on examination, repair, or electrical or mechanical adjustment.

IMPORTANT SAFETY INSTRUCTIONS

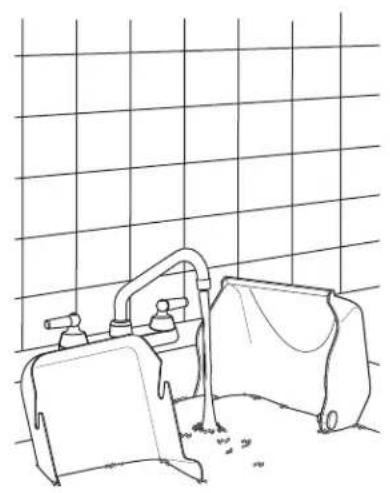

WARNING – When using electrical appliances, basic safety precautions should be followed, including the following:For assistance or replacement parts, call our Technical Service number: 1-866-285-1087 (U.S. and Canada) or 910-693-4277 (all others) 8 a.m. – 5 p.m. EST Monday – Friday www.commercial.hamiltonbeach.com Technical Service Cut Hazard Always place lid on container whenblending.Do not put hands, spoons, or otherutensils in container when blending.Failure to follow these instructions canresult in broken bones, cuts, or otherinjuries. Burn Hazard Always use caution when blendinghot contents.Failure to follow these instructions canresult in burns. Sanitize using 1 tablespoon (15 ml) of household bleach per 1 gallon (3.8 liter) of clean, cool water (60°F/16°C), mixed according to the instructions on the bleach.

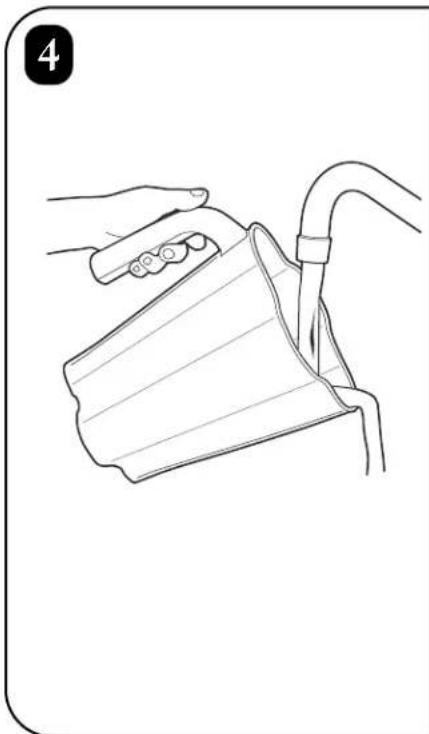

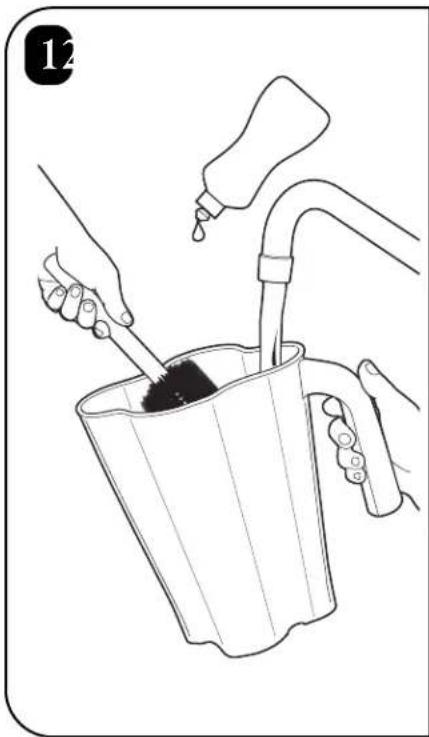

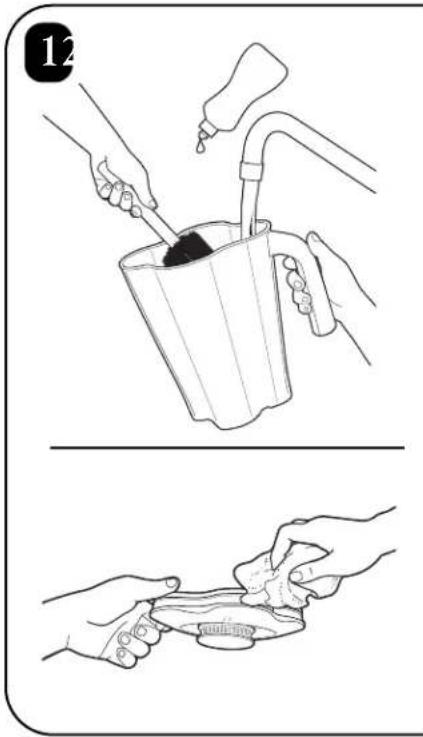

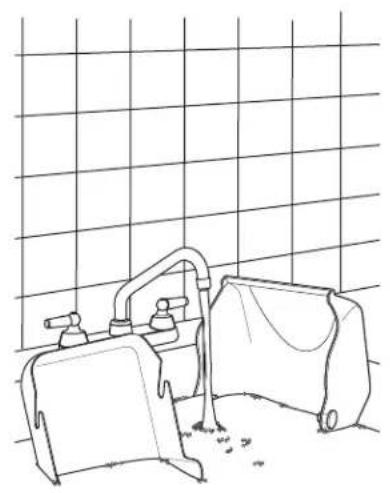

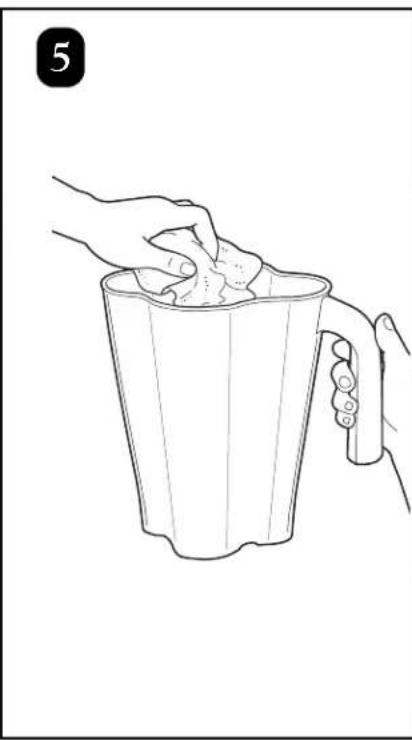

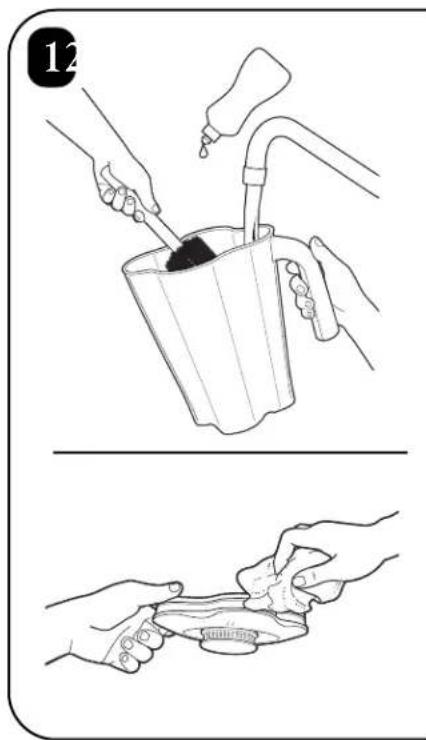

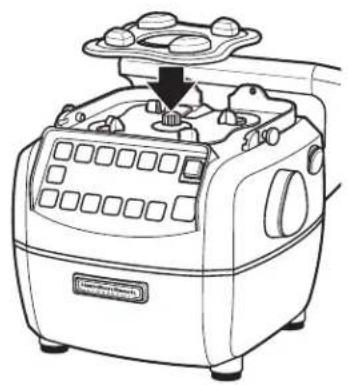

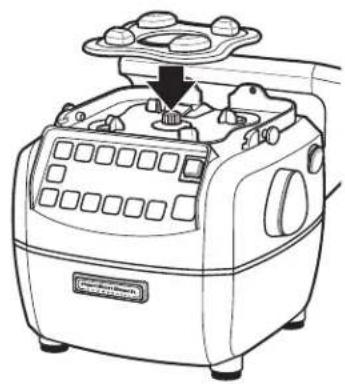

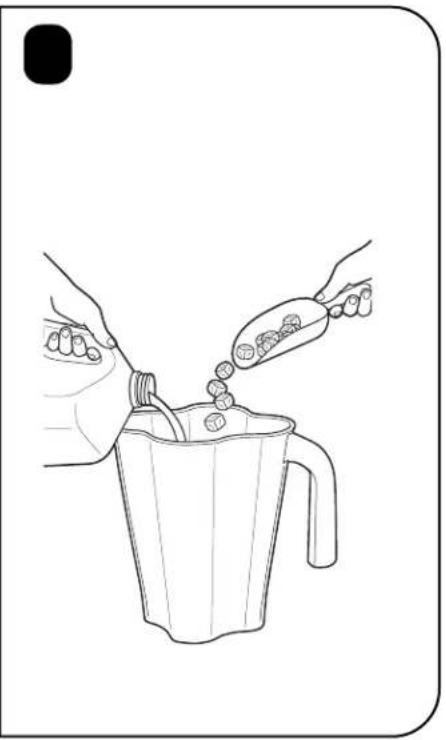

1. Fill container with sanitizing solution, replace lid

and filler cap, and run on LOW speed for 2 minutes. Empty container.

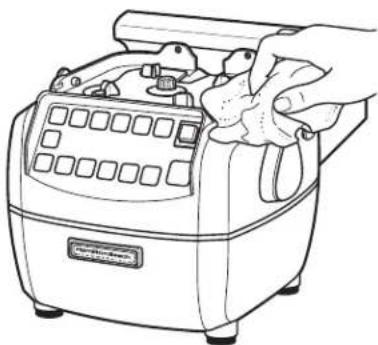

2. Wipe exterior with soft cloth dampened with

sanitizing solution.

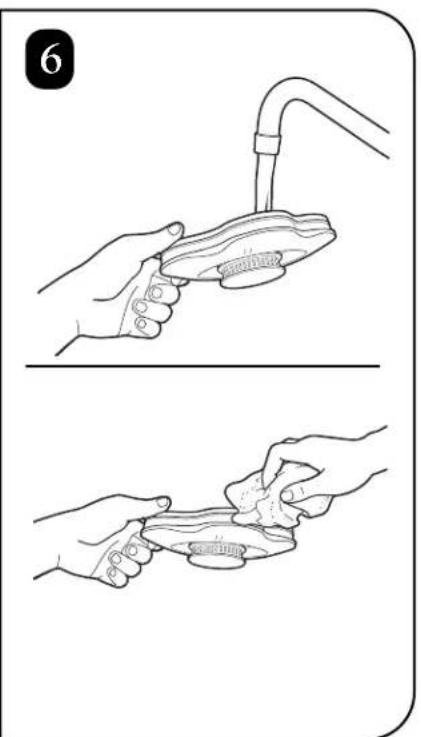

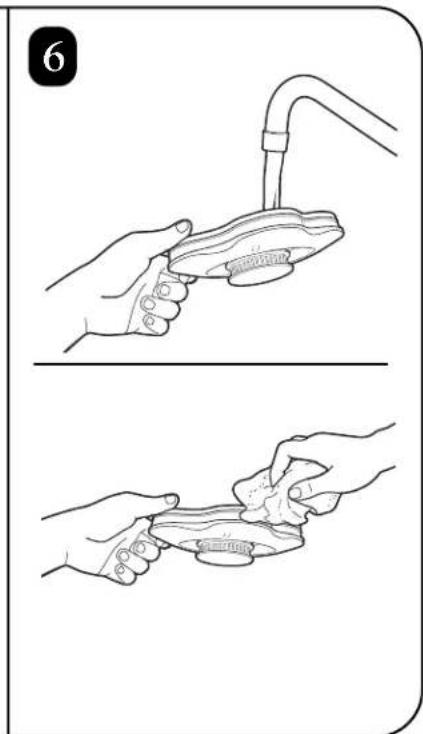

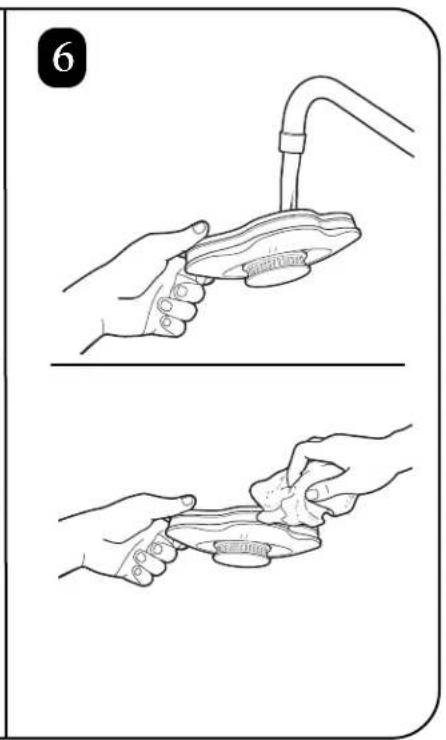

3. Immerse lid and filler cap in sanitizing solution for

4. Place empty container on base and run on HIGH

speed for 2 seconds to remove any moisture from the cutter assembly.

5. When ready to use, rinse with clean water.

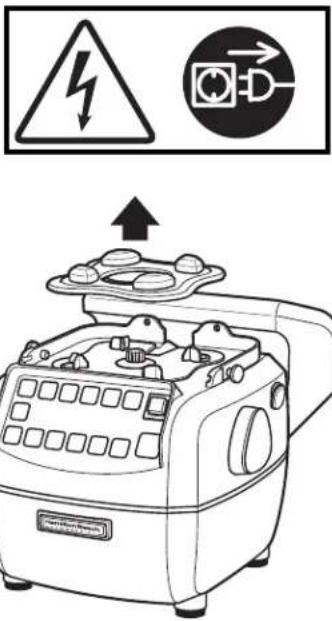

Sanitizing Electrical Shock Hazard Disconnect power beforecleaning blender base.Failure to follow theseinstructions can result indeath or electrical shock. Electrical Shock Hazard Plug into a grounded outlet.Do not remove ground.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions canresult in death, fire, or electrical shock.

Replacement Parts Polycarbonate jar 6126-650 Cutter assembly 98650 Quiet Shield™ sound enclosure QS850 Part Description Part Number The following components are subject to wear and should be replaced at leastyearly. We recommend keeping a replacement container and cutter on hand. Safety Alert Symbols The following safety alert symbols are used throughoutthis manual to alert you to the safety hazards describedbelow.The parts and features for the Summit blenders are shown on this page. Become familiar with all parts and features before using your blender. For questions, call Technical Service at 1-866-285-1087 (U.S. and Canada) or 910-693-4277 (all others) or visit our web site at: www.commercial.hamiltonbeach.com Parts and Features

Jar pad Jar and cutter assembly Jar cover/ filler cap (above counter model) Quiet Shield™ Control panel Sealing gasket USB port Lower base housing Upper base housing Circuit breaker/ reset switch ON (I) / OFF (O) switch (placement may vary on select models) To Load Custom Programs with the USB Port:

1. Turn off and unplug unit.

2. Remove the USB port cover.

4. Plug in unit and turn on.

6. Turn off and unplug unit.

7. Remove USB card and reinstall

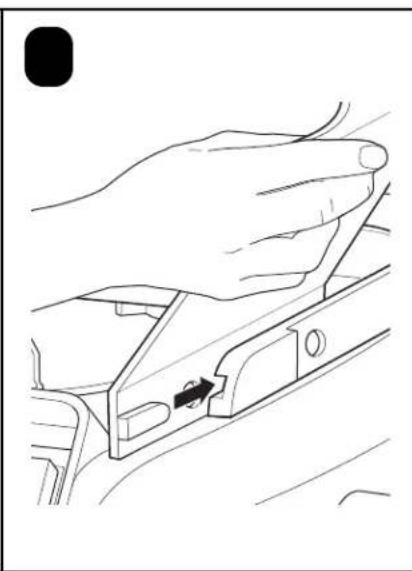

the USB port cover. NOTICE: Ensure the Quiet Shield

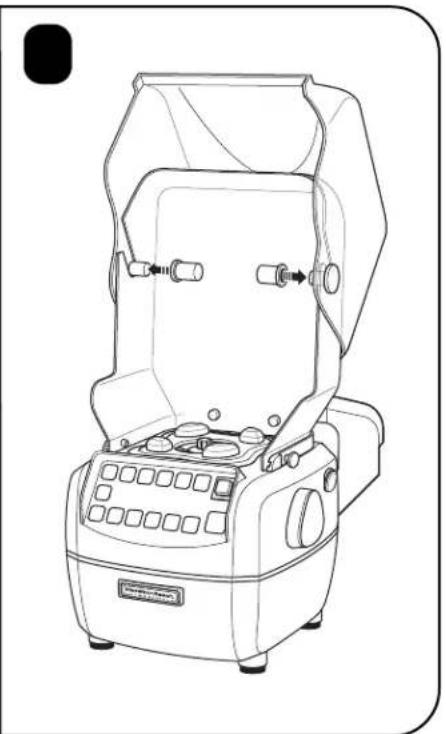

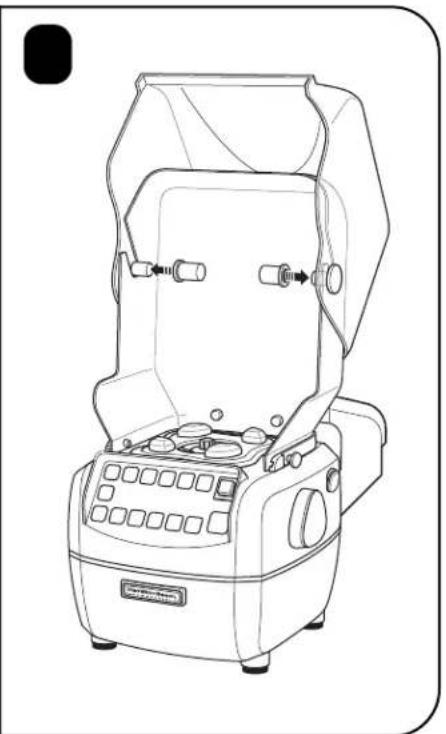

is installed correctly. Breakage can occur if the dovetail joints along the bottom edges of the Quiet Shield

are not properly interlocked with the upper base housing. If the Quiet Shield

installed improperly, thereby resulting in breakage of upper base housing, please call HB Commercial Technical Services at 1-866-285-1087 (U.S. and Canada) or 910-693-4277 (all others) to purchase a repair kit. Thumbscrews120 VAC, 60Hz Power Requirements Use a fused electric outlet for the blender. Depending on the model of your blender, the plug will look like the following to meet power requirements: Groundprong 230 VAC, 50Hz 230 VAC, 50Hz

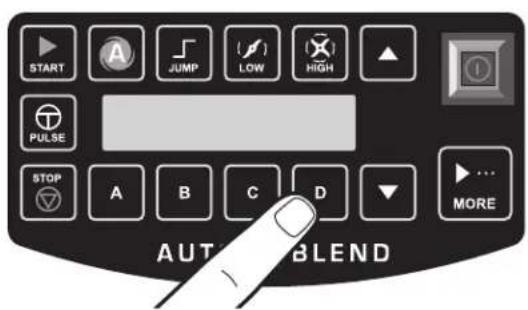

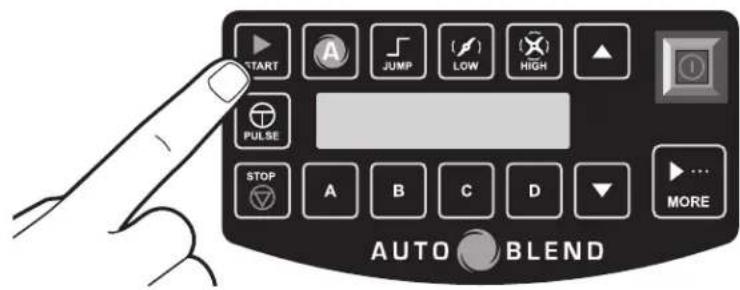

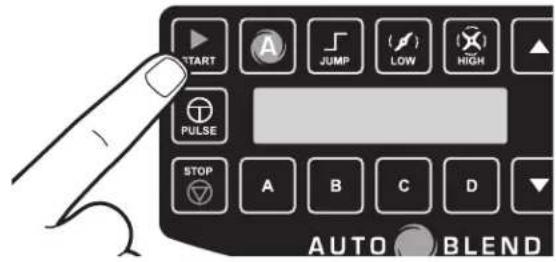

Control Panel STOP button Stops operation of the selected function. Does not shut off power to the blender. Custom cycle buttons A–D Store your favorite cycles and recall them quickly using buttons A–D. START button Starts the selected cycle. Display See the following pages for status messages. UP/DOWN buttons Press the ▲ or ▼ button to scroll through options in the display or to adjust settings.

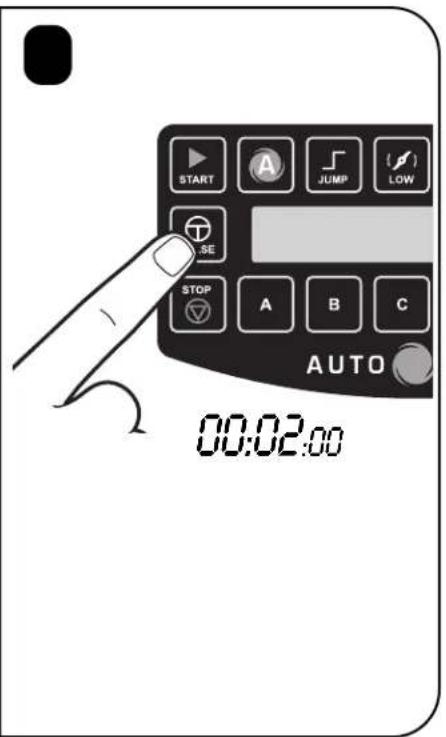

OFF (O) button Turns blender on and off. (May be on side of upper base housing on select models.) PULSE button Press and hold to run the blender at HIGH for short bursts. AUTOBLEND button Blender automatically stops when drink is at the right consistency. JUMP button Blender automatically changes speed from LOW to HIGH during the cycle. LOW/HIGH buttons Use to select the blending speed. MORE Press to display additional text. NOTE: The display will show the last cycle run when not in use. Blender Operation – Quick Start Guide

1. Read Important Safety Instructions and Warning

Symbol Explanations before use.

2. Place the blender on a dry, level surface.

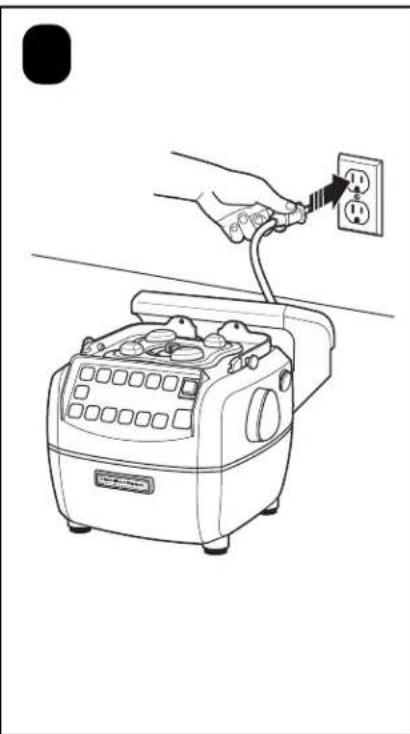

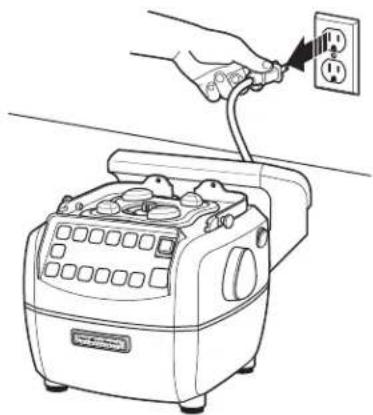

3. Make sure the power switch is OFF (O). Plug the

blender into a grounded 3-prong electrical outlet.

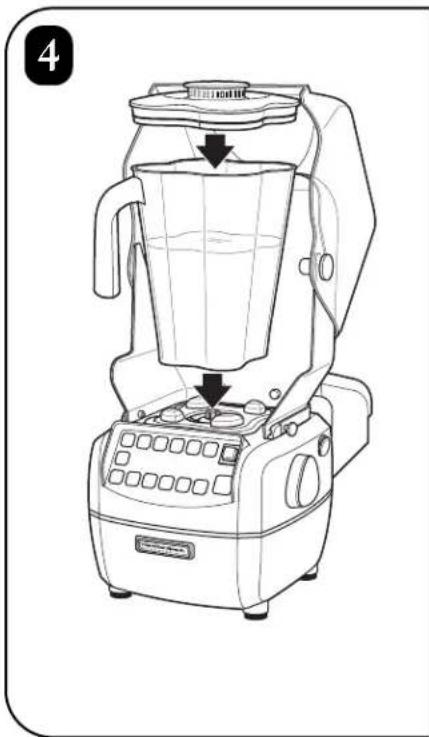

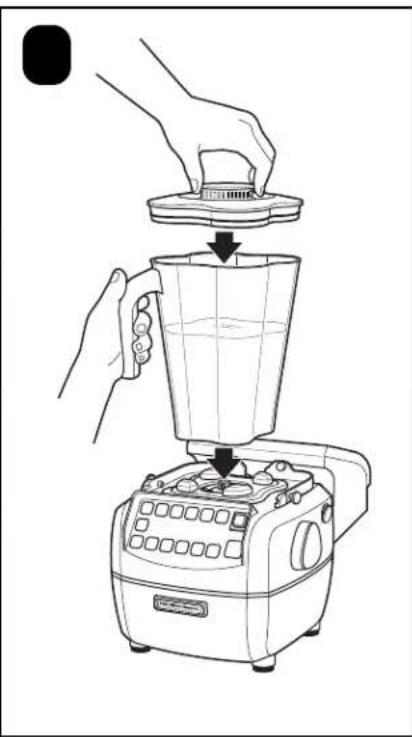

4. Place the container on the base with ingredients and

container lid in place.

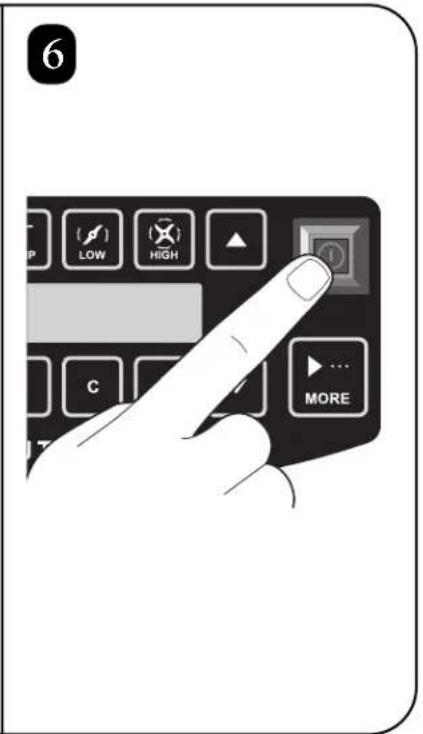

5. Press the Power ON (I)/OFF (O) button to turn the

blender ON (I). The red LED lamp indicates that power is ON (I).

6. Select the desired function (AUTOBLEND, HIGH,

LOW, or JUMP). NOTE: Use the Jump Cycle for automatic speed adjustment from LOW to HIGH during the blending cycle.

is installed correctly. Breakage can occur if the dovetail joints along the bottom edges of the Quiet Shield

are not properly interlocked with the upper base housing. If the Quiet Shield

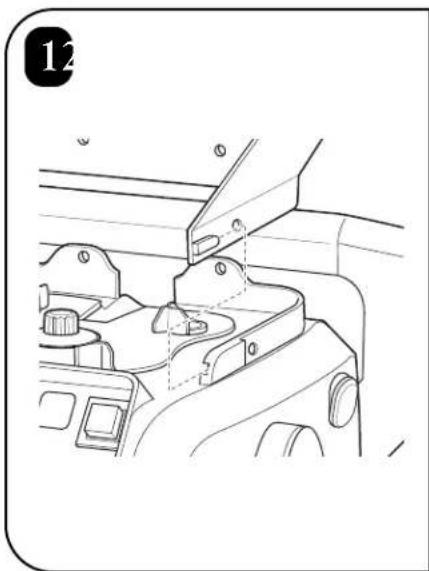

installed improperly, thereby resulting in breakage of upper base housing, please call HB Commercial Technical Services at 1-866-285-1087 (U.S. and Canada) or 910-693-4277 (all others) to purchase a repair kit. Installing the Quiet Shield

In-Counter Installation

18.5” min. (470 mm) 5” min. (127 mm) 6.5” min. (165 mm) 3” min. (78 mm) 3/4” min. (19 mm) 4’ max. (130 cm)9 There are several blending options available, including AUTOBLEND, JUMP cycles, HIGH, or LOW cycles, each with adjustable time settings. You may also store favorite settings for later use with the A, B, C, or D buttons. For quick blending or to “freshen up” a beverage, use the PULSE button. AUTOBLEND 0

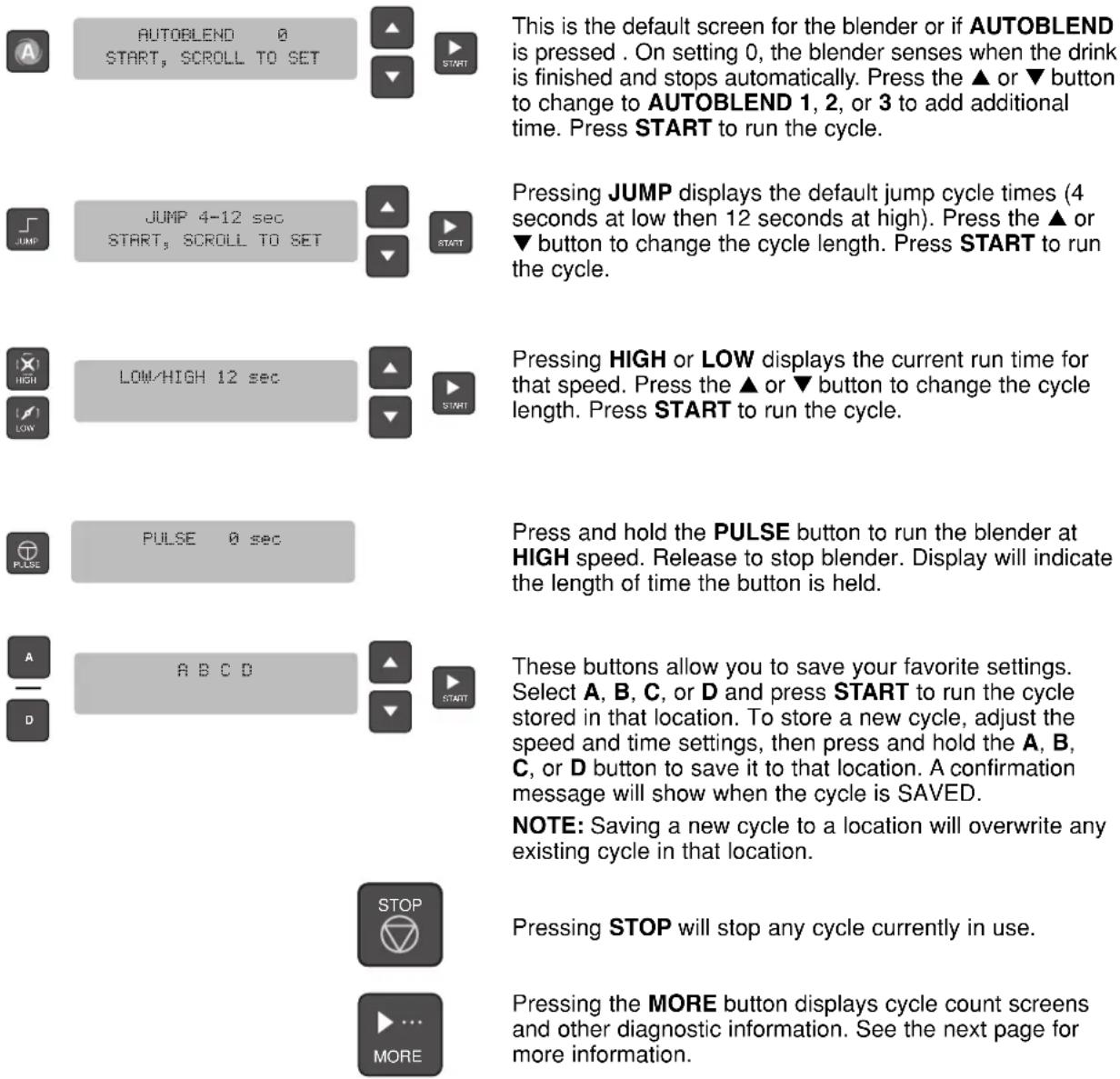

LOW/HIGH 12 sec PULSE 0 sec A B C D This is the default screen for the blender or if AUTOBLEND is pressed . On setting 0, the blender senses when the drink is finished and stops automatically. Press the ▲ or ▼ button to change to AUTOBLEND 1, 2, or 3 to add additional time. Press START to run the cycle. Pressing JUMP displays the default jump cycle times (4 seconds at low then 12 seconds at high). Press the ▲ or ▼ button to change the cycle length. Press START to run the cycle. Pressing HIGH or LOW displays the current run time for that speed. Press the ▲ or ▼ button to change the cycle length. Press START to run the cycle. Press and hold the PULSE button to run the blender at HIGH speed. Release to stop blender. Display will indicate the length of time the button is held. These buttons allow you to save your favorite settings. Select A, B, C, or D and press START to run the cycle stored in that location. To store a new cycle, adjust the speed and time settings, then press and hold the A, B, C, or D button to save it to that location. A confirmation message will show when the cycle is SAVED. NOTE: Saving a new cycle to a location will overwrite any existing cycle in that location. Pressing STOP will stop any cycle currently in use. Pressing the MORE button displays cycle count screens and other diagnostic information. See the next page for more information. Using the Controls STARTSTART JUMP HIGH LOW STARTPULSE

START STOP MORE10 Pressing the MORE button displays cycle count screens and other diagnostic information, and also allows you to access special functions. Use the ▲ or ▼ button to scroll through the options. Press the START button to select that option. Displays the Hamilton Beach Commercial technical service number. Special Control Functions

SPECIAL FUNCTIONS If the blender motor overheats, this message will be displayed to prompt you to run a cool down cycle. Remove the container from the blender and press START. Once the cycle has completed and the motor has cooled to a proper operating temperature, the display will revert to the standby message. Allows you to select and edit the preset cycle for the indicated button. Resets all settings except cycle counts to factory presets. Indicates that there are no stored cycle settings for the indicated button. Displays the total number of cycles into the warranty period. CYCLE COUNTS The display allows you to show the total number of cycles this year, this month, this week, or for the day. Use the ▲ or ▼ button to scroll through the options. Press the START button to select the desired time period to be displayed. You may clear (reset) the number of cycles for any given time frame except the number of cycles into warranty. Use the ▲ or ▼ button to scroll through the options. Press the START button to clear the cycle counts for the desired time period. You may also clear (reset) ALL stored cycle counts except the number of cycles into warranty. Press the START button to select. A confirmation message will be displayed to confirm that you wish to clear all cycle counts.11

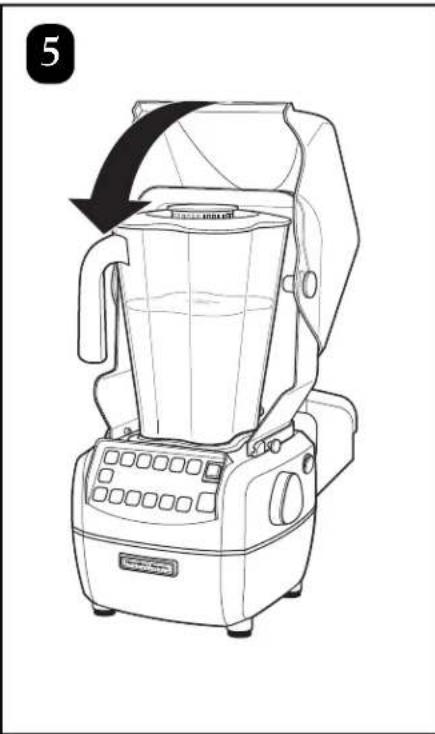

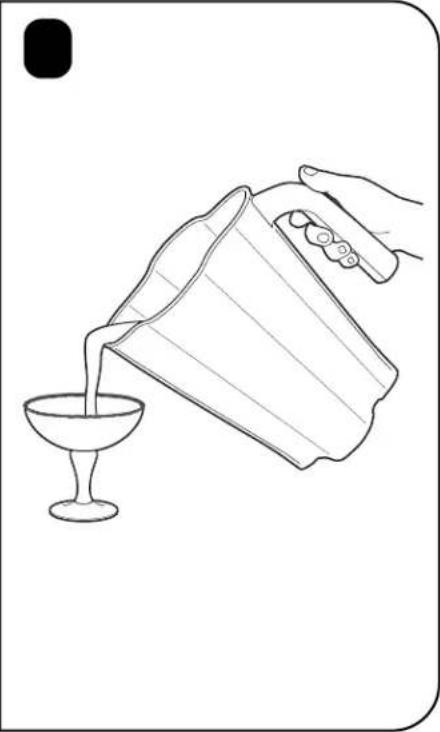

Using the Blender Press and hold PULSE for short bursts. Use the AUTOBLEND cycle for most blending jobs. See USING THE CONTROLS for details on cycles and options.

Using the Blender See USING THE CONTROLS for details on cycles and options. Or use the preprogrammed JUMP, LOW, or HIGH cycles. Press ▲ or ▼ to adjust time.1 2 3

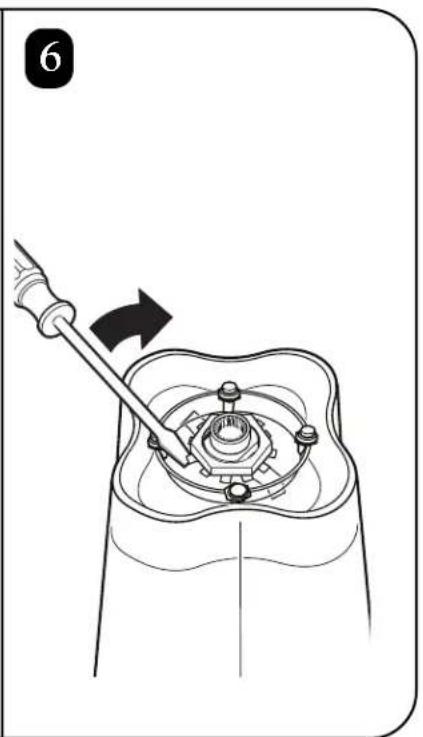

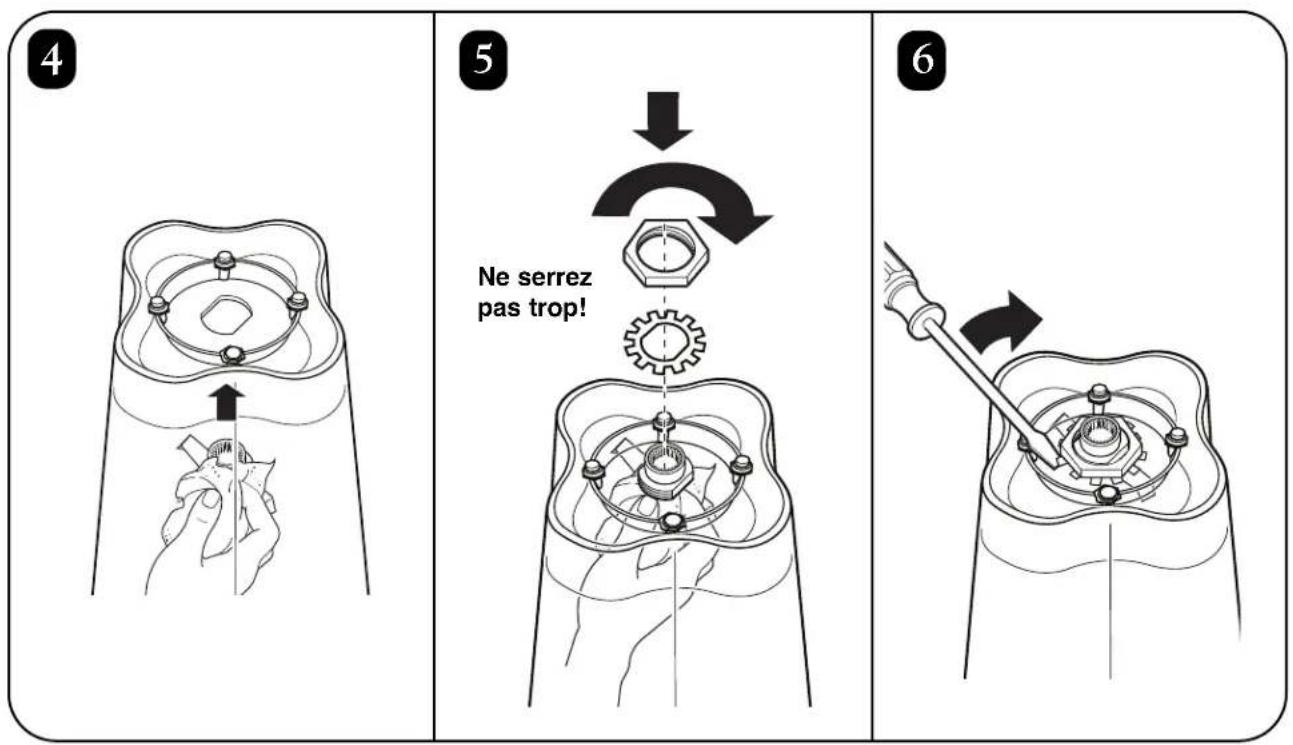

Replacing the Cutter Assembly

Do not overtighten!17 Troubleshooting Guide Problem . . . Solution . . . Blender fails to start or stops while it is running.

• Thermal overload protection has been tripped. Attempt to run “cool down cycle”. Follow instructions in display.

• This blender is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow the blender to cool down for 15 minutes. Plug blender back in after 15 minutes to resume normal operation. Ingredients will not mix properly.

• Check to see if enough liquid has been added to the ingredients. Mixture should be fluid and free-running at all times.

• Solid pieces are too large.

• Container is too full. Do not fill past highest graduation marking.

• Cutter assembly blades are not sharp or are damaged. Inspect container and cutter assembly daily. Replace cutter assembly at least yearly or sooner if cutter assembly appears worn or damaged.

• Check to see if cutter assembly is installed properly.

• Select speed to create a fluid blend. Blender fails to start or stops while it is running, message appears in display.

• Make sure that the jar is seated properly on the blender base.

• Blender will not operate unless jar is properly seated. Blender fails to start or stops while it is running and display is blank.

• Make sure that the main power ON (I)/OFF (O) button is ON (I).

• Check to see if unit is securely plugged into an electrical outlet of the proper voltage and frequency.

• Check to see if the fuse for the electrical outlet has blown or if a circuit breaker has tripped.

• Check the integrated circuit breaker on the left side of the blender base. If it trips again immediately or frequently, contact Technical Service.

• This blender is equipped with motor overload protection. If the motor stops during operation due to overheating, unplug and allow the blender to cool down for 15 minutes. Plug blender back in after 15 minutes to resume normal operation. Unit does not respond to button commands or error message appears in display.

• Turn the power off and back on using the power switch to reset the controls.

• Turn the power off and back on using the power switch. If the error message still appears, the unit will need to be serviced.Product Warranty This Warranty supercedes all other Product Warranties LIMITED WARRANTY This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. If you have a claim under this warranty please contact our TECHNICAL SERVICES DEPARTMENT at 1-866-285-1087 or 910-693-4277. For faster service, locate the model, type, and series numbers on your appliance. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse or misuse. This warranty extends only to the original purchaser. Keep the original sales receipt, as proof of purchase is required to make a warranty claim or the warranty term will be based on the date of manufacture plus one (1) year. We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

Unplug the blender and remove the jar from the base, and then inspect the jar and cutter assembly for wear, nicks, or broken blades. Replace if necessary. If the cutter assembly blades are loose, discontinue use immediately. Do not attempt to repair or tighten the cutter assembly. Refer to “Technical Service” for replacement. Unplug the blender, and then inspect the power cord insulation and power plug for cracks. Inspect sealing gasket for cracking and leaking of fluids under unit. Refer to “Technical Service” for repair or replacement. Replace the jar and cutter assembly at least once a year or sooner if the cutter assembly appears worn or damaged. Inspect the blender and its various parts and replace as follows: Daily Weekly Yearly Maintenance NOTE: Do not operate this blender if it malfunctions or is dropped or damaged in any manner. Return blender to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.19 Hamilton Beach Commercial understands that your foodservice equipment is a crucial element in the profitability of your business. If your equipment breaks down, you would like repair that’s quick, convenient, and dependable. That’s why we provide the Express Care Service Program for this product while it’s under the Product Warranty. You’ll find that it’s better for your bottom line and your peace of mind. Follow these three easy steps for quick, convenient, and dependable ECSP repairs: Step One: Dial 1-866-285-1087 toll-free to speak to a member of our highly trained technical service staff (hours Monday – Friday 8:00 AM – 5:00 PM EST). We will make an initial phone diagnosis. Step Two. If it is determined that minimal on-site maintenance cannot be performed, Hamilton Beach Commercial will ship a replacement product to your location. Step Three: Once the replacement unit is received, you send the troubled unit back to Hamilton Beach Commercial (we’ll provide the box and supporting materials to return the unit). Hamilton Beach Commercial will pay the freight cost for the returned unit. NOTE: The warranty of the replacement unit will be prorated based on the time period remaining on the replaced unit. Two-Year Express Care Service Program* *Available only to end users located in the continental U.S., Alaska, and Hawaii20
