USER MANUAL QNE27JYMFS HAIER

XWF WATER FILTER CARTRIDGE .................................................................................28

PERFORMANCE DATA SHEET. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 LIMITED WARRANTY ............................................................................................ 30 49-60806 Rev. 1 3 ENGLISH TABLE OF CONTENTS4 49-60806 Rev. 1ENGLISH REFRIGERATOR SAFETY CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions. ¿ Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.¿ Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.¿ Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.¿ Do not refreeze frozen foods which have thawed completely.¿ In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.¿ Use a sturdy glass when dispensing ice (on models with ice dispenser WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:¿ This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.¿ Unplug the refrigerator before making repairs or cleaning. NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel. NOTE: Repairs must be performed by a qualified Service Professional.¿ Replace all parts and panels before operating.¿ Do not use an extension cord.¿ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.¿ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.¿ To prevent suffocation and entrapment hazards to children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use.¿ To avoid serious injury or death, children should not stand on, or play in or with the appliance.¿ Children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved.¿ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.¿ Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals). ¿ Do not apply harsh cleaners to the refrigerator. Certain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section for detailed instructions. INSTALLATION WARNING EXPLOSION HAZARD Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in fire, explosion, or death.49-60806 Rev. 1 5ENGLISH

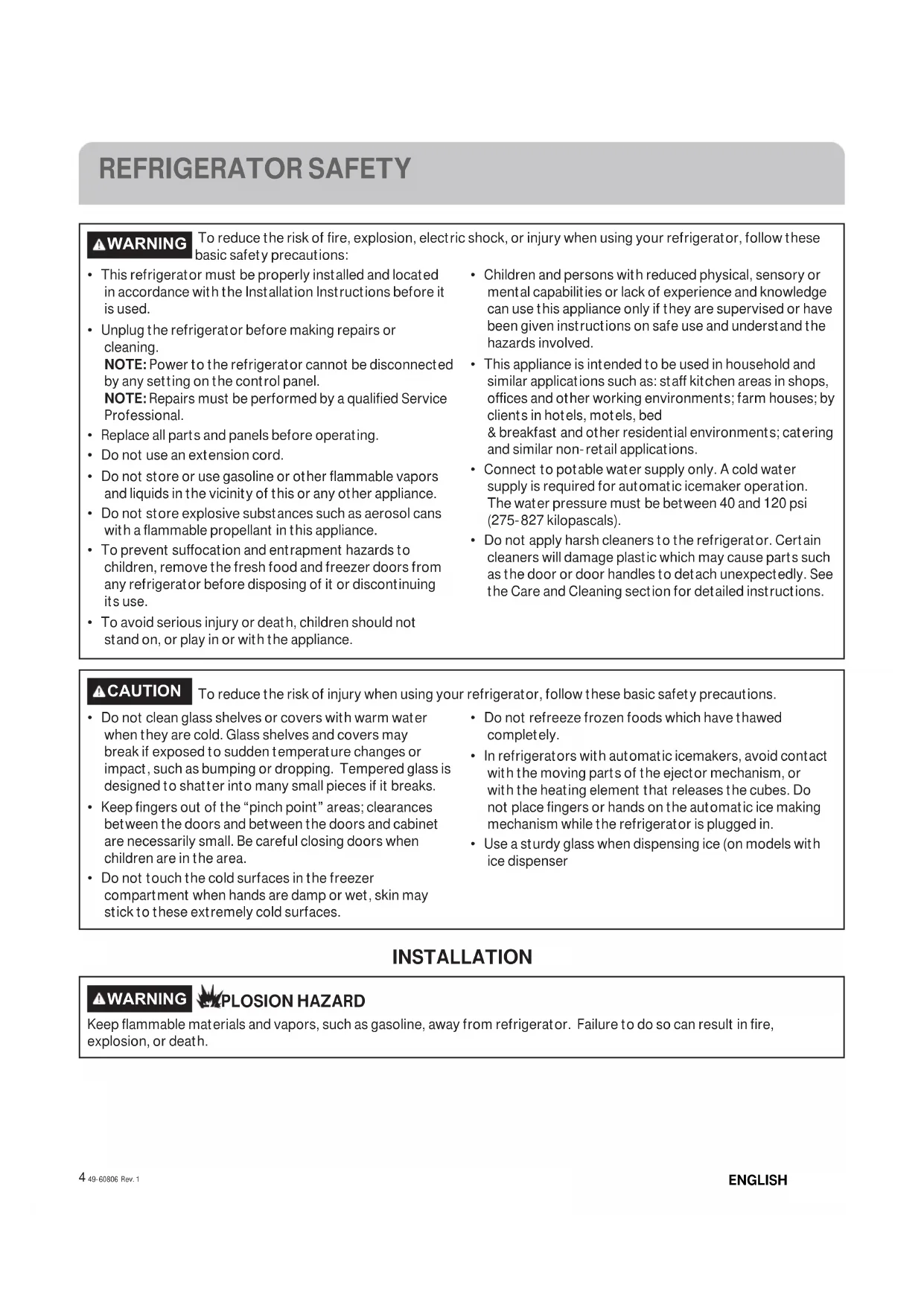

READ AND SAVE THESE INSTRUCTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an authorized service part from the manufacturer.When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. WARNING

ELECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outletDo not remove the ground prongDo not use an adapterDo not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING

SUFFOCATION AND ENTRAPMENT HAZARD

Failure to follow these disposal instructions can result in death or serious injuryIMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old Appliance• Take off the fresh food and freezer doors.• Leave the shelves in place so that children may not easily climb inside. Refrigerant and Foam Disposal: Dispose of appliance in accordance with Federal and Local Regulations. Flammable insulation material used requires special disposal of your appliance. Contact your local authorities for the environmentally safe disposal of your appliance. CONNECTING ELECTRICITY6 49-60806 Rev. 1 ENGLISH

LED lighting LED lights in the fresh food compartment are located at the top center and on the left and right sides of climate zone pans. LED lights are also located in the freezer; see page 24. Full-width drawer A full-width drawer that can accommodate larger items is located at the bottom of the fresh food compartment. QuickSpace™ shelf Functions as a normal full-sized shelf when needed and easily slides back to store tall items below. Removable/adjustable door bins Can be moved up or down to accommodate your needs. Climate zone drawers Separate pans for produce storage. Water filter Accessible for easy replacement.49-60806 Rev. 1 7 ENGLISH INSTALLATION REQUIREMENTS LOCATION REQUIREMENTS IMPORTANT: This refrigerator is designed for indoor, household use only. ¿ Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures. ¿ Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly. ¿ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight. ¿Òñö÷äïïì÷òñäĥòòõö÷õòñêèñòøêë÷òöøóóòõ÷ì÷éøïïüïòäçèç CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. Sides 1/8” (3 mm) Top 1” (25 mm) Cabinet/Hinge Cover Back 2” (50 mm)8 49-60806 Rev. 1ENGLISH

Read these instructions completely and carefully.

IMPORTANT — Observe all governing codes and ordinances. Save these instructions for local inspector’s use.• Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer – Keep these instructions for future reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Refrigerator Installation - 20 minutes Water Line Installation - 30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty. PREPARATION MOVING THE REFRIGERATOR INDOORSIf the refrigerator will not fit through a doorway, the refrigerator door and freezer drawer or door can be removed.• To remove the refrigerator door, see Removing Doors in the Installation Instructions section.• To remove the freezer drawer, see Freezer Drawer in the Installation Instructions section. WATER SUPPLY TO THE ICEMAKER AND DISPENSERThe icemaker will have to be connected to a cold water line. A water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our website at Haierappliances.com or from Parts and Accessories, 877.337.3639 (in Canada, GEAppliances.ca or 800.661.1616).

INSTALLATION INSTRUCTIONS Adjustable Wrench1/4” Outer Diameter Compression Nut and Ferrule (sleeve) (icemaker models only)Phillips-Head Screwdriver qĔ and rĔSocket Ratchet/Driver3/32”, 1/8” & 3/16” Allen WrenchesPencil1/8” Drill Bit and Electric or Hand DrillTape Measure1/4” Nut DriverWire CuttersLevelTorx T20, Driver49-60806 Rev. 1 9 ENGLISH APPLIANCE DIMENSIONS INSTALLATION INSTRUCTIONS 33-13/16”(85.9 cm)48-3/4”(123.8 cm)54-13/16”(139.2 cm)43-3/8”(110.2 cm)43-23/32”(111.1 cm)* 69-7/8”(177.5 cm)36-5/16”(92.2 cm)50-3/16”(127.5 cm) 36” (91.4 cm)155ȋ90ȋ NOTE: * The height of the refrigerator to the top of the door.

Measure width of cabinet opening where refrigerator will be placed, B. Be sure to account for any countertop overhang, baseboard thickness and any clearance desired. Width, B, should not be less than 36” ( 91.4 cm). The refrigerator will be placed approximately in the middle of this opening. Back WallFrontRight Side REFRIGERATOR

Countertop Overhang (Whichever is Larger) Plus Any Desired Clearance10 49-60806 Rev. 1 ENGLISH

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect™ Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). If the water supply to the refrigerator is from a Reverse Øöðòöìöàä÷èõÏìï÷õä÷ìòñÜüö÷èð¤ÛØ¥Ê×Í÷ëèõèéõìêèõä÷òõ äïöòëäöäúä÷èõĤï÷èõøöè÷ëèõèéõìêèõä÷òõđöĤï÷èõåüóäöö óïøêÞöìñê÷ëèõèéõìêèõä÷òõđöúä÷èõĤï÷õä÷ìòñæäõ÷õìçêèìñ æòñíøñæ÷ìòñúì÷ëäñÛØúä÷èõĤï÷èõæäñõèöøï÷ìñëòïïòúìæè æøåèöÜòðèðòçèïöçòñò÷æòðèèôøìóóèçúì÷ë÷ëèĤï÷èõ bypass plug. To obtain a free bypass plug, call 877.337.3639. In Canada call 800.661.1616. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to úä÷èõïèäîäêèòõĥòòçìñêÌäïïäôøäïìĤèçóïøðåèõ÷òæòõõèæ÷ water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.

• Copper or SmartConnect™ Refrigerator Tubing kit, 1/4” outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator ÷ò÷ëèúä÷èõöøóóïüóìóèËèöøõè÷ëèõèìööøĦæìèñ÷èû÷õä tubing to allow the refrigerator to move out from the wall after installation. SmartConnect™ Refrigerator Tubing Kits are available in the following lengths: 6’ (1.8 m) – WX08X10006 15’ (4.6 m) – WX08X10015 25’ (7.6 m) – WX08X10025 NOTE: The only approved plastic tubing is that supplied in SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home. ¬Êúä÷èõöøóóïüîì÷¤æòñ÷äìñìñê÷øåìñêöëø÷òģùäïùèäñç Ĥ÷÷ìñêöïìö÷èçåèïòú¥ìöäùäìïäåïèä÷èû÷õäæòö÷éõòðüòøõ dealer or from Parts and Accessories, 877.337.3639 or go to Haierappliances.com (GEAppliances.ca or 800.661.1616 in Canada).

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (138-827 kPa).

• 1/2” or adjustable wrench.

• Straight and Phillips blade screwdriver.

• If you are using a SmartConnect™ Refrigerator Tubing kit, ÷ëèñèæèööäõüĤ÷÷ìñêöäõèóõèäööèðåïèç÷ò÷ëè÷øåìñê ¬Òéüòøõèûìö÷ìñêæòóóèõúä÷èõïìñèëäöäĥäõèçĤ÷÷ìñêä÷÷ëè end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR üòøæäñæø÷òģ÷ëèĥäõèçĤ÷÷ìñêúì÷ëä÷øåèæø÷÷èõäñç÷ëèñ øöèäæòðóõèööìòñĤ÷÷ìñêÍòñò÷æø÷éòõðèçèñçéõòð SmartConnect™ Refrigerator tubing. ¬Üëø÷òģùäïùè÷òæòññèæ÷÷ò÷ëèæòïçúä÷èõïìñèÝëèöëø÷òģ valve should have a water inlet with a minimum inside diameter of 5/32” at the point of connection to the COLD àÊÝÎÛÕÒ×ÎÜäççïè¡÷üóèöëø÷òģùäïùèöäõèìñæïøçèçìñ many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. INSTALLATION INSTRUCTIONS WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)49-60806 Rev. 1 11 ENGLISH INSTALLATION INSTRUCTIONS INSTALLING THE WATER LINE (Cont.) Install the shutoff valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to äùòìççõäúìñêòģäñüöèçìðèñ÷éõòð the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4” hole in the water pipe (even if using a self- piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4” hole may result in reduced ice production or smaller cubes.

4. FASTEN THE SHUTOFF VALVE

Ïäö÷èñ÷ëèöëø÷òģùäïùè÷ò÷ëèæòïçúä÷èõóìóèúì÷ë÷ëè pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not over tighten or you may crush the tubing.

Route the tubing between the cold water line and the refrigerator. Ûòø÷è÷ëè÷øåìñê÷ëõòøêëäëòïèçõìïïèçìñ÷ëèúäïïòõĥòòõ (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

7. FASTEN THE SHUTOFF VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing äñçæòññèæ÷ì÷÷ò÷ëèöëø÷òģùäïùè Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a SmartConnect™ Refrigerator Tubing kit, insert the molded end òé÷ëè÷øåìñêìñ÷ò÷ëèöëø÷òģùäïùèäñç÷ìêë÷èñ compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tubing12 49-60806 Rev. 1ENGLISH

1. REMOVING DOORS (Right)

A. Remove the hinge cover on top of the right fresh food door by removing the screw using a Phillips screwdriver. B. Using a 5/16” socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Lift the hinge support straight up to free the hinge pin from the socket in the top of the door. C. Remove the tape from the right door and tilt the door äúäüéõòð÷ëèæäåìñè÷Õìé÷÷ëèçòòõòģ÷ëèæèñ÷èõëìñêè pin. D. Set the door on a non-scratching surface with the inside up.

2. REMOVING DOORS (Left)

A. Remove the hinge cover on top of the left fresh food door by removing the screw using a Phillips screwdriver. B. Unplug the 3 wire connectors and move the wires until you can see the screws holding the hinge. C. Using a 5/16” socket/ratchet driver, remove the bolts securing the top hinge to the cabinet. IMPORTANT NOTES When removing french doors:• Read the instructions all the way through before starting.• Place the screws by their related parts to avoid using them in the wrong places.• Provide a non-scratching work surface for the doors.Tape the doors shut with adhesive tape. INSTALLATION INSTRUCTIONS CAUTION Lifting Hazard. Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.NOTE: When moving door, to prevent damage to door and electronics carefully place the door in a proper location. WARNING To eliminate the risk of electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.Wire ConnectorsBolts WARNING Follow all steps. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. ÛÎÏÛÒÐÎÛÊÝØÛÕØÌÊÝÒØ×

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.• Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.• Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections.Sides 1/8” (3 mm)Top 1” (25 mm) Cabinet/Hinge CoverBack 2” (50 mm)

INSTALLING THE REFRIGERATOR - FRENCH DOORS

Wire Connectors49-60806 Rev. 1 13ENGLISH INSTALLATION INSTRUCTIONS

D. Lift the hinge straight up to free the hinge pin from the socket in the top of the door and pass the wire through the slot in the hinge. E. Remove the tape from the door, open the door 90 degrees äñç÷ìï÷÷ëèçòòõäúäüéõòð÷ëèæäåìñè÷Õìé÷÷ëèçòòõòģthe center hinge pin. F. Set the door on a non-scratching surface with the inside up.

3. REMOVING CENTER HINGES AND

BRACKETS A. Using a 1/4” Allen wrench, remove the 2 hinge pins from the hinge brackets. B. Using a 5/16” socket/ratchet driver, remove the bolts securing the center hinge brackets to the cabinet. REINSTALLING DOORS ÒÖÙØÛÝÊ×Ý×ØÝÎÜ When replacing french doors:• Read the instructions all the way through before starting.

1. REINSTALLING CENTER HINGE BRACKETS

AND HINGES A. Using a 5/16” socket/ratchet driver, reinstall the bolts and center hinge brackets to the cabinet. B. Using a 1/4” Allen wrench, reinstall the 2 hinge pins into the hinge brackets.CAUTION Lifting Hazard. Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.NOTE: When moving door, to prevent damage to door and electronics carefully place the door in a proper location. WARNING To eliminate the risk of electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock. WARNING Follow all steps. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.14 49-60806 Rev. 1 ENGLISH INSTALLING THE REFRIGERATOR - FRENCH DOORS (Cont.)

2. REHANGING THE RIGHT DOOR

A. Lower the refrigerator door onto the right hinge pin. B. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with bolts removed earlier. C. Öäîèöøõè÷ëèêäöîè÷òñ÷ëèçòòõìöĥøöëäêäìñö÷÷ëè cabinet and is not folded. Tighten the bolts to 60 lb/ in.(6.78 Nm). D. Replace the right hinge cover on top of the refrigerator using a Phillips screwdriver.

3. REHANGING THE LEFT DOOR

A. Pass the wire through the slot in the hinge. Place the hinge pin into the top of the door. B. Lower the refrigerator door onto the left hinge pin. C. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with bolts removed earlier. D. Öäîèöøõè÷ëèêäöîè÷òñ÷ëèçòòõìöĥøöëäêäìñö÷÷ëè cabinet and is not folded. Tighten the bolts to 60 lb/in. (6.78 Nm). E. Plug the wire connectors together and rout the wire inside the plastic port. F. Replace the left hinge cover on top of the refrigerator using a Phillips screwdriver. INSTALLATION INSTRUCTIONS Wire Connectors Wire Connectors49-60806 Rev. 1 15 ENGLISH INSTALLATION INSTRUCTIONS

• Read the instructions all the way through before starting.

• Provide a non-scratching work surface for the doors.

1. REMOVE THE BASKETS

A. Open the freezer drawer until it stops. B. Pull the top basket out until it stops. Lift the basket up on the front and out to remove. C. The lower basket rests on a frame inside the freezer drawer. Lift the front of the basket and pull it forward. Release the pins from the slots on the frame to remove the basket.

2. REMOVE THE DRAWER FRONT

A. Remove the screw on each side of the railing. B. Lift up on both sides of the freezer drawer handle to separate the drawer railings from the rail assemblies. C. Set the drawer front on a non-scratching surface. D. Push the rail assemblies back into locking position. ScrewDrawer Assembly Rail Assembly16 49-60806 Rev. 1 ENGLISH INSTALLATION INSTRUCTIONS INSTALLING THE REFRIGERATOR - FREEZER DRAWER (Cont.) (on some models)

3. REINSTALL FREEZER DRAWER FRONT

A. Pull the rail assemblies to the maximum extension. B. Locate the slots on the inside of each slide. C. I nsert the hooks on the ends of the drawer assembly extensions into the slots near the back of the slides. D. Lower the front end of the freezer drawer assembly öò÷ëèöìçè÷äåöĤ÷ìñ÷ò÷ëèéõòñ÷öïò÷öòñ÷ëèõäìï assemblies. E. Replace the safety screws in both sides of the slide assemblies. F. Replace lower and upper baskets (see Freezer Drawer).

REFRIGERATOR SUGGESTED ASSEMBLY

Shelves shown in the location for best energy efficiency. Hook Slot Side Tab Front Slot QNE27J 27 cuft. Models French Door with Freezer Drawer49-60806 Rev. 1 17 ENGLISH

CONNECTING TO THE HOUSE

WATER LINE A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section. NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet. ¬Òéüòøõõèéõìêèõä÷òõçòèöñò÷ëäùèäúä÷èõĤï÷èõúè recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using SmartConnect™ Refrigerator Tubing Kit, you will need äñäççì÷ìòñäï÷øåè¤àá (á! "¥÷òæòññèæ÷÷ëèĤï÷èõÍò ñò÷æø÷óïäö÷ìæ÷øåè÷òìñö÷äïïĤï÷èõ

• Before connecting the water line to the house, purge the house line for at least 2 minutes. A. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the SmartConnect™ tubing, the nuts are already assembled to the tubing. B. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, ÷ìêë÷èñ÷ëèĤ÷÷ìñê If you are using SmartConnect™ tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks. WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals). WARNING

On models with an icemaker, before plugging in the refrigerator, make sure the ìæèðäîèõóòúèõöúì÷æëìööè÷÷ò÷ëè ¤òģ¥ position. See the grounding information attached to the power cord.

Adjustable legs at the front corners of the refrigerator should be set so ÷ëèõèéõìêèõä÷òõìöĤõðïüóòöì÷ìòñèç òñ÷ëèĥòòõäñç÷ëèéõòñ÷ìöõäìöèç just enough that the door closes easily when opened about halfway. To adjust the leveling legs, turn the legs clockwise to raise the refrigerator, counterclockwise to lower it.

LEVEL THE REFRIGERATOR DOORS

Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. If the doors remain uneven, turn the adjustable pin to raise the lowest door using a 1/4” allen wrench to turn the pin. INSTALLATION INSTRUCTIONS SmartConnect™ tubingRefrigerator connectionWhen the left door is lower than the right door.When the left door is higher than the right door.Adjustment point18 49-60806 Rev. 1 ENGLISH REFRIGERATOR USE CONTROLS Freezer Compartment Temperature Control Adjust freezer compartment temperature. The freezer temperature is preset in the factory at 0°F (-17.8°C). Allow 24 hours for temperature to stabilize to the preset recommended setting. Fresh Food Compartment Temperature Control Adjust fresh food compartment temperature. The fresh food temperature is preset in the factory at 37°F (2.8°C). Allow 24 hours for temperature to stabilize to the preset recommended setting. Water Filter Press and hold 3 seconds to reset the Water Filter. Turbo Cool To set the TurboCool™, press the Turbo Cool pad for 3 seconds. The display will show tc. TurboCool™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool™ when adding a large amount of the food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature, or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period. NOTE: The refrigerator temperature cannot be changed during TurboCool™. The freezer temperature is not affected during Turbo Cool. When opening the refrigerator door during TurboCool™, the fans will continue to run if they have cycled on. Door Alarm To set the alarm, press the Door Alarm pad. This alarm will sound if either door is open for more than 2 minutes. The beeping stops when you close the door. NOTE: To put the refrigerator control in the OFF position, simultaneously touch the words Freezer and Fridge for 3 seconds. Power to the refrigerator cannot be disconnected by any setting on the control panel. Changing °F to °C or °C to °F: Press and hold the "DOOR ALARM" and "FREEZER" buttons simultaneously for 5 seconds to set °C to °F or °F to °C. SABBATH MODE Press and hold the “DOOR ALARM” and “WATER FILTER” buttons simultaneously for 5 seconds to enter/exit Sabbath Mode. Activate Sabbath Mode to turn off interior lights, temperature control and advanced features. Compressor will run on a timed defrost when in Sabbath mode.

INTERNAL WATER DISPENSER

The water dispenser is located on the left wall inside the refrigerator compartment. To dispense water:

1. Hold the glass against the recess.

dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released. If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser button for at least 5 minutes to remove trapped air from the water line and to fill the water system. During this process, the dispenser noise may be loud as the air is purged from the water line system. To flush out impurities in the water line, throw away the first 6 glassfuls of water. NOTE: To avoid water deposits, the dispenser should be cleaned periodically by wiping with a clean cloth or sponge.49-60806 Rev. 1 19ENGLISH REFRIGERATOR USE

WATER FILTER CARTRIDGE HOLDER

The water filter cartridge holder is located in the back upper-right corner of the fresh food refrigerator compartment.

WHEN TO REPLACE THE FILTER

If there is a replacement indicator light for the water filter cartridge on the dispenser, the red filter light will start blinking to tell you that you need to replace the filter soon. The filter light will blink while the door is open until the filter is replaced.The filter cartridge should be replaced every six months, or earlier if the flow of water to the dispenser or icemaker decreases.

If you are replacing the filter, first remove the previous one: 1. Open the filter cartridge housing by squeezing the 2 front tabs and gently pulling down. 2. Rotate the filter down.3. Gently grasp the filter and slowly turn it counterclockwise about a ¼ turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down. CAUTION If air has been trapped in the system, the filter cartridge may be ejected as it is removed. Use caution when removing.

To reduce the risk of property damage due to water leakage, you MUST use the filter bypass plug when a replacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 877.337.3639 or go to Haierparts.com. GEAppliances.ca or call 800.661.1616 in Canada. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge. INSTALLING THE FILTER IN A BOTTOM FREEZER REFRIGERATOR 1. Open the filter cartridge housing by squeezing the 2 front tabs and gently pulling down. 2. Line up the ports on the filter with the ports on the filter cartridge holder, and gently insert the filter.3. Slowly turn the filter to the right until it stops. DO NOT OVERTIGHTEN. As you turn the filter, it will automatically adjust itself into position. The filter will move about a ¼ turn or 90 degrees, until the arrow on the filter aligns with the arrow on the filter cartridge holder. Slowly push the filter up into the clips.5. Close the filter cartridge housing by gently pushing the lid upwards until the tabs lock into place. 6. Run water from the dispenser for 2 gallons (7.6 liters) or approximately 5 minutes to clear the system. Water may spurt out and air bubbles may be visible during this process. If water is not flowing, check to make sure the filter has been fully rotated to the right.7. Press and hold the WATER FILTER pad on the dispenser for three seconds to reset water filter.Service Flow 0.5 gpm (1.89 lpm)Water Supply Potable WaterWater Pressure 25-120 psi (172-827 kPa)Water Temperature 33°F-100°F (0.6°C-38°C)Capacity 170 gallons (643.5 liters)Sign-up for TEXT REMINDERS by texting REPLACE to 70543. WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs. For the maximum benefit of your filtration system, Haier recommends the use of GE Appliances-branded filters only. Using GE Appliances-branded filters in Haier refrigerators provides optimal performance and reliability. GE Appliances filters meet rigorous industry standards for safety and quality that are important for products that are filtering your water. Haier has not qualified non-GE Appliances-branded filters for use in Haier refrigerators and there is no assurance that non-GE Appliances- branded filters meet Haier standards for quality, performance and reliability.If you have questions, or to order additional filter cartridges, visit our website at HaierParts.com or call Haier at 877.337.3639. (In Canada, GEAppliances.ca or call 800.661.1616) Application Guidelines/Water Supply20 49-60806 Rev. 1 ENGLISH REFRIGERATOR USE

Not all features are on all models.

REARRANGING THE REFRIGERATOR

SHELVES Shelves in the refrigerator compartment are adjustable. To remove the shelves:

1. Remove all items from the

2. Tilt the shelf up at the front.

3. Lift the shelf up at the back

and bring the shelf out. To replace the shelves:

1. While tilting the shelf up, insert the top

hook at the back of the shelf in a slot on the track.

2. Lower the front of the shelf until the

bottom of the shelf locks into place.

This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated. NOTE: The back half of the Quick Space Shelf is not adjustable. PANS Not all features are on all models.

Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. To remove pan: Slide the pan out to the stop position, lift the pan up and past the stop position and pull forward.

1. Pull the pan out to the stop position.

2. Lift the front of the drawer up and out.

1. Place back of the drawer in first and rotate drawer front

down to seat it on the slides.

2. Push the drawer in to the closed position.

HOW TO REMOVE AND REPLACE DRAWER

DIVIDER To remove pan:

1. Pull the drawer out to the stop position.

2. Slide pan divider to right to release it from pan.

To replace: Reverse steps 1 and 2 to replace drawer divider.

ADJUSTABLE DOOR BINS

To remove: Lift the bin straight up; then pull out. To replace: Engage the bin in the molded supports on the door and push down to lock in place.49-60806 Rev. 1 21 ENGLISH

This pan can be moved to the most useful location for your family’s needs. To remove, slide the pan out to the stop position, lift the pan up and past the stop position and lift it out. REFRIGERATOR USE FREEZER DRAWER Not all features are on all models. FREEZER BASKETS

1. An ice bucket in the top basket

3. A bottom full-width basket (with

divider - in some models). NOTE: Do not fill baskets higher than the rim of the basket. This may cause baskets to stick or jam when opening or closing.

1. Pull the basket out to the stop location.

2. Lift basket up to release it from the slides.

When replacing the basket, make sure that the basket remains mounted on the side rails and over the slides of the bottom basket. NOTE: Always be sure to fully close this basket. Appearance and features may vary

Ice Bucket (on some models)Top BasketTop Basket DividerBottom BasketLED lights are located on both sides of the freezer22 49-60806 Rev. 1 ENGLISH REFRIGERATOR USE AUTOMATIC ICEMAKER A newly installed refrigerator may take 12 to 24 hours to begin making ice. The icemaker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions. If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the OFF position. When the refrigerator has been connected to the water supply, set the power switch to the ON position. The icemaker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes. You may hear a buzzing sound each time the icemaker fills with water. Throw away the first few batches of ice to allow the water line to clear. Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. There is ice storage in the freezer compartment located on the left side of the upper basket. Pull the upper basket forward to remove the ice bucket.

1. Open the bottom freezer drawer until it stops.

2. Remove the top freezer basket.

3. The bottom freezer basket rests on the inside tabs on the

4. Lift the front of the basket and pull forward.

5. Release the pin from the slot to remove the basket.

When replacing the bottom full-width basket, tilt the basket back and lower it into the drawer. Rotate the basket to a horizontal position and press down. Make sure to place the pin back into the slot. NOTE: Always be sure that the basket is seated on the bracket tabs before sliding the drawer back into the freezer. IcemakerFeeler ArmPower SwitchGreen Power Light CAUTION To minimize the risk of personal injury, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. Ice bucket49-60806 Rev. 1 23 ENGLISH REFRIGERATOR CARE

Soft, clean cloth or sponge ÖìæõòĤåèõæïò÷ë Abrasive cloths, paper towels, scrubbing sponges (with or without soap), scouring or steel wool pads Mild detergent mixed with warm water Abrasive powders or sprays Window sprays, ammonia, or bleach Citrus or plant oil-based cleaners Acidic or vinegar-based cleaners Oven cleaners Alkaline cleaners Stainless steel cleaners

Soft, clean cloth or sponge Abrasive cloths, scrubbing sponges (with or without soap), scouring or steel wool pads Mild detergent mixed with warm water Approved stainless steel cleaners; Visit the Haier Appliances parts store for approved stainless steel cleaners: Haierappliances.com. or call 877.337.3639. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ can be used to remove surface rust, tarnish and small blemishes on stainless steel surfaces only. Abrasive powders or sprays Window Sprays or Ammonia Citrus or plant oil-based cleaners Acidic or vinegar-based cleaners Oven cleaners Cleaners containing acetone (propanone) Any cleaner with WARNING about plastic contact NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle hardware and liners. If unintentional contact of cleaners with plastic parts does occur, clean plastic part with a sponge and mild detergent mixed with warm water. STAINLESS STEEL - Outside surfaces, door handles, and trim BLACK STAINLESS - Outside surfaces, door handles, and trim DO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: The use of incorrect products may damage the outer finish of Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your appliance surfaces. Ɣ Clean interior/exterior surfaces with warm water, mild soap or detergent, and a soft or microfiber cloth to avoid damage. Ɣ Wipe the appliance surface dry with a soft clean cloth or microfiber towel to avoid streaking or water spotting.24 49-60806 Rev. 1 ENGLISH

Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use an appliance wax polish on the inside surface between the doors. Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

BEHIND THE REFRIGERATOR

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Raise the leveling legs located at the bottom front of the refrigerator. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. Lower the leveling legs until they touch the floor. When pushing the refrigerator back, make sure you don’t roll over the power cord or water supply line.

PREPARING FOR VACATION

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. If the temperature can drop below freezing, have a qualified service technician drain the water supply system to prevent serious property damage due to flooding.

3) Turn water supply off

If you cut the water supply off, turn off the icemaker (pg. 23). Upon returning from vacation, replace the water filter.

Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage. When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving.

REPLACING THE LIGHTS

There is LED lighting in the fresh food compartment at the top center and on the left and right sides above the climate zone pans on the french door models. LED lights are also located at the top of the left and right sides of the freezer. An authorized technician will need to replace the LED light. If this assembly needs to be replaced, call service at

877.337.3639 in the United States or 877.470.9174 in

Canada. REFRIGERATOR CARE CAUTION Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks. LEDs (locations may vary by model)49-60806 Rev. 1 25 ENGLISH TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call.

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Refrigerator does not operate Refrigerator in defrost cycle. Wait about 30 minutes for defrost cycle to end. Controls set to OFF. Set the controls to a lower temperature setting. Refrigerator is unplugged. Push the plug completely into the outlet. The fuse is blown/circuit breaker is tripped. Replace fuse or reset the breaker. Refrigerator is in showroom mode. Unplug the refrigerator and plug it back in. Vibration or rattling (slight vibration is normal) Leveling legs need adjusting. See Level the Refrigerator. Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.) Normal when refrigerator is first plugged in. Wait 24 hours for the refrigerator to completely cool down. Often occurs when large amounts of food are placed in refrigerator. This is normal. Door left open. Check to see if package is holding door open. Hot weather or frequent door openings. This is normal. Temperature controls set at the coldest setting. See Controls section Refrigerator or freezer compartment too warm Temperature control not set cold enough. See Controls section Warm weather or frequent door openings. Set the temperature control one step colder. See Controls section Door left open. Check to see if package is holding door open. Frost or ice crystals on frozen food (frost within package is normal) Door left open. Check to see if package is holding door open. Too frequent or too long door openings. This is normal. Divider between refrigerator and freezer compartments feels warm Automatic energy saver system circulates warm liquid around front edge of freezer compartment. This helps prevent condensation on the outside. Automatic icemaker does not work Icemaker power switch is in the OFF position. Set the power switch to the ON position. Water supply turned off or not connected. See Installing the Water Line section Freezer compartment too warm. Wait 24 hours for the refrigerator to completely cool down. Piled up cubes in the storage bin cause the icemaker to shut off. Level cubes by hand. Ice cubes stuck in icemaker. Turn off the icemaker, remove cubes, and turn the icemaker back on. Freezer cooling, fresh food not cooling Normal, when refrigerator first plugged in or after extended power outage Wait 24 hours for temperature in both compartments to reach selected temperatures. Ice cubes have odor/taste Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes. Food transmitting odor/taste to ice cubes. Wrap foods well. Interior of refrigerator needs cleaning. See Care and Cleaning section. Small or hollow cubes Water filter clogged. Replace filter cartridge with new cartridge or with plug. Slow ice cube freezing Door left open. Check to see if package is holding door open. Temperature control not set cold enough. See Controls section Frequent ‘buzzing sound” Icemaker power switch is in the I (on) position, but the water supply to the refrigerator has not been connected. Set the power switch to the 0 (off) position. Keeping it in the I (on) position will damage the water valve. Orange glow in the freezer Defrost heater is on. This is normal.26 49-60806 Rev. 1 ENGLISH TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call.

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Water has poor taste/odor Water dispenser has not been used for a long time. Dispense water until all water in system is replenished. Water in first glass is warm Normal when refrigerator is first installed. Wait 24 hours for the refrigerator to completely cool down. Water dispenser has not been used for a long time. Dispense water until all water in system is replenished. Water system has been drained. Allow several hours for replenished supply to chill. Water dispenser does not work Water supply line turned off or not connected. See Installing the Water Line section Water filter clogged. Replace filter cartridge or remove filter and install plug. Air may be trapped in the water system. Press the dispenser arm for at least two minutes. Water spurting from dispenser Newly-installed filter cartridge. Run water from the dispenser for 3 minutes (about one and a half gallons). Water is not dispensed but icemaker is working Water in reservoir is frozen. Call for service. Refrigerator control setting is too cold. Set to a warmer setting. No water or ice cube production Supply line or shutoff valve is clogged. Call a plumber. Water filter clogged. Replace filter cartridge or remove filter and install plug. Refrigerator has odor Foods transmitting odor to refrigerator. Foods with strong odors should be tightly wrapped. Keep an open box of baking soda in the refrigerator; replace every three months. Interior needs cleaning. See Care and Cleaning section Moisture forms on outside of refrigerator Not unusual during periods of high humidity. Wipe surface dry. Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened) Too frequent or too long door openings. This is normal. Due to the higher humidity in the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment. This is normal and may come and go as different food loads and environmental conditions change. Wipe dry with a paper towel if desired. Interior light does not work No power at outlet. Replace fuse or reset the breaker. LED lights are out Call Service - see Replacing the Lights Hot air from bottom of refrigerator Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures. This is normal. Refrigerator never shuts off but the temperatures are OK Adaptive defrost keeps compressor running during door openings. This is normal. The refrigerator will cycle off after the door remains closed for 2 hours. Refrigerator is beeping Door is open. Close door. Door not closing properly Door gasket on hinge side sticking or folding over. Apply paraffin wax to the face of the gasket. Actual temperature not equal to Set temperature Unit just plugged in. Allow 24 hours for system to stabilize. Door open for too long. Allow 24 hours for system to stabilize. Warm food added to refrigerator. Allow 24 hours for system to stabilize. Defrost cycle is in process. Allow 24 hours for system to stabilize. Drawer does not close by itself Leveling legs need adjusting. See Level the Refrigerator Freezer drawer pops open when refrigerator door is closed This is normal if, after popping open, the freezer drawer closed on its own. This indicates that there is a good seal on the freezer drawer. If the freezer drawer does not automatically close after popping open, then see the Problem: Drawer does not close by itself, above.49-60806 Rev. 1 27 ENGLISH TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE(S) SOLUTION

Food freezing in the refrigerator Food too close to the air vent at the back of the refrigerator. Move the food away from the air vent. Refrigerator control is set too cold. Move the refrigerator control to a warmer temperature setting one increment at a time. Water is leaking from dispenser Glass not being held under the dispenser long enough after button is released. Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released Air may be present in the water line system, causing water to drip after being dispensed. Dispense water for at least 2 minutes to remove air from system. My display is showing tc Turbo Cool function is activated. See Controls section Water filter indicator light changed color This is normal. See Water Filter Cartridge - XWF section Water filter indicator light remains red even after replacing the water filter Water filter indicator must be reset. Press and hold the WATER FILTER pad for 3 seconds. See Water Filter Cartridge - XWF section. Water filter indicator light is not lit This is normal. The filter cartridge should be replaced when the replacement indicator light turns red. See Water Filter Cartridge - XWF section Refrigerator doors are not even Doors need realigning. See Level the Refrigerator Doors section. Baskets stick or jam when opening or closing Baskets are too full. To open: remove some of the products from the basket when opened as far as possible. Readjust the products left in the basket and try to open the basket again. To close: readjust products in the basket or remove any product that is above the rim of the basket and close the basket. First try the solutions suggested here to possibly avoid the cost of a service call.

NORMAL OPERATING CONDITIONS

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

• The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high- pitched hum or pulsating sound while it is operating.

• You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

• You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

• The fans change speeds in order to provide optimal cooling and energy savings.

• You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.

• Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.

• On models with an icemaker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket.

• On models with a dispenser, during water dispense, you may hear the water lines move at initial dispense and after dispenser button is released.

• The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.

• Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.

• A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.

• Closing the door may cause a gurgling sound due to pressure equalization.XWF WATER FILTER CARTRIDGE LIMITED WARRANTY

• If your Haier part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a copy of the “proof of purchase” for the part. If the part is defective and shows no signs of abuse, it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall Haier be liable for consequential damages. Warrantor: GE Appliances, a Haier company Seller: Name AddressCity State ZipSignature Date Buyer: Name AddressCity State ZipSignature Date What Haier will not cover:

• Service trips to your home to teach you how to use the product. ¿ Improper installation. ¿ Failure of the product if it is abused, misused, used for other than the intended purpose or used commercially. ¿ Replacement of house fuses or resetting of circuit breakers. ¿ Damage to the product caused by accident, fire, floods, or acts of God. ¿ Incidental or consequential damage caused by possible defects with this appliance. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. For the period of Haier will replace Thirty Days From the date of the original purchase Any part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* Contact us at HaierParts.com, or call 877.337.3639.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.28 49-60806 Rev. 1

• System certified by IAPMO R&T against NSF/ANSI Standards 42, 53, 401 for the reduction of claims specified on the performance data sheet and at iapmort.org.

• Actual performance may vary with local water conditions. It is essential that the manufacturer’s recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information. Application Guidelines/Water Supply Parameters Service Flow 0.5 gpm (1.89 lpm)Water Supply Potable Water Water Pressure 25-120 psi (172-827 kPa) Water Temperature 33°F-100°F (0.6°C-38°C) Capacity 170 gallons (643.5 liters) Substance Tested for ReductionInfluent challenge concentration (mg/L)Maximum permissible product water concentration (mg/L)Avg % ReductionChlorine Taste and Odor 2.0 mg/L +/- 10% N/A 96.9Chloramine Taste and Odor 3.0 mg/L +/- 10% 0.5 96.9Particulate, Class I At least 10,000/mL N/A 91.4Cysts 50,000/L N/A >99.99Lead 0.15 0.01 98.85Mercury 0.006 0.002 96.3 Asbestos 107 to 108 fibers/ L N/A >99 Toxaphene 0.015 +/- 10% 0.003 86.95 VOC (Chloroform surrogate chemical) 0.300 0.015 99.7 Alachlor 0.050 0.001 > 98Atrazine 0.100 0.003 > 97Benzene 0.081 0.001 > 99Carbofuran 0.190 0.001 > 99carbon tetrachloride 0.078 0.0018 98chlorobenzene 0.077 0.001 > 99chloropicrin 0.015 0.0002 992,4-D 0.110 0.0017 98 dibromochloropropane (DBCP) 0.052 0.00002 > 99 o-Dichlorobenzene 0.08 0.001 > 99p-Dichlorobenzene 0.040 0.001 > 981,2-dichloroethane 0.088 0.0048 95 1,1-dichloroethylene 0.083 0.001 > 99 cis-1,2-dichloroethylene 0.170 0.0005 > 99 trans-1,2-dichloroethylene 0.086 0.001 > 991,2-dichloropropane 0.080 0.001 > 99 cis-1,3-dichloropropylene 0.079 0.001 > 99 dinoseb 0.170 0.0002 99Endrin 0.053 0.00059 99Ethylbenzene 0.088 0.001 > 99 ethylene dibromide (EDB) 0.044 0.00002 > 99 bromochloroacetonitrile 0.022 0.0005 98dibromoacetonitrile 0.024 0.0006 98dichloroacetonitrile 0.0096 0.0002 98trichloroacetonitrile 0.015 0.0003 98 1,1-dichloro-2-propanone 0.0072 0.0001 99 1,1,1-trichloro-2-propanone 0.0082 0.0003 96 heptachlor (H-34, Heptox) 0.025 0.00001 >99 heptachlor epoxide 0.0107 0.0002 98hexachlorobutadiene 0.044 0.001 > 98 hexachlorocyclopentadiene 0.060 0.000002 > 99 Lindane 0.055 0.00001 > 99methoxychlor 0.050 0.0001 > 99pentachlorophenol 0.096 0.001 > 99simazine 0.120 0.004 > 97Styrene 0.150 0.0005 > 99 1,1,2,2-tetrachloroethane 0.081 0.001 > 99 Tetrachloroethylene 0.081 0.001 > 99Toluene 0.078 0.001 > 992,4,5-TP (silvex) 0.270 0.0016 99tribromoacetic acid 0.042 0.001 > 98 1,2,4-Trichlorobenzene 0.160 0.0005 > 99 1,1,1-trichloroethane 0.084 0.0046 95 1,1,2-trichloroethane 0.150 0.0005 > 99 trichloroethylene 0.180 0.0010 > 99bromoform 0.300 0.015 95bromodichloromethane 0.300 0.015 95chlorodibromomethane 0.300 0.015 95xylenes 0.070 0.001 >99Meprobamate 400 +/- 20% 60 95.5Atenolol 200 +/- 20% 30 95.9Carbamazepine 1400 +/- 20% 200 98.6DEET 1400 +/- 20% 200 98.6Metolachlor 1400 +/- 20% 200 98.7Trimethoprim 140 +/- 20% 20 96.1Linuron 140 +/- 20% 20 96.6TCEP 5000 +/- 20% 700 98.1TCPP 5000 +/- 20% 700 98.1Phenytoin 200 +/- 20% 30 96Ibuprofen 400 +/- 20% 60 95.9Naproxen 140 +/- 20% 20 96.5Estrone 140 +/- 20% 20 97.1Bisphenol A 2000 +/- 20% 300 99.1Nonyl phenol 1400 +/- 20% 200 97.3 Note: While the testing was performed under standard laboratory conditions, actual performance may vary. Replacement Cartridge: XWF. For estimated costs of replacement elements please call 877.337.3639 or visit our website at HaierParts.com WARNING To reduce the risk associated with ingestion of contaminants:

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system.

• Installation and use MUST comply with all state and local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100º F (38º C).

• Protect filter from freezing. Drain filter when temperatures drop below 33ºF (0.6ºC).

• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.

• Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.

• This System has been tested according to NSF/ANSI 42, 53 and 401 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53 and 401. XWF System is certified by IAPMO R&T against NSF/ANSI Standards 42,53, and 401 for the reduction of claims specified on the performance data sheet and at iapmort.org.49-60806 Rev. 1 29 ENGLISHLIMITED WARRANTY 12 Months on Parts and Labor For 12 months from the date of original retail purchase, GE Appliances will replace any part of the refrigerator that fails due to a defect in materials or workmanship. GE Appliances will choose, at its discretion, to replace or service the defective unit. Should GE Appliances decide to service the unit, GE Appliances will provide any part which fails due to a defect in materials or workmanship free of charge, along with any labor and related service costs to replace the defective part. During this period, should GE Appliances choose to replace the unit, it may do so by providing you úì÷ëäæèõ÷ìĤæä÷èõèçèèðäåïèä÷äõè÷äìïèõéòõäõèóïäæèðèñ÷ product. Product must be accessible, without encumbrance and installed properly to receive warranty repair service. NOTE: This warranty commences on the date the item was purchased, and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered.

FOR WARRANTY SERVICE

For US Customers, all warranty service must be provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, call 1.877.337.3639. Please have serial number and model number available when calling for service. In Canada, call 1.877.470.9174. What is not covered by this warranty: Service trips to your home to teach you how to use the product. Improper installation, delivery or maintenance. Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. Loss of food due to spoilage. Damage caused after delivery. Replacement of house fuses or resetting of circuit breakers. Replacement of the light bulbs. Íäðäêè÷ò÷ëèóõòçøæ÷æäøöèçåüäææìçèñ÷Ĥõèĥòòçöòõ acts of God. Incidental or consequential damage caused by possible defects with this appliance. Product not accessible to provide required service. Associated costs when GE Appliances chooses to issue the æòñöøðèõäæèõ÷ìĤæä÷èäöäéòõðòéóõòçøæ÷õèóïäæèðèñ÷ EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited àäõõäñ÷üÊñüìðóïìèçúäõõäñ÷ìèöìñæïøçìñê÷ëèìðóïìèçúäõõäñ÷ìèöòéðèõæëäñ÷äåìïì÷üòõĤ÷ñèööéòõäóäõ÷ìæøïäõóøõóòöè are limited to one year or the shortest period allowed by law. For US Customers: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Üòðèö÷ä÷èöçòñò÷äïïòú÷ëèèûæïøöìòñòõïìðì÷ä÷ìòñòéìñæìçèñ÷äïòõæòñöèôøèñ÷ìäïçäðäêèöÝëìöúäõõäñ÷üêìùèöüòøöóèæìĤæ legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your ïòæäïòõö÷ä÷èæòñöøðèõäģäìõöòĦæèòõüòøõö÷ä÷èđöÊ÷÷òõñèüÐèñèõäï Warrantor US: GE Appliances, a Haier company Louisville, KY 40225 For Customers in Canada: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Inc., Burllington, Ontario, L7R 5B6 30 49-60806 Rev. 1 ENGLISHDOCUMENTS À CONSERVER Merci d’avoir acheté ce produit Haier. Ce manuel d’utilisation vous aidera à obtenir la meilleure performance possible de votre nouveau réfrigérateur. Pour référence ultérieure, inscrire le numéro de plaque signalétique et la date d’achat. La plaque signalétique est située sur une étiquette à l’intérieur du réfrigérateur. Pour faciliter l’obtention d’un service sous garantie, agrafer la preuve de la date d’achat à ce manuel.
