HDW3618DNPD - Refrigerator HAIER - Free user manual and instructions

Product type	Multi-door fridge-freezer
Minimum niche width	920 mm
Minimum niche depth	1137 mm
Cooling technology	Total No Frost
Control panel	Touch screen with LED indicators
Special functions	Super Cool, Super Freeze, Eco Mode, Holiday Function
Refrigerator temperature	2 °C to 8 °C (adjustable via app)
Freezer temperature	-16 °C to -24 °C (adjustable via app)
Defrost	Automatic (No Frost)
Connectivity	Built-in Wi-Fi, compatible with hOn app
HCS filter	Humidity control in the vegetable bin
Door reversibility	Yes, possible
Power supply	220-240 V, 50 Hz
Error code display	Yes (flashing LED combinations)
Demo Mode function	Yes

Frequently Asked Questions - HDW3618DNPD HAIER

How to adjust the refrigerator or freezer temperature?

Press and hold the TEMP button for 5 seconds to select the compartment (refrigerator or freezer). Then press TEMP quickly to cycle through temperature levels. After 5 seconds, the setting is confirmed.

How to activate the Super Cool function?

Press and hold TEMP to select the refrigerator, then press TEMP quickly until the Super Cool icon lights up. The temperature automatically goes to 2 °C. It turns off after 30 hours or manually.

How to use the Super Freeze function?

Select the freezer compartment by holding TEMP, then press TEMP quickly until the Super Freeze icon lights up. The temperature goes to -24 °C. The function lasts 50 hours before returning to the previous setting.

What is the Eco mode for?

Eco mode optimizes performance for optimal food preservation while saving energy. It automatically sets the refrigerator to 5 °C and the freezer to -18 °C. Activate it via the MODE button or the hOn app.

How to activate the Holiday function?

Press the MODE button until the Holiday icon lights up. This function turns off the refrigerator while keeping the freezer running, reducing energy consumption. Disable it via MODE or the app.

How to reverse the door opening direction?

Use an electric screwdriver. Remove the top, middle and bottom hinges, then reassemble them on the opposite side in reverse order. Refer to the manual for detailed steps.

What to do in case of an error code on the display?

If the freezer LEDs flash in sequence, it is a communication error. If they flash simultaneously, the fan is defective. Contact technical service.

How to connect the refrigerator to the hOn app?

Download the hOn app and create an account. Turn on the refrigerator, the Wi-Fi enters setup mode (blinking icon). Follow the app instructions for pairing.

How to clean the refrigerator drain tube?

If water accumulates at the bottom, the tube may be clogged. Clean it with a cotton swab or similar object to restore flow.

Why is there frost on the back wall of the refrigerator?

Frost formation on the back wall is normal during operation, especially if warm food is placed or the door is frequently opened. It disappears during the automatic defrost cycle (No Frost).

USER MANUAL HDW3618DNPD HAIER

Discover extra contents and create your inventory list

EN		1
BG		11
CS		21
DA		31
DE		41
EL		51
ES		61
FI		71
FR		81
HR		91
HU		101
IT		111
NL		121
NO		131
PL		141
PT		151
RO		161
RU		171
SK		181
SL		191
SR		201
SV		211
UK		221
AR		231
TR		241
ET		251
LT		261
LV		271

Summary

PRODUCT DESCRIPTION 2

Space requirements .... 2

USE....3

Use 3

Customized temperature 4

Super Cool function 4

Super Freeze function 5

Eco mode 5

Holiday function 5

Defrosting 5

Demo mode 6

Error Codes 6

App connection....7

Step 1 7

Step 2 7

Step 3 7

Wi-Fi Use....8

DOOR REVERSIBILITY....9

TROUBLESHOOTING

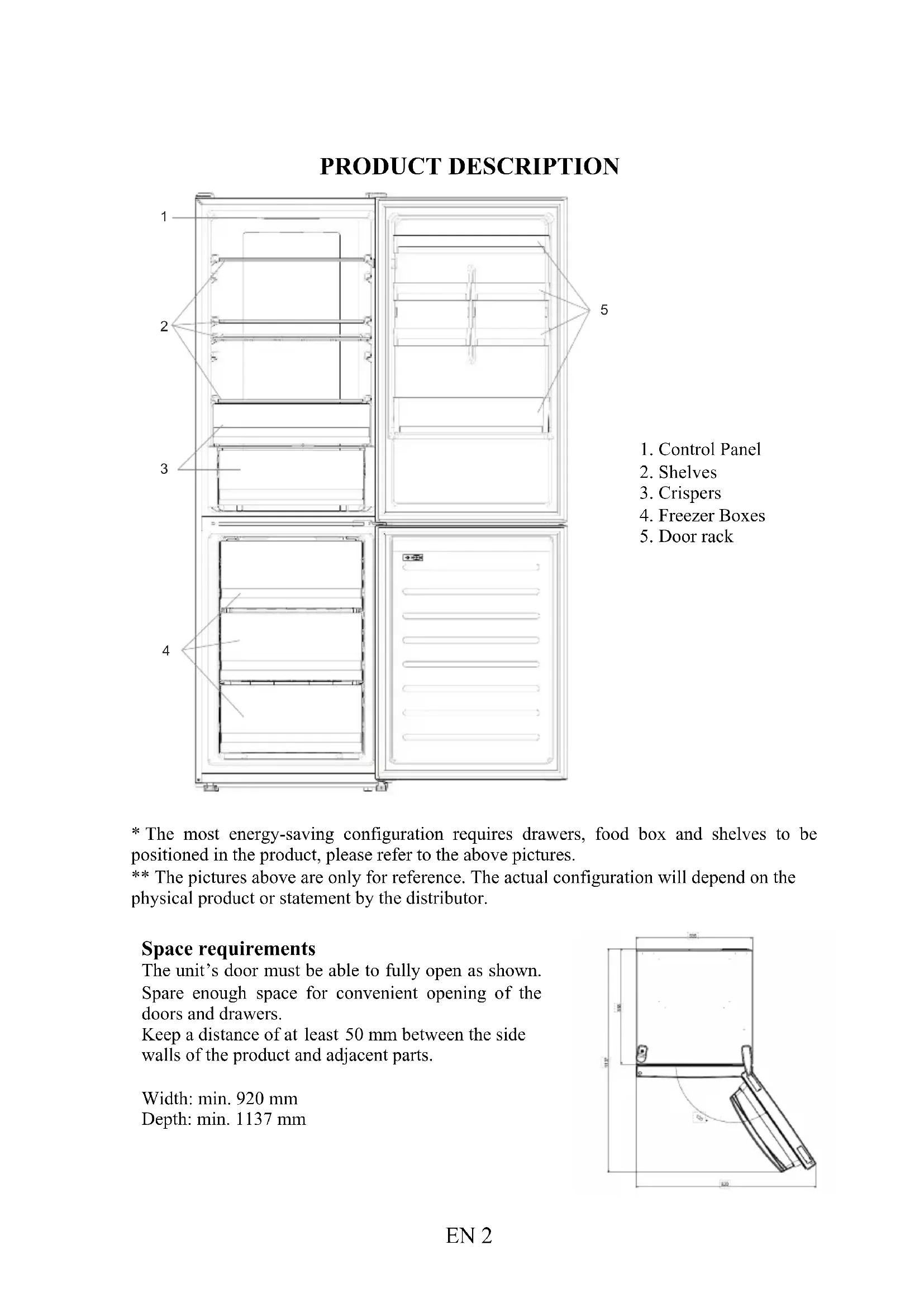

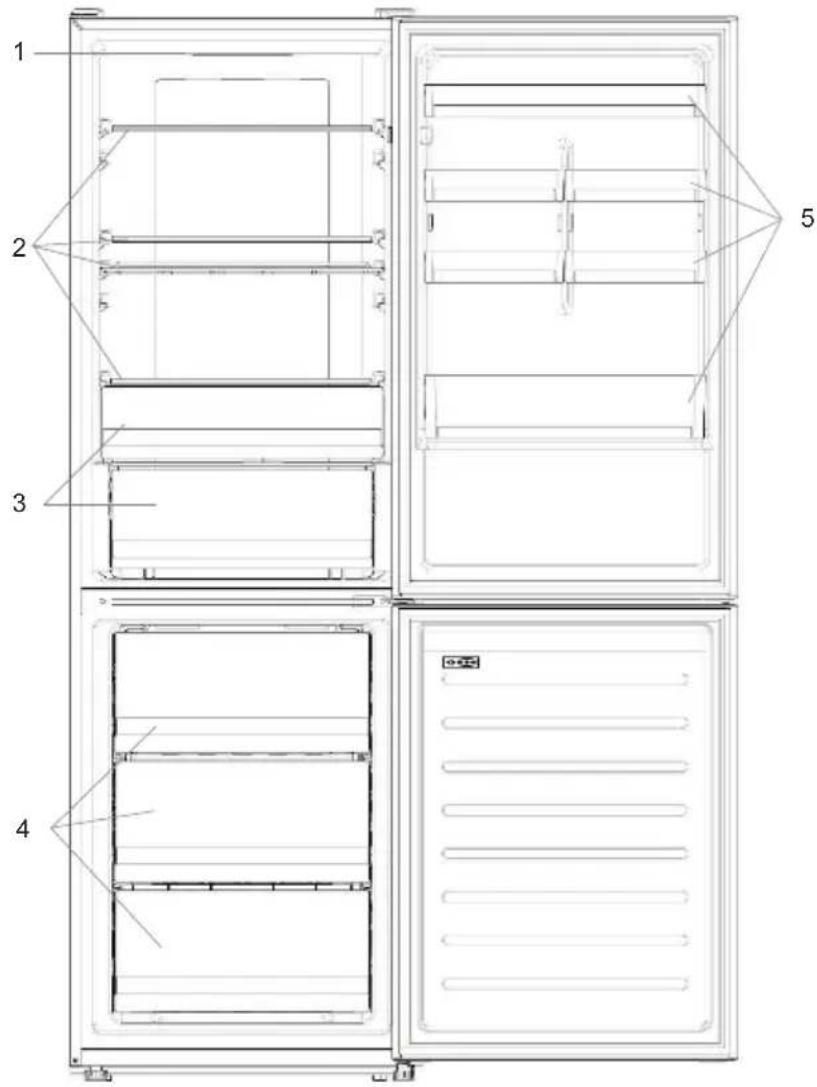

PRODUCT DESCRIPTION

1. Control Panel
2. Shelves
3. Crispers
4. Freezer Boxes
5. Door rack

* The most energy-saving configuration requires drawers, food box, and shelves to be positioned in the product; please refer to the above pictures. ** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

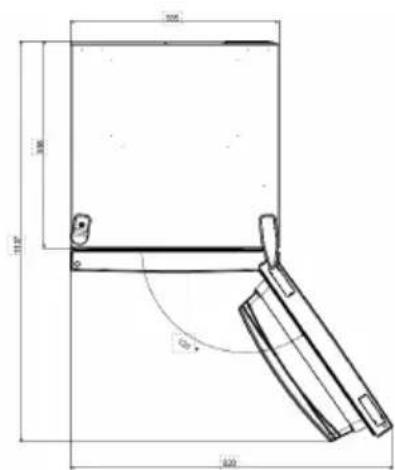

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

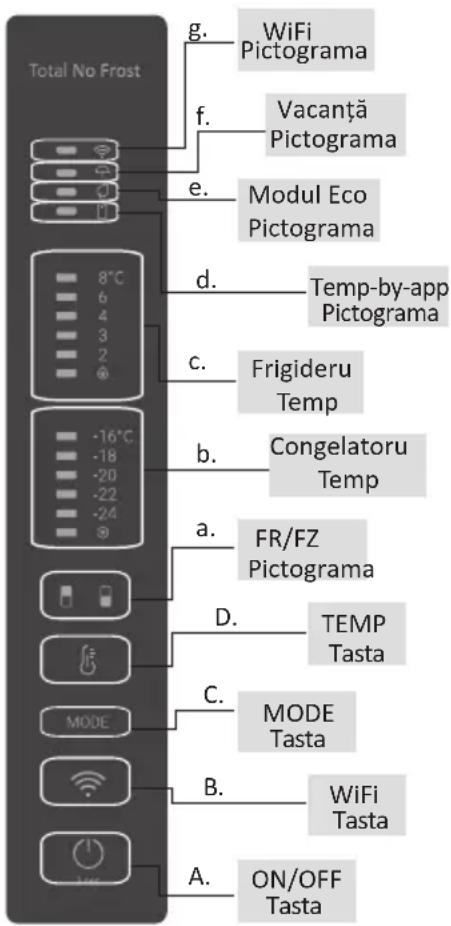

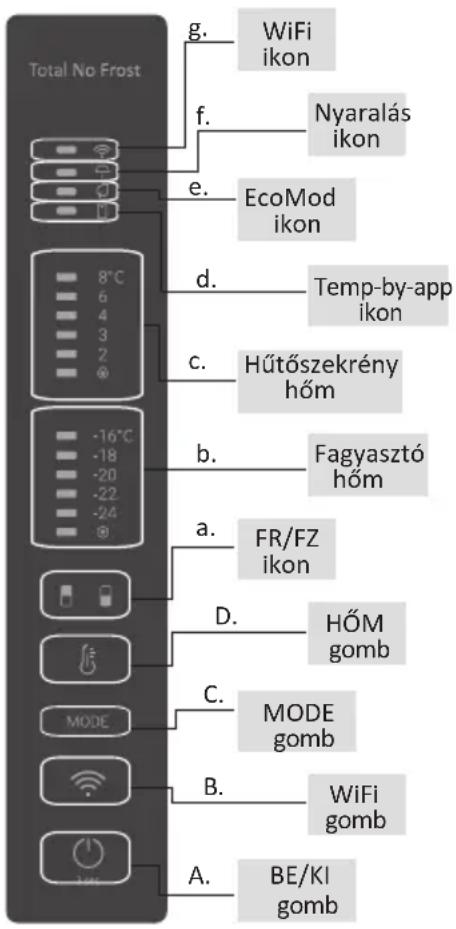

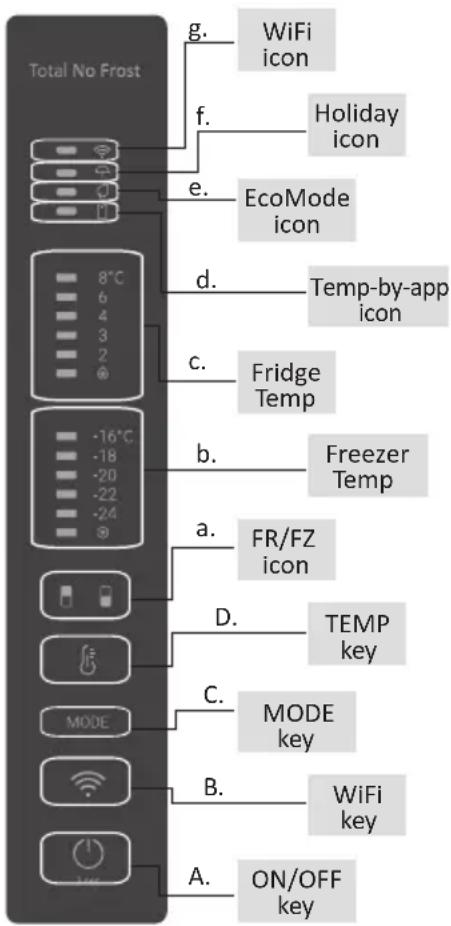

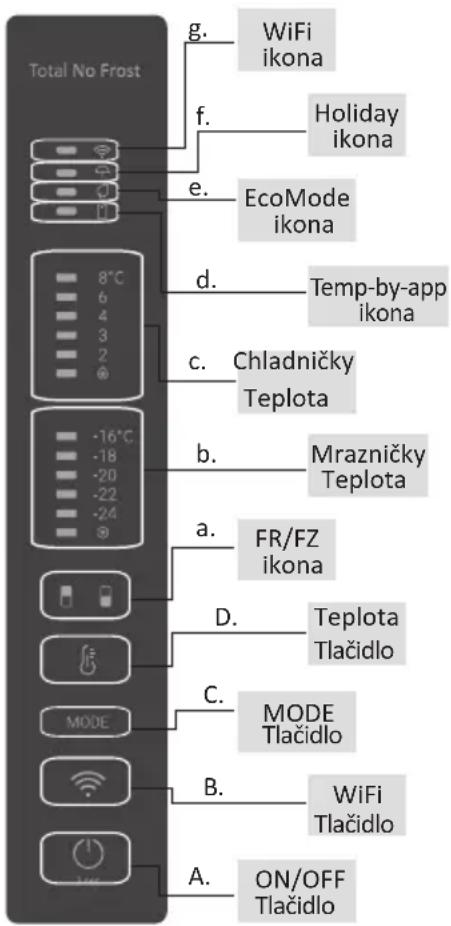

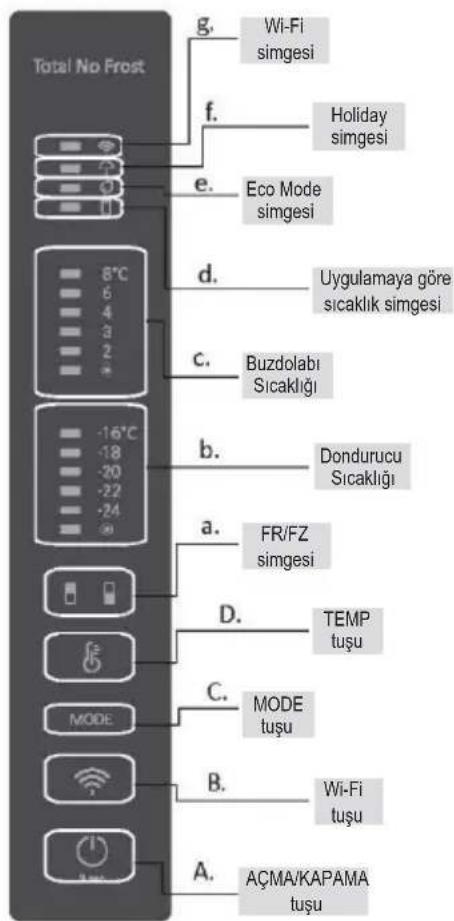

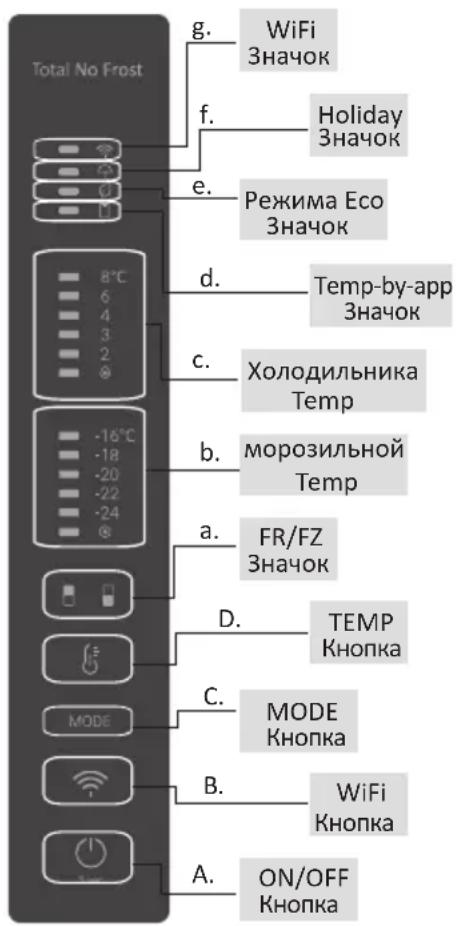

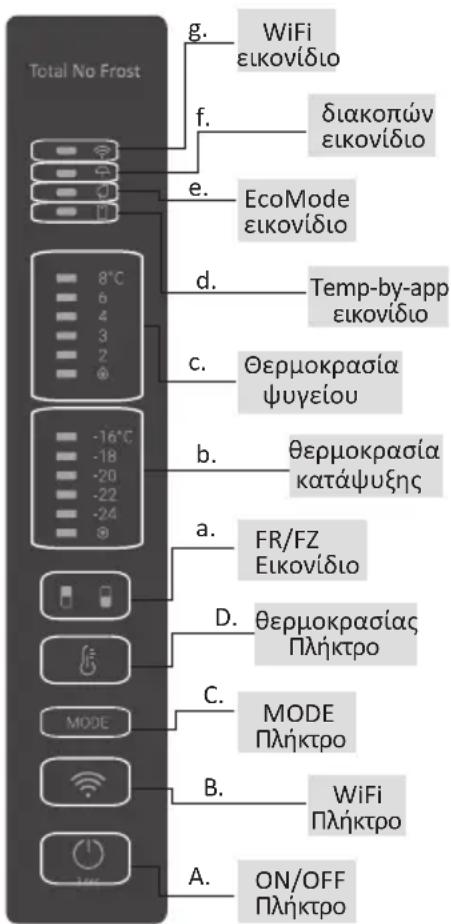

A. ON/OFF key, used to switch on/off the appliance B. Wi-Fi key, used to switch on/off the Wi-Fi C. Mode key, used to select the desired function D. TEMP key, used to select the fridge and freezer temperature

a. Fridge/freezer area icon, shows which compartment of the appliance is selected b. Freezer temperature levels, show which is the selected temperature in the freezer c. Fridge temperature levels, show which is the selected temperature d. Customized temperature icon, shows if the temperature has been selected by app e. Eco mode icon, shows whether the eco mode is activated f. Holiday function icon, shows whether the holiday function is activated g. Wi-Fi icon, shows whether the Wi-Fi is working and the appliance is connected

Use

• Plug in the appliance, it automatically turns on. The temperature will automatically be set at 4 °C in the fridge and -18 °C in the freezer.
• To change the temperature, press the TEMP key for 5 seconds, an acoustic signal is made and the icon of the selected compartment (fridge or freezer) as well as all the temperature LEDs of the corresponding compartment turn on for 2s, after 2s the selection of the compartment is confirmed. With the selected compartment icon on, quickly press the TEMP key to change the temperature. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the TEMP key is pressed and the temperature is changed, after 5 seconds the selection is confirmed. After 30s without operation the fridge/freezer icon area turns off, while the LEDs of the selected temperatures stay on. When the TEMP key is touched again, the icon of the last area selected (fridge or freezer) turns on.

• In case of power loss, the last cooling level set will be restored.

- To restore the default setting, long press the Temp key button and click the ON/OFF key button 5 times (within 5 seconds).

- Under normal operating conditions (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set the temperature at 6~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator's continuous running time; and in winter when the ambient temperature is low, it is recommended to set the temperature at 3~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app it is possible to customize the temperature for both fridge and freezer. The temperature can be set with 1 °C sensitivity. It is possible to select a temperature from 2 °C to 8 °C in the fridge, and from -16 °C to -24 °C in the freezer.

When the temperature is selected by the app, the customized temperature icon turns on, while all the temperature LED lights of the affected compartment are turned off (i.e., if the refrigerator temperature is selected from the app, LEDs from 2 °C to 8 °C are turned off. If the freezer temperature is selected from the app, LEDs from -16 °C to -24 °C are turned off). If only a single area (freezer or fridge) has the customized temperature, the temperature selection of the other area is not changed and the LED light of the selected temperature of that area remains on. An acoustic signal is made every time the temperature is changed.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2 °C.

How to use the Super Cool function:

• The function can be activated by long pressing the TEMP key to select the fridge compartment, and then quickly pressing the TEMP key until the Super Cool icon LED is turned on, or it can be turned on from the app. When the function is activated, the Super Cool LED is always ON.
• To exit the Super Cool function, press the TEMP key or turn it off from the app.
• The Super Cool function automatically ends when the function has lasted for more than 30 hours.
• When the Super Cool ends, the icon on the control panel is switched off and the previously set cooling level is restored.

Note: Super Cool and Super Freeze functions cannot be activated simultaneously.

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be frozen, it is recommended to set the Super Freeze function on 24 hours before the usage. When the function is activated, the temperature is automatically set at -24 °C.

How to use the Super Freeze function:

• The function can be launched by long pressing the TEMP key to select the freezer compartment, and then quickly pressing the TEMP key until the Super Freeze icon LED is turned on, or it can be turned on from the app. When the function is activated, the Super Freeze LED is always ON.
• To exit the Super Freeze function, press the TEMP key or turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.
• When the Super Freeze ends, the icon of the control panel is switched off and the previously set freezing level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. The Eco mode will automatically set the temperature at 5\ °C in fridge and at -18\ °C in the freezer

How to use the Eco mode:

• The function can be activated from control panel by pressing the “mode” key until the Eco mode icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Eco mode icon is always ON.
• To exit the Eco turn it off from the app or chose another function from the control panel.
• When the Eco Mode ends, the icon of the control panel is switched off and the previously set cooling levels are restored.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the LED lights are off (even if the door is open) and the fridge is turned off, whereas the freezer will keep working normally.

How to use the Holiday function:

• The function can be activated from control panel by pressing the “mode” key until the Holiday icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Holiday icon is always ON.
• To exit the Holiday function, turn it off from the app or chose another function from the control panel.
• When the Holiday function ends, the icon of the control panel is switched off and the previously set cooling levels are restored.

Defrosting

The defrosting of the refrigerator and freezer compartments is done automatically: no manual operation is needed.

HCS

When a certain moisture level is reached, the HCS filter fibers open, causing moisture to decrease, and then close again.

Demo mode

To enter the demo mode, with the display unlocked, keep pressed the SET key and press the WiFi key 5 times within 5 seconds. To exit the demo mode, perform the same operation or power off the refrigerator.

Error Codes

- Communication error

If the [-16°C; -18°C; -20°C; -22°C; -24°C] lights in the freezer turn on sequentially, it means there has been a communication error between the main control board and the display board. Please contact technical assistance to help solve the problem.

- Fan

If the [-16°C; -20°C; -22°C; -24°C] lights in the freezer flash simultaneously, it means the fan is not working properly. Please contact technical assistance to help solve the problem.

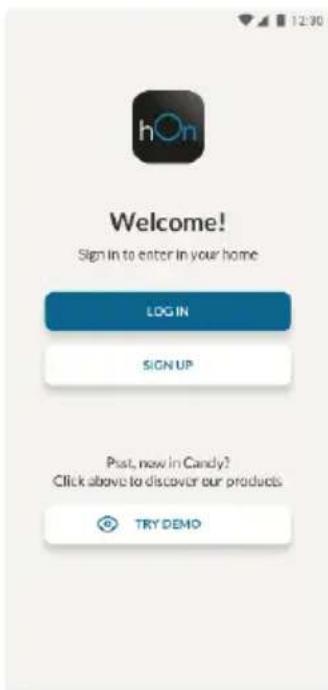

APP CONNECTION IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app from the stores.

Step 2

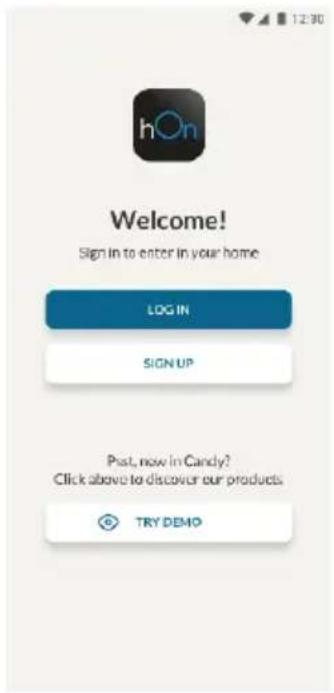

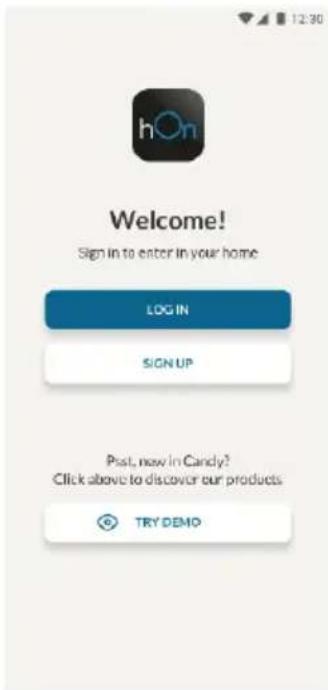

- Create your account on the hOn App or log in if you already have an account.

Step 3

- Follow the pairing instructions in the hOn App

Wi-Fi Use

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter configuration mode and remain in this state for 30 minutes. The Wi-Fi icon blinks and product enrollment can begin.

• Follow the in-app instructions to configure the Wi-Fi (see above)
• Once the Wi-Fi is configured and the connection is established, the Wi-Fi icon is on and fixed.
• After 30 minutes without any operation, the Wi-Fi will automatically exit configuration mode.
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

To reset the Wi-Fi, press the Wi-Fi key and the SET key for 2 seconds.

To turn off the Wi-Fi, press the Wi-Fi key for 3 seconds.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

The radio equipment type complies with Directive 2014/53/EU.

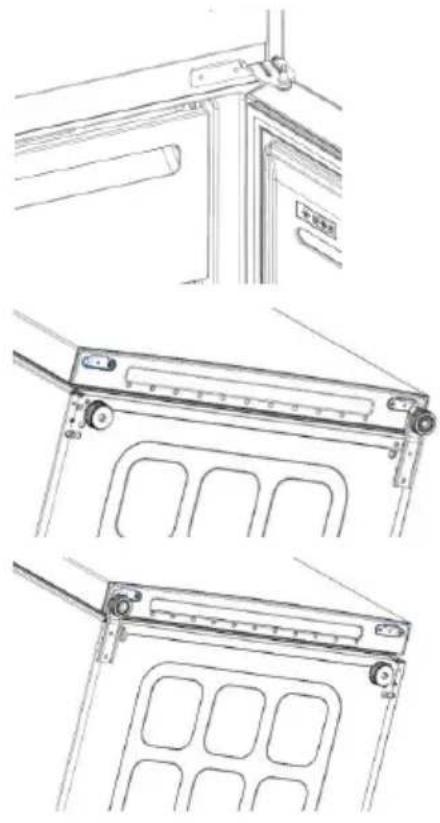

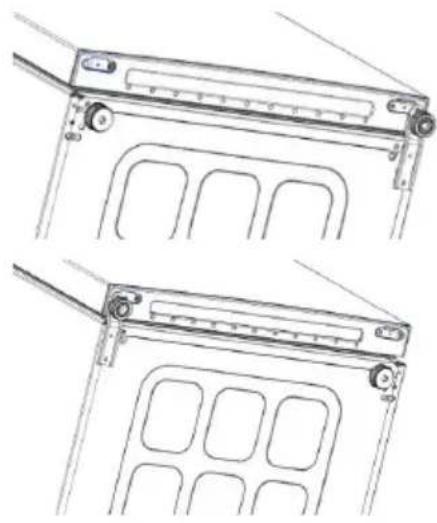

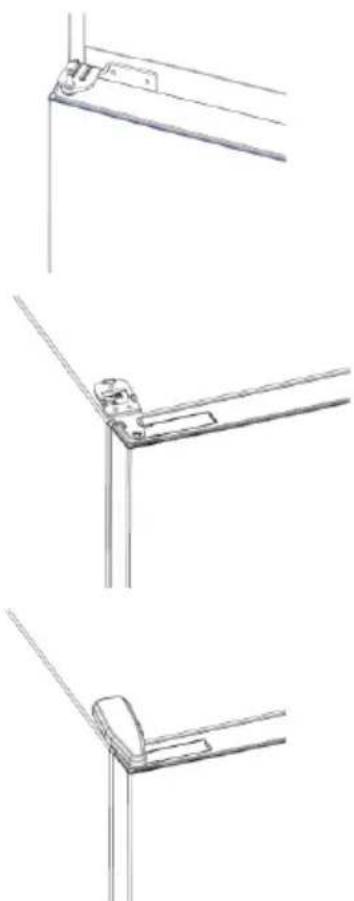

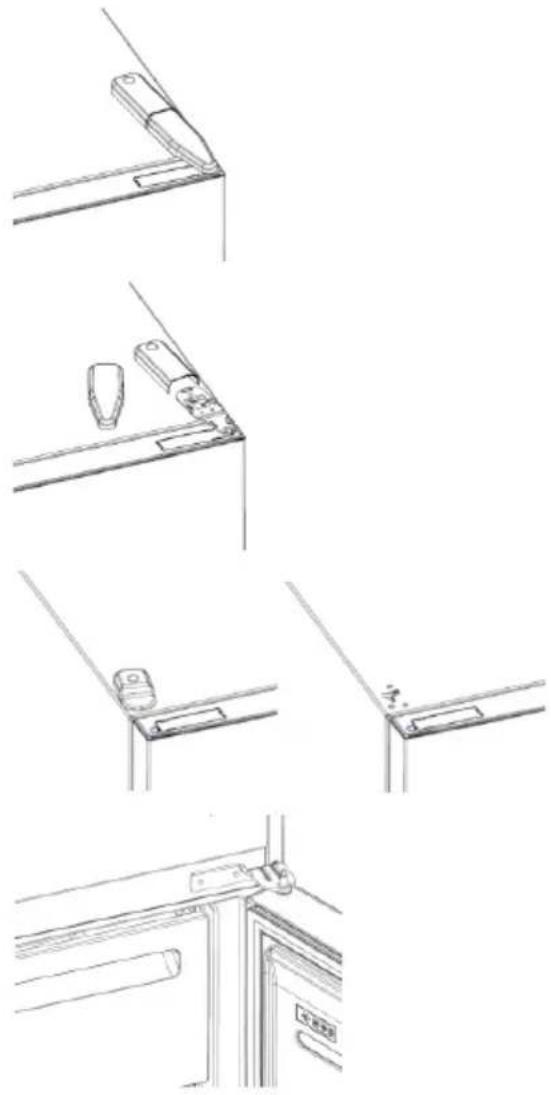

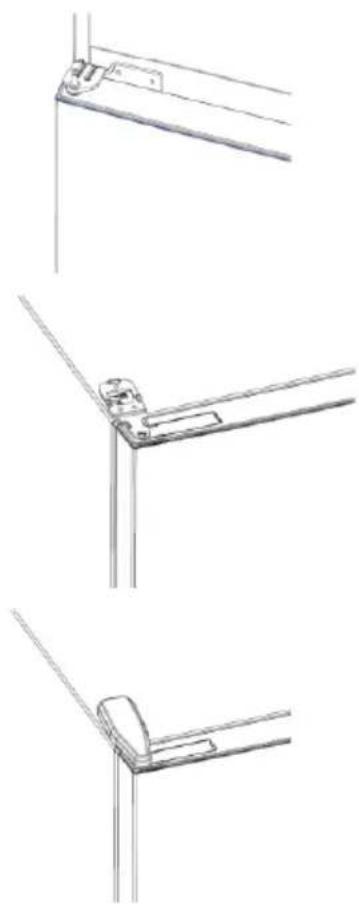

DOOR REVERSIBILITY

Tools needed: Electric screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove middle hinge

1. Remove lower hinge
2. Mount hinge foot
3. Mount middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

TROUBLESHOOTING

The inside light bulb does not turn on.	No electricity.	The power cable is not properly plugged in.Check if the appliance is switched off (see Temperature Adjustment).Check the power socket is working correctly (e.g. with another electric device).
	Holiday Mode is activated.	Deactivate Holiday mode.
The internal temperature of the refrigerator and/or freezer is not cold enough.	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
	Incorrect temperature setting.	Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment).
	The refrigerator and/or freezer are too full.	Wait for the temperature of the refrigerator/ freezer to stabilise.Avoid filling the refrigerator and freezer excessively.
	The surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	Warm items have been stored.	Always allow items to cool before storing them.
The food in the refrigerator freezes.	Incorrect temperature setting.	Check the temperature setting and, if possible, increase the temperature.
	Food in contact with the back wall.	Keep the food away from the refrigerator's back wall.
The bottom of the refrigerator compartment is wet or water droplets are present.	The drain hose could be clogged.	Clean the drain hose with a stick or similar item to allow the water to drain.
Presence of drops of water or frost on the rear wall of the refrigerator.	Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation.	It is not a defect.
	Warm items have been stored.	Always allow items to cool before storing them.
	There are open food containers or liquids.	Always cover food and liquids.
	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
Presence of water in the vegetable drawer.	Lack of air circulation.	Verify that your appliance is not too full.
	Vegetables and fruit with too much moisture.	Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers.
The motor runs continuously.	The doors are not closed.	Make sure the doors are closed and check the seals close properly.
	The doors are opened frequently.	Avoid opening the doors unnecessarily for some time.
	Ambient temperature is very high.	Verify that the ambient temperature is in the range set out in the specifications on the appliance tag.Set the display screen/themostat to a warmer temperature.
	The appliance has been off (no power) for some time.	It normally takes the appliance 8-12h to cool completely.
The frozen food is thawing.	Surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	The freezer door is not closed.	Make sure the door is closed and that the gasket is sealing properly.
Fridge door alarm.	Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes.	Avoid leaving the door open when not needed. The beep ceases when the door is closed.
The appliance makes noises such as gurgling, buzzing, clicking, creaking.	No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off.	No action needed.
	The appliance is not located on level ground.	Adjust the feet to level the appliance.
	The appliance touches an object around it.	Remove objects around the appliance.
The appliance does not cool, the temperature and lighting indicators are on.	Demo mode is activated.	Deactivate DEMO mode.
Strong ice and frost in the freezer compartment.	The items were not adequately packaged.	Always pack the items well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace it with a new one.
	Something on the inside prevents the door/drawer from closing properly.	Reposition the shelves, door racks or internal containers to allow the door/drawer to close.
The sides of the appliance are warm.	This is normal.
