Product type	Vacuum cleaner type M (hazardous dust)
Brand	Numatic
Model	TEM 390A11
Power supply	230 V, 50 Hz
Fuse	10 A (surge protection)
Power cord length	10 m (H05VV-F 3x1.5 mm²)
Tank capacity	Dust bag NVM-2BH (capacity not specified, approx. 9 L)
Filtration type	Filter bag + filter cartridge
Low flow indicator	Indicator light (threshold < 20 m/s)
Dust class	M (dust hazardous to health)
Intended use	Indoor, dry, commercial use (hotels, schools, hospitals, workshops, offices)
Tank material	Plastic (estimated)
Weight	Approx. 12 kg (estimated)
Noise level	Approx. 70 dB (estimated)
Included accessories	Hose, tubes, brush, filter bag (estimated)
Maintenance	Emptying the bag, cleaning filters, checking the cord
Safety	Unplug before maintenance, do not vacuum liquids or hot substances
Spare parts	Use genuine Numatic parts (NVM-2BH bag, filter cartridge, H05VV-F cord)
Standards	IEC 60335-2-69, CE, WEEE

Frequently Asked Questions - TEM 390A11 Numatic

How to change the dust bag?

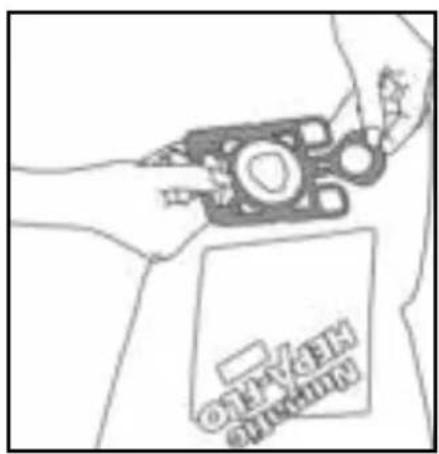

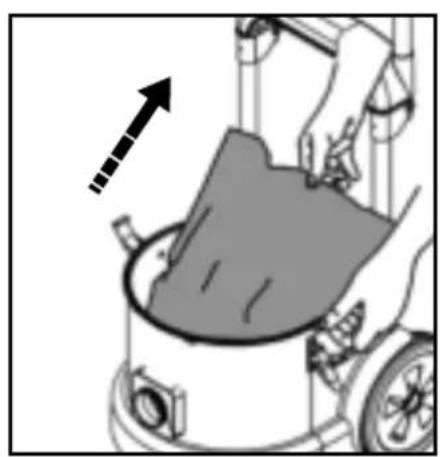

Unplug the device. Open the tank, remove the full bag while sealing the opening, place it in an airtight plastic bag. Install a new NVM-2BH bag by fixing it onto the flange. Replace the textile filter and close the tank.

What to do if the indicator light flashes?

The indicator shows too low airflow (< 20 m/s). Check: blocked hose, dirty filter or full bag. Remove the obstacle, replace the filter or bag.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry dust vacuuming. Never vacuum liquids, moist or sticky substances.

What type of filter bag to use?

Use exclusively the genuine Numatic dust bag NVM-2BH. Non-genuine bags may reduce performance and safety.

How to clean the filter?

Unplug the device. Remove the bag and the filter cartridge. Gently shake or replace the cartridge if dirty. Do not wash the filter with water.

Is the vacuum cleaner suitable for hazardous dust?

Yes, it is classified type M for dust hazardous to health. Emptying and maintenance operations must be carried out by authorized personnel with PPE.

Can I use non-genuine accessories?

No, use only genuine Numatic brushes and accessories. Use of other accessories may affect safety and performance.

How to maintain the power cord?

Regularly inspect the cord. Do not pull the cord to unplug. Immediately replace any damaged cord with a genuine Numatic cord (H05VV-F 10m 3x1.5 mm²).

Where to find spare parts?

Contact your authorized Numatic distributor. Use exclusively genuine parts: NVM-2BH bag, filter cartridge, power cord.

What to do in case of suction loss?

Turn off and unplug the device. Check the hose, tubes, and brush for blockages. Clean or replace the filter and bag. If the problem persists, consult a technician.

USER MANUAL TEM 390A11 Numatic

Technical line drawing of a vacuum cleaner with attached fan and control panel (no text or symbols)

Original Instructions -

Warning! Read instructions before using the machine.

Warnhinweis:

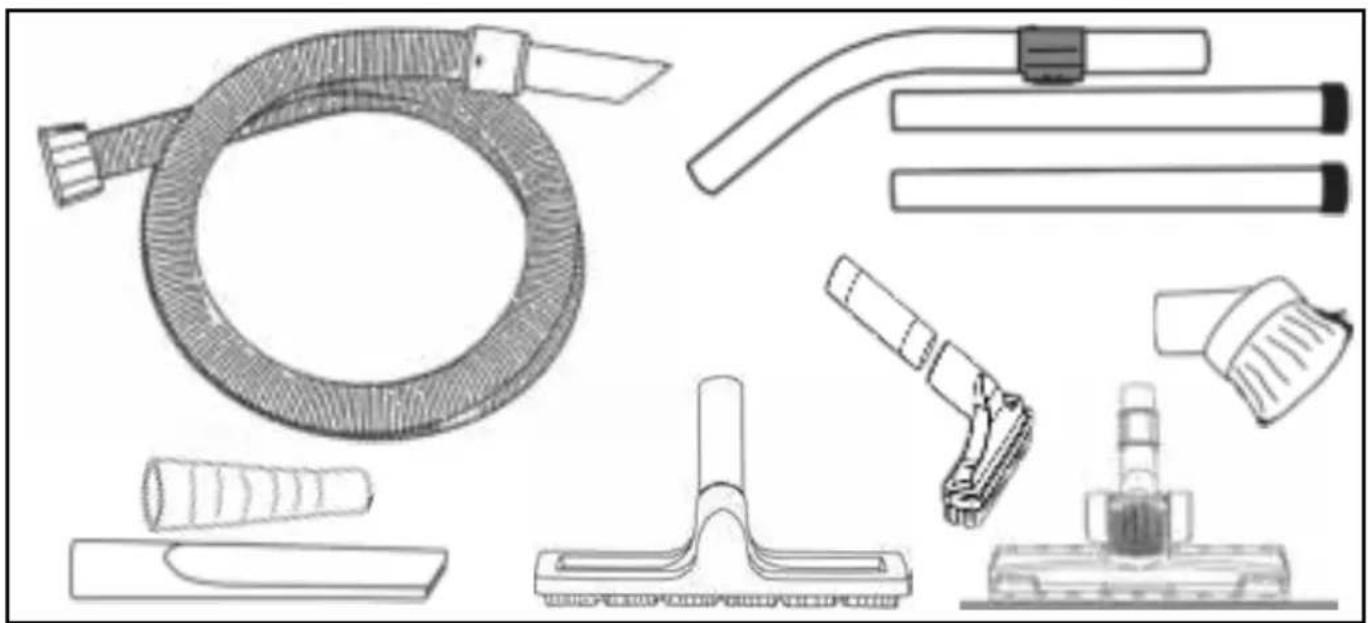

Kit AS10

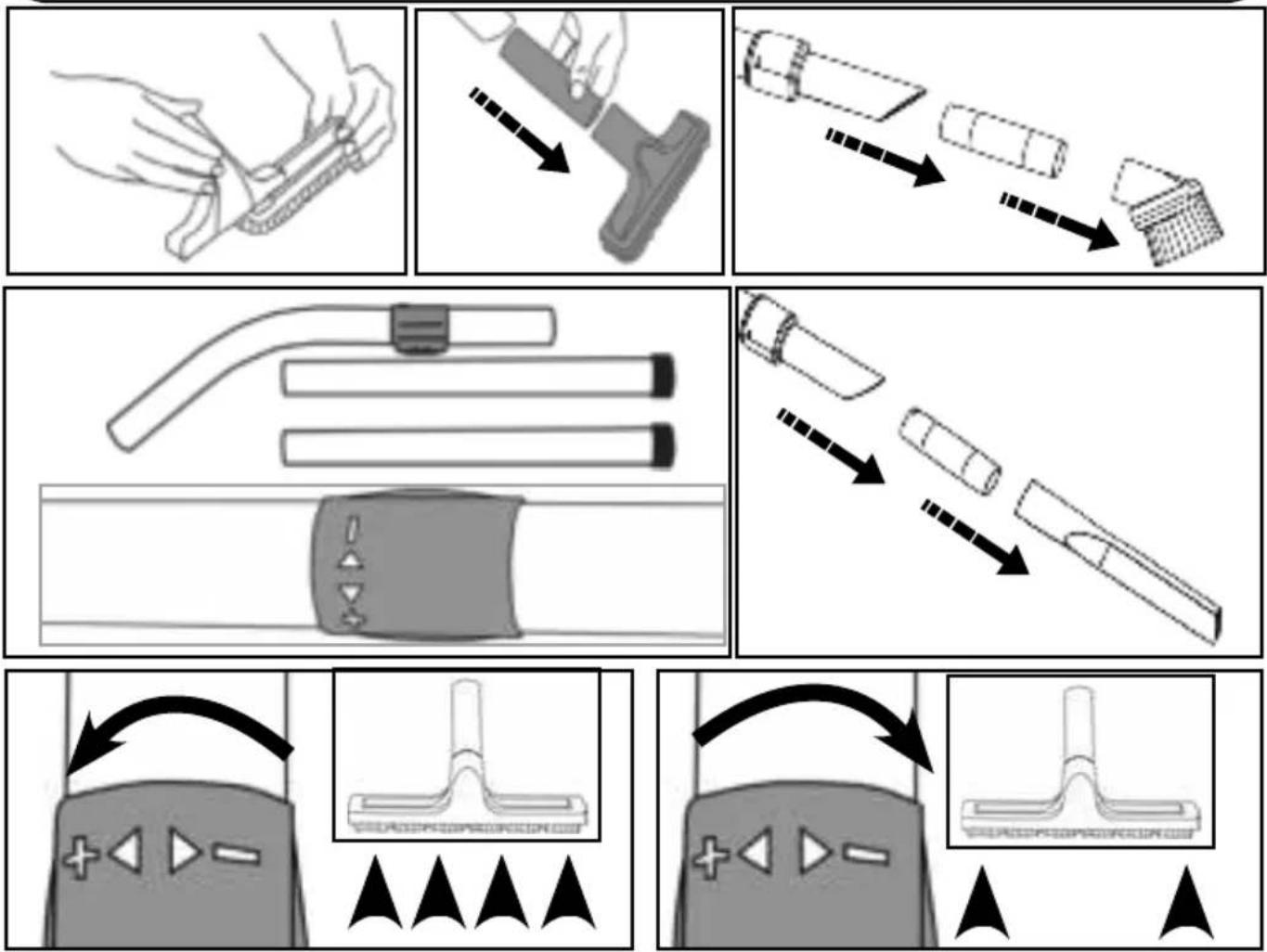

Technical line drawings of various cleaning and repair tools including hoses, brushes, and tools (no text or labels)

Assembly, Zusammenbau, Assemblage, Samenstelling, Conjunto, Montaggio, Ensamblaje, Montaz

Mechanical assembly diagram showing motor components and gear mechanism (no text or labels)

Mechanical assembly diagram showing pipe connections and a component labeled '2' (no text or symbols beyond label)

Technical line drawing of a vacuum cleaner with attached piping and fan components (no text or symbols)

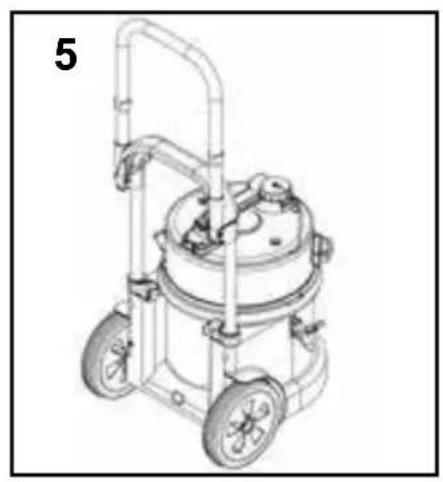

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

Air Diffuser, Luftverteiler, Diffuseur d'air, Luchtrooster, Difusor de ar, Diffusore aria, Difusor de aire, Dyfuzor powietrza

Technical line drawing of a mechanical device with two directional arrows indicating flow or movement (no text or symbols present)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Note* Your machine exhaust can be use as a blower, simply remove the air diffuser and replace with the hose onto the exhaust port.

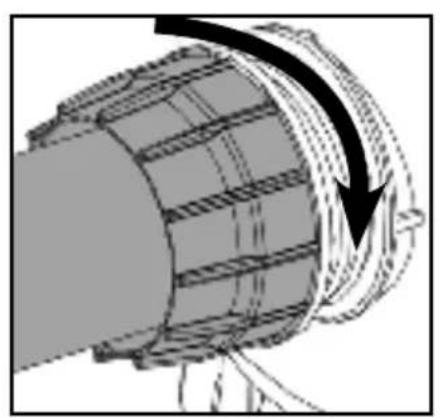

Hose, Schlauch, Tuyau, Slang, Mangueira, Flessibile, Tubo, Wąż

Diagram of a mechanical component with internal layered structure and directional arrow (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Illustration of a hand holding a tool next to a ruler, with an arrow pointing to it (no text or symbols present)

Illustration of a hand holding a pen or tool with a black arrow pointing to it, no text or symbols present.

Illustration of a hand holding a cable with a black arrow pointing to it, no text or symbols present

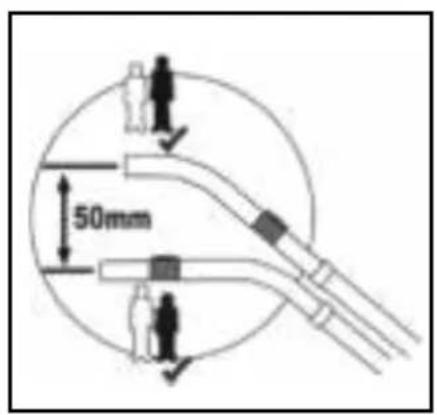

Using your machine, Arbeiten mit dem Gerät, Utilisation de la machine, De machine gebruiken, Utilização da máquina, Uso dell'apparecchio, Utilización de la máquina, Działanie maszyny

Illustration of hands connecting a mechanical component to a wall-mounted device (no text or symbols visible)

Technical illustration of a mechanical device with a hand adjusting components, showing a close-up view of the component (no text or symbols present)

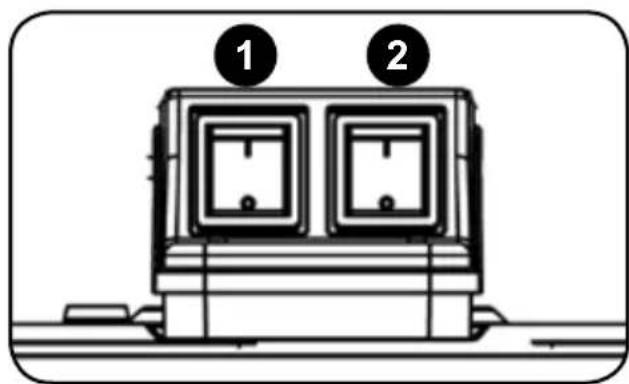

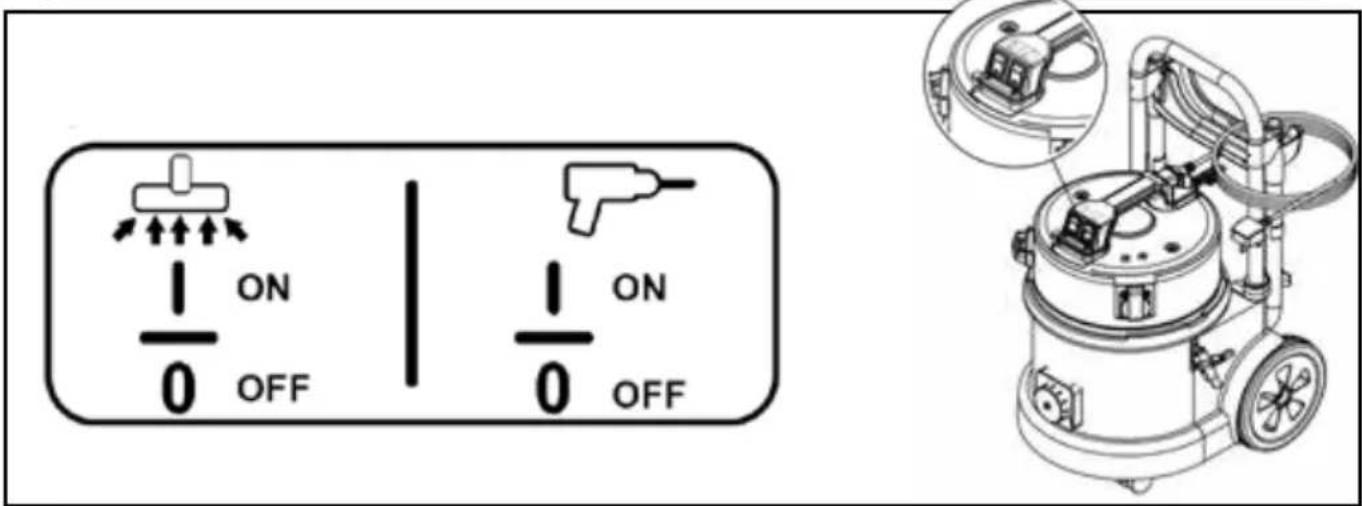

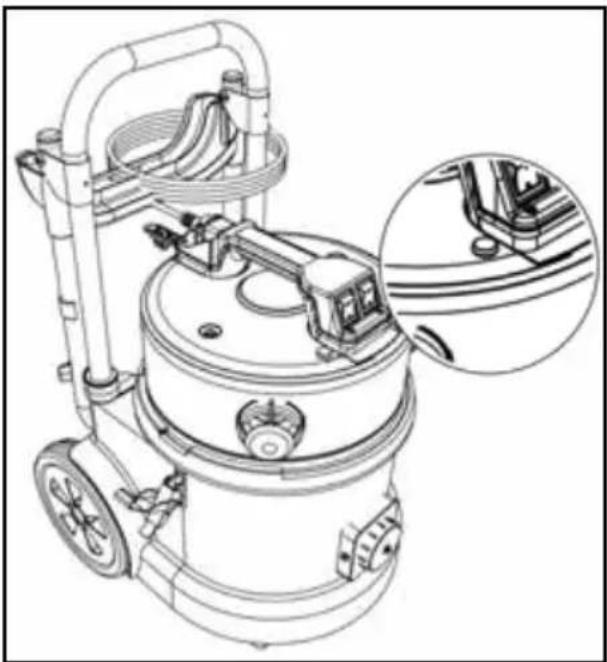

1 On / Off

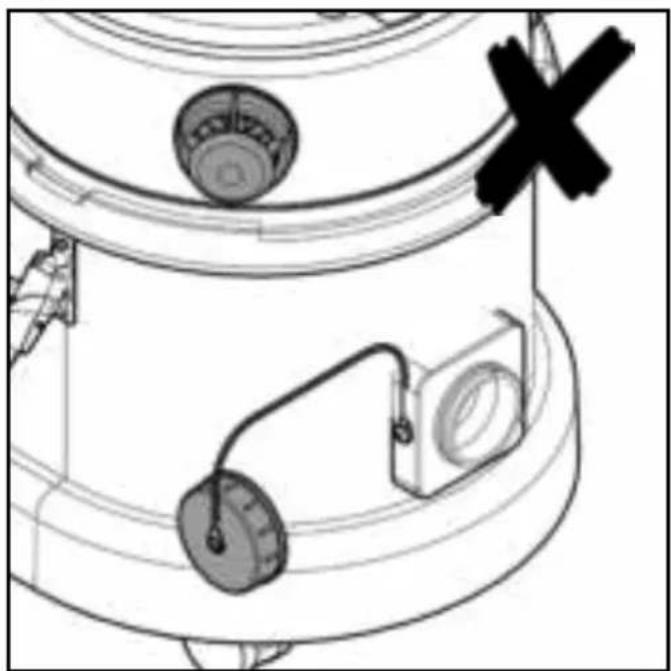

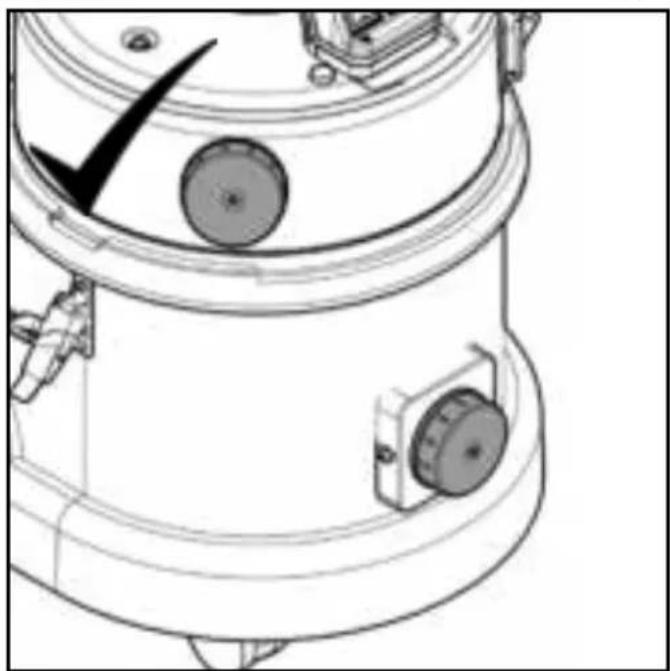

2 Auto / Manual Switch

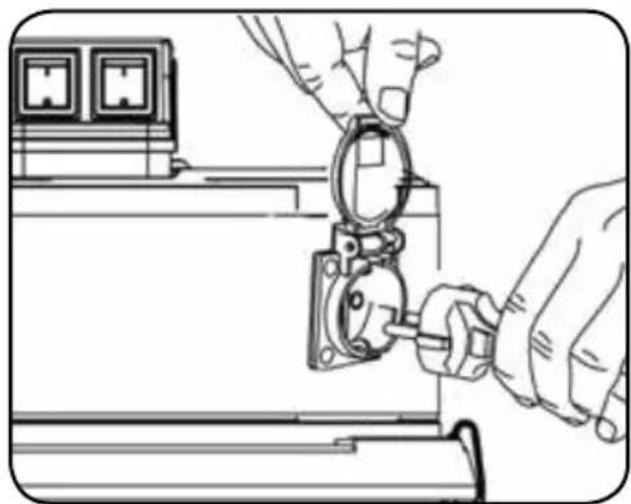

GB	TEM 390A 2200W Maximum Load (min. 100W).If the auxiliary socket is overloaded, the machine will cut out.To reset switch off the machine, then wait for 5 seconds before switching on
DE	TEM 390AMaximale Last 2200 W (min. 100W).Wenn die maximale Last an der zusätzlichen Steck-doseüberschritten wird, schaltet sich das Gerät ab.(Schalten Sie das Gerät aus, um die Platine zurück-zusetzen)
FR	TEM 390A Charge maximale 2200W (100W min).Si la prise auxiliaire est en surcharge, la machine s'arrête.(Eteignez la machine pour réinitialiser le circuit électronique)
NL	TEM 390A Maximale belasting 2200W (min 100W).Als het maximaal stroomgebruik van 2000W wordt overschreden, zal de machine uitschakelen.Schakel de machine uit om de inschakelautomaat te resetten.
PL	Maksymalne obciążenie TEM 390-A 2200W (min. 100W).Jeżeli gniazdko pomocniczej est przeciążone, maszyna wyłączy się.Aby dokonać resetu należy wyłączyć maszynę, a następnie odczekać 5 sekund przed jej ponownym włączeniem.

230149 10.0amp Time Lag Fuse

Using your machine, Arbeiten mit dem Gerät, Utilisation de la machine, De machine gebruiken, Utilização da máquina, Uso dell'apparecchio, Utilización de la máquina, Działanie maszyny

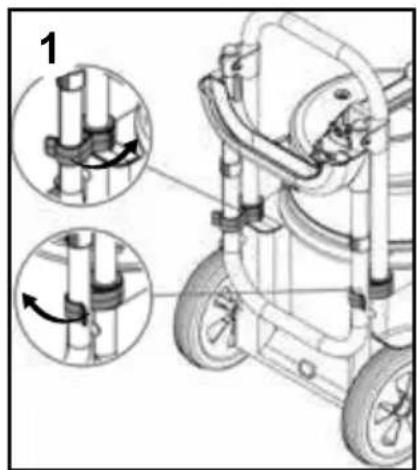

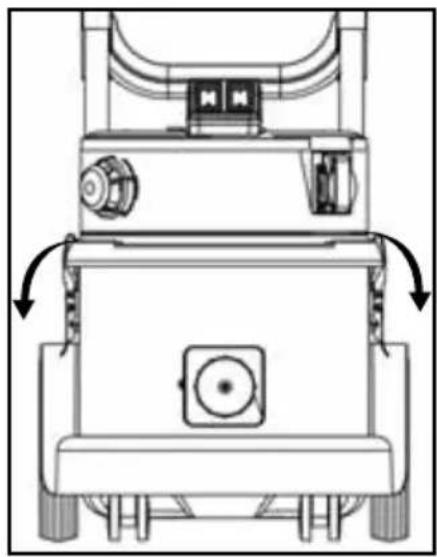

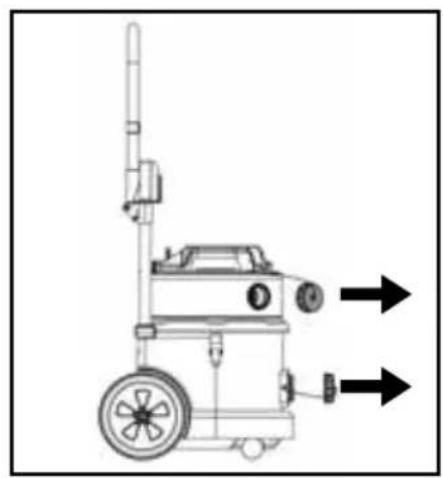

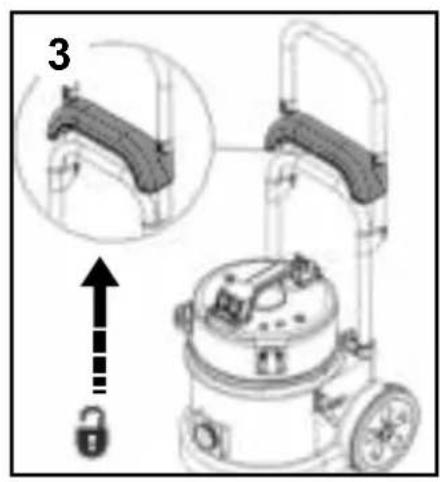

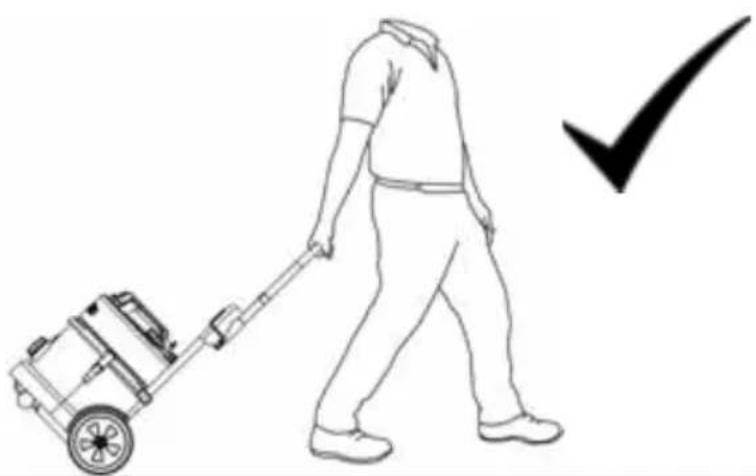

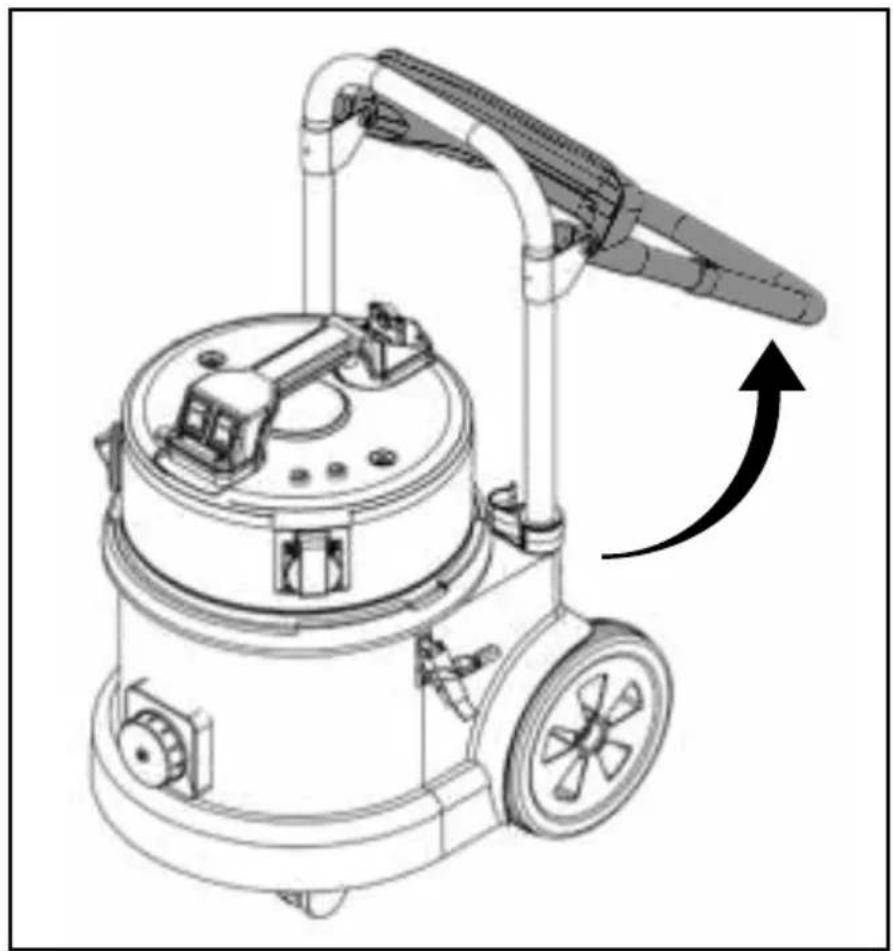

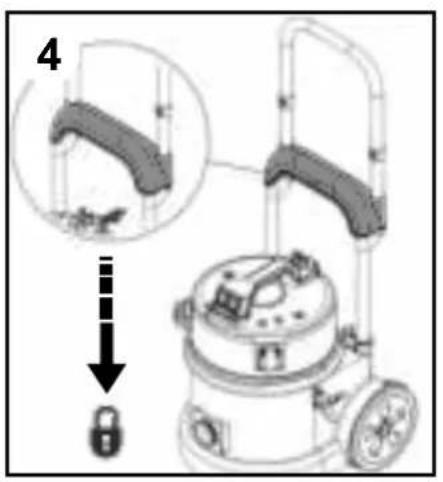

Moving your Machine, Bewegen der Maschine, Déplacement de votre machine, Verplaatsen van uw machine, Deslocar a máquina, Spostamento dell'apparecchio, Desplazamiento de la máquina, Transport maszyny

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with circular components and a curved arrow indicating motion (no text or symbols)

Line drawing of a person pushing a small cart with a checkmark indicating selection (no text or symbols)

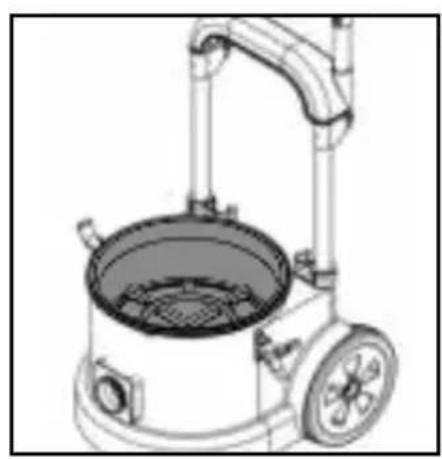

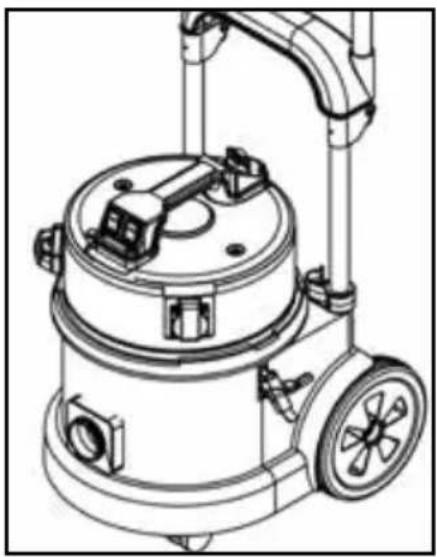

Low Flow Warning Light, Warnleuchte Niedriger Durchsatz, Voyant d'avertissement de faible débit, Waarschuwingslampje verminderde zuigkracht, Luz de aviso de fluxo reduzido, Spia di segnalazione flusso basso, Luz de aviso de caudal bajo, Lampka ostrzegawcza niskiego przepływ

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

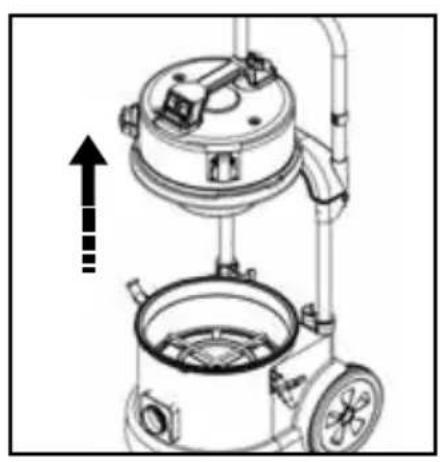

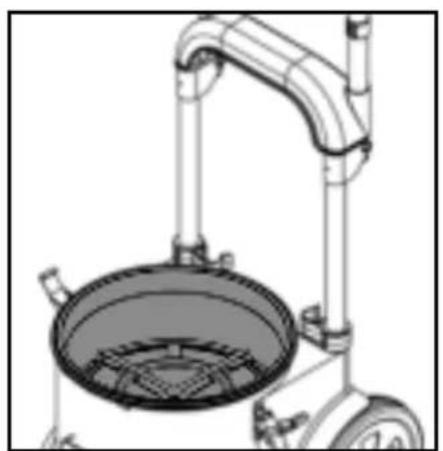

Low flow monitoring

Slow Repeated Flash.

The vacuum cleaner is fitted with a warning lamp that will illuminate and flash when the air speed in the suction hose falls below 20m/s.

If problem persists...

Causes Solution
Suction hose blocked or kinked.	Remove blockage or kink.

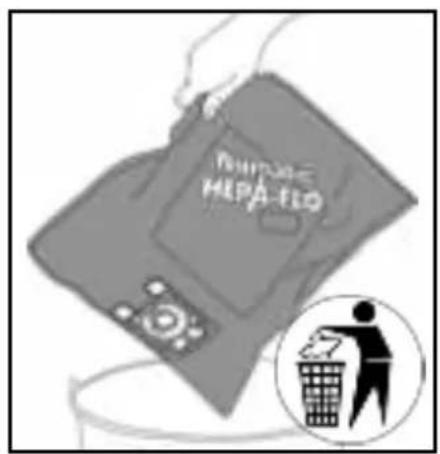

Dust collection bag full.	Replace dust bag
Filter clogged or blocked.	Replace filter cartridge.

DE

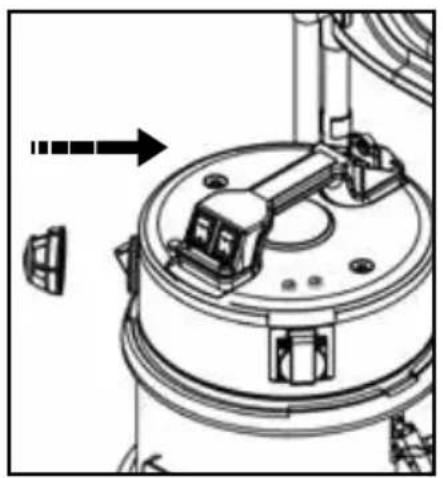

Technical line drawing of a mechanical device with three circular insets showing close-ups of the components (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Line drawing of a portable water heater with handle and wheels (no text or symbols)

Diagram of a kitchen appliance with a pot and piping, showing a container being inserted (no text or symbols present)

Illustration of a person operating a portable stove with a hand placing it (no text or symbols visible)

Illustration of hands cleaning a basin with a circular object on the surface (no text or symbols)

Diagram of a portable stove with a lid and a rotating fan, showing mechanical components (no text or symbols)

Technical line drawing of a mechanical device with a circular base and curved pipe arm (no text or symbols)

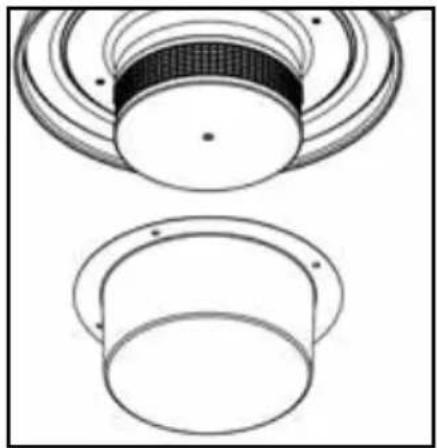

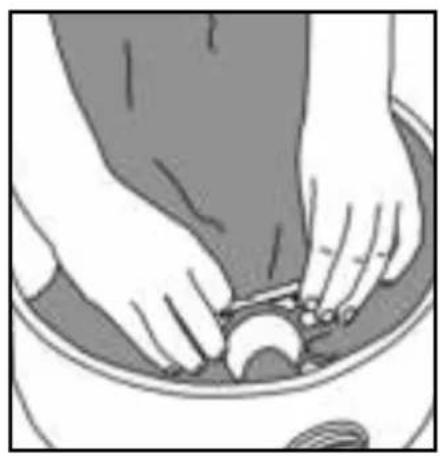

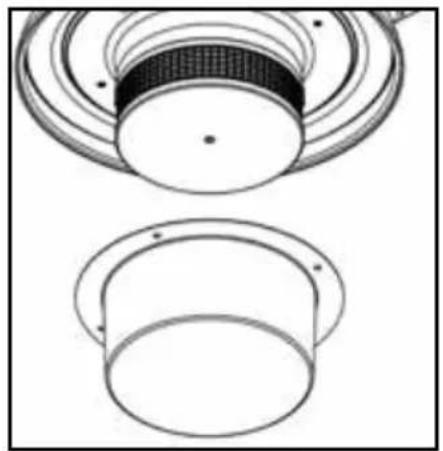

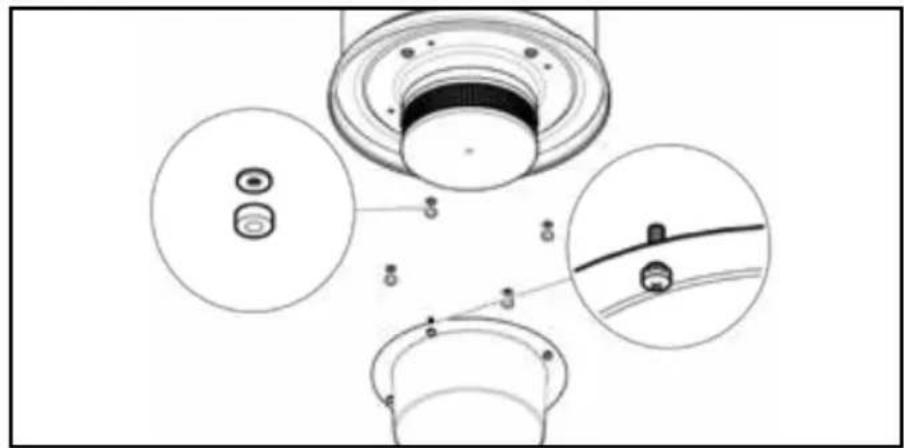

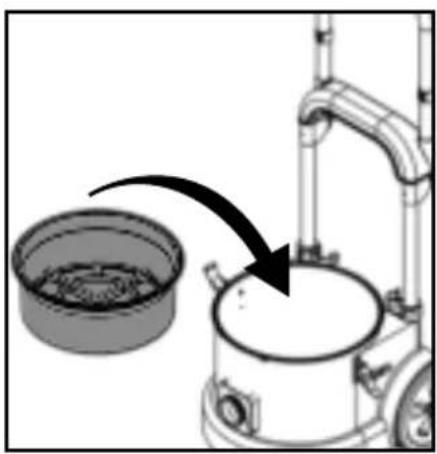

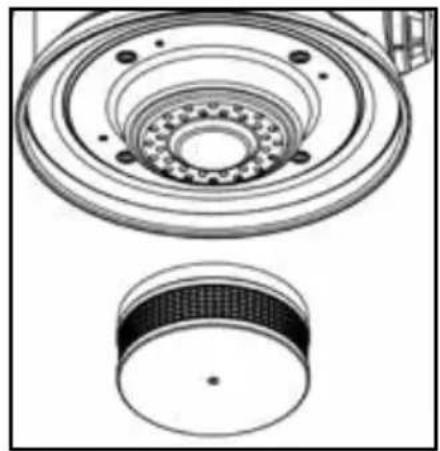

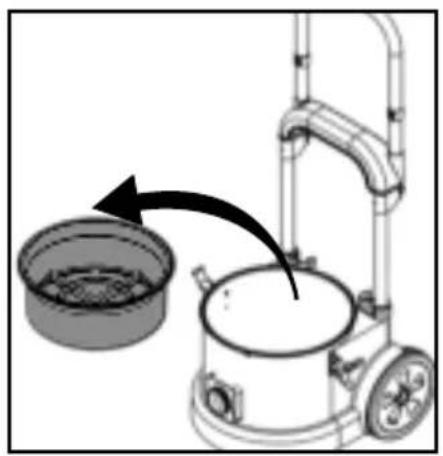

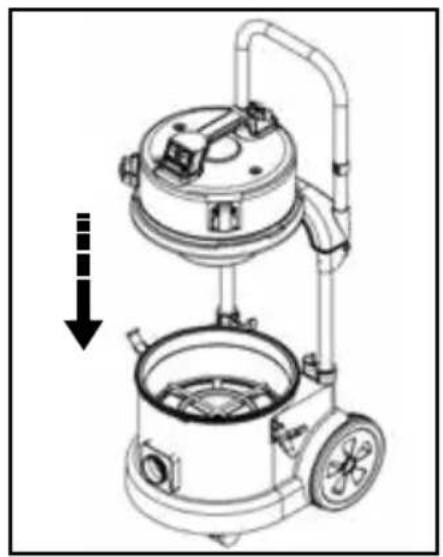

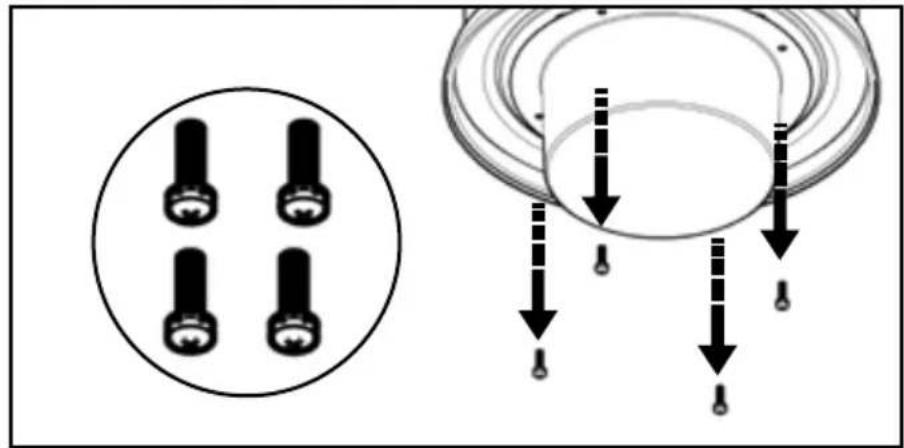

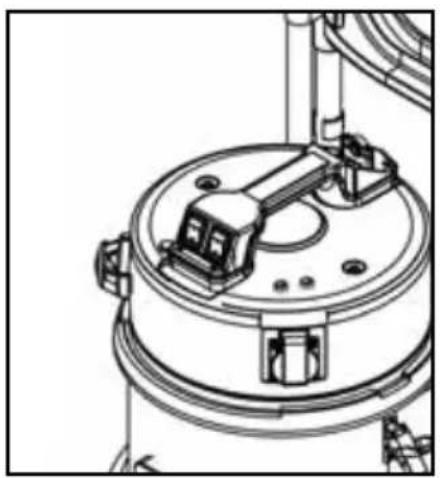

Replacing the Cartridge Filter, Austauschen des Filterelements,

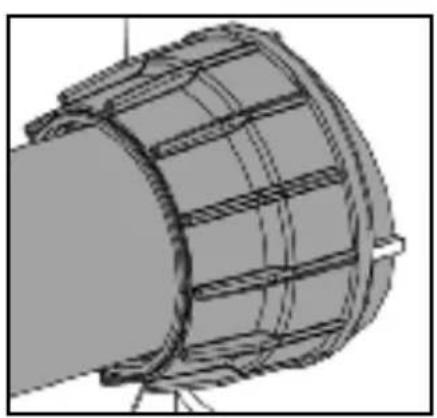

Technical line drawing of a mechanical component with concentric rings and mounting bracket (no text or symbols)

Technical line drawing of a speaker and fan components (no text or symbols)

Technical illustration of a mechanical assembly with concentric rings and a cylindrical component (no text or symbols)

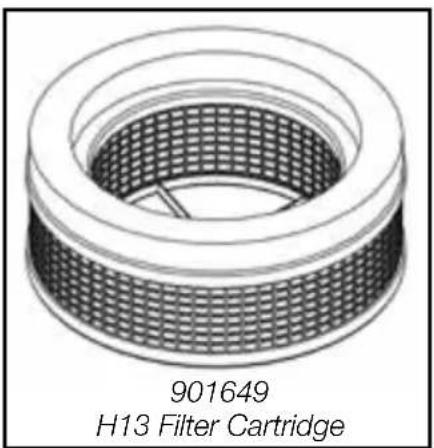

Technical illustration of a H13 filter cartridge component (no text or symbols on the diagram itself)

Technical line drawing of a speaker component with two views (top and side), no text or symbols present.

Diagram of a speaker component with three circular insets showing internal components (no text or labels)

Technical line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with attached piping and fan (no text or symbols)

Technical line drawing of a mechanical device with mounting base and side-mounted components (no text or symbols)

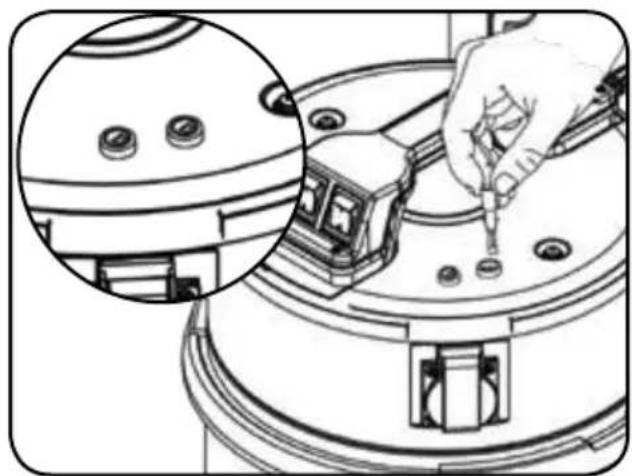

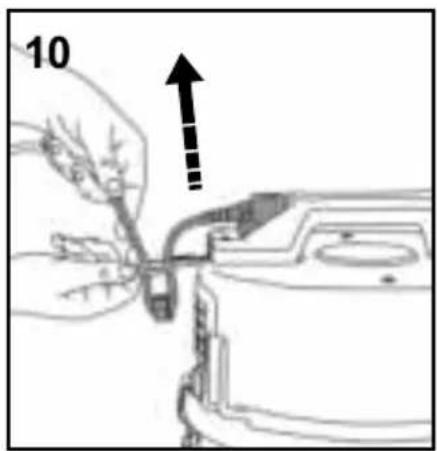

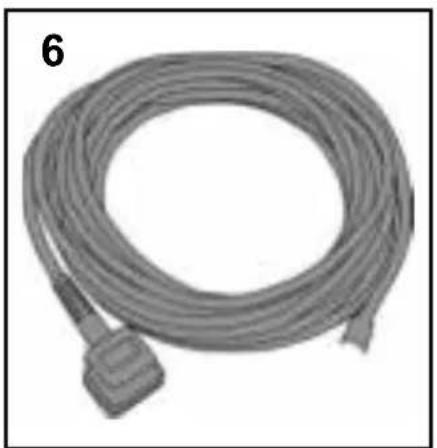

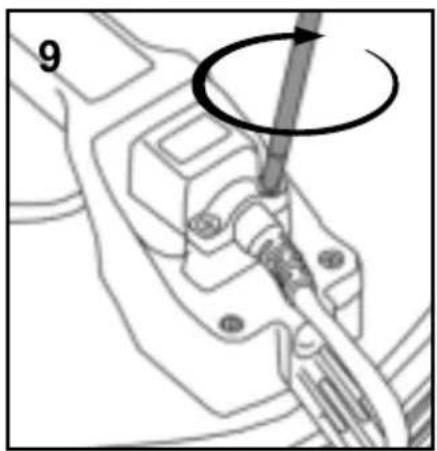

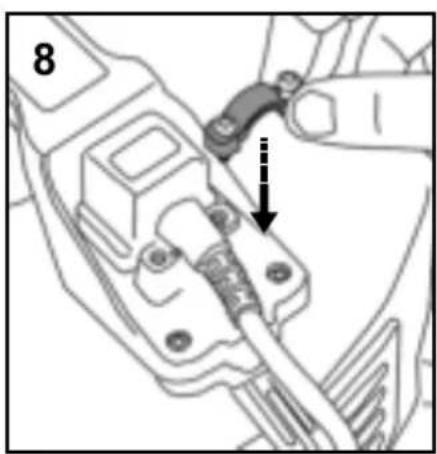

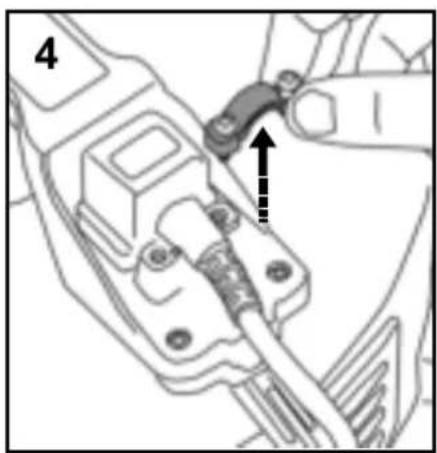

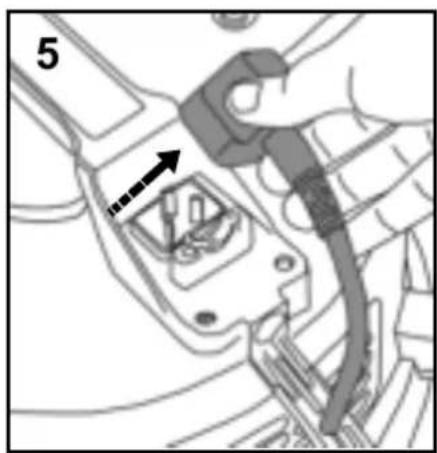

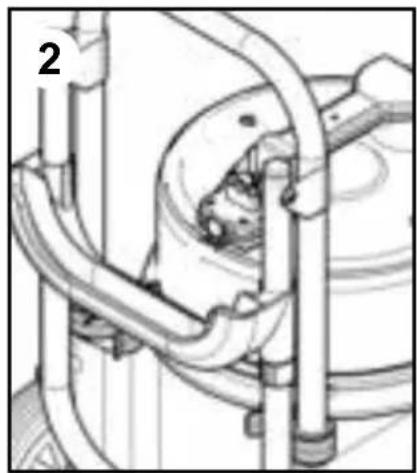

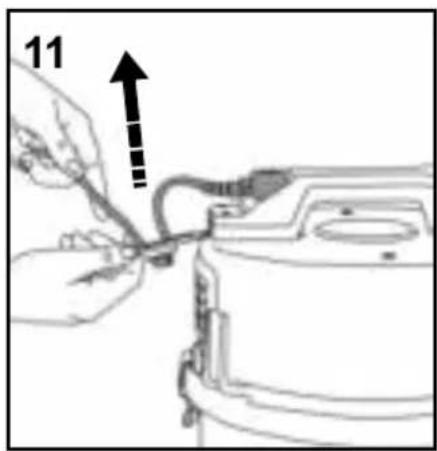

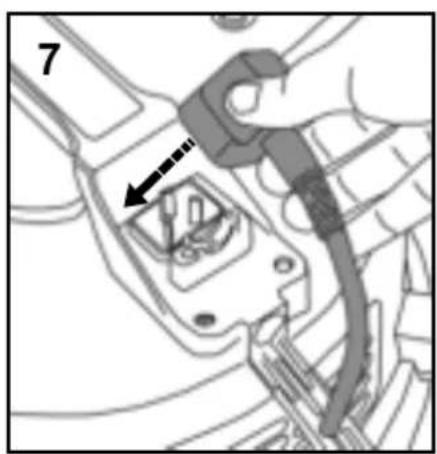

Changing / Replacing Cable, Auswechseln des Kabels, Changement/remplacement du câble, Vervangen van de kabel, Mudar/substituir cabo, Cambio/sostituzione del cavo, Cambio del cable,

Technical line drawing of a mechanical component with a screwdriver inserted, showing a circular motion indicator (no text or symbols)

Diagram of a hand holding a tool with a curved component, no visible text or symbols

Technical diagram of a mechanical assembly with a tool and component, no visible text or symbols

Coiled gray cable with a connector, labeled '6' in the top-left corner (no other text or symbols visible)

Close-up of a hand holding a cable with a small mechanical component inserted, showing no text or symbols.

Technical line drawing of a mechanical component with a tool and circular motion indicator (no text or symbols)

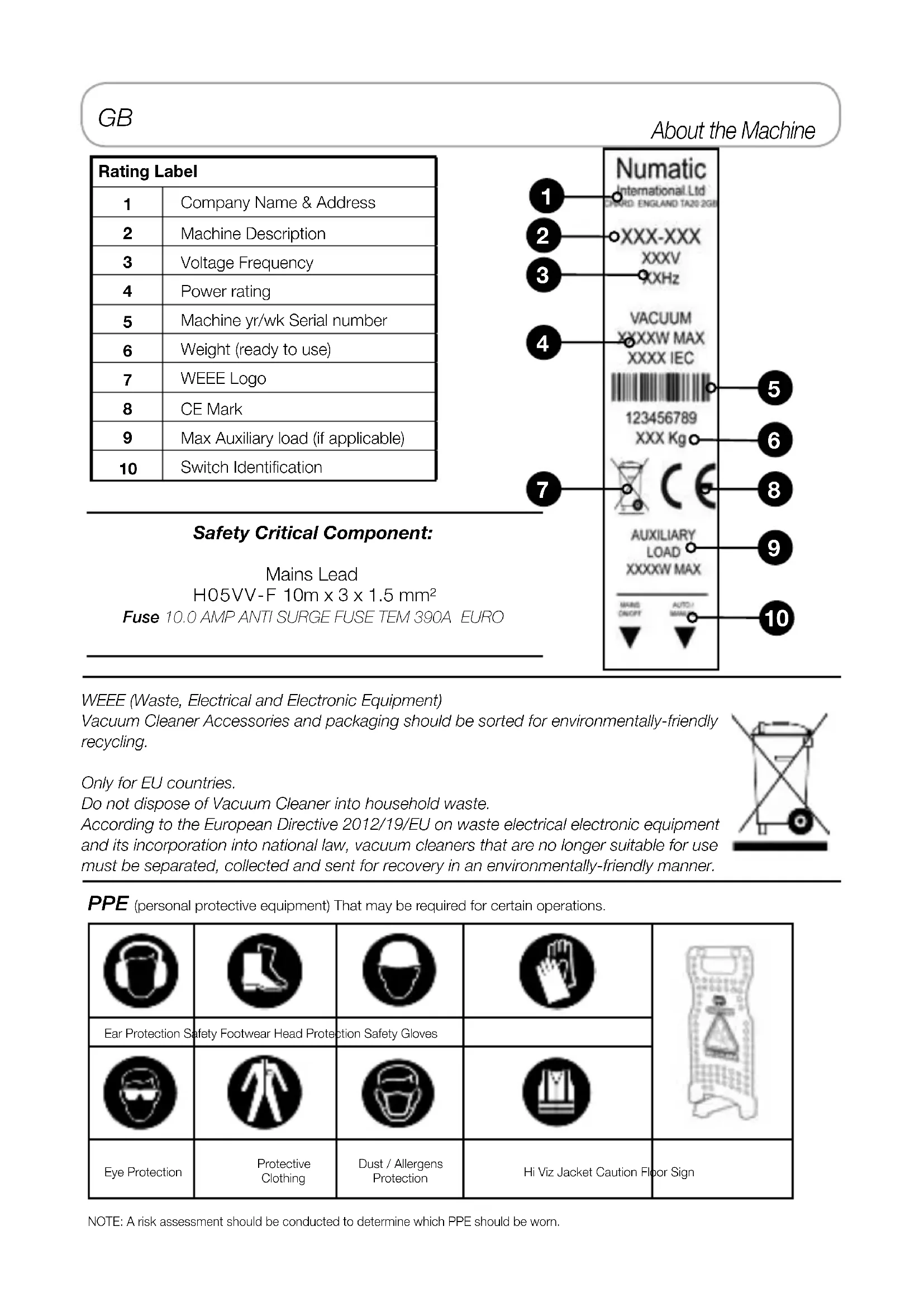

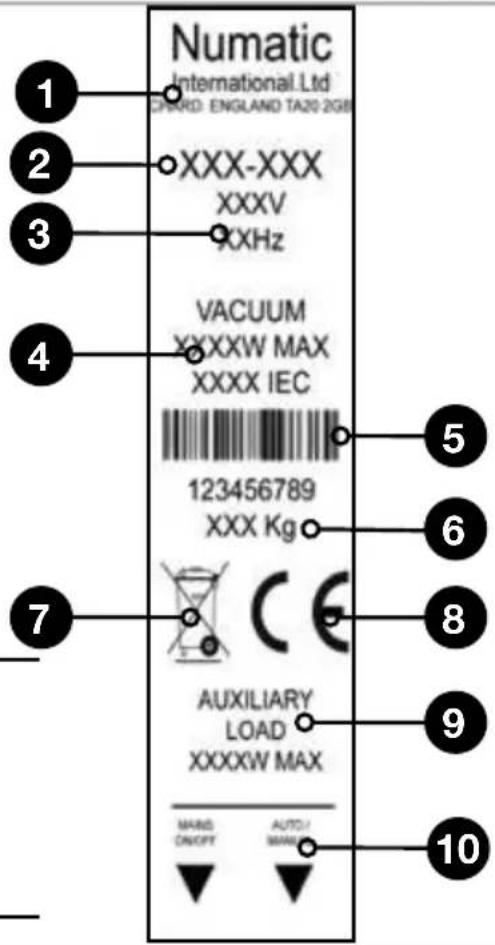

Rating Label
1	Company Name & Address
2	Machine Description
3	Voltage Frequency
4	Power rating
5	Machine yr/wk Serial number
6	Weight (ready to use)
7	WEEE Logo
8	CE Mark
9	Max Auxiliary load (if applicable)
10	Switch Identification

Safety Critical Component:

Mains Lead

H05VV-F 10m x 3 x 1.5 mm²

Fuse 10.0 AMP ANTI SURGE FUSE TEM 390A EURO

WEEE (Waste, Electrical and Electronic Equipment)

Vacuum Cleaner Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for EU countries.

Do not dispose of Vacuum Cleaner into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law, vacuum cleaners that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

Simple line drawing of a trash bin with diagonal lines crossing the rim and a wheel, no text or symbols present.

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves
Eye Protection	Protective Clothing	Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign

WARNING!

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of their machine.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect. Maintenance should only be carried out by a qualified person.

This machine is for DRY USE only and must not be stored outside or used in wet conditions.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

This appliance is intended to be cleaned and maintained by an adult.

Children being supervised are not to play with the machine.

This machine is not a toy.

CAUTION

This machine is not suitable for picking up biological hazards or explosive dust.

Contact your local distributor if you require a machine capable of performing these tasks. Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This vacuum cleaner is intended for indoor use in the collection of dry materials.

This machine should be stored indoors only.

NOTES

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, rental businesses and offices for other than normal housekeeping purposes.

This vacuum cleaner is fitted with a thermal protection device. If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the socket, inspect the floor tool, tubes and hose for debris. If the floor tool, tubes and hose are clear, replace the dust bag and clean the filter.

The vacuum cleaner should be inspected after use for damage.

The vacuum cleaner should be stored in a dry place.

DO

• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep filters clean.
• Keep diffuser filter (where fitted) clean.
• Use filter bags, they will enhance performance and help keep machine clean.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Only use the socket outlet on the machine for purposes specified in the instructions.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person.
• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Do not use in wet environments or to collect wet materials.

IMPORTANT USER INFORMATION

Before use operators shall be provided with information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of disposing of material collected. The dust container has to be emptied when necessary, but also after every time used.

This vacuum cleaner has a lamp that illuminates when air velocity drops below a < 20 m/s, which indicates that the bag must be changed.

All filters including the bag must be undamaged and in correct position before this machine can be used safely.

Extraction from electric power tools can be controlled by an integral automatic electronic switch-on / shut-off - Auto Start Feature

WARNING:

1. This machine must only be operated by suitably trained and authorised personnel.
2. This machine or its accessories must not be modified.
3. The machine must not be stored or used in a wet environment.
4. Do not allow the dust collection bag (NVM-2BH) to become so full as to reduce the effective pick-up of the vacuum. (Lamp will illuminate at preset air velocity levels < 20 m/s).
5. Only use the dust collection bag (NVM-2BH) once.
6. This machine must only be repaired by suitably trained and authorised personnel.
7. Only use genuine Numatic International Ltd spare parts, for repairs.
8. This machine must not be installed as a fixed extraction system or run unattended.
9. Do not re-use the essential filter element after removal out of the machine.

Operators should observe any safety regulations appropriate to materials being handled.

This machine is for dry use only.

PREPARATION FOR USE

Unpack and identify each item of equipment from the delivery note.

Check that the details given match the information on the "rating plate" mounted on the head assembly.

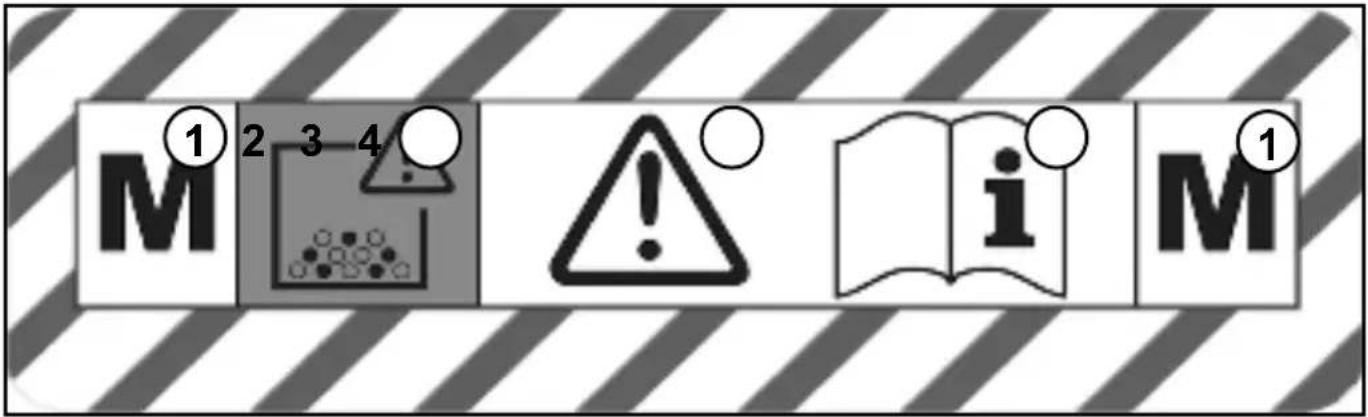

Label Explained

1 M type Vacuum Cleaner
2 Caution, debris contained inside the vacuum cleaner could be hazardous to health
3 Caution!
4 Read instructions before use

Warning!

This machine contains dust hazardous to health. Emptying and maintenance operations, including removal of the dust bag, must only be carried out by trained personnel, who are familiar with the machine and wearing suitable personal protective equipment. DO NOT operate without the full filtration system fitted.

For M class machines, outside of the machine should be decontaminated by vacuum cleaning methods and wiped clean or treated with sealant before being taken out of a hazardous area.

Installation / Removal / Disposal of the dust bag/ cartridge filter.

The dust bag/ cartridge filter holding the dust and debris must be removed and renewed by authorised personnel only, wearing appropriate personnel protective equipment, in a specified de-contamination area. Never operate without the full filtration system in place.

Remove the cloth filter in the drum. Remove the dust bag from the hose flange inside the drum and seal the dust bag hole. Place the dust bag cartridge filter inside an impervious plastic bag and seal the bag. Dispose of the plastic bag, depending on contamination, in an appropriate manner.

DE

Angaben zum Gerät

Simple line drawing of a trash bin with no text or symbols

PPE (personal protective equipment) That may be required for certain operations.

Aufkleber (Legende)

Simple line drawing of a trash bin with no text or symbols

WEEE wetgeving

Simple line drawing of a trash bin with diagonal lines crossing the rim, no text or symbols present.

EPI

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with no text or symbols

Numatic International Ltd.

	UK DE	FR NL PT IT ES PL
18 L Drum Size	Kesselgröße Taille	de cuve Ketel afmeting			Tamanho do tambor	Capacità ser-batoio	Tamaño del cilindro	Pojemność bębna
28m	Cleaning Range	Reinigungsbereich	Champs d'action	Bereik	Alcance da limpeza	Campo di pulizia	Alcance de limpieza	Zasięg czyszczenia
14.3 kg	Weight (Ready to work)	Gewicht (betriebsbereit)	Poids (prêt à l'emploi)	Gewicht (klaar voor gebruik)	Peso (pronto a utilizar)	Peso (apparecchio pronto per l'uso)	Peso (lista para el uso)	Waga (robocza)
70 dB (A) Uncertainty 0.5 dB	Sound Pressure	Schalldruckpegel	Niveau d'émission sonore	Machinerichtlijn Sound Pressure	Pressão acústica	Pressione sonora	Presión de sonido	Moc akustyczna
Class I	Protection Class	Schutzklasse	Classe de protec-tion	Veiligheidsklasse	Classe de protecção	Classe di protezione	Clase de protección	Klasa ochrony
Handle down 400x450x690 mm Handle up 400x450x1010 mm	Dimensions	Abmessungen	Dimensions	Afmetingen	Dimensão	Dimensioni	Dimensiones	Wymiary L x W x H
2820W	Power Rating	Leistung	Puissance	Vermogen	Potência nominal	Potenza nominale	Potencia nominal de entrada	Moc znamionowa
220-240V 50-60 Hz	Voltage / Frequency	Nennspannung / Frequenz	Tension d'alimentation / Fréquence	Voltage / Frequentie	Tensão / Frequência	Tensione / Frequenza	Tensión / Frecuencia	Napięcie
208.9 Mbar 208.9 (hPa)	Max. Under pressure	Max. Unterdruck	Dépression max.	Max onder druk	Subpressão máxima	Pressione max	Presión máxima	Maks. podciśnienie
29 L/s 104.4 m3/h	Max. Flow rate	Max. Durchflussmenge	Débit max.	Max. debiet	Caudal máximo	Portata max	Caudal máximo	Maks. prędkość przepływu
2200W Maximum Load (min. 100W).	Socket Max Load	Maximale Last	Charge maximale	Maximale belasting	Carga máxima	carico max	Carga máxima	Maks. obciążenie gniazda

19

EU DECLARATION OF CONFORMITY

The fact is updated on our role responsibility that he following equipment follows all the relevant purpose of the following to practice

Machinery Directive 2014/3/26 FMC Directive 2014/30/27 Halls Directive 2011/05/L

"Inchne Lecu-phon. "v. n. Dorr

“Xchin P Type: T”M

The following table is a simple formula:

51000000000000000000000000000000000000

2024.1.29 2:15

EN 5014:2.61 SLWRE 18231

H501:4.2:55T+JL0901-732001

[Unreadable]

[NG100C-1-3]

EN 62293:208

A...clinical study question for his equipment is not clear: email's...the.s.d.c. under the a. Thavisham of the Institute of Statistics:

t. n. k

Aty-80,4

Koban:

L'Kuayam, Mauwur

###

17/10/16

The image is too blurry to recognize any text content.

One Sarnour

T4210

www.tsfund.com

GB

DOC:5

h. j.

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EJ

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Position: Development Manager

Signe Par.

Date

kurtale International .3

Board Suisse

TAX 2015

www.nurank.co.uk

FR

DEC-09C

12021

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Kumah International Ltd

Grad Semesters

TASIGN

[Unreadable]

NL

JIC 500

1. F

Machinery Directive 2006/42/EC

EMC Directive 2014/30/OU

RoHS Directive 2011/65/EU

Machinery Directive 2006/12/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

H. mshc ptemshorg, Ltd

Chard S###

TJN20

www.fumadc.oc.01

IT

D:100

12001

12

DECLARACION DE

CONFORMIDAD

DE LA UNIÓN EUROPEA

2016.10.1

10.2.1 1987年1月1日

[Unreadable]

OK[]→A:→X:

145600-471X2-D

1

[Unreadable]

m = 12

[Unreadable]

[Unreadable]

1. 2023年1月1日

2. 2017年 ，

76 . . .

11671151

175-11

The image contains no legible text or symbols. The OCR result "1" is a hallucination and does not correspond to any content in the source image. Therefore, the correct OCR output is an empty string.

d，.

vib: shaiqi 100

ES

12.

1

1E

EUROPEJSKA DEKLARACJA

ZGOUNOŚCI

The image contains no legible text or symbols. The OCR result "1" is a hallucination and does not correspond to any content in the source image. Therefore, the correct OCR output is an empty string.

[Unreadable]

[Unreadable]

m = 1 或 3k + 4k + 1 = 0

[Unreadable]

[Unreadable]

-

x_1, x_2, , x_n

H: 100%

上

L 25 JENI 1973

14.1000

八、测试

1.400

[Unreadable Text]

•

[Unreadable]

r a l e r . b d

[Unreadable]

12

-

PL

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel.: [phone] www.numatic.co.uk

Numatic International GmbH. Fränkische Straße 15–19

D-30455 Hannover, DEUTSCHLAND

Tel.: [phone] www.numatic.de

Numatic International SAS. 13 / 17 rue du Valengelier

77500 CHELLES, FRANCE

Tel: [phone] www.numatic.fr

BeNeLux Distribution, Numatic International BV

16th & Pharmaceutical Roads, Midrand, Gauteng,

SOUTH AFRICA 1685

Tel: [phone] www.numatic.co.za

Numatic International Schweiz AG.

Sihlbruggstrasse 142, 6340 Baar. SCHWEIZ

Tel: [phone] - 0 www.numatic.ch
