VIGI C440 - Surveillance Camera TP-LINK - Free user manual and instructions

Product Type	Network Surveillance Camera
Brand	TP-Link
Model	VIGI C440
Dimensions (L × W × H)	70 × 70 × 150 mm (estimated)
Weight	300 g (estimated)
Power	PoE 802.3af/at or 12 V DC
Video Resolution	4 MP (2688 × 1520)
Night Vision	Yes, up to 30 meters (estimated)
Viewing Angle	80° horizontal (estimated)
Connectivity	Ethernet 10/100 RJ45
Main Functions	Motion detection, H.265+ compression, NVR compatible, VIGI app
Protection Rating	IP67 (outdoor, estimated)
Storage	Via NVR or SD card (if supported)
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use abrasive products
Security	Admin password, HTTPS encryption, firmware update
Spare Parts and Repairability	Parts not available separately; contact TP-Link support
General Information	Limited warranty, CE, RoHS certificates

Frequently Asked Questions - VIGI C440 TP-LINK

How to activate the VIGI C440 camera?

Activation is done via the VIGI app, a web browser, or the VIGI Security Manager software. You must set a password to secure the device.

What is the maximum resolution of the VIGI C440?

The camera offers a resolution of 4 megapixels (2688 × 1520 pixels) for clear images.

Can I use the camera without an NVR?

Yes, you can access the camera directly via the VIGI app or a web browser, but some functions like continuous recording require an NVR or SD card.

How to reset the camera to factory settings?

Press and hold the reset button (often located on the cable) for about 10 seconds until the LED flashes.

What type of power supply is required?

The camera accepts PoE power (802.3af/at) or a 12 V DC adapter. Check the compatibility of your PoE switch.

Is the VIGI C440 compatible with NVRs from other brands?

Yes, you can add it to a third-party NVR via the ONVIF protocol or by manually activating the camera with the VIGI app.

How to update the camera firmware?

In the VIGI app or web interface, go to Settings > Update. You can check for new versions on the TP-Link website.

Does the camera have night vision?

Yes, it integrates infrared LEDs for night vision up to 30 meters (estimated), allowing 24/7 surveillance.

Can I access the camera remotely?

Yes, via the VIGI app on smartphone or via a web browser after configuring remote access on your router.

What to do if the image is blurry?

Check that the dome or lens is clean. Adjust the focus manually if possible, or reset the camera and reconfigure it.

USER MANUAL VIGI C440 TP-LINK

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106509961 REV1.4.0@2022 TP Link

Images may differ from your actual products.

CONTENTS

01 / English
05 / Deutsch
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Nederlands

33 / 日本語
37 / 한국어
41 / 繁體中文
45 / ไทย
49 / Tiếng Việt
53 /

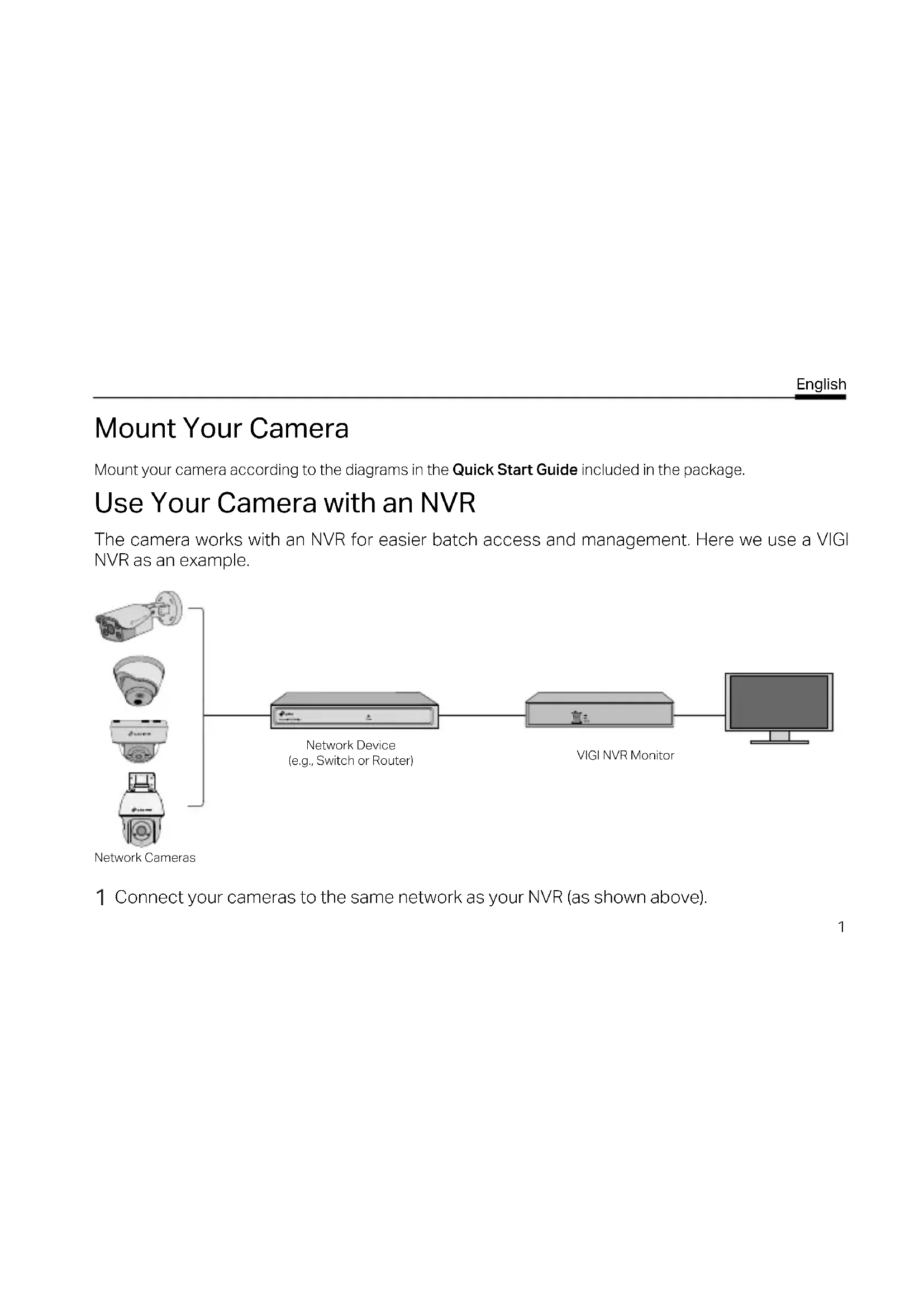

Mount Your Camera

Mount your camera according to the diagrams in the Quick Start Guide included in the package.

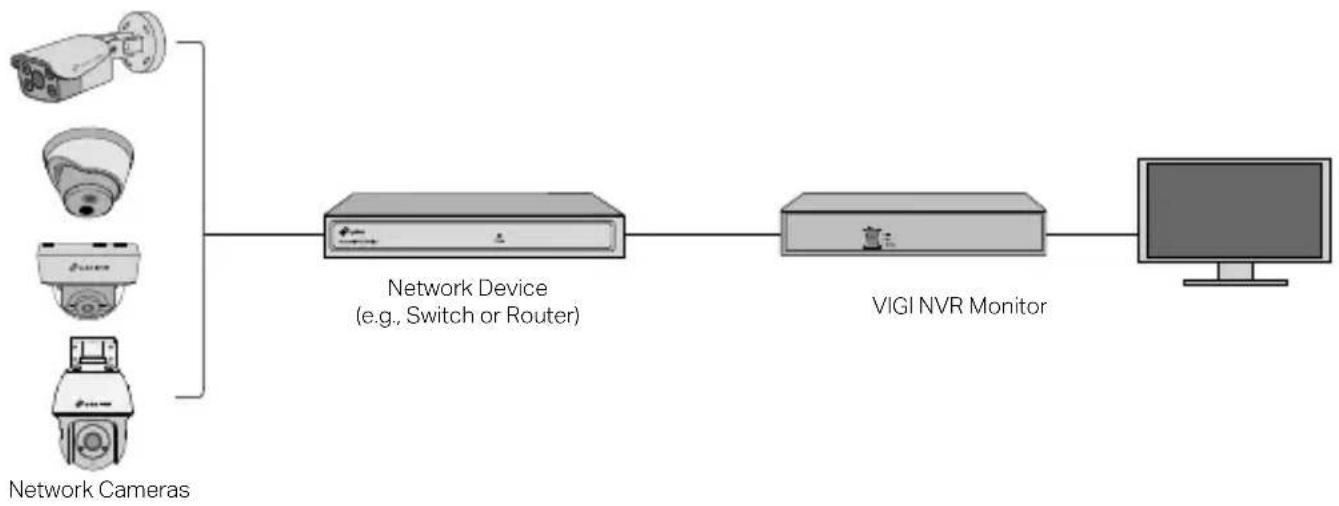

Use Your Camera with an NVR

The camera works with an NVR for easier batch access and management. Here we use a VIGI NVR as an example.

1 Connect your cameras to the same network as your NVR (as shown above).

English

2 Power on your cameras with the PoE power supply or an external power supply.

Note: The camera's standard power supply is 12V DC or PoE (802.3af/at). The power source should comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. Some models do not support DC power supply. You can check the detailed specifications on the product page at https://www.tp-link.com/.

3 Add your cameras with the NVR.

Before you start, make sure the NVR is working properly. Then add your camera with the NVR.

1) Go to the NVR management page, right click on the screen, and click Add Camera.

2) Select your camera and click + to add your camera directly. If you have disabled Plug & Play on your NVR, create a password or use a preset password for your camera.

Done! You can now view live video and manage cameras.

Using your cameras with other NVR brands

1 Power on your cameras and connect them to the network.
2 Activate the camera using the VIGI Security Manager or VIGI app (refer to the next section).
3 Refer to the NVR's User Manual to add cameras.

More Management Methods

You can also access and manage your cameras via any of the methods below.

Method 1: Via the VIGI App

Remotely view live video, manage cameras, and get instant alerts.

1 Download and install the VIGI app.

2 Open the VIGI app and log in with your TP-Link ID. If you don't have an account, sign up first.
3 Tap the + button on the top right and follow the app instructions to activate and add your cameras.

Method 2: Via a Web Browser

Note: Some models do not support web management. You can check the detailed specifications on the product page at https://www.tp-link.com/.

View live video and modify camera settings via a web browser.

1. Find the camera's IP address on your router's client page.
2. On your local computer, open a web browser and enter https://camera's IP address

English

(https://192.168.0.60 by default).

1. Select your Country/Region and Time Zone.
2. Set a password to activate the camera.

Done. You can view the live video on the Preview page, and go to the Settings page to change camera settings.

Method 3: Via the VIGI Security Manager (Windows only)

View live video and modify camera settings on your computer.

1 Download the VIGI Security Manager on your computer at https://www.tp-link.com/download-center/
2 Install the VIGI Security Manager and open it.
3 Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras.

For frequently asked questions, please refer to https://www.tp-link.com/support/faq/2850/

./https://www.tp-link.com

.הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכchia

./https://www.tp-link.com

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

https://www.tp-link.com/download-center/

English: Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.

For indoor camera

- Keep the device away from water, fire, humidity or hot environments.

- Adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

- Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.

- Adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenylethers (PBDE)
PCB ○○	○○○○
外殼 ○○	○○○○
電源供應器	-○○○○○
其他及其配件	-○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

English:

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the

Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
