USER MANUAL BW730 KRUPS

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:08 PageC4Thank you for purchasing a KRUPS kettle. Please read the instructions carefully and keep them at hand.

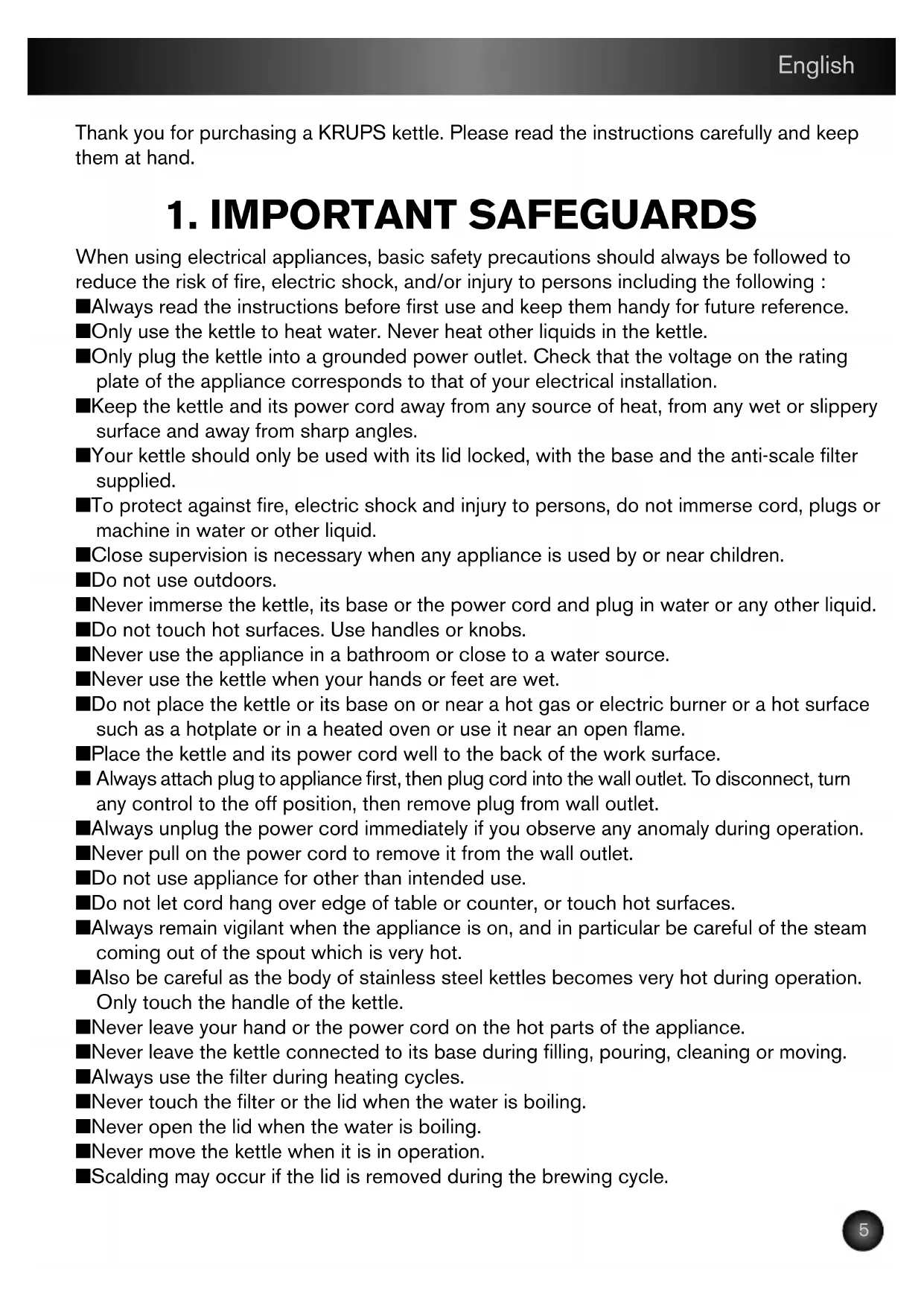

1. IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following : n Always read the instructions before first use and keep them handy for future reference. n Only use the kettle to heat water. Never heat other liquids in the kettle. n Only plug the kettle into a grounded power outlet. Check that the voltage on the rating plate of the appliance corresponds to that of your electrical installation. n Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp angles. n Your kettle should only be used with its lid locked, with the base and the anti-scale filter supplied. n To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid. n Close supervision is necessary when any appliance is used by or near children. n Do not use outdoors. n Never immerse the kettle, its base or the power cord and plug in water or any other liquid. n Do not touch hot surfaces. Use handles or knobs. n Never use the appliance in a bathroom or close to a water source. n Never use the kettle when your hands or feet are wet. n Do not place the kettle or its base on or near a hot gas or electric burner or a hot surface such as a hotplate or in a heated oven or use it near an open flame. n Place the kettle and its power cord well to the back of the work surface. n Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the off position, then remove plug from wall outlet. n Always unplug the power cord immediately if you observe any anomaly during operation. n Never pull on the power cord to remove it from the wall outlet. n Do not use appliance for other than intended use. n Do not let cord hang over edge of table or counter, or touch hot surfaces. n Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot. n Also be careful as the body of stainless steel kettles becomes very hot during operation. Only touch the handle of the kettle. n Never leave your hand or the power cord on the hot parts of the appliance. n Never leave the kettle connected to its base during filling, pouring, cleaning or moving. n Always use the filter during heating cycles. n Never touch the filter or the lid when the water is boiling. n Never open the lid when the water is boiling. n Never move the kettle when it is in operation. n Scalding may occur if the lid is removed during the brewing cycle. English

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page5n Protect the appliance from dampness and freezing. Never use the kettle if the power cord or the plug are damaged. To avoid any danger, always have them replaced by an authorized KRUPS After Sales Service Center. n If your appliance has been damaged or if it is not working properly, do not use it and never attempt to disassemble it. We recommend that you have the appliance inspected. Any work required on the appliance, except for cleaning and de-scaling according to the instructions for use must be performed by a KRUPS After Sales Service Center. n The warranty covers manufacturing defects and residential use only. Any breakage or damage resulting from a failure to comply with these instructions for use is not covered by the warranty. n Any supply connection error will void the warranty. n The warranty does not cover kettles that fail to operate or operate badly due to a failure to perform de-scaling operations. n Unplug the appliance if you intend to not use it for an extended period or during cleaning operations. n Allow to cool before putting on or taking off parts, and before cleaning the appliance. n Never use scouring pads for cleaning purposes. n To remove the anti-scale filter, remove the kettle from its base and allow it to cool down. Never remove the filter when the appliance is filled with hot water. n Never use any de-scaling method other than the one recommended. n All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use. n This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instruction concerning use of the appliance by a person responsible for their safety. n Keep the appliance out of reach of children. n Children should be supervised to ensure that they do not play with the appliance. n Never heat the kettle when it is empty. n Never fill the kettle past the maximum water level mark, nor below the minimum water level mark. If the kettle is too full, some water may spray out. n Your appliance is designed for residential use only. n The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

SAVE THESE INSTRUCTIONS

CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized Krups Service Center. Visit our website at www.krupsusa.com in the USA or www.krups.ca in Canada or contact your respective country's Consumer Service department for the service center nearest to you, or contact your respective country’s Consumer Service department. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized Krups Service Center only. English

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page6SHORT CORD INSTRUCTIONS A.A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally. B.Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. C. If a long detachable power cord or an extension cord is used:

1) the marked electrical rating of the detachable power cord or extension cord

should be at least as great as the electrical rating of the appliance.

2) If the appliance is of the grounded type, the extension cord should be a

grounding type 3-wire cord.

3) the longer cord should be arranged so that it will not drape over the counter

where it can be pulled on by children or tripped over accidentally. The appliance may have a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in anyway. n Krups reserves the right to modify the characteristics or components at any time in the interests of the consumer.

n Remove all packaging and accessories both inside and outside the kettle. n Adjust the length of the power cord by coiling the excess under the base. The powercord should extend from the base through the slot in the back. (fig. 1) n Rinse the inside of the kettle and the limescale filter (located in the spout) several times. Boil 2 or 3 kettles of water and discard to remove all manufacturing residues and dust. n Wipe the outside of the kettle and the base with a clean damp cloth. To avoid damage to the electronics, avoid exposing the base of the kettle or the bottom of the kettle to excess water.

4. USING YOUR KETTLE

1- Place the kettle base on a stable, clean surface away from heat sources. Connect the plug into anoutlet.

Note: The kettle (a), kettle base (b), and limescale filter (e) are specifically designed to be used together and other accessories not designed for use with the kettle should not be used.

2- Open the lid by pressing the lid release button (f) on the handle (g) (fig. 2). Fill the kettle with the

desired amount of water (fig. 3). English

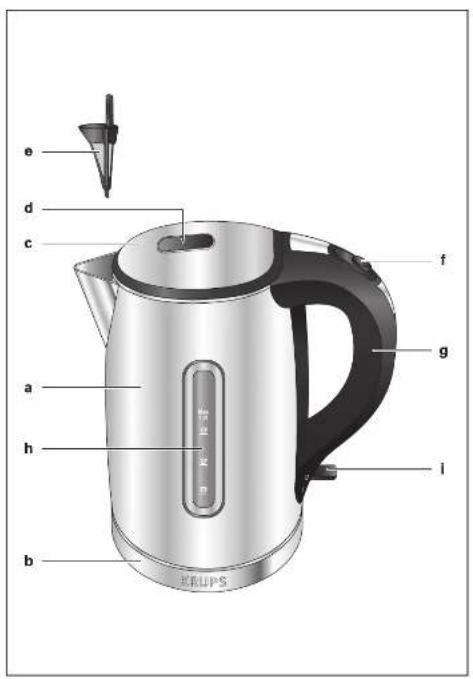

a Kettleb Basec Lidd Lid plastic covere Limescale filterf Lid release buttong Handleh Water lever indicatori On/Off switch KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page7Close the lid (c) by pushing the lid plastic cover (d). CAUTION: The lid can be hot. Do not touch the stainless steel part of the lid. Always push the lid plastic cover (d) to close the lid. Notes: n Always remove the kettle from the base before filling it with water. n Never use without water or fill with liquids other than water. When filling the kettle, take care to not expose the electrical connections at the bottom of the kettle to water. n You can also fill the kettle with water through the spout. n Do not fill the kettle beyond the maximum level, or below the minimum level marked on the water level indicator (h) If the kettle is overfilled, boiling water may splash outside of the kettle. n Always use the kettle with its lid closed.

3- Place the kettle on its base.

4- Press the On/Off switch (i) located at the bottom of the kettle under the handle (g). (fig. 4). The blue

LED light on the water windows (h) will switch on. The boiling cycle starts.

5- At the end of the boiling cycle, the blue LED light will automatically turn off and the On/Off switch (i)

will go back to the Off position. Note: At any time during the boiling cycle, you can manually stop the boiling cycle, simply by lifting the On/Off switch (i) to its Off position.

6- Remove the kettle from its base before pouring.

7- To avoid the risk of splashing, pour boiled water slowly and don’t over-tilt the kettle.

CAUTION: A dry boil cut-off system will automatically switch the kettle off.

5. CLEANING AND MAINTENANCE

DO NOT LEAVE WATER IN THE KETTLE AFTER USE. EMPTY THE KETTLE AFTER EACH USE TO REDUCE ACCUMULATION OF LIMESCALE DEPOSITS. To clean the kettle and base n Always unplug the base and allow the kettle to cool before cleaning. n Avoid exposing the base or the bottom of the kettle to excess water. To protect against risk of electrical shock, do not immerse the base in water or any other liquid, or place under running water to clean. Wipe clean with a damp sponge and a small amount of gentle dishwashing liquid if necessary. Never clean with harsh or abrasive cleaners or sponges. Dry all parts carefully before next use. To clean the limescale filter © (fig. 5) n Always unplug the base and allow the kettle to cool before cleaning. n The limescale filter is a removable mesh filter in the spout of the kettle. This filter does not treat or remove the scale from the water, it traps the scale particles from being poured out. n With very hard water, the filter may need to be cleaned as often as 10-15 uses. If the filter is wet, run under lukewarm water to remove particles. If filter is dry, brush gently to remove particles. To avoid English

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page8damaging the mesh, do not scrub the filter. n To remove excessive scale, descale as described below.

n For best performance, descale regularly. The amount of scale that develops depends on the hardness of your water and how frequently the kettle is used. Descale regularly, preferably at least once a month, more often if your water is very hard. Keep in mind that you may have to descale more often than indicated based on your water. To descale your kettle or filter: n Always unplug the base and allow the kettle to cool before cleaning. n Use plain white vinegar at room temperature. When descaling the kettle, fill with 2 cups of white vinegar and leave for one hour without heating. For the filter, remove the filter from the spout, and soak with 1 cup of white vinegar for one hour in a small cup or bowl. n Rinse kettle and filter very well with room temperature water multiple times until completely clean. Repeat if necessary and allow to dry before next use. The warranty excludes kettles which have stopped working or do not work properly due to lack of descaling.

n If the On/Off switch (i) does stay in its On position - Check that the kettle is well placed on its base. - If the kettle is hot and contains water, leave the kettle to cool down for a few minutes and turn it on again. - If the kettle is hot and does not contain water, leave the kettle to cool down for a few minutes. Fill the kettle with cold or room water and turn it on again. n The boiling cycle doesn’t start and the water windows LED lights remain switched off - Check that the kettle is well placed on its base. - Check that the power plug is well connected to a working outlet. - Check that the On/Off switch (i) is on ON position. n The kettle doesn’t stop - Check that the lid (c) is well closed. IF YOUR KETTLE HAS FALLEN, IF IT IS LEAKING, OR IF THE POWER CORD, PLUG OR BASE

n Consult the nearest KRUPS After Sales Service Center and the warranty included at the end of these instructions. n Do not use the kettle. No attempt should be made to disassemble the product or override the safety devices. If the power cord is damaged, it must be replaced by the manufacturer, a KRUPS After Sales Service Center. English

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page98. DISPOSING OF YOUR APPLIANCE Your appliance contains valuable materials which can be recycled. Consult your local waste collection center for correct disposal procedure and recycling options.

9. MANUFACTURER’S WARRANTY

: www.krups.com With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated! After sales service The appliance isn't user-serviceable. If it's not working properly, check that: - You've followed the instructions correctly; - The main supply fuse/circuit breaker hasn't blown/tripped. If it still doesn't work, consult your retailer. The Warranty This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase. The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights. The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups’s choice, a replacement product may be provided instead of repairing a defective product. Krups’s sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement. Conditions & Exclusions The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized service centre. Full address details for each country’s authorized service centre are listed on the Krups website (www.krups.com ) or by calling the appropriate telephone number listed below to request the appropriate postal address. Krups shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the English

KR_KETTLE_BW730_NAFTA_NC00117831_Mise en page 1 14/02/13 17:07 Page10product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following: -using the wrong type of water -scaling (any de-scaling must be carried out according to the instructions for use); -ingress of water, dust or insects into the product; -mechanical damages, overloading -damages or bad results due to wrong voltage or frequency -accidents including fire, flood, lightning, etc -professional or commercial use -damage to any glass or porcelain ware in the product This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one: a) The Krups guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration. b) The Krups guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible

Consumer Statutory Rights This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion. Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site. : www.krups.com CANADA GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8 MEXICO Groupe SEB MEXICO S.A. de C.V. Goldsmith 38 Desp. 401 Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. MEXICO U.S.A.
