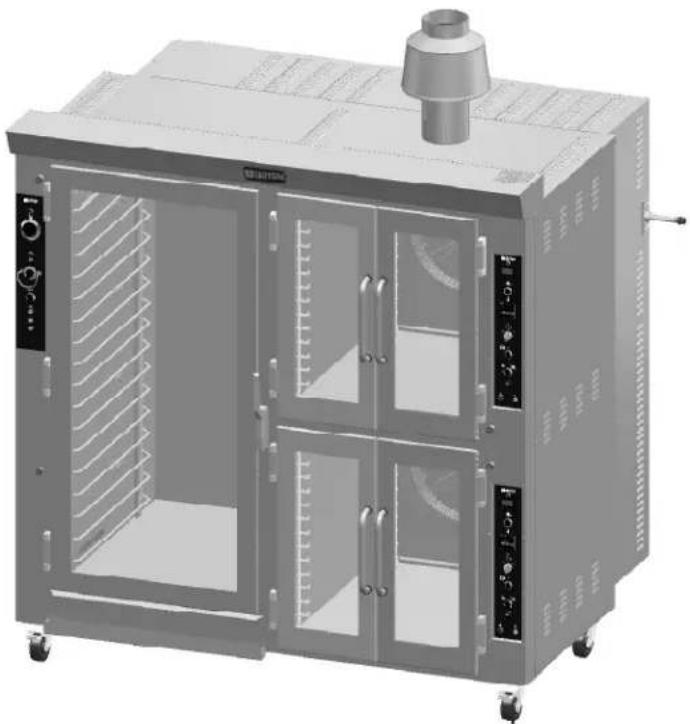

| Product Type | Gas convection oven with optional proofer |
| Brand | Doyon |
| Model | JA14G |
| Fuel | Natural gas or propane (field convertible) |
| Power Supply | 120/208-240V 1PH (depending on configuration) |
| Thermal Power | 65,000 BTU per oven section |
| Temperature Range | 50°F to 500°F (10°C to 260°C) |
| Capacity | Up to 14 pans (JA14 model) |
| Convection System | Jet Air with automatic fan reversal (2.5 min forward, 30 s stop, then reverse) |
| Steam Injection | Single mode (one-time injection) or pulsed (intermittent injection) |
| Control | ECM-1 programmer (manual or programmable mode, up to 99 recipes of 10 steps) |
| Timer | Digital with countdown, audible alarm at end of cooking |
| Functions | Preheating, cooking, holding, auto shut-off, cooling mode |
| Safety | Overheat alarm, flame detector, door switches, circuit breakers |
| Interior Cleaning | Use Dirt Buster III (NEB201) and silicone protector (EXS400) |
| Window Cleaning | Brasso or oven window cleaner (EXC300) |
| Exterior Cleaning | Stainless steel cleaner (NES201) |
| Annual Maintenance | Burner cleaning by qualified technician (check electrode, gas pressure, etc.) |
| Spare Parts | Available, references in manual (e.g., thermocouple ELT522, timer ELM616, etc.) |
| Warranty | 1 year parts and labor (F.O.B. Linière, Québec, Canada) |
Frequently Asked Questions - JA14G Doyon

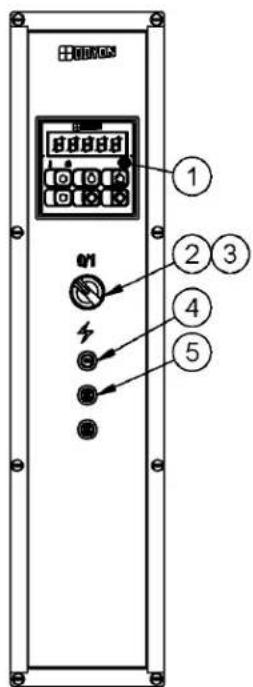

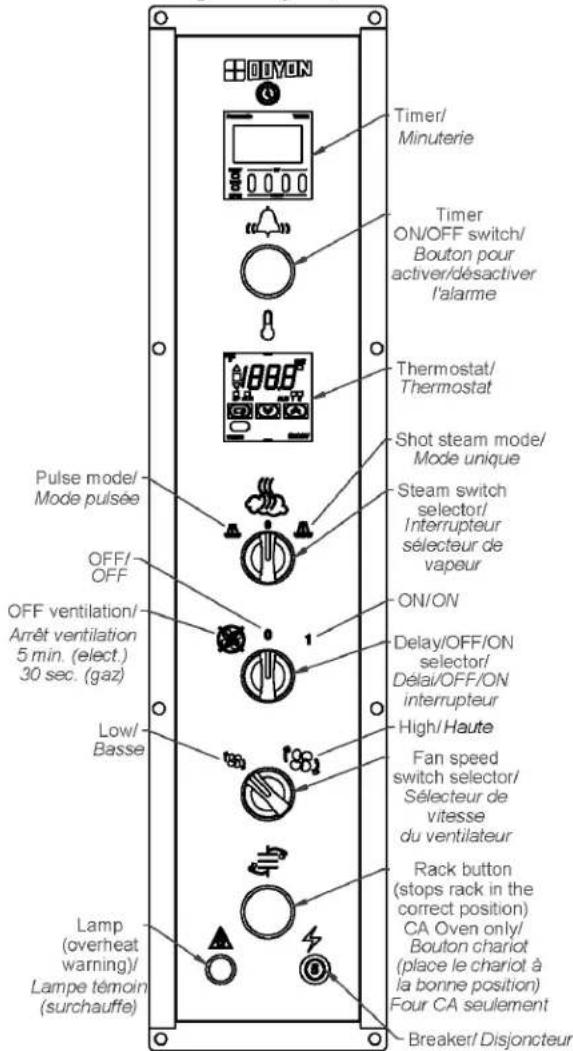

How to turn on the JA14G oven?
Set the main switch to ON (position 1). The interior light turns on. Set the thermostat to the desired temperature. The oven preheats until the green thermostat light comes on (stable temperature). Load the oven quickly to avoid heat loss.
What to do if the oven does not heat?
Check that the thermostat is set to a sufficient temperature. If the motors are running, ensure the manual gas valve is open. If the burner does not ignite, set the thermostat to OFF, wait 10 seconds, then set back to the desired temperature (repeat up to 3 times). If the problem persists, call a qualified technician.

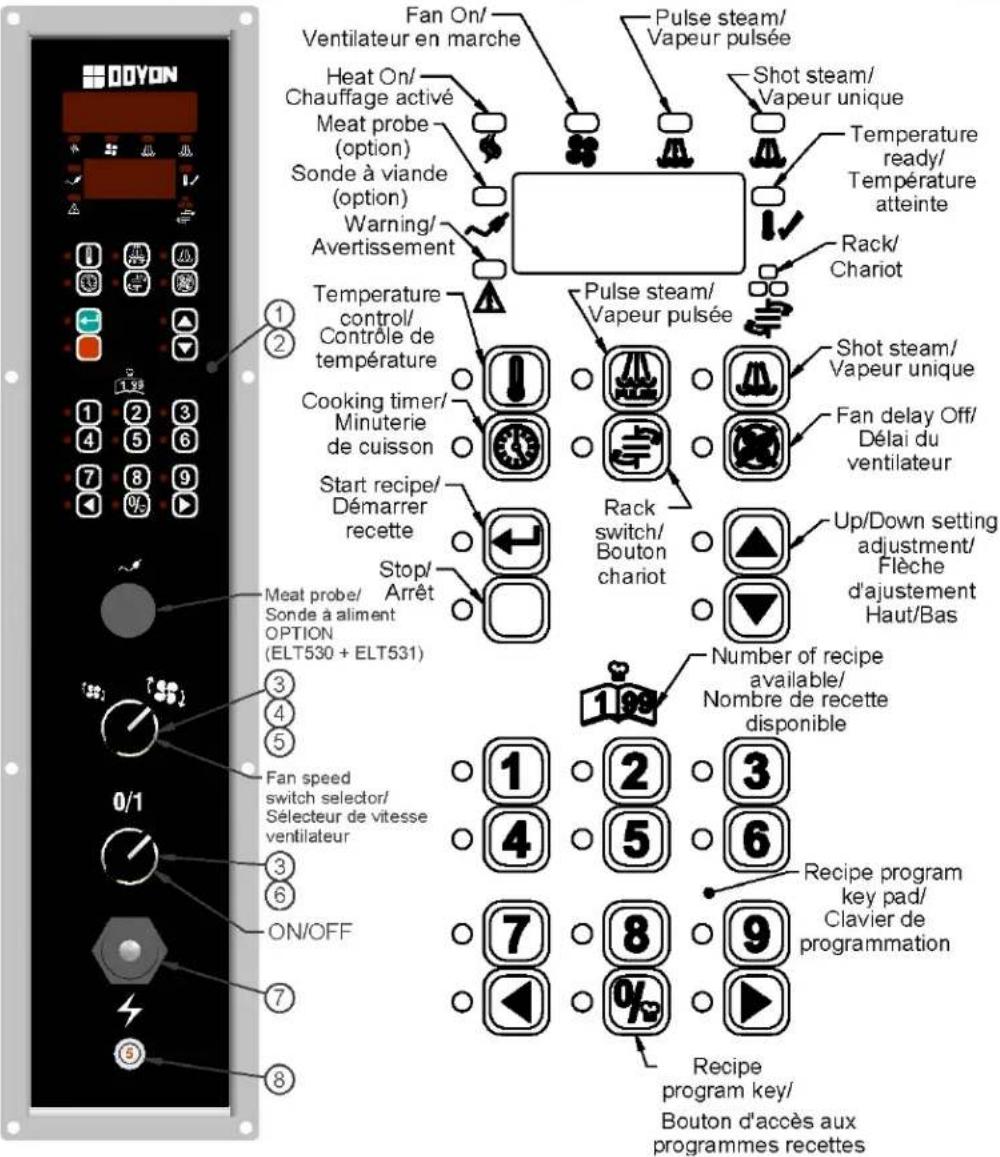

How to adjust temperature with the ECM-1 control?
Press and hold the Temperature key for 3 seconds until '▶' appears on the left of the display. Use the ▲/▼ arrows to adjust the value. The new set point is automatically saved after 3 seconds. The current temperature is always displayed.
How to use steam injection?
Two modes: single injection (press the 'Shot steam' key for a one-time injection at the start of baking) and pulsed steam (press 'Pulse steam' for intermittent injections). Steam only works if the oven temperature is ≥ 300°F (149°C). The fan is forced on.
How to program a recipe on the ECM-1?
Select the recipe number (1 to 99) using the keypad. Hold the 'Program' key for 3 seconds to enter programming mode. Use the Temperature, Timer, Steam, Fan keys, etc. to set each step. Press 'Program' for 3 seconds to exit. Up to 10 steps per recipe.
Why does the overheat alarm go off?
The 'OVERHEAT WARNING' indicator light turns on and an alarm sounds. This indicates excessive temperature in the control compartment. Check that the cooling fan ventilation duct is not blocked and that the fan is working. If necessary, have the fan replaced by a technician.
How to clean the interior of the oven?
Use a foaming cleaner such as Dirt Buster III (ref. NEB201). Apply, let it sit, then rinse. Then apply a silicone protector (ref. EXS400) on the walls and racks to prevent food from sticking. Clean windows with Brasso or a special oven window cleaner (EXC300).

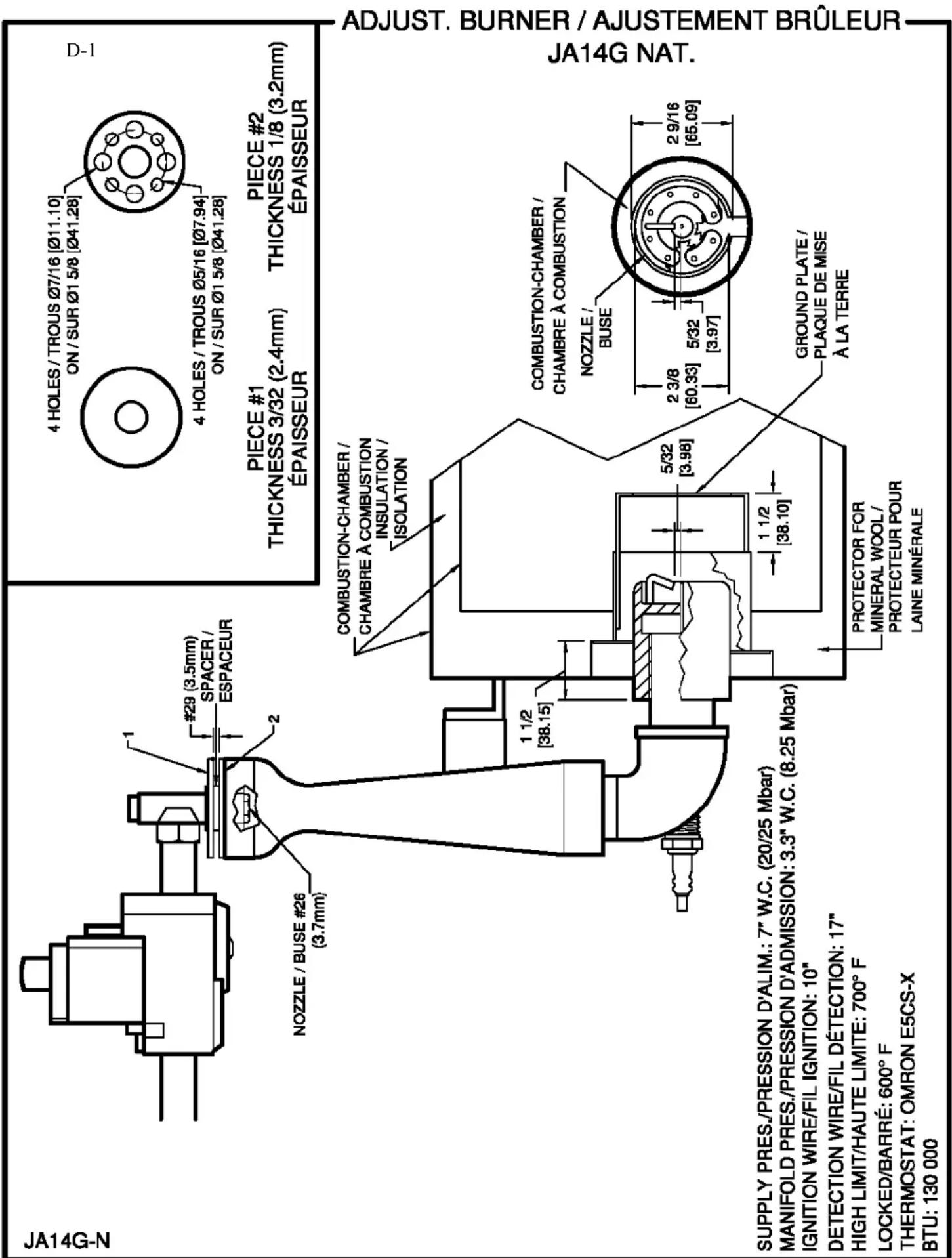

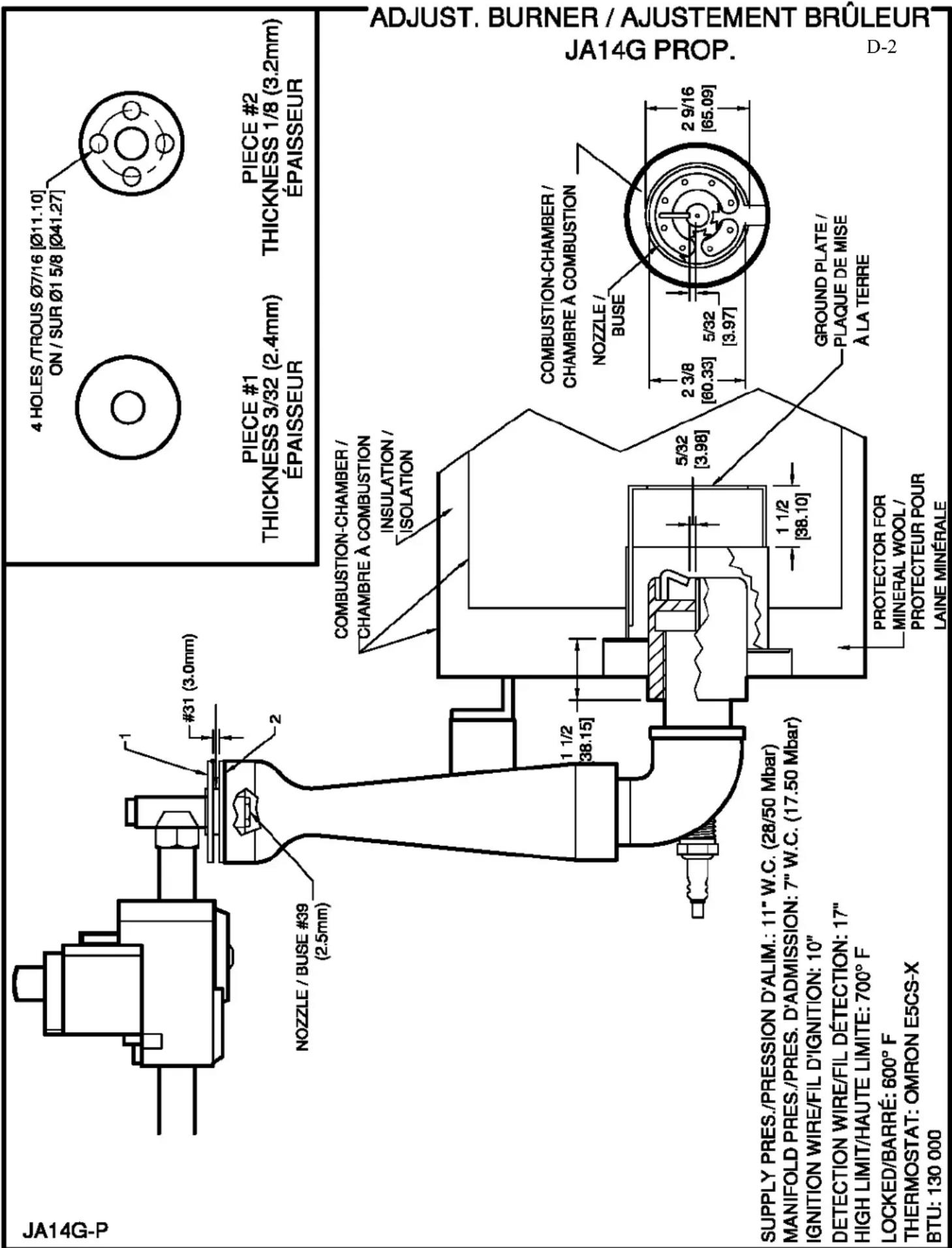

What annual maintenance is required?
Have the burner inspected by a qualified technician once a year. They should clean the mixer air inlet, check the ignition electrode, insulating porcelain, flame detection electrode, gas inlet pressure, and all adjustments. Also clean moving parts.
What to do in case of gas odor?
If a gas odor is detected, immediately close the main gas supply valve to the oven. Contact the local gas company or a specialized technician. Do not attempt to use the appliance until it has been inspected.

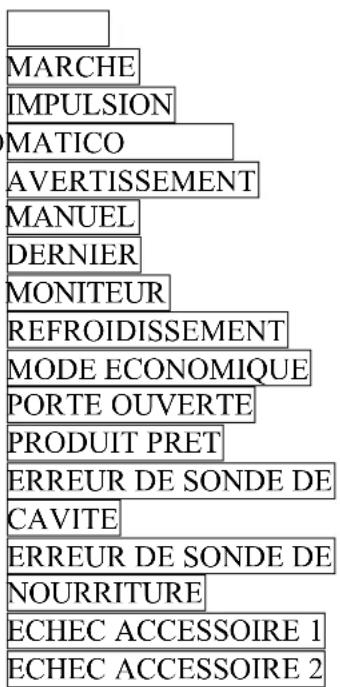

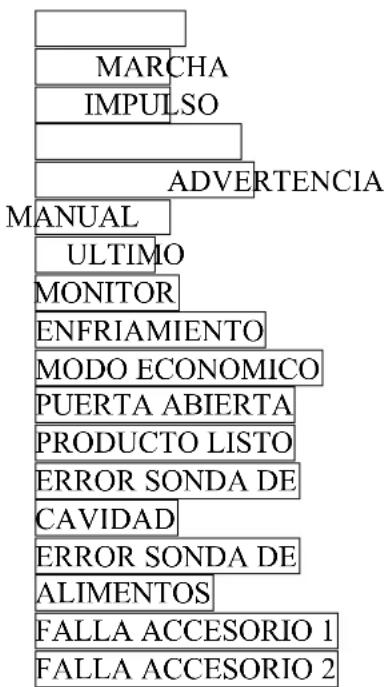

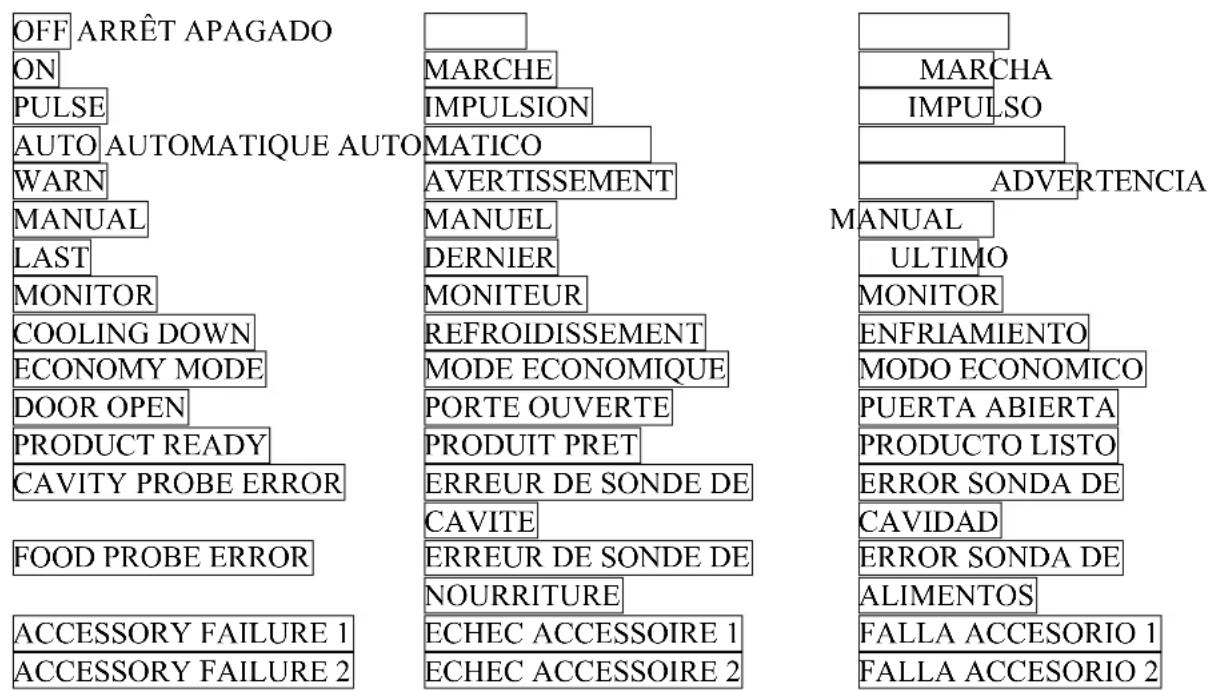

How to change the language of the ECM-1 display?
Set the oven to STOP mode. Hold the 'Stop' key (red) for 5 seconds. Use the ▲/▼ keys to select the language (FRENCH, ENGLISH, SPANISH). Interface messages will change; recipe names must be modified via a PC.
