350i - Saw HUSQVARNA - Free user manual and instructions

Product type	Cordless electric chainsaw
Brand	Husqvarna
Model	350i
Power source	36 V lithium-ion battery (model BLi30)
Battery capacity	7.8 Ah
Charging time	Approximately 1 h 30 min (charger 40-C80)
Weight (without battery)	3.5 lb (1.6 kg)
Battery weight	4.2 lb (1.9 kg)
Guide bar length	18 in (45.7 cm)
Effective cutting length	17.5 in (44.5 cm)
Chain pitch	3/8 in
Chain gauge	1.3 mm
Chain	Husqvarna S93G (62 drive links)
Maximum chain speed (normal mode)	9.4 m/s
Maximum chain speed (boost mode)	11.8 m/s
Motor type	BLDC (brushless) 36 V
Lubrication	Automatic oil pump
Oil tank capacity	0.42 US pt (0.20 L)
Runtime (free running)	70 min (normal mode)
Safety	Chain brake, front and rear hand guards, chain catcher, trigger lock
Functions	Automatic stop, battery indicator, boost mode
Routine maintenance	Cleaning cooling system, chain sharpening, tension check
Spare parts	Guide bar, chain, battery, charger, sprocket
Repairability	Refer to an authorized Husqvarna service center

Frequently Asked Questions - 350i HUSQVARNA

Which battery to use with the Husqvarna 350i?

Only use the recommended Husqvarna BLi30 battery (36 V, 7.8 Ah). Do not use other batteries.

How to charge the battery?

Plug the 40-C80 charger into a mains socket, then connect the battery. The green LED indicates charging. Charge in a dry location between 5 °C and 40 °C.

Which oil to use for the chain?

Use Husqvarna chain oil or an adhesive oil suitable for the temperature. Do not use used oil.

How to tension the chain?

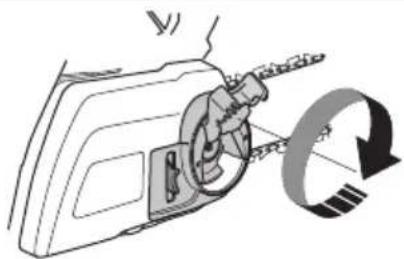

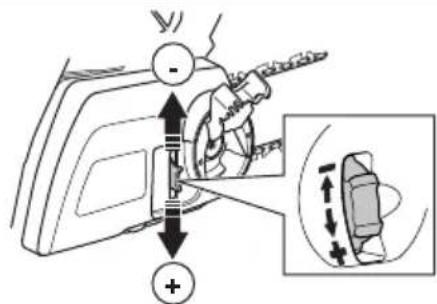

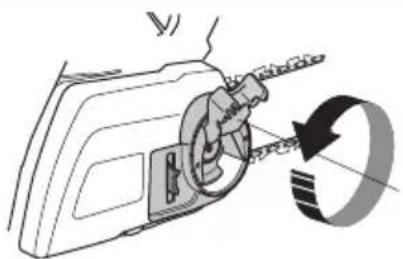

Loosen the bar knob, turn the chain tensioner handle until the chain is tight against the guide bar, then retighten the knob. Check regularly.

What to do if the warning light flashes?

This may indicate that the chain brake is engaged, an overload, or excessive temperature. Disengage the brake or let the tool cool down.

How to sharpen the chain?

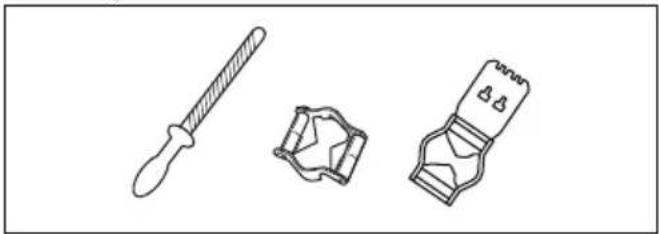

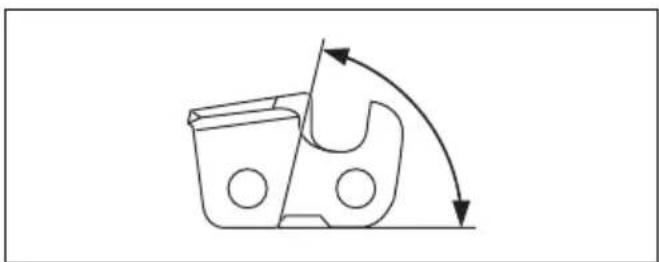

Use a round file and a Husqvarna file guide. Sharpen each cutting tooth at the correct angle (30°). Adjust the depth gauge after three sharpenings.

What is the maximum guide bar length?

The Husqvarna 350i accepts a guide bar of 18 inches (45.7 cm) maximum with a pitch of 3/8 in.

How to activate boost mode?

Press the Boost button on the interface. The green LED lights up. The power and chain speed increase.

Where to find spare parts?

Spare parts (guide bar, chain, sprocket, etc.) are available at authorized Husqvarna dealers or on the official website.

How to store the chainsaw?

Remove the battery, clean the tool, empty the oil tank, and store in a dry place at moderate temperature. Charge the battery to 30-50% before long-term storage.

USER MANUAL 350i HUSQVARNA

Two simple line icons: a triangular warning triangle with an exclamation mark and an open book with blank pages (no text or symbols)

Husqvarna®

Silhouette of a mechanical device with no visible text or symbols

350i

EN Operator's manual 2-38

Transportation, storage and disposal.... 35

Technical data.... 36

Accessories.... 37

Introduction

Intended use

This product is intended for sawing in wood.

Note: National regulations can set limit to the operation of the product.

Product description

Husqvarna 350i is a chainsaw model with an electrical motor.

Work is constantly in progress to increase your safety and efficiency during operation. Speak to your servicing dealer for more information.

Product overview

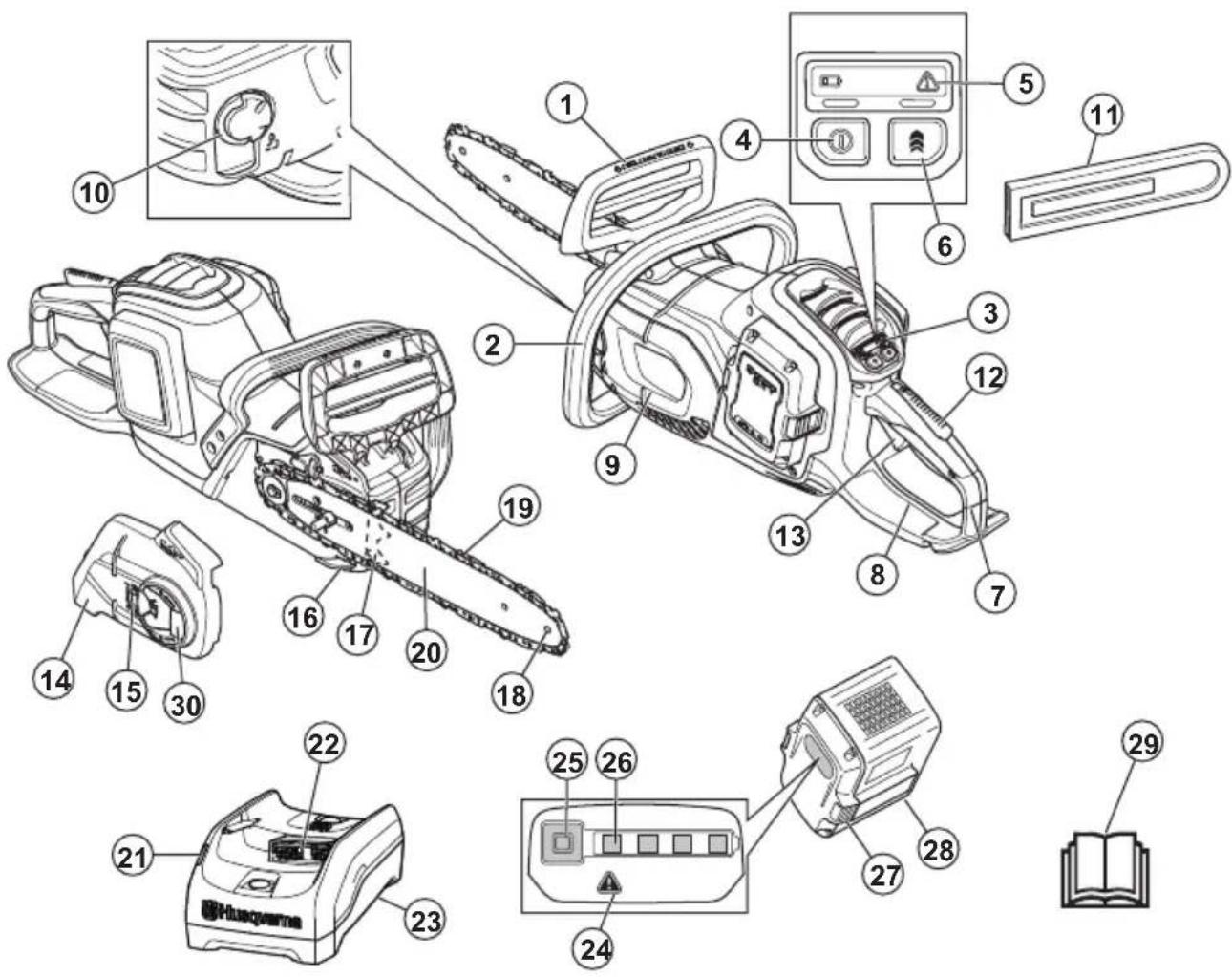

Exploded view diagram of a chain-link robotic device with numbered parts and labeled accessories

1. Front hand guard
2. Front handle

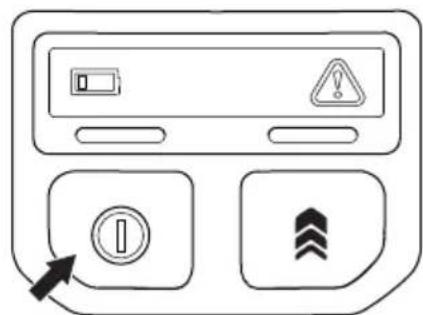

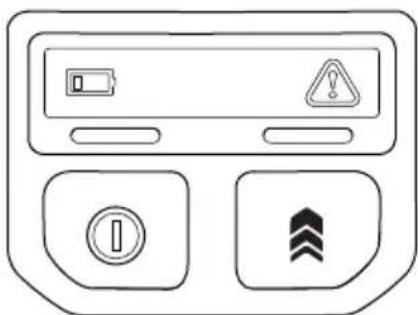

3. User interface

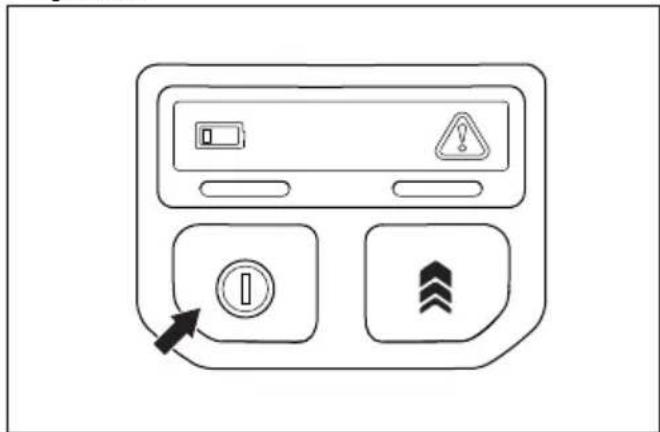

4. Start/stop button

5. Warning indicator and battery indicator

6. Boost button

7. Rear handle with right hand guard

8. Information and warning decal
9. Housing
10. Chain oil tank
11. Transportation cover

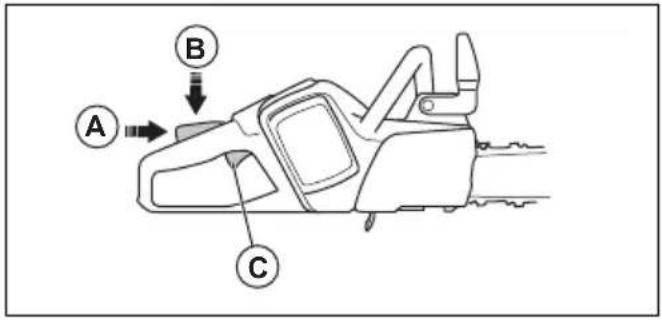

12. Power trigger lockout
13. Power trigger
14. Drive sprocket cover with bar knob
15. Chain tensioner

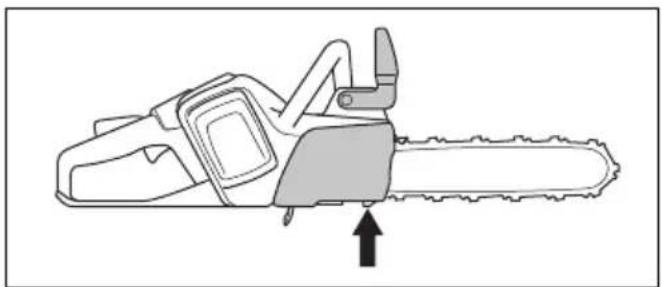

16. Chain catcher
17. Spiked bumper
18. Bar tip sprocket
19. Saw chain
20. Guide bar
21. Indicator for state of charge
22. Connector
23. Battery charger
24. Warning indicator

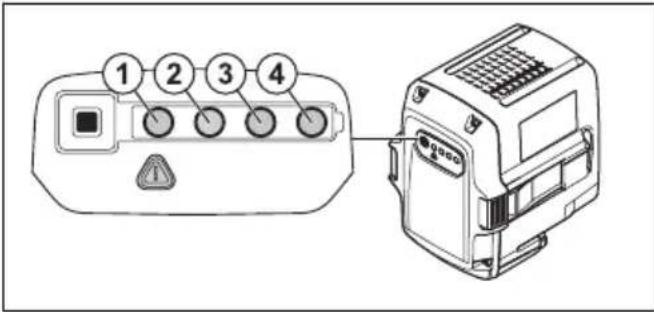

25. Button, battery status
26. Battery status
27. Battery release button
28. Battery
29. Operator's manual
30. Bar knob

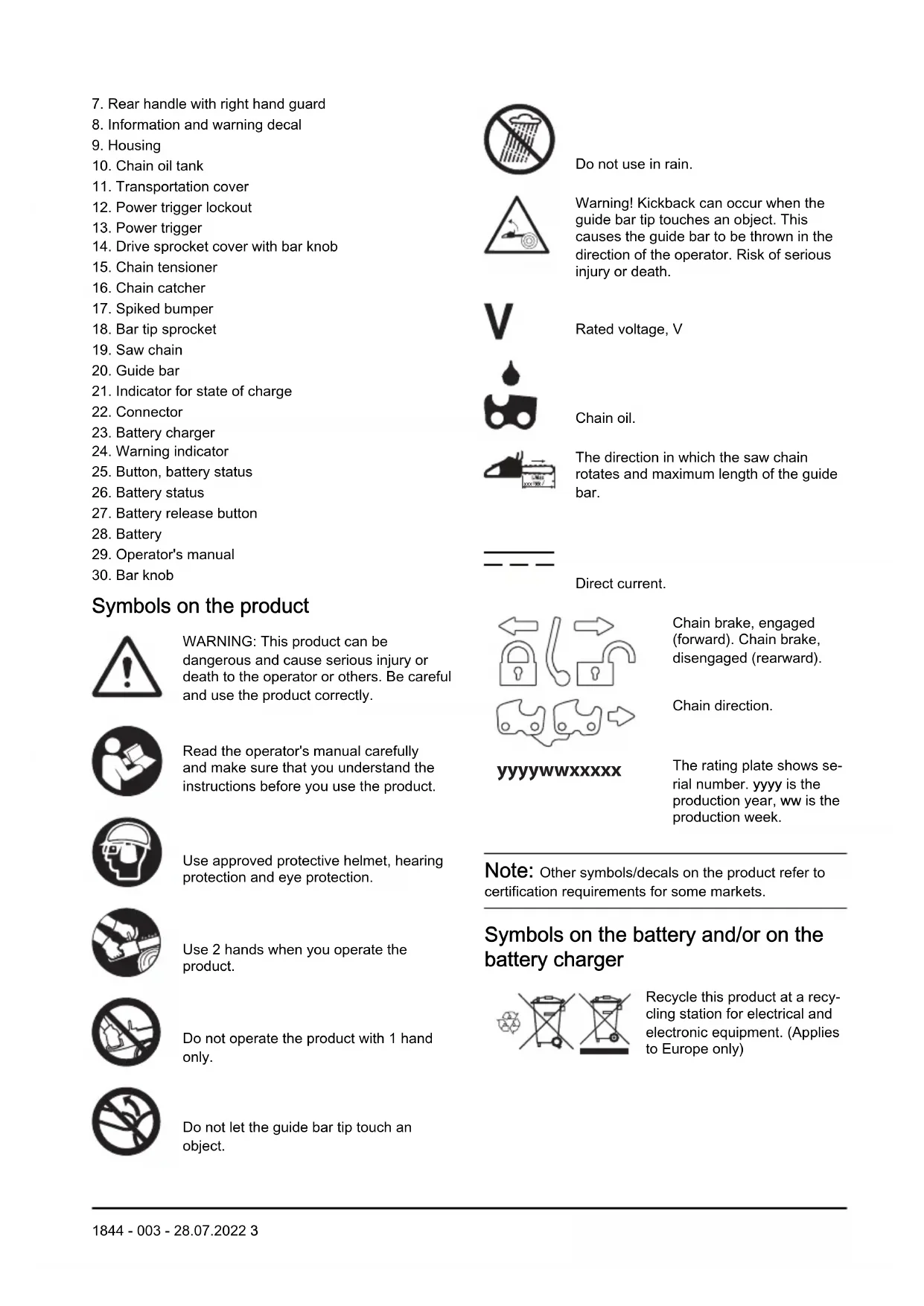

Symbols on the product

WARNING: This product can be dangerous and cause serious injury or death to the operator or others. Be careful and use the product correctly.

Read the operator's manual carefully and make sure that you understand the instructions before you use the product.

Use approved protective helmet, hearing protection and eye protection.

Use 2 hands when you operate the product.

Do not operate the product with 1 hand only.

Do not let the guide bar tip touch an object.

Do not use in rain.

Warning! Kickback can occur when the guide bar tip touches an object. This causes the guide bar to be thrown in the direction of the operator. Risk of serious injury or death.

Rated voltage, V

Chain oil.

The direction in which the saw chain rotates and maximum length of the guide bar.

Direct current.

Chain brake, engaged (forward). Chain brake, disengaged (rearward).

Chain direction.

The rating plate shows serial number. yyyy is the production year, ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Symbols on the battery and/or on the battery charger

Recycle this product at a recycling station for electrical and electronic equipment. (Applies to Europe only)

Fail-safe transformer.

Use and keep the battery charger indoors only.

Double insulation.

Customer assistance

For customer assistance, call: 1-800-487-5951 or visit www.usa.husqvarna.com.

California Proposition 65

WARNING

This product contains or emits a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.

Manufacturer

Husqvarna AB

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General power tool safety warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to

follow all instructions listed below may result in electric shock, fire and/or serious injury.

- Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of a RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ / 265^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

General chain saw safety warnings

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of you clothing or body with the saw chain.

• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.

- Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.

- Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.

- Do not operate a chain saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury.

- Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.

- When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring loaded limb may strike the operator and/or throw the chain saw out of control.

- Use extreme caution when cutting brush and saplings. The slender material may catch the saw

chain and be whipped toward you or pull you off balance.

- Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

- Follow instructions for lubricating, chain tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may either brake or increase the chance for kickback.

- Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

- Do not attempt to fell a tree until you have an understanding of the risks and how to avoid them. Serious injury could occur to the operator or bystanders while felling a tree.

- Follow all instructions when clearing jammed material, storing or servicing the chain saw. Make sure the switch is off and the battery pack is removed. Unexpected actuation of the chain saw while clearing jammed material or servicing may result in serious personal injury.

- Do not operate a chain saw in a tree unless you have been specifically trained to do so. Operation of a chain saw in a tree without proper training could increase the risk of serious personal injury.

Causes and operator prevention of kickback

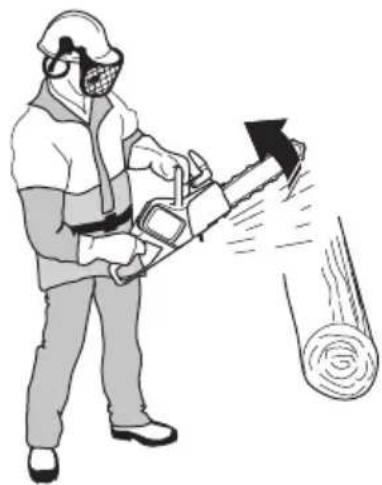

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of chain saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.

• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

SAVE THESE INSTRUCTIONS.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is a dangerous tool if you are not careful or if you use the product incorrectly. This product can cause serious injury or death to the operator or others. It is very important that you read and understand the contents of this operator's manual.
• Do not change the product without an approval from the manufacturer. Do not use a product that has been changed by others and always use original accessories. Changes that are not approved from the manufacturer can result in serious injury or death to the operator or others.
• Long term inhalation of chain oil fumes and sawdust can cause health problems.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To decrease the risk of serious injury or death, we recommend persons with medical implants to turn to their physician and the medical implant manufacturer before operating this product.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is a dangerous tool if you are not careful or if you use the product incorrectly. This product can cause serious injury or death to the operator or others. It is very important that you read and understand the contents of this operator's manual.

• Do not change the product without an approval from the manufacturer. Do not use a product that has been changed by others and always use original accessories. Changes that are not approved from the manufacturer can result in serious injury or death to the operator or others. Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

• Long term inhalation of chain oil fumes and sawdust can cause health problems.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To decrease the risk of serious injury or death, we recommend persons with medical implants to turn to their physician and the medical implant manufacturer before operating this product.
• The information in this operator's manual is not a replacement for professional knowledge and experience. If you do not feel safe in the situation that you are in, stop the product. Turn to your servicing dealer or a professional chainsaw operator. Do not attempt any task that you feel unsure of!

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• The information in this operator's manual is not a replacement for professional knowledge and experience. If you do not feel safe in the situation that you are in, stop the product. Turn to your servicing dealer or a professional chainsaw operator. Do not attempt any task that you feel unsure of!
• Turn to your servicing dealer or Husqvarna if you have questions about the operation of the product. We can give you information about how to operate your product effectively and safely. Participate in a training class in chainsaw operation if possible. Your servicing dealer, forestry school or your library can give you information about training materials and classes that are available.
• You must understand the effects of kickback and how to prevent them before you use this product. See Kickback information on page 18 and Common questions about kickback on page 18 for instructions.
• Do not use a product, battery or battery charger that is defective.
• Do not touch a rotating saw chain. It can cause serious injuries of death.
• Do not use the product if you are tired, while under the influence of alcohol or drugs, medicine or anything that could have a negative effect on your vision, alertness, coordination or judgment.
• Working in bad weather is tiring and often brings added risk. Due to the added risk, it is not recommended to use the machine in very bad weather, for instance in dense fog, heavy rain, strong winds, intense cold, risk of lightning, etc.

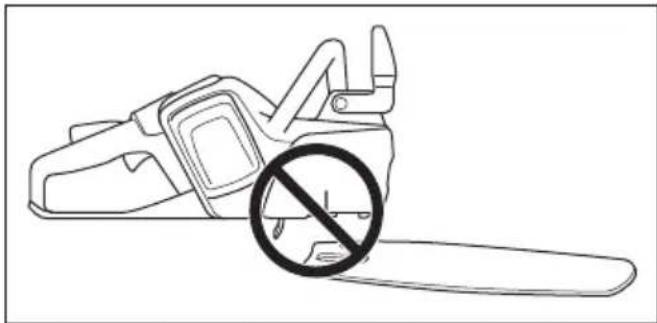

• Do not start a product unless the guide bar, saw chain and all covers are assembled correctly. If not, the drive sprocket can come loose and cause

serious injuries. See Assembly on page 15 for instructions.

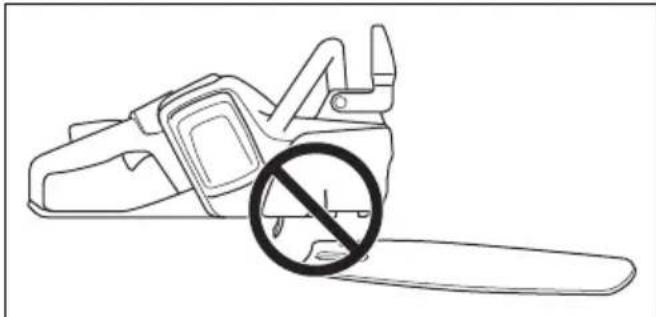

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

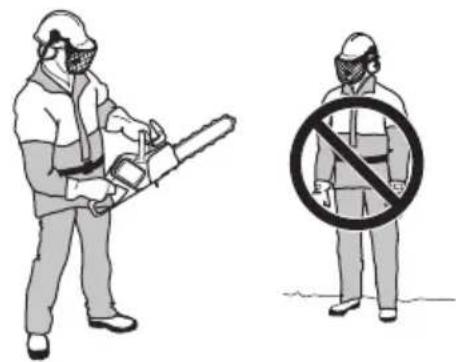

- Look around you. Make sure that there is no risk that persons or animals touch or influence on your control of the product.

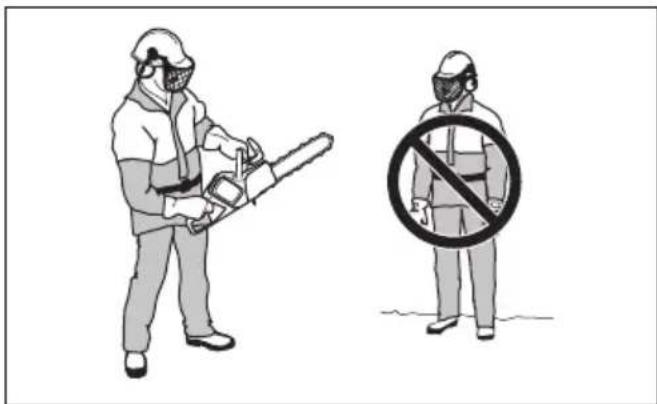

Safety warning illustration showing two workers: one using a chainsaw and the other without a prohibition sign.

• Do not let children use or be near the product. The product is easy to start and children may be able to start it if they are not fully supervised. This can mean a risk of serious injury.
• Remove the battery when you do not have full view of the product or leave the product for any length of time.

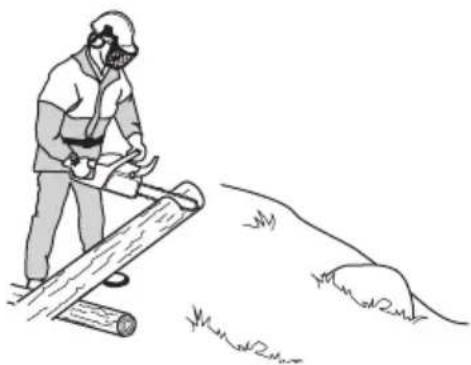

• You must be stable on your feet in order to have full control of the product. Do not use the product if you are on a ladder or in a tree. Do not use the product if you are not on stable ground.

Prohibition sign with silhouette of worker using a tool, crossed out by diagonal line

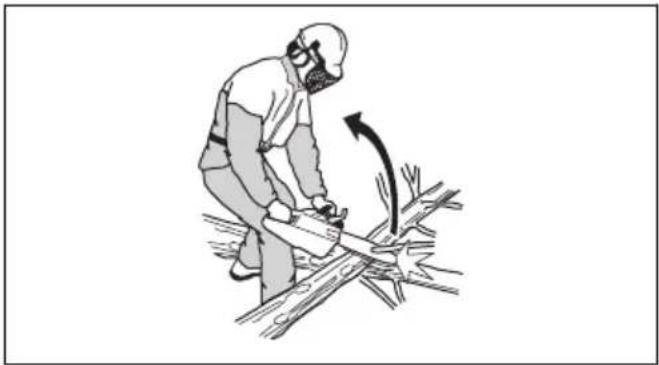

- If you are not careful, the risk of kickback increases. A kickback can occur if the kickback zone of the

guide bar accidentally touches a branch, tree or other objects.

Illustration of a worker using a saw to cut metal beams, with an arrow indicating the motion (no text or symbols present)

• Do not hold the product with one hand. This product is not safely controlled with one hand.
• Do not use the product above shoulder height and do not try to cut with the guide bar tip.

Prohibition sign with pictogram of a person cutting tree, no text present

• Do not use a product in a situation where you can not call for help if an accident occur.
• Stop the product and engage the chain brake before you move the product. Hold the product with the guide bar and saw chain pointing rearward. Put on a transportation guard on the guide bar before transportation or before you move it for any distance.
• When you put the product on the ground, engage the chain brake and have a constant view of the product. Stop the product and remove the battery before you leave your product for any length of time.
• There is a risk that wood chips get stuck in the drive system. This can cause the saw chain to get stuck. Always stop the product and remove the battery before you clean it.
  • Make sure that you can move around safely. Examine the conditions and the terrain around you for possible obstacles such as roots, rocks, branches, ditches and more. Be careful when you do work on sloping ground.
• The vibration level increases if you cut with cutting equipment that is incorrect or not correctly sharpened. Cutting hardwoods, such as broadleaf trees, causes more vibration than cutting softwoods, such as conifers.

Simple line drawing of a VR headset with motion lines indicating speed (no text or symbols)

• Overexposure to vibration can lead to circulatory damage or nerve damage in persons who have decreased circulation. Speak to your physician if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms usually occur in the fingers, hands or wrists increases in cold temperatures.

- Prevent situations which you think is beyond your capability.

- It is not possible to include each possible situation you can face when you use this product. Always be careful and use your common sense.

Diagram showing a person falling off a tree with a diagonal line indicating no movement or restriction.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• The information in this operator's manual is not a replacement for professional knowledge and experience. If you do not feel safe in the situation that you are in, stop the product. Turn to your servicing dealer or a professional chainsaw operator. Do not attempt any task that you feel unsure of!

- Turn to your servicing dealer or Husqvarna if you have questions about the operation of the product. We can give you information about how to operate your product effectively and safely. Participate in a training class in chainsaw operation if possible. Your servicing dealer, forestry school or your library can give you information about training materials and classes that are available.

- You must understand the effects of kickback and how to prevent them before you use this product. See Kickback information on page 18 and Common questions about kickback on page 18 for instructions.

- Do not use a product, battery or battery charger that is defective.

• Do not touch a rotating saw chain. It can cause serious injuries of death.
• Do not use the product if you are tired, while under the influence of alcohol or drugs, medicine or anything that could have a negative effect on your vision, alertness, coordination or judgment.
• Working in bad weather is tiring and often brings added risk. Due to the added risk, it is not recommended to use the machine in very bad weather, for instance in dense fog, heavy rain, strong winds, intense cold, risk of lightning, etc.
• Do not start a product unless the guide bar, saw chain and all covers are assembled correctly. If not, the drive sprocket can come loose and cause serious injuries. See Assembly on page 15 for instructions.

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

- Look around you. Make sure that there is no risk that persons or animals touch or influence on your control of the product.

Two safety illustrations: one showing a person using a diagonal saw, the other showing a person with a prohibition sign (no text or symbols present)

• Do not let children use or be near the product. The product is easy to start and children may be able to start it if they are not fully supervised. This can mean a risk of serious injury.
• Remove the battery when you do not have full view of the product or leave the product for any length of time.
• You must be stable on your feet in order to have full control of the product. Do not use the product if you

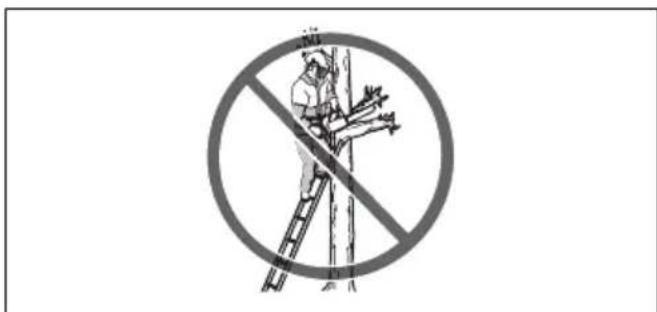

are on a ladder or in a tree. Do not use the product if you are not on stable ground.

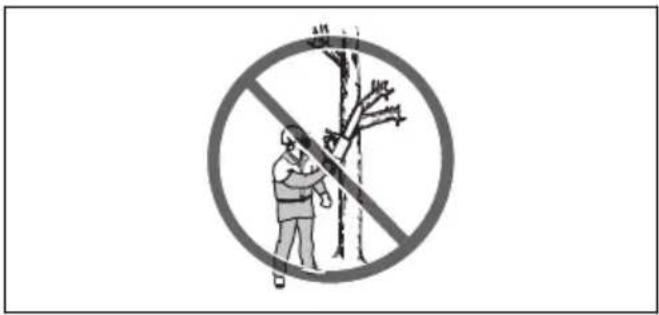

Prohibition sign showing a worker climbing a rope with a diagonal line, indicating no labor or safety restrictions.

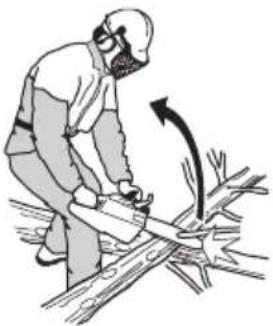

- If you are not careful, the risk of kickback increases. A kickback can occur if the kickback zone of the guide bar accidentally touches a branch, tree or other objects.

Illustration of a person using a saw to cut wood or metal, with an arrow indicating the process (no text or symbols present)

- Do not hold the product with one hand. This product is not safely controlled with one hand. - Do not use the product above shoulder height and do not try to cut with the guide bar tip.

Prohibition sign showing a person pruning a tree with a diagonal line (no text or symbols)

• Do not use a product in a situation where you can not call for help if an accident occur.
• Stop the product and engage the chain brake before you move the product. Hold the product with the guide bar and saw chain pointing rearward. Put on a transportation guard on the guide bar before transportation or before you move it for any distance.
• When you put the product on the ground, engage the chain brake and have a constant view of the product. Stop the product and remove the battery before you leave your product for any length of time.
• There is a risk that wood chips get stuck in the drive system. This can cause the saw chain to get stuck. Always stop the product and remove the battery before you clean it.
• The vibration level increases if you cut with cutting equipment that is incorrect or not correctly sharpened. Cutting hardwoods, such as broadleaf

trees, causes more vibration than cutting softwoods, such as conifers.

Pure technical line drawing of a mechanical component with no text or symbols

• Overexposure to vibration can lead to circulatory damage or nerve damage in persons who have decreased circulation. Speak to your physician if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms usually occur in the fingers, hands or wrists increases in cold temperatures. • Do not try a pruning or limbing operation in a standing tree unless you have special training. • Always stand on the uphill side of the log when you cut on a slope as the tree is likely to roll or slide downhill after it is felled. To maintain complete control of the product when you cut, release the cutting pressure near the end of the cut. Do not relax your hands around the handles. Do not let the saw chain to touch the ground. After you have completed the cut, wait for the saw chain to stop before you move the product. Always stop the motor before you move from tree to tree.

Illustration of a person using a wooden saw to cut grass, no text or symbols present

• Do not fell a tree is there is any risk that it endangers any person, strike or cause any utility line, or cause property damage. If the tree strikes a utility line, the utility company must be notified immediately.
  • Make sure that you can move around safely. Examine the conditions and the terrain around you for possible obstacles such as roots, rocks, branches, ditches and more. Be careful when you do work on sloping ground.
• Prevent situations which you think is beyond your capability.
• It is not possible to include each possible situation you can face when you use this product. Always be careful and use your common sense.

Diagram showing a person falling off a tree with a diagonal line indicating no movement or restriction.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

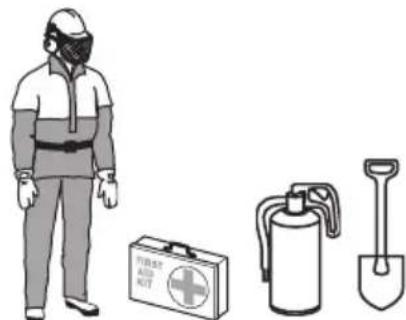

Illustration showing a person wearing full-body protective gear, first aid kit, fire extinguisher, and shovetted tool.

• Most chainsaw accidents occur when the saw chain touches the operator. You must use approved personal protective equipment during operation. Personal protective equipment does not give you full protection from injuries but it decreases the degree of injury if an accident occurs. Speak to your servicing dealer for recommendations about which equipment to use.
• Your clothing must be close-fitting but not limit your movements. Regularly do a check of the condition of the personal protective equipment.
• Use an approved protective helmet.
• Use approved hearing protection. Long-term exposure to noise can result in permanent damage to the hearing.
• Use protective glasses or a face visor to decrease the risk of injury from thrown objects. The product can throw objects, such as wood chips, small pieces of wood and more, at large force. This can result in serious injury, especially to the eyes.
• Use gloves with saw protection.
• Use pants with saw protection.
• Use boots with saw protection, steel toe-cap and non-slip sole.
  • Always have a first-aid kit with you.
• Risk of sparks. Keep fire extinguishing tools and a shovel near to prevent forest fires.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. Refer to Maintenance and checks of the safety devices on the product on page 27.
• If the safety devices are defective, speak to your Husqvarna servicing dealer.

Functions of the user interface

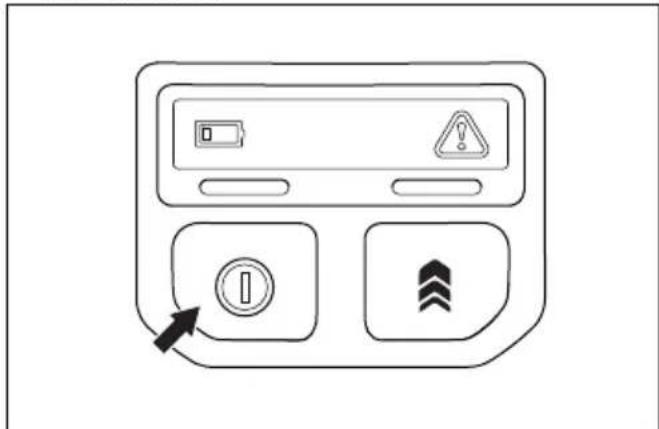

The user interface includes the start/stop button, the boost button, the battery status and the warning indicator. The warning indicator flashes if the chain brake is engaged or if there is a risk of overload.

The overload protection temporarily stops the product and you cannot use the product until the temperature decreases. If the warning indicator shows a solid light, speak to your servicing dealer.

Diagram of a car air conditioner control panel with battery, warning symbol, and status indicators

For more information about the user interface, refer to Product overview on page 2.

The automatic stop function

The product has an automatic stop function that stops the product if you do not use it for 3 minutes.

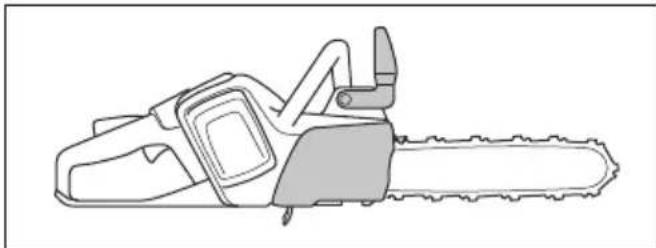

Chain brake and front hand guard

Your product has a chain brake that stops the saw chain if you get a kickback. The chain brake decreases the risk of accidents but only you can prevent them.

Line drawing of a chain-linking tool (no text or symbols)

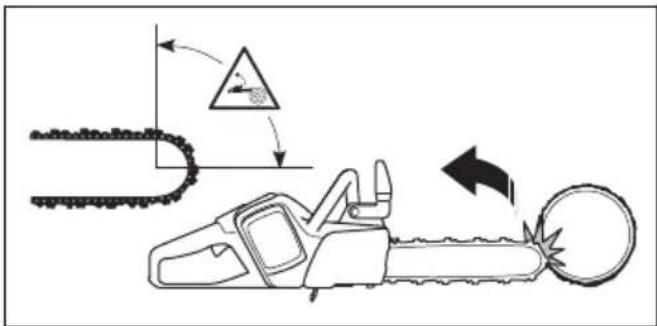

WARNING: Do not engage in situations where there is a risk of kickback. Be careful when you use your product and make sure that the kickback zone of the guide bar does not touch an object.

Diagram showing a triangular obstacle with directional arrows and a chain, likely illustrating a physics or engineering concept.

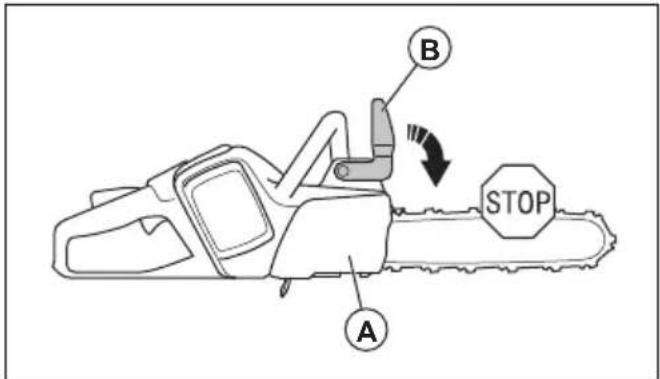

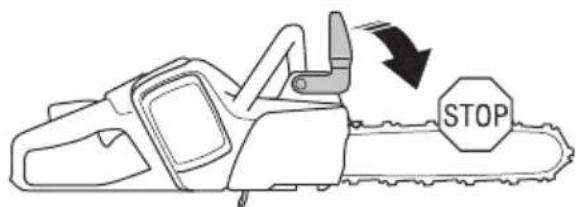

The chain brake engages (A) manually by your left hand or automatically by the inertia release mechanism. Push the front hand guard (B) forward to engage the chain brake manually. This movement starts a spring-loaded mechanism that stops the drive sprocket.

B STOP A

How the chain brake is engaged is in relation to the force of the kickback and position of the product. If you get an intense kickback while the kickback zone is farthest away from you, the chain brake engages by the inertia release. If the kickback is small or the kickback zone is nearer you, the chain brake engages manually by your left hand.

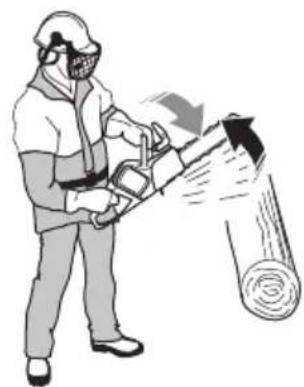

Illustration of a worker using a power saw to cut logs, no text or symbols present

Use the chain brake as a parking brake when you start the product and when you move short distances.

This decreases the risk that you or a person near you touches the saw chain.

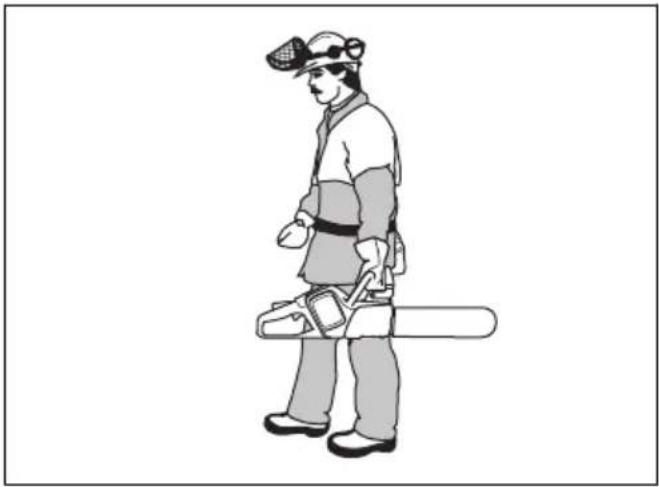

Line drawing of a person wearing a gear and holding a chainsaw (no text or symbols)

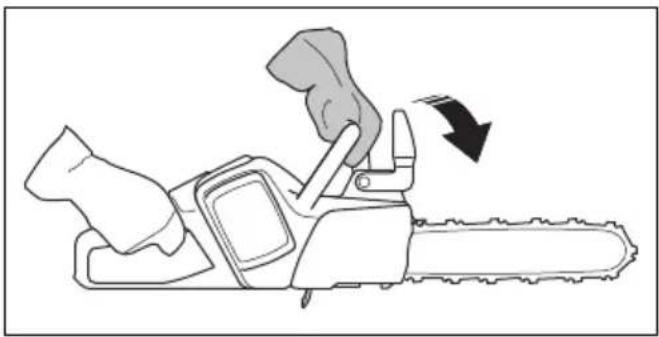

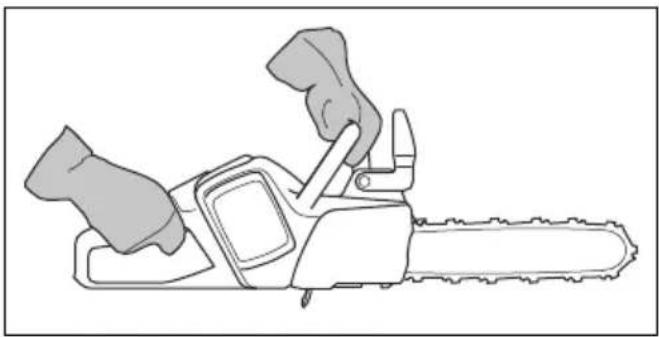

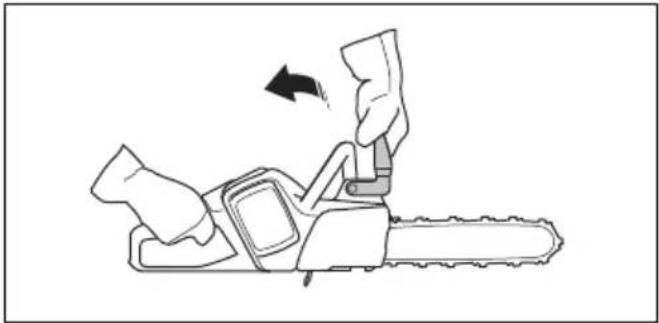

Pull the front hand guard rearward to disengage the chain brake.

Line drawing of a chainsaw with a hand operating the gear (no text or symbols)

A kickback can be very sudden and intense. Most kickbacks are small and do not always engage the chain brake. If a kickback occurs when you use the product, hold tightly around the handles and do not let go.

Line drawing of a chainsaw with a hand operating it (no text or symbols)

The front hand guard also decreases the risk to touch the saw chain if your hand lets go of the front handle.

Line drawing of a chainsaw with a hand operating it, showing a downward arrow indicating motion (no text or symbols)

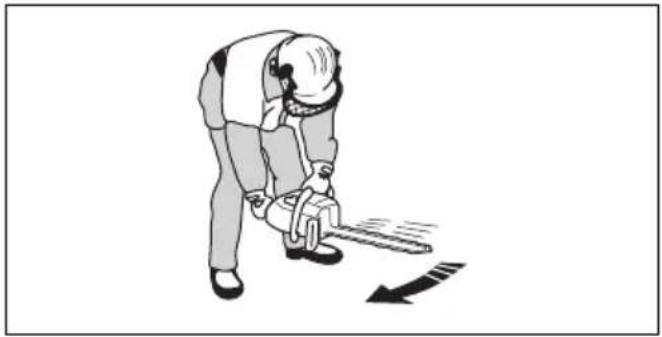

In the felling position you cannot engage the chain brake manually. The chain brake can in this position only be engaged by the inertia release mechanism.

Illustration of a person in a hooded outfit performing a martial arts or sword movement, with a black arrow indicating direction (no text or symbols)

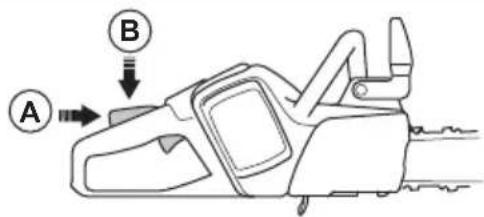

Power trigger lockout

The power trigger lockout prevents accidental operation of the power trigger. If you push the power trigger lockout forward (A) and then push the power trigger lockout against the handle (B), it releases the power trigger (C). If you release the handle, the power trigger and the power trigger lockout move back to their initial positions.

A B C

Chain catcher

The chain catcher catches the saw chain if it breaks or comes loose. If you have the correct chain tension, the risk decreases. You also decrease the risk if you do the correct maintenance on the guide bar and saw chain. See Assembly on page 15 and Maintenance on page 26 for instructions.

Line drawing of a chainsaw with an arrow indicating force or movement (no text or symbols)

Right hand guard

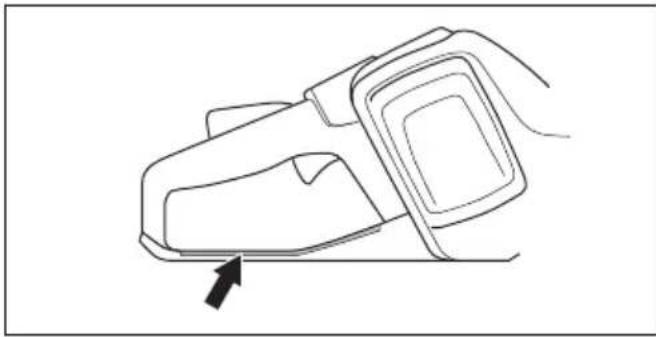

The right hand guard works as a protection for your hand if the saw chain breaks or comes loose. It also prevents interference from branches and twigs when you use the product.

Line drawing of a hand holding a device with an arrow pointing to the side (no text or symbols)

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Only use the BLi batteries that we recommend for your product. The batteries are software encrypted.
• Use the BLi batteries that are rechargeable as a power supply for the related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Risk of electrical shock. Do not connect the battery terminals to keys, screws or other metal. This can cause a short circuit of the battery.
• Do not use batteries that are non-rechargeable.
• Do not put objects into the air slots of the battery.
• Keep the battery away from sunlight, heat or open flame. The battery can cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.
• Do not let battery acid touch your skin. Battery acid causes injuries to the skin, corrosion and burns. If you get battery acid in your eyes, do not rub but flush with water for minimum 15 minutes. If battery acid has touched your skin, you must clean the skin with a large quantity of water and soap. Get medical aid.
• Use the battery in temperatures between -10 °C (14 °F) and 40 °C (104 °F).
• Do not clean the battery or the battery charger with water. See To do a check of the battery and the battery holder on page 29.
• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, screws or jewelry.
• Keep the battery away from children.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

• Risk of electrical shock or short circuit if the safety instructions are not obeyed.
• Use an approved grounded mains socket that is not damaged.
• Do not use other battery chargers than the one supplied for your product. Only use Husqvarna 40-C80 chargers when you charge Husqvarna replacement batteries BLi.
• Do not try to disassemble the battery charger.
• Do not use a defective or damaged battery charger.
• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.
• Keep all cables and extension leads away from water, oil and sharp edges. Make sure that the cable is not caught between doors, fences or similar.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Make sure that the battery charger is not covered. Pull out the plug to the battery charger if there is smoke or fire.
• Only charge the battery indoors in a location with good airflow and away from sunlight. Do not charge the battery outdoors. Do not charge the battery in wet conditions.
• Only use the battery charger where the temperature is between 5^ (41°F) and 40^ (104°F). Use the charger in an environment which has a good airflow, dry and free from dust.
• Do not put objects into the cooling slots of the battery charger.
• Do not connect the battery charger terminals to metal objects as this can short circuit the battery charger.
• Use approved wall sockets that are not damaged.
• Do not charge non-rechargeable batteries in the battery chargers.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Remove the battery before you do maintenance, other checks or assemble the product.

• The operator must only do the maintenance and servicing shown in this operator's manual. Turn to your servicing dealer for maintenance and servicing of a larger extension.

• Do not clean the battery or the battery charger with water. Strong detergent can cause damage to the plastic.

• If you do not do maintenance, it decreases the life cycle of the product and increases the risk of accidents.
• Special training is necessary for all servicing and repair work, especially for the safety devices on the product. If not all checks in this operator's manual are approved after you have done maintenance, turn to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.
• Only use original spare parts.

Safety instructions for the cutting equipment

WARNING: Read the warning instructions that follow before you use the product.

• Only use approved guide bar/saw chain combinations and filing equipment. Refer to Technical data on page 36 for instructions.
• Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.
• Keep the cutting teeth correctly sharpened. Obey the instructions and use the recommended file gauge. A saw chain that is damaged or incorrectly sharpened increases the risk of accidents.

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

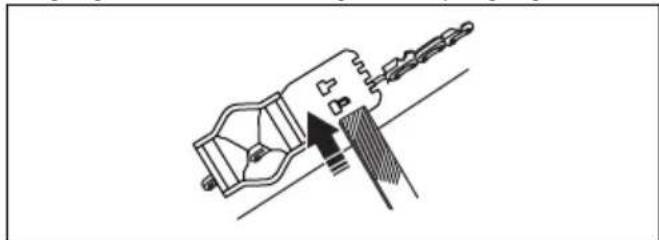

- Keep the correct depth gauge setting. Obey the instructions and use the recommended depth gauge setting. Too large depth gauge setting increases the risk of kickback.

Pure technical line drawing of a mechanical part with no text or symbols

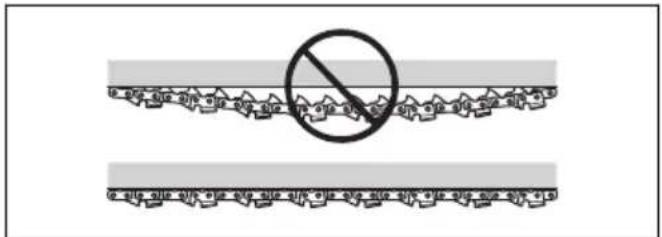

- Make sure that the saw chain has the correct tension. If the saw chain is not tight against the guide bar, the saw chain can derail. An incorrect saw chain tension increases wear on the guide bar, saw chain

and chain drive sprocket. Refer to Accessories on page 37.

not correctly lubricated, the risk of wear on the guide bar, saw chain and chain drive sprocket increases.

Diagram showing a crossed-out circle with a diagonal line and horizontal bands, indicating a prohibition or restriction in a material or process.

- Do maintenance on the cutting equipment regularly and keep it correctly lubricated. If the saw chain is

Simple line drawing of a mechanical component with a droplet above it (no text or symbols)

Assembly

To assemble the guide bar and saw chain (with bar knob)

WARNING: Always remove the battery before you assemble or do maintenance on the product.

1. Disengage the chain brake.

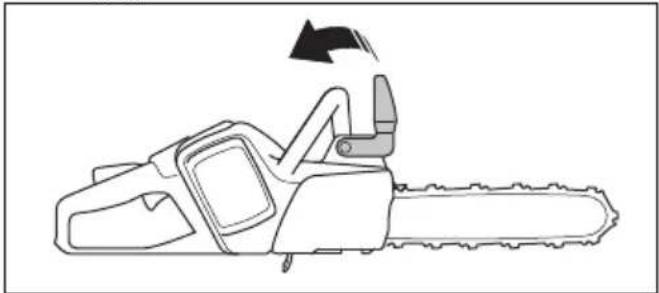

Line drawing of a chainsaw with a black arrow indicating motion (no text or symbols)

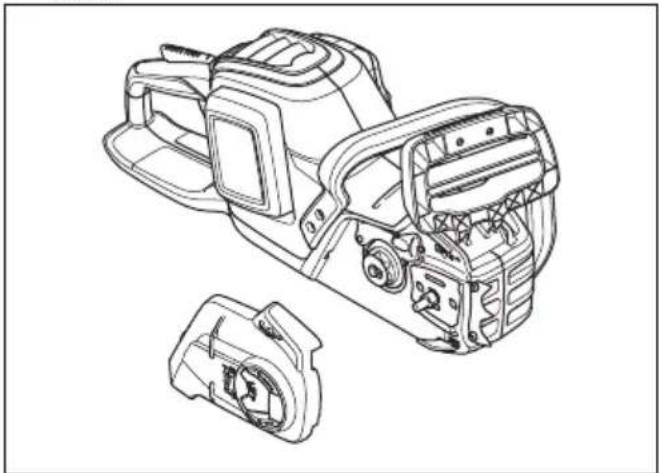

1. Loosen the bar knob and remove the drive sprocket cover.

Technical line drawing of a mechanical assembly with two views: front view and side view (no text or symbols)

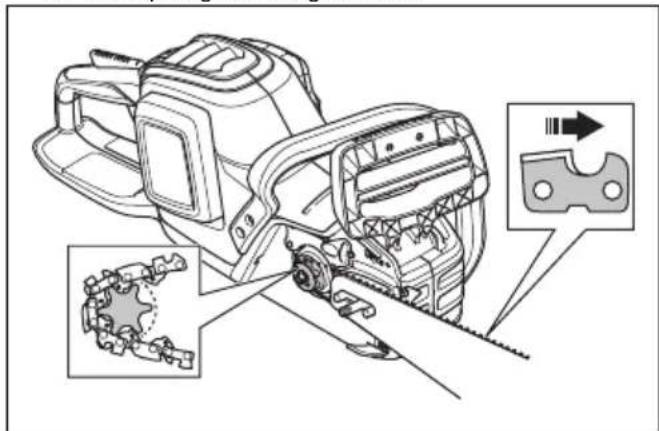

1. Put the guide bar on top of the bar bolt. Steer the guide bar to its most rear position. Lift the saw chain above the drive sprocket and engage it in the groove on the guide bar. Start on the top edge of the guide bar.

2. Make sure that the edges of the cutters point forward on the top edge of the guide bar.

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

1. Install the drive sprocket cover and steer the chain adjuster pin to the hole in the guide bar.
2. Make sure that the drive links of the saw chain fit correctly on the drive sprocket.
3. Make sure that the saw chain is correctly engaged in the groove in the guide bar.
4. Apply tension to the saw chain. Refer to Maintenance on page 26 for instructions.
5. Tighten the bar knob.

To install the battery charger on the wall

CAUTION: Do not use an electric screwdriver to install the battery charger to the wall. An electric screwdriver can cause damage to the battery charger.

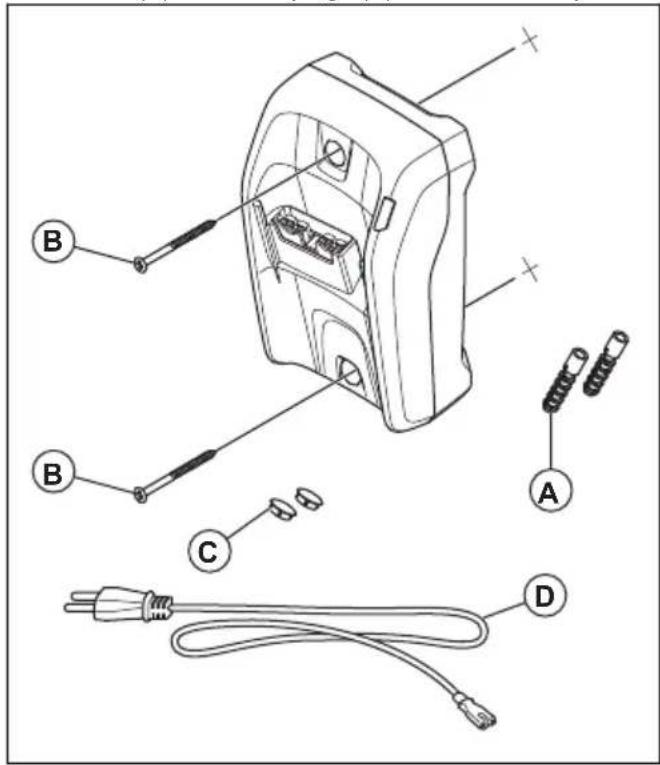

1. Install the battery charger on the wall with the 2 screws (B). Use wall plugs (A) if it is necessary.

Diagram of a medical or electrical device with labeled parts including probes, connectors, and a plug.

1. Install the 2 screw hole plugs (C).

2. Connect the power cord to the battery charger and a mains socket.

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

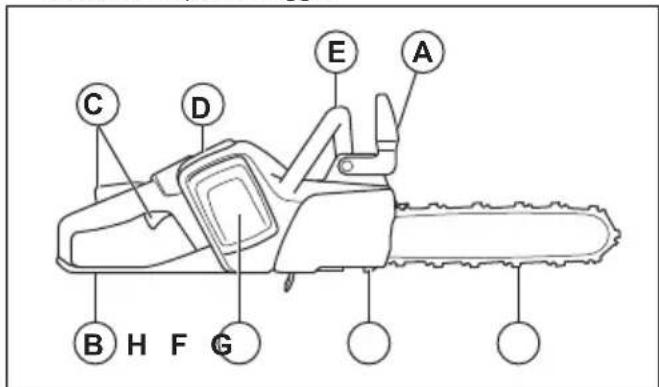

To do a function check before you use the product

1. Do a check of the chain brake (A) to make sure that it operates correctly and that it is not damaged.

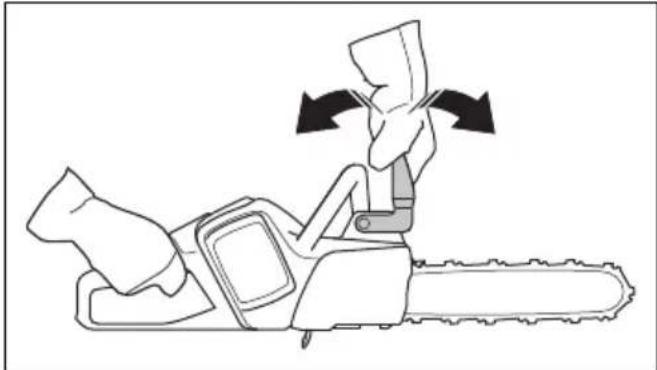

2. Do a check of the rear right hand guard (B) to make sure that it is not damaged.

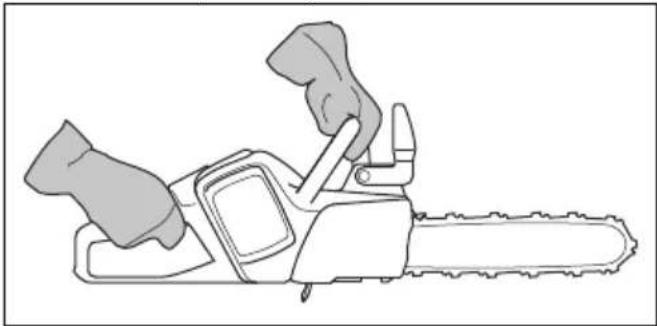

3. Do a check of the power trigger and the power trigger lockout (C) to make sure that they operate correctly and that they are not damaged.

4. Do a check of the keypad (D) to make sure that it operates correctly.

5. Make sure that there is no oil on the handles (E).

6. Do a check to make sure that all parts are correctly attached and not damaged or missing.

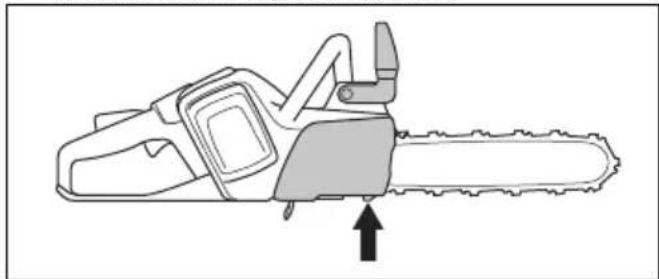

7. Do a check of the chain catcher (F) to make sure that it is attached correctly.

8. Do a check of the chain tension (G).

9. Charge the battery (H) and make sure that it is correctly attached to the product.

10. Make sure that the saw chain stops when you release the power trigger.

A E D C B H F G

To use the correct chain oil

WARNING: Do not use waste oil, which can cause injury to you and the environment. Waste oil also causes damage to the oil pump, the guide bar and the saw chain.

WARNING: The saw chain can break if the lubrication of the cutting equipment is not sufficient. Risk of serious injury or death to the operator.

WARNING: Use the correct chain oil for this function to operate correctly. Speak to your servicing dealer when you select your chain oil.

• Use Husqvarna chain oil for maximum saw chain life and to prevent negative effects on the environment. If Husqvarna chain oil is not available, we recommend you to use a standard chain oil.
• Use a chain oil with good adherence to the saw chain.
• Use a chain oil with correct viscosity range that agrees with the air temperature.

CAUTION: In temperatures below 0°C/32°F some chain oils become too thick, which can cause damage to the oil pump components.

• Use the recommended cutting equipment. Refer to Accessories on page 37.
• Remove the cap to the chain oil tank.
• Fill the chain oil tank with chain oil.
• Attach the cap carefully.

Abstract black-and-white graphic with a droplet above a stylized mask (no text or symbols)

Note: To see where the chain oil tank is on you product, refer to Introduction on page 2.

Battery

WARNING: Read and understand the safety chapter before you use the battery. Read and understand the operator's manual for the battery and the battery charger.

Keep the battery and the battery charger in the correct ambient temperatures.

	Ambient temperature
Operation of the battery 5	°C-40 °C / 41 °F-104 °F
Charging of the battery 5	°C-40 °C / 41 °F-104 °F

Battery status

The display shows the state of charge and if there are problems with the battery.

Diagram showing a device with four labeled buttons connected to a device, one pointing to the button.

LED indicator	Battery state of charge
4 LED lights are on The battery is 76% - 100% charged.
3 LED lights are on The battery is 51% - 75% charged.
2 LED lights are on The battery is 26% - 50% charged.
1 LED light is on The battery is 6% - 25% charged.
1 LED light flashes The battery is 0% - 5% charged.

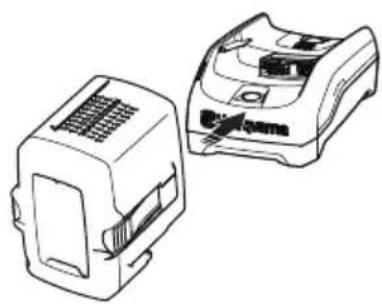

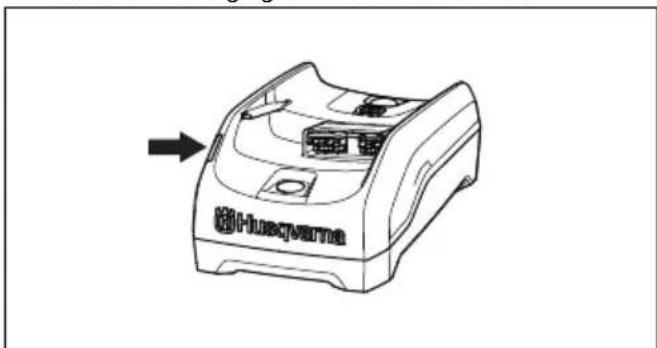

To charge the battery

Charge the battery if it is the first time that you use it. A new battery is only 30% charged.

CAUTION: Connect the battery charger to a power outlet with the voltage and frequency that is specified on the rating plate.

The battery does not charge if the battery temperature is more than 50 °C/122 °F.

1. Connect the power cord to the battery charger.

2. Connect the battery charger to a grounded power outlet. The charging LED flashes one time.

Line drawing of a Huawei-branded printer with an arrow pointing to its front panel (no text or symbols on the device itself)

1. Connect the battery to the battery charger. The charging LED comes on. Charge the battery for maximum 24 hours.

Technical line drawing of two electronic components (no text or symbols)

1. Push the battery indicator button, if all the LED indicators come on, the battery is fully charged.

2. Pull the power plug to disconnect the battery charger from the power outlet. Do not pull the power cord.

3. Remove the battery from the battery charger.

Kickback information

WARNING: A kickback can cause serious injury or death to the operator or others. To decrease the risk you must know the causes of kickback and how to prevent them.

A kickback occurs when the kickback zone of the guide bar touches an object. A kickback can occur suddenly and with large force, which throws the product in the direction of the operator.

Diagram showing a mechanical or fluid system with a triangular obstacle and a chain, labeled with directional arrows and symbols.

Kickback always occurs in the cutting plane of the guide bar. Usually, the product is thrown against the operator but can also move in a different direction. It is how you

use the product when the kickback occurs that causes the direction of the movement.

Illustration of a worker using a power shaver to cut wood logs, no text or symbols present

Kickback only occurs if the kickback zone of the guide bar touches an object. Do not let the kickback zone touch an object.

Diagram showing a triangular obstacle with directional arrows and a chain, likely illustrating a physical or engineering concept.

A smaller bar tip radius decreases the force of the kickback.

Use a low kickback saw chain to decrease the effects of kickback. Do not let the kickback zone touch an object.

WARNING: No saw chain fully prevents kickback. Always obey the instructions.

Common questions about kickback

- Will the hand always engage the chain brake during a kickback?

No. It is necessary to use some force to push the front hand guard forward. If you do not use the force necessary, the chain brake will not be engaged. You must also hold the handles of the product stable with two hands during work. If a kickback occurs, it is possible that the chain brake does not stop the saw chain before it touches you. There are also some positions in which your hand can not touch the front hand guard to engage the chain brake.

- Will the inertia release mechanism always engage the chain brake during kickback?

No. First, the chain brake must operate correctly. Refer to Maintenance and checks of the safety devices on the product on page 27 for instructions about how to do a check of the chain brake. We recommend you to do this each time before you use the product. Second, the force of the kickback

must be large to engage the chain brake. If the chain brake is too sensitive, it can engage during rough operation.

- Will the chain brake always protect me from injury during a kickback?

No. The chain brake must operate correctly to give protection. The chain brake must also be engaged during a kickback to stop the saw chain. If you are near the guide bar, it is possible that the chain brake does not have time to stop the saw chain before it hits you.

WARNING: Only you and the correct working technique can prevent kickbacks.

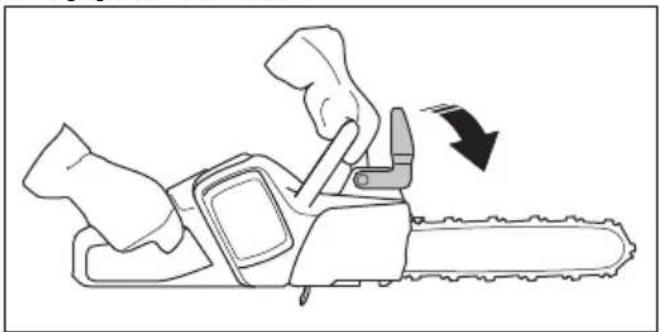

To start the product

1. Do a check of the power trigger and power trigger lockout. Refer to To do a check of the power trigger lockout on page 28.
2. Engage the chain brake.

Line drawing of a chainsaw with a hand operating the blade (no text or symbols)

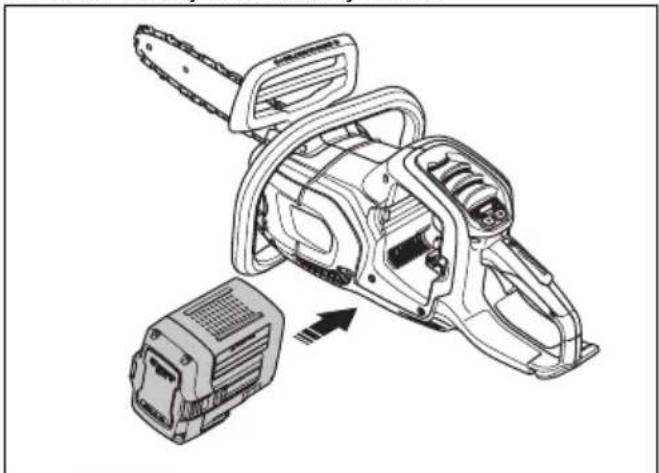

1. Put the battery in the battery holder.

Technical illustration of a chain-linking device with a battery and gear assembly (no text or symbols)

CAUTION: Make sure that the battery is installed correctly into the battery holder. If the battery does not move easily into the battery holder, the position is not correct.

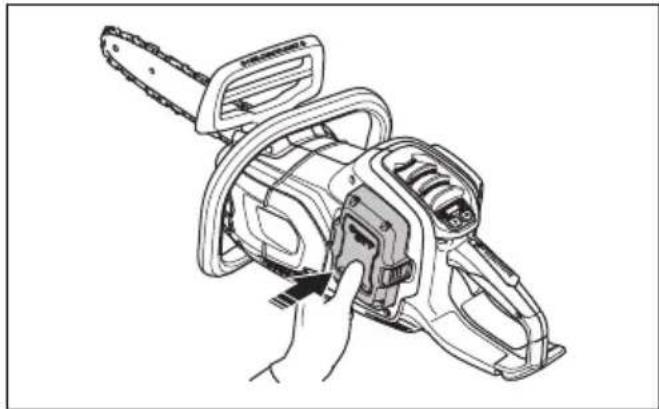

1. Push on the lower part of the battery until you hear a click sound.

Line drawing of a hand holding a chain-linking tool, showing mechanical components and a tool handle (no text or symbols)

1. Push and hold the start/stop button until the green LED comes on.

Diagram of a car air conditioner control panel with warning icons and function buttons

To use the Boost function

The Boost function increases the chain speed and the power of the product.

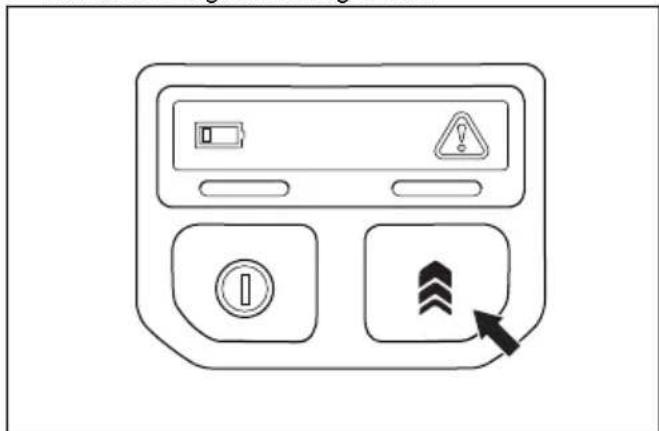

1. Push the Boost button. The green LED comes on.
2. Push the Boost button again to disconnect the function. The green LED goes off.

Diagram of a car air conditioner control panel with indicator lights, function buttons, and navigation arrows

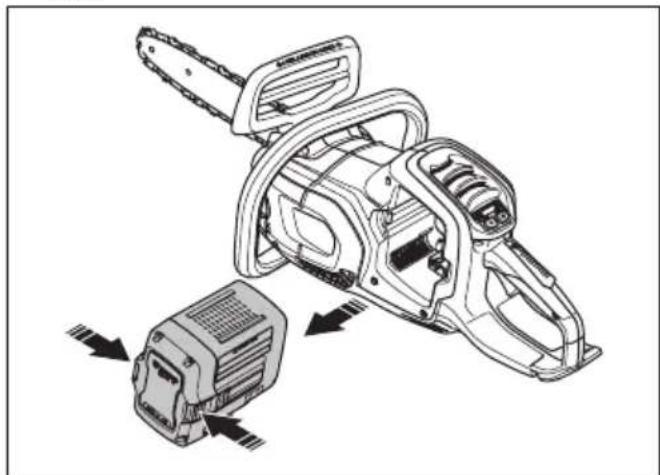

To stop the product

1. Push the start/stop button until the green LED light goes off.

Diagram of a car air conditioner control panel with warning icons and function buttons

1. Push the battery release buttons and remove the battery from the battery holder to prevent accidental start.

Technical illustration of a chain saw with a motor, showing mechanical components and motion arrows (no text or symbols)

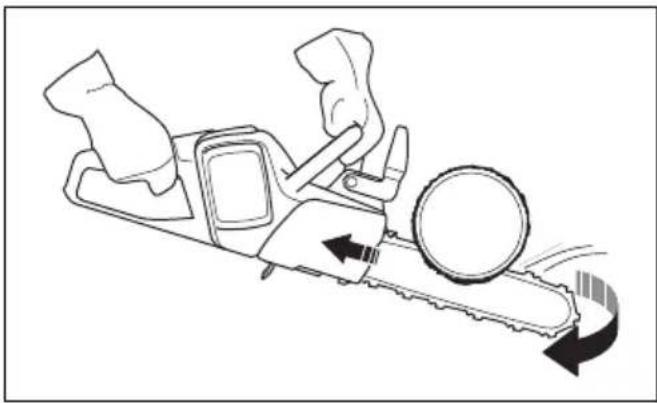

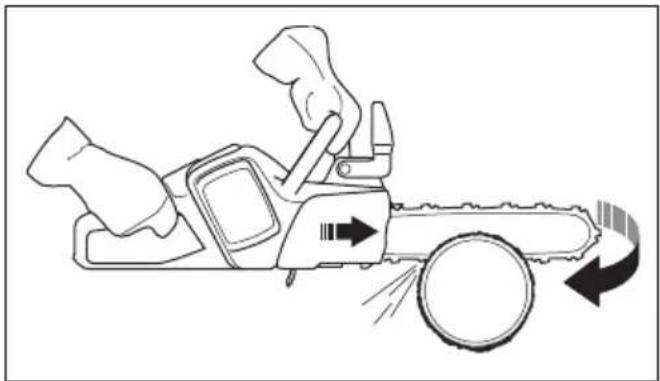

Pull stroke and push stroke

You can cut through wood with the product in 2 different positions.

• To cut on the pull stroke is when you cut with the bottom of the guide bar. The saw chain pulls through the tree when you cut. In this position you have better control of the product and the position of the kickback zone.

Line drawing of a chain saw cutting a circular cutter with motion arrows indicating blade motion (no text or symbols)

• To cut on the push stroke is when you cut with the top of the guide bar. The saw chain pushes the product in the direction of the operator.

Line drawing of a chain saw cutting a circular blade with motion arrows indicating speed (no text or symbols)

WARNING: If the saw chain is caught in the trunk, the product can be pushed at you. Hold the product tightly and make sure that the kickback zone of the guide bar does not touch the tree and causes a kickback.

Diagram illustrating a mechanical process with labeled components and directional arrows, including a warning symbol and motion arrows.

To use the cutting technique

WARNING: Use full power when you cut and decrease the speed to idle speed after each cut.

CAUTION: Do not let the motor operate for too long without load. This can cause damage to the motor.

1. Put the trunk on a saw horse or runners.

Illustration of two workers handling stacked logs, one holding a tool and the other carrying a ladder (no text or symbols)

WARNING: Do not cut trunks in a pile. That increases the risk of kickback and can cause serious injury or death.

1. Remove the cut pieces from the work area.

WARNING: Cut pieces in the work area increase the risk of kickback and that you cannot keep your balance.

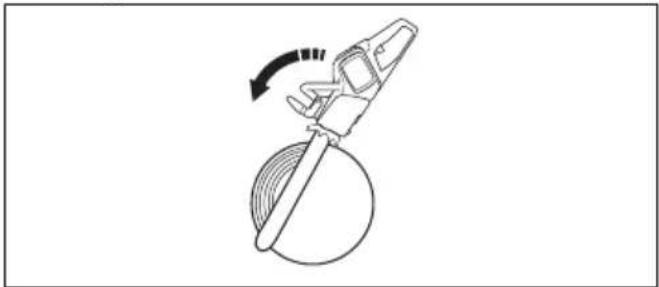

To use the spiked bumper

1. Push the spiked bumper into the trunk of the tree.
2. Apply full power and rotate the product. Keep the spiked bumper against the trunk. This procedure makes it easier to apply the force necessary to cut through the trunk.

Diagram of a manual tool cutting a circular object with a curved arrow indicating rotation (no text or symbols)

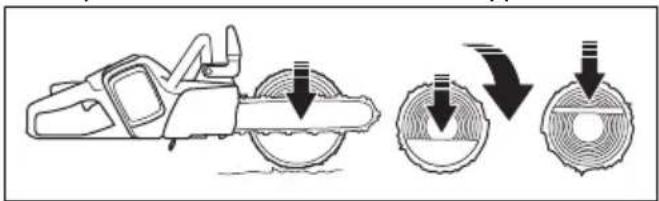

To cut a trunk on the ground

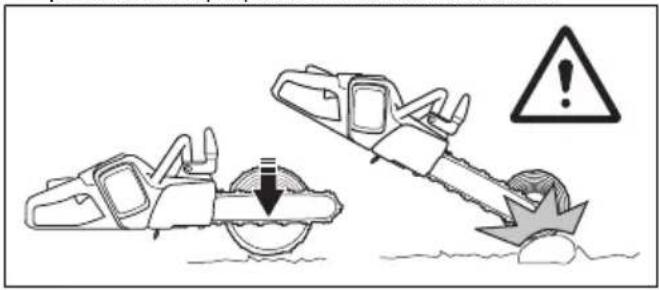

1. Cut through the trunk on the pull stroke. Keep full power but be prepared for sudden accidents.

Diagram showing a car being pulled by a chain to lift a vehicle, with warning symbols (no text or labels)

WARNING: Make sure that the saw chain does not touch the ground when you complete the kerf.

1. Cut approximately 23 through the trunk and then stop. Turn the trunk and cut from the opposite side.

Diagram illustrating a mechanical process with arrows indicating downward motion of a chain and a circular component, likely illustrating a machining or assembly step.

To cut a trunk that has support on one end

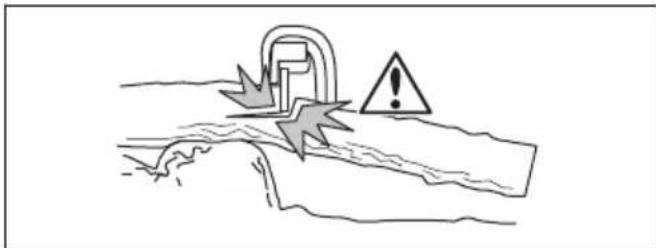

WARNING: Make sure that the trunk does not break during cutting. Obey the instructions below.

Illustration of a landslide with a lightning bolt, falling object, and warning symbol (no text or labels)

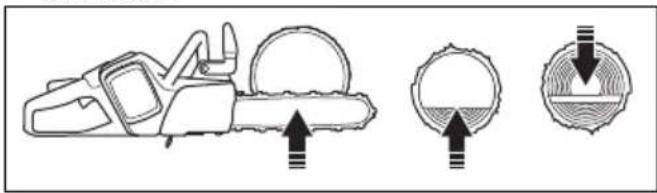

1. Cut on the push stroke approximately 13 through the trunk.
2. Cut through the trunk on the pull stroke until the two kerfs touch.

Diagram of a chain saw mechanism with three circular cross-sections showing internal components (no text or labels)

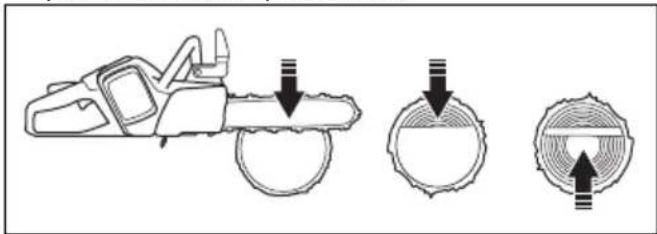

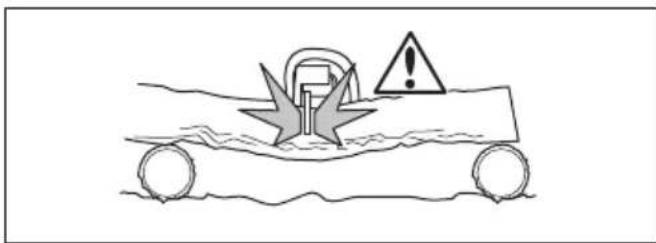

To cut a trunk that has support on two ends

WARNING: Make sure that the saw chain does not get caught in the trunk during cutting. Obey the instructions below.

Simple line drawing of a car with a warning sign and abstract symbols (no text or labels)

1. Cut on the pull stroke approximately 13 through the trunk.
2. Cut through the remaining part of the trunk on the push stroke to complete the cut.

Diagram showing three stages of a mechanical or industrial process: cutting, processing, and final assembly (no text or symbols present)

WARNING: Stop the motor if the saw chain gets caught in the trunk. Use a lever to open up the kerf and remove the product. Do not try to pull the product out by hand. This can result in injury when the product suddenly breaks free.

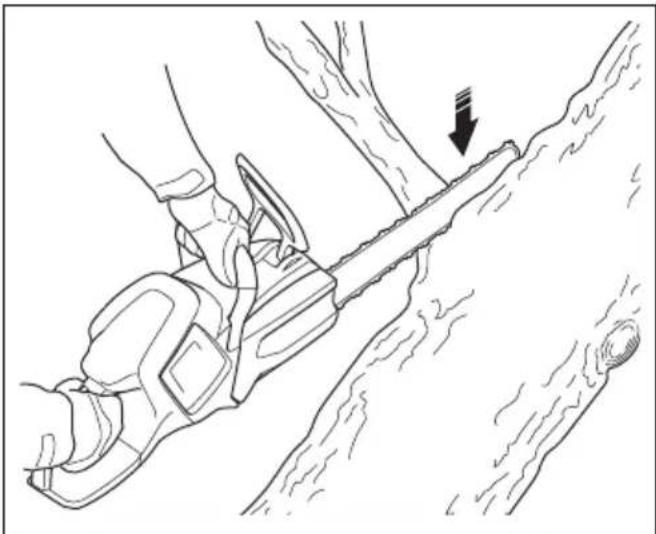

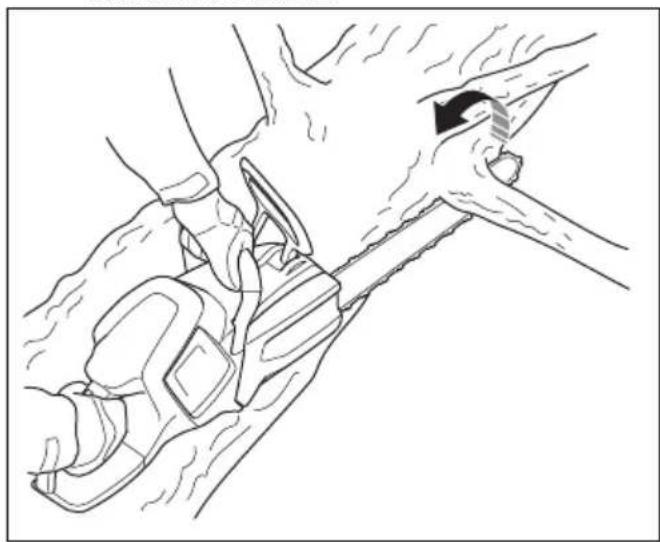

To use the limbing technique

Note: For thick branches, use the cutting technique. Refer to To use the cutting technique on page 20.

WARNING: There is a high accident risk when you use the limbing technique. Refer to Kickback information on page 18 for instructions how to prevent kickback.

WARNING: Cut limbs one by one. Be careful when you remove small limbs and do not cut bushes or many small limbs at the same time. Small limbs can get caught in the saw chain and prevent safe operation of the product.

Note: If it is necessary, cut the limbs piece by piece. Cut the smaller branches (A) and (B) before you cut the limb near the trunk (C).

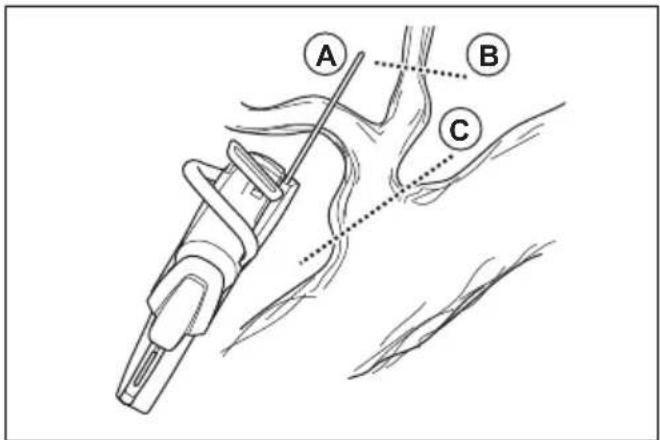

A B C

1. Remove the limbs on the right side of the trunk.
   a) Keep the guide bar on the right side of the trunk and keep the body of the product against the trunk.
   b) Select the applicable cutting technique for the tension in the branch.

Line drawing of a car seatbelt being lifted by hand, showing mechanical components and safety mechanism (no text or symbols)

WARNING: If you are not sure about how to cut the branch, speak

to a professional chainsaw operator before you continue.

1. Remove the limbs on the top of the trunk.

a) Keep the product on the trunk and let the guide bar move along the trunk.
b) Cut on the push stroke.

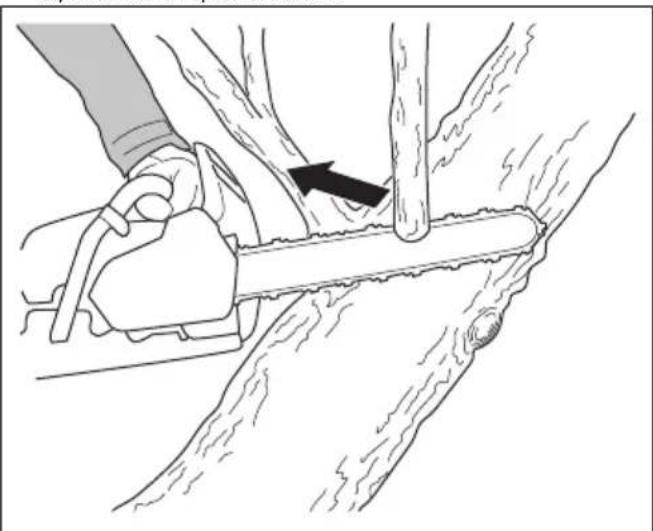

Line drawing of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

1. Remove the limbs on the left side of the trunk.

a) Select the applicable cutting technique for the tension in the branch.

Line drawing of a person using a tool to cut a tree branch, showing the blade and foot (no text or symbols)

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

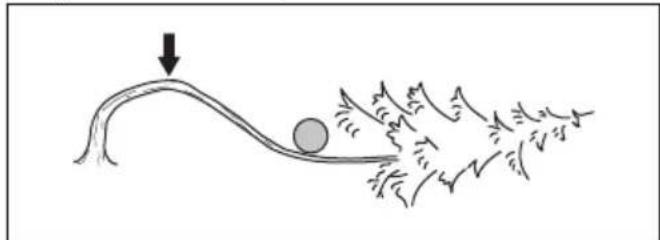

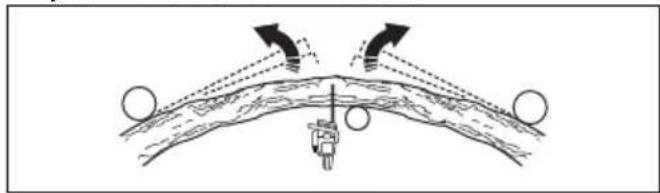

Refer to To cut trees and branches that are in tension on page 25 for instructions on how to cut branches that are in tension.

To use the tree felling technique

WARNING: You must have experience to fell a tree. If possible, engage in a training course in chainsaw operation.

Speak to an operator with experience for more knowledge.

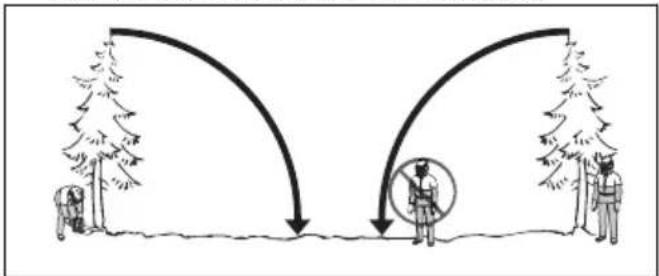

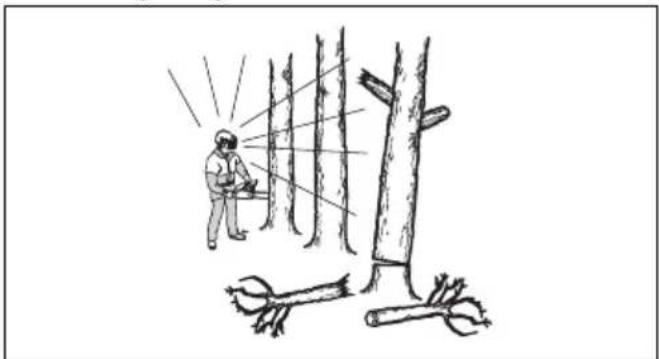

To keep a safe distance

1. Make sure that persons around you keep a safe distance at a minimum of 2 1/2 tree lengths.

1. Make sure that no person is in the risk zone before or during felling.

Illustration of a person using a tree spray gun to spray through tall trees, with no text or symbols present.

To calculate the felling direction

1. Examine in which direction it is necessary for the tree to fall. The goal is to fell it in a position where you can limb and cut the trunk easily. It is also important that you are stable on your feet and can move about safely.

WARNING: If it is dangerous or not possible to fell the tree in its natural direction, fell the tree in a different direction.

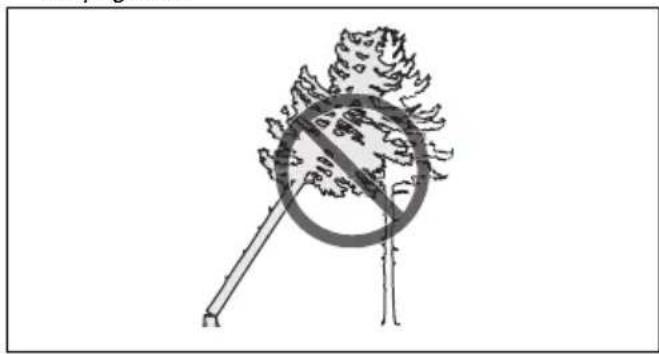

1. Examine the natural fall direction of the tree. For example the tilt and bend of the tree, wind direction, the location of the branches and weight of snow.
2. Examine if there are obstacles, for example other trees, power lines, roads and/or buildings around.
3. Look for signs of damage and rot in the stem.

WARNING: Rot in the stem can mean a risk that the tree falls before you complete the cutting.

1. Make sure the tree has no damaged or dead branches that can break off and hit you during felling.

2. Do not let the tree fall onto a different standing tree. It is dangerous to remove a caught tree and there is a high accident risk. Refer to To free a trapped tree on page 25.

Illustration of a magnifying glass over tree branches with a diagonal line (no text or symbols)

WARNING: During critical felling operations, lift your hearing protection immediately when the sawing is complete. It is important that you hear sounds and warning signals.

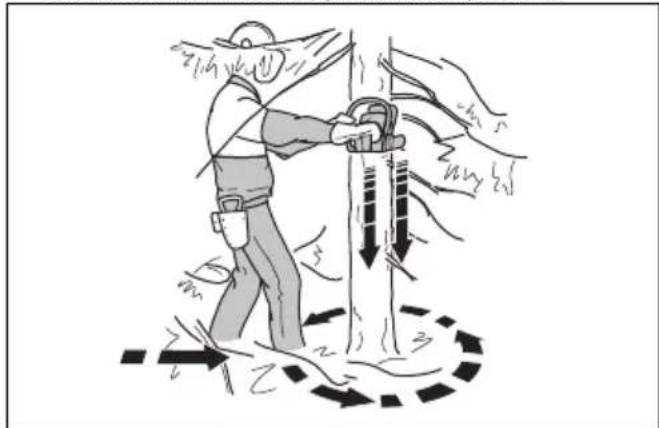

To clear the trunk and prepare your path of retreat

Cut off all branches from your shoulder height and down.

1. Cut on the pull stroke from the top down. Make sure that the tree is between you and the product.

Diagram illustrating a manual labor process with labeled arrows and symbols, likely depicting a manual labor or mechanical operation.

1. Remove undergrowth from the work area around the tree. Remove all cut off material from the work area.

2. Do a check of the area for obstacles such as stones, branches and holes. You must have a clear path of retreat when the tree starts to fall. Your path of retreat must be approximately 135 degrees away from the felling direction.

3. The danger zone

4. The path of retreat
5. The felling direction

To fell a tree

Husqvarna recommends you to make the directional cuts and then use the safe corner method when you fell a tree. The safe corner method helps you to make a correct felling hinge and control the felling direction.

WARNING: Do not fell trees with a diameter that is more than two times larger than the guide bar length. For this, you must have special training.

The felling hinge

The most important procedure during tree felling is to make the correct felling hinge. With a correct felling hinge, you control the felling direction and make sure that the felling procedure is safe.

The thickness of the felling hinge must be equal and a minimum of 10% of the tree diameter.

WARNING: If the felling hinge is incorrect or too thin, you have no control of the felling direction.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

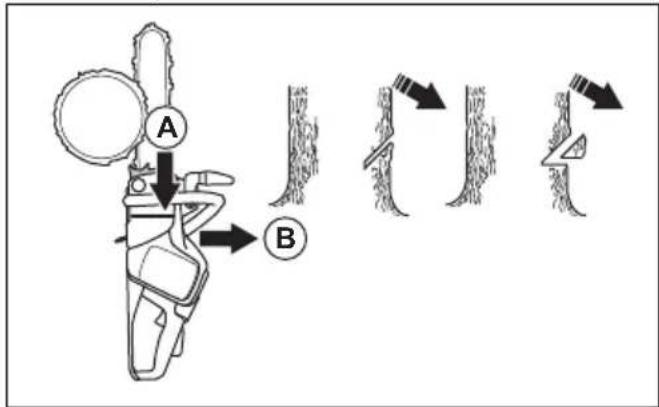

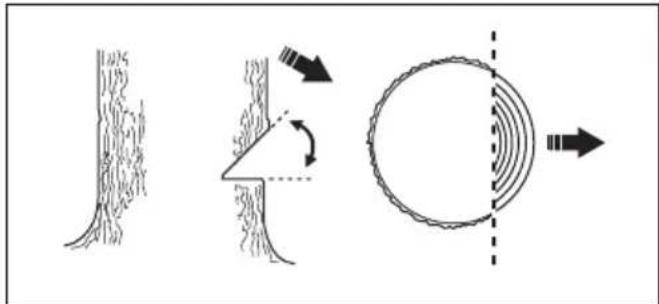

To make the directional cuts

1. Make the directional cuts. Run the directional cuts 1/4 of the diameter of the tree. Make a 45^ angle between the top cut and bottom cut.

a) Make the top cut first. Align the felling direction mark (A) of the product with the felling direction of the tree (B). Stay behind the product and keep the tree on your right side. Cut with a pull stroke.

b) Make the bottom cut. Make sure that the end of the bottom cut is at the same point as the end of the top cut.

A B

1. Make sure that the directional cut line is perfectly horizontal and at right angles (90°) to the felling direction. The directional cut line goes through the point where the two directional cuts touch.

Diagram illustrating tree root structure, angle measurement, and circular cross-section with directional arrows (no text or labels)

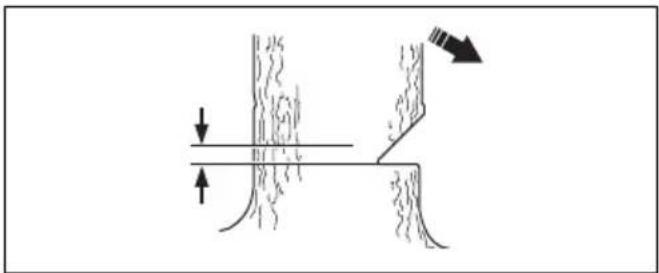

To use the safe corner method

The felling cut must be made slightly above the directional cut.

Diagram showing a geological or structural interaction with arrows indicating direction of movement (no text or symbols present)

WARNING: Be careful when you cut with the guide bar tip. Start to cut with the lower section of the guide bar tip as you make a bore cut into the trunk.

Simple line drawing of a mechanical tool or bracket (no text or symbols)

1. If the usable cutting length is longer than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk to complete the felling hinge width.

Simple line drawing of a mechanical component with no text or symbols

b) Cut on the pull stroke until 13 of the trunk is left.
c) Pull the guide bar 5-10 cm/2-4 in rearward.
d) Cut through the remaining of the trunk to complete a safe corner that is 5-10 cm/2-4 in wide.

Diagram of a mechanical device with a curved arrow indicating motion or force direction (no text or symbols)

1. If the usable cutting length is shorter than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk. The bore cut must extend 3/5 of the tree diameter.
b) Cut on the pull stroke through the remaining trunk.

Cross-sectional diagram of a mechanical component with layered structure (no text or symbols)

c) Cut straight into the trunk from the other side of the tree to complete the felling hinge.
d) Cut on the push stroke, until 13 of the trunk is left, to complete the safe corner.

Mechanical diagram showing a rotating shaft and circular component with a downward arrow indicating motion (no text or symbols)

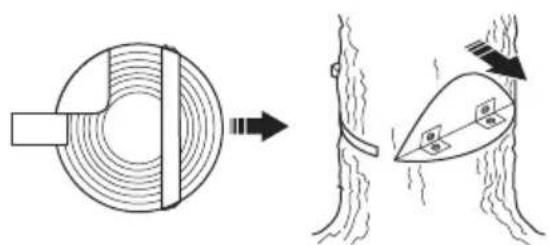

1. Put a wedge in the kerf straight from behind.

Diagram showing a circular structure transforming into a tree with a curved structure (no text or symbols)

1. Cut off the corner to make the tree fall.

Note: If the tree does not fall, hit the wedge until it does.

1. When the tree starts to fall, use the path of retreat to move away from the tree. Move a minimum of 5 m/15 ft away from the tree.

To free a trapped tree

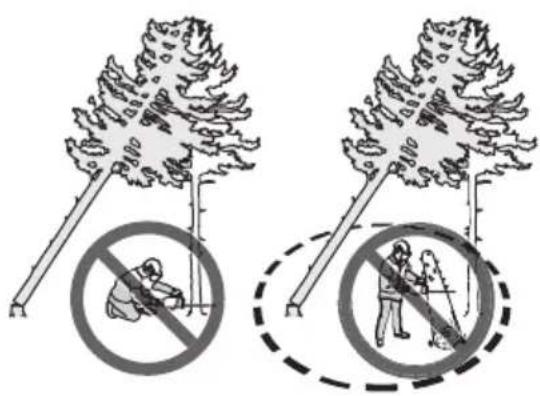

WARNING: It is very dangerous to remove a trapped tree and there is a high accident risk. Keep out of the risk zone and do not try to fell a trapped tree.

Safety illustration showing two scenarios of tree damage: one with no obstruction and another with a person using a tool.

The safest procedure is to use one of the following winches:

- Tractor-mounted

Line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portable

Simple line drawing of a mechanical clamp or lever mechanism (no text or symbols)

To cut trees and branches that are in tension

1. Figure out which side of the tree or branch that is in tension.

2. Figure out where the point of maximum tension is.

Diagram showing a particle trajectory on a curved path with an arrow indicating direction (no text or symbols)

1. Examine which is the safest procedure to release the tension.

Note: In some situations the only safe procedure is to use a winch and not your product.

1. Keep a position where the tree or branch can not hit you when the tension is released.

Diagram of a mechanical or fluid system with two arrows indicating direction, no text or symbols present

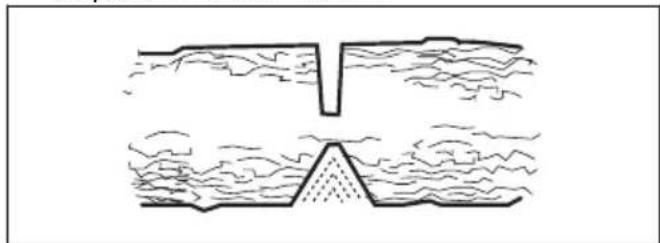

1. Make one or more cuts of sufficient depth necessary to decrease the tension. Cut at or near the point of maximum tension. Make the tree or branch break at the point of maximum tension.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

WARNING: Do not cut straight through a tree or branch that is in tension.

WARNING: Be very careful when you cut a tree that is in tension. There is a risk that the tree moves quickly before or after you cut it. Serious injury can occur if you are in an incorrect position or if you cut incorrectly.

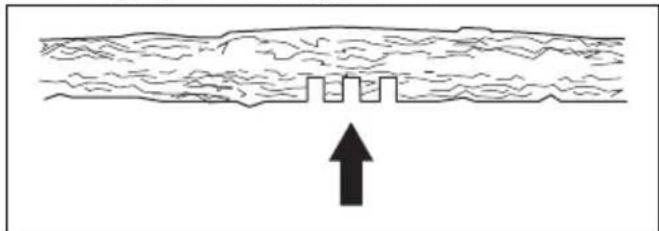

1. If you must cut across tree/branch, make 2 to 3 cuts, 1 in. apart and with a depth of 2 in.

Cross-sectional diagram of a geological or structural layer with an upward arrow indicating a specific feature (no text or labels present)

1. Continue to cut more into the tree until the tree/branch bends and the tension is released.

Diagram of a curved structure with two arrows indicating direction, no text or symbols present

1. Cut the tree/branch from the opposite side of the bend, after the tension is released.

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

Maintenance schedule

WARNING: Remove the battery before you do maintenance.

The following is a list of the maintenance steps that you must do on the product. See Maintenance on page 26 for more information.

Maintenance Before	use	Weekly Monthly
Clean the external parts of the product. X
Make sure that the power trigger and the power trigger lockout function correctly from a safety point of view.	X
Clean the chain brake and make sure that it operates safely. Make sure that the chain catcher is not damaged. Replace it if necessary.	X
Turn the guide bar for more equal wear. Make sure that the lubrication hole in the guide bar is not clogged. Clean the bar groove.	X
Make sure that the cutter and cutter guard have no cracks and that they are not damaged. Replace the cutter or cutter guard if they have cracks or if they have been exposed to impact.	X
Make sure that the guide bar and saw chain have sufficient oil. X
Do a check of the saw chain. Look for cracks and make sure that the saw chain is not rigid or unusually worn. Replace if necessary.	X
Sharpen the saw chain. Do a check of its tension and condition. Do a check for wear on the drive sprocket and replace is necessary.	X
Clean the air inlet on the product. X
Make sure that the screws and nuts are tight. X
Make sure that the keypad works correctly and that it is not damaged. X
Use a file to remove burrs from the edges of the guide bar. X
Do a check of the connections between the battery and the product. Do a check of the connection between the battery and the battery charger.
Empty and clean the oil tank. X
Blow through the product and battery cooling slots gently with compressed air. X

Maintenance and checks of the safety devices on the product

To do a check of the front hand guard

Regularly do a check of the front hand guard and the inertia brake release.

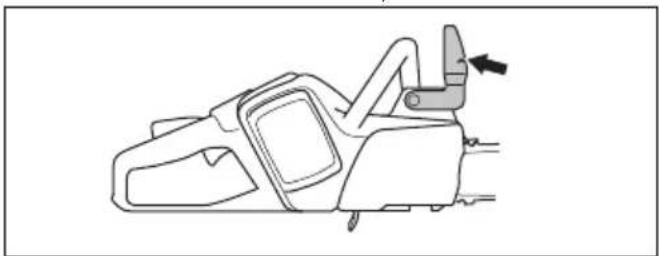

1. Make sure that the front hand guard is not damaged and that there are no defects, such as cracks.

Line drawing of a mechanical device with a handle and arrow indicator (no text or symbols)

1. Make sure that the front hand guard moves freely and that it is attached safely to the product.

Line drawing of a person using a chainsaw to lift a piece of wood, showing motion arrows (no text or symbols)

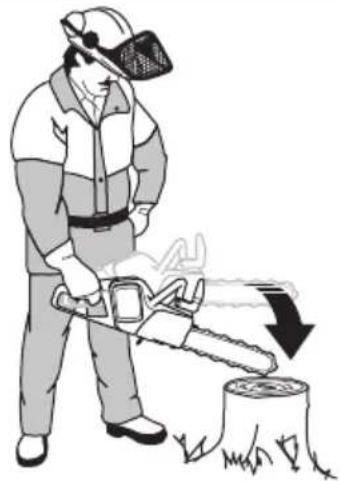

1. Put the product, with the motor off, on a stump or other stable surface.

2. Hold the rear handle and let go of the front handle. Let the product fall against the stump.

Illustration of a person using a tree stump to cut a saw, with a downward arrow indicating the process (no text or symbols present)

1. Make sure that the chain brake engages as the guide bar hits the stump.

To do a check of the brake trigger

1. Put the product on stable ground and start it. See Operation on page 16.

WARNING: Make sure that the saw chain does not touch the ground or other objects.

1. Wrap your fingers and thumbs around the handles and hold the product tight.

Line drawing of a chainsaw with a hand operating it (no text or symbols)

1. Apply full power and tilt your left wrist against the front hand guard to engage the chain brake. The saw chain must stop immediately.

STOP

WARNING: Do not let go of the front handle!

To do a check of the power trigger lockout

1. Make sure that the power trigger and power trigger lockout move freely and that the return spring operates correctly.

Line drawing of a mechanical tool with arrows indicating motion or force direction (no text or symbols)

1. Push the power trigger lockout forward (A) and down (B). Hold the power trigger lockout against the handle and make sure that it goes back to its initial position when you release it.

A B

1. Make sure that the power trigger is locked at the idle position when the power trigger lockout is released.

Line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols)

1. Start the product and apply full power.

2. Release the power trigger and make sure that the saw chain stops and stays stationary.

WARNING: If the saw chain rotates when the power trigger is in the idle position, speak to your servicing dealer.

To do a check of the chain catcher

1. Make sure that there is no damage on the chain catcher.

2. Make sure that the chain catcher is stable and attached to the body of the product.

Line drawing of a chain saw with an arrow indicating force or movement (no text or symbols)

To do a check of the functions of the user interface

1. Start the product. Refer to To start the product on page 19.
2. Push the start/stop button.
3. Make sure that the product stops and that the green LED goes off.

Diagram of a control panel with battery, warning symbol, and three directional buttons labeled with icons

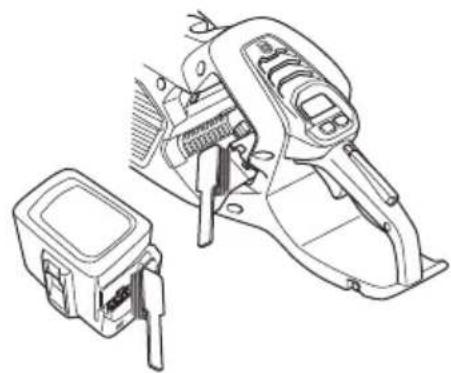

To do a check of the battery and the battery holder

1. Clean the battery and the battery holder with a soft brush.
2. Clean the cooling slots and battery connectors.

Technical line drawing of a mechanical device with two components (no text or symbols)

1. Make sure that the battery is not damaged and there are no other defects, such as cracks.

To do a check of the battery charger

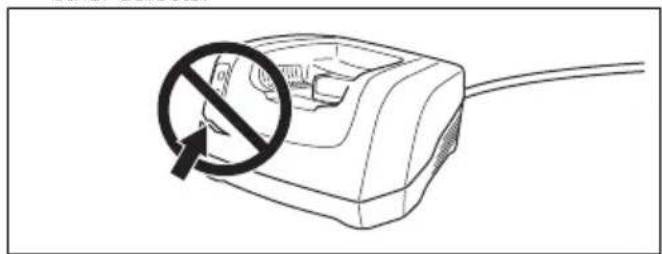

1. Make sure that the battery charger and the power supply cord is not damaged. Look for cracks and other defects.

Line drawing of a plug with a circular no-smoking symbol (no text or labels)

To clean the cooling system

The cooling system keeps the motor temperature down. The cooling system includes the air intake on the left side of the product and a fan on the motor.

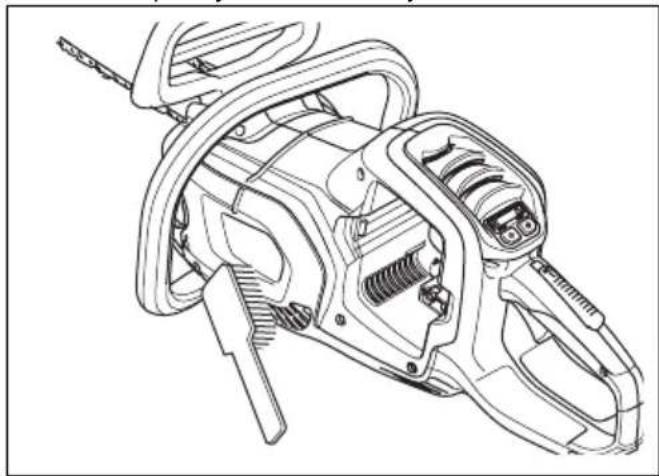

1. Clean the cooling system with a brush weekly or more frequently if it is necessary.

Technical line drawing of a mechanical device with no visible text or symbols

1. Make sure that the cooling system is not dirty or blocked.

CAUTION: A dirty or blocked cooling system can cause the product to become too hot. This causes damage to the product.

To sharpen the saw chain

Information about the guide bar and saw chain

WARNING: Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combination recommended by Husqvarna. This is necessary to keep the safety functions of the product. Refer to Accessories on page 37, for a list of replacement bar and chain combinations that we recommend.

- Guide bar length, in/cm. Information about the guide bar length can usually be found on the rear end of the guide bar.

Simple line drawing of a test tube with a downward arrow indicating compression or dislocation (no text or symbols)

• Number of teeth on bar tip sprocket (T).

- Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket.

PITCH = D/2 D

• Number of drive links. The number of drive links is decided by the type of guide bar.

Pure mechanical linkage diagram without any text, numbers, or symbols

- Bar groove width, in/mm. The groove width in guide bar must be the same as the chain drive links width.

Diagram showing a vertical pipe with directional arrows and a separate schematic of a bent pipe with a circular end (no text or symbols)

- Chain oil hole and hole for chain tensioner. The guide bar must align with product.

Pure diagram of a tool or bracket with arrows indicating direction (no text or symbols)

- Drive link width, mm/in.

Technical line drawing of a mechanical component with a vertical shaft and circular features (no text or symbols)

General information about how to sharpen the cutters

Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood. If the saw chain is very blunt, there will be no wood chips but sawdust.

A sharp saw chain eats through the wood and the wood chips becomes long and thick.

The cutting tooth (A) and the depth gauge (B) together makes the cutting part of the saw chain, the cutter. The difference in height between the two gives the cutting depth (depth gauge setting).

A B

When you sharpen the cutter, think about the following:

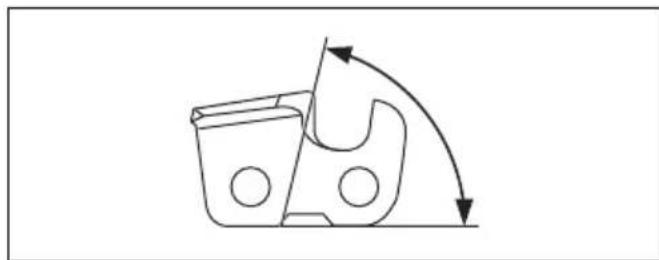

- Filing angle.

Technical line drawing of a mechanical tool with two views: one showing a curved arrow indicating rotation, the other showing a straight handle (no text or symbols)

- Cutting angle.

Pure mechanical diagram showing a gear or cam mechanism with no text, numbers, or symbols

- File position.

Line drawing of a pair of scissors with a handle and base, no text or symbols present

- Round file diameter.

Simple line drawing of a dropper with a small symbol (no text or labels)

It is not easy to sharpen a saw chain correctly without the correct equipment. Use Husqvarna file gauge. This will help you to keep maximum cutting performance and the kickback risk at a minimum.

WARNING: The force of the kickback increases a lot if you do not follow the sharpening instructions.

Note: Refer to Accessories on page 37 for information about sharpening of the saw chain.

To sharpen the cutters

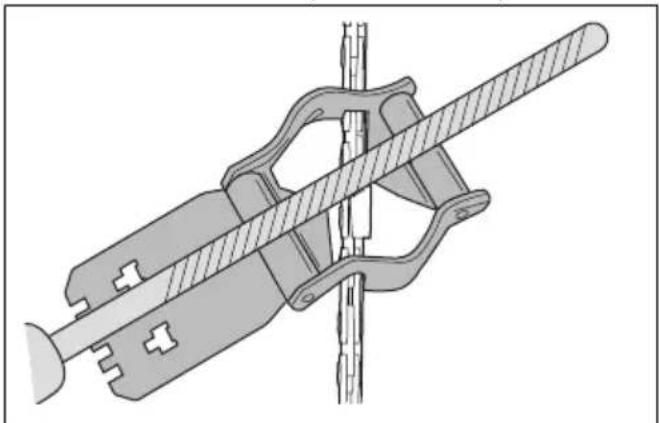

1. Use a round file and a file gauge to sharpen the cutting teeth.

Three technical illustrations of mechanical components: a dropper, a bracket, and a clamp device (no text or symbols)

Note: Refer to Accessories on page 37 for information about which file and gauge that Husqvarna recommends for your saw chain.

1. Apply the file gauge correctly on to the cutter. Refer to the instruction supplied with the file gauge.
2. Move the file from the inner side of the cutting teeth and out. Decrease the pressure on the pull stroke.

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

1. Remove material from one side of all the cutting teeth.

2. Turn the product around and remove material on the other side.

3. Make sure that all cutting teeth are the same length.

General information about how to adjust the depth gauge setting

The depth gauge setting (C) decreases when you sharpen the cutting tooth (A). To keep maximum cutting performance you must remove filing material from the depth gauge (B) to receive the recommended depth gauge setting. See Accessories on page 37 for instructions about how to receive the correct depth gauge setting for your saw chain.

A B C

WARNING: The risk of kickback increases if the depth gauge setting is too large!

To adjust the depth gauge setting

Before you adjust the depth gauge setting or sharpen the cutters, refer to To sharpen the cutters on page 31, for instructions. We recommend you to adjust the depth gauge setting after each third operation that you sharpen the cutting teeth.

We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the depth gauge.

Two mechanical tools: a radial tool and a clamped tool (no text or symbols visible)

1. Use a flat file and a depth gauge tool to adjust the depth gauge setting. Only use Husqvarna depth gauge tool to get the correct depth gauge setting and bevel for the depth gauge.
2. Put the depth gauge tool on the saw chain.

Note: See the package of the depth gauge tool for more information about how to use the tool.

1. Use the flat file to remove the part of the depth gauge that extends through the depth gauge tool.

Technical line drawing of a mechanical component with no visible text or symbols

To tighten the saw chain

WARNING: A saw chain without the correct tension can come loose from the guide bar and cause serious injury or death.

The more you use a saw chain the longer it becomes. It is important to adjust the saw chain regularly.

Do a check of the saw chain tension each time you refill with chain oil.

Note: A new saw chain has a running-in period during which you must do a check of the tension more frequently.

1. Fold the knob out until it opens.

Diagram of a car door handle with a screwdriver inserted, showing mechanical components (no text or symbols)

1. Turn the knob counterclockwise to loosen the drive sprocket cover.

Diagram of a mechanical device with a rotating ring and connecting rod (no text or symbols)

1. Turn the chain tensioner wheel to adjust the tension on the saw chain. The saw chain must be tight against the guide bar.

Diagram illustrating vehicle seatbelting mechanism with directional arrows and magnified view of wheel assembly

Note: Turn the wheel down (+) for more tension and up (-) for less tension. The saw chain is tightened correctly when you can turn is easily by hand but is tight against the guide bar.

1. Turn the knob clockwise to tighten the bar knob.

Diagram of a car interior showing a hand holding a tool and a circular arrow indicating rotation (no text or symbols)

1. Fold down the knob to lock the tension.

Line drawing of a mechanical component with a central gear and two attached parts (no text or symbols)

To do a check of the saw chain lubrication

Do a check of the saw chain lubrication each third battery charge.

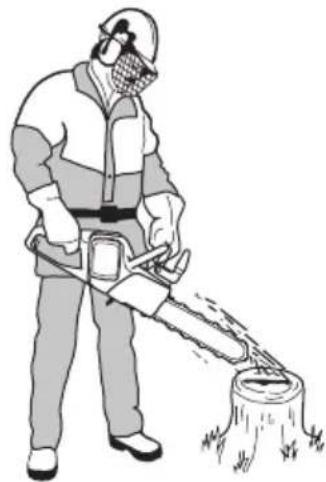

1. Start the product and let it run at 3/4 power. Hold the bar approximately 20 cm (8 inches) above a light colored surface.
2. If the saw chain lubrication is correct, you will see a clear line of oil on the surface after 1 minute.

Illustration of a person in protective gear using a tree stump to cut a tree trunk (no text or symbols)

1. If the saw chain lubrication is not correct, do the following checks.

a) Do a check of the oil channel in the guide bar to make sure that it is not blocked. Clean if necessary.

b) Do a check of the groove in the edge of the guide bar to make sure that it is clean. Clean if necessary.

Line drawing of a hand using a tool to cut or spread a cylindrical object (no text or symbols)

c) Make sure that the bar tip sprocket turns freely and that the lubricating hole in the guide bar tip sprocket is not blocked. Clean and lubricate if necessary.

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

1. If the saw chain lubrication does not work after following the steps above, speak to your servicing dealer.

To do a check of the chain drive sprocket

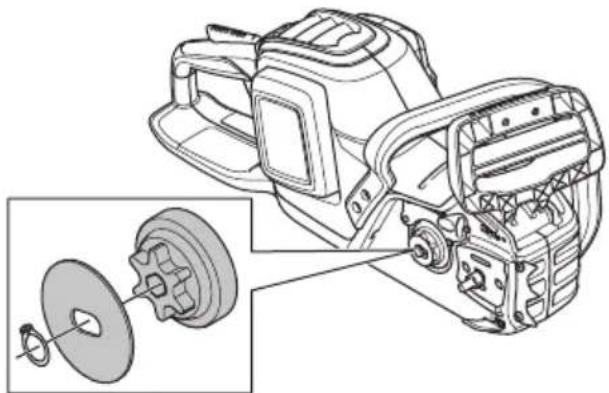

• Examine the chain drive sprocket for wear. Replace the chain drive sprocket if it is necessary.
• Replace the chain drive sprocket each time that you replace the saw chain.

Technical line drawing of a mechanical assembly with a close-up inset showing a disassembled component (no text or symbols present)

To examine the cutting equipment

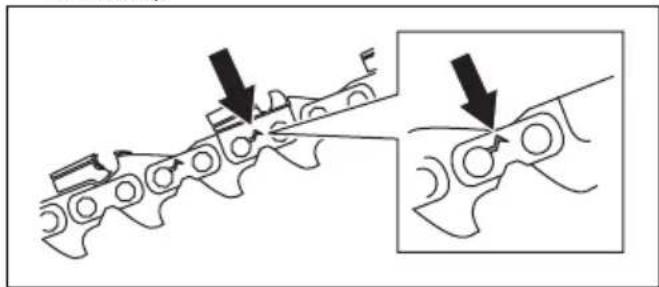

1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary.

Mechanical assembly diagram showing two views of a chain with arrows indicating motion (no text or symbols)

1. Make sure that the saw chain is easy to bend. Replace the saw chain if it is rigid.
2. Compare the saw chain with a new saw chain to examine if the rivets and links are worn.
3. Replace the saw chain when the longest part of the cutting tooth is less than 4 mm/0.16 in. Also replace the saw chain if there are cracks on the cutters.

Pure technical line drawing of a mechanical part with no text or symbols

To do a check of the guide bar

1. Make sure that the oil channel is not blocked. Clean if it is necessary.

1. Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file.

Illustration of a crossed knife and a cylindrical object with a magnified inset (no text or symbols)

1. Clean the groove in the guide bar.

Line drawing of hands using a tool to cut a cylindrical object (no text or symbols)

1. Examine the groove in the guide bar for wear. Replace the guide bar if it is necessary.

Two abstract line drawings: a zigzag line and a crossed-out X symbol (no text or labels)

1. Examine if the guide bar tip is rough or very worn.

Simple line drawing of a crossed tool with arrows indicating direction (no text or symbols)

1. Make sure that the bar tip sprocket turns freely and that the lubricating hole in the bar tip sprocket is not blocked. Clean and lubricate if it is necessary.

Diagram showing a hand holding a pen with a circular arrow indicating rotation, labeled with pressure values +0.25 and -0.25.

1. Turn the guide bar daily to extend its life cycle.

Simple line drawing of a tool handle with an arrow indicating direction (no text or symbols)

Troubleshooting

User interface

LED screen Possible faults Possible solution
The warning indicator flashes.	Chain brake is engaged.	Disengage the chain brake.
	Temperature deviation.	Let the product to cool down.
	Overload. The saw chain can not move.	Release the saw chain.
	The power trigger and the start/stop button are pushed at the same time.	Release the power trigger to activate the product.
Green activate LED flashing.	Low battery voltage.	Charge the battery.
The warning indicator is on.	Service. Speak to your servicing dealer.

Battery

LED display	Possible faults Possible solution
Green LED flashes. Low battery voltage.	Charge the battery.
LED display Possible faults Possible solution
Error LED flashes. Temperature deviation. Use the battery in temperatures		between -10°C (14°F) and 40°C (104°F).
		Too much voltage. Make sure that the mains voltage aligns with the voltage of the product. Refer to the rating plate on the product.
		Remove the battery from the battery charger.
Error LED comes on. Too much cell difference (1V). Speak to your servicing dealer.

Battery charger

Condition	Possible faults Possible procedure
The charging LED is red. Permanent battery charger error.		Speak to your dealer.
The charging LED flashes green.	Temperature deviation, the battery is too cold or too hot to use or charge.	Let the battery cool down or warm it up. When the battery has the correct temperature, it can be used or charged again. Use the battery charger in ambient temperatures between 5 °C (41 °F) and 40 °C (104 °F).
The charging LED flashes red.	Faulty battery Speak to your dealer

Transportation, storage and disposal

Transportation and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.
• Obey the special requirement on package and labels for commercial transportation, including by third parties and forwarding agents.
• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.
• Use tape on open contacts when you put the battery in a package. Put the battery in the package tightly to prevent movement.
• Remove the battery for storage or transportation.
• Put the battery and the battery charger in a space that is dry and free from moisture and frost.

• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.

• Put the battery in storage where the temperature is between 5^ / 41^ and 25^ / 77^ and away from open sunlight.

• Put the battery charger in storage where the temperature is between 5^ / 41^ and 45^ / 113^ and away from open sunlight.
• Use the battery charger only when the surrounding temperature is between 5^ / 41^ and 40^ / 104^ .
• Charge the battery 30% to 50% before you put it in storage for long periods.
• Put the battery charger in storage in a space that is closed and dry.
• Keep the battery away from the battery charger during storage. Do not let children and other not approved persons to touch the equipment. Keep the equipment in a space that you can lock.
• Clean the product and do a full servicing before you put the product in storage for a long time.
• Use the transportation guard on the product to prevent injuries or damage on the product during transportation and storage.

- Attach the product safely during transportation.

Disposal of the battery, battery charger and product

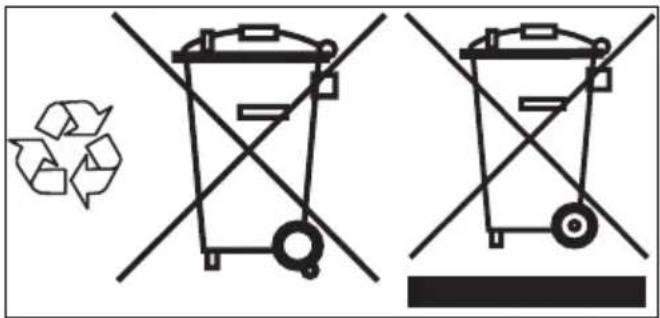

The symbol below means that the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment. This helps to prevent damage to the environment and to persons.

Speak to local authorities, domestic waste service or your dealer for more information.

Note: The symbol shows on the product or package of the product.

Diagram showing two crossed bins with a recycling symbol and a blank rectangular bar below, likely indicating no waste or non-recyclable disposal.

Technical data

Technical data

	350i
Motor
Type BLDC (brushless) 36V
Features
Battery runtime, min, (free run) in Normal model 70
Lubrication system
Type of oil pump Automatic
Oil tank capacity, US pint/l 0.42/0.20
Weight
Chainsaw without battery, guide bar, saw chain and empty chain oil tank, lb/kg	3.5
Saw chain/guide bar
Recommended bar lengths, in/cm 18/45.7
Usable cutting length, in/cm 17.5/44.5
Type of drive sprocket/number of teeth Spur/6
Maximum chain speed (Boost mode), m/s 11.8
Maximum chain speed (Normal mode), m/s 9.4

Accessories

Guide bar and saw chain combinations

The following cutting attachments are approved for Husqvarna 350i.

Guide bar Saw chain
Length, in Chain pitch, in Gauge, mm		Max. nose radius Type Length, drive			links (no.)
18 3/8" mini 1.3 7T	Husqvarna S93G 62

Recommended cutting equipment for USA

Following is a list of recommended cutting equipment for Husqvarna 350i. This model equipped with either of the listed guide bar and saw chain combination(s), fulfills the requirements according to UL 62841-1 and UL 62841-4-1.

Chainsaw model Husqvarna 350i met the kickback performance requirements of UL 62841-4-1 when tested with the combinations of bars and saw chains listed below. The saw chain Husqvarna S93G is also classified as a low kickback saw chain since is met the requirements for low kickback saw chain outlined in ANSI B175.1. We recommend to use only the listed combinations of bars and saw chains for chainsaw model Husqvarna 350i. Other chainsaw models may not meet the kickback requirements when equipped with the listed bar and saw chain combinations.

Recommended cutting equipment for Canada

Following is a list of recommended cutting equipment for Husqvarna 350i. The listed combination(s)

of powerhead, guide bar and saw chain meet all requirements outlined in Canadian Standards Association Z62.1-11 (Chain saws) and Z62.3-11 (Chain Saw Kickback).

Furthermore the saw chain Husqvarna S93G is evaluated and listed as a Type C Low Kickback Saw chain according to the provisions in Z62.3-11.

Filing equipment and filing angles

Using Husqvarna file gauge will give you the correct filing angles. We recommend you to always use a Husqvarna file gauge to restore the sharpness of the saw chain. The part numbers are given in the table below.

If you do not know which saw chain you have on your product, turn to your servicing dealer.

93	5/32 in/4.0 mm	60° 30° 0°			0.025 in/0.65 mm	596 6389-01	596 6384-01

Approved batteries

Battery BLi30
Type Lithium-ion
Battery capacity, Ah 7.8
Nominal voltage, V 36
Weight, lb/kg 4.2/1.9

Approved battery chargers for the product

Battery charger	40-C80
Mains voltage, V 100-240
Frequency, Hz 50-60
Power, W 72
Output Voltage, V d.c./ Amps, A 43/1.6

Contenido

Introducción.... 39

Seguridad.... 41

Montaje....53

Exploded view diagram of a chain-linking device with numbered parts and labeled functions

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

Safety warning illustration showing a worker using a chainsaw and another person with a no-smoking sign.

Prohibition sign showing a worker on a pole with a diagonal line, no text or symbols present

Illustration of a worker cutting wood with a hammer and saw, showing a curved arrow indicating motion (no text or symbols)

Prohibition sign showing a person walking under a tree with a crossed-out circle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Safety warning symbol showing a person climbing a tree with a diagonal line indicating no obstruction

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

Illustration of two workers: one in protective gear holding a chainsaw, the other in a no-smoking sign (no text or symbols present)

Prohibition sign with silhouette of worker climbing a pole crossed out, symbolizing labor restriction or prohibition

Illustration of a person in protective gear using a saw to cut wood or wood fragments, with an arrow indicating the process (no text or symbols present)

Illustration of a person cutting tree with a no-smoking symbol (no text or labels)

Simple line drawing of a U-shaped object with circular holes and wave-like patterns (no text or symbols)

Line drawing of a person using a wooden saw to cut through grass, no text or symbols present

Safety warning symbol showing a person climbing a tree with a diagonal no-smoking circle

Illustration showing a person in full safety gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Diagram of a car air conditioner control panel with battery, warning symbol, and indicator buttons

Line drawing of a chain saw with visible blade and handle (no text or symbols)

Diagram showing a triangular obstacle with an arrow indicating direction and a chain of chains below, likely illustrating a physical or engineering concept.

Illustration of a person in protective gear using a power tool to cut wood or wood shavings (no text or symbols present)

Line drawing of a person wearing a helmet and holding a chainsaw (no text or symbols)

Line drawing of a chainsaw with a hand operating it, showing motion direction (no text or symbols)

Line drawing of a chainsaw with a hand operating it (no text or symbols)

Line drawing of a chainsaw with a hand operating it, showing blade and jaw (no text or symbols)

Illustration of a person in protective gear performing a manual tool with a downward arrow (no text or symbols)

Line drawing of a chainsaw with an arrow indicating compression or disassembly (no text or symbols)

Line drawing of a hand holding a device with a black arrow pointing to the side (no text or symbols)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a droplet falling into a container with two circular holes (no text or symbols)

Montaje

Line drawing of a chain-linking device with a gear and lever (no text or symbols)

Technical line drawing of a mechanical assembly with two views: front view and side view (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or process flow.

Diagram of a device with labeled parts including plug, cable, and connector components

A E D C B H F G

Abstract black-and-white graphic of a droplet above a stylized mask (no text or symbols)

Line drawing of a Huawei Huaqvarna printer with an arrow pointing to its side panel (no text or symbols on the device itself)

Technical line drawing of two electronic components (no text or symbols)

Diagram showing a triangular obstacle with an arrow indicating direction and a chain, likely illustrating a physical or engineering concept.

Illustration of a worker using a power saw to cut wood logs, no text or symbols present

Diagram showing a triangular obstacle with motion arrows and a chain, likely illustrating a physics or engineering concept.

Line drawing of a chainsaw with a hand operating it, showing blade and jaw (no text or symbols)

Technical illustration of a chain saw assembly with a battery unit and directional arrow (no text or symbols)

Line drawing of a hand holding a chain-linking tool, showing internal components and a handle (no text or symbols)

Diagram of a car air conditioner control panel with warning icons and control buttons

Diagram of a device control panel with warning icons and directional arrows indicating action buttons

Diagram of a car air conditioner control panel with warning icons and directional buttons

Technical illustration of a chain saw assembly with directional arrows indicating motion (no text or symbols)

Line drawing of a chain saw cutting a circular cutter with motion arrows indicating blade motion (no text or symbols)

Diagram of a chain-linking device with directional arrows indicating motion (no text or symbols)

Diagram illustrating a chain saw cutting process with warning symbol and directional arrows

Illustration of two workers handling stacked logs, one holding a log and the other standing with a hard hat (no text or symbols)

Diagram of a mechanical tool interacting with a circular component, showing motion direction (no text or symbols)

Illustration of a car being struck by a chain-link device with warning symbols (no text or labels)

Diagram illustrating a mechanical process with downward arrows indicating sequence of steps, showing a chain tool and circular components.

Illustration of a landslide with a lightning bolt, a dam, and warning symbol (no text or labels)

Diagram showing a chain saw blade and its three circular cross-sections with arrows indicating motion (no text or labels)

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing a chain saw blade and two circular cross-sections with arrows indicating features (no text or symbols)

Medical illustration showing a surgical procedure on a patient's neck and shoulder (no text or labels)

Illustration of a hand using a chainsaw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Line drawing of a person using a tool to cut tree bark, with a black arrow indicating the direction (no text or symbols present)

Illustration of a person spraying wood at a tree with a light source, surrounded by fallen logs (no text or symbols)

Illustration of a hand holding a magnifying glass over fire, with no text or symbols present.

Diagram illustrating a person using a pulley system to lift a vertical pole, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating tree cutting process with labeled parts A and B, showing progressive cutting steps.

Diagram illustrating tree root structure, angle measurement, and circular cross-section with directional arrows (no text or labels)

Diagram showing a geological or structural interaction with arrows indicating direction of movement (no text or symbols present)

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Simple line drawing of a mechanical component or tool with no text or symbols

Technical line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with internal layered structure and a curved arrow indicating direction (no text or labels)

Technical line drawing of a mechanical component with concentric grooves and a central arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical or structural change with labeled components and directional arrows, likely illustrating a process or assembly.

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing no restrictions.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portátil

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a curved path with a ball and scattered debris, no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows and circular components, no text or symbols present.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram showing airflow or particle movement between two curved surfaces with directional arrows (no text or symbols)

Line drawing of a car interior seatbelt mechanism (no text or symbols)

Line drawing of a person using a chainsaw to lift a car, showing motion arrows (no text or symbols)

Illustration of a worker using a power saw to cut tree bark with a downward arrow (no text or symbols)

Line drawing of a chain saw with a hand operating the blade (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Line drawing of a chain saw with an arrow indicating the blade (no text or symbols)

Diagram of a car air conditioner control panel with warning icons and directional buttons

Technical line drawing of a mechanical device with two views: one showing internal components and the other a rectangular base (no text or symbols)

Line drawing of a plug with a circular symbol indicating no protection, no text or labels present

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a cylindrical object with a downward arrow and internal dot pattern (no text or symbols)

Simple line drawing of a chain with a star-shaped internal element (no text or symbols)

PITCH = \frac{D}{2}

Diagram showing a mechanical component with arrows indicating direction, alongside a separate schematic of a device with internal components (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical part with a vertical rod and directional arrow (no text or labels)

Technical line drawing of a mechanical tool with two views: one showing a cut and rotation, the other showing a handle (no text or symbols)

- Ángulo del corte.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Line drawing of a tool with a handle and lever, no text or symbols present

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic component, and a clamped device (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

Two line drawings of mechanical tools: a radial tool and a clamped device (no text or symbols)

Technical line drawing of a mechanical tool or component with no visible text or symbols

Diagram of a car door handle assembly with arrows indicating motion (no text or symbols)

Diagram of a car door with a tool inserted, showing a circular motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, including a magnified inset showing the internal structure.

Diagram showing a car interior with a gear and directional arrow indicating rotation (no text or symbols)

Line drawing of a mechanical component with a circular feature and chain, no text or symbols present

Illustration of a worker using a power tool to cut tree bark (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a disassembled component (no text or symbols present)

Mechanical assembly diagram showing two views of a chain with arrows indicating motion (no text or labels)

Pure geometric diagram showing a 3D shape with a curved cutout and a rectangular base, no text or symbols present.

Illustration of a pair of saw tools with a magnified inset showing the blade (no text or symbols)

Line drawing of hands using a tool to cut a cylindrical object (no text or symbols)

Two abstract geometric symbols: a stylized 'M' and a crossed-out X, likely representing a symbolic or logical puzzle.

Simple line drawing of a tool with two crossed lines and arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Diagram showing two waste sorting bins with a recycling symbol and crossed-out lanes, indicating no disposal or recycling.

Exploded view diagram of a chain-linking device with numbered parts and labeled functions

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

Two safety illustrations: one showing a chainsaw and the other showing a no-smoking sign (no text or symbols present)

Prohibition sign showing a worker on a ladder against a circular background (no text or symbols)

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating the process (no text or symbols present)

Prohibition sign with pictogram of a person using a tree, no text present

Line drawing of a mechanical component with curved surfaces and circular holes, emitting wave-like patterns (no text or symbols)

Safety warning symbol showing a person falling off a tree with a diagonal line indicating no obstruction

Line drawing of a chain-linker with a prohibition symbol (no text or labels)

Safety warning illustration showing a worker using a chainsaw and a person holding a no-smoking sign.

Prohibition sign showing a worker climbing a ladder with tools, enclosed in a circle (no text or symbols)

Illustration of a worker using a saw to cut wood, with an arrow indicating the process (no text or symbols present)

Prohibition sign showing a person cutting tree branches with a diagonal line (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a person using a saw to cut wood or grain, with no text or symbols present.

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

Safety warning illustration showing a worker in protective gear, first aid kit, fire extinguisher, and shovel.

Diagram of a car air conditioner control panel with battery, warning symbol, and indicator buttons

Line drawing of a chain saw with visible blade and handle (no text or symbols)

Diagram showing a triangular obstacle with directional arrows and a chain of chains below, likely illustrating a physical or engineering concept.

Illustration of a worker using a power tool to cut wood logs, no text or symbols present

Line drawing of a person wearing a hooded jacket and holding a chainsaw (no text or symbols)

Line drawing of a person using a chainsaw to lift a gear (no text or symbols)

Line drawing of a chainsaw with a hand operating it (no text or symbols)

Line drawing of a chainsaw with a hand operating the blade (no text or symbols)

Illustration of a person in protective gear using a tool to cut a saw, with a black arrow indicating direction (no text or symbols)

Line drawing of a chain saw with an arrow indicating compression or force (no text or symbols)

Protège-main droit

Line drawing of a mechanical device with an arrow indicating a specific component (no text or symbols present)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol over a grid of 200x200 grid lines, with no text or labels present.

Simple line drawing of a droplet falling from above a U-shaped object (no text or symbols)

Montage

Line drawing of a chainsaw with a gear and lever mechanism (no text or symbols)

Technical line drawing of a car body panel assembly (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

Diagram of a device with labeled parts including power plug, cable, and terminal connectors

A E D C B H F G

Abstract black silhouette of a mask with a droplet above it, no text or symbols present.

Diagram showing a device panel with four labeled buttons and a connected device, likely illustrating a control or status setup.

Line drawing of a Huawei H89 printer with an arrow pointing to its front panel (no text or symbols on the device itself)

Technical line drawing of two electronic components (no text or symbols)

Diagram showing a traffic cone with directional arrows and gear mesh, likely illustrating a traffic flow or mechanical system.

Illustration of a person using a power saw to cut wood logs, no text or symbols present

Diagram showing a mechanical or fluid system with a triangular obstacle and a chain, labeled with directional arrows and symbols.

Line drawing of a chainsaw with a hand operating the blade (no text or symbols)

Technical illustration of a chain-linking device with a gear and base component (no text or symbols)

Line drawing of a hand holding a chain-linking device (no text or symbols present)

Diagram of a car air conditioner control panel with warning icons and function buttons

Diagram of a device control panel with battery, warning symbol, and directional buttons

Arrêt de la machine

Diagram of a device control panel with battery, warning symbol, and navigation buttons

Technical illustration of a chain saw assembly with directional arrows indicating motion (no text or symbols)

Line drawing of a chainsaw with motion arrows indicating speed and direction (no text or symbols)

Diagram of a chain-linking device with arrows indicating motion (no text or symbols)

Diagram illustrating a chain drive mechanism with warning sign and motion arrows, including a warning symbol and directional arrows.

Illustration of two workers handling stacked logs, one holding a log and the other assembling a bundle (no text or symbols)

Diagram of a manual tool cutting through a circular component with a curved arrow indicating rotation (no text or symbols)

Diagram showing a car being towed into a wheel with an explosion symbol (no text or labels)

Diagram illustrating a mechanical process with downward arrows indicating sequence of steps, showing a chain attachment and tree ring assembly.

Safety warning illustration showing a hazard symbol with an exclamation mark and warning triangle

Diagram showing a chain saw cutting into a circular cutter head, with arrows indicating the process (no text or symbols present)

Simple line drawing of a car with a padlock and warning symbol (no text or labels)

Diagram showing three mechanical components with arrows indicating motion or assembly (no text or symbols)

Medical illustration showing a surgical procedure on a car wheel (no text or labels)

Illustration of a person using a power saw to cut tree bark, with a black arrow indicating the process (no text or symbols present)

Line drawing of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person spraying tree roots with a light source, no text or symbols present

Illustration of a hand holding a circular object with a diagonal line, surrounded by tree-like foliage (no text or symbols)

Diagram illustrating a person using a tool to lift a vertical structure, with directional arrows and numerical annotations indicating measurements.

Pure diagram of concentric circular lines with a vertical bar and arrow, no text or symbols present

Diagram illustrating a tree clearing operation with labeled parts A and B, showing directional arrows and tree structure.

Diagram illustrating tree root structure, angle measurement, and circular cross-section with directional arrows (no text or labels)

Diagram illustrating tree root damage with arrows indicating damage direction and structural breakness

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and internal channels (no text or labels)

Mechanical diagram showing a rotating shaft and wheel assembly with a directional arrow (no text or labels)

Diagram showing a circular structure transforming into a tree with an arrow indicating direction (no text or symbols)

Diagram illustrating tree protection rules with no restrictions on one side and another, showing pictograms of workers and a prohibition symbol.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portable

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a curved path with a ball and a downward arrow, no text or symbols present

Diagram of a mechanical or structural system with arrows indicating direction and circular components (no text or labels)

Diagram showing layered geological strata with no text or symbols

Diagram showing a layered structure with an upward arrow, no text or symbols present

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Line drawing of a car interior seat assembly with a black arrow indicating the seat (no text or symbols present)

Line drawing of a person using a chainsaw to lift a car (no text or symbols)

Illustration of a worker using a power saw to cut tree bark with a downward arrow (no text or symbols)

Line drawing of a chainsaw with a hand operating it (no text or symbols)

Line drawing of a mechanical chain or lever device with two arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a chain saw with an arrow indicating force or movement (no text or symbols)

Diagram of a car air conditioner control panel with warning symbols and function buttons

Technical line drawing of a device with internal components and a separate housing (no text or symbols)

Line drawing of a plug with a circular symbol indicating no prohibition (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a cylindrical object with a downward arrow and two small circular holes, no text or symbols present.

PITCH = D/2 D

Diagram showing a vertical pipe with directional arrows and a schematic of a device with a handle (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical part with a vertical rod and directional arrows (no text or labels)

Technical line drawing of a mechanical tool with two views: one showing a curved arrow indicating rotation, the other showing a diagonal grooved blade (no text or symbols)

• L'angle de coupe.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

• La position de la lime.

Line drawing of a screwdriver holding a lever with a central pivot (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Line drawings of three different mechanical components: a dropper, a clamp, and a bulb (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

Two line drawings of tools: a pair of a tool and a handheld device (no text or symbols)

Technical line drawing of a mechanical tool or connector with a threaded shaft and threaded end (no text or symbols)

Diagram of a car door handle mechanism with arrows indicating motion (no text or symbols)

Diagram of a car door handle with a screwdriver and circular motion arrow indicating clockwise motion (no text or symbols)

Diagram illustrating car seatbelting mechanism with labeled components and directional arrows

Diagram showing a hand holding a car door with a gear and a circular arrow indicating rotation (no text or symbols)

Line drawing of a car door handle with a circular component inserted, showing no text or symbols

Illustration of a worker using a power manual to cut tree stumps (no text or symbols)

Simple line drawing of a switch mechanism with a black arrow pointing downward (no text or symbols)

Line drawing of a hand holding a string or musical instrument (no text or symbols present)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a disassembled component (no text or symbols present)

Mechanical assembly diagram showing two stages of a turning process with arrows indicating motion direction (no text or labels)

Pure geometric diagram of a mechanical part with no text, numbers, or symbols

Simple line drawing of a switch mechanism with a black arrow indicating the direction (no text or symbols)

Illustration of a knife and a cutting tool with a magnified inset showing a blade (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Two abstract geometric symbols: a V-line and an X symbol, likely representing stylized letters or symbols.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Dépannage

Diagram showing two waste sorting bins with a recycling symbol and crossed-out lanes, indicating no disposal or recycling.

Original instructions

Black and white barcode image with vertical lines and a small number '1' at the bottom right.
