Product Type	Food Dehydrator
Brand	Weston
Model	741001W
Power Supply	120 V, 60 Hz, grounded plug
Number of Trays	5 trays
Temperature Range	35-68 °C (95-155 °F) adjustable
Timer	Yes, adjustable
Material	Stainless steel (body)
Main Functions	Food dehydration, drying flowers and crafts, temperature adjustment and timer
Care and Cleaning	Trays washable in warm soapy water; body cleaned with a damp cloth without immersion
Safety Devices	Thermal overload protection (resettable), fuse, grounding
Warranty	2 years (subject to registration)
Spare Parts and Repairability	Original parts available; contact Weston customer service for repairs
Usage	Household only, indoors

Frequently Asked Questions - 741001W Weston

How to clean the dehydrator?

Unplug the appliance and let it cool. Clean the trays with warm soapy water, rinse and dry. For the body, use a damp cloth without immersing or spraying the heating element.

What temperature to use for dehydrating meat?

Preheat the meat to 71 °C (160 °F) before dehydration, then maintain the dehydrator between 55 and 60 °C (130-140 °F) during drying. The minimum recommended temperature is 63 °C (145 °F).

Can I dehydrate flowers?

Yes, dry flowers at a low temperature (100 °F / 38 °C). Place them in a single layer without overlapping. Rapid drying preserves colors.

How to rehydrate dehydrated foods?

Immerse foods in cold water (1 cup water to 1 cup food) for 3 to 5 minutes, or 2 to 6 hours in the refrigerator. Do not leave at room temperature to avoid bacteria.

What to do if the dehydrator stops during use?

It may be overheating. Turn off, unplug, and let cool. Remove trays, access the back panel to reset the button with a screwdriver.

How to install the shelf supports?

Insert the shelf supports (5 on each side) into the inner notches starting from the bottom, with the stops towards the back. Then slide the trays onto the rails.

What is the warranty period?

The warranty is 2 years from the date of purchase, subject to mailing the warranty card and a copy of the receipt within 30 days.

Can I use an extension cord?

Yes, use a polarized three-prong extension cord with electrical capacity at least equal to that of the appliance. Do not use a damaged extension cord.

How to prepare jerky?

Use lean meat, cut into slices of maximum 0.5 cm. Preheat to 71 °C (160 °F), then dehydrate at 63-66 °C (145-150 °F) for 4 to 7 hours. Add brine to prevent botulism.

Is the dehydrator safe to leave unattended?

No, never leave the appliance unattended, especially when hot or in operation. Keep children away.

USER MANUAL 741001W Weston

RECONNECT WITH REAL FOOD

PRO-1000 STAINLESS STEEL 10 TRAY

FOOD DEHYDRATOR

74-1001-W

DUE TO CONSTANT FACTORY IMPROVEMENTS, THE PRODUCT PICTURED MIGHT DIFFER SLIGHTLY FROM THE PRODUCT IN THIS BOX. 022515

GENERAL SAFETY RULES 3

COMPONENT LIST 4

CLEANING INSTRUCTIONS 6

GROUNDING INSTRUCTIONS 6

OPERATING INSTRUCTIONS 7

CHOOSING FOODS 7

PRE-TREATMEN OF FOODS 8

TIPS 9

RE-HYDRATING 9

MAKING JERKY 10

FOOD SAFETY 11

WARRANTY 12

1. CHECK FOR DAMAGED PARTS. Before using the Dehydrator, check that all parts are operating properly and perform the intended functions. Check for alignment of moving parts, binding of moving parts, mounting and any other conditions that may affect the operation. DO NOT use if power cord is damaged or frayed. DO NOT use this appliance after malfunctions or if the appliance is dropped or damaged in any manner.
2. Reduce risk of unintentional starting. Make sure the Power Switch is in the "OFF" position before connecting the Dehydrator to the power source.
3. Avoid contact with moving parts.
4. ALWAYS DISCONNECT the Dehydrator from the power source before servicing, changing accessories or cleaning the unit. Unplug the Dehydrator when not in use.
5. Make sure the detachable power cord is securely attached to the unit during operation.
6. NEVER LEAVE THE APPLIANCE UNATTENDED. It is important to monitor the Dehydrator while in use.
7. KEEP CHILDREN AWAY. NEVER LEAVE THE APPLIANCE UNATTENDED. This appliance is NOT a toy. Close supervision is necessary when any appliance is used by or near children.
8. The Manufacturer declines any responsibility in the case of improper use of the Dehydrator. Improper use of the Dehydrator voids the warranty.
9. Electrical repair must be done by an authorized dealer. Use only factory original parts and accessories to avoid injury and retain the warranty. Modification of the Dehydrator voids the warranty.
10. DO NOT pull the Power Cord to unplug. Use care when using extension cords.
11. Be sure the Dehydrator is stable during use. All four feet should be secure on a

level surface. The Dehydrator should not move during operation.

1. DO NOT operate the Dehydrator outdoors or near any flammable or combustible materials.
2. DO NOT block the air vents at the rear of the Dehydrator. Keep the Dehydrator at least 12" (31 cm) away from any wall, any combustible materials and/or surfaces to allow for proper air circulation.
3. DO NOT operate the Dehydrator on flammable surfaces such as carpeting.
4. To prevent electric shock, DO NOT IMMERSE IN WATER OR LIQUID. Serious injury and electric shock could result. DO NOT use this machine with wet hands or bare feet. DO NOT operate near running water.
5. NEVER open or remove the back panel of the Dehydrator.
6. Disconnect from power source before cleaning the components of this machine. READ ALL DIRECTIONS on how to clean this Dehydrator before attempting to clean it.
7. After cleaning, make sure Dehydrator is completely dry before reconnecting to the power source – if not; ELECTRIC SHOCK may result.
8. DO NOT operate the Dehydrator on a hot stove-top, gas burners or inside an oven. DO NOT allow the Power Cord to drape over the Dehydrator, hot surfaces or over the edge of the work surface.
9. BEWARE! Some surfaces may become very hot during use! Serious injury may result! DO NOT move the Dehydrator while in use. DO NOT move the Dehydrator while hot. Allow the appliance to cool before handling. Use Handles. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
10. DO NOT use while under influence of drugs or alcohol.
11. Household use only.

Power Switch

WESTON STAINLESS STEEL FOOD DEHYDRATOR DRYING GUIDE ITEM T °C MIRG 35-25 26.52 RACING BREAD 18-15 43.46 POMEET 15 48 BEET ROOTS 20-130 48.57 FRUIT SHEET ROOTS 125-940 52.62 UNITED FOR S. JOHN 105-001 63.80 TEMPERATURE CONTROL 100 OFF 1 TIME 1 ON OFF GENERAL SAFETY RULES 1. USE A WELL VENTULATED WTR. IT IS SUGGESTED TO USE THE DEHYDRATOR IN A GARAGE OR SIMILAR STRUCTURE. DO NOT USE OUTROS. 2. DO NOT BLOCK AIR VENTS AT THE REAR OF THE DEHYDRATOR. KEEP THE DEHYDRATOR AT LEAST 12" COGS CHEE WITH FROM ANY WALL TO ALLOW FOR PROPER CIRCULATION. OR NOT OPENATE THE DEHYDRATOR ON OR IN RACE FLAMMABLE SURFACES SUCH AS CARPETING. 3. IT IS IMPORTANT TO MONITOR THE DEHYDRATOR WHILE IN USE. NEVER LEAVE THE DEHYDRATOR UNINTENDED.

CAUTION! SOME SURFACES OF THE DEHYDRATOR MAY BECOME VERY HOT DURING USE! SERIOUS INJURY MAY RESULT!

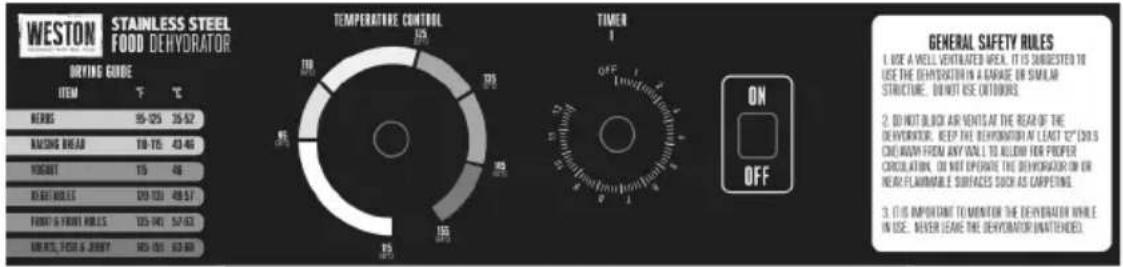

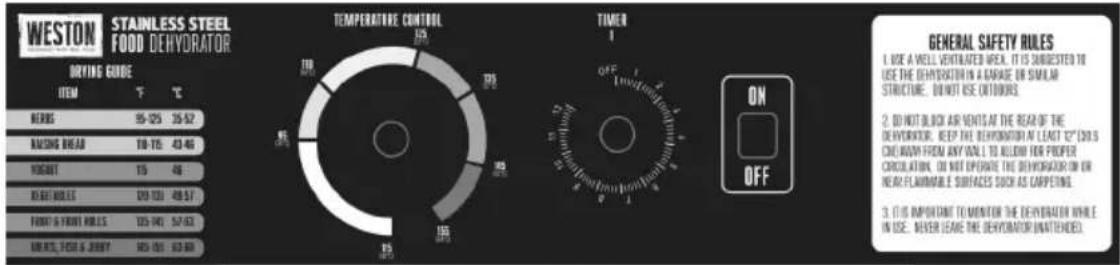

Drying Guide 6 Control Panel Dehydrator Cabinet CAUTION! EDGES MAY BE SHARP!

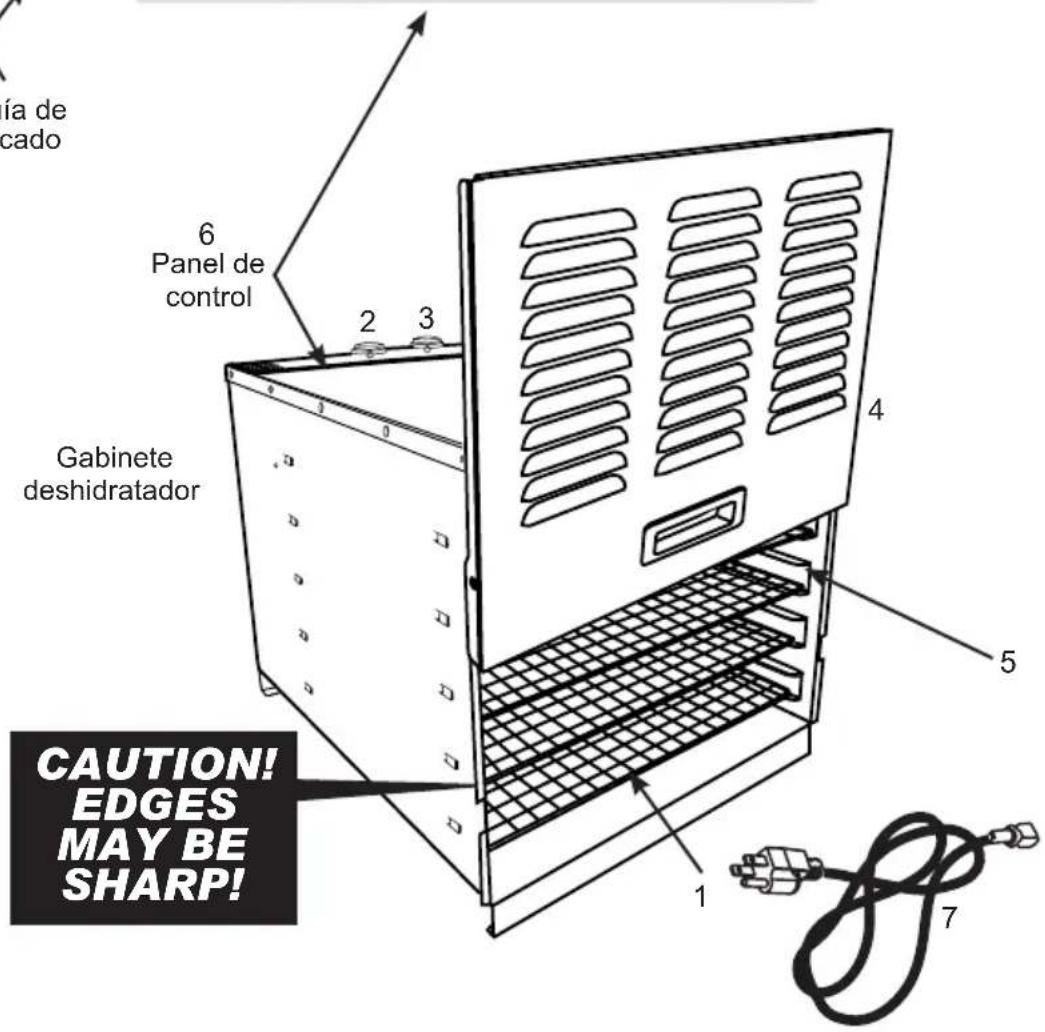

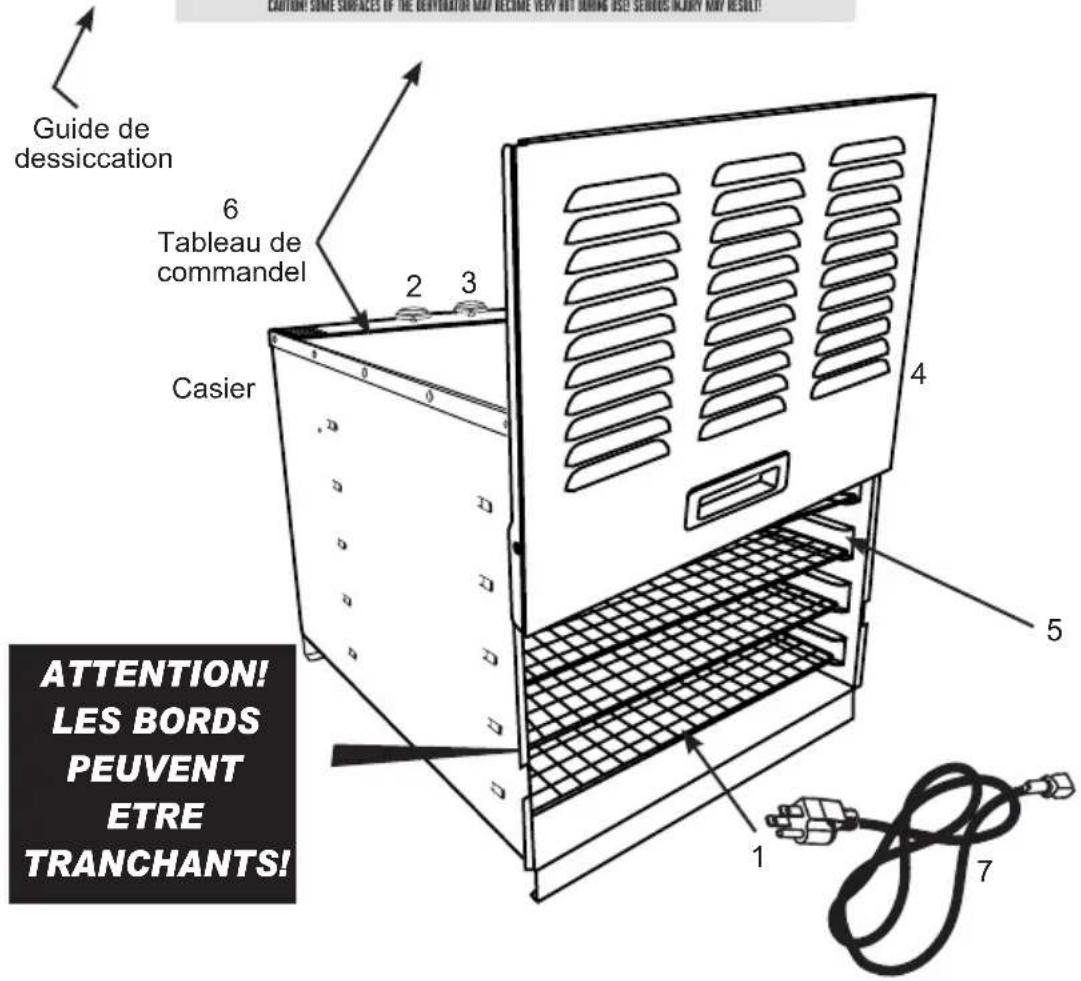

COMPONENT LIST

DIAGRAM NUMBER PART DESCRIPTION PART NUMBER
1 TRAY (10) 74-1007
2 TEMPERATURE CONTROL KNOB 74-1008
3 TIMER CONTROL KNOB 74-1008
NOT SHOWN FEET (4) 74-1005
4 DOOR WITH HANDLE 74-1006
NOT SHOWN SHELF BRACKET -LEFT SIDE (5) 74-1002
5 SHELF BRACKET -RIGHT SIDE (5) 74-1003
6	CONTROL PANEL 74-1009
7	POWER CORD	74-1019
NOT SHOWN FUSE 15 AMP / 250 VOLT		74-1018

If any components of this unit are broken, the unit does not operate properly or you need a replacement instruction manual, visit us on the web at

WestonProducts.com

Or call Weston Products LLC Toll Free at 1-800-814-4895 Monday thru Friday 8:00am-5:00pm ET. Outside the U.S. call 001-440-638-3131

CLEANING INSTRUCTIONS

WARNING!! Before cleaning or servicing the Dehydrator, make sure it is unplugged from the power source. It is important to read & fully understand all of the instructions & safeguard prior to use of the Dehydrator.

1. Clean the Trays and inside the Cabinet before using the Dehydrator for the first time and after each use.
2. Turn the Power Switch OFF "O". Disconnect the Power Cord from the electrical outlet.
3. Allow the Dehydrator to completely cool before cleaning.
4. Remove the Trays from the Cabinet.
5. Wipe the Cabinet clean, inside and out, with damp sponge or soft cloth. Be careful not to splash water onto the heating element (located behind the screening and fan in the back of the Cabinet) while cleaning the inside of the Cabinet. Water could damage the heating element and the increases the risk of electric shock. DO NOT immerse the Dehydrator in water.
6. Clean the Trays with warm, soapy water. Rinse with clear water and dry immediately.

GROUNDING INSTRUCTIONS

GROUNDING

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding type plug to fit the proper grounding-type receptacle. The appliance has a plug that looks like Figure A. An adapter, Figure B, should be used for connecting Figure A plugs to two-prong receptacles. The grounding tab which extends from the adapter must be connected to a permanent ground such as a properly grounded outlet box as shown in Figure C using a metal screw.

EXTENSION CORDS

Use only 3-wire extension cords which have 3-prong grounding-type plugs and a 3-pole cord connector that accepts the plug from the appliance. Use only extension cords having an electrical rating not less than the rating of the appliance. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges.

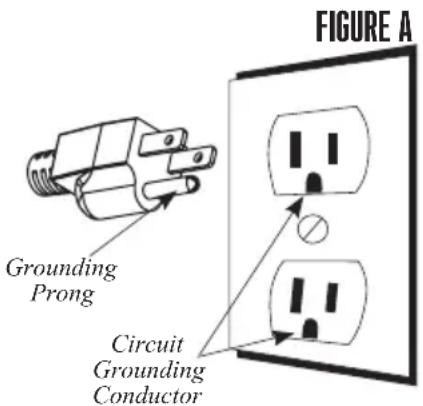

FIGURE A Grounding Prong Circuit Grounding Conductor

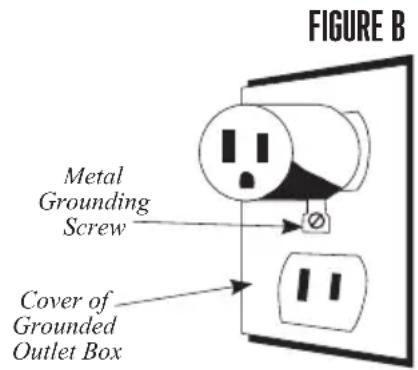

FIGURE B Metal Grounding Screw Cover of Grounded Outlet Box

FIGURE C Grounding Means AA2220

WARNING!! Before cleaning or servicing the Dehydrator, make sure it is unplugged from the power source. It is important to read & fully understand all of the instructions & safeguard prior to use of the Dehydrator.

1. The Shelf Brackets (5 on each side of the cabinet) will need to be installed on the inside of the Dehydrator.
2. Insert a Shelf Bracket, so that the stoppers are in the back of the dehydrator (FIGURE 1).
3. Starting at bottom, install the Shelf Bracket by sliding it into notches on sides of Dehydrator (FIGURE 2).
4. Assemble 5 rails on each side of the Dehydrator.
5. Slide a Tray onto each Shelf Bracket rail.

CAUTION! EDGES MAY BE SHARP!

Stoppers Go in the Back Shelf Bracket - Right Side Shelf Bracket - Left Side FIGURE 1

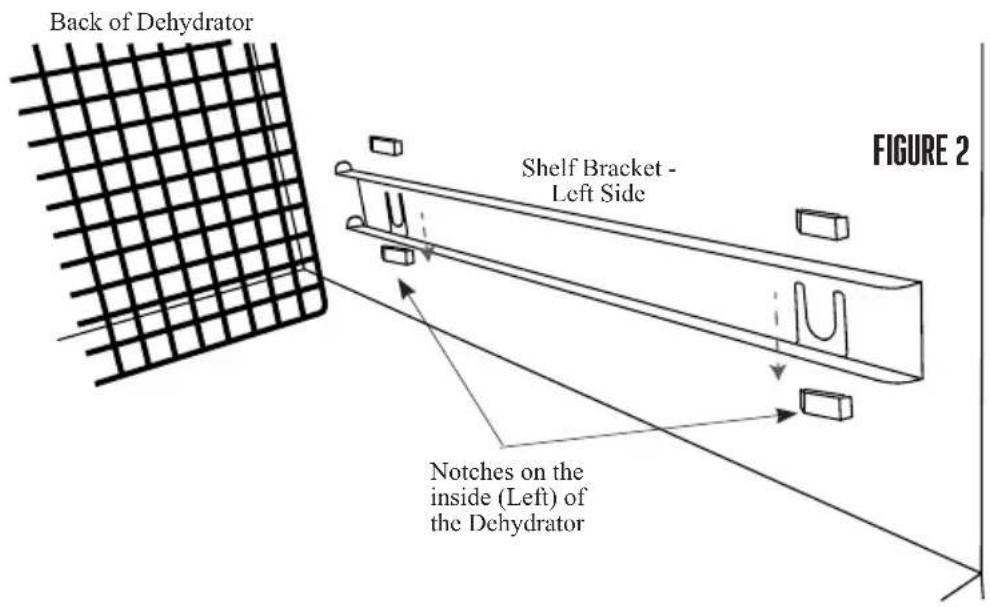

Back of Dehydrator Shelf Bracket - Left Side FIGURE 2 Notches on the inside (Left) of the Dehydrator

OPERATING INSTRUCTIONS

1. Insert the connector end of the Power Cord into the Power Cord Port on the back side of the unit. Insert the Plug on the Power Cord into a standard 120-volt grounded electrical outlet. DO NOT modify the plug to fit an unsuitable outlet.
2. Position the Dehydrator as to NOT block the air vents at the rear of the Dehydrator. Keep the Dehydrator at least 12" (31 cm) away from any wall, any combustible materials and/or surfaces to allow for proper air circulation. DO NOT operate the Dehydrator on or near flammable surfaces such as carpeting.
3. Install the Shelf Brackets. The right-side Shelf Brackets mount on the interior wall on the right side of the Cabinet. The left-side Shelf Brackets mount on the interior wall on the left side of the Cabinet. Insert the tabs on each Shelf into the corresponding slots in the interior walls. Press down on each Shelf during installation to make sure they fully seat in the slots.
4. Make sure the Power Switch and Timer Knob are both in the off "O" position (FIGURE 3).
5. Plug the Dehydrator into an electrical outlet.
6. Turn the Temperature Control Knob to the desired heat setting. Use the "Drying Guide" on top of the Dehydrator as a reference.

7. Set the Timer Control Knob to the desired drying time.

8. Turn the Power Switch ON "I."

9. Preheat the Dehydrator for 5-10 minutes at the desired temperature before loading food onto the Trays.
10. Remove any excess water from the food (this can be done by patting the food with a paper towel or napkin). Excess moisture may cause the Dehydrator temperature to drop.
11. Load the Trays with the items to be dried. Position the pieces so that they do not touch each other. Do not overlap or allow the product to touch. Allow ample space between the products for proper air circulation. You do not need to install unused Trays.
12. Water droplets may form on the surface of some products while dehydrating. Periodically blot the product with a clean paper towel. NOTE: Drying times may vary based on many circumstances including but not limited to: the relative humidity of the room, the temperature of the food at the beginning of the drying process, the amount of food in the Dehydrator, the leanness of the meat, etc.
13. Install the Door onto the Dehydrator by hanging it on the lip on top of the Cabinet at the front. Make sure the sides of the Door are securely closed against the front of the Cabinet. Be careful when removing the Door during operation. The Dehydrator may become hot depending on the temperature setting.

FIGURE 3

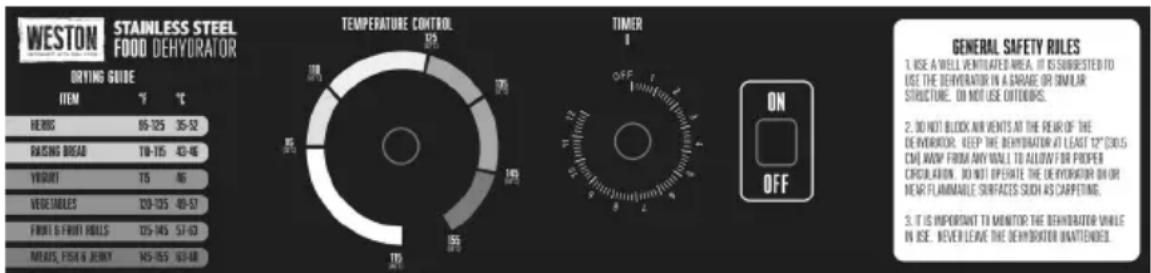

WESTON STAINLESS STEEL FOOD DEHYDRATOR DRYING GUIDE ITEM 1 °C HERMS 85-125 35-52 RAISING BREAD 108-105 42-46 VIGUITY 75 46 VEGETABLES 109-125 49-57 FRUIT & FRUIT ROOTS 125-145 57-63 MEALS, FISH & JERRY 145-155 63-68 TEMPERATURE CONTROL 10% 10% 10% 10% 10% 10% 10% 10% 10% 10% 10% 10% TIMER OFF OFF GENERAL SAFETY RULES 1. USE A WELL VENTILATED AREA, IT IS SUGGESTED TO USE THE DEHYDRATOR IN A GEARGE OR SIMILAR STRUCTURE, DO NOT USE OUTDOURS. 2. DO NOT BLOCK AND WENTS AT THE REAR OF THE DEHYDRATOR. KEEP THE DEHYDRATOR AT LEAST 12" COUS CMJ. ANN FROM ANY WALL TO ALLOW FOR PROPER CIRCULATION. DO NOT OPERATE THE DEHYDRATOR ON OR NEAR FLAMMABLE SURFACES SUCH AS CARPETINE. 3. IT IS IMPORTANT TO MONITOR THE DEHYDRATOR WHILE IN USE. NEVER LEAVE THE DEHYDRATOR UNATTENDED.

CAUTION! SOME SURFACES OF THE DEHYDRATOR MAY BECOME VERY HOT DURING USE! SERIOUS INJURY MAY RESULT!

PRE-TREATMENT OF FOODSOPERATING INSTRUCTIONS

As with most types of cooking, proper preparation is essential for successful results. Adhering to a few basic guidelines will greatly increase the quality of your dried foods and decrease the amount of time necessary to dry them.

Pre-treated foods often taste better and have a better appearance than non-treated foods. There are several methods to pre-treat food to prevent oxidation, which will darken apples, pears, peaches and bananas while drying:

• Remove any pits, skin or cores.
• Shred, slice or dice the food uniformly. Slices should be between 1/4" (0.6 cm) and 3/4" (1.9 cm) thick. Meats should be cut no more than 3/16" (0.5 cm) thick.
• Steam or roast meat to 160^ (71°C) and poultry to 165^ (74°C) as measured with a food thermometer before dehydrating.

- The temperature of the Dehydrator must be maintained at 130-140°F (55-60°C) throughout the drying process.

- Drying fish into jerky requires a lot of attention. It must be cleaned and deboned properly and rinsed thoroughly to ensure that all the blood is washed away. Steam or bake the fish at 200^ (93°C) until flaky before dehydrating.

- Soak cut fruit in either lemon or pineapple juice for a few minutes before placing out on the Dehydrating Trays.

- Use an ascorbic acid mix which can be purchased in most health food stores or pharmacies. It may come in either powder or tablet form. Dissolve approximately 2-3 tablespoons into 1 quart (1 liter) of water. Soak the fruit slices into the solution for 2-3 minutes, then place on the Dehydrating Trays.

- Fruits with a wax coating (figs, peaches, grapes, blueberries, prunes, etc.) should be dipped in boiling water to remove the wax. This allows moisture to escape easily when dehydrating.

- Blanching can pre-treat food for dehydrating. Blanching does not destroy helpful enzymes and helps retain nutrients. There are two ways to blanch food:

1. WATER BLANCHING: (Water Blanching will leave a cooked flavor) Use a large pan; fill it half way with water. Bring water to a boil. Place food directly into boiling water and cover. Remove after three minutes. Arrange food on the Dehydrating Trays.

2. STEAM BLANCHING: Using steamer pot bring 2-3" (5-7 cm) of water to a boil in bottom section. Place food in steamer basket and steam for 3-5 minutes. Remove steamed food and arrange on Dehydrating Trays.

CHOOSING FOODS

• Use the best quality foods. Fruits and vegetables in peak season have more nutrients and more flavor. Meat, fish and poultry should be lean and fresh.
• Do not use food with bruises or blemishes. Bad fruits and vegetables may spoil the entire batch.
• Always use lean meat. Remove as much fat as possible before dehydrating. NOTE: Use a paper towel under meat when dehydrating to absorb fat.

DRYING FLOWERS & CRAFTS

• The flowers should be dry to start with, best if picked after the dew has dried and before the night damp sets in. Dry the flowers as soon as possible after picking.
• The best condition for drying flowers is a dry, warm, dark, clean and well ventilated area, which makes a dehydrator an ideal setting. Flowers will retain the best color and condition when dried quickly.
• A low temperature should be used to retain the natural oils.
• Strip off the leaves or if you prefer to keep the foliage. Discard any brown or damaged leaves.
• Place on the Dehydrator Tray in a single layer, avoiding overlapping.
• Drying times will vary considerably depending on the size of the flower and the amount of foliage. Dry at 100^ (38oC).
• Dough art and beads can be dried in the Dehydrator. Temperatures may vary.

CAUTION! It is important to follow the "Food Safety" guidelines outlined in this manual. For the most up to date instruction visit the USDA website.

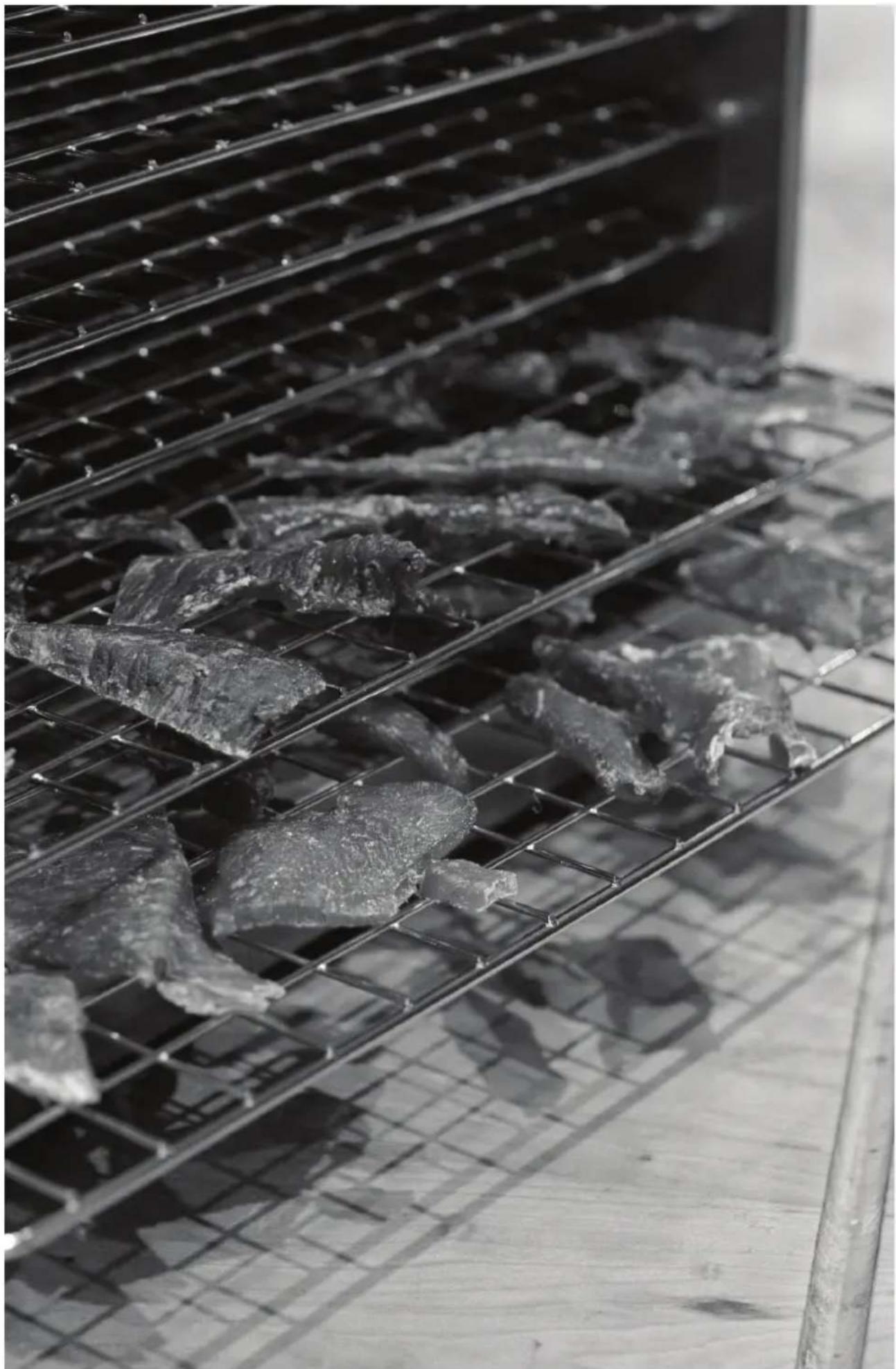

MAKING JERKY

Your meat should be as lean as possible. Using lean meat will help the meat dry faster and aid in cleanup by decreasing fat drippings. Ground meat should be 80% to 90% lean. Ground turkey, venison, buffalo and elk are other excellent choices for jerky.

Jerky seasonings are available for all tastes, or you can get creative and make your own. Whenever you make jerky, you should cure the mixture with cure (sodium nitrite). The cure is used to help prevent botulism during drying at low temperatures. Follow the manufacturer's directions on the cure packet.

Keep raw meats and their juices away from other foods. Marinate meats in the refrigerator. Do not leave meats un-refrigerated. Prevent cross-contamination by storing dried jerky away from raw meat. ALWAYS wash hands thoroughly with soap and water before and after working with meat products. Use clean equipment and utensils.

Keep meat and poultry refrigerated at 40^ F ( 5^ C) or slightly below; use or freeze ground beef and poultry within 2 days; whole red meats, within 3 to 5 days. Defrost frozen meat in the refrigerator, not on the kitchen counter.

Special considerations must be made when using venison or other wild game, since it can become heavily contaminated during field dressing. Venison is often held at temperatures that could potentially allow bacteria to grow, such as when it is being transported. Refer to the USDA Meat and Poultry Department for further questions or information on meat and food safety.

When using a Dehydrator, check the temperature of the Dehydrator with a dial thermometer before drying jerky. The minimum recommended temperature or drying meats is 145°F (63°C). Temperatures below 145°F (63°C) are not recommended. IMPORTANT: Before you place the meat in a dehydrator, it is highly recommended to heat the meat to 160°F (71°C) BEFORE the dehydrating process. This step assures that any bacteria present will be destroyed by wet heat. After heating to 160°F (71°C), maintaining a constant dehydrator temperature of 130-140°F (55-60°C) during the drying process is important because:

1.) the process must be fast enough to dry food before it spoils; and
2.) it must remove enough water so that microorganisms are unable to grow.

If you are using a marinade, shake off excess liquid before placing the meat in evenly spaced single layers approximately 1/4" (0.64 cm) apart on the Dehydrator racks.

Dry meat at 145-150°F (63-66°C) for 4-7 hours. You may need to blot fat droplets from the surface of the meat occasionally, using a paper towel. Drying times may vary based on many circumstances including but not limited to: the relative humidity of the room, the temperature of the meat at beginning of drying process, the amount of meat in the dehydrator, leanness of meat, etc. Always allow jerky to cool before taste testing.

TIPS

- Do not overlap foods. Lay foods flat on the Dehydrating Trays.

- Check dryness after 6 hours, then check every 2 hours until crisp, pliable or leathery depending on the product.

- Check foods to make sure they are completely dry before removing. Open or cut down the middle of a few samples to check internal dryness. If the food is still moist, dehydrate longer.

- Label each container with the food name, date of drying and the original weight. Keep a journal to help improve drying techniques.

- Proper storage is essential to maintain quality food. Package the food when cool. Foods can be kept longer if stored in a cool, dark, dry place. The ideal storage temperature is 60^ (16°C) or lower.

- Place dried foods in plastic freezer bags before storing in metal or glass containers. Remove as much air as possible before sealing.

• Vacuum sealing is ideal for keeping dried foods.

- Remember, foods will shrink approximately 1/4 to 1/2 their original size and weight during the dehydration process, so pieces should not be cut too small. One pound of raw meat will yield approximately 1/3 lb. (0.2 kg) to 1/2 lb. (0.2 kg) of jerky.

- Use the Drying Guide on the Control Panel as a reference for proper temperature settings. If the heat is set too high, food may harden and dry on the outside...yet be moist on the inside. If the temperature is too low, the drying time will increase.

RE-HYDRATING

While it is not necessary to reconstitute your dried foods, you can do so with ease. Vegetables can be used as a side dish or in recipes very effectively after being reconstituted in the following way.

- Dehydrated food can be re-hydrated by soaking in cold water for 3-5 minutes. Use 1 cup of water for 1 cup of dehydrated food. Once re-hydrated, the food can be cooked normally. Soaking foods in warm water will speed up the process, however, it may result in loss of flavor.

- Dehydrated fruits and vegetables can be soaked in cold water for 2-6 hours in the refrigerator. WARNING! Soaking at room temperature allows harmful bacteria to grow.

- Do not add seasoning. Adding salt or sugar during re-hydration may change the flavor of the food.

- To make stewed fruits or vegetables, add 2 cups of water and simmer until tender.

- Consume dehydrated foods as soon as possible once the storage container is opened. Keep any unused portions in the refrigerator to avoid contamination.

THERMAL OVERLOAD PROTECTOR

WARNING!! Before cleaning or servicing the Dehydrator, make sure it is unplugged from the power source. It is important to read & fully understand all of the instructions & safeguard prior to use of the Dehydrator.

The Dehydrator will automatically shut down if it overheats. If this occurs:

1. Turn the Dehydrator "OFF" and unplug the Power Cord. Allow the Dehydrator to be completely cool.
2. Remove all Trays from the Dehydrator.

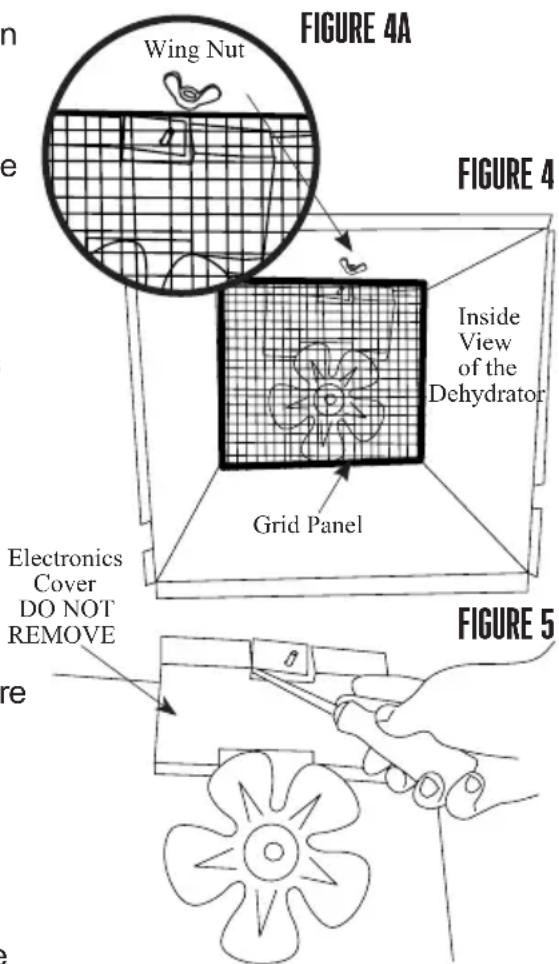

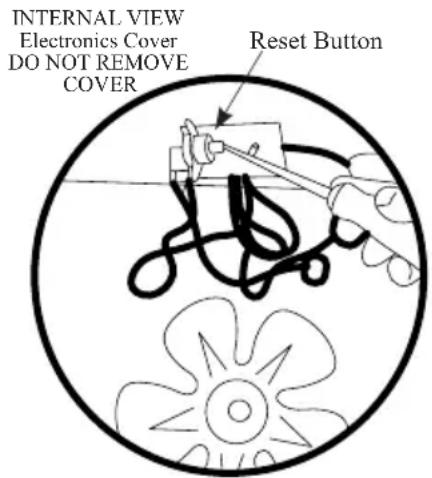

3. In the back of the Dehydrator, there is a Grid Panel protecting the Fan (it resembles the trays) (FIGURE 4). Remove the Wing Nut (FIGURE 4A) and the Grid Panel to access the electric components.
4. Using a small flat-head screw driver, fit it into the slot in the Electronics Cover (FIGURE 5). NOTE: Do not remove the Electronics Cover.
5. Once you feel for the Reset Button (Figure 5a), push the screwdriver left to push the Reset Button in to reset it.
6. Remove the screwdriver from the unit. Plug in the unit to see if the power of the Dehydrator has been restored.
7. Once you have resorted the power to the Dehydrator, turn the Dehydrator "OFF" and unplug the Power Cord.
8. Replace the Grid Panel.
9. Secure the Grid Panel into place with the Wing Nut.
10. Plug in the Power Cord and resume normal operation.

FUSE

This unit is includes a fuse on the back side of the unit to protect electric components from damage and overheating. In the event that the dehydrator stops functioning or will not maintain its temperature consistently, you make need to check the fuse.

1. Turn the Power Switch off "O". disconnect the Power Cord from the electrical outlet.
2. Allow the Dehydrator to completely cool before attempting to move the dehydrator to access the back of the unit.
3. Unscrew the fuse and inspect the fuse to check for signs of burning or damage.
4. If you suspect the fuse is damaged, please call Customer Service for a replacement fuse.

FIGURE 4A Wing Nut FIGURE 4 Inside View of the Dehydrator Grid Panel Electronics Cover DO NOT REMOVE FIGURE 5 re

FIGURE 5A

INTERNAL VIEW Electronics Cover DO NOT REMOVE COVER Reset Button

FOOD SAFETY

There are basic rules to follow when handling food. They are COOK, SEPARATE, CLEAN, and CHILL.

COOK

It's crucial to cook food to a safe internal temperature to destroy bacteria that is present. The safety of hamburgers and other foods made with ground meat has been receiving a lot of attention lately, and with good reason. When meat is ground, the bacteria present on the surface is mixed throughout the ground mixture. If this ground meat is not cooked to at least 160^ to 165^ (71°C to 74°C), bacteria will not be destroyed and there's a good chance you will get sick.

Solid pieces of meat like steaks and chops don't have dangerous bacteria like E. coli on the inside, so they can be served more rare. Still, any beef cut should be cooked to an internal temperature of at least 145^ (63°C) (medium rare). The safe temperature for poultry is 165^ (75°C) and solid cuts of pork should be cooked to 145^ (63°C).

SEPARATE

Foods that will be eaten uncooked and foods that will be cooked before eating MUST ALWAYS be separated. Cross-contamination occurs when raw meats or eggs come in contact with foods that will be eaten uncooked. This is a major source of food poisoning. Always double-wrap raw meats and place them on the lowest shelf in the refrigerator so there is no way juices can drip onto fresh produce. Then use the raw meats within 1-2 days of purchase, or freeze for longer storage. Defrost frozen meats in the refrigerator, not on the counter.

When grilling or cooking raw meats or fish, make sure to place the cooked meat on a clean platter. Don't use the same platter you used to carry the food out to the grill. Wash the utensils used in grilling after the food is turned for the last time on the grill, as well as spatulas and spoons used for stir-frying or turning meat as it cooks.

Make sure to wash your hands after handling raw meats or raw eggs. Washing hands with soap and water, or using a pre-moistened antibacterial towelette is absolutely necessary after you have touched raw meat or raw eggs. Not washing hands and surfaces while cooking is a major cause of cross-contamination.

CLEAN

Wash your hands and work surfaces frequently when you are cooking. Washing with soap and warm water for at least 15 seconds, then dry with a paper towel.

CHILL

Chilling food is very important. The danger zone where bacteria multiply is between 40^ F and 140^ F ( 4^ C and 6^ C). Your refrigerator should be set to 40^ F ( 4^ C) or below; your freezer should be 0^ F (-17°C) or below. Simple rule: serve hot foods hot, cold foods cold. Use chafing dishes or hot plates to keep food hot while serving. Use ice water baths to keep cold foods cold. Never let any food sit at room temperature for more than 2 hours - 1 hour if the ambient temperature is 90^ F ( 32^ C) or above. When packing for a picnic, make sure the foods are already chilled when they go into the insulated hamper. The hamper won't chill food - it just keeps food cold when properly packed with ice. Hot cooked foods should be placed in shallow containers and immediately refrigerated so they cool rapidly. Make sure to cover foods after they are cool.

NOTE: Special considerations must be made when using venison or other wild game, since it can become heavily contaminated during field dressing. Venison is often held at temperatures that could potentially allow bacteria to grow, such as when it is being transported. Refer to the USDA Meat and Poultry Department for further questions or information on meat and food safety.

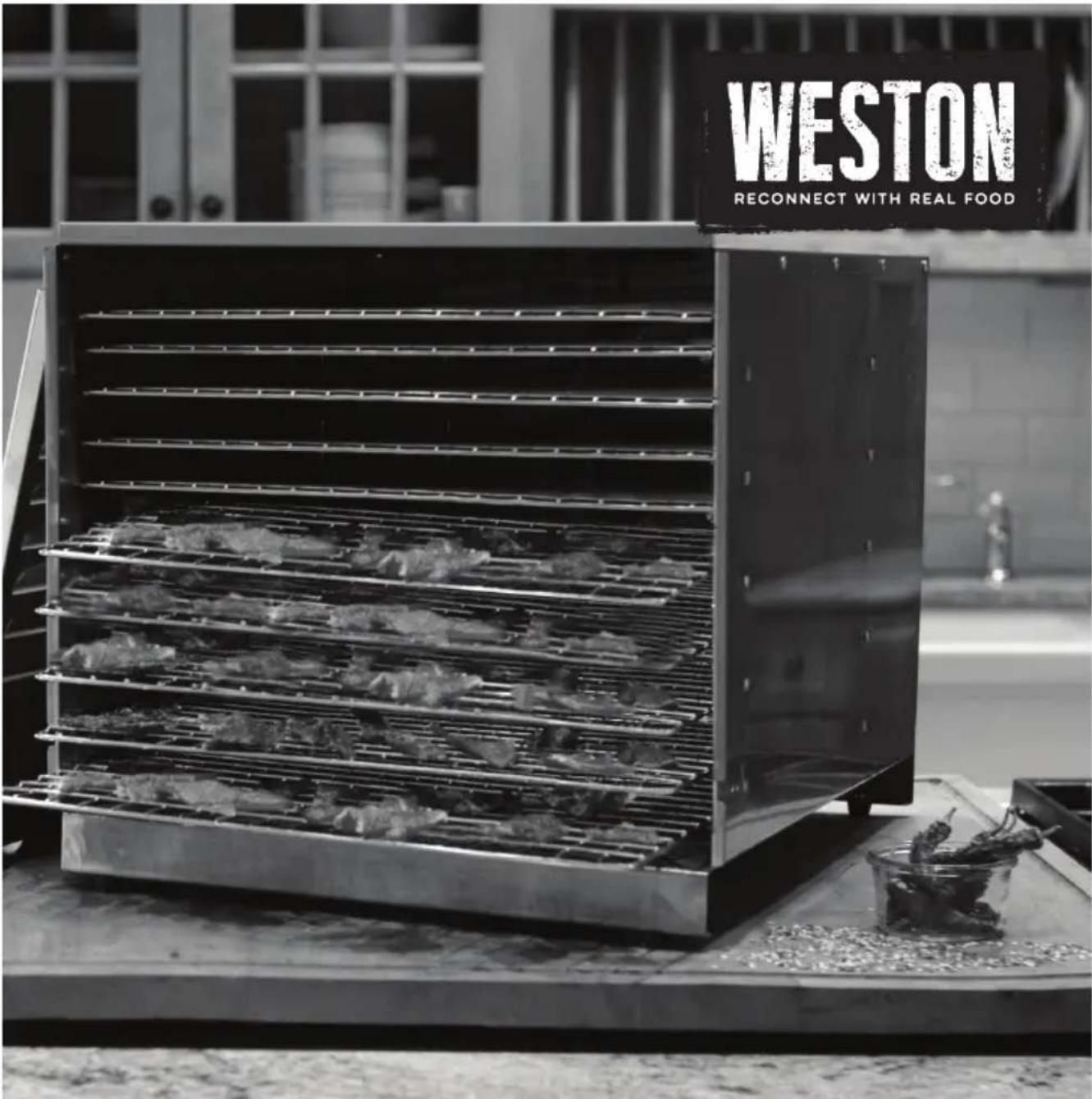

Black-and-white photo of a metal grating with dried meat pieces inside, no visible text or symbols

WESTON WARRANTY INFORMATION

SAVE THIS WARRANTY INFORMATION FOR YOUR RECORDS!

Weston Brands LLC warrants to the ORIGINAL RETAIL PURCHASER of this product that if operated in accordance with the printed instruction accompanying it, then for a period of 2 year from the date of purchase, the product shall be free from defects in material and workmanship.

The Warranty Card, along with a copy of the original receipt, must be received by Weston Brands LLC within 30 days from purchase date for the warranty to apply. Failure to send the completely filled out Warranty Card, along with a copy of the original receipt, will void the warranty.

The product must be delivered to or shipped freight prepaid to Weston Brands LLC for warranty services, in either its original packaging or similar packaging affording an equal degree of protection. Damage due to shipping is not the responsibility of the company. Weston Brands LLC charges a \$35.00 per hour bench charge. NOTE: No repairs will be started without the authorization of the customer. The return shipping cost to the customer will be added to the repair invoice.

Prior to returning the product for Warranty Repair, the product must be thoroughly cleaned and free from any food particles or other debris. Failure of the purchaser to comply with this standard will result in the unit being returned without repair. In some cases, a \$50 cleaning surcharge may apply.

Weston Brands LLC will repair (or at its discretion, replace) the product free of charge, if in the judgment of the company, it has been proven to be defective as to seller's labor and material, within the warranty period.

New or rebuilt replacements for factory defective parts will be supplied for two (2) year from the date of purchase. Replacement parts are warranted for the remainder of the original warranty period.

For non-warranty repairs, contact Weston Brands LLC's Customer Service at 1-800-814-4895 M-F 8am-5pm ET (outside of the United States 001-440-638-3131) to obtain a Return Merchandise Authorization Number (RMA Number).

Weston Brands LLC will refuse all returns that do not contain this number. DO NOT RETURN THE UNIT WITHOUT PROPER AUTHORIZATION FROM WESTON BRANDS LLC.

LIMITATIONS: The warranty is void if the product is used for any purpose other than that for which it is designed.

The product must not have been previously altered, repaired, or serviced by anyone else other than Weston Brands LLC. If applicable, the serial number must not have been altered or removed. The product must not have been subjected to accident in transit or while in the customer's possession, misused, abused, or operated contrary to the instructions contained in the instruction manual. This includes failure caused by neglect of reasonable and necessary maintenance, improper line voltage and acts of nature. This warranty is not transferable and applies only to U.S. and Canadian sales. Except to the extent prohibited by applicable law, no other warranties whether expressed or implied, including warranty merchantability and fitness for a particular purpose, shall apply to this product. Under no circumstances shall Weston Brands LLC be liable for consequential damages sustained in connection with said product and Weston Brands LLC neither assumes nor authorizes any representative or other person to assume for it any obligation or liability other than such as is expressly set forth herein. Any applicable implied warranties are also limited to the two (2) year period of the limited warranty.

This warranty covers only the product and its specific parts, not the food or other products processed in it. Weston is not responsible for missing or damaged parts on discounted/clearance, resale or final sale items where the seller may not be able to guarantee full functionality or completeness of the unit.

CUT ALONG THE DOTTED LINE AND SEND THE WARRANTY CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO:

Weston Brands LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

WESTON WARRANTY CARD

SEND THIS CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO: WESTON BRANDS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 USA

Customer Name:

Address:

City/State/Zip/Country:

Telephone Number:

E-Mail Address:

Original Date of Purchase:

Product Model #:

Serial # (if applicable):

I have read the warranty information. Initial here:

Copy of Receipt Included

The image contains no text or content. It is a blank rectangular box.

WESTON

RECONNECT WITH REAL FOOD

PRO-1000

DESHIDATADOR DE ALIMENTOS

DE ACERO INOXIDABLE CON 10 CHAROLAS

74-1001-W

Black-and-white photo of a metal grating with dried meat pieces inside, no visible text or symbols

Power Switch

WESTON STAINLESS STEEL FOOD DEHYDRATOR DRYING GUIDE ITEM T °C MERS 95-25 35-52 RACING BREAD 10-15 43-46 VOCOIL 15 48 ROSSE MULS 20-133 48-57 FRUIT & FRONT MULS 125-941 57-62 GREENS, FORD & JERRY 925-001 63-68 TEMPERATURE CONTROL TIMBER OFF ON OFF GENERAL SAFETY RULES 1. USE A WELL VENTRATED AREA. IT IS SUGGESTED TO USE THE DEHYDRATOR IN A GANAGE OR SIMILAR STRUCTURE. DO NOT USE OUTDOORS. 2. DO NOT BLOCK AIR VENTS AT THE REAR OF THE DEHYDRATOR. KEEP THE DEHYDRATOR AT LEAST 12" (2015) CHEE MOUNT FROM ANY WALL TO ALLOW FOR PROPER CIRCULATION. DO NOT OPERATE THE DEHYDRATOR ON OR NEAR FLAMMABLE SURFACES SUCH AS CARPETING. 3. IT IS IMPORTANT TO MENTOR THE DEHYDRATOR WHILE IN USE. NEVER LEAVE THE DEHYDRATOR UNATTENDED.

Guía de secado

la de cado 6 Panel de control 3 3 2 4 Gabinete deshidratador 5 CAUTION! EDGES MAY BE SHARP!

Black-and-white photo of a drying rack with leafy greens and dried fruit, placed on a table with a bowl of chopped vegetables nearby (no visible text or symbols)

Weston Brands, LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

TARJETA DE GARANTÍA WESTON

ENVÍE ESTA TARJETA JUNTO CON UNA COPIA DE SU RECIBO DE COMPRA ORIGINAL A: WESTON BRANDS, LLC/WARRANTY, 20365 PROGRESS DRIVE. STRONGSVILLE, OH 44149 USA

RECONNECT WITH REAL FOOD

WESTON RECONNECT WITH REAL FOOD

PRO-1000

DESHYDRATEUR

MODÉLE A

EN ACIER INOXYDABLE 10 PLATEAUX

74-1001-W

PARCE QUE NOS PRODUITS BÉNÉFICIENT DE PERFECTIONNEMENTS CONSTANTS APPORTÉS EN USINE, LES ILLUSTRATIONS PRÉSENTES PEUVENT ÊTRE LÉGÈREMENT DIFFÉRENTES DU PRODUIT REÇU. 022515

⚠️ IMPORTANTES RÈGLES DE SÉCURITÉ

LIRE ET COMPRENDRE COMPLÈTEMENT TOUTES LES DIRECTIVES ET AVERTISSEMENTS AVANT D'UTILISER CE PRODUIT. LE PLUS IMPORTANT EST VOTRE SÉCURITÉ! LE DÉFAUT D'OBSERVER LES PROCÉDURES ET MISES EN GARDE PEUT ENTRAINER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS. N'OUBLIEZ PAS : VOTRE SÉCURITÉ PERSONNELLE EST VOTRE RESPONSABILITE!

Black-and-white photo of a metal grating with dried meat pieces inside, no visible text or symbols

Power Switch

WESTON STAINLESS STEEL FOOD DEHYDRATOR DRYING GUIDE ITEM T °C MABB 95-25 26-62 BASING BREAD 10-15 43-46 POMEET 15 48 VEGETABLES 20-33 48-57 FRUIT SHEET ROOTS 25-40 57-63 GREENS, FOR S. JERRY 105-152 63-68 TEMPERATURE CONTROL 100 OFF 1 TOLER 100 OFF GENERAL SAFETY RULES 1. USE A WELL VENTULATED AREA. IT IS SUGGESTED TO USE THE DEHYDRATOR IN A GARAGE OR SIMILAR STRUCTURE. DO NOT USE OUTROS. 2. DO NOT BLOCK AIR VENTS AT THE REACH OF THE DEHYDRATOR. KEEP THE DEHYDRATOR AT LEAST 12" (COLS) CHEE WITH FROM ANY WALL TO ALLEMP FOR PREPER CIRCULATION. ON NOT OPERATE THE DEHYDRATOR ON OR INRASS FLAMMABLE SURFACES SUCH AS CARPETING. 3. IT IS IMPORTANT TO MONITOR THE DEHYDRATOR WHILE IN USE. NEVER LEAVE THE DEHYDRATOR UNATTENDED.

CAUTION! SOME SURFACES OF THE DEHYDRATOR MAY BECOME VERY HOT DURING USE! SERIOUS INJURY MAY RESULT!

Guide de dessiccation 6 Tableau de commandel Casier ATTENTION! LES BORDS PEUVENT ETRE TRANCHANTS!

DESCRIPTION DE LA PIÈCE

NUMÉRO DE SCHÉMA DESCRIPTION DE LA PIÉCE NUMÉRO DE LA PIÉCE
1 PLATEAU DE DESSICCATION (10) 74-1007
2 PLATEAU DE DESSICCATION 74-1008
3 BOUTON DE COMMANDE DUMINUTEUR		74-1008
NON ILLUSTRÉ PIEDS (4) 74-1005
4 PORTE AVEC LA POIGNÉE 74-1006
NON ILLUSTRÉ CONSOLE POUR TABLETTE -CÔTÉ GAUCHE (5)		74-1002
5 CONSOLE POUR TABLETTE - CÔTÉDROIT (5)		74-1003
6 TABLEAU DE COMMANDEL 74-1009
7	CORDON D'ALIMENTATION	74-1019
NON ILLUSTRÉ	FUSIBLE 15 AMP / 250V	74-1018

Weston Brands LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

CARTE DE GARANTIE

ENVOYEZ CETTE CARTE DE GARANTIE AVEC UNE COPIE DE VOTRE REÇU D'ACHAT ORIGINAL À: WESTON BRANDS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 USA

Nom du Client: ____

Adresse:

Province/Code postal/Région: ____

PLEASE INSPECT THIS PACKAGE THOROUGHLY FOR MISSING PARTS OR ANY PRODUCT DAMAGE. IF YOUR PRODUCT CONTAINS SHIPPING DAMAGE, PLEASE CONTACT RETAILER FOR ASSISTANCE.

For all other questions regarding product usage, missing parts, product damage, difficulty or warranty activation, please contact the Weston Brands Customer Service Team: 8:00 am to 5:00 pm ET, Monday thru Friday

[e-mail]

U.S. Residents Customer Service Line: 1-800-814-4895 (Outside U.S. Call: 001-440-638-3131)

Weston Brands LLC, 20365 Progress Drive, Strongsville, Ohio 44149

WestonProducts.com

Please DO NOT return this item to the retailer before contacting Weston Brands Customer Service.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.

ATTENTION!

VEUILLEZ INSPECTER CET EMBALLAGE AVEC SOIN POUR Y DÉTECTER TOUTE PIÈCE MANQUANTE OU ENDOMMAGÉE.

SI DES PIÈCES ONT ÉTÉ ENDOMMAGÉES PENDANT LE TRANSPORT, VEUILLEZ COMMUNIQUER AVEC LE DÉTAILLANT POUR OBTENIR DE L'AIDE.
