USER MANUAL Mini MP 240 Combi Robot Coupe

• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items. WARNING- some parts are very sharp e.g. blade. Wear cut-resistant gloves when handling the blade. STORAGE

• You are advised to install the wall support provided with the machine and to store your machine on it. POWER SUPPLY

• Always check that your power supply corresponds to that indicated on the serial number plate on the motor unit and that it is properly sized.

• The power supply must be protected with a GFCI type receptacle. SPECIFICATIONS

• Each power mixer is supplied with a wall support for easy storage. SAFETY

• Always disconnect the mixer from the power supply when it is not being used. Immediately Disconnect the mixer from the power supply if it is immersed in liquid. Do not allow the motor section of the mixer to be washed in a sink or dishwasher.

• Safeties on motor : Thermal and overload protection. If there is an obstruction in the container (a spoon or usten- sil) or the machine is overused and becomes hot the power mixer will stop. If the power mixer stops because of a ther- mal overload (power mixer is too hot), wait for a period of up to 30 minutes for the power mixer to cool down before restarting.

• No volt release safety (Supply failure). If there is a power failure or the machine is unplugged, it will not restart by itself. See section on operating the power mixer. WARNING Be careful when handling the blades. They are very sharp ! Wear cut-resistant gloves when handling the blades. IMPORTANT WARNING W A R N I N G In order to prevent accidents such as electrical shock, personal injury, fire, and in order to limit property/product damage when using your power mixer, follow the instructions hereafter very carefully and strictly adhere to them. This manual should be kept nearby for reference and should be read by all first time users of the power mixer. KEEP THESE INSTRUCTIONS IN A SAFE PLACE Blade Attachment Capacities

• Thanks to a very powerful motor, the Mini MP 160 V.V. can process up to 3 quarts, the Mini MP 190 V.V. up to 5 quarts and the Mini MP 240 V.V. 10 ½ quarts. The quality of the finished product is outstanding. Whisk Attachment Capacities

• Using the whisk attachment, Mini MP 190 Combi and Mini MP 240 Combi can process up to 20 egg whites and puree from 2 to 16 pounds.

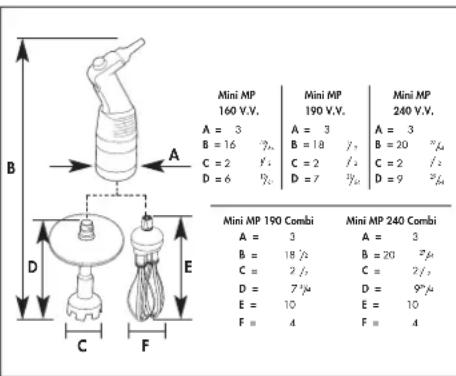

• For an optimum result in the mashed potatoes quality, we recommend you to process at low speed. Mini MP190 V.V.A= 3

SWITCHING ON THE APPLIANCE

• Advice on electrical connections

• Blade and emulsifying disc

YOUR NEW ROBOT COUPE PRODUCT

YEAR FROM THE DATE OF PURCHASE. This LIMITED WARRANTY is against defects in the material and/or workmanship, and includes labor for replacement of defective parts, provided repairs are performed by an authorized service agency (see attached list). The Customer must inform the Service Agency of the possibility of warranty coverage and provide a copy of the dated sales or delivery receipt BEFORE WARRANTY REPAIRS ARE BEGUN. Replacement parts and accessories are warranted for ninety (90) days from the date of purchase when purchased separately and will be verified by dated sales receipt OR packing slip which lists that item. All parts or accessories replaced under warranty must be returned to the Service Agency.

1 - Damage caused by abuse, misuse,

dropping, or other similar damage caused by or resulting from failure to follow assembly, operating, cleaning, user maintenance or stora-ge instructions.

2 - Labor to sharpen and/or replacements for

blades that have become blunt, chipped or wornafter a normal or excessive period of use.

3 - Materials or labor to replace or repair scrat-

ched, stained, chipped, pitted, dented or disco- lored surfaces, blades, knives, attachments or accessories.

4 - Any alteration, addition, or repair that has

not been carried out by the company or an approved service agency.

5 - Transportation of the appliance to or from an

approved service agency.

6 - Labor charges to install or test new

attachments or accessories (i.e., bowls, plates,blades, attachments), which have been replacedfor any reason.

7 - The cost of changing direction-of-rotation of

three-phase electric motors (Installer is responsible).

8 - SHIPPING DAMAGES. Visible and/or

hidden damage is the responsibility of the freightcarrier. The consignee must inform the carrierand consignor immediately, or upon discovery inthe case of hidden defects.KEEP ALL ORIGINAL CONTAINERS AND PAC-KING MATERIALS FOR CARRIER INSPECTION. Neither ROBOT COUPE U.S.A., INC. nor its affiliated companies or any of its distributors, directors, agents, employees, or insurers will beliable for indirect damage, losses, or expenseslinked to the appliance or the inability to use it. The ROBOT COUPE U.S.A., INC. warranty is given expressly and in lieu of all other warranties, expressed or implied, for merchan- tability and for fitness toward a particular purpose and constitutes the only warranty made by ROBOT COUPE U.S.A., INC.5 ENGLISH UNPACKING

• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items. WARNING- some parts are very sharp e.g. blade. Wear cut-resistant gloves when handling the blade. STORAGE

• You are advised to install the wall support provided with the machine and to store your machine on it. POWER SUPPLY

• Always check that your power supply corresponds to that indicated on the serial number plate on the motor unit and that it is properly sized.

• The power supply must be protected with a GFCI type receptacle. SPECIFICATIONS

• Each power mixer is supplied with a wall support for easy storage. SAFETY

• Always disconnect the mixer from the power supply when it is not being used. Immediately Disconnect the mixer from the power supply if it is immersed in liquid. Do not allow the motor section of the mixer to be washed in a sink or dishwasher.

• Safeties on motor : Thermal and overload protection. If there is an obstruction in the container (a spoon or usten- sil) or the machine is overused and becomes hot the power mixer will stop. If the power mixer stops because of a ther- mal overload (power mixer is too hot), wait for a period of up to 30 minutes for the power mixer to cool down before restarting.

• No volt release safety (Supply failure). If there is a power failure or the machine is unplugged, it will not restart by itself. See section on operating the power mixer. WARNING Be careful when handling the blades. They are very sharp ! Wear cut-resistant gloves when handling the blades. IMPORTANT WARNING W A R N I N G In order to prevent accidents such as electrical shock, personal injury, fire, and in order to limit property/product damage when using your power mixer, follow the instructions hereafter very carefully and strictly adhere to them. This manual should be kept nearby for reference and should be read by all first time users of the power mixer. KEEP THESE INSTRUCTIONS IN A SAFE PLACE Blade Attachment Capacities

• Thanks to a very powerful motor, the Mini MP 160 V.V. can process up to 3 quarts, the Mini MP 190 V.V. up to 5 quarts and the Mini MP 240 V.V. 10 ½ quarts. The quality of the finished product is outstanding. Whisk Attachment Capacities

• Using the whisk attachment, Mini MP 190 Combi and Mini MP 240 Combi can process up to 20 egg whites and puree from 2 to 16 pounds.

• For an optimum result in the mashed potatoes quality, we recommend you to process at low speed. Mini MP190 V.V.A= 3

pliance into the power outlet, ma king sure you do not press the button (CB).

2. Insert the foot into

3. Press the control

button (CB), and the power mixer will start up.

4. To stop the power

mixer, release the control button (CB).

• VARIABLE-SPEED OPERATION Follow steps 1 to 4 above, then:

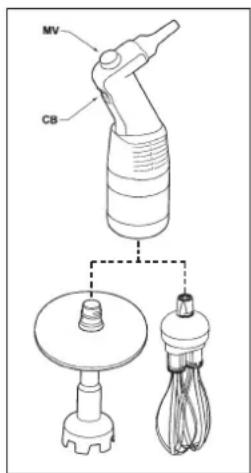

5. Change the speed of the motor by turning the

variable speed button (MV) towards the maximum or minimum as required. Whisk function (Mini MP 190 Combi and Mini MP 240 Combi): speed between 350 and 1 560 rpm. Mixer function (Mini MP 160/190/240 V.V. and Mini MP 190/240 Combi): speed between 2 000 and 12 500 rpm. It is advisable to start at a low speed when using the whisk. With the self-regulating speed system , once you have selected a speed, it will remain constant, even if the consistency of your mixture changes. INTRODUCTION The new Mini MP 160 V.V., Mini MP 190 V.V., Mini MP 240 V.V., Mini MP 190 Combi and Mini MP 240 Combi models are the latest additions to Robot- Coupe’s range of power mixer. They have been specially designed for processing smaller quantities. They are fitted with a foot, blades and an emulsifying disc which can be entirely dismantled, and their shaft measure 6

/64 inches long respectively. These power mixer are tools which are totally adapted to the needs of professionals. They will enable you to make soups, vegetables purées and cereal preparations with little effort. The whisk attachment is ideal for making pancake batter, mayonnaise, beaten egg whites, chocolate mousse, butter sauces, whipped cream or smooth fromage frais. The whisk is composed with a metallic gear box even more resistant when processing pan cakes or mashed potatoes. The variable-speed function will enable you to adjust the speed to suit each preparation and to start the processing at a lower speed in order to reduce splashing. Each power mixer is supplied with a wall support for easy storage. The simple design of these appliances allows the assembly and disassembly of the moving parts, to ease maintenance and cleaning. These instructions contain important information that will enable you to extract the greatest return on your investment. We therefore strongly advise you to read these instructions carefully before using the appliance. SWITCHING ON THE APPLIANCE

• ADVICE ON ELECTRICAL CONNECTIONS The appliance should be plugged into a Ground Fault Interrupt type outlet. Make sure that the voltage of your power supply matches that shown on the identification plate of your appliance. OPERATING THE

• OPERATION The power mixer is equipped with electrical current and temperature overload protection. If the power mixer stops unexpectedly you may try to restart it by following steps 3-5 below. If the power mixer does not restart, allow it to cool for a period of up to 30 minutes and the temperature overload will automatically reset. You should then be able to restart following steps 3-5 below.7 ENGLISH Removing the bell from the tube - Unplug the power mixer. - Turn the bell in the direction of the arrow (see drawing below) to detach it from the tube. order to ensure that the mixture is completely homogeneous. Avoid touching the whisk to the side of the bowl. For maximum efficiency, at least one-fifth of the whisk length should be immersed. Always start processing at low speed. ASSEMBLY / DISASSEMBLY

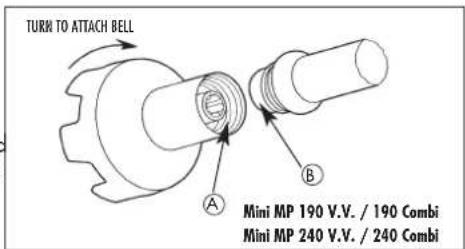

• MIXER ASSEMBLY Attaching the shaft to the motor unit. - Unplug the power mixer. - Note that each end of the shaft has a threaded plastic piece. One is longer than the other and doesn’t have a rubber “O” ring. Insert this longer plastic end into the motor housing , and turn the shaft in the direction of the arrow until it is tight.

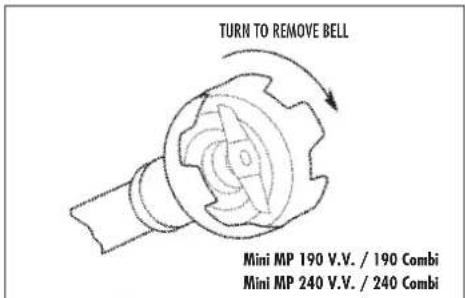

Removing the shaft from the motor unit - Unplug the power mixer. - Turn the shaft counterclockwise until it is removed. Attaching the bell to the tube - Unplug the power mixer. - Insert the threaded shaft into the housing of the bell. Turn the bell in the direction of the arrow (see drawing) until it is tight.

WORKING POSITION For a more ergonomic approach, we recommend that you hold the handle of the appliance in one hand and the container with the other. It is a good idea to tilt the power mixer slightly, making sure that the bell does not touch the bottom of the container. Always make sure that the bell is sufficiently immer- sed to avoid splashing and that the air vents of the motor unit do not come into contact with any liquid. For optimum efficiency, two thirds of the shaft should be immersed in the preparation. Do not rest the bell against the bowl. The splashguard should always be in place.

• WHISK FUNCTION We recommend that you hold the power mixer by the handle and the bottom of the motor unit. You can also hold the appliance by the handle with one hand, leaving the other hand free to hold the bowl, if necessary. While processing we recom- mend that you move the whisk around in the bowl, in Mini MP 160 V.V. Mini MP 190 V.V. / 190 CombiMini MP 240 V.V. / 240 CombiMini MP 190 V.V. / 190 CombiMini MP 240 V.V. / 240 CombiMini MP 190 V.V. / 190 CombiMini MP 240 V.V. / 240 Combi

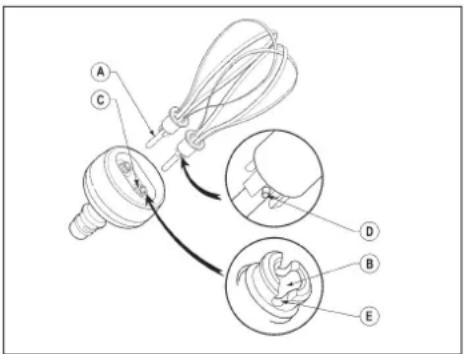

Removing the casing - Check that the machine is not plugged in. - Turn the gear box in the opposite direction to that used when attaching it. Fitting the whisks into the gear box - Grasp the holder in one hand. - With the other hand, take the first whisk and insert the shaft into the bore of the gear box drive shaft. Make sure the drive lugs are properly aligned with the notches. - As you push the whisk into the gear box drive shaft , rotate it slightly in order to slot the drive lugs into the notches of the drive shaft , thereby locking the whisk into place inside the shaft.

• WHISK FUNCTION (Mini MP 190 Combi and Mini MP 240 Combi ) Attaching the gear box to the motor unit. - Check that the machine is not plugged in. - Insert the threaded part into the motor unit. - Turn the gear box in the direction of the arrow (see figure) until it is locked into place moderately tightly. Removing the blade - Unplug the power mixer then, hold the blades with the provided blade-locking tool. - Using the blade-locking tool, unscrew the drive coupling then remove the blade for easy cleaning. Installing the emulsifying disc - In order to install it safely, introduce the disc into the bell, then hold it in place using the locking tool. - Next, turn the drive coupling with this tool until it starts to tighten. Removing the emulsifying disc - The disc can be removed in exactly the same way as the blades. Mini MP 190 V.V. Mini MP 190 Combi Mini MP 240 V.V. Mini MP 240 Combi Mini MP 160 V.V. Mini MP 190 V.V. Mini MP 190 Combi Mini MP 240 V.V. Mini MP 240 Combi Mini MP 160 V.V. BLADE LOCKING BLADE LOCKING BLADE LOCKING BLADE LOCKING

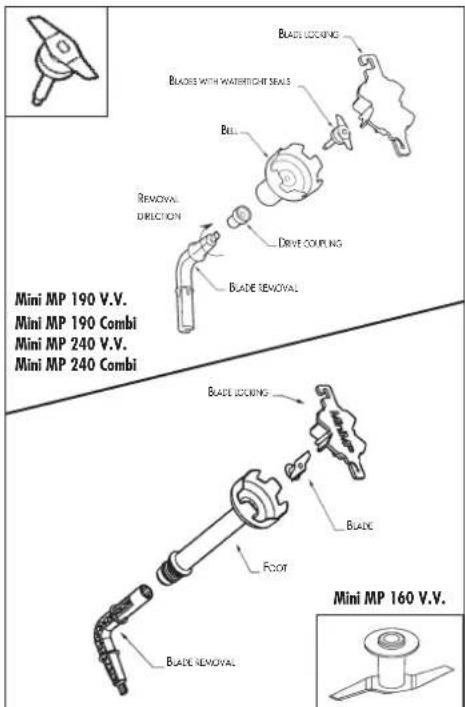

BLADES WITH WATERTIGHT SEALS

BELL DRIVE COUPLING BLADE REMOVAL BLADE REMOVAL BLADE REMOVAL FOOT FOOT BLADE REMOVAL DIRECTION

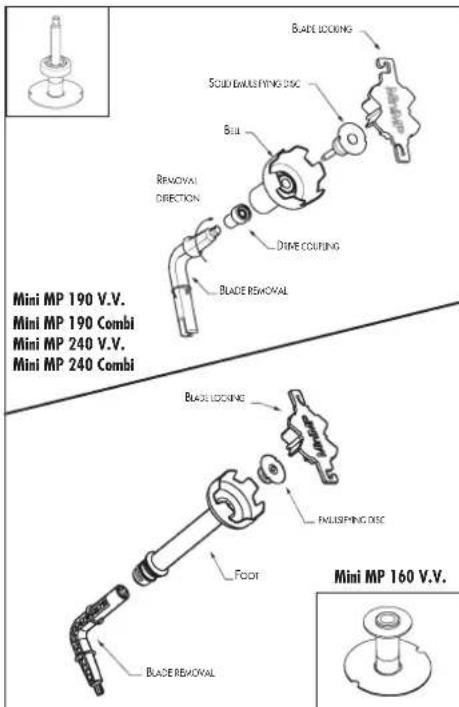

SOLID EMULSIFYING DISC

EMULSIFYING DISC BELL DRIVE COUPLING BLADE REMOVAL REMOVAL DIRECTION9 ENGLISH specified on it’s packaging container. Use a cloth lightly dampened (not dripping) with the cleaning solution. Do not allow liquid to come into contact with the electrical components contained within the housing. Be careful when cleaning around vents do not allow liquid to drip or seep into the housing. Use a cloth lightly dampened (not dripping) with water to remove detergent/disinfectant then dry using a clean cloth. After using the power mixer in a hot mixture, cool the bottom of the tube in cold water before disas- sembling the bell from the shaft. Clean immediately after use to prevent product from sticking to surfaces.

• MOTOR HOUSING The power mixer must be clean through all stages of production. Clean between each job using a detergent or disinfectant. Dilute the detergent/ disinfectant following the instructions normally CLEANING

• SHAFT AND BELL There are two ways to proceed: Simple cleaning procedure between mixing batches Submerge the shaft and bell in water and run for a few seconds to clean. Unplug the power cord. Complete cleaning procedure between meal prep times and at the end of the work day. Unplug the power mixer and rinse the bell under a water tap. Remove the bell from the shaft, then remove the blade using the included tool kit (wear cutting gloves) ! Be careful to avoid damaging the surface of the blade shaft and the watertight seals. Always dilute the detergent/disinfectant (see above). Thoroughly dry all parts before reassembling. W A R N I N G Never immerse motor housing and/or handle in liquid! The housing contains the electrical components and is not sealed against liquid. Contact with liquid can cause damage to the blender and serious injury to the operator. W A R N I N G W A R N I N G Always unplug the power mixer before cleaning it! Always dilute bleach according to the instructions on the label. Never run the power mixer through a dishwasher! The type and concentration of the sanitation agent must comply with 21 CFR 178.1010 regulations. Clean according to local health department regu lations. Removing the whisks from the gear box Pull the whisk in direction to the arrow, gripping the ejector in one hand and the holder in the other.

- To check that the whisk is properly fixed inside the shaft , gently tug the metal wires. - Repeat this procedure with the second whisk. If you cannot push it in properly, remove it, rotate it 90° and start again.

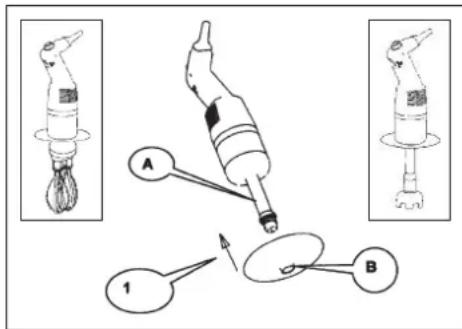

Cover the ring with the splash guard protection sliding it all along the foot in the arrow direction, the flange must be oriented down. To remove the splash guard protection for cleaning follow this instruction in the reverse order.

When you use the tube with the bell for making a preparation and then you want to use the whisk, you need to remove the splashguard assembly from the tube and install it on the gearbox. The process to install the splashguard is the same for the whisk and the tube.10 W A R N I N G THE BLADES ARE SHARP! It is recommended that cutting gloves be worn when handling the blades. Handle and store the blades with safety in mind. Never try to override or defeat the purpose of the safety mechanisms! Never put anything (utensils etc.) but food material near the blades on the power mixer! Never overload the power mixer! Never turn the power mixer on, unless the bell is completely immersed in the product. Always unplug the power mixer before doing any cleaning or maintenance! Unplug the power mixer whenever it is not being used. Plug the power mixer only into a GFI type outlet. Never use extension cords.

• SHAFT SEAL In order to maintain a watertight seal between the shaft and bell, inspect the seal for wear and replace it if necessary. TROUBLE SHOOTING THE POWER MIXER DOES NOT START. - Did you follow the previous operating instructions ? See section-Operating The Power Mixer. - Pull the plug and try another outlet. - Check outlet for current (breaker or fuse). - Call local Robot Coupe authorized service agency. THE POWER MIXER STOPS DURING (WHILE) PROCESSING. See the section on Operating the power Mixer. The first paragraph describes the overload protection. It may be necessary to allow the machine to cool for up to 30 minutes before restarting. If you cannot locate the cause of the problem - Release the control button (CB). - Unplug the power mixer. - Are the blades free to rotate in the bell ? - Is the drive shaft free to rotate ? To check this, unplug the power mixer, remove the bell and test the rotation of the end of the drive shaft manually. Check the condition of the plug and the power cord. THE POWER MIXER STARTS TO SMELL HOT OR SMOKE. Turn the power mixer off and unplug it. Call your local authorized service agency. SERVICE See warranty first then; Should your unit require service, check with your distributor to see where local service is available. If not or if you wish your unit to be serviced at the factory, call for return instructions and ship the unit prepaid to our factory address. PH : 1-800-824-1646 Robot-Coupe USA, Inc Service Department Repair 264 South Perkins Street Ridgeland, MS 39157 For service in Canada contact the Robot-Coupe USA factory for repair instructions.

• BLADE AND EMULSIFYING DISC The Blade and the emulsifying disc can be removed from the bell for thorough cleaning. Always dry thoroughly to avoid spotting.

• WHISK The whisks can be cleaned either by hand or in a dishwasher. Never immerse the gear box in water or in a dish- washer. Clean it with a slightly damp cloth or sponge.

• ALUMINUM Use soft-metal-safe cleaning agents!

• PLASTIC Be careful, many cleaning agents are corrosive and are not safe for use on plastics ! Do not use strong alkaline detergent (having a high concentration of soda or ammonia). MAINTENANCE

• BLADE Over time the blades will become worn and will need to be replaced. The washer and seals should also be replaced at this time. A blade service kit is available.

• WHISK The success of your preparation will depend essen- tially on the state of the metal wires and their amount of wear and tear. They should therefore be replaced from time to time in order to ensure optimum quality of the finished product.11 ESPAÑOL INDICE GARANTÍA
