SCKEN17G - Kettle SCHNEIDER - Free user manual and instructions

Product type	Electric kettle
Brand	Schneider
Model	SCKEN17G
Capacity	1.7 L
Power	1850-2200 W
Voltage / Frequency	220-240 V, 50/60 Hz
Base type	Power base with cord storage
Water level indicator	Visible, with MAX mark
Automatic shut-off	Yes (when boiling)
Dry heat protection	Yes
Indicator light	Yes, integrated in the On/Off button
Removable filter	Yes, in the spout
On/Off button	Yes, with indicator light
Lid	Manual opening
Cleaning	Damp cloth; do not immerse or put in dishwasher
Recommended descaling	White vinegar and water (1/3 vinegar, 2/3 water)
Safety	Automatic shut-off; do not open while boiling; do not use empty
Compliance	CE (Directives 2014/35/EU and 2014/30/EU)
WEEE (disposal)	Separate collection according to Directive 2012/19/EU

Frequently Asked Questions - SCKEN17G SCHNEIDER

How to clean my Schneider SCKEN17G kettle?

Turn off and unplug the kettle. Let it cool. Wipe the exterior and interior with a damp cloth. You can use a little detergent, then rinse thoroughly. Never immerse the kettle or base in water and do not put in dishwasher.

How to descale the kettle?

Fill the kettle with 1/3 white vinegar and 2/3 water. Boil or let sit overnight. Discard the solution, fill with clean water, boil, then empty. Rinse with clean water. Repeat regularly.

What to do if the kettle does not turn off after boiling?

Check that the lid is properly closed. Ensure the kettle is correctly positioned on its base. If the problem persists, the safety device may be faulty; contact customer service.

Can I use the kettle to heat milk or other liquids?

No, this kettle is designed only for water. Heating other liquids may damage the appliance or cause dangerous splashes.

How to replace the kettle filter?

Open the lid, remove the filter located in the spout. Rinse it under running water, then put it back, making sure it is properly positioned.

Why does the kettle turn off before boiling?

This is often due to a build-up of limescale on the heating element. Perform descaling as indicated in the manual. A dry heat protection may also trigger if the water level is insufficient.

The indicator light does not turn on, what to do?

Check that the kettle is properly plugged into the base and that the base is powered. If the light remains off, the button or circuit may be defective; contact customer service.

Can I open the lid while boiling?

No, never open the lid while the water is boiling. Wait for automatic shut-off or turn off the kettle before opening the lid to avoid burns from splashes.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 L, indicated by the 'MAX' level on the indicator. Do not exceed this level to avoid boiling water overflow.

What to do if the kettle falls or is damaged?

If the kettle falls, have it checked by a qualified person before using. Never use an appliance with a damaged cord or plug. Contact customer service.

USER MANUAL SCKEN17G SCHNEIDER

Exterior view of a modern gray kettle with a handle and brand logo (SCHNEUDER) on the side (no other text or symbols visible)

MANUEL D'INSTRUCTIONS / INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance, basic safety precautions should always be followed, including the following:

- To protect against electrical hazards do not immerse the mains plug, power base, or kettle in water or any other liquid. Do not use in the bathroom or near any source of water. Do not use outdoors.

- Do not touch hot surfaces. Use handles or knobs.

- Do not open the lid while the water is boiling.

• Take care when pouring. Pour the water slowly, and do not overfill the kettle.

- Water can remain hot for a considerable time after boiling and can present a scald hazard. Keep the kettle, the power base, and the mains lead away from the edge of worktops and out of the reach of children.

- Do not allow the mains lead to hang over the edge of the table or worktop, or anywhere it may be

accidentallycaught or tripped over.

• Close supervision is necessary when the kettle is used near children.
• Unplug the power base from the wall socket when not in use, before displacing and before cleaning. Allow the kettle to cool down fully before cleaning and before storing away.
• Ensure that the lid is closed before switching the kettle on, otherwise it may not automatically switch off.
• Check that the kettle is properly located on the power base before switching it on.
• Do not switch on unless the kettle contains at least 1 cupful of water, otherwise you may damage it.
• Do not fill above the bottom of the Max. mark on the water level indicator (1.7 liter)
• Remove the kettle from its power base before filling or pouring.
• Do not place the kettle, power base or mains lead on or near any hot surface, hotplate, hot hob or burner.

• Do not use the kettle for any other purpose than heating water.

• Use the kettle only with the power base supplied (and vice versa)

• Do not operate any appliance with a damaged cord or plug, or if the appliance has malfunctions or has been damaged in a manner. If the mains lead is damaged, it must be replaced by a special lead available from the Service department

Designed for use in contact with food.

IMPORTANT

It is forbidden to replace the power cable by yourself. In the event of damage, it must be repaired by the after-sales service of the local distributor, by the manufacturer or by a qualified person.

If the device has been dropped, please have a qualified person check it before using it again.

Internal damage could cause accidents. For any type of problem or repair, please contact the after-sales service of the local distributor, the manufacturer or a qualified person, in order to avoid any risk of danger.

Disposal and environmental responsibility

In order to be respectful of the environment, we encourage you to dispose of the device correctly. You can contact local authorities or recycling centers for more information.

Before use

Remove all packaging from the kettle and its power base. Before using the kettle for the first time, or if it has been out of use for a long time, fill to the max mark and boil, then discard the boiled water and rinse the kettle out with cold water.

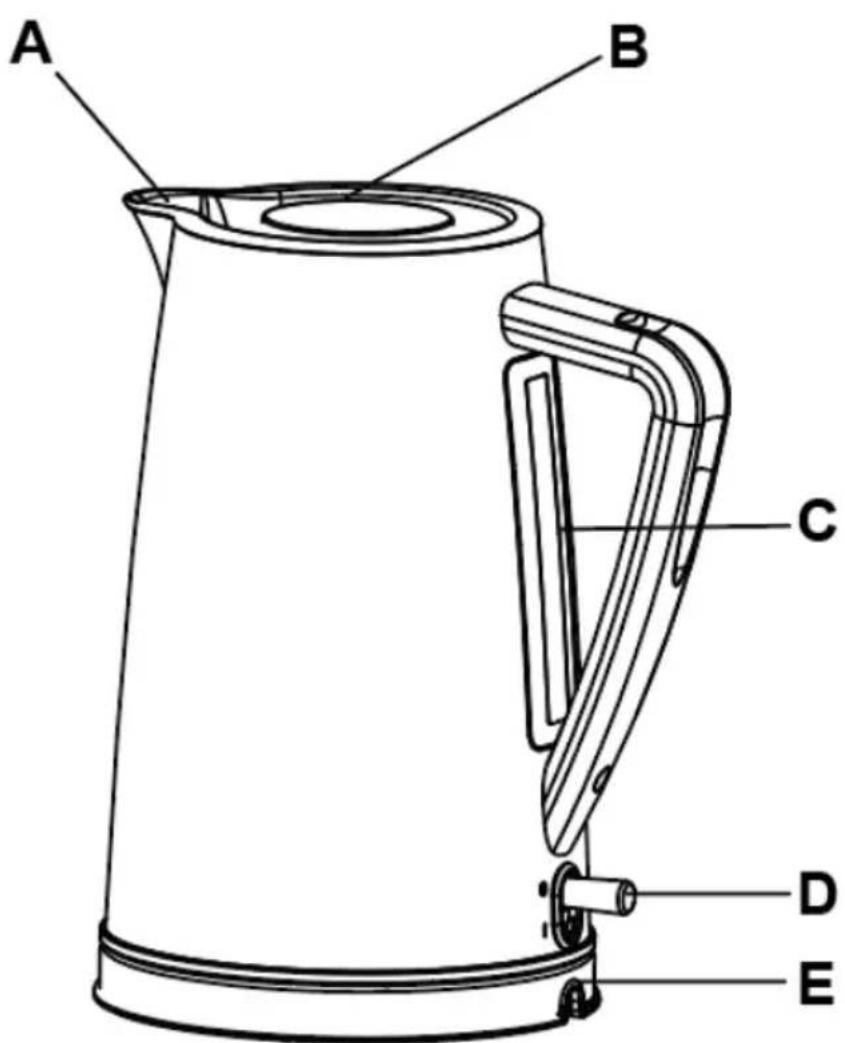

Getting to know your kettle

A B C D E

A. S pout filter
B. Open lid
C. Visible water level
D. Start/Stop button
E. Base

HOW TO USE

Positioning

• Position the power base as close as possible from a power socket
- Place the mains lead so that it does not overhang the work surface, and cannot be caught accidentally. To shorten the mains lead, you can wind it around the cord storage area under the power base, and bring it out of the cord exit slot from the base.

Filling

● Wherever possible fill through the spout.
● Watch the water level thanks to the water level indicator. You must use at least 0.5L, but the water level must be below the Max. mark.
- Do not overfill the kettle. If the kettle is overfilled, there is a risk that boiling water may be ejected.

Switching on

• Check that the switch is in the OFF "O" position (lift the kettle from the powerbase and set it down again).
• Plug the power base into the wall socket. If necessary, switch the socket on. Gently position the kettle on the power base, taking care not to spill any water.
• Press the switch down. The switch will light up, and the kettle will start to heat up.
• When the water has been boiled, the kettle will switch off automatically, the switch will return to the OFF "O" position and the light will go out.

Switching off

• You can switch off the kettle at any time before the water boils, simply lift it from the power base and set it down again. Or simply set the power switch to zero.
• If the kettle is lifted off its base, it will automatically shut off, and the boiling will stop. It can be restarted after 30 seconds by pushing in the power switch.

Filter

- Open kettle lid and remove the filter. Rinse under running water. Put back filter and make sure it is in correct position.

GENERAL

• When you lift the kettle from the base, you may see moisture on the surface of the base. This is the steam used to switch the kettle off automatically, which then condenses and is allowed to escape via vents in the underside of the kettle. Do not lift it backwards, as this may allow water to pass through the steam aperture on to the control area. Should this occur, the kettle must be allowed to dry before use.
  ● To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.

MISUSE

1. Do not switch the kettle on unless it contains at least one cup of water. Misuse of this kind will shorten the life of the element.
2. If the kettle is accidentally switched on when it does not contain sufficient water, a boil-dry device will automatically switch it off. Wait until the kettle has cooled down before filling, as the element will be hot and spitting may occur.

CARE AND CLEANING

Cleaning

1. Switch the kettle off (lift it from the power base), unplug the power base from the wall socket and let the kettle cool down completely before cleaning.
2. Wipe the outside and inside surfaces of the kettle with a damp cloth. If necessary, you may use a little household detergent (use the lid to clean the kettle). To clean the filter, see "Water filter" below. If you use detergent inside the kettle, rinse thoroughly afterwards to remove all trace of the detergent.
3. Ensure that all connectors and sockets are kept dry.

Do not immerse the kettle or power base in water or any other liquid.

Do not use harsh or abrasive cleaners or solvents.

Do not put the kettle and the power base in a dishwasher.

Descaling

Scale build-up will cause the element to overheat, reducing its working life. It may also cause the safety cut out to operate prematurely, switching the kettle off before the water boils.

As the element is mounted beneath the kettle, there are no awkward nooks and crannies for the scale to get a foothold. It can build up only on the walls and floor of the kettle, where it can be seen and dealt with.

To minimize scale build-up:

1. Fill the kettle with 1/3 white vinegar and 2/3 water and boil or allow it to stand overnight.
2. Empty solution from kettle and fill kettle with clean water and boil.
3. Discard the boiled water as it might contain remains of vinegar
4. Rinse kettle with clean water.

We recommend descaling to be done regularly, it should be done with the following intervals;

NOTE: products returned during the guarantee period with faults that are directly related to scale built-up will be subject to a repair charge.

As the manufacturer is constantly striving to improve its products, design and specifications are subject to change without notice.

Technical Specification

Rated voltage: 220-240V, 50-60Hz

Power: 1850-2200W

Capacity: 1.7L

If this logo appears on the appliance, it signifies that it should be scrapped in line with directive 2012/19/UE relating Waste Electronic and Electric Equipment (WEEE).

All dangerous substances contained in electric and electronic equipment may exert deleterious effects on the environment and human health during processing.

This explains why at the end of its useful life this appliance should not be disposed of with unsorted municipal waste.

As end consumer, your role is essential in ensuring reuse, recycling or other form of value creation for this appliance. You have at your disposal several collection and recovery systems put in place by your local authority (recycling centre) and distributors.

You have the obligation of using these systems.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)
