USER MANUAL SCDD480NF2IX SCHNEIDER

Line drawing of a refrigerator front view with no text or symbols

RÉFRIGÉRATEUR

SCDD480NF2IX

NOTICE D'UTILISATION

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Two labeled diagrams showing checkmark and cross symbols on vertical bars, likely indicating approval or cancellation.

Positionnement

Line drawing of a hand holding a shelf with a wooden board (no text or symbols)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Conseils utiles

Line drawing of a double refrigerator with doors open and internal compartments (no text or symbols)

Nettoyage

Diagram of a mechanical or fluidic system with rotating components and directional arrows, no readable text or symbols present.

Warning symbol with exclamation mark inside a downward arrow (no text or numbers)

SCDD480NF2IX - URL: https://eprel.ec.europa.eu/qr/426787

EXCLUSIONS DE GARANTIE :

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Please read all instructions carefully before first use and keep them for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Please read the following operating instructions carefully before connecting your new device, they contain important safety information, how to use, install and keep your device in working condition. Please keep these instructions for future use.

Important!

For the electrical connection, carefully follow the instructions given in specific paragraphs.

1. This device can be used by children from 8 years old and by people with reduced physical, sensory or mental capacities or a lack of experience

and knowledge provided that they have been placed under supervision or that they have been instructed to use the device safely and understand the dangers involved. Children should not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.

1. Unpack the device and check for damage. Do not connect the device if it is damaged. Report possible damage immediately to the place where you purchased it. In this case, keep the packaging.

2. Make sure there is adequate circulation around the device to avoid overheating. For sufficient ventilation, follow the installation instructions.

3. As far as possible, the product spacers should be against a wall to avoid directing or catching hot parts (compressor, condenser) to avoid any risk of burns.

4. The appliance must not be placed near radiators or cookers.
5. Make sure that the mains plug is accessible after installing the appliance.
6. Before connecting the appliance, make sure that the voltage of the electrical outlet in your home corresponds to that shown on the rating plate.
7. Do not damage the cooling system. This warning is only valid for devices whose cooling circuit is accessible by the user.

8. Make sure the appliance is unplugged before cleaning.

9. Pour nettoyer cet appareil, utiliser un chiffon humide ou bien un produit de nettoyage pour les vitres.
   N'employez jamais de détergent ou de dissolvant.

10. Do not clean the device with metallic objects.

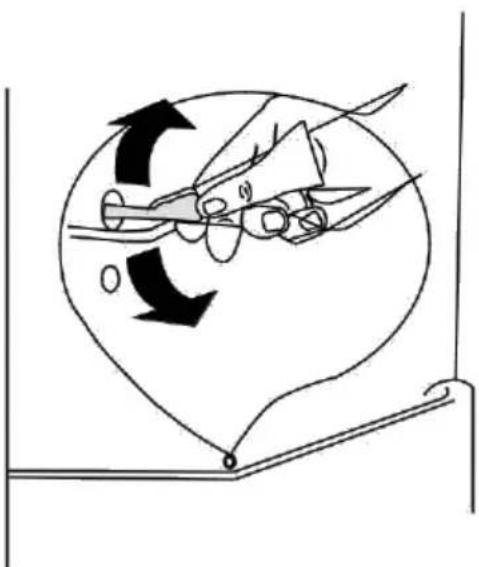

11. Regularly examine the drainpipe for defrosted water, which is located at the bottom of the refrigerator against the rear wall. If necessary, please clean it, otherwise water will collect and may spill into the refrigerator.
12. Frozen food should not be refrozen once thawed.
13. Popsicles can cause frost burns if consumed directly from the device.
14. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
15. When defrosting has been completed, or when the refrigerator stops operating, clean the appliance

to prevent the spread of odor.

Excess gel can affect refrigeration.

1. It is recommended to use this appliance without an extension cord.
2. Make sure the power plug is not crushed or damaged from the back of the device. A crushed or damaged outlet can overheat and cause a fire.
3. To reduce electricity consumption, keep the air circulation around the appliance and discard the food packaging before putting it in the refrigerator as soon as possible.
4. Do not store toxic materials such as ether, methanol.
5. Do not place flammable materials in the refrigerator unless they have been authorized by the manufacturer.
6. Close the door after use to avoid temperature loss.

7. This product should not be used outdoors and should not be exposed to rain.

8. The device must be placed on a flat and stable surface.

9. The appliance must be placed so that the electrical outlet is easily accessible.
10. Do not place heavy objects on the refrigerator and do not get it wet.
11. To avoid the risk of electric shock, never use this appliance with wet hands or bare feet on a wet surface.
12. Do not use the appliance outdoors or in a humid place.
13. Do not move the appliance when it is full to avoid tipping over.
14. The power cable must be plugged into a grounded outlet. Never pull on the cable to unplug the appliance, grasp the plug and pull it from the socket.
15. Never lift the device by the power cable.

16. Keep the power cable away from heated surfaces.

17. Some accessories, such as drawers, can be removed to increase the storage volume and reduce energy consumption.

18. Do not try to repair, adjust or replace parts of this appliance yourself. In the event of a malfunction, contact the after-sales service.

19. Children should be supervised to make sure that they do not play with the device.

20. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or by persons of similar qualifications in order to avoid any danger.

21. It is recommended that the power cable be examined regularly for any signs of deterioration, and the device should not be used if the cable is damaged.

22. The appliance is equipped with an earth socket to protect you from

possible electrical risks and must be connected to a socket outlet with an earth contact.

1. CAUTION: Do not damage the refrigeration circuit.
2. CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. CAUTION: Do not use electrical devices inside the food storage compartment unless they are of the type recommended by the manufacturer.
4. CAUTION: Do not use electrical appliances inside the food storage compartment unless they are of the type recommended by the manufacturer.

5. WARNING: Do not place movable sockets of multiple sockets or portable power supplies at the rear of the device.

6. Children aged 3 to 8 years are allowed to load and unload refrigeration appliances.

7. To avoid contamination of food, please observe the following instructions:

- Prolonged opening of the door can lead to a significant increase in the temperature in the compartments of the appliance.

- Regularly clean surfaces that may come into contact with accessible food and drainage systems. Store raw meat and fish in suitable containers in the refrigerator so that they do not come into contact and do not drip onto other foods.

-The two-star compartments for frozen products are suitable for preserving frozen food, storing or making ice cream and for making ice cubes.

- The one, two- and three-star compartments are not suitable for freezing fresh food.

- If the refrigeration appliance remains empty for long periods, switch it off, defrost, clean, dry and leave the door open to avoid the development of mold in the appliance.

- Place the device against a wall whose free distance does not exceed 75 mm and exceeds 50 mm.

1. Do not place food products directly against the rear wall.

2. If this appliance with magnetic door seals is to replace an old appliance with a spring lock on the door or the cover, make sure that the door of the old appliance cannot be locked before throwing it away. This will prevent it from becoming a death trap for a child.

3. Keep all packaging away from children. There is a risk of suffocation.

4. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

1. Never forget: When you freeze fresh foods with a ‘use by /best before/best by/’ date, you must freeze them before this date expires.

2. Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

1. Recommended storage times of refrigerator compartment

To prevent food spoilage due to transfer of germs: Store unwrapped animal and vegetable products separate from one another in the drawers. This also applies to different sorts of meat.

If food has to be stored together due to lack of space: wrap the food.

Never store fruit and vegetables in a balcony with meat or fish

Food	Storage time
Butter	90 days
Hard cheese	110 days
Milk	7 days
Sausages, cold cuts	9 days
Meat	7 days

Refrigerant

Danger: Risk of fire / flammable materials

DANGER: RISK OF FIRE / FLAMMABLE MATERIALS

The refrigerant gas in the circuit of this unit is isobutane (R600a), but slightly hazardous flammable gas.

During transportation and installation of the device, ensuring not to damage any part of the refrigeration circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Suitable for food

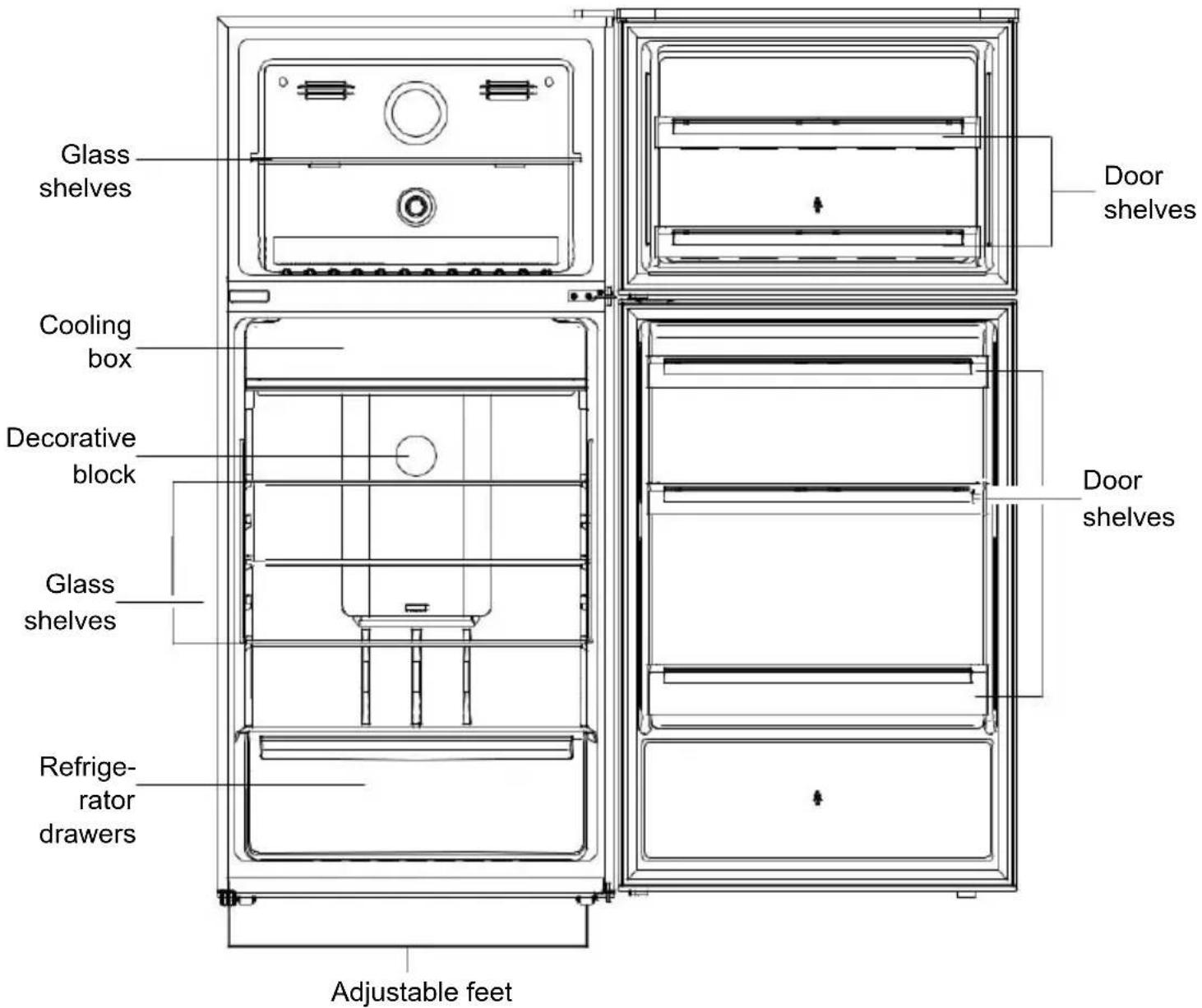

DESCRIPTION OF THE DEVICE

Glass shelves Cooling box Decorative block Glass shelves Refrige- rator drawers Adjustable feet Door shelves Door shelves

INSTALLATION

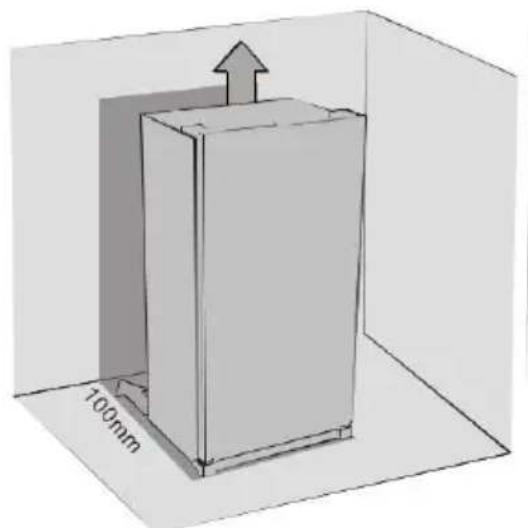

Need space

• Select a location without direct sun exposure;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with a level floor (or almost);
• Leave enough space to install the refrigerator on a flat surface;

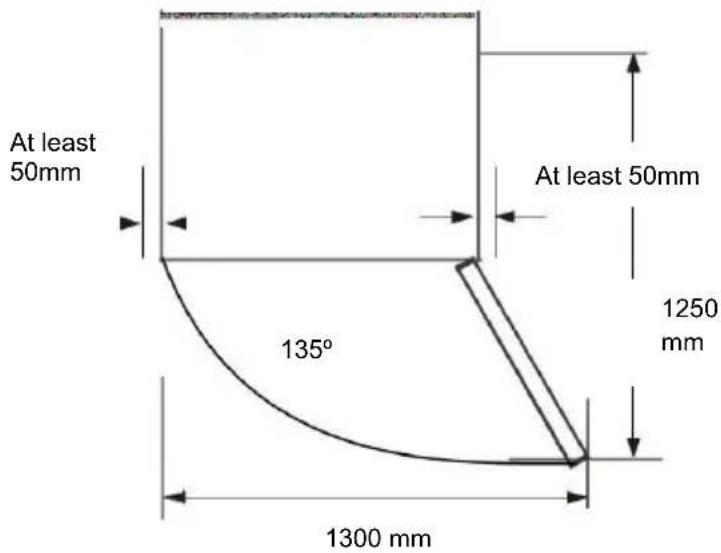

• Leave space on the right, left, rear and top during installation. This will help reduce energy consumption and reduce your energy bills.

3D diagram of a rectangular box with an upward arrow and 100mm dimension label, inside a transparent cube (no text or symbols beyond measurement)

At least 50mm 135° 1300 mm At least 50mm 1250 mm

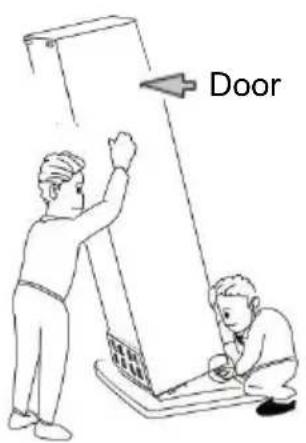

Unit upgrade

To do this, adjust the two leveling feet on the front of the device.

If the unit is not level, the doors and alignments of the magnetic seal will not be covered properly.

Door

Positioning

Install this device in a place where the ambient temperature corresponds to the climatic class indicated on the nameplate of the device:

Climate class	Ambient temperature
SN	+ 10 °C to + 32 °C
N	+ 16 °C to + 32 °C
ST	+ 16 °C to + 38 °C
T	+ 16 °C to + 43 °C

Location

The device must be installed far enough from heat sources such as radiators, boilers, direct sunlight, etc.

Warning!

It must be possible to disconnect the device from the mains; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, make sure that the voltage and frequency indicated on the rating plate match your household electrical supply. The appliance must be earthed. The plug of the power cable is provided with a contact for this purpose. If the household power outlet is not grounded, connect the unit to a separate ground in accordance with applicable regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This device complies with E.E.C. Directives.

Meaning of the -\*-labelling of freezers

• 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.
• 2-stars (**) and 3-stars (***) freezers are suitable for storing frozen food (pre-frozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS (*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FREEZER	(***)*	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsSuitable for freezing fresh food.
FREEZER	***	≤ -18 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 3 monthsNot suitable for freezing fresh food.
FREEZER	**	≤ -12 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 2 monthsNot suitable for freezing fresh food.
FREEZER	*	≤ -6 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 1 monthNot suitable for freezing fresh food.
0*-COMPARTMENT	-	-6 °C - 0 °C	Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).Not suitable for freezing food or for storing frozen food.

INSTRUCTIONS FOR USE

Before first use

Interior cleaning

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and neutral soap to remove the typical smell of a new product, -

Important! Do not use detergents or abrasive powders, as they will damage the finish.

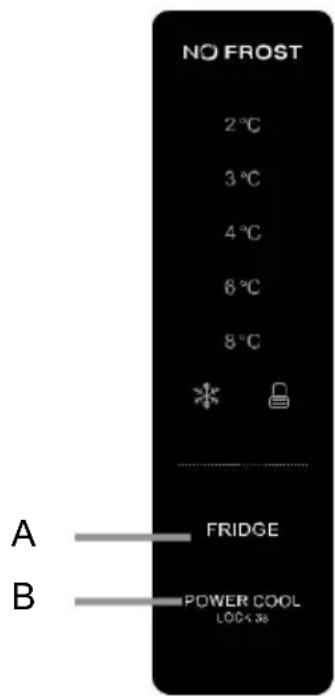

Control panel

A: Refrigerator compartment temperature control

B: Power Cool / lock / unlock

Recommended temp. setting: frdige (2°C \~ 4°C) / freezer: -18°C

Frdige compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days. Freezer compartment: 1\~2 : 1 week, 3-7: 1 month

NO FROST 2°C 3°C 4°C 6°C 8°C * FRIDGE POWER COOL LOCK 3s A B

Operating state

The control panel is switched on at 100% for 3 seconds, which works exactly according to the setting (mode and temperature) before switching off. The system will be automatically locked 2 seconds after the last key operation. After locking, the panel light would go out 60 seconds after the last key operation.

The two preset temperatures of the refrigerator compartment would be displayed on the screen.

Display

The panel will light up when the refrigerator or freezer compartment door is opened. (one door signal is detected at a time) The panel will be lit by any key operation while the light will go out 1 minute after the last operation. Display during normal operation

Refrigerator compartment temperature display: indicating the temperature of the current setting.

Key illustration

Refrigerator compartment temperature control

This key can be used in both user-defined and Super mode. After entering the refrigerator compartment temperature control, this button flashes. By pressing the key consecutively, the temperature would change in a circle of «2 °C, 3 °C, 4 °C, 6 °C, 8 °C», after which a flash of 5 seconds means that the selection of the temperature is set.

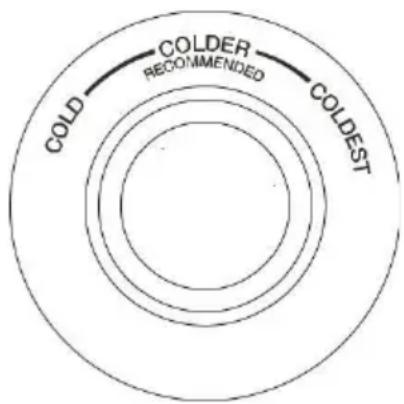

Freezer compartment temperature control

Plug in your device. The internal temperature is controlled by a sensor. There are 3 parameters COLD, COLDER and COLDEST. COLD. COLD is the warmest setting and COLDEST is the coldest setting.

The appliance may not operate at the right temperature if it is particularly hot or if you open the door often.

COLD COLDER RECOMMENDED COLDEST

Power cool / lock / unlock

Power Cool: press this key to enter / exit Power Cool mode in the « unlocked » state

When you enter it, the indicator lights up and the automatic exit after operation N in 3 hours.

Long press to enter / exit lock mode

• Unlocking: Press for 3 seconds in the locking mode, all the keys would be unlocked after the beep a.
• Locking: Press for 3 seconds in unlocking mode, all the keys would be locked after the beep a.

Briefly press the button after each press of the button

All buttons will only be valid in unlock mode.

Lock function

Operation in 60 seconds automatically locks the display.

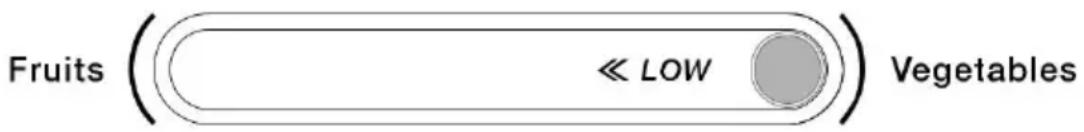

Humidity adjustment in the vegetable compartment

Low humidity: move the regulator to the left

High humidity: move the regulator to the right

Fruits (<< LOW) Vegetables

Daily use

Position the different foods in the different compartments according to the table below.

Refrigeration compartments	Type of food
Refrigerator compartment door or balconies	~ Foods with natural preservatives, such as jams, juices, drinks, condiments. ~ Do not store perishable food.
Chip drawer (salad drawer)	~ Fruits, herbs and vegetables should be placed separately in the crisper bin. ~ Do not store bananas, onions, potatoes, garlic in the refrigerator.
Refrigerator shelf - Cooler bottom (box / drawer)	~ Raw meat, poultry, fish (for short-term storage)
Refrigerator shelf - middle	~ Dairy products, eggs
Refrigerator shelf - high	~ Foods that do not need to be cooked, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer (s)	~ Foods for long-term storage. ~ Bottom drawer / shelf for raw meat, poultry, fish. ~ Middle drawer / shelf for frozen vegetables, chips. ~ Top drawer / shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum quantity of food that can be frozen in 24 hours is indicated on the nameplate.
• The freezing process takes 24 hours: during this period, do not add other food to be frozen.

Storage of frozen food

When switching on for the first time or after a period of non-use, before putting the products in the compartment, let the appliance run for at least 2 hours at the highest level. Important! In the event of accidental defrosting, for example if the power supply has been cut off for longer than the value indicated in the table of technical characteristics in the "rise time" section, thawed food must be eaten quickly or cooked immediately and then refrozen (after cooking them).

Defrosting

Frozen or deep-frozen foods, before being used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation. Small pieces can even be cooked while frozen, by removing them directly from the freezer. In this case, cooking will take longer.

Ice cube compartment

This appliance can be equipped with one or more ice compartments to produce ice.

ACCESSORIES

Movable shelves
The walls of the refrigerator are equipped with a series of slides so that the shelves can be positioned as desired.

➢ Positioning of door shelves

To allow the storage of food packages of different sizes, the door shelves can be removed. To make these adjustments, proceed as follows: gradually pull the bin in the direction of the arrows until it is released.

Line drawing of a hand holding a shelf with a tool, no text or symbols present

Simple line drawing of a container with two upward arrows inside (no text or symbols)

Helpful tips

To help you get the most out of the freezing process, here are some important tips:

• The maximum amount of food that can be frozen in 24 hours is indicated on the nameplate;
• The freezing process takes 24 hours. No other food to be frozen should be added during this period;
• Only freeze high quality food, fresh and thoroughly cleaned food;
• Prepare food in small portions so that it can be frozen quickly and completely and then allow only the required quantity to be thawed;
• Wrap food in aluminum foil or polyethylene and make sure the packaging is airtight;
• Do not allow fresh and unfrozen food to touch already frozen food, thus avoiding a rise in temperature of the latter;
• Lean foods keep better and longer than fatty foods; salt reduces the shelf life of food;
• Ice-water, if eaten immediately after being removed from the freezer compartment, may cause freezing burns to the skin;
• It is advisable to display the freezing date on each individual package to allow you to remove it from the freezer compartment, which can possibly cause freezing burns on the skin;
• It is advisable to display the date of freezing on each individual packaging to allow you to keep an eye on the duration of storage.

Tips for storing frozen food

To obtain the best performance from this appliance, you must:

• Ensure that commercially frozen food has been properly stored by the retailer;
• Make sure frozen food is moved from the food store to the freezer as soon as possible;
• Do not open the door frequently or leave it open longer than necessary.
• Once defrosted, food deteriorates quickly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Tips for refrigerating fresh food

To get the best performance:

• Do not keep hot food or evaporating liquids in the refrigerator
  • Cover or wrap foods, especially if they have a strong flavor
• Preparations (all types): wrap it in polyethylene bags and place it on the glass shelves above the vegetable drawer.
• For safety reasons, keep this way for a maximum of one or two days.
• Cooked food, cold dishes, etc.: these must be covered and can be placed on any shelf.

• Fruits and vegetables: these must be thoroughly cleaned and placed in the special drawer (s) provided.

• Butter and cheese: these must be placed in special airtight containers or wrapped in aluminum foil or polyethylene bags to exclude as much air as possible.

• Milk bottle: these must have a stopper and must be stored in the door balconies.
• Bananas, potatoes, onions and garlic, if not wrapped, should not be stored in the refrigerator.

TIPS FOR SAVING ENERGY

• Let the food cool before placing it in the appliance.
  • Make sure that food does not touch the back of the compartment (s).
• Make sure the device has enough space around it. This will help reduce energy consumption and reduce your electricity bills.
• Do not block air vents or grilles, for maximum energy efficiency.
• For efficient use of energy, respect the original position of all internal accessories (baskets, drawers, shelves).
• Do not open the doors frequently.
• Do not leave the doors open for too long.
• Do not set the thermostat too cold.
• Place frozen products in the refrigerator to defrost them.
• Defrost the freezer when a thick layer of ice has collected.

TEMPERATURE INDICATOR INSTALLATION

Coldest area:

• You will get a better preservation of your food if you place it in the cold zone that best suits their nature.
• The symbol below indicates the location of the coldest area of your refrigerator.
• This zone is delimited at the top by the low temperature compartment and at the bottom by the symbol or by the shelf positioned at the same height.
• In order to guarantee the temperatures in the coldest zone, take care not to change the positioning of this shelf.

To help you properly adjust your refrigerator, it is equipped with a temperature indicator that will allow you to monitor the average temperature in the coldest area.

Warning:

This indicator is intended to work only with your refrigerator, take care not to use it in another refrigerator (indeed, the coldest zone is not identical), or for another use.

VERIFYING THE TEMPERATURE IN THE COLDEST ZONE

Once the temperature indicator has been installed, you can regularly check that the temperature in the coldest zone is correct, and, if necessary, adjust the thermostat accordingly as indicated above.

For the good conservation of foodstuffs in your refrigerator and in particular in the coldest zone, take care that the temperature indicator displays "OK". If "OK" does not appear, the average temperature of the zone is too high. Set the thermostat to a higher position.

Correct setting

Too high temperature, adjustable thermostat

Each time the thermostat is changed, wait for the temperature inside the appliance to stabilize before proceeding with a new adjustment if necessary. Do not change the position of the thermostat only gradually and wait at least 12 hours before checking again and making any changes.

NOTES:

After loading the appliance with fresh food or after repeated opening (or prolonged opening) of the door, it is normal for the inscription « OK » not to appear in the temperature indicator.

Wait at least 12 hours before readjusting the thermostat.

CLEANING AND MAINTENANCE

For hygienic reasons, the interior of the appliance, including the interior accessories, should be cleaned regularly.

Warning!

• The appliance must not be connected to the mains during cleaning.
• Risk of electric shock! Before cleaning, switch off the appliance and remove the plug from the mains. You can also cut or disable the circuit breaker or fuse.
• Never clean the device with a steam cleaner. Moisture can accumulate in the electrical components, risk of electric shock! Hot vapors can damage plastic parts.
• The device must be dry before putting it back into service.

Important!

Ethereal oils and organic solvents can attack plastic parts, for example lemon juice or juice obtained with orange peels, butyric acid, cleaning products that contain acetic acid.

Interior cleaning

(1) Do not allow these substances to come into contact with the parts of the appliance.
(2) Do not use abrasive cleaners.
(3) Remove food from the freezer. Keep them in a cool, well covered place.
(4) Switch off the appliance and remove the plug from the mains. You can also cut or disable the circuit breaker or fuse.
(5) Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, run clear water and scrub to dry.
(6) Once everything is dry, restart the appliance.

Cleaning the drain opening

To prevent defrost water from overflowing into the refrigerator, periodically clean the drain hole on the back of the refrigerator compartment. Use a cleaner to clean the hole as shown in the image to the right.

Diagram of a mechanical device with rotating arms and force vectors, no text or symbols present

Lamp replacement

If the LED lamp is damaged, it must be replaced by the manufacturer or an authorized technician.

Defrosting the freezer

The refrigerator compartment gradually becomes covered with frost. It must be removed. Never use sharp metal tools to scrape off the frost from the evaporator as this may damage it.

However, if the ice becomes very thick on the interior lining, a complete defrost must be carried out as follows:

• Remove the plug from the electrical outlet;
• Take out all the preserved food, wrap it in several layers of newspaper and put it in a cool place;
• Keep the door open and place a bowl under the appliance to collect the defrost water;
• When defrosting is complete, dry the interior completely
• Put the plug back in the socket to restart the appliance.

Important!

Noises are emitted during normal use (compressor, refrigerant circulation).

TROUBLESHOOTING

Warning!

Before any troubleshooting, disconnect the power supply. Only a qualified electrician or a competent person should carry out the troubleshooting operations not indicated in this manual.

Problem	Possible cause	Solution
Device does not work	The device is turned off.	Press the "Adjustment" button for 5 seconds to switch on the appliance.
	The mains plug is not connected or is loose.	Insert the mains plug.
	A fuse has tripped or is defective.	Check the fuse, replace it if necessary.
	The plug is defective.	Mains malfunctions must be corrected by an electrician.
Food is too hot	The temperature is not set correctly.	Please see the section Setting the initial temperature.
	The door has been left open for an extended period.	Do not open the door longer than necessary.
	A large quantity of hot food has been placed in the appliance at the last 24 hours.	Temporarily turn the temperature control to a colder setting.
	The appliance is next to a heat source.	Please refer to the installation location section.
The appliance cools too much	The set temperature is too low.	Temporarily turn the temperature control knob to a warmer setting.
Unusual noises	The device is not plumb.	Adjust the wooden furniture if it is not plumb.
	The device touches the wall or other objects.	Move the device slightly.
	An element, for example a pipe, located at the back of the device touches a other part of the device or the wall.	If necessary, gently remove the element.
Water on the ground	The water drain hole is blocked.	See the Cleaning section.

TECHNICAL SHEET RELATING TO THE REGULATION ON ENERGY LABELING: 2019/2016/EU

Product Information sheet according to EU Regulation No.

2019/2016 Energy labelling for Refrigerating appliance can be found below URL or QR code indicated on Energy label.

SCDD480NF2IX - URL: https://eprel.ec.europa.eu/qr/426787

Product Guarantee & Spare part available

Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service

is free of charge .The minimum duration of the warranty

(manufacturer's warranty for private consumers) in the European

Economic Area is 2 years ) according to the terms of warranty applicable to the location. The

terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information about the warranty period and terms of warranty in your country are available from

Customer Service, your dealer or our website.

Function-relevant genuine spare parts according to the

corresponding Eco-design Directive can be obtained

from Customer Service for a period of at least 4 years from the date on which your appliance was placed on

the market within the European Economic Area.

For further technical specifications on repairing agent, and order spare parts. Please go to: https://www.schneiderconsumer.com

DISCLAIMER OF WARRANTY:

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

DISPOSAL

The European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE), requires that old appliances are not thrown in the normal municipal waste stream. Old appliances must be collected separately in order to optimize the rate of recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol of the dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their device.

Information on the meaning of conformity marking

CE

The CE mark indicates that the product meets the essential requirements of the European Directives 2014/35 / EU (Low Voltage), 2014/30 / EU (Electromagnetic Compatibility), 2011/65 / EU (Reduction of the use of certain hazardous substances in EEE).

SCHNEIDER
