Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

NOTICE!

Please check the position of the doors before the first use and/or after transport of the appliance. If the doors do not close properly, proceed as follows:

1. Loose the retaining screws of the hinges.
2. Adjust the doors properly.
3. Tighten the screws.

Index

1. Safety instructions.... 21
2. Climatic classes.... 24
3. Installation 25

3.1 Site 25
3.2 Ventilation.... 25

1. Operation....26

4.1 Before initial operation 26
4.2 Temperature setting.... 27
4.3 Operation parameters....27
4.4 Helpful hints/energy saving....27

1. Cleaning and maintenance....29

5.1 Defrosting....29
5.2 Replacing of the illuminant 30

1. Trouble shooting.... 31
2. Decommissioning....32
3. Technical data.... 33
4. Waste management.... 34
5. Guarantee conditions.... 35

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! Indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! Indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! Indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use.
i The appliance is intended for cooling food in a private household only.
i The appliance is intended for indoor-use only.

The appliance is not intended to be operated during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free at the installation site:

a) Open all windows.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

b) Do not unplug the appliance and do not use the control panel or thermostat.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).

3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

6. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

7. Do not use a socket board or a multi socket when connecting the appliance to the mains.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.

13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

14. Disconnect the appliance from the mains before you clean or maintain it.

15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

16. Do not put any heat-radiating appliances onto your appliance.

17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

21. Children must never play with the appliance.

22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
2. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
3. Do not store any gassy beverages or water bottles in the freezing compartment of the appliance as their containers can explode.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^ .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature

3. Installation

3.1 Site

1. Completely remove the transport-protection (adhesive tape) of the accessories. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
2. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
3. Install the appliance in a dry and well-ventilated place.
4. Protect the appliance from direct sunlight.
5. The doors must open completely and without hindrance.
6. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
7. Connect the appliance to the mains properly.
8. The nameplate is situated inside the appliance or at the back.

3.2 Ventilation

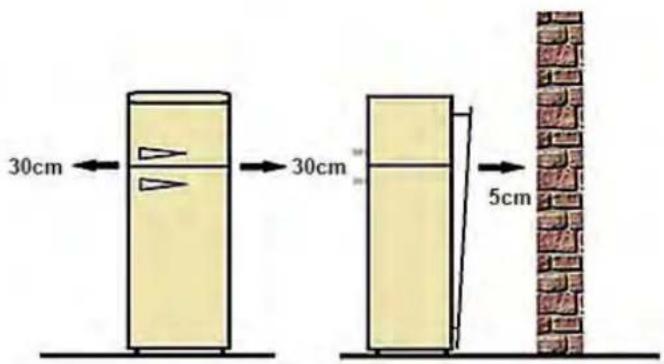

30cm 30cm 5cm

Adjustable feet

Clockwise down

Anti-clockwise → up

Spacers

Depending on model, the appliance is supplied with two plastic spacers. After installation of these spacers, the appliance cannot be pushed against the wall to maintain proper ventilation. Insert the spacers into the relevant openings on the back of the appliance,

3D diagram of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

then turn by 45^0 to the right or left.

4. Operation

1 2 3 4 4 4 3 5 6 6 6 7

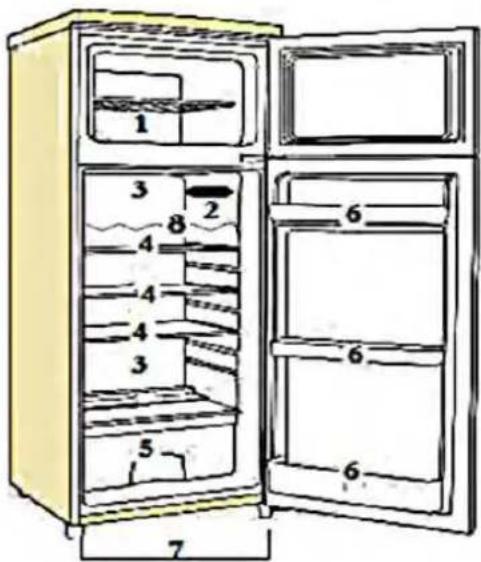

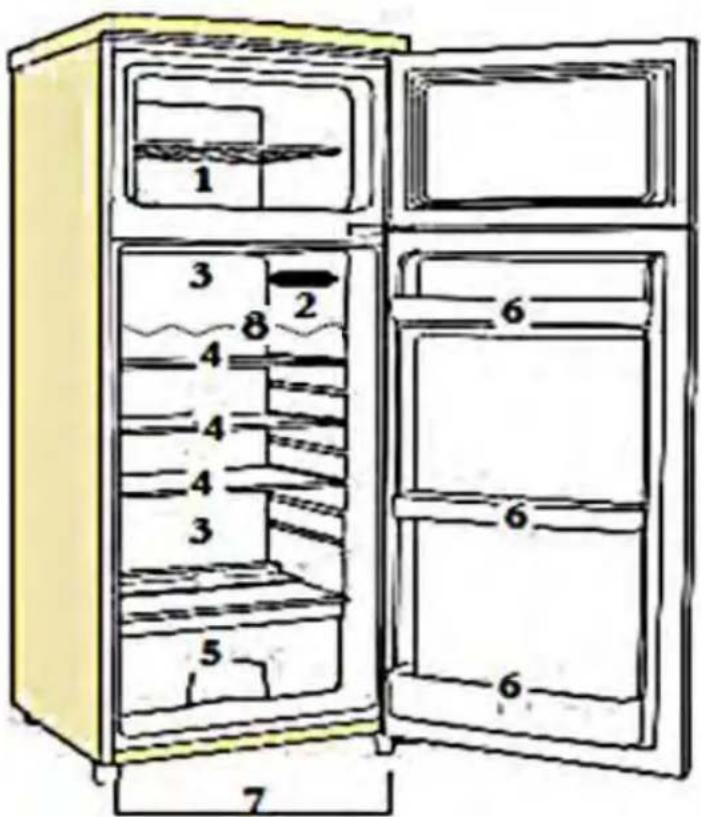

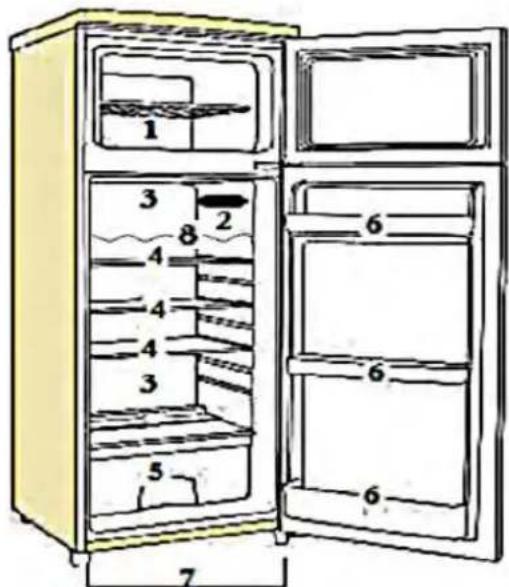

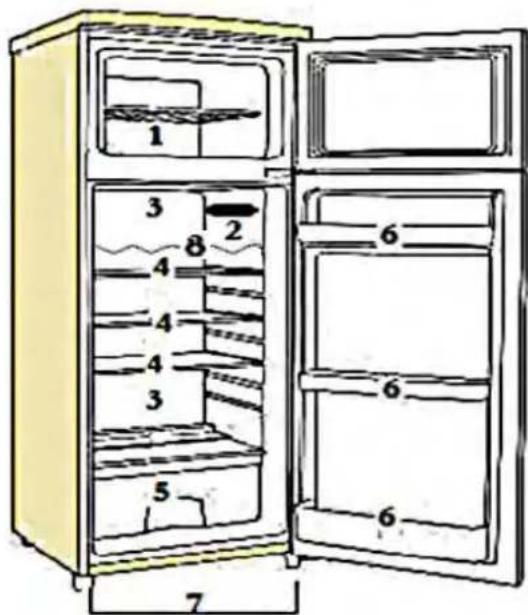

1	Freezer compartment	2	Thermostat
3	Cooling compartment	4	Shelves
5	Crisper	6	Door trays
7	Adjustable feet	8	Wine rack

4.1 Before initial operation

1. Clean the appliance thoroughly. Be very careful especially inside the appliance.

2. After having installed the appliance wait 4-6 hours before you connect it to the mains.

3. • Positions 1 and 2 correspond to a lower cooling power.

4. Positions 3 and 4 correspond to a normal cooling power.

5. Position 5-7 generates the appliance maximum cooling power.

In normal usage conditions you are advised to select a positions 3 or 4 for proper conservation of foodstuff in the appliance.

1. Afterwards operate the appliance after 24 hours for the first time.

2. The temperature of the freezer should reach -18^ or colder. You can check the exact temperature of the cooling and freezer compartments using a suitable thermometer ^5 .

⚠ WARNING THE THERMOSTAT CONTROLS THE COMPRESSOR ONLY. You must unplug the appliance to disconnect it from the mains.

^5 Not included in delivery

4.2 Temperature setting

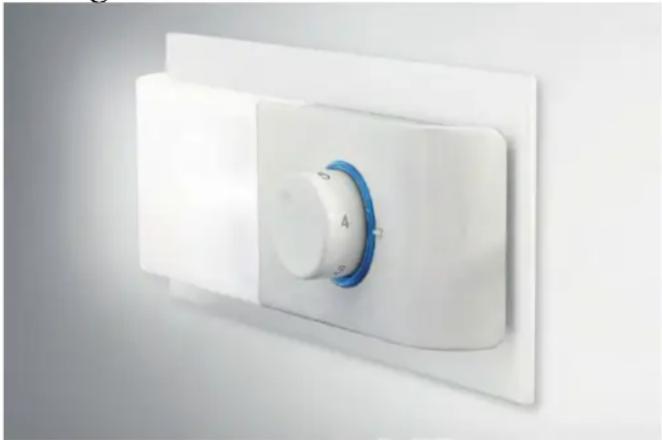

White wall-mounted electrical switch with a blue circular knob and labeled ports (no text or symbols visible)

1 Warmest setting
3/4 Recommended setting for daily use at an average ambient temperature of 16^ C to 38^ C.
7 Coldest setting

4.3 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

4.4 Helpful hints/energy saving

1 1 2 3 3 3 4 6 6 5

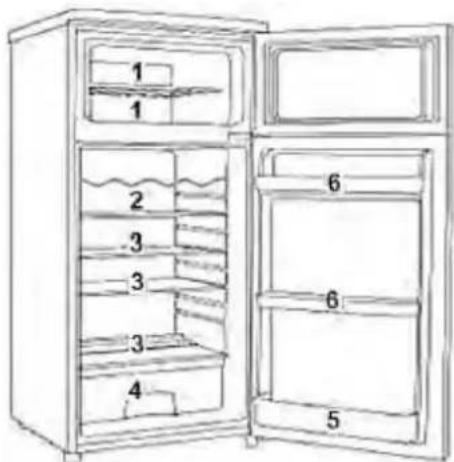

1 Frozen foods
2 Convenience foods, pastries dairy products
3 Meat, sausage
4 Fruit, vegetables
5 Beverages
6 Butter, cheese, eggs

Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.

◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.

Store your food in colourless, airtight and tasteless materials.

Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.

Allow ample storage place for your food. Do not overfill your appliance.

- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.

Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.

If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18°C or lower).

Put the frozen food you want to defrost into the cooling-compartment of you appliance.

How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven
√ in a microwave

❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.

Permanently check, that the appliance is well-ventilated. The appliance has to be

5. Cleaning and maintenance

1. ⚠WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^8 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

Cooling compartment

1. The cooling compartment is defrosted automatically. The water runs into a container near the compressor.
2. If the automatic defrosting does not meet the requirements, e.g. on days with high ambient temperatures and humidity, defrost the appliance manually as described above.

Freezer compartment

1. Remove the contents from the freezing-compartment and put them into a cooling box.
2. Place a container in front of the appliance to catch the water.
3. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
4. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
5. Remove the big pieces of ice first.
6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

⚠ WARNING! Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. Risk of electric shock!

NOTICE! Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance.

5.2 Replacing of the illuminant

⚠ WARNING! The lamp on this device must only be changed by a qualified technician!

WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only.

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.

The appliance needs some time to reach the preset temperature.

➢ Doors opened too often or too long.

Do not open the door too often/too long.

Unsatisfactory cooling capacity.

The door was frequently opened.
Select a different setting if necessary.
The door is not properly closed.
▶ Check the door/door seals.
▶ Encrusted ice inside the appliance.
▶ Defrost the appliance.
The current temperature setting is too warm
- Warm or hot beverages inside the appliance.
The appliance is overfilled.
The door seals are damaged.

Strong formation of encrusted ice.

The door is not properly closed.
▶ Close the door.
The door seal is damaged or soiled.
Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

Clean the seals.

Unusual noise.

The appliance is not installed on level, dry and solid floor.

The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

▶ Realign the appliance.
▶ Readjust the appliance.
▶ Realign the bottles
Remove these items.

Some items have dropped behind the appliance.
If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below a certain level the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

May be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

Is caused by the compressor while running.

Knocking/snapping

May be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7. Decommissioning

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

➢ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or

2. Let the appliance operate.

3. Do the same as described above, or

4. Let the appliance operate.

a. remove all perishable food from the cooling compartment.

b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model	Freezer fridge
Climatic class	N/ST
Energy efficiency class*	A++
Annual energy consumption in kW/h**	170.00
Voltage/frequency	220-240V AC/50Hz
Volume net / refrigerator / freezer in l	206/166/40
Stars	4***
Freezing capacity/24 hours	2.00 kg
Max. storage time/malfunction	10.00 h
Noise emission	42 dB/A
Adjustable thermostat	1
Compressor	1
Refrigerant	R600a
Changeable hinge position	-
Adjustable feet	2
Defrosting cooling compartment/freezer	automatically/manual
Dimensions appliance H*W*D in cm	149.70*54.60*64.60
Weight net/gross in kg	51.00/55.00

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).

**

Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

9. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

10. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the Schneider-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a Schneider-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.

2. the appliance is repaired by a non-professional.

3. the appliance is damaged by the vendor, the installer or a third party.

4. the installation or the start-up is performed inappropriately.

5. the maintenance is inadequately or incorrectly performed.

6. the appliance is not used for its intended purpose.

7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Oktober 2016

Cher client,

3D diagram of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

4. Utilisation

1 2 3 4 4 4 3 5 6 6 7

White wall-mounted switch with a blue circular knob labeled 'A' (no text or symbols beyond the label)

3D diagram of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

1 2 3 4 4 4 3 5 6 6 6 7

White wall-mounted electrical switch with a blue rotary knob (no text or symbols visible)

1 Warmste instelling

on the leaflet inside this instruction manual.

Subject to alterations
