USER MANUAL DPN1850PPXJ DEWALT

Front barrel (collar)

Battery release button

Yellow service indicator LED

DeWALT tool tag mounting holes

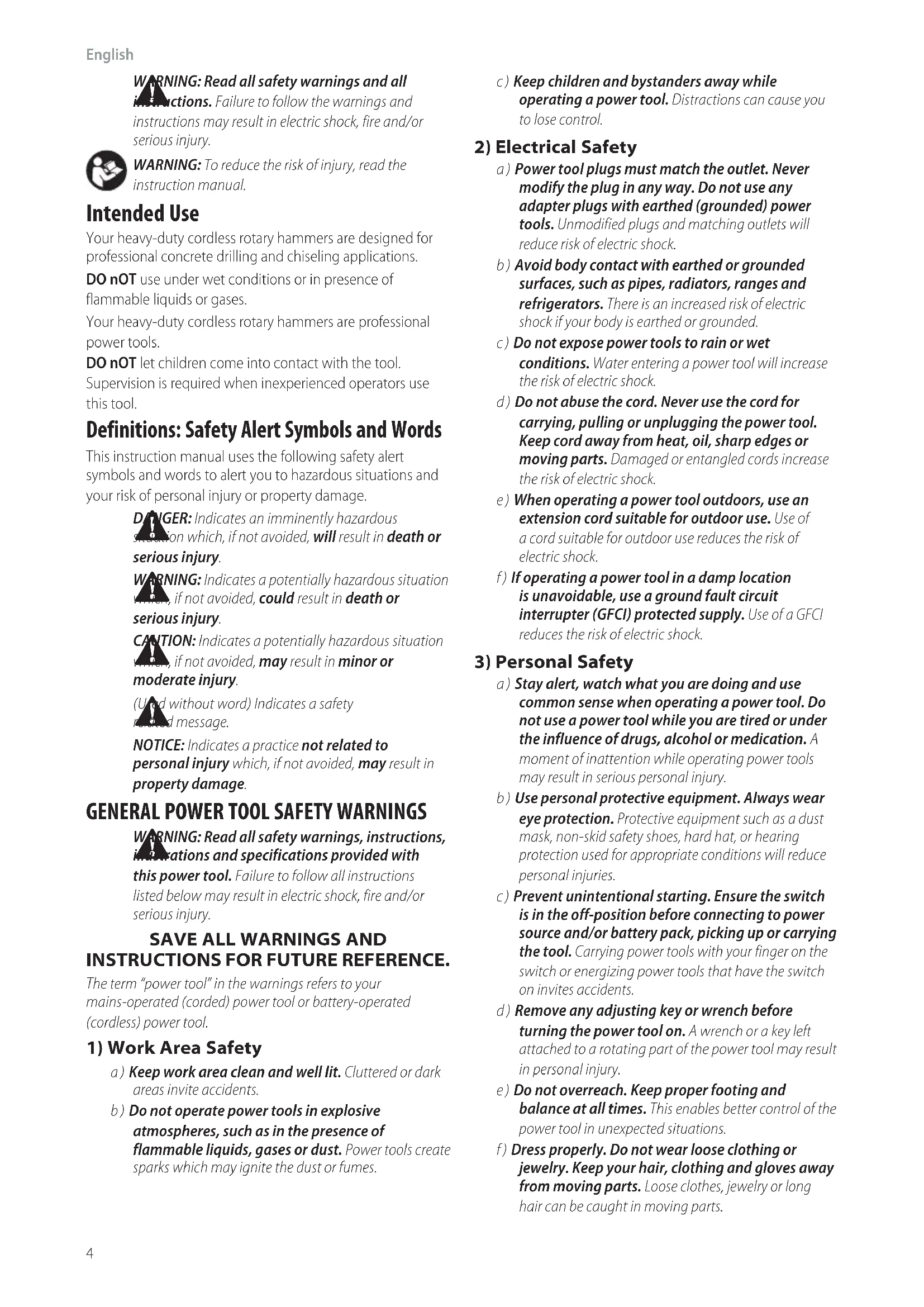

c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool” in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use Your heavy-duty cordless rotary hammers are designed for professional concrete drilling and chiselingapplications. DO nOT use under wet conditions or in presence of flammable liquids orgases. Your heavy-duty cordless rotary hammers are professional power tools. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual.5 English Additional Safety Instructions for Rotary Hammers

• Wear ear protectors. Exposure to noise can cause hearingloss.

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personalinjury.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electricshock.

• Be certain that the material being drilled does not conceal electric or gas service and that their locations have been verified with the utilitycompanies.

• Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss ofcontrol.

• Wear safety goggles or other eye protection. Hammering operations cause chips to fly. Flying particles can cause permanent eye damage. Wear a dust mask or respirator for applications that generate dust. Ear protection may be required for mostapplications.

• Keep a firm grip on the tool at all times. Do not attempt to operate this tool without holding it with that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects,English

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in DeWALTchargers.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

.......................no load speed n .........................rated speed ......................earthing terminal .....................safety alert symbol .....................visible radiation ..................... wear respiratory protection ..................... wear eye protection ..................... wear hearing protection ..................... read all documentation the work by hand or against your body is unstable and may lead to loss ofcontrol andinjury.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. Additional Safety Information

it. Damage or personal injury couldresult.

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically‑treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals. Direct particles away from face andbody.

• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in closeproximity.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding both hands. Operating this tool with one hand will result in loss of control. Breaking through or encountering hard materials such as re‑bar may be hazardous aswell.

• Do not operate this tool for long periods of time. Vibration caused by hammer action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent restperiods.

• Do not recondition bits yourself. Chisel reconditioning should be done by an authorized specialist. Improperly reconditioned chisels could causeinjury.

• Accessories and tool may get hot during operation. Wear gloves when handling them if performing heat producing applications such as hammerdrilling and drillingmetals.

• Never lay the tool down until the bit has come to a complete stop. Moving bits could causeinjury.

• Do not strike jammed bits with a hammer to dislodge them. Fragments of metal or material chips could dislodge and causeinjury.7 ENGLISH Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a DeWALT charger. DeWALT The RBRC® Seal Please take your spent battery packs to an authorized DeWALT service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org. or call the toll free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc. Shipping the DeWALT FLEXVOLT™ Battery Pack The DeWALT FLEXVOLT™ battery pack has a battery cap that should be used when shipping the batterypack. Attach the cap to the battery pack to ready it for shipping. This converts the battery pack to three separate 20V batteries. The three batteries have the Watt hour rating labeled “Shipping” on the battery pack. If shipping without the cap or in a tool, the pack is one battery at the Watt hour rating labeled“Use”. Example battery pack label: USE: 120 Wh SHIPPING: 3 x 40 Wh In this example, the battery pack is three batteries with 40Watt hours each when using the cap. Otherwise, the battery pack is one battery with 120Watthours. variation based on product components, temperature, and end-userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs (Fig. B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject toENGLISH

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack. The red charging light

will continuously blink whilecharging.

3. Charging is complete when the red charging light

remains continuously ON. Battery pack can be left in charger or removed. Some chargers require the battery pack release button to be pressed forremoval.

WARNING: Only charge batteries in air temperature

over 40° F (4.5° C) and below 105° F (+40.5°C).

4. Charger will not charge a faulty battery pack, which

may be indicated by the light staying OFF. Take charger and battery pack to an authorized service center if light staysOFF. NOTE: Refer to label near charging light on charger for blinkpatterns. Older chargers may have additional information and/or may not have a yellow indicatorlight. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the red light continuing to blink but with the yellow light continuously ON. Once the battery pack has reached an appropriate temperature, the yellow light will turn OFF and the charger will resume the chargingprocedure. DCB118 and DCB1112 Chargers The DCB118 and DCB1112 chargers are equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to becooled. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.9 ENGLISH Proper Hand Position (Fig. H)

WARNING: To reduce the risk of serious personal

injury, ALWAYS use proper hand position asshown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Installing and Removing the Battery Pack (Fig. D) NOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage. To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Bit and Bit Holder

WARNING: Burn Hazard. ALWAYS wear gloves when

changing bits. Accessible metal parts on the tool and bits may get extremely hot during operation. Small bits of broken material may damage barehands. The rotary hammer can be fitted with various chisel bits depending on the desired application. Use sharp drill bitsonly. Inserting and Removing SDS Max® Bits (Fig. F)

1. Clean the insert shank end of the accessory to remove

any debris, then lightly grease with a light oil or lubricant.

2. Insert bit in the bit holder

and apply downward pressure while rotating to secure the bit into place. The bit shank must beclean.

3. Ensure the bit is properlyengaged.

NOTE: The bit needs to move several centimeters in and out of the bit holder

and pull the bitout.

2. Slide the assembly onto the nose of the tool, through

, past the chisel holder andsleeve.

3. Rotate the side handle assembly to the desired position.

For hammerdrilling horizontally with a heavy drill bit, place the side handle assembly at an angle of approximately 20° to the tool for optimumcontrol.

4. Lock the side handle mounting assembly in place by

securely tightening the handle

rotating it clockwise so that the assembly will notrotate. Side Handle (Fig. E)

WARNING: To reduce the risk of personal injury,

ALWAYS operate the tool with the side handle properly installed. Failure to do so may result in the side handle slipping during tool operation and subsequent loss of control. Hold tool with both hands to maximizecontrol. The side handle

clamps to the front of the gear case and may be rotated 360˚ to permit right- or left-hand use. Mounting the Straight Side Handle (Fig. E)

1. Widen the ring opening of the side handle

by rotating it counterclockwise.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Wall Mounting Some DeWALT chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

2. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

3. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.ENGLISH

CAUTION: Read all saftey warnings, instruction and specifications of the appliance which is paired with thehammer. Your hammer is equipped with a Wireless Tool Control™ transmitter which allows your hammer to be wirelessly paired with another Wireless Tool Control™ device, such as a dustextractor. To pair your hammer using Wireless Tool Control™, press and hold the trigger switch

on the hammer and the Wireless Tool Control™ pairing button on the seperate device. An LED on the seperate device will let you know when your hammer has been successfullypaired. E-Clutch® and Service Indicator LED (Fig. A) Your rotary hammer has two LEDs, indicating the E-Clutch® (ADC) function

and a service indicator

. Refer to the table for more information on LEDfunctionality. LED Function Description Red (permanently on) E-Clutch® E- Clutch® anti-rotation system isengaged. Yellow (permanently on) Service required The yellow service indicator LED lights up to indicate the tool needs servicing within the next 10 hours of use (new lubrication and hammer mechanism sealing). Yellow (flashing) Service exceeded With the service indicator lit, after a further 10 hours use the service indicator flashes to indicate the tool has exceeded the required service interval. E-Clutch

System (Fig. A) In addition to the integral (mechanical) clutch, the DeWALT anti-rotation E-Clutch® system, offers technology capable of detecting the motion of the tool. This feature senses the motion of the tool and shuts it down if necessary. The red indicator LED

illuminates when the E-Clutch® System isengaged. Overload Clutch In case of jamming of a drill bit, the drive to the drill spindle is interrupted by the overload clutch. Due to the resulting forces, always hold the tool with both hands and take a firmstance. After the overload, release and depress the trigger to re-engagedrive.

WARNING: Drill may stall if overloaded causing a

sudden twist. Always expect the stall. Grip the drill firmly to control the twisting action and avoidinjury. Electronic Speed and Impact Control (Fig. A) The electronic speed and impact control allows the use of smaller drill bits without the risk of bit breakage, hammerdrilling into light and brittle materials without shattering and optimal tool control for precisechiseling. To set the speed dial

, turn the dial to the desired level. The higher the number, the greater the speed and impact energy. Dial settings make the tool extremely flexible and adaptable for many different appli cations. The required setting depends on the bit size and hardness of material beingdrilled. DeWALT Bluetooth® Tool Tag Ready (Fig. A) Optional Accessory

WARNING: Read instruction manual for the DeWALT

WARNING: Remove battery from tool before installing

WARNING: When installing or replacing the DeWALT

Bluetooth® Tool Tag, use only the screws provided. Be sure to securely tighten thescrews. Your tool comes with mounting holes

and fasteners for installing a DeWALT Bluetooth® Tool Tag (DCE041). You will need a T15 torx bit tip to install the tag. Screw torque should be between 0.8 and 1.2 Nm (7.1 to 10.6 in-lbs). The DeWALT Tool Tag is designed for tracking and locating professional power tools, equipment, and machines using the DeWALT Tool Connect™ app. For proper installation of the DeWALT Tool Tag, refer to the DeWALT Tool Tagmanual. To learn more,visit: www.DeWALT.com/en-us/jobsite-solutions/tool-connect SHOCKS Active Vibration Control® System For best vibration control, hold the tool as described in Proper Hand Position and apply just enough pressure so the damping device on the main handle is approximately mid stroke. The hammer only needs enough pressure to engage the active vibration control. Applying too much pressure will not make the tool actuate faster and active vibration control will notengage. Operation Modes (Fig. A)

WARNING: Do not select the operating mode when

CAUTION: Never use in Rotary Drilling or Rotary Hammering mode with a chisel bit in the bit holder. Personal injury and damage to the the tool mayresult. Your tool is equipped with a mode selector dial

selectthe mode appropriate to desiredoperation. Proper hand position requires one hand on the main handle

, with the other hand on the side handle

ENGLISH Repairs The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DeWALT factory service center or a DeWALT authorized service center. Always use identical replacementparts. Accessories

WARNING: Since accessories, other than those offered

by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT call 1-800-4-DeWALT (1-800-433-9258) or visit our website: www.dewalt.com. Performing an Application (Fig. A, G)

INJURY, ALWAYS ensure workpiece is anchored or clamped firmly. If drilling thin material, use a wood “back‑up” block to prevent damage to thematerial.

WARNING: Always wait until the motor has come to

a complete standstill before changing the direction ofrotation.

1. Choose and install the appropriate chuck, adapter, and/

or bit onto to the tool. Refer to Bit and Bit Holder.

, selectthe mode appropriate to desired application. Refer to OperationModes.

4. Place the bit/chisel on the desired location.

. The farther you depress the trigger switch, the faster the tool will operate. For maximum tool life, use variable speed only for starting holes orfasteners.

6. To stop the hammer, release the switch.

Recommendations for Tool Operation

• Large (5/16" to 1/2" [7.9 mm to 12.7 mm]) holes in steel can be made easier if a pilot hole (5/32" to 3/16" [4 mm to 4.8 mm]) is drilledfirst.

• When drilling, always apply pressure in a straight line with the bit, but do not push hard enough to stall the Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1approved eye protection when performingthisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your DeWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Indexing the Chisel Position (Fig. A) The chisel can be indexed and locked into 24differentpositions.

1. Rotate the mode selector dial

until it points towards the position.

2. Rotate the chisel in the desiredposition.

to the “Hammering Only”position.

4. Twist the chisel until it locks inposition.

Symbol Mode Application Rotary Hammering Drilling into concrete and masonry Hammering only Chipping Bit Adjustment Chisel bit position adjustment To Select an Operating Mode

• Rotate the mode selector dial

so that the arrow points to the symbol corresponding for the desiredmode. NOTE: The arrow on the mode selector dial

must be pointing at a mode symbol at all times. There are no operable positions inbetween. It may be necessary to briefly run the motor after having changed from 'hammering only' to 'rotary' modes in order to align thegears or to postion the chiselbit. motor or deflect thebit. A smooth even flow of material indicates the proper drilling rate.

• If drilling thin material or material that is prone to splinter, use a wood “back-up” block to prevent damage to thework piece.

(Emission Sound Pressure Level) 97 96

(Uncertainty of Given Sound Level)

Drilling into Concrete (Value a h,HD ) 9.0*** 10.1*** Uncertainty K 1.5 1.5 Chipping/Chiselling (Value a h,Cheq ) 8.8*** 9.4*** Uncertainty K 1.5 1.5 *** Measured at the side handle. Side handle vibration is higher than vibration at the main handle. Three Year Limited Warranty DeWALT will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.dewalt.com or call 1-800-4-DeWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING

THE IMPLIED WARRANTY OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. In addition to the warranty DeWALT tools are covered byour: DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first afterpurchase. 2YEARS FREE SERVICE ON DeWALT BATTERYPACKS DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120, DCB122, DCB124, DCB127, DCB201, DCB203BT, DCB207,DCB361 3YEARS FREE SERVICE ON DeWALT BATTERYPACKS DCB200, DCB203, DCB204, DCB204BT, DCB205, DCB205BT, DCB206, DCB208, DCB230, DCB240, DCB606, DCB609, DCB612, DCB615 NOTE: Battery warranty voided if the battery pack is tampered with in any way. DeWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.

90DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your DeWALT Power Tool or Nailer for any reason, you can return it within 90days from the date of purchase with a receipt for a full refund – no questionsasked. Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.dewalt.com LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DeWALT (1-800-433-9258) for a freereplacement.13 English TROUBLESHOOTING GUIDE BE sURE TO FOllOW sAFETY RUlEs AnD insTRUCTiOns For assistance with your product, visit our website at www.dewalt.com for a list of service centers, or call DeWALT at 1-800-4-DeWALT (1-800-433-9258). PROBlEM POssiBlE CAUsE sOlUTiOn Tool will not start. Battery pack not installed properly. Check battery pack installation. Battery pack not charged. Check battery pack charging requirements. Internal componets too hot. Allow tool to cool down. Reduced Power. The speed dial is set to a lower setting. Rotate the speed dial to a higher setting suitable for the application. Battery has low state of charge. Replace with fresh battery pack. The bit does not rotate. The mode selector dial is not correctly engaged, or is set to “Hammering Only” or is set to position "O". Rotate the mode selector dial to "Rotary Hammering". Refer to Operation Modes. The bit cannot be released. The chuck is not pulled back fully. Pull the chuck back as far as it will go and remove the bit. Refer to Inserting and Removing SDS MAX Bits. The yellow service indicator light is on or flashing. The time for service has been reached. Have service perfomed by an authorized DeWALT service center if necessary. Refer to E-Clutch® and Service Indicator LEDs. Tool shuts off abruptly. Battery pack has reached its maximum thermal limit. Allow battery pack to cool down. Out of charge. (To maximize the life of the battery pack it is designed to shut off abruptly when the charge is depleted.) Place on charger and allow to charge. Battery pack will not charge. Battery pack not inserted into charger. Insert battery pack into charger until LED illuminates. Charger not plugged in. Plug charger into a working outlet. Refer to Important Charging Notes for more details. Surrounding air temperature too hot or too cold. Move charger and battery pack to a surrounding air temperature of approximately 65 °F – 75 °F (18 °C– 24 °C).FRAnçAis

• Maximum initial battery voltage (measured without a workload) is 20, 60or 120volts. Nominal voltage is 18, 54or 108. (120V Max* is based on using 2DeWALT 60V Max* lithium‑ion batteries combined.)

WARNING: Use of any other battery packs may create a risk of injury andfire.
