Product type	Kettle with filter
Brand	Russell Hobbs
Model	2285070
Filtration technology	BRITA® MAXTRA+
Automatic shut-off	Yes, at boiling
Dry boil protection	Yes, safety cut-out
Filter life indicator	BRITA® memo indicator (4 weeks)
Lid	Lockable with release
Handle	Yes
Base	Supplied, with connector
Funnel	Removable for cartridge
Cleaning	Wipe with a damp cloth, do not immerse
Replaceable parts	BRITA® MAXTRA+ filter cartridge, memo indicator
Safety	Hot surfaces, do not immerse, keep out of reach of children under 8 years
Use	Domestic and similar applications (offices, hotels, etc.)
First use	Rinse the cartridge, carry out two boiling cycles and discard the water
Box contents	Kettle, base, funnel, filter cartridge, memo indicator, screwdriver
Power supply	Mains (wall socket)
Warning	Do not use near water (bathtub, shower)

Frequently Asked Questions - 2285070 RUSSELL HOBBS

How to install the BRITA filter cartridge?

Open the lid, remove the old cartridge. Immerse the new cartridge in a bowl of cold water until bubbles stop, place it in the funnel until it clicks. Fill the funnel quickly, then refill when empty. Discard the first two quantities of water.

How to set the BRITA memo indicator?

Press and hold the START button until 4 bars appear and the indicator flashes twice. Each week, one bar disappears. After 4 weeks, a flashing arrow indicates the cartridge needs changing.

What to do if the kettle does not heat?

Check that the base is plugged in and the switch is set to I. If the kettle has been used dry, the safety cut-out has tripped: remove the kettle from the base, let it cool, then replace it.

How to clean the kettle?

Unplug the base and allow to cool. Wipe all surfaces with a clean, damp cloth. Never immerse the kettle, base, cord or plug in water.

Why is there moisture on the base?

This is normal. The steam used for automatic shut-off condenses and drains through holes under the kettle.

How to change the filter cartridge?

Open the lid, firmly hold the funnel with one hand, pull the used cartridge upwards. Follow the installation steps for the new cartridge (immersion, rinsing).

What if black particles appear in the water?

These carbon particles are harmless. They can come from the new cartridge. Rinse the cartridge well before use and discard the first two waters.

Can I use tap water directly without filtration?

Yes, you can, but filtering reduces limescale and improves taste. If you do not use a cartridge, remove the funnel and fill the kettle directly.

How to remove the memo indicator for recycling?

Place the tip of a screwdriver in the notch above the indicator and pry it off the lid. Recycle it according to local regulations.

Can the kettle be used by children?

Yes, from 8 years under supervision. Children must not play with the appliance nor perform cleaning unless they are over 8 and supervised. Keep the appliance and cord out of reach of children under 8 years.

USER MANUAL 2285070 RUSSELL HOBBS

Exterior view of a modern glass-wrapped coffee maker with 'BRITA' branding and 'Russell Hobbs' logo (no additional text or symbols visible)

8 7 max 6 5 4 9 10 3 2 1 START % 100 75 50 25

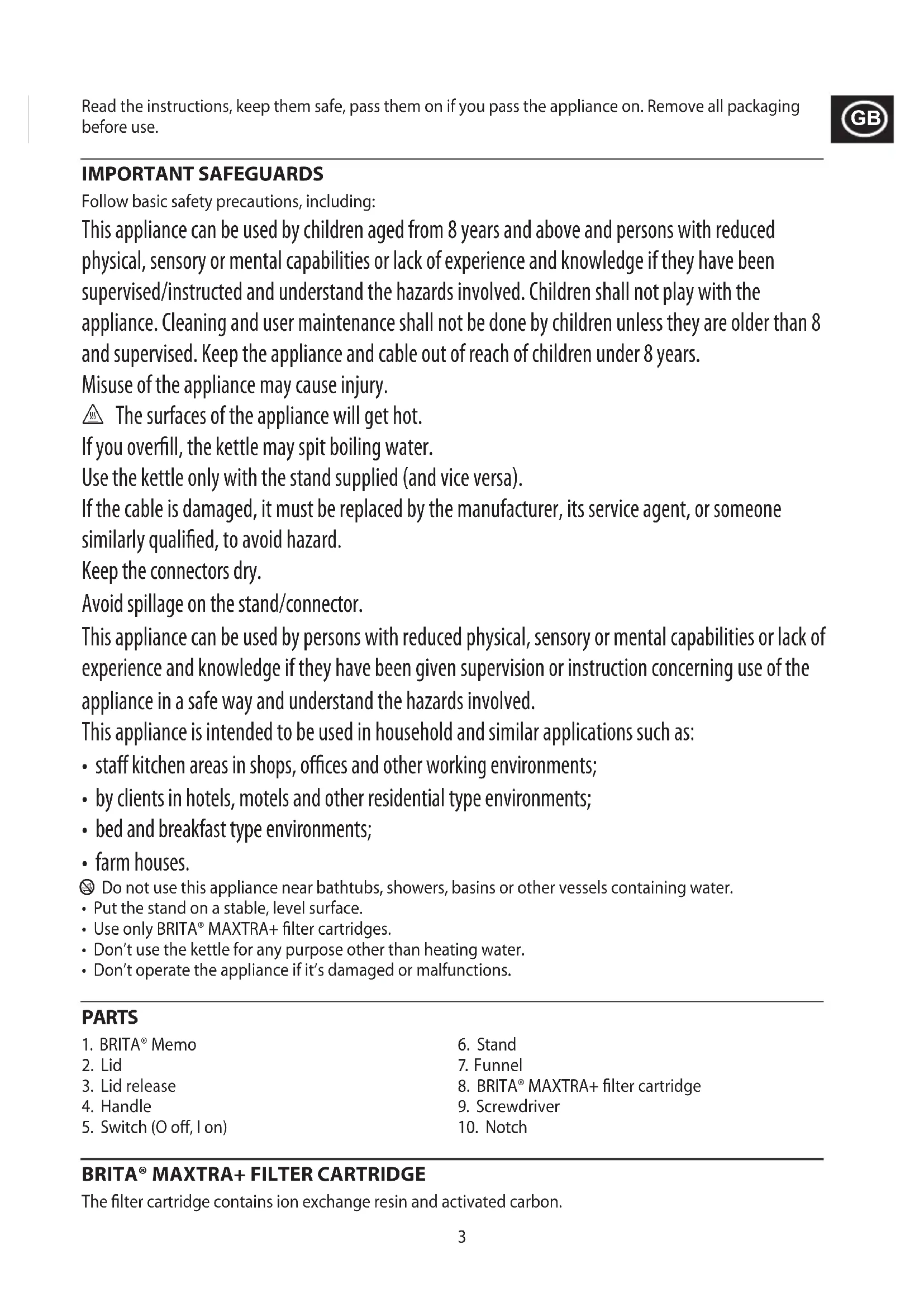

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot.

If you overfill, the kettle may spit boiling water.

Use the kettle only with the stand supplied (and vice versa).

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Keep the connectors dry.

Avoid spillage on the stand/connector.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- Put the stand on a stable, level surface.

- Use only BRITA® MAXTRA+ filter cartridges.

- Don't use the kettle for any purpose other than heating water.

- Don't operate the appliance if it's damaged or malfunctions.

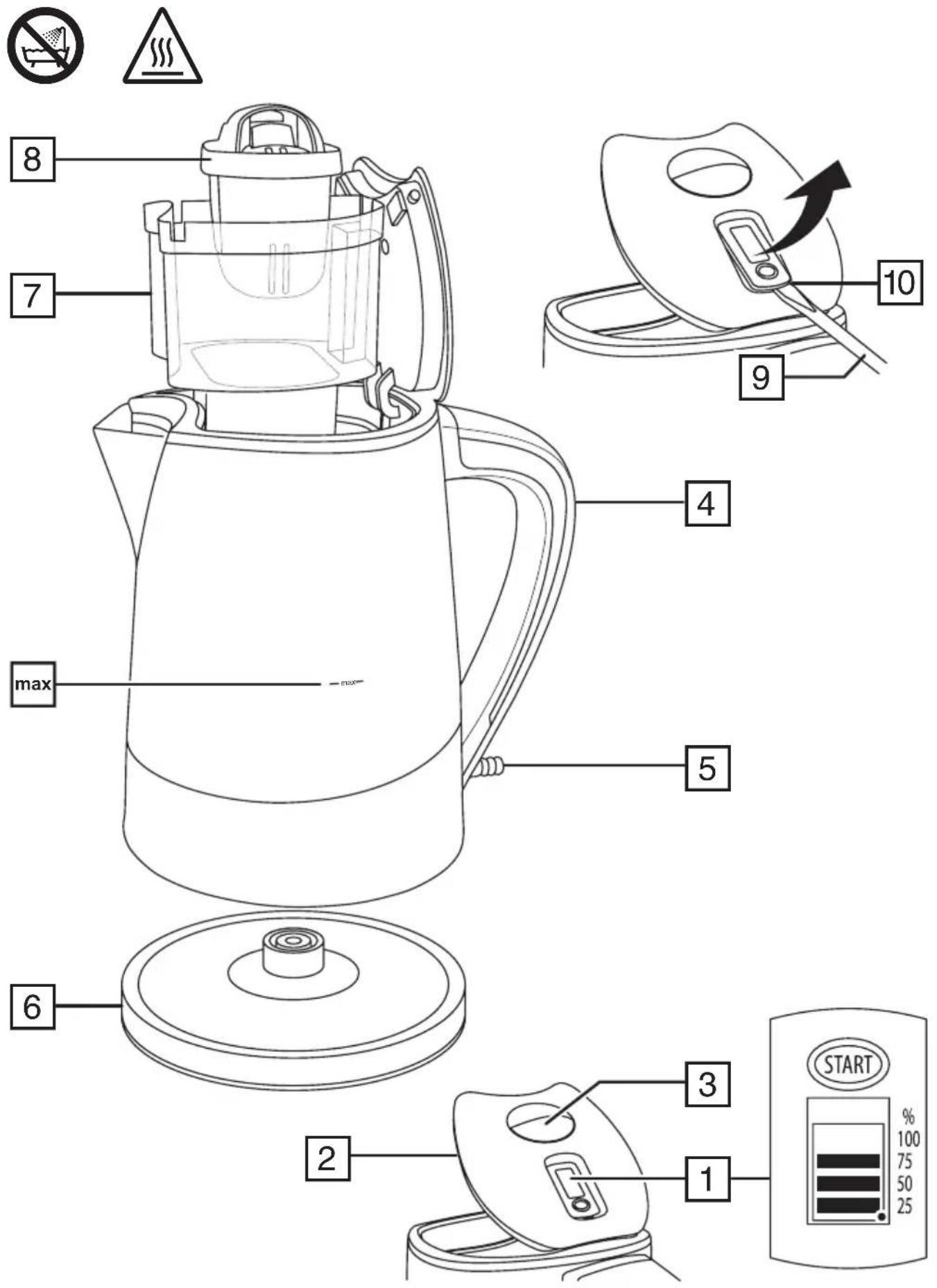

PARTS

1. BRITA® Memo

2. Lid

3. Lid release

4. Handle

5. Switch (O off, I on)

6. Stand

7. Funnel

8. BRITA® MAXTRA+ filter cartridge

9. Screwdriver

10. Notch

BRITA® MAXTRA+ FILTER CARTRIDGE

The filter cartridge contains ion exchange resin and activated carbon.

Reduces limescale and substances, eg. chlorine, that affect taste and odour.

Reducing the impurities makes the water look and taste better, and the reduction in limescale helps your kettle too.

Remember – water is a food, it goes off. Use filtered water within one day.

BEFORE USING FOR THE FIRST TIME

• Open the lid.
• Remove the filter cartridge from inside the kettle

PREPARING THE FILTER CARTRIDGE

You can find more information about BRITA® filter cartridges and the BRITA® Memo in the BRITA® Information Guide supplied with the kettle.

1. Open the lid.
2. To remove a used filter cartridge, hold the funnel firmly with one hand, grip the top of the filter cartridge with the other hand and pull it up and out.
3. Remove all packaging from the new filter cartridge.
4. Don't worry if the inside of the packaging is damp – it's just condensation.
5. There might be black carbon particles in the packaging or on the filter cartridge. Don't worry, they're harmless.
6. To ensure efficient operation, all air must be removed from the filter cartridge.
7. Submerge the filter cartridge in a bowl of cold water and shake it gently till no more bubbles are released.
8. You may notice some black carbon particles floating in the water. Again, don't worry, they're harmless.
9. Before first use, you must flush the filter cartridge.
10. Push the filter cartridge into the funnel till it won't go any further.
11. Fill the funnel quickly.
12. Fill it again when it empties.
13. This should fill the kettle to about the max mark.
14. Discard the water, and repeat the operation.
15. When you've discarded two lots of water, the filter cartridge is ready for use.

RESET THE BRITA® MEMO

This shows what proportion of the filter cartridge's 4 week life is left.

1. Press and hold the START button till all 4 bars appear and flash twice, then let go.
2. Every week, one bar will disappear.
3. When all 4 bars disappear, a flashing arrow will appear at the top of the display. This means it's time to replace the filter cartridge.
4. When the display gets down to one bar, it's a good idea to check that you've got another filter cartridge available. If you haven't, it's time to buy some.
5. The flashing dot at the bottom right of the display shows that the Memo is working.

HOLIDAYS

If you haven't used the kettle for a few days:

• empty the kettle and rinse it out
- flush the filter cartridge (see points 10-15)

FILLING

1. Open the lid.
2. Fill with at least 2 cups of water, but not above max.
3. Fill the funnel quickly.

4. Fill it again when it empties.

5. This should fill the kettle to about the max mark.

6. If the water level is above the max mark, pour some water out of the kettle.
7. Close the lid, and press down to lock it.

SWITCHING ON

1. Put the stand on a stable, level surface.
2. Plug the stand into the wall socket.
3. Put the kettle on the stand.
4. Move the switch to I. The light will come on, and the kettle will heat up.

SWITCHING OFF

When the water boils the kettle will switch off and the light will go out.

To switch off manually, move the switch to 0.

GENERAL

When you lift the kettle, you may see moisture on the stand. Don't worry – it's the steam used to switch off automatically, which then condenses and escapes via vents under the kettle.

You may see some discolouration on the floor of the kettle. Again, don't worry – it's due to the bonding of the element to the kettle floor.

USING WITH INSUFFICIENT WATER

This will shorten the life of the element. A boil-dry cut-out will switch the kettle off.

You must then remove the kettle from its stand to reset the cut-out.

Sit the kettle on the work surface till it's cold.

CARE AND MAINTENANCE

Unplug the stand, and let the kettle cool before cleaning.

Wipe all surfaces with a clean damp cloth.

THE FUNNEL

1. Open the lid.
2. Put your thumbs inside the funnel.
3. Gently press one thumb against either side of the funnel and lift it out of the kettle.

DISPOSAL

Sadly, nothing lasts forever, and the day will come when your appliance comes to the end of its natural life.

The appliance contains a battery, which must be removed from the appliance, and recycled, or disposed of in an environmentally friendly way.

Put the end of a screwdriver in the notch above the Memo, and prise it out of the lid.

Your local authority will have arrangements for recycling or disposing of the BRITA® Memo.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

Durezza: 300 + 60/-30 mg/l as CaCO3 ;

Alcalinità: 200 + 40/-20 mg/l as CaCO3

^4 NSF / ANSI 42 - 2010:

pH: 7.5 ± 0.5

Temperature: 20 ± 3 °C (68 ± 5 °F)

Residuo fisso (TDS): 200 – 500 mg/l

Carbonio organico totale (TOC): ≥ 1.0 mg/l

Cloro Libero Disponibile (FAC): 2 mg/l ± 0.2 mg/l

Torbidità: < 1 NTU
