Product Type	Cordless Vacuum Cleaner
Brand	Numatic
Model	Hetty Cordless HEB160
Dimensions (L x W x H)	315 x 340 x 345 mm
Ready-to-use Weight	6.88 kg
Power Supply	Lithium-Ion Battery (international charger 100-240 V ~ 50/60 Hz)
Battery Life	Approx. 20 min (high speed) / 30 min (low speed)
Tank Capacity	6 L
Sound Pressure Level	64.5 dB(A) (Hi) / 62.6 dB(A) (Lo) – uncertainty 0.5 dB
Protection Class	III
Main Functions	Dry vacuuming, two speeds, TriTex filtration
Maintenance and Cleaning	Regularly check the bag and filters; do not clean with steam or high pressure; remove battery before maintenance
Safety	Thermal cut-out, automatic shut-off in case of overheating, battery removed for maintenance
Spare Parts and Repairability	Lithium-Ion Battery (ref. 902928), EU charger (903227), CH charger (904383), GB charger (903229), dust bag NVM-1CH (604015), TriTex 11\" filter (901607)
Battery Warranty	500 charge cycles (subject to compliance with instructions)
Recommended Use	Commercial (hotels, schools, hospitals, factories, shops, offices)

Frequently Asked Questions - Hetty Cordless HEB160 Numatic

How to start the Hetty Cordless HEB160 for the first time?

The battery is delivered in transport mode. Place it in the supplied charger before use. A full charge is recommended before first use.

What is the battery life?

The battery life is approximately 20 minutes on high speed and 30 minutes on low speed at room temperature.

How to interpret the charger indicators?

The charger has a two-color indicator: solid green: charging complete; flashing green: charger standby; solid red: charging in progress; flashing red: charge preparation.

What to do if the vacuum stops during use?

The vacuum is equipped with a thermal cut-out. Let it cool down, it will restart automatically. If the problem persists, remove the battery and check for blockages in the floor head, tubes, and hose.

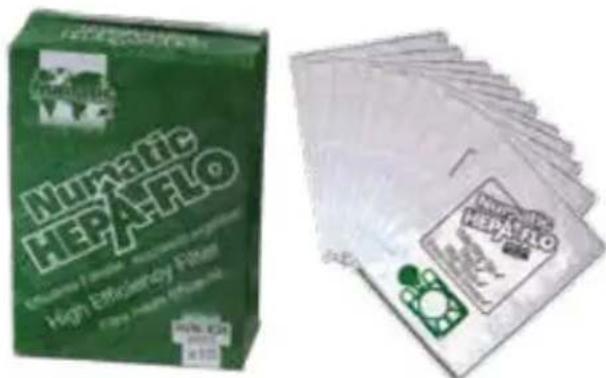

What types of bags and filters should I use?

Use only genuine Numatic filter bags (ref. 604015 NVM-1CH) and the TriTex filter (ref. 901607). Using non-original parts may reduce performance and damage the machine.

Can I vacuum water or damp materials?

No, this vacuum is designed only for dry cleaning. Do not use it in a damp environment or to vacuum liquids or damp materials.

How to properly maintain the vacuum?

Regularly check the dust bag and filters. Clean the machine (hoses, tubes) and ensure no debris obstructs the passage. Never clean with steam or high pressure. Always remove the battery before any maintenance.

What to do in case of battery leakage?

Avoid contact with skin or eyes. In case of contact, rinse thoroughly with water for at least 15 minutes and consult a doctor. The battery must be disposed of according to local regulations.

Where can I find spare parts?

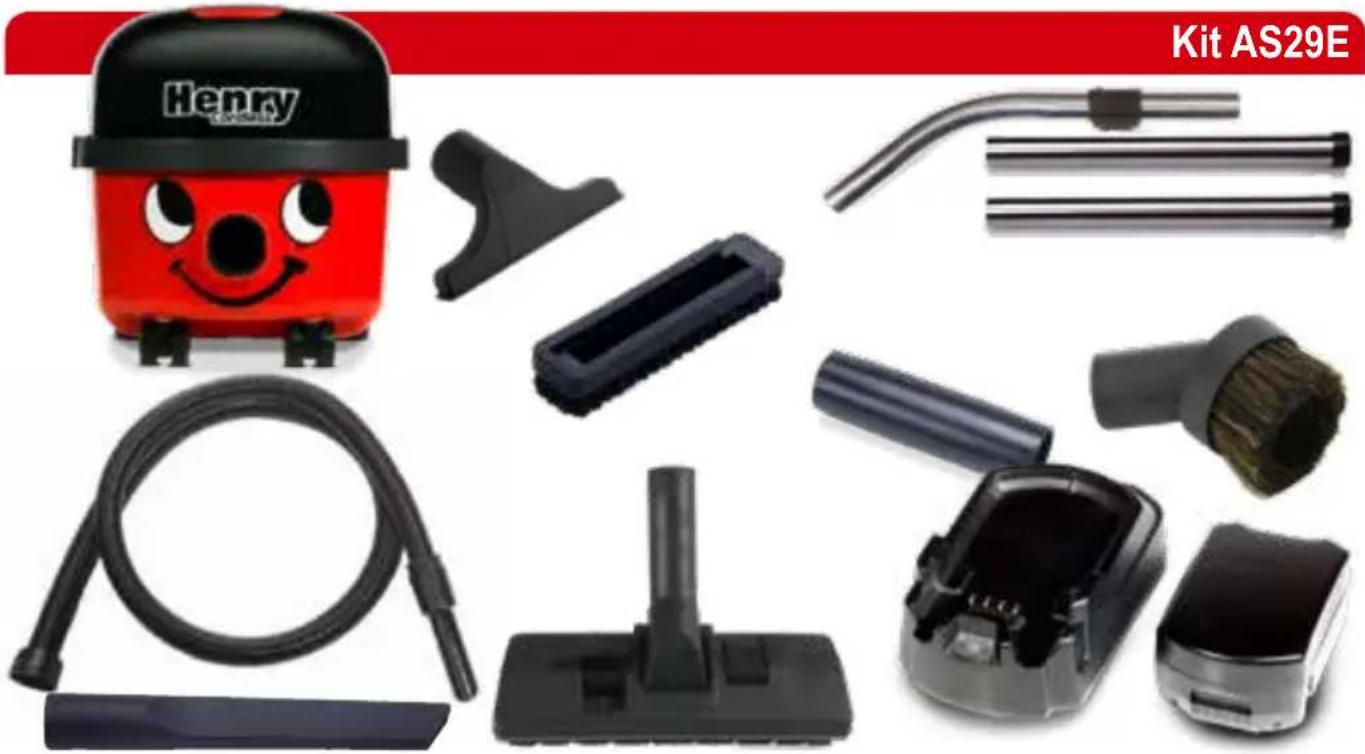

Spare parts (battery, charger, bag, filter) are available from your Numatic dealer or technical service. Use only original Numatic parts.

Is the battery covered by warranty?

Yes, the Lithium-Ion battery is warranted for 500 charge cycles if the usage and charging instructions are followed. Using a non-original charger voids the warranty.

USER MANUAL Hetty Cordless HEB160 Numatic

HVB 160 Henry / HEB 160 Hetty GB, DE,

FR, NL,

PT

Numatic Lithium-Ion Battery Powered

Read instructions before using the appliance.

Warnhinweis:

Original Instructions.

Numatic

INTERNATIONAL

www.numatic.com

NOTE*

Located in the bottom of your box is your Lithium-lon Battery and charger.

HINWEIS*

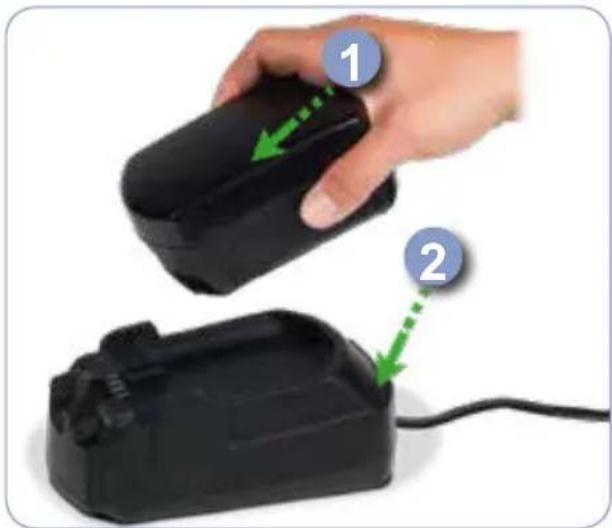

Operating your appliance for the first time

Your Battery will arrive in transportation mode.

It is not possible to operate your Henry, until the battery is first placed on the charger.

It is recommended that a battery is fully charged before first use.

De accu is ingesteld in transport modus.

High Speed Setting = >20 mins / Low Speed Settings = >30 mins @ room temperature

Betriebszeiten

Battery Vacuum State of Charge Indicator

Normal operation Indicator show battery state of charge (S0C)

Recharging required Indicator does not illuminate

Error Condition Indicator flashes on / off

Charger Status Indications

The charger is equipped with a double colour LED's to indicate the status of the charger and battery.

CHARGE INDICATOR STATUS
Green Continuously On Charge Complete
Green Flashing Without Pause Charger in Standby
Red Continuously On Charging
Red Flashing Without Pause Preparing to Charge
ERROR INDICATOR STATUS
1 Red Flash With Pause Battery Fault
2 Red Flashes With Pause Charger Over Temperature
3 Red Flashes With Pause Charger Fault

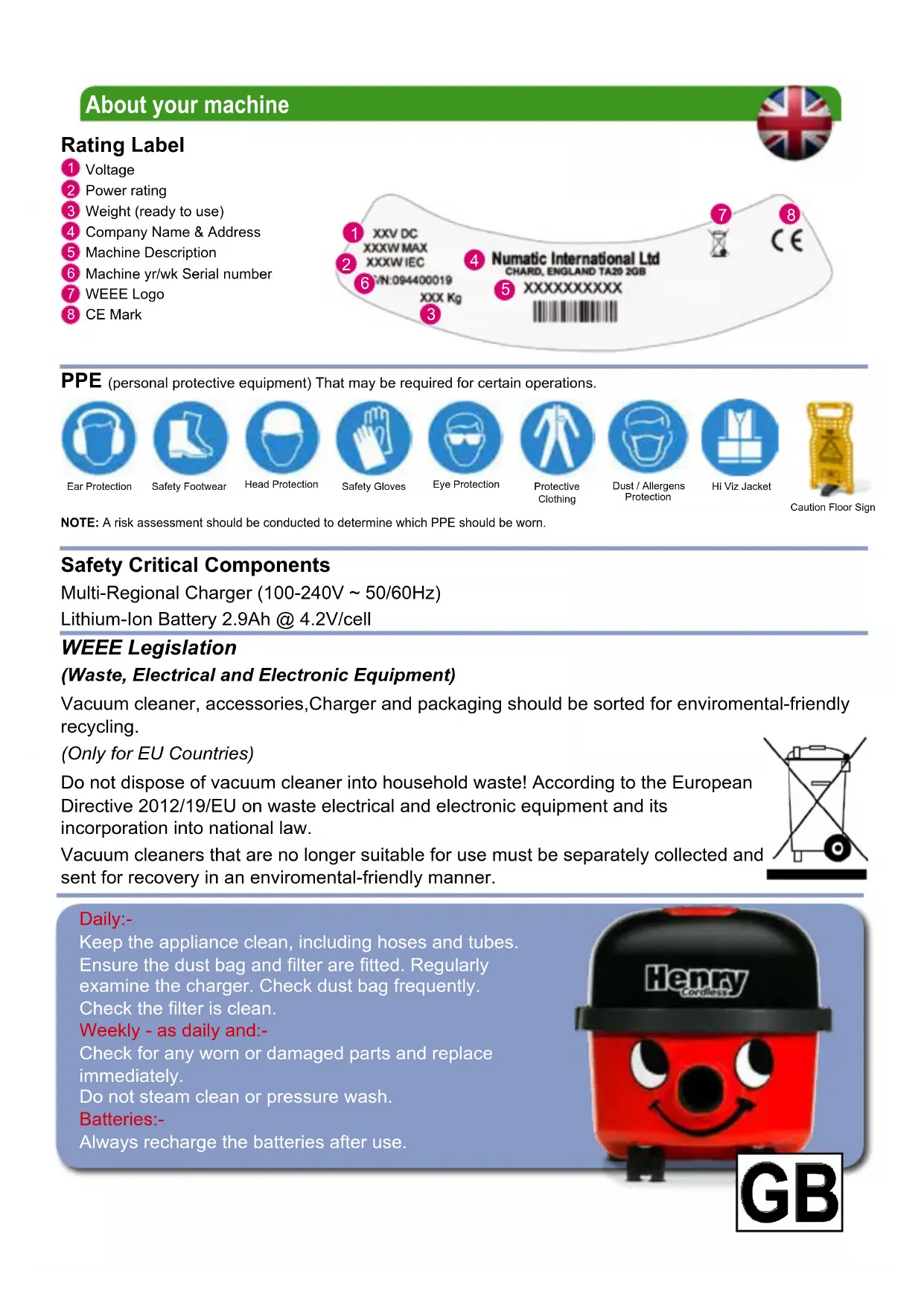

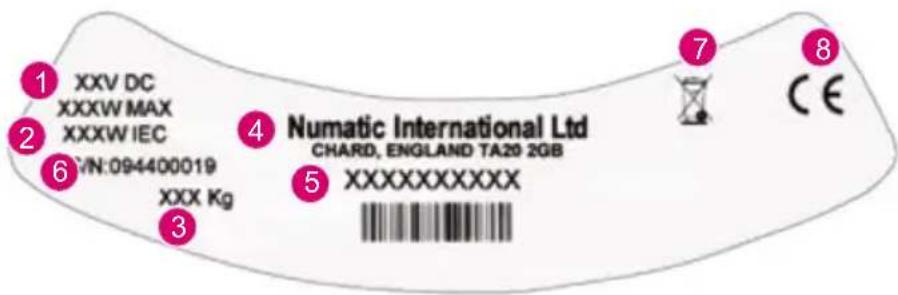

Voltage
2 Power rating
Weight (ready to use)
Company Name & Address
Machine Description
Machine yr/wk Serial number
WEEELogo
CE Mark

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection

Safety Footwear

Head Protection

Safety Gloves

Eye Protection

Protective Clothing

Dust / Allergens Protection

Hi Viz Jacket

Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Multi-Regional Charger (100-240V ~ 50/60Hz)

Lithium-Ion Battery 2.9Ah @ 4.2V/cell

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories, Charger and packaging should be sorted for environmental-friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

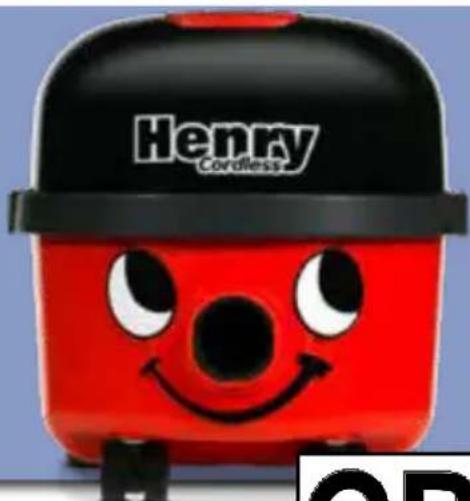

Daily:-

Keep the appliance clean, including hoses and tubes.

Ensure the dust bag and filter are fitted. Regularly examine the charger. Check dust bag frequently.

Check the filter is clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Do not steam clean or pressure wash.

Batteries:-

Always recharge the batteries after use.

Ensure you read the instruction manual before using the appliance.

Operators shall be adequately instructed on the use of these appliances, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.

WARNING

Failure to carry out maintenance as necessary, including the replacement of parts to the board could render this equipment unsafe and the manufacturer can accept no responsibility for any loss.

This machine is for DRY USE only.

You must remove the battery from the machine BEFORE cleaning or maintenance and when replacing parts.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This appliance is not suitable for the collection of biological hazards, hazardous or explosive dusts.

Contact your local distributor if you require a appliance capable of performing these tasks.

This device may be used by children of 8 years of age and over, as well as by persons with reduced physical, sensory or mental abilities, or lack of experience and knowledge when supervised or instructed regarding the safe use of the device and the resulting dangers.

Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

CAUTION

This appliance must not be stored outside, or used in wet environments, or to collect wet materials.

The vacuum cleaner should be stored in a dry place and is for indoor use only.

You must ensure that the filtration system fitted to the appliance is suitable for the material being collected.

NOTES This product complies with the requirements of IEC/EN 60335-2-69, IEC 60335-2-2

This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the battery from the appliance before investigating where the fault lies.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone].

World Wide Lithium-Ion Battery Technical Helpline [phone]

If the vacuum cleaner has a blockage, switch off, remove the battery from the appliance, and inspect the floor tool, wands and hose for debris. If the floor tool, wands and hose are clear, replace the dust bag and clean the filter.

This appliance is equipped with a thermal cut-out to protect the motor and other vital machine parts from overheating.

The vacuum cleaner should be inspected after use for damage.

The size and quality of the dust bag and filters affect the machine efficiency.

Use of non-original dust bags or non-original filters can cause restricted air flow which may lead to machine overload.

• Keep your appliance clean.
• Fully charge battery before first use.
• Keep the filter clean.
• Use dust bags, they will enhance performance and help keep appliance clean.
• Use Numatic Original dust bags under fine dust conditions.
• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

• Change dust bag frequently.

• Keep diffuser filter (where fitted) clean.

• Remove battery from appliance when not in use.

• Use to suck up hot ashes, lighted cigarette ends or flammable gases.

• Use steam cleaners, pressure washers or immerse in water to clean the appliance.
• Attempt appliance maintenance or cleaning unless the battery has been removed from the appliance.
• Use or store in a wet environment or to collect wet materials.

ImportantWarnings-Batteries

Read all the warnings before using the battery.

This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.

a) Do not dismantle, open or shred secondary cells or batteries.
b) Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight
c) Do not short-circuit a cell or battery. Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short circuited by other metal objects.
d) Do not remove a cell or battery from its original packaging until required for use.
e) Do not subject cells or batteries to mechanical shock.
f) In the event of cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
g) Do not use any charger other than that specifically provided for use with the appliance.
h) Observe the plus (+) and minus (-) marks on the cell, battery and appliance and ensure correct use.
i) Do not use any cell or battery which is not designed for use with the appliance.
j) Seek medical advice immediately if a cell or battery has been swallowed.
k) Use only original NUMATIC batteries, when replacement batteries are required.
1) Keep cells and batteries clean and dry.
m) Secondary cells and batteries need to be charged before use.
n) Do not leave a battery on prolonged charge when not in use.
o) After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
p) Retain the original product literature for future reference.
q) When possible, remove the battery from the appliance when not in use.
r) Do not immerse in any liquid.
s) Do not charge damaged batteries.
t) If the batteries or cells are leaking, return batteries to a disposal plant or a similar local facility.
u) The batteries must be removed from the appliance before the appliance is scrapped.

The battery is equipped with electronic thermal protection, refer to the Temperature Range Table below for recommended operating conditions.

Temperature Range Table

Storing +5 ...	+35	°C
Discharge +5 ...	+35	°C
Charge +5 ...	+35	°C
Shipment -40 ...	+80	°C
Humidity 10 ...	90% RH no condensation

In case battery is subject to environmental conditions outside the above parameters user must allow at least 3 hours for battery to acclimatise at room temperature before attempting to operate.

If the battery is found to be faulty at any time, contact Numatic International, or World Wide Lithium-Ion Battery Technical Helpline [phone]

Care and Disposal of Li Ion Batteries

DEFECTIVE BATTERIES

ATTENTION

Please follow all safety guidelines set out.

A defective battery should not be stored inside buildings on any account.

If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier, however, Faulty batteries must not be returned through the postal system or by courier.
If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be offered for condition checking. It must be considered defective and the procedures described followed.
If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows No signs of impact damage, distortion, blistering, loose parts or leakage, may be offered for condition checking with an appropriate battery condition checking device operated by a competent person.
If on checking the battery is found to be operational then a single recharge cycle under observation can be attempted with the appropriate Numatic charger.
If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery.
If the battery fails to recharge correctly on this single recharge cycle then it must be deemed a defective battery and the procedures followed.
- On no account must any further attempt to recharge be made.
- A defective battery should not be stored inside buildings on any account.
- The defective discharged battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and clearly signed as a defective battery container with appropriate warnings.

The battery is to be disposed of safely and in accordance with all locally approved precautions and environmental regulations.

NOTE*

Your Battery will arrive in transporteraion mode, to preserve shelf life.

It is not possible to operate (discharge) the battery until the battery is placed on the charger. It is recommended that a battery is fully charged before first use.

ImportantWarnings-Charger

Read all these warnings before using the charger.

• CAUTION! Charge only Numatic Lithium-Ion batteries,other types of batteries may burst causing personal injury and damage.
• Check the mains cord regularly for any sign of damage. If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC INTERNATIONAL cord available from the manufacturer or service agent.
• Do not use damaged devices.
• Protect the charger against moisture and store it in a dry place.
• Do not use the charger if it is wet.
• The mains voltage available must correspond to the voltage stated on the rating plate of the charger.
• Do not operate charger in explosive environment.
• Do not carry the charger by holding the mains cord.
• Do not handle the electrical cord or plug, with wet hands.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not cover the charger.
• Do not open the charger. Repairs shall be done only by authorised personnel.
• Do not charge damaged batteries.
• Do only charge dry batteries.
• Do not charge non-rechargeable batteries in this charger.

Warning:

The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fire could result. Only use genuine Numatic parts.

Instructions for Use - Charging Batteries

The charger is intended for use only on flat surfaces, place horizontally on floor or work surface.

The charger is intended for use with the power cord supplied, the power unit is capable of operating at different voltages without user adjustment.

If your charger is fitted with a non detachable cable this can only be changed by an authorized service partner.

Make sure cable replacements are a genuine Numatic service part.

If the charger is damaged or does not charge anymore, do not use and contact your supplier.

Charging Procedure:

1. Ensure the battery is fully inserted into the charger.
2. Fit the mains power cord to charger and suitable power supply.
3. Charger Status Lights table, (see page 8).

Hazards

Health Hazards (Acute & Chronic).

The chemicals used in the battery are in a sealed container.

Risk of exposure only occurs if the battery is abused or damaged.

Contact of electrolyte and lithium with skin and eyes should be avoided.

Signs & Symptoms of Exposure.

A damaged or leaking battery can cause chemical burns upon contact.

If exposed to any of the Chemicals mentioned in the Hazards section please follow the procedures below:

Eyes.

Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelid. Seek medical attention.

Skin.

Remove contaminated clothing and rinse skin with plenty of water or shower for 15 minutes. Seek medical attention.

Inhalation.

Vacate from site of exposure to fresh air immediately. Use oxygen if available.

Ingestion.

Give at least two glasses of milk or water. Induce vomiting unless patient is unconscious. Seek medical attention.

Note:

Inhalation, skin contact and eye contact are possible if the battery is damaged.

Exposure to internal contents, the corrosive fumes will be very irritating to skin, eyes and mucous membranes.

Overexposure can cause symptoms of non-fibroid lung injury and membrane irritation.

Spare Parts

902928 Lithium-Ion Battery

903245 Charger UK (Hard Wired)

903227 Charger Plugged (European)

904383 Charger Plugged (Swiss)

903229 Charger Plugged (UK)

604015 NVM - 1CH HepaFlo Dust bag

901607 11" TriTex Filter

Data
Drum Size Operating Times Weight (Ready to work)			Protection Class
6 L Hi = >20 mins Lo = >30 mins	6.88 kg Class	III
Sound Pressure Size
Hi = 64.5 dB (A) Lo = 62.6 dB (A) Uncertainty 0.5 dB	315 x 340 x 345 mm

Use Numatic Original dust bags

604015 NVM-1CH (X 10)

Angaben zum Gerät

Leistungsschild

Numatic International Ltd CHARD, ENGLAND TA20 2GB

5 xxxxxxxxxxxxx

Batterie Lithium-Ion Numatic 2.9Ah @ 4.2V/cell

We hereby deshve under nui hnsponsabity that the following equipment fulls all the relevant prourices of the following FJ filtrations

Machine Directive 2006/42/EC

EMIC Disactive 2014/36/EJ

R:HSD#e2011/b5/bU

Machine Description:

Machine Type: H-8, ICD Series

Reeyang standard upen an ch conlformity isocarndla

2014-6128

F 2012

1N5c12:206-47.2079+47201

21550442:1997-A1:2001-02:1006

2013年7月1日

A technical construct or for the equipment is acquired at the manufacturer's address.

under the authors on c/the following seratory:

Aldoy

position:

Development Manager:

sgen

hmpnnttnnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnrnnr

Grand Sonnet

T

GB

16

EU

FNC Directive 2014/3D/fU

ROHS Dcctive 2011/b5/EU

Mss

TPH:HV3.4EB5e1es

CONFORMITE EUROPENE N

Machine Reprocative 2006/42/EC

EN/C Directive 2014/30/EU

RoHS Directive 2011/63/EU

Description Machine, Kupiatsu

Tynr:HVIR BFB S#e1.

Iapssiey unor rns nnnnne apnncnns vane

A4035-1·1012+A17014

04 05351-0:202

50350-1 005+02:007+02:02

N5012.197+A1:2X1+A2:200E

图图

MachineryDective2006/42/EC

EMC Directive 2014/30/EC

RoHS Directive 2011/65/EU

TmsdWing machine:Stbtae

Mode:11B,11CD Series

Munich imming: get it

08-53162

4.2765

m 2

16

DECLARATION DE

CONFORMIDADE

DAUNIAO

Deoransssnssuiepepsicseaeueeepenennnnr

epes sntnne 1000000000000000000000000000000000000000000

Machine Direcut:2006/42/EC

EMC Dcct:2019/EC/EU

RnHS Dharhns W:167eU

Cae Cnde Eqipnta: A

1:prHfHfS#

H

10.2.2
18.6-235-10.2x-2
3.3.26-10C+8.1.24N+2.3N
6.3.14.1097+1.279+62.5元

nneepn: idenrntwos mnnnrn the nnya: it paae e apiainm

sabubarada de sec.lnc aqtnne

A

2

S OBC = S ABC + S_ BOC

TAPOR

Lithium - Ion Battery Warranty.

Numatic International will guarantee your Numatic Lithium - Ion battery for 500 recharging cycles, providing the cycles have been carried out to the manufacturer's specifications and requirements.

Failure to use the correct Numatic charger will void your warranty.

Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND.

Telephone [phone] Fax: [phone] www.numatic.co.uk

Nümatic International GmbH, Frankische Straße 15-19, 30455 Hannover, DEUTSCHLAND.

Tel: [phone] Fax: [phone] www.numatic.de

Numatic International S.A.S, 13/17 rue du Valengelier, EAE la Tullerie, 77500 Chelles, FRANCE. Tel: [phone] Fax: [phone] www.numatic.fr

BeNeLux Distribution, Numatic International BV, Postbus 101, 2400 AC Alphen den Rijn, NEDERLAND. Tel: [phone] Fax: [phone] www.numatic.nl

Numatic International (Pty.) Ltd. 16th & Pharmaceutical Roads, Midrand, Gauteng, S.A. 1685. Tel: [phone] Fax: [phone] www.numatic.co.za

Numatic International Schweiz AG, Sihlbruggstrasse 142, 6340 Baar. SCHWEIZ. Tel: [phone] - 0. Fax: [phone] - 9.

Numatic International ULDA. Rua da Boa Viagem, n.° 177 4470-210 Moreira, Maia PORTUGAL Tel:[phone] Fax:[phone]

www.numatic.ch

www.numatic.pt
