USER MANUAL MLH27N4AWWC MIDEA

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

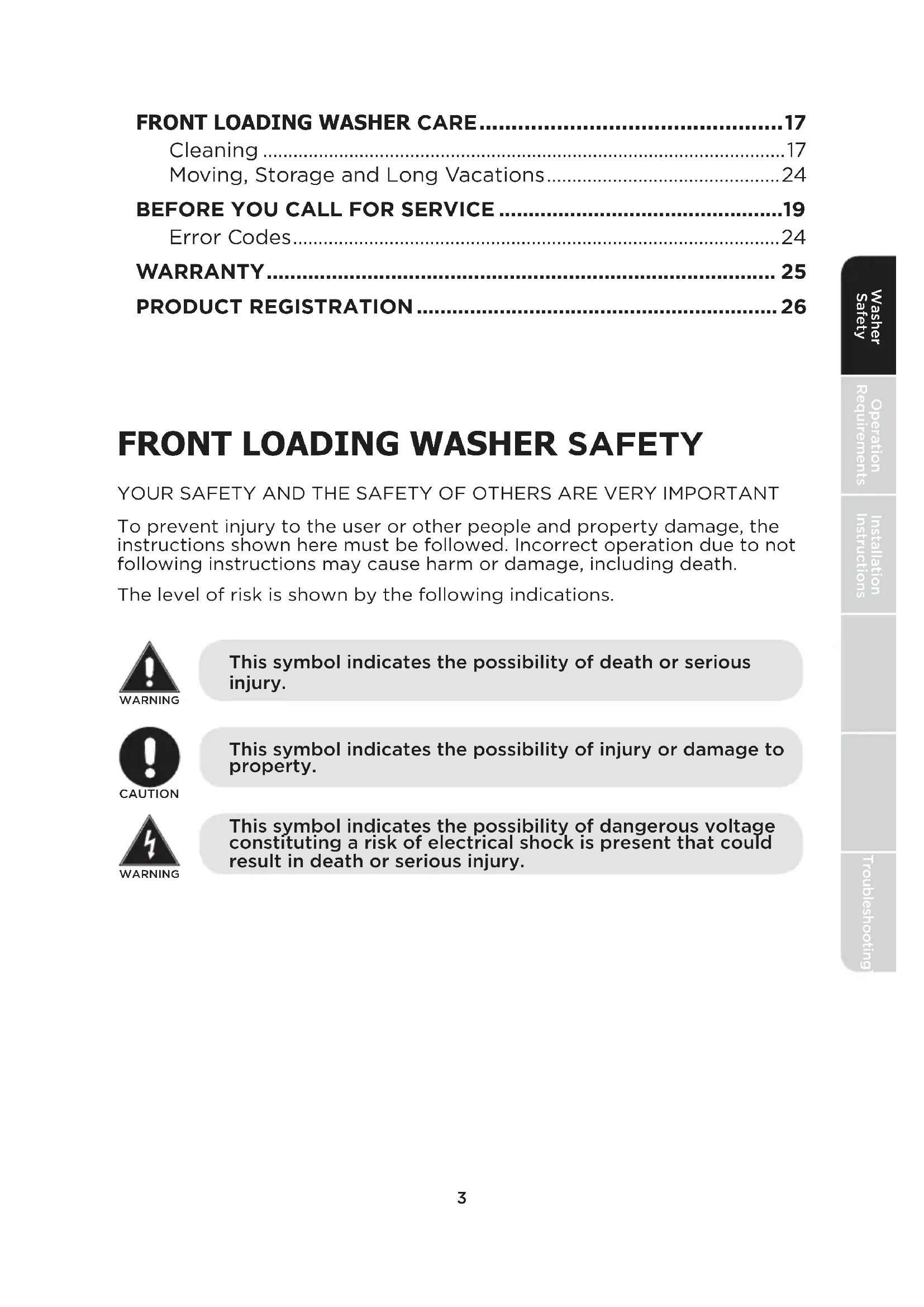

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to not following instructions may cause harm or damage, including death. The level of risk is shown by the following indications. 3Washer Safety Operation Requirements Installation Instructions TroubleshootingWasher CareWasher Use WARNING To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read the instruction manual before using the appliance.

• DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give o vapors that could ignite or explode.

• DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give o vapors that could ignite or explode.

• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.

• DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in death or injury to persons.

• DO NOT reach into the appliance if the drum or other components are moving to prevent accidental entanglement.

• DO NOT install or store this appliance where it will be exposed to the weather.

• DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.

• Keep the area around your appliance clean and dry to reduce the possibility of slipping.

• DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts including a damaged cord or plug.

• Unplug the appliance or turn o the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power.

• See “Electrical Requirements” located in the Installation Instructions for grounding instructions. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with appliance.

• If the supply cord is damaged, it must be replaced by the manufacture, its service agent or similarly qualified persons in order to avoid a hazard.

• The new hose-sets bought from the retailer where the product was purchased are to be used and that old hose-sets should not be reused.

• This appliance is for indoor use only.

SAVE THESE INSTRUCTIONS

• This appliance must be properly installed and located in accordance with the Installation Instructions before it is used. Ensure the cold water hose is connected to the “C” valve.

• Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty. Properly ground washer to conform with all governing codes and ordinances. Follow details in installation instructions. WARNING Electrical Shock Hazard

• Plug into a grounded 3 prong outlet.

• Do not remove the ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Failure to do so can result in death, fire or electrical shock.

WARNING: Cancer and Reproductive Harm

Turn o water faucets to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; We recommend changing the hoses every 5 years. State of California Proposition 65 Warnings:

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY 5Installation Instructions TroubleshootingWasher CareWasher UseWasher SafetyOperation Requirements WARNING TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:

• DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Washer must be electrically grounded in accordance with local codes and ordinances. OPERATION REQUIREMENTS

1. In an area exposed to dripping water or outside weather conditions.

The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.

2. In an area where it will come in contact with curtains or drapes.

3. On carpet. The floor MUST be a hard surface with a maximum slope

of 1/4” per foot (.6 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor. NOTE: If floor is in poor condition, use 3/4” impregnated plywood sheet solidly attached to the existing floor covering.

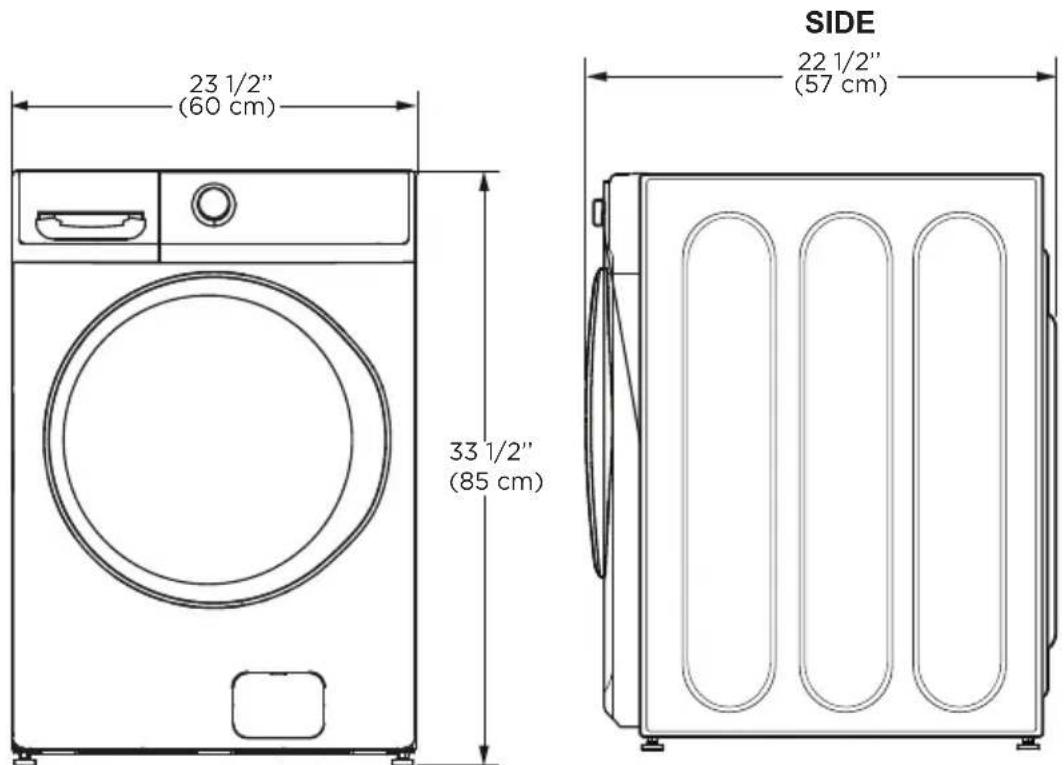

IMPORTANT: MINIMUM INSTALLATION CLEARANCES

• When installed in alcove: Top and Sides = 0” (0 cm), Back = 3” (7.6 cm)

• When installed in closet: Top and Sides = 1” (25 mm), Front = 2” (5 cm), Back = 3” (7.6 cm)

• Closet door ventilation openings required: 2 louvers each 60 square in. (387 cm), located 3” (7.6 cm) from top and bottom of door ELECTRICAL REQUIREMENTS Read these instructions completely and carefully. CIRCUIT - Individual, properly polarized and grounded 15-amp branch circuit fused with 15-amp time -delay fuse or circuit breaker. POWER SUPPLY - 2-wire with ground, 120V~, single-phase, 60Hz, alternating current. OUTLET RECEPTACLE - Properly grounded receptacle located so the power supply cord is accessible when the washer is in an installed position. 6Installation Instructions TroubleshootingWasher CareWasher Use Min 60 Max 100 Min.60cmMax.100cm

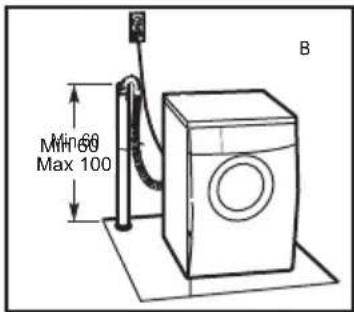

Washer Safety Operation Requirements Min 60 Max 100 Min.60cm28” min. (710 mm) GROUNDING REQUIREMENTS Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

1. The appliance MUST be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.

2. Since your appliance is equipped with a power supply cord having an

equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes. If in doubt, call a licensed electrician. DO NOT cut o or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner’s responsibility to have a licensed electrician replace it with a properly grounded grounding-type receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucet MUST be installed within 42” (107 cm) of your washer’s water inlet. The faucet MUST be 3/4” (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 20 and 100 psi. Your water department can advise you of your water pressure. DRAIN REQUIREMENTS

1. Drain capable of eliminating 64.3 L per

2. A standpipe diameter of 1-1/4” (3.18 cm)

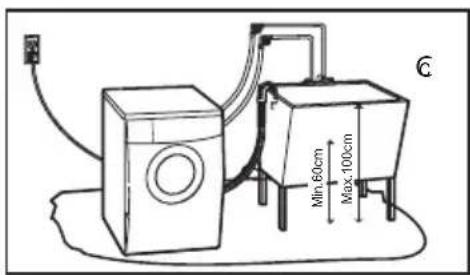

4. to drain into a laundry tub; tub needs to

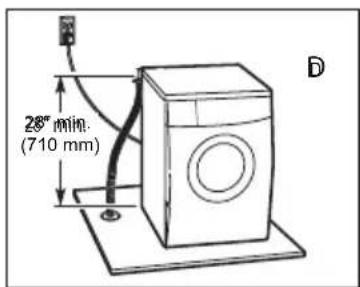

drain (710 mm) from the bottom of the unit

IMPORTANT - Observe all governing codes and ordinances.

• Note to Installer - Be sure to leave these instructions with the Consumer.

• Note to Consumer - Keep these instructions for future reference.

• Skill level - Installation of this appliance requires basic mechanical and electrical skills.

• Completion time - 1-3 hours.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty. WARNING

• This appliance must be properly grounded and installed as described in these Installation Instructions.

• Do not install or store the appliance in an area where it will be exposed to water/weather. See the Location of Your Washer section.

• NOTE: This appliance must be properly grounded, and electrical service to the washer.

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel - Do not contact the following parts while the appliance is energized: Electrical Valve, Drain Pump, Heater and Motor. INSTALLATION INSTRUCTIONS

Read these instructions completely and carefully. FOR YOUR SAFETY: TOOLS REQUIRED

• Adjustable wrench or 3/8 “ & 7/16 “ socket with ratchet

• Adjustable wrench or 9/16 “ & 3/8” open-end wrench

• Channel-lock adjustable pliers

• Carpenter’s level 8TroubleshootingWasher CareWasher UseWasher SafetyOperation RequirementsInstallation Instructions23 1/2’’ (60 cm)33 1/2’’ (85 cm) PARTS REQUIRED (OBTAIN LOCALLY) Water Hose (2) PARTS SUPPLIED Cable Tie Drain Hose Guide Inlet Hose Screen Washers(2) Washer DIMENSIONS SIDE 22 1/2’’ (57 cm) 9• Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suocation. Washer Safety Operation Requirements Installation Instructions TroubleshootingWasher CareWasher Use

1. Cut and remove the top and bottom packaging straps.

2. While it is in the carton, carefully lay the washer on its side. DO NOT lay

the washer on its front of back.

3. Turn down the bottom flaps-remove all base packaging, including the

cardboard, styrofoam base and styrofoam tub support (inserted in center of base). NOTE: If you are installing a pedestal, proceed to the installation instructions that come with the pedestal.

4. Carefully return the Washer to an upright position and remove the carton.

5. Carefully move the washer to within 4 feet (122 cm) of the final location.

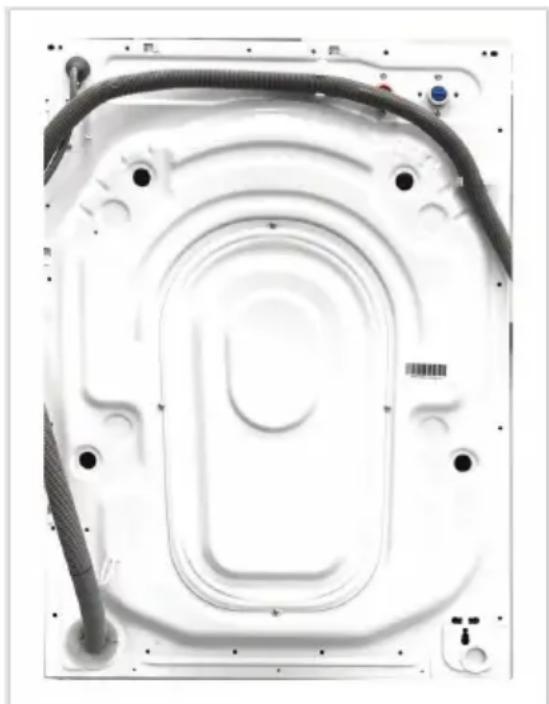

6. Remove the following from the back side of the washer:

4 bolts 4 plastic spacers (including rubber grommets) 4 power cord retainers

UNPACKING THE WASHER

IMPORTANT: Failure to remove the shipping bolts* can cause the washer to become severely unbalanced. Save all bolts for future use.

• Any damages from failure to remove the shipping bolts are not covered by the warranty. 10NOTE: If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

INSTALLING THE WASHER

1. Run some water from the cold faucet to flush the water lines and remove

particles that might clog up the inlet hose.

2. Ensure there is a rubber washer in the hoses. Reinstall the rubber washer

into the hose fitting if it has fallen out during shipment. Carefully connect the inlet hose marked HOT to the rear “H” inlet of the water valve. Tighten by hand;then tighten another 2/3 turn with pliers. And COLD to the rear “C” inlet of the water valve. Tighten by hand; then tighten another 2/3 turn with pliers. Do not crossthread or over-tighten these connections.

3. Install the screen washers by inserting them into the free ends of the

inlet hoses with protruded side facing the faucet.

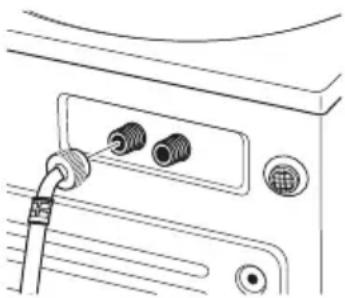

4. Connect the inlet hose ends to the HOT and COLD water faucets tightly

by hand, then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.

5. Carefully move the washer to its final location. Gently rock the washer into

position ensuring inlet hoses do not become kinked. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer. TroubleshootingWasher CareWasher Use Washer Safety Operation Requirements Installation Instructions 11Washer Safety Operation Requirements Installation Instructions TroubleshootingWasher CareWasher Use Cable Tie Cable Tie Cable Tie NOTE: Do not use the dispenser drawer or door to lift the washer. NOTE: If you are installing into a drain pan, you can use a 24-inch long 2x4 to lever the Washer into place.

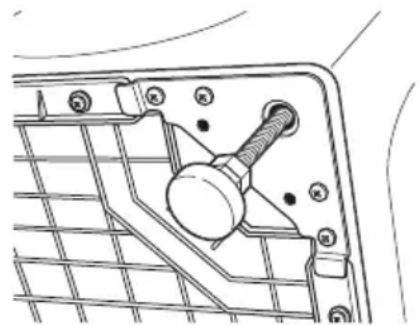

6. With the Washer in its final position, place a level on top of the washer

(if the washer is installed under a counter, the washer should not be able to rock). Adjust the front leveling legs up or down to ensure the washer is resting solid. Turn the locknuts on each leg up towards the base of the washer and snug with a wrench. NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate. If the floor is not level or is damaged, you may have to extend the rear leveling legs.

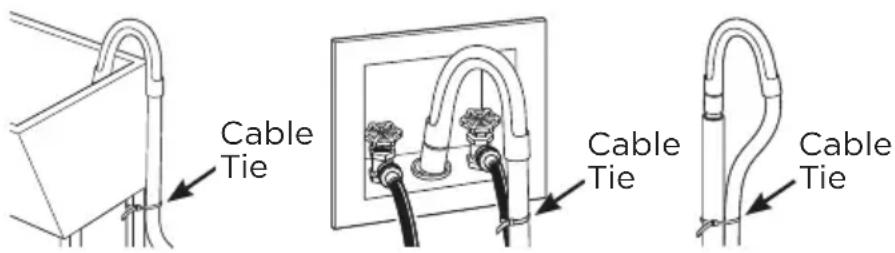

7. Attach the U-shaped hose guide to the end of the drain hose. Place

the hose in a laundry tub or standpipe and secure it with the cable tie provided in the enclosure package. NOTE: Placing the drain hose too far down the drain pipe can cause a siphoning action. No more than 7 inch (17.78 cm) of hose should be in the drain pipe. There must be an air gap around the drain hose. A snug fit can also cause a siphoning action.

8. Plug the power cord into a grounded outlet.

NOTE: Turn o electricity to the circuit breaker/fuse box before plugging the power cord into an outlet.

9. Turn on the power at the circuit breaker/fuse box.

10. Read the rest of this Owner’s Manual. It contains valuable and helpful

information that will save you time and money.

11. Before starting the Washer, check to make sure:

• Main power is turned on.

• The washer is plugged in.

• The water faucets are turned on.

• The Washer is level and all four leveling legs are firmly in the floor. The shipping support hardware is removed and saved.

• The drain hose is properly tied up. 12DelayAdd agarmentOn/O Press once to turn the washing machine on, press again to turn the washing machine o. Display WashChild LockDoor LockSteam My CycleExpress Spin Start/Pause Press the button to start or pause the wash cycleFunction settingPress the button repeatedly to set the water temp. soil level, rinse number, spin speed and so on. Program For the convenience of users to washing clothes with the dierent program.

12. Run the Washer through a complete cycle.

13. If your Washer does not operate, please review the Before You Call

For Service section before calling for service.

14. Place these instructions in a location near the washer for future

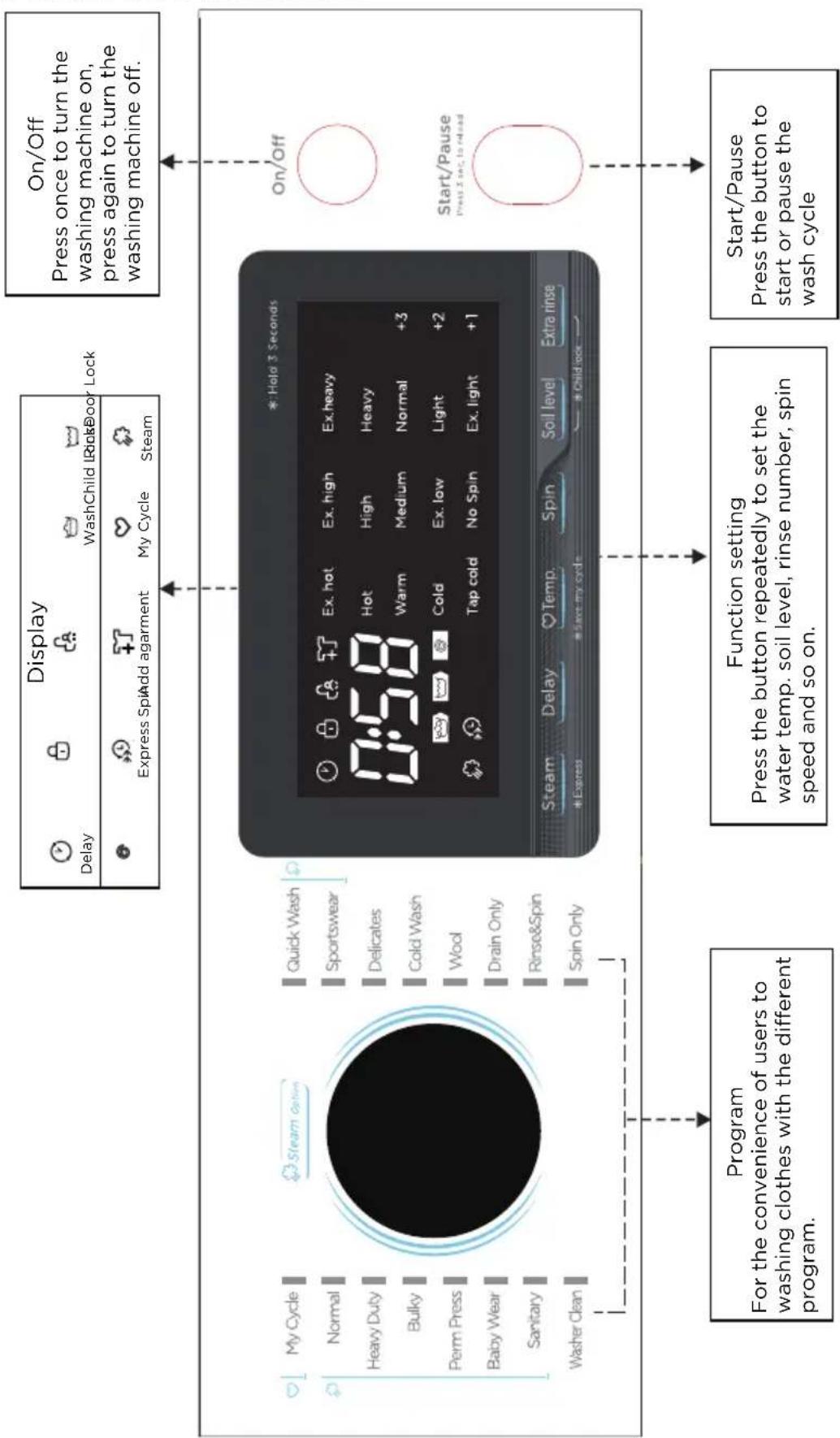

Control Panel Notes: 1. The Control panel line chart is for reference only, Please refer to actual product as standard. TroubleshootingWasher CareWasher UseWasher SafetyOperation RequirementsInstallation InstructionsRinse 13Washer Safety Operation Requirements Installation Instructions TroubleshootingWasher CareWasher Use Operating Instructions - Normal This selection is for hard-wearing heat-resistant fabrics made of cotton or linen. - Heavy Duty This cycle is for washing the heavy clothing like towels. - Bulky This selection is for washing the large articles. - Sports Wear This selection is for washing activewear. - Spin Only This selection allows extra spin with selectable spin speed. - Rinse & Spin This selection is for only rinse with spin, no wash cycle. - Washer Clean This selection is specially set in this machine to clean the drum through high temperature sterilization. Chlorine bleach can be added to this selection, it is recommended to run monthly or as needed. - Quick Wash This selection has shortened cycles for lightly soiled washing and small loads of laundry. - Delicates This selection is for delicate, washable fabrics, made of silk, satin, synthetic or blended fabrics. - Sanitary This selection uses hot water for all cycles, suitable for dicult to wash the clothes. - Wool This selection is for wool fabrics labeled as “Machine Wash”. Please select the proper washing temperature according to the label on the articles to be washed. Specific detergent may be required, review care label for complete instructions. - Perm Press This selection is used to reduce the wrinkling of clothes. - Baby Wear This selection is intended to make baby’s clothes cleaner, the rinse cycle better protects the baby skin. - My Cycle Press Spin 3sec. for my cycle to memorize user settings. - Cold Wash This selection is for cold water wash & rinse only. - Drain Only This selection is to drain the tub, no other functions performed during this cycle. 14TroubleshootingWasher Care Washer Safety Operation Requirements Installation Instructions Washer Use

Special functions -Child Lock To set Child Lock, hold down simultaneously Soil Level & Dryness selections for 3 seconds. The buzzer will beep, Start/Pause button as well as the rotary switch are locked. Press the two buttons for 3 seconds together and buzzer will beep to release the lock. -Delay Delay function can be set with this button, the delaying time is 0-24 hours. -Steam Allows steam to be used during noted selections -Temperature Allows custom temperature setting for various selections. -Soil level Allows custom soil level setting (light to heavy) for various selections. -Dryness Allows custom soil level setting for various selections, including timed dry and air flu. -Spin Allows changing spin speed, low to high. Washing clothes for the first time Before washing clothes for the first time, the washing machine needs to be operated in one round of the whole procedure without clothes in as follows:

1. Connect power source and water.

2. Put a small amount of detergent into the

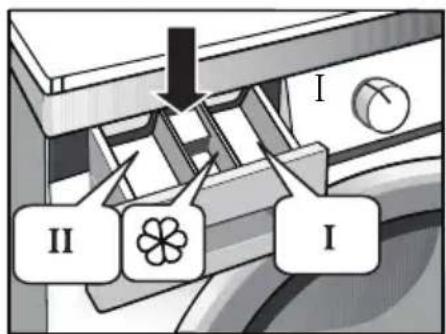

box and close it. NOTE: The drawer is separated as follows: I: Pre-wash detergent or washing powder. II: main wash

fabric softener or bleach

3. Press the button “On/o”.

4. Press the button “Start/Pause”.

Loading POD’s in the washer - First load POD’s directly into the bottom of an empty basket - Then add clothes on top of the POD’s NOTE: - Loading POD’s at the bottom of the basket will improve wash performance and will enable detergent to dissolve more easily in the wash.

15Operation RequirementsInstallation Instructions TroubleshootingWasher CareWasher UseWasher Safety Extra Hot (Hot+) heavily soiled, pure white cotton or linen blended (for example: coee table cloths, canteen table cloths, towels, bed sheets) Hot Moderately soiled, colorful linen blended, cotton and synthetic articles with certain decolorizing degree (for example: shirts, night pajamas, pure white linen (for example: underwear) Warm Normally soiled articles (including synthetic and wool) Operating Instructions Table of washing procedures Model:MLH27N4AWWC Means optional Energy test program: Normal

• The parameters in this table are only for user’s reference. The actual parameters vary from the parameters in above mentioned table. 16Operation Requirements Installation Instructions TroubleshootingWasher Use Washer Care Washer Safety WARNING Fire Hazard

• Never place items in the washer that are dampened with gasoline or other flammable liquids.

• No washer can completely remove oil.

• Do not dry anything that has ever had any type of oil on it (including cooking oils).

• Doing so can result in death, explosion, or fire.

LOADING AND USING THE WASHER

Always follow fabric manufacturer’s care label when laundering.

Sort laundry into loads that can be washed together.

• Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.

• Washing single items is not recommended. This may cause an out-of- balance load. Add one or two similar items.

• Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load. PREPARING CLOTHES To avoid snags during washing: Follow these steps to maximize garment care.

• Close garment zippers, snaps, buttons and hooks.

• Mend seams, hems, tears.

• Empty all items from pockets.

• Remove non-washable garment accessories such as pins and jewelry and non-washable belts & trim materials.

• To avoid tangling, tie strings, draw ties and belt-like materials.

• Brush away surface dirt and lint.

• Promptly wash wet or stained garments to maximize results.

• Use nylon mesh garment bags to wash small items.

• Wash multiple garments at one time for best results.

Wash drum may be fully loaded with loosely added items. Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.). To add items after washer has started, press for 3 seconds and wait until the door is unlocked, the washer may take up to 30 seconds to unlock the door. If the water temperature is extra hot, you may not be able to pause the cycle. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press to restart. WASHER CARE CLEANING EXTERIOR Immediately wipe o any spills. Wipe with damp cloth. Do not hit surface with sharp objects. INTERIOR To clean the interior of the washer, select the Washer Clean feature on the control panel. This cycle should be performed, at a minimum, once per month. This cycle will use more water, in addition to bleach, to control the rate at which soils and detergents may accumulate in your washer. NOTE: Read the instructions below completely before starting the Tub Clean cycle.

1. Remove any garments or objects from the washer and ensure the

washer basket is empty.

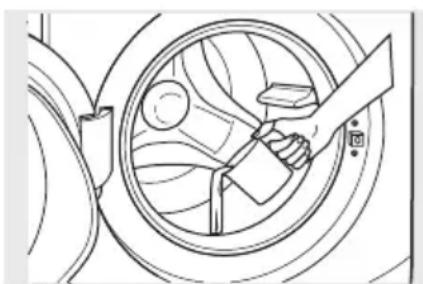

2. Open the washer door and pour one cup or 250 ml of liquid bleach or

other washing machine cleaner into the basket.

3. Close the door and select the Tub Clean cycle. Push the

4. When the Washer Clean cycle is working, the display will show the

estimated cycle time remaining. The cycle will complete in about 90 minutes. Do not interrupt the cycle. 18Operation Requirements Installation Instructions TroubleshootingWasher Use Washer Care Washer Safety Care And Cleaning WARNING Pull out the power plug to avoid electrical shock before servicing washer. For prolonged non-use of the washing machine, pull out the power cord and close the door tightly to avoid children from entering. Remove foreign matters Drain Pump Filter: Drain pump filter can filter the yarns and small foreign matters from the washing cycles. Clean the filter periodically to ensure the normal operation of washing machine. Depending on the soil level within the cycles and the frequency of the cycles, you will need to inspect and clean the filter regularly. The pump should be inspected if the machine does not empty and/or spin; The machine may make an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump, disconnect power before servicing pump. Service as follows:

Open the lower cover cap

Emergency drain hose

After water runs out, reset the drain hose

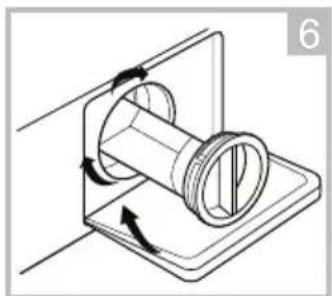

Open the filter by turning to the counter clockwise

Remove collected items

Close the lower cover cap Rotate 90° and pull out the emergency drain hose, and take o the hose cap When the appliance is in use and depending on the program selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-installed. WARNING WARNING 19Operation Requirements Installation Instructions Washer CareWasher Use Troubleshooting Washer Safety BEFORE YOU CALL FOR SERVICE... Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause What To Do Not draining Not spinning Not agitating Load is out of balance Pump clogged Drain hose is kinked or improperly connected Household drain may be clogged Drain hose siphoning; drain hose pushed too far down the drain

• Redistribute clothes and run drain & spin or rinse & spin.

• Increase load size if washing small load containing heavy and light items.

• See page 18 on how to clean the Pump Filter.

• Straighten drain hose and make sure washer is not sitting on it.

• Check household plumbing. You may need to call a plumber.

• Ensure there is an air gap between hose and drain. Leaking water Door gasket is damaged

• Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils). Door gasket not damaged

• Water may drip from the door when the door is opened. This is a normal operation.

• Carefully wipe o rubber door seal. Sometimes dirt or clothing is left in this seal and can cause a small leak. Check back left of washer for water

• If this area is wet, you have oversudsing condition. Use less detergent.Operation Requirements Installation Instructions Washer CareWasher Use Troubleshooting Washer Safety

Problem Possible Cause What To Do Leaking water (cont.) Fill hoses or drain hose is improperly connected

• Make sure hose connections are tight at washer and faucets and make sure end of drain hose is correctly inserted in and secured to drain. Household drain may be clogged

• Check household plumbing. You may need to call a plumber. Dispenser clogged

• Powder soap may cause clogs inside the dispenser and cause water to leak out the front of the dispenser. Remove drawer and clean both drawer and inside of dispenser box. Please refer to Cleaning section. Incorrect use of detergent

• Use HE and correct amount of detergent. Dispenser box crack

• If new installation, check for crack on inside of dispenser box. Clothes too wet Load is out of balance Pump clogged Overloading Drain hose is kinked or improperly connected

• Redistributes clothes and run drain & spin or rinse & spin.

• Increase load size if washing small load containing heavy and light items.

• The machine will slow the spin speed down to 400 rpm if it has a hard time balancing the load. This speed is normal.

• See page 18 on how to clean the Pump Filter.

• The dry weight of the load should be less than 18 lbs.

• Straighten drain hose and make sure washer is not sitting on it.Operation Requirements Installation Instructions Washer CareWasher Use Troubleshooting Washer Safety

Problem Possible Cause What To Do Clothes too wet (cont.) Household drain may be clogged Drain hose siphoning; drain hose pushed too far down the drain

• Check household plumbing. You may need to call a plumber.

• Ensure there is an air gap between hose and drain. Incomplete cycle or timer not advancing Automatic load redistribution

• Timer adds 3 minutes to cycle for each rebalance. 11 or 15 rebalances maybe done. This is normal operation. Do nothing; the machine will finish the wash cycle. Pump clogged

• See page 18 on how to clean the Pump Filter. Drain hose is kinked or improperly connected

• Straight drain hose and make sure washer is not sitting on it. Household drain may be clogged

• Check household plumbing. You may need to call a plumber. Drain hose siphoning; drain hose pushed too far down the drain

• Ensure there is an air gap between hose and drain. Loud or unusual noise; vibration or shaking Cabinet moving All rubber leveling legs are not firmly touching the floor Unbalanced load Pump clogged

• Washer is designed to move 1/4” to reduce forces transmitted to the floor. This movement is normal.

• Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor and locked in place. Your installer should correct this problem.

• Open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load.

Problem Possible Cause What To Do Grayed or yellowed clothes Not enough detergent • Use correct amount of detergent. Not using HE (high- eciency) detergent

• Use HE detergent. Hard water

• Use hottest water safe for fabric.

• Use a water conditioner like Calgon brand or install a water softener. Detergent is not dissolving

• Try a liquid detergent. Dye transfer

• Sort clothes by color. If fabric label states wash separately unstable dyes may be indicated. Colored spots Incorrect use of fabric softener Dye transfer

• Check fabric softener package for instructions and follow directions for using dispenser.

• Sort whites or lightly colored items from dark colors.

• Promptly remove washload from washer. Slight variation in metallic color This is normal appearance

• Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing angles and lighting conditions.Operation Requirements Installation Instructions Washer CareWasher Use Troubleshooting Washer Safety

Problem Possible Cause What To Do Smell inside your washer Washer unused for a long time, not using recommended quality of HE detergent or used too much detergent

• Run a Tub Clean cycle once a month or more frequently, as needed.

• Use only the amount of detergent recommended on the detergent container.

• Use only HE (high- eciency) detergent.

• Always remove wet items from the washer promptly after machine stops running.

• Leave the door slightly open for the water to air dry. Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance. Detergent leak Incorrect placement of detergent insert Make sure detergent insert is properly located and fully seated. Never put detergent above max line. Improper dispensing of softener or bleach Dispenser clogged Softener or bleach is filled above the max line Softener or bleach cap issue Monthly clean the dispenser drawer to remove buildup of chemicals. Make sure to have the correct amount of softener or bleach. Make sure softener and bleach cap for dispenser are seated or they will not work.Operation Requirements Installation Instructions Washer CareWasher Use Troubleshooting Washer Safety ERROR CODES Technical Specifications Model:MLH27N4AWWC

MOVING, STORAGE AND LONG VACATIONS

Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this book. Be sure the water supply is shut o at the faucets. Drain all water from the hoses if the weather will be below freezing. Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel - Do not contact the following parts while the appliance is energized: Electrical Valve, Drain Pump, Heater and Motor.

Description Reason Solution E30 Door is not closed properly Restart after the door is closed. Check clothes is stuck. E10 Water injecting problem while washing Check if the water pressure is too low. Straighten the water hoses. Check if the inlet valve filter is blocked. E21 Overtime water draining Check if the drain hose is blocked, clean drain filter. E12 Water overflow Restart the washer. EXX Others Please try again first, call up service line if there are still troubles. Parameter Power Supply 120V~, 60Hz Dimension (W*D*H) 595*610*850 Net Weight 72kg (159Ibs) Washing Capacity 10.0kg (22Ibs) Rated Current 11A Standard Water Pressure 0.05MPa~1MPaMIDEA LAUNDRY WASHER LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer Service Centre: ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address, and date of purchase IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires

repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or email [e-mail]

2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the

U.S. and Canada. Midea Customer Service In the U.S.A. or Canada, call 1-866-646-4332 or email [e-mail]. If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies. LIMITED WARRANTY

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOUR) For one year from the date of purchase, if this major appliance is installed, operated and In the second through tenth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea will pay for factory parts to replace the inverter motor if it fails and prevent an essential function of this major appliance and that existed when this major appliance was purchased. This is a 10 -year warranty on the parts only and does not include repair labour. maintained according to instructions attached to or furnished with the product, Midea America (Canada) Corp. (hereafter “Midea”) will pay for factory specified replacement parts and repair labour to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period. LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB) TEN YEAR WARRANTY INVERTER MOTOR ONLY - LABOUR NOT INCLUDED For the lifetime of the product from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea will pay for factory specified parts and repair labour for the following components to correct non-cosmetic defects in materials or workmanship that existed when this major appliance was purchased: ■ Stainless steel tub YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty. 26LIMITED WARRANTY

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user,

operator or installation instructions.

2. In-home Instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance

with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses, plumbing or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).

5. Defects or damage caused by the use of non-genuine Midea parts or accessories.

6. Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with

products not approved by Midea.

7. Repairs to parts or systems to correct product damage or defects caused by unauthorized

service, alteration or modification of the appliance.

8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes

unless such damage results from defects in materials and workmanship and is reported to Midea within 30 days.

9. Routine maintenance of the product.

10. Products that were purchased “as is” or as refurbished products.

11. Products that have been transferred from its original owner.

12. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments

including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

13. Pick-up or delivery. This product is intended for in-home repair.

14. Travel or transportation expenses for service in remote locations where an authorized Midea

servicer is not available.

15. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative

panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

16. Service or parts for appliances with original model/serial numbers removed, altered or not

easily identified. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. 27REGISTRATION INFORMATION PROTECT YOUR PRODUCT: We will keep the model number and date of purchase of your new Midea product on file to help you refer to this information in the event of an insurance claim such as fire or theft. Register online at
