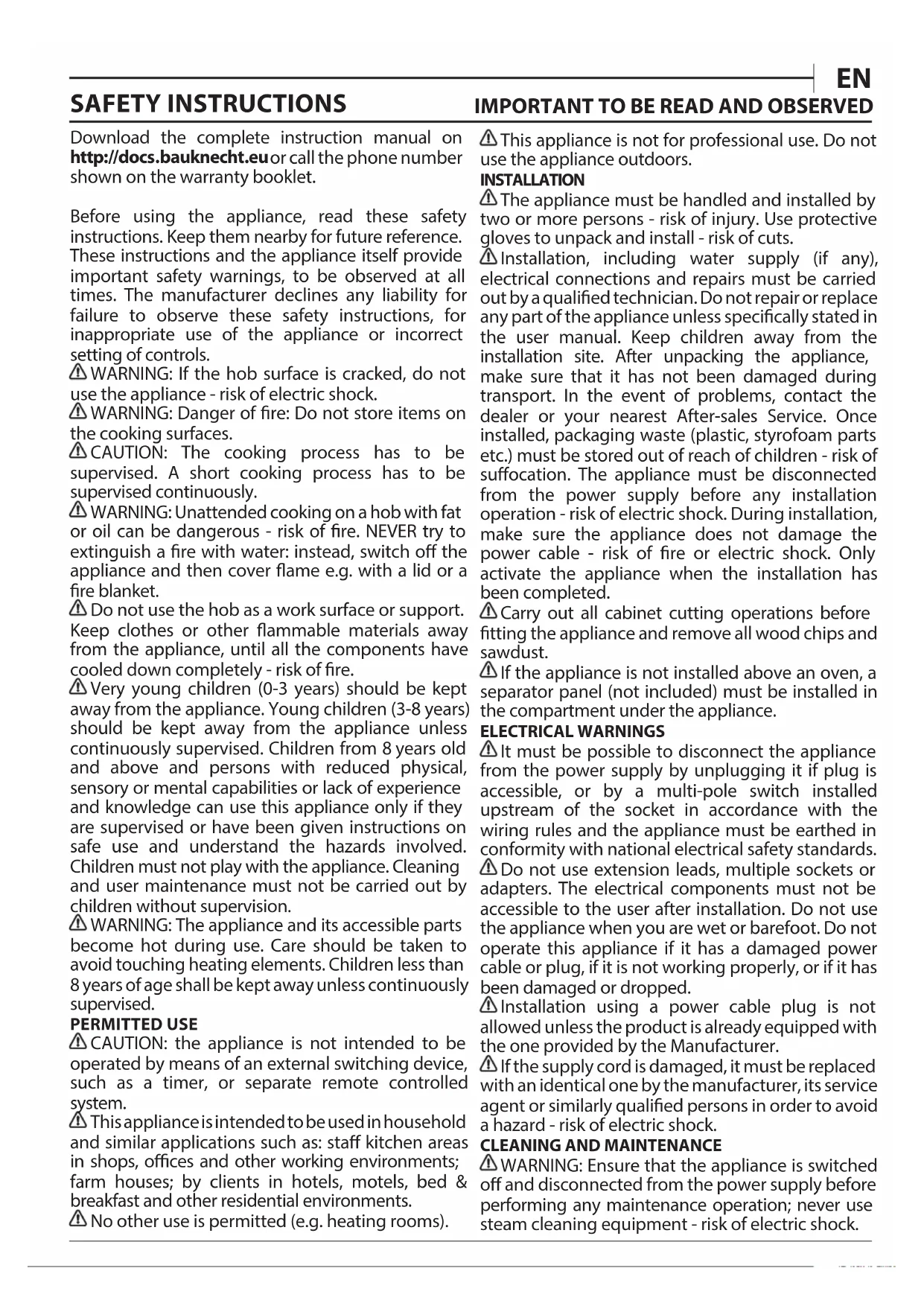

Download the complete instruction manual on http://docs.bauknecht.eu or call the phone number shown on the warranty booklet. Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not

use the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on

the cooking surfaces. CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to extinguish a re with water: instead, switch o the appliance and then cover ame e.g. with a lid or a re blanket. Do not use the hob as a work surface or support. Keep clothes or other ammable materials away from the appliance, until all the components have cooled down completely - risk of re. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8years) should be kept away from the appliance unless continuously supervised. Children from 8years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. PERMITTED USE CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: sta kitchen areas in shops, oces and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric shock. Only activate the appliance when the installation has been completed. Carry out all cabinet cutting operations before tting the appliance and remove all wood chips and sawdust. If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. Installation using a power cable plug is not allowed unless the product is already equipped with the one provided by the Manufacturer. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched

o and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

Make the most of your hot plate’s residual heat by switching it o a few minutes before you nish cooking. The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted. Cover your pots and pans with tight-tting lids while cooking and use as little water as possible. Cooking with the lid o will greatly increase energy consumption. Use only at-bottomed pots and pans.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014 and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 60350-2.INSTALLATION

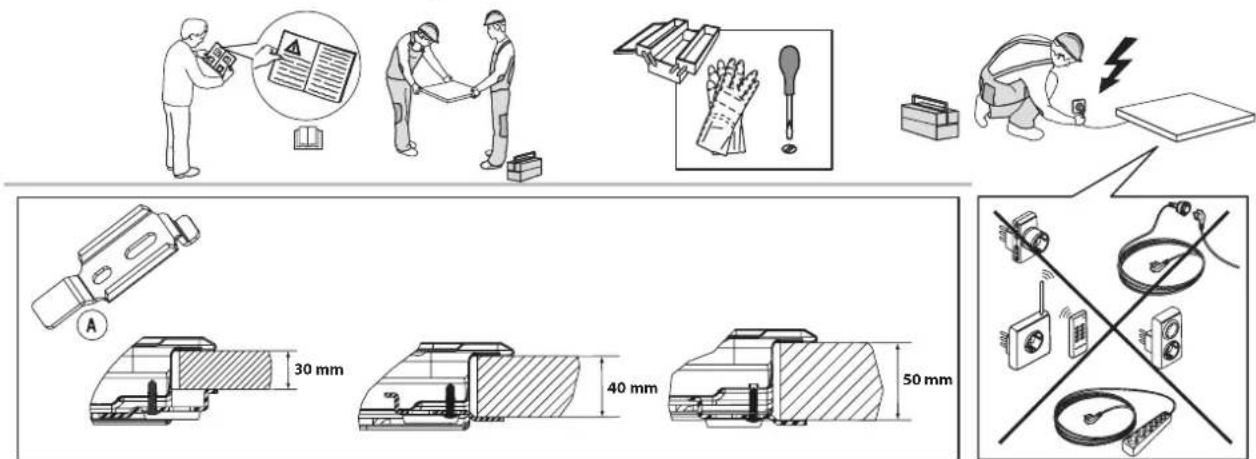

• The cooktop must be set into a worktop between 30 mm and 50 mm deep.

• There must be nothing between the cooktop and the oven (cross rails, brackets, etc.).

• Make sure the power cord is long enough to allow convenient installation.

• The distance between the lower face of the glass ceramic hob and the cupboard or separating panel must be at least 20 mm.

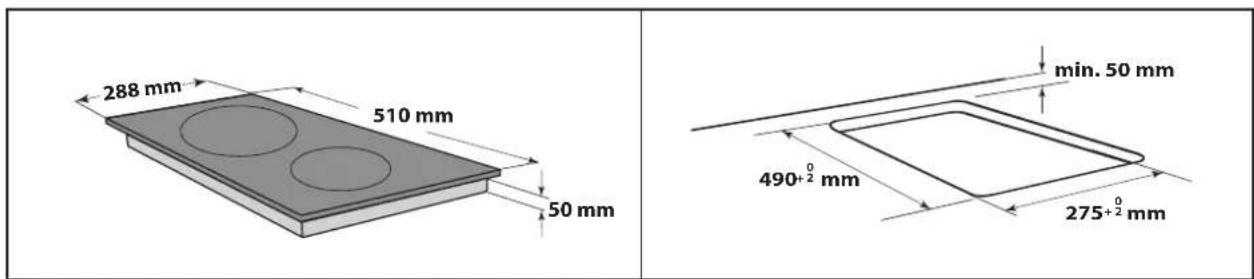

• For built-in dimensions and installation see the picture in this paragraph.

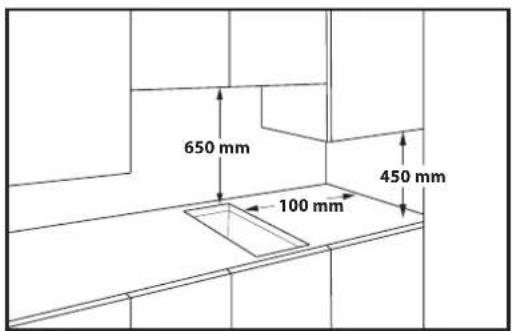

• A minimum distance must be maintained between the hob and the hood above it. Please refer to the user manual of the hood for more informations.

• Apply the supplied gasket to the cooktop (unless it has already been tted), after having cleaned its surface.

• Do not install the cooktop near a dishwasher or washing machine, so that the electronic circuits do not come into contact with steam or moisture, which could damage them.

• If an oven is installed beneath the cooktop, make sure that it is equipped with a cooling system. If the temperature of the electronic circuits exceeds the maximum permitted temperature, the cooktop will switch o automatically; in this case, wait for a few minutes until the internal temperature of the electronic circuits reaches a tolerable level, at which point it will be possible to switch the hob on again.

Important: remove any protective lm before installing the hob. Make sure that the opening in the worktop for the hob is cut according to the dimensions given in the drawing, paying attention to the tolerance range. The hob should not be forced into the worktop. Forcing the glass ceramic top may cause it to crack (even at a later date)! If the worktop is made of wood, use the spring clips and screws provided. Secure the spring clips (A) with the screws supplied, paying attention to the specied distances. Fit the hob into the worktop. 50 mm40 mm30 mm REMOVING THE HOB: To remove the hob, rst, disconnect it from the electric supply. It is strongly recommended to free the underneath part from the oven, drawer, separator, or other. It allows the technician to access the lower part of the hob to unfasten the four clips with a screwdriver, lift the hob and remove it, avoiding any worktop damage.

+ 2 490 mm 50 mm 510 mm min. 20 mmELECTRICAL CONNECTION Electrical connection must be made before connecting the appliance to the electricity supply. The power cord is not included in the package - remember to prepare your own power cord. Installation must be carried out by qualied personnel who know the current safety and installation regulations. Specically, installation must be carried out in compliance with the regulations of the local electricity supply company. Make sure the voltage specied on the data plate located on the bottom of the appliance is the same as that of the home. Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only.

CONNECTION TO THE TERMINAL BLOCK

For the electrical connection, use an H05RR-F or H05V2V2-F cable as specied in the table below. SUPPLY VOLTAGE CONDUCTORS AMOUNT x SIZE 220-240V ~ + 3 x 1,5 mm

The appliance must be connected to the electricity supply by means of an all-pole disconnect switch with minimum contact gap of 3 mm. ATTENTION: the power supply cable must be long enough to allow the cooktop to be removed from the worktop and must be positioned so as to avoid damage or overheating caused by contact with the base. NOTE: the yellow/green earth wire must be connected to the terminal with the symbol and must be longer than the other wires.

• Remove approx. 70 mm of the cable sheath from the power supply cable.

• Strip approx. 10 mm of sheath from the wires.

• Open the terminal board by pushing the side clips in with the help of a tool.

• Insert the cable in the cable clamp and connect the wires to the terminal board.

• Close the cover of the terminal board.

• After the electrical connection, t the hob from the top and hook it to the xing springs.PRODUCT DESCRIPTION DAILY USE

SWITCHING THE HOB ON/OFF

To use the hob turn the knob(s) clockwise and position it (them) on the required power setting. To turn the hob o, turn the knob(s) back to position “0”.

• remove cardboard guards and protective plastic lm;

• check whether the hob has been damaged during transport. If in doubt, contact the After Sales Service. IMPORTANT: To avoid a permanent damage the hob:

• do not use pots with bottoms that are not at;

• do not use metal pots with enamelled bottom;

• do not place hot pots/pans over the control panel. COOKING TABLE KNOB

− 2 Melting butter, chocolate, etc. 2 − 3 − 4 Keeping food warm and reheating small quantities of liquid. 4 − 5 − 6 Heating larger quantities, making custards and sauces.

− 7 Gentle simmering, for example: boiled vegetables, spaghetti, soups, pot roasts, stews.

− 8 For all fried food, cutlets, steaks, cooking without use of lid, for example: risotto. 8 − 9 − 10 Browning meats, roast potatoes, fried sh and to boil large quantities of water.

− 12 Brisk frying, griddling steaks, etc. THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.bauknecht.eu/register.

Before using the appliance carefully read the Safety Instruction.

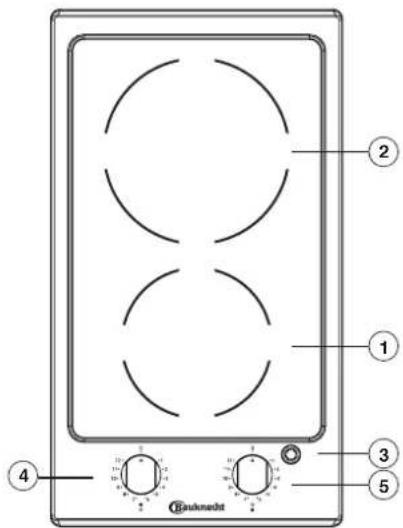

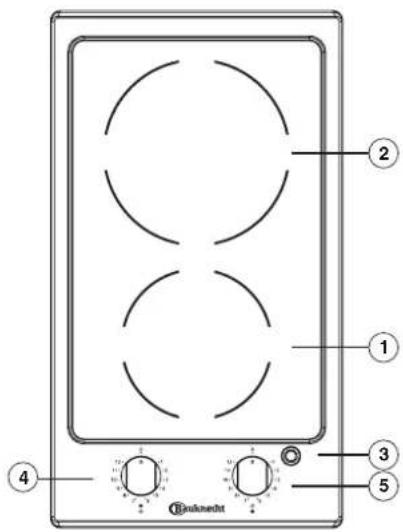

4. Control knob for rear cooking zone

5. Control knob for front cooking zone

Owner's manualAFTERSALES SERVICE In order to receive a more complete assistance, please register your product on www.bauknecht.eu/register. BEFORE CALLING THE AFTER-SALES SERVICE:

1. See if you can solve the problem by yourself with the help of the

suggestions given in the TROUBLESHOOTING.

2. Switch the appliance o and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE. To receive assistance, call the number shown on the warranty booklet or follow the instructions on the website www.bauknecht.eu. When contacting our Client After sales service, always specify:

• a brief description of the fault;

• the type and exact model of the appliance; XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXMade in X Type: XXXMod.: XXX

XXXX XXX XXXXX XX XXXX XXXX X XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

• the serial number (number after the word SN on the rating plate located under the appliance). The serial number is also indicated in the documentation; Mod. Ind.C. SN: Prod.N. xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxx xxx PRODUCT INFORMATION

• your telephone number. If any repairs are required, please contact an authorized after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).

CLEANING AND MAINTENANCE

Disconnect the appliance from the power supply.

• Do not use steam cleaning equipment.

• Do not use abrasive sponges or scouring pads as they may damage the glass.

• After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue.

• Sugar or foods with a high sugar content can damage the hob and must be immediately removed.

• Salt, sugar and sand could scratch the glass surface.

• Use a soft cloth, absorbent kitchen paper or a specic hob cleaner (follow the Manufacturer’s instructions).

• Spills of liquid in the cooking zones can cause the pots to move or vibrate.

• After cleaning the hob, dry thoroughly. TROUBLESHOOTING If the hob will not operate correctly, before calling the After-Sales Service, refer to the Troubleshooting guide to determine the problem.

• Read and follow the instructions given in the section “Daily use”.

• Check that the electricity supply has not been shut o.

• Turn the hob o and on again, to make sure that the problem has been solved.

• Make sure that the knob is not turned to “0”. Turn the multi-pole switch to “O” for a few minutes and then turn it back to “On”.

• The hob will not switch o: disconnect the hob immediately from the power supply. If after the above checks the fault still occurs, get in touch with the nearest After Sales Service. Policies, standard documentation and additional product information can be found by:

• Using QR code in your appliance;

• Visiting our website docs. bauknecht. eu;

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identication plate.
