Brand	Megasat
Model	Caravanman Kompakt 3
Product type	Motorized satellite antenna for campervan
Use	Satellite TV reception in campervan or caravan
Antenna dimensions (L x W x H)	460 x 170 x 460 mm
Mirror dimensions	460 x 320 mm (L/H)
Control unit dimensions	195 x 30 x 150 mm (L/H/D)
Antenna weight	5.1 kg
Control unit weight	360 g
Power supply	12 V DC, 5 A (via battery or optional 230 V adapter)
LNB type	Universal-LNB
Frequency band	Ku band (10.7 GHz to 12.75 GHz)
LNB gain	33 dBi
Reception performance	49 dBW
Polarization	Vertical / Horizontal
Elevation angle	15° to 62°
Search angle	360°
Temperature range	-25°C to +70°C
Number of participants	1 (Twin version: 2)
Connectivity	Bluetooth for mobile app (iOS/Android)
Main functions	Automatic satellite search, satellite change, firmware update, automatic retraction
Safety	Read the manual before installation, use a 7 A fuse, do not expose to water
Maintenance and cleaning	Clean the housing with a soft cloth, avoid dirt on the mirror
Included accessories	Control unit, coaxial cables (1 m and 2x10 m), roof feed-through, manual
Optional accessories	Mobil-Kit 3 for mobile use (reference 1201000)

Frequently Asked Questions - Caravanman Kompakt 3 MEGASAT

How to install the antenna on the campervan roof?

Installation should ideally be carried out by a professional. The mounting surface must be clean and flat. Use a suitable adhesive in serpentine lines on the antenna base and place it on the roof. Allow a drying time of 48 hours. You can also screw the base for added security.

How to connect the control unit?

Connect the 10 m coaxial cable from the antenna to the ANT socket on the control unit. Connect the 1 m coaxial cable from the RECEIVER socket to the satellite receiver. The power supply (12 V) must be connected to the battery via a 7 A fuse. The yellow cable (ignition plus) is optional for automatic retraction.

How to search for a satellite with the control unit?

Turn on the control unit with the standby button. The LED of the last satellite flashes. Use the arrows to select the desired satellite, then press OK or wait 3 to 5 seconds. The reception LED lights up orange if the satellite is found. If it fails, the error LED lights up red.

How to use the mobile app?

Download the Megasat app from the App Store or Google Play. Enable Bluetooth on your mobile, turn on the control unit, then select the unit in the app. You can then change satellites, update the firmware, or disconnect the Bluetooth link.

What to do if I receive no satellite signal?

Check that no obstacles (trees, buildings) are blocking the view to the satellite. Ensure all cables are properly connected and that the TV receiver is set to satellite. Clean the antenna housing if necessary. If the problem persists, perform a firmware update.

How to update the antenna firmware?

Connect the control unit to your mobile via the Megasat app. Go to the Firmware Update menu. The app checks for an update. If a new version is available, press Upload to install it.

How to retract the antenna manually?

Turn on the control unit if necessary, then press the STOW button. The antenna retracts automatically to the home position.

How much additional height is added to the vehicle after installation?

Once installed, the antenna adds approximately 17 cm in height (antenna height: 170 mm). Check the total height of your vehicle before driving.

How to maintain the antenna?

Clean the antenna housing regularly with a soft dry cloth. Avoid abrasive products. Ensure that the mirror and LNB are not obstructed by dirt or snow.

Can I use the antenna while the campervan is moving?

No, the antenna must be retracted while driving. It is designed for stationary use. The automatic retraction function (if yellow cable connected) retracts it when the engine is turned on.

USER MANUAL Caravanman Kompakt 3 MEGASAT

White MEGASAT satellite radar device with mounted sensor array (no visible text or symbols on body)

3D rendering of a metallic mechanical component with four legs and a flat top (no text or symbols visible)

Art-Nr.: 1201000

1. Einführung

1.3 Systemkomponenten

Illustration of an open cardboard box with a robotic arm above it, featuring a red upward arrow and control buttons (no text or symbols on the main image)

ACHTUNG!

White satellite dish antenna with 'MEGACAT' branding, mounted on a base (no additional text or symbols visible)

Antenneneinheit

Illustration of a white RV with a red-handled tool and a close-up of its roof, showing no text or symbols.

2. Installation

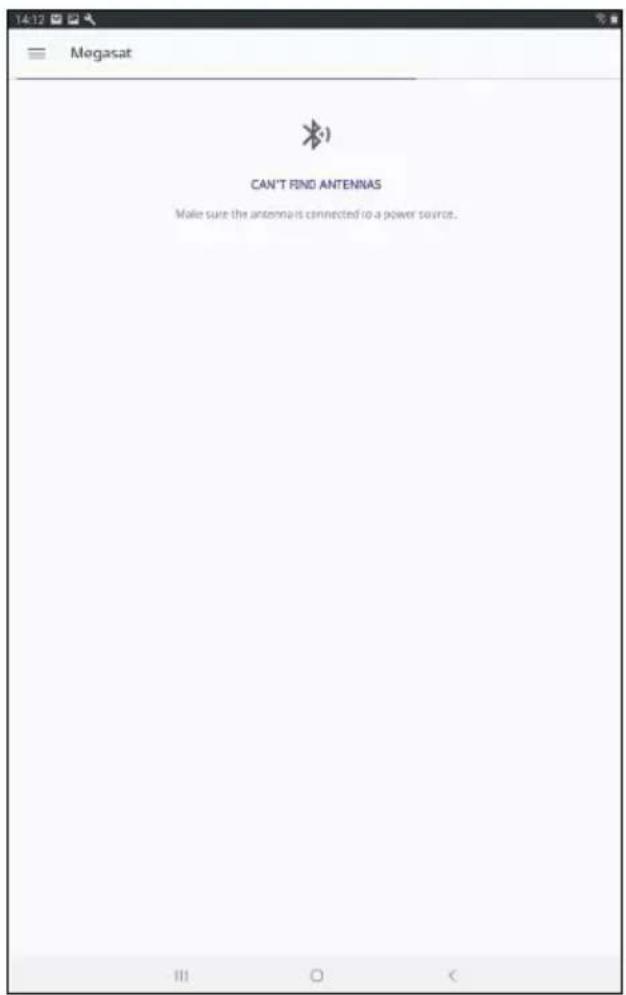

Megasat CAN'T FIND ANTENNAS Make sure the antenna is connected to a power source.

Megasat Smart IDU P1 DEC741/CE C04E Scanning Devices I device was found STOP SCANNING

Reading data from server...

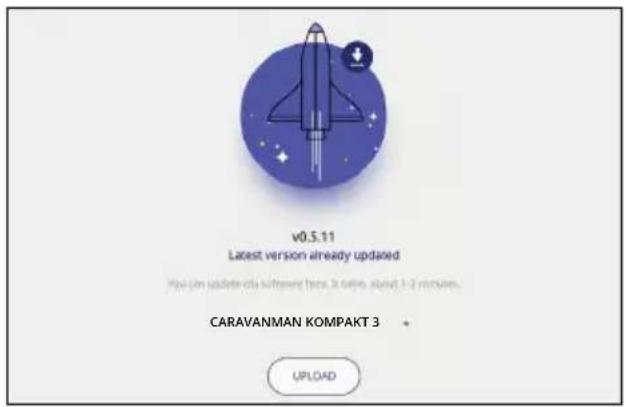

Latest version already updated

New software available

Reading data from server... Your Sun updating to software help, it helps about 1.2 minutes. CARAVANMAN KOMPAKT 3 UPLOAD

v0.3.11 Latest version already updated You can update this software here, it helps about 1-2 minutes. CARAVANMAN KOMPAKT 3 + UPLOAD

v0.5.15 New software available This can update the software file, it helps about 1-2 downloads. CARAVANMAN KOMPAKT 3 UPLOAD

HOT Hotbird (13° Ost)

HIS Hispasat (30° West)

E9E Eutelsat 9 B (9° Ost)

E5W Eutelsat 5 West (5° West)

TUR Türksat (42° Ost)

THO Thor (0,8° West)

Hinweis:

0° -90°+90°

Abstract geometric diagram with intersecting gray rectangles and a red vertical line (no text or symbols)

schlechter Empfang

Abstract geometric shape with intersecting red and blue lines forming a cross (no text or symbols)

guter Empfang

Simple cross-shaped diagram with red and blue lines (no text or symbols)

bester Empfang

LNB-Position Satellitensignal

Land Stadt Astra 2 Astra 3 Astra	1 Hotbird Astra 4 Thor	Hispasat Eutelsat 5
Bulgarien Sofia +1.7 +6.8 +11.4	-11.0 +19.0	+24.0 +41.0	+27.2
Dänemark	Kopenhagen	-3.4	-0.4	+2.5	-0.3	+5.3	+9.1	+24.8	+11.6
Finnland	Helsinki	+5.2 +7.9	+10.3 +6.8	+11.2 +14.2	+25.2 +16.0
Frankreich	Paris	-13.9	-10.5	-7.2	-9.2	-2.2	+2.9	+25.0	+6.3
Deutschland	Berlin	-4.1	-0.7	+2.6	+0.3	+6.6	+10.8	+27.8	+13.5
England	London	-13.7	-10.7	-7.8	-10.3	-4.0	+0.6	+21.6	+3.9
Griechenland	Athen	+1.3	+7.3	+12.7	+13.4	+22.5	+28.1	+45.9	+31.6
Ungarn	Budapest	-1.3	+3.0	+6.9	+5.6	+12.8	+17.5	+34.7	+20.5
Italien	Rom	-9.8	-5.0	-0.4	-0.6	+8.5	+14.6	+37.0	+18.5
Polen	Warschau	+1.5 +5.1	+8.4 +6.1	+12.2 +16.2	+31.0 +18.8
Portugal	Lissabon	-30.2	-27.0	-23.7	-25.3	-16.8	-10.1	+23.9	-5.1
Spanien	Madrid	-24.8	-21.2	-17.6	-18.7	-9.9	-3.2	+27.5	+1.5
Belgien	Brüssel	-11.2	-7.9	-4.8	-7.0	-0.3	+4.4	+24.7	+9.3
Schweden	Stockholm	+1.1 +3.8	+6.4 +3.0	+7.8 +11.0	+23.8 +13.0
Schweiz	Bern	-11.3	-7.5	-3.8	-5.2	+2.4	+7.8	+29.5	+11.4
Österreich	Wien	-3.4	+0.7	+4.5	+3.0	+10.2	+15.0	+32.9	+18.0

7. Ausleuchtzone

Astra 1 Hotbird

Topographic map of Europe highlighting a region outlined in yellow and red, with no visible text or labels.

Hinweis:

Version: 1.0 (August 2020)

White MEGASAT satellite radar device with mounted antenna and base mount (no visible text or symbols on body)

2.1 Installation on the roof 05
2.2 Gluing instructions....06
2.3 Indoor installation....07
2.4 Connection of the components 08
2.5 The control unit 10
2.6 Satellite transmission....11

3. Satellite search with the control unit

3.1 Designation of the respective LEDs and keys....12
3.2 Satellite search.... 13

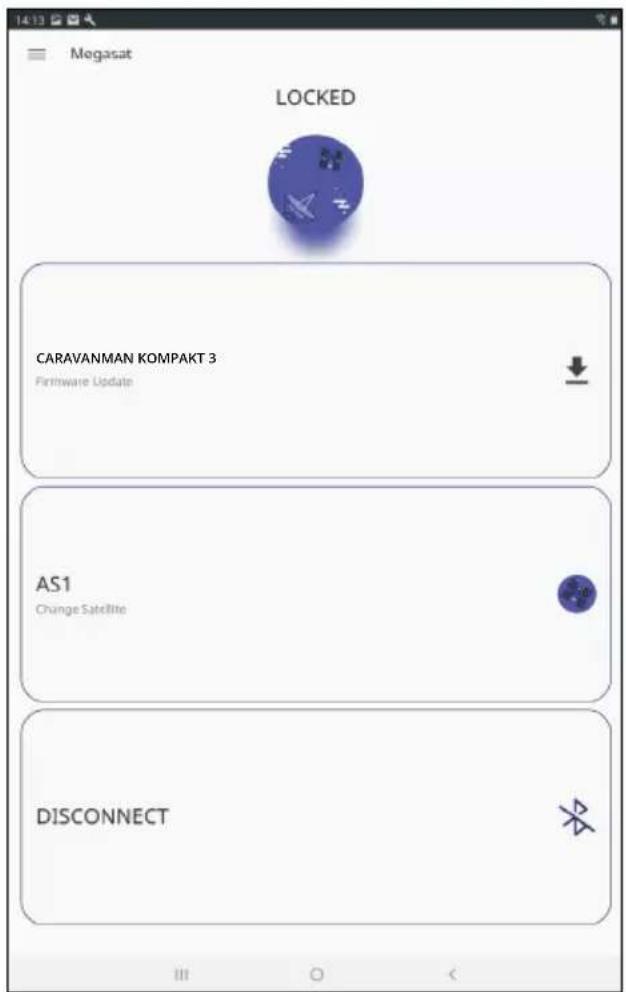

4. Mobile app for controlling the antenna

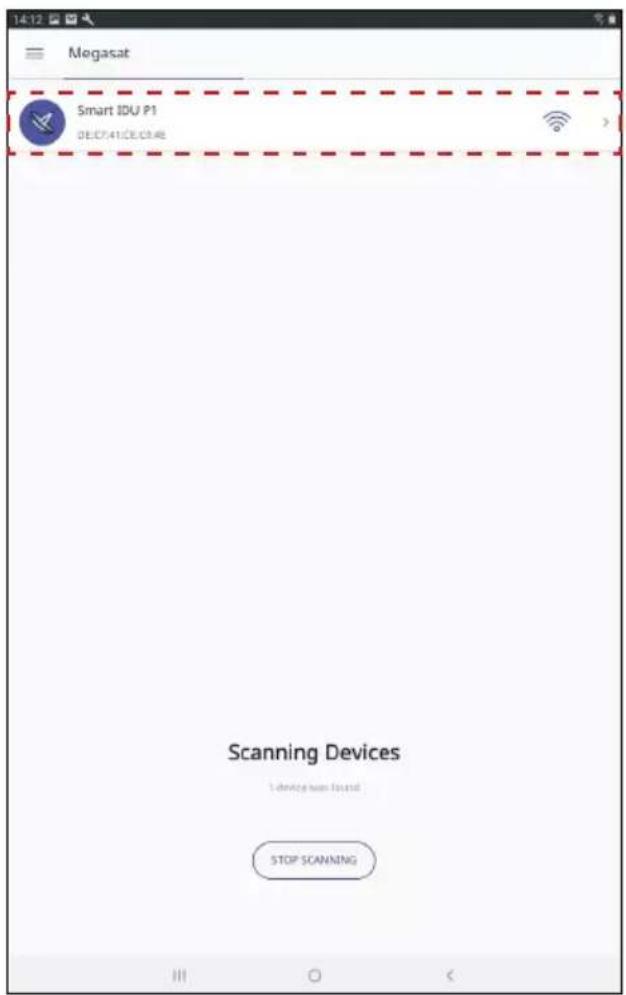

4.1 Connecting the control unit to the mobile device 14

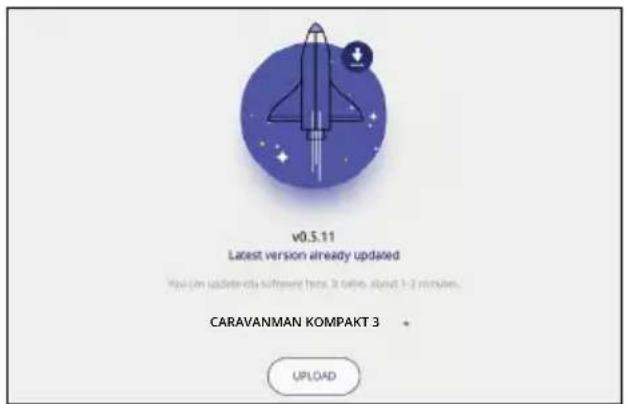

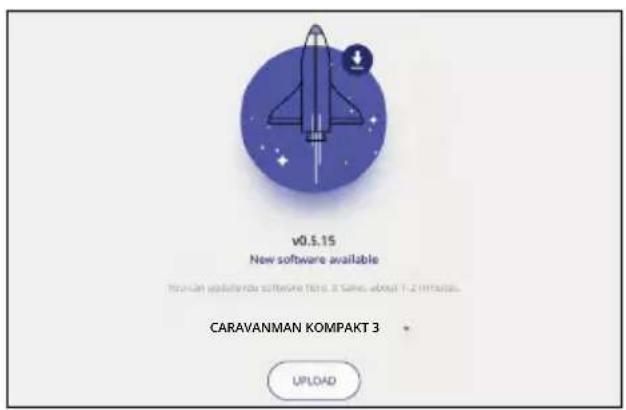

4.2 Firmware update of the antenna 16

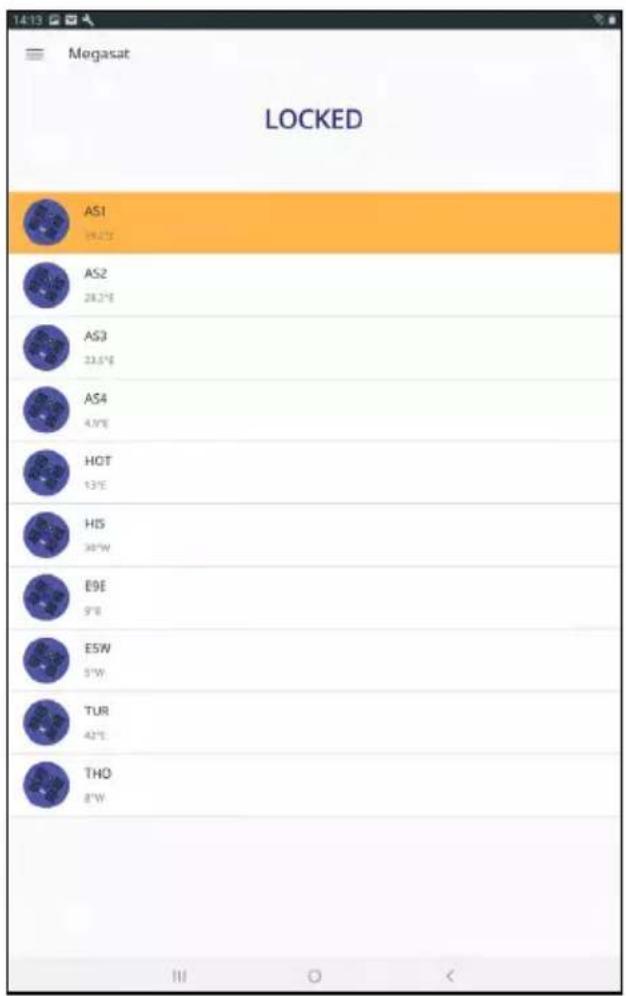

4.3 Change satellite 17
4.4 Disconnect Bluetooth ^® connection....17

1. Troubleshooting....18

2. Setting values for the skew 19

3. Footprint 20

4. Mounting dimensions....21

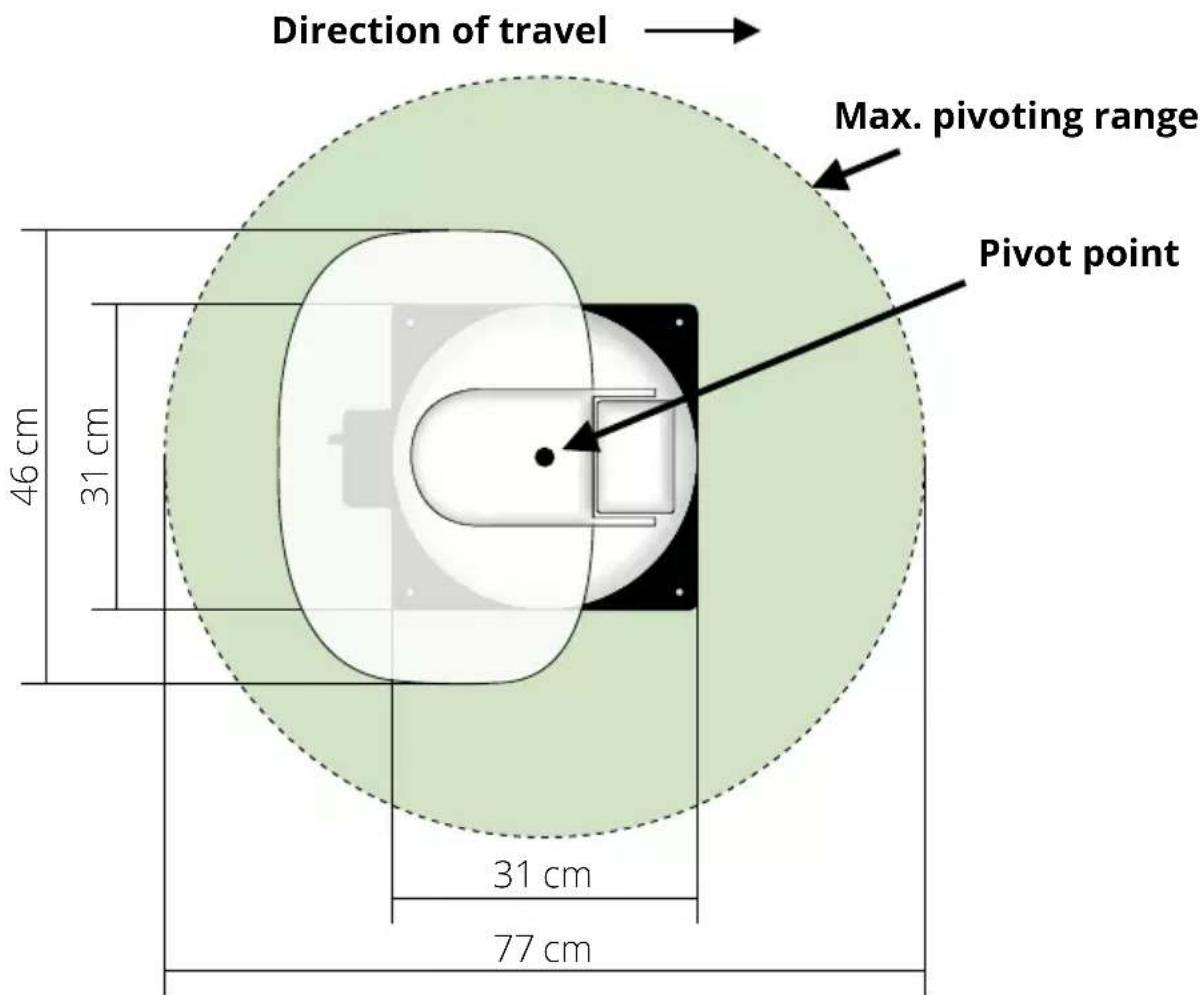

5. Specifications....22

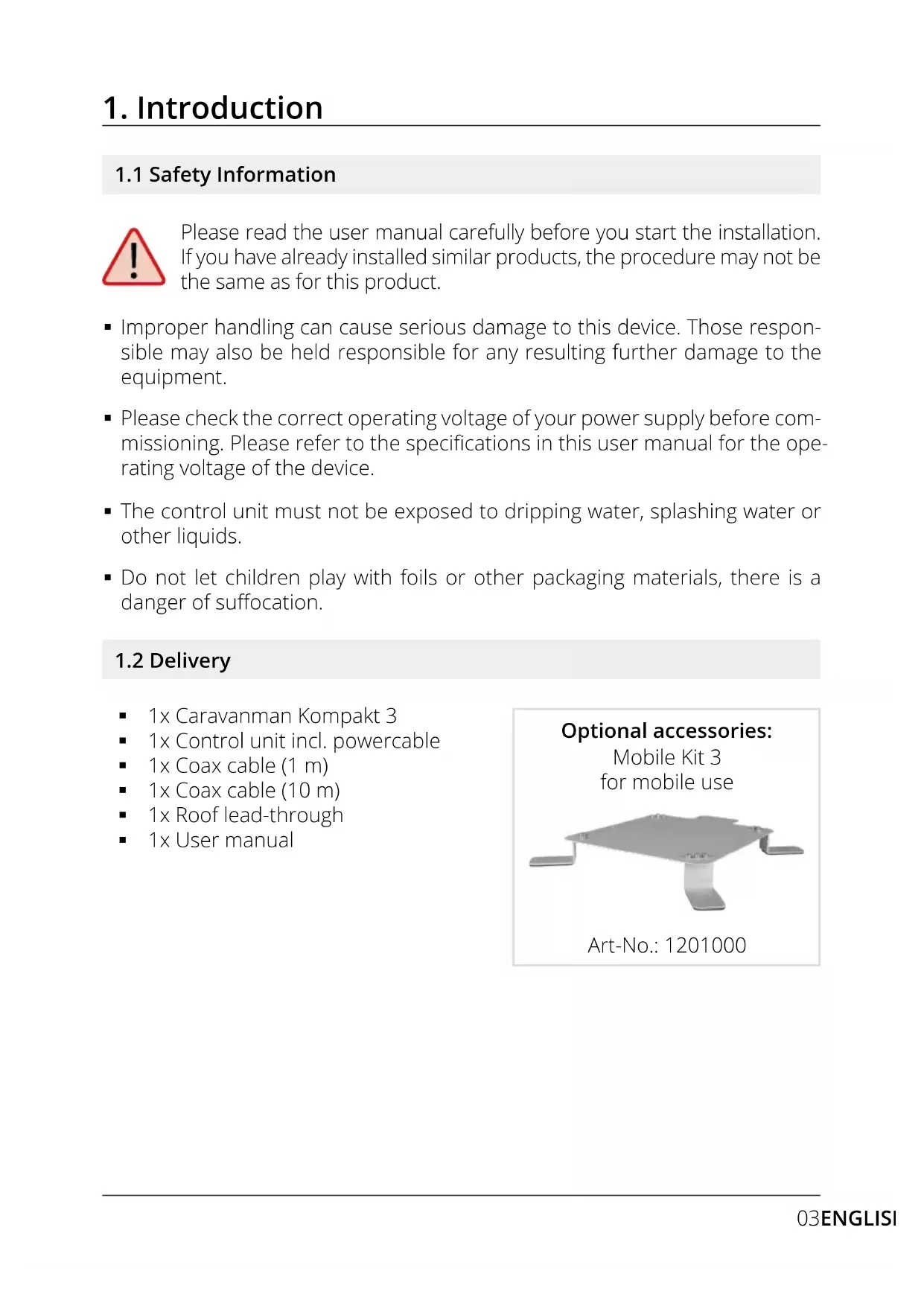

1. Introduction

1.1 Safety Information

Please read the user manual carefully before you start the installation. If you have already installed similar products, the procedure may not be the same as for this product.

• Improper handling can cause serious damage to this device. Those responsible may also be held responsible for any resulting further damage to the equipment.
• Please check the correct operating voltage of your power supply before commissioning. Please refer to the specifications in this user manual for the operating voltage of the device.
• The control unit must not be exposed to dripping water, splashing water or other liquids.
• Do not let children play with foils or other packaging materials, there is a danger of suffocation.

1.2 Delivery

■ 1x Caravanman Kompakt 3
■ 1x Control unit incl. powercable
■ 1x Coax cable (1 m)
■ 1x Coax cable (10 m)
■ 1x Roof lead-through
■ 1x User manual

Optional accessories:
Mobile Kit 3 for mobile use

Metallic electronic component with four legs and a central base (no text or symbols visible)

Art-No.: 1201000

1. Introduction

1.3 System components

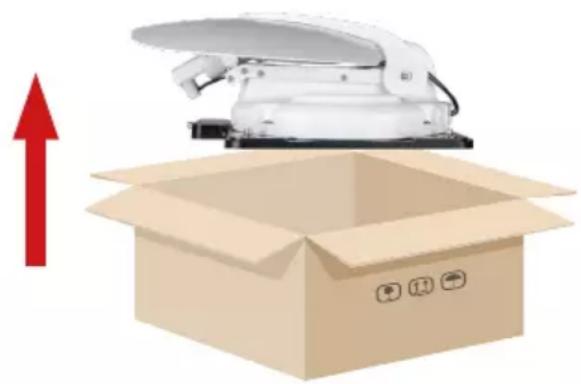

Open the carton and remove the control unit, connection cables and packing material. Lift the antenna straight up out of the box. Never turn the system upside down!

Illustration of an open cardboard box with a robotic arm above it, featuring a red upward arrow and control buttons (no text or symbols on the main image)

WARNING!

Never touch the antenna directly to the mirror when lifting it out of the box. Lift the antenna by the base plate.

White satellite dish antenna with 'MEGACAT' branding, mounted on a base (no additional text or symbols visible)

Antenna unit

The high performance antenna and the elevation angle of 15-62° allows the best possible reception in the most important holiday destinations in Europe.

Control unit

The control unit is used for satellite selection and control. It is connected between antenna and TV (receiver) and supplies the antenna with power. After successful alignment the device can be switched off.

Note:

The Caravanman Kompakt 3 Twin has an additional connection for a second TV or receiver. For the correct connection of the components, please refer to the connection diagram in this operating manual.

2. Installation

2.1 Installation on the roof

As a matter of principle, we recommend having the installation carried out by your specialist dealer or a specialist workshop! Please also note that the vehicle height changes accordingly due to the antenna! Please strictly adhere to the individual points of the installation instructions!

General information

Provide a suitable workplace, a garage/hall is better than an outdoor place. The ambient temperature for installation must be between +5°C and max. +25°C. Do not work directly in the sun. Observe the work regulations when handling chemical products. Ensure the necessary work hygiene.

Preparation

1. Make sure that the roof of your vehicle is sufficiently stable. If the roof stability is insufficient or doubtful, attach an approx. 2 mm thick sheet metal plate measuring approx. 100 x 100 cm to the outer skin of the roof. Please ask your vehicle manufacturer for more information.

2. Check that all parts are present.

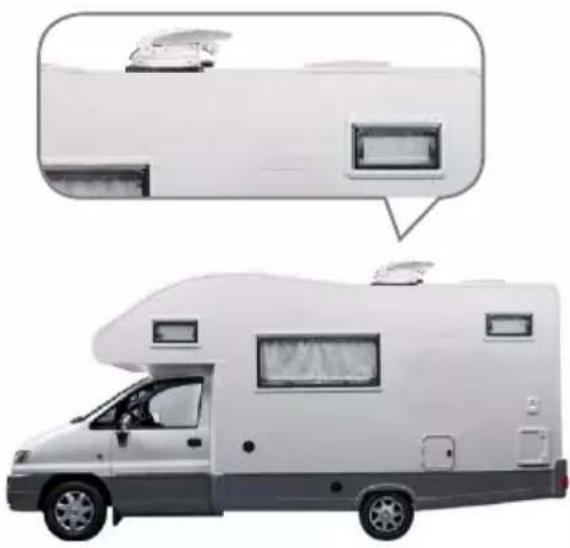

3. Place the antenna on the later mounting place and align it so that the mirror and the LNB unit point towards the rear of the vehicle. Ensure that the mounting surface is level and that no roof structures are in the way. Always observe the mounting dimensions in this user manual. The minimum distance to an air conditioning unit should be 30 cm.

4. Clean the mounting surface with a suitable cleaner and a fleece cloth to remove dirt and impurities. Then mark the antenna base with a pen.

Side profile of a white and gray RV with a small inset showing a roof detail (no text or symbols visible)

Close-up of a white plastic object with a red cylindrical rod inserted, placed on a black base with dashed lines (no text or symbols visible)

2. Installation

1. Slightly roughen the drawn surfaces and feet with sandpaper (120 grain) and clean the surface again with the cleaner and allow the cleaner to flash off for about 10 minutes. WARNING: Do not touch the surfaces afterwards.
2. Mount the roof lead-through (preferably in the slipstream behind the antenna) on the vehicle roof. Make sure that the penetration of water and moisture (e.g. rain or splash water) into the drill hole is avoided. Make sure that the cables are not bent too much to avoid signal loss and damage to the cable (smallest bending radius max. 5-7 cm).

2.2 Gluing instructions

1. Prepare the adhesive for mounting.

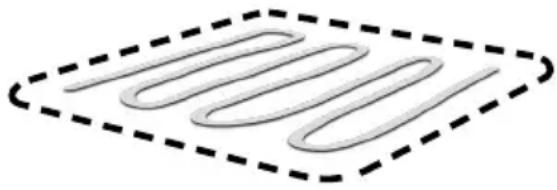

2. Now apply the adhesive to the underside of the antenna base in serpentine lines so that the adhesive cures well all the way inside.
3. Now immediately (within 5 minutes after applying the adhesive) place the antenna on the marked field. Press the foot lightly and evenly and fix the antenna so that it does not slip, e.g. with adhesive tape. There must still be at least 2 mm of adhesive between the antenna foot and the surface after pressing on. The adhesive is cured after max. 48 hours at +18°C and a relative humidity of 50%. If there is a low humidity during the installation period, spray some water into the air around the antenna after the adhesive has been applied.
4. Remove any leaked adhesive mass immediately with a spatula or similar and clean the soiled surfaces with the cleaner and a fleece cloth.
5. For safety reasons, you can additionally attach the antenna base. To do this, drill through the existing holes in the antenna base into the roof of your vehicle and fix it with a screw and lock nut. To prevent the freshly glued foot from slipping, wait until the adhesive has hardened.
6. After complete assembly and hardening of the adhesive, a silicone joint can be drawn around the antenna base.

Pure diagram of a U-shaped pipe or tube enclosed in a dashed oval boundary (no text or symbols)

2. Installation

2.3 Indoor installation

1. The coax cable is laid inside the vehicle.
2. When choosing the location for the control unit and the satellite receiver, make sure that both devices are in a dry and protected place.
3. Do not place the control unit and satellite receiver near heat sources and ensure sufficient ventilation.
4. The basic connection options for the antenna system are shown below:

- Connect the power supply (red-black cable) for the control unit to your vehicle's battery via a fuse (7 amps) to prevent cable fire in the event of a short circuit. The yellow cable is connected to the ignition plus of the vehicle and is also protected by a 7 amp fuse (This cable only needs to be connected if the antenna is to retract automatically when the engine is started). The remaining black cable is connected to the corresponding negative pole of the ignition system (ground).

- Connect the coax cable from the antenna to the control unit (10 m coax cable with F-plug in „ANTENNA“)

- Connect the control unit to the TV or satellite receiver (1 m coaxial cable with F-plug from „RECEIVER“ to the satellite receiver)

Note:

With the Caravanman Kompakt 3 Twin you connect a second coaxial cable from the antenna directly to the second TV or satellite receiver.

2. Installation

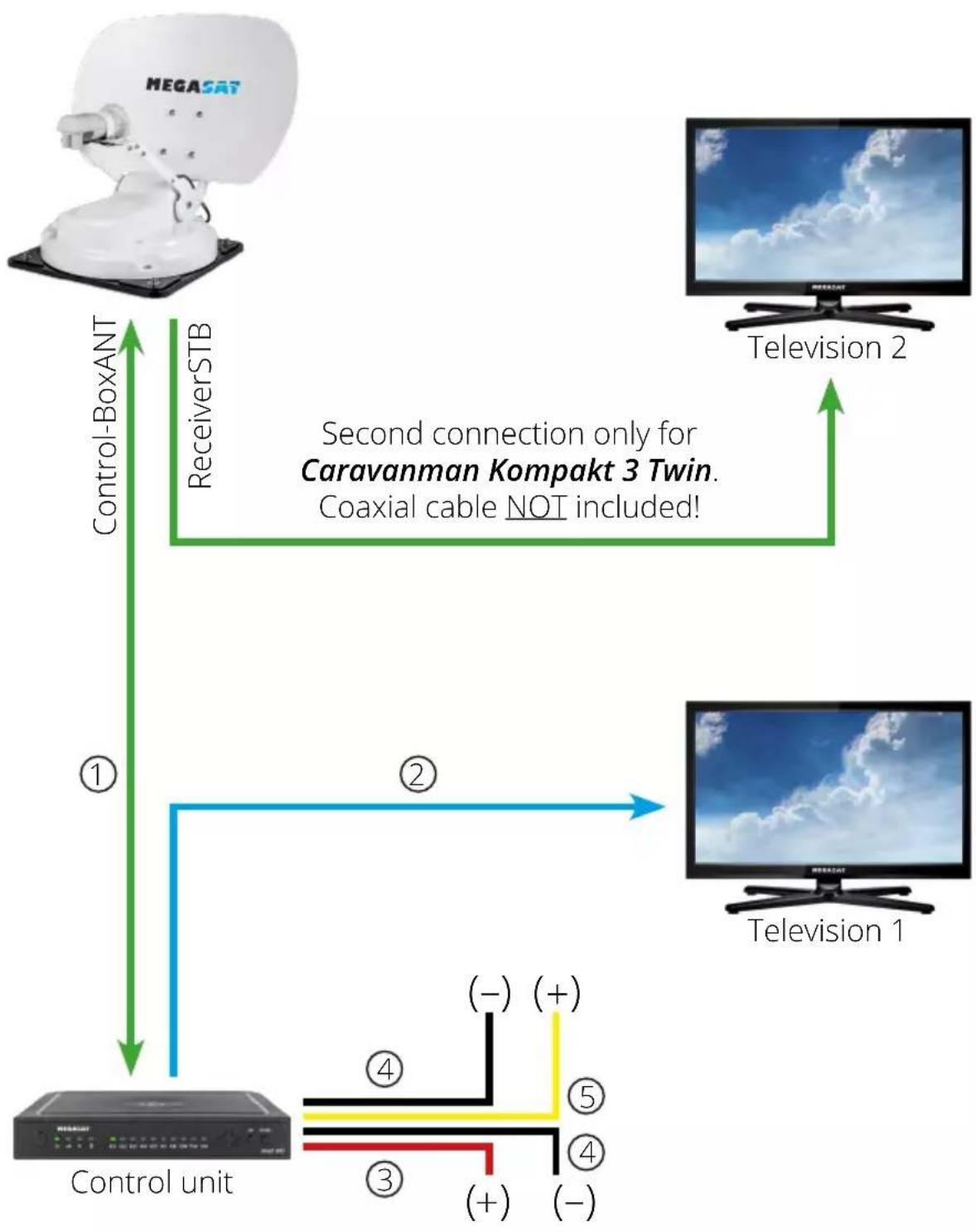

2.4 Connection of the components

Ignition plus

The antenna automatically moves to the retracted position as soon as the ignition key is turned. This function is only guaranteed if the control unit is switched on and cables 4 and 5 are connected to the ignition plus of the vehicle.

Power supply

DC 12 V via battery (positive pole permanent supply RED) or optional 230 V / 12 V DC power supply (no chargers). Make sure that a current of at least 5 amperes is guaranteed.

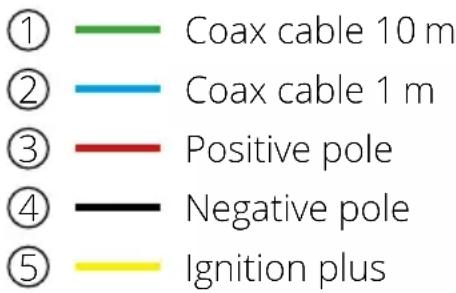

① Coax cable 10 m ② Coax cable 1 m ③ Positive pole ④ Negative pole ⑤ Ignition plus

Warning: Always connect the control unit via a 7 ampere fused cable of at least 2.5 mm ^4 thickness. Never connect to the car battery without a fuse.

2. Installation

2. Installation

2.5 Control unit

Standby Satellite Selectors Connection MEGASAT Q Status LEDs AS1 AS2 AS3 AS4 HOT HIS E9E E5W TUR THO OK STOW Smart IDU Home position (retracts antenna)

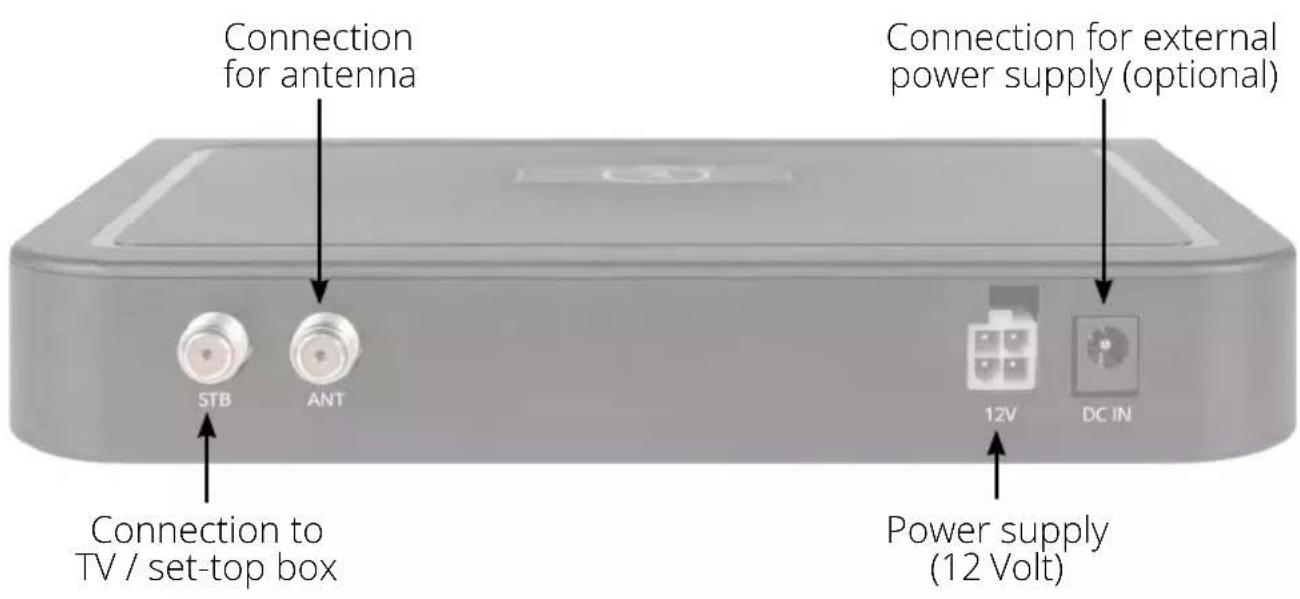

Connection for antenna STB ANT Connection to TV / set-top box Connection for external power supply (optional) 12V DC IN Power supply (12 Volt)

Warning: Always connect the control unit via a 7 ampere fused cable of at least 2.5 ~mm^2 thickness. Never connect to the car battery without a fuse.

2. Installation

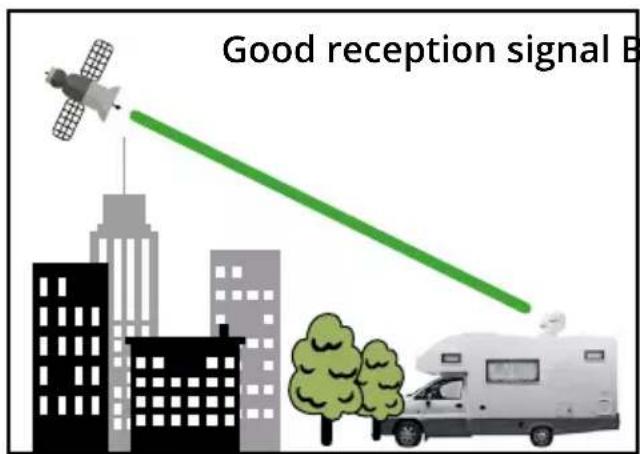

2.6 Satellite broadcasting

Direct Broadcast Service (DBS) satellites broadcast audio, video and data information from satellites located 22.000 miles in space. A receiving station, such as the antenna, should include a dish and satellite receiver to receive the signals and process them for use by the consumer audio and video equipment. The system requires a clear view of the satellite to maximize the signal reception.

Good reception signal B

ad reception signal

Objects such as tall lighthouse, bridges and big ship that block this view will cause a loss of signal. The signal will be quickly restored once the antenna has a clear line of sight again. Heavy rain, cloud, snow or ice may also interfere with the signal reception quality. If the satellite signal is lost due to blockage or severe weather condition, services from the receiver will be lost (picture will freeze frame and may disappear). When the satellite signal strength is again high enough, then the receiver will resume providing desired programming services.

3. Satellite search with the control unit

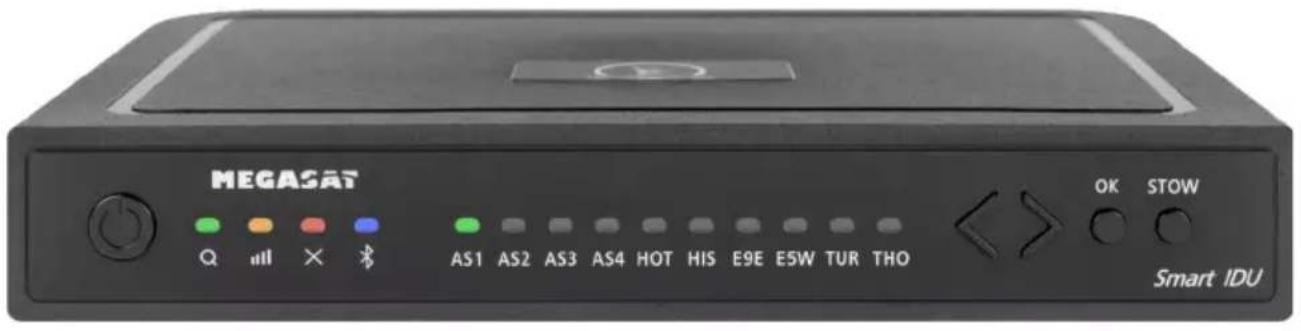

MEGASAT Q X AS1 AS2 AS3 AS4 HOT HIS E9E E5W TUR THO OK STOW Smart IDU

3.1 Designation of the respective LEDs and keys

Search-LED

Flashing during satellite search

Reception-LED

Lights up when a satellite is found

Error-LED

Lights up in case of a malfunction

Bluetooth-LED

Lights when connected

Satellite-LED

Astra 1 (19,2° East)

Satellite-LED

Astra 2 (28,2° East)

Satellite-LED

Astra 3 (23,5° East)

Satellite-LED

Astra 4 ( 4^ East)

Satellite-LED

Hotbird (13° East)

Satellite-LED

Hispasat (30° West)

Satellite-LED

Eutelsat 9 B (9° East)

Satellite-LED

Eutelsat 5 West (5° West)

Satellite-LED

Turksat (42° East)

Satellite-LED

Thor (0,8° West)

Standby-button

Switches the control unit on / off

Arrow-button

Changing satellites

OK-button

Confirms the satellite selection

STOW-button

Moves the antenna to the home position

3. Satellite search with the control unit

3.2 Satellite search

1.		the control unit on at the standby button.
2.		The search LED flashes green during the search process.
3.		The satellite LED of the last used satellite flashes green.
4.		To change the satellite, you must change the satellite with the arrow keys within approx. 3-5 seconds while the LEDs are flashing. Later changing is only possible if the antenna has found a satellite before.
5.		Confirm the satellite selection with the OK button or wait 3-5 seconds until the satellite logs in automatically.
6.		After the selected satellite has been found, the reception LED will light up orange.
7.		If the selected satellite was not found, the Error LED will light red.
8.		After successful search, you can switch off the control unit again at the standby key.

Note:

If you want to start the search at another location, simply press the Standby key to search for the last selected satellite.

Retract the antenna to the home position

1.		ssary, switch the control unit on at the standby button.
2.		Press the STOW button to retract the antenna.

4. Mobile App to control the antenna

MEGASAT

With the app, the satellites can be changed via the smartphone or tablet. Future firmware updates for the control unit can also be made. The app is available free of charge from the App Store (iOS) or the Google Play Store (Android). Search for the name „Megasat“ in the respective store.

Note: Make sure that Bluetooth® is activated on the mobile device and that you are no further than 10 metres away from the control unit.

4.1 Connecting the control unit to the mobile device

1. After the app has opened, the following start screen appears.

2. Now switch on the control unit. The name of the control unit will then appear in the selection menu. Click on it.

Megasat CAN'T FIND ANTENNAS Make sure the antenna is connected to a power source.

Megasat Smart IDU P1 DE:0741/CE:03:46 Scanning Devices I device non found STOP SCANNING

4. Mobile App to control the antenna

1. On the main interface of the app there are now various options:

Megasat LOCKED CARAVANMAN KOMPAKT 3 Firmware Update AS1 Change Satellite DISCONNECT

Firmware update of the antenna

Change satellites

Disconnect Bluetooth® connection

4. Mobile App to control the antenna

4.2 Firmware Update of the Antenna

1. Tap the button to open the up-date menu.

CARAVANMAN KOMPAKT 3 Firmware Update

1. The app checks whether a newer version of the firmware is currently available:

Reading data from server...

Reading data from server... Your sun updating to app software here, it takes about 1.2 minutes. CARAVANMAN KOMPAKT 3 UPLOAD

1. If no new firmware is available, the current version number is displayed and the following message appears:

Latest version already updated

v0.5.11 Latest version already updated v0.5.11 updates this software here, 3 times, about 1-2 minutes. CARAVANMAN KOMPAKT 3 UPLOAD

1. If a new firmware is available, the new version number is displayed and the following message appears:

New software available

Then tap the „Upload“ button to update the antenna.

v0.5.15 New software available Caravan usalentera software NO. 2 Tiling about 1-2 (MTPs) CARAVANMAN KOMPAKT 3 UPLOAD

4. Mobile App to control the antenna

4.3 Change satellite

1. Tap on the button to open the satellite list.

2. Select the desired satellite. After approx. 3-5 seconds the satellite will be searched automatically.

AS1 Astra 1 (19,2° East)

AS2 Astra 2 (28,2° East)

AS3 Astra 3 (23,5° East)

AS4 Astra 4 ( 4^ East)

HOT Hotbird (13° East)

HIS Hispasat (30° West)

E9E Eutelsat 9 B (9° East)

E5W Eutelsat 5 West (5° West)

TUR Türksat (42° East)

THO Thor (0,8° West)

Note:

A satellite change is only possible if the antenna has found a satellite before.

AS1 Change Satellite

Megasat LOCKED AS1 28.2°C AS2 28.2°C AS3 23.5°C AS4 4.9°C HOT 13°C HIS 30°W E9E 9°C E5W 5°W TUR 42°C THO 8°W

4.4 Disconnect Bluetooth® connection

Tap the button to disconnect the Bluetooth® connection between mobile device and control unit.

DISCONNECT

5. Troubleshooting

No satellite signal

Objects such as trees, bridges and large houses located at the satellite's angle of incidence cause the signal to be lost. If the satellite signal is lost due to severe weather conditions, the current program of the TV or receiver will be interrupted (the picture will pixelate, freeze or disappear). When the weather conditions allow good reception again, the TV picture will be restored.

Is there dirt on the antenna?

Heavy dirt on the housing can cause reception problems.

Is everything correctly connected and switched on?

Make sure that the TV and the receiver are connected correctly and that the receiver is correctly set for satellite reception. Are all cables connected correctly and the connections screwed tightly onto the coaxial cable? Also check the coaxial cable for kinks.

Footprint of the satellite

Satellites are in fixed positions above the equator in orbit. In order to receive the TV signals, the receiving location must be within the footprint. Use the diagram to check whether your location is within the satellite's footprint. In the peripheral areas of the footprint, reception interference may occur.

Satellite frequency of a TV channel was changed

TV stations change their frequency sporadically, which then no longer matches the frequency in the receiver. Ask for the current frequency of the channel.

The firmware of the control unit is outdated

If transponders on the satellite are changed, the antenna may no longer be able to find the satellite. Update the firmware of the control unit to get the latest transponder information.

The mobil app does not connect to the control unit

Make sure that Bluetooth® on your mobile device is switched on and that you are in the direct vicinity of the control unit (max. 10 metres).

0° -90°+90°

Abstract geometric diagram with intersecting gray rectangles and a red vertical line (no text or symbols)

bad reception

Abstract geometric shape with intersecting red and blue lines forming a cross (no text or symbols)

good reception

Simple cross-shaped diagram with red and blue lines (no text or symbols)

best reception
+ LNB position

• Satellite signal

Country City Astra 2 Astra 3 Astra 1 Hotbird		Astra 4 Thor		Hispasat Eutelsat 5
Bulgaria	Sofia	+1.7	+6.8	+11.4	+11.0	+19.0	+24.0	+41.0	+27.2
Denmark	Copenhagen	-3.4	-0.4	+2.5	-0.3	+5.3	+9.1	+24.8	+11.6
Finland	Helsinki	+5.2	+7.9	+10.3	+6.8	+11.2	+14.2	+25.2	+16.0
France	Paris	-13.9	-10.5	-7.2	-9.2	-2.2	+2.9	+25.0	+6.3
Germany	Berlin	-4.1	-0.7	+2.6	+0.3	+6.6	+10.8	+27.8	+13.5
England	London	-13.7	-10.7	-7.8	-10.3	-4.0	+0.6	+21.6	+3.9
Greece	Athens	+1.3	+7.3	+12.7	+13.4	+22.5	+28.1	+45.9	+31.6
Hungary	Budapest	-1.3	+3.0	+6.9	+5.6	+12.8	+17.5	+34.7	+20.5
Italy	Rome	-9.8	-5.0	-0.4	-0.6	+8.5	+14.6	+37.0	+18.5
Poland	Warsaw	+1.5	+5.1	+8.4	+6.1	+12.2	+16.2	+31.0	+18.8
Portugal	Lisbon	-30.2	-27.0	-23.7	-25.3	-16.8	-10.1	+23.9	-5.1
Spain	Madrid	-24.8	-21.2	-17.6	-18.7	-9.9	-3.2	+27.5	+1.5
Belgium	Brussels	-11.2	-7.9	-4.8	-7.0	-0.3	+4.4	+24.7	+9.3
Sweden	Stockholm	+1.1	+3.8	+6.4	+3.0	+7.8	+11.0	+23.8	+13.0
Switzerland	Bern	-11.3	-7.5	-3.8	-5.2	+2.4	+7.8	+29.5	+11.4
Austria	Vienna	-3.4	+0.7	+4.5	+3.0	+10.2	+15.0	+32.9	+18.0

7. Footprint

Astra 1 Hotbird

Topographic map of Europe highlighting a region outlined in yellow and red, with no visible text or labels.

Note:

In the outlying areas of the footprint there may be interference.

8. Mounting dimensions

Direction of travel Max. pivoting range Pivot point 46 cm 31 cm 31 cm 77 cm

7. Specifications

Antenna type Off-Set-dish
Number of user	1 (Caravanman Kompakt 3)2 (Caravanman Kompakt 3 Twin)
LNB type Universal-LNB
Frequency band Ku-Band
Frequency range 10.7 GHz to 1	2.75 GHz
LNB Reinforcement 33 dBi
Reception performance 49 dBW
Polarization Vertikal / Horizontal
Motor control unit 2-axis DC-motor
Tilt angle 15° to 62°
Search angle 360°
Temperature range -25°C to +70°C
Power supply 12 V DC @ 5 Ampere
Dish dimensions 460 x 320 mm (B/H)
Antenna dimensions 460 x 170 x 460 mm (B/H/T)
Weight antenna 5,1 kg
Control unit dimensions	195 x 30 x 150 mm (B/H/T)
Weight control unit	360 g

Note:

Weight and dimensions are not absolutely exact values .

Technical details can be changed at any time without prior notice.

Conformity information

Hereby, Megasat Werke GmbH declares that the following product is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/53/EU (RED):

Megasat Caravanman Kompakt 3 (Artikel-No. 1500192)

Megasat Caravanman Kompakt 3 Twin (Artikel-No. 1500193)

The declaration of conformity for this product is located at the company:

The declaration of conformity can be downloaded from our homepage:

www.megasat.tv/support/downloads

Notes

PRODUCT REGISTRATION

Registering your Megasat product gives you access to our automatic e-mail notifications. If your product requires new firmware, you will be notified by e-mail.

To register, please visit our homepage www.megasat.tv

You can find the form under Support Product registration

Version: 1.0 (August 2020)

Technical changes, misprint and errors reserved.

White MEGASAT satellite radar device with mounted sensor array (no visible text or symbols on body)

3D rendering of a metallic mechanical component with four legs and a flat top (no text or symbols visible)

Illustration of an open cardboard box with a robotic arm above it, featuring a red upward arrow and control buttons (no text or symbols on the main image)

ATTENTION!

White satellite dish antenna with 'MEGACAT' branding, mounted on a base (no additional text or symbols visible)

Unité d'antenne

Side profile of a white and gray RV car with roof-mounted windows, shown from front and side views (no text or symbols visible)

Close-up of a white plastic object with a red vertical rod inserted, placed on a black base with dashed outlines (no text or symbols visible)

2. Installation

Remarque: Make sure that Bluetooth® is activated in the mobile device and that you are no further than 10 metres away from the control unit.

Megasat CAN'T FIND ANTENNAS Make sure the antenna is connected to a power source.

Megasat Smart IDU P1 DEC741CE0X48 Scanning Devices I device was found STOP SCANNING

Reading data from server...

Reading data from server... Your sun updating app software here, it takes about 1.2 minutes. CARAVANMAN KOMPAKT 3 UPLOAD

Latest version already updated

v0.5.11 Latest version already updated You can update this software here, it calls about 1-2 minutes. CARAVANMAN KOMPAKT 3 UPLOAD

HOT Hotbird (13° Est)

HIS Hispasat (30° Ouest)

E9E Eutelsat 9 B (9° Est)

E5W Eutelsat 5 West (5° Ouest)

TUR Türksat (42° Est)

THO Thor (0,8° Ouest)

Remarque:

0° -90°+90°

Abstract geometric diagram with intersecting gray rectangles and a red vertical line (no text or symbols)

pire réception

Abstract geometric shape with intersecting red and blue lines forming a cross (no text or symbols)

bon réception

Simple cross-shaped diagram with red and blue lines (no text or symbols)

meilleur réception

Position du LNB Signal satellite

Pays Ville Astra	2 Astra 3 Astra 1	Hotbird Astra 4 Thor Hispasat Eutelsat 5
Bulgarie Sofia	+1.7 +6.8 +11.4 +	1.0 +19.0 +	24.0 +41.0 +	27.2
Danemark Copenhague	-3.4	-0.4 +2.5	-0.3 +5.3 +9.1	-24.8 +11.6
Finlande Helsinki	+5.2 +7.9 +10.3	+6.8 +11.2	+14.2 +25.2	+16.0
France	Paris	-13.9	-10.5	-7.2	-9.2	-2.2	+2.9	+25.0	+6.3
Allemagne Berlin	-4.1	-0.7 +2.6 +0.3	+6.6 +10.8	+27.8 +13.5
Angleterre Londres	-13.7 -10.7 -7	8 -10.3 -4.0	+0.6	+21.6 +3.9
Grèce	Athènes	+1.3	+7.3	+12.7	+13.4	+22.5	+28.1	+45.9	+31.6
Hongrie	Budapest	-1.3 +3.0	+6.9 +5.6	-12.8 +17.5	-34.7 +20.5
Italie	Rome	-9.8	-5.0	-0.4	-0.6	+8.5	+14.6	+37.0	+18.5
Pologne Varsovie	+1.5 +5.1 +8.4	+6.1 +12.2	-16.2 +31.0	+18.8
Portugal	Lisbonne	-30.2	-27.0	-23.7	-25.3	-16.8	-10.1	+23.9	-5.1
Espagne	Madrid	-24.8	-21.2	-17.6	-18.7	-9.9	-3.2	+27.5	+1.5
Belgique	Bruxelles	-11.2	-7.9	-4.8	-7.0	-0.3	+4.4	+24.7	+9.3
Suède	Stockholm	+1.1 +3.8	+6.4 +3.0	+7.8 +11.0	+23.8 +13.0
Suisse	Berne	-11.3	-7.5	-3.8	-5.2	+2.4	+7.8	+29.5	+11.4
Autriche Vienne	-3.4 +0.7 +4.5	+3.0 +10.2	+15.0 +32.9	+18.0

Topographic map of Europe highlighting a region outlined in yellow and red, with no visible text or labels.

Remarque:
