MIB - Microphone LD Systems - Free user manual and instructions

Product type	Table microphone base
Brand	LD Systems
Model	MIB
Intended use	Professional audio installation
Input connector	3-pin female XLR
Output connector	3-pin male XLR
Frequency response	Input = Output (linear)
Gain	0 dB (passive)
Housing material	Zinc, plastic front panel
Color	Black
Dimensions (W x H x D)	109.8 mm x 38.7 mm x 126.2 mm
Weight	0.51 kg
Operating temperature	0 °C to 40 °C
Relative humidity	< 85 % (non-condensing)
Power supply	None (passive)
Microphone compatibility	Dynamic and condenser
Safety	Do not open or modify. Keep out of reach of children (small parts).
Compliance	CE (Low Voltage Directive 2014/35/EU)
Cleaning	Wipe with a dry cloth. Do not use abrasive products.
Usage	Indoor use only

Frequently Asked Questions - MIB LD Systems

What type of microphone can I use with the MIB base?

The MIB base is compatible with dynamic and condenser microphones thanks to its standard XLR connectors.

How do I connect the microphone to the base?

Insert the microphone's XLR plug into the female XLR jack on top of the base. Ensure it is fully engaged.

Where does the output cable connect?

The output is via the male XLR jack on the back of the base. Connect it to the input of your mixing console or audio system.

Does the MIB base require electrical power?

No, the base is passive and requires no power. The signal goes directly from the microphone to the output.

Can I use this base with a condenser microphone that requires phantom power?

Yes, the base does not block phantom power. Make sure your mixing console or preamp provides the necessary +48V.

How do I clean the MIB base?

Use a soft, dry cloth to remove dust. Avoid solvents or abrasive products that could damage the surface.

Is this base suitable for home use?

No, it is designed for professional audio installation and not for home use.

What are the dimensions of the base?

The dimensions are 109.8 mm x 38.7 mm x 126.2 mm (W x H x D), height with rubber feet.

Does the MIB base come with a cable?

No, the cable is not included. You must use a standard XLR cable to connect the base to your equipment.

How can I avoid connection noise?

Before connecting a cable, mute the input channel of the mixing console. This avoids sound interference that could damage the equipment.

USER MANUAL MIB LD Systems

Black rectangular electronic device with a circular button and a small metallic knob on top (no visible text or symbols)

MIB

MICROPHONE DESKTOP BASE

LDMIB

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INTENDED USE 4

SAFETY INFORMATION......4

INTRODUCTION....5

COMPONENTS, CONNECTIONS, DISPLAYS AND CONTROLS....5

WIRING EXAMPLE 6

TECHNICAL DATA....6

DISPOSAL....7

MANUFACTURER'S DECLARATIONS....8

DEUTSCH

VERWENDUNGSZWECK 9

DONNÉES TECHNIQUES....17

DISPOSAL....18

DÉCLARATIONS DU FABRICANT....19

ESPAÑOL

USO PREVISTO 20

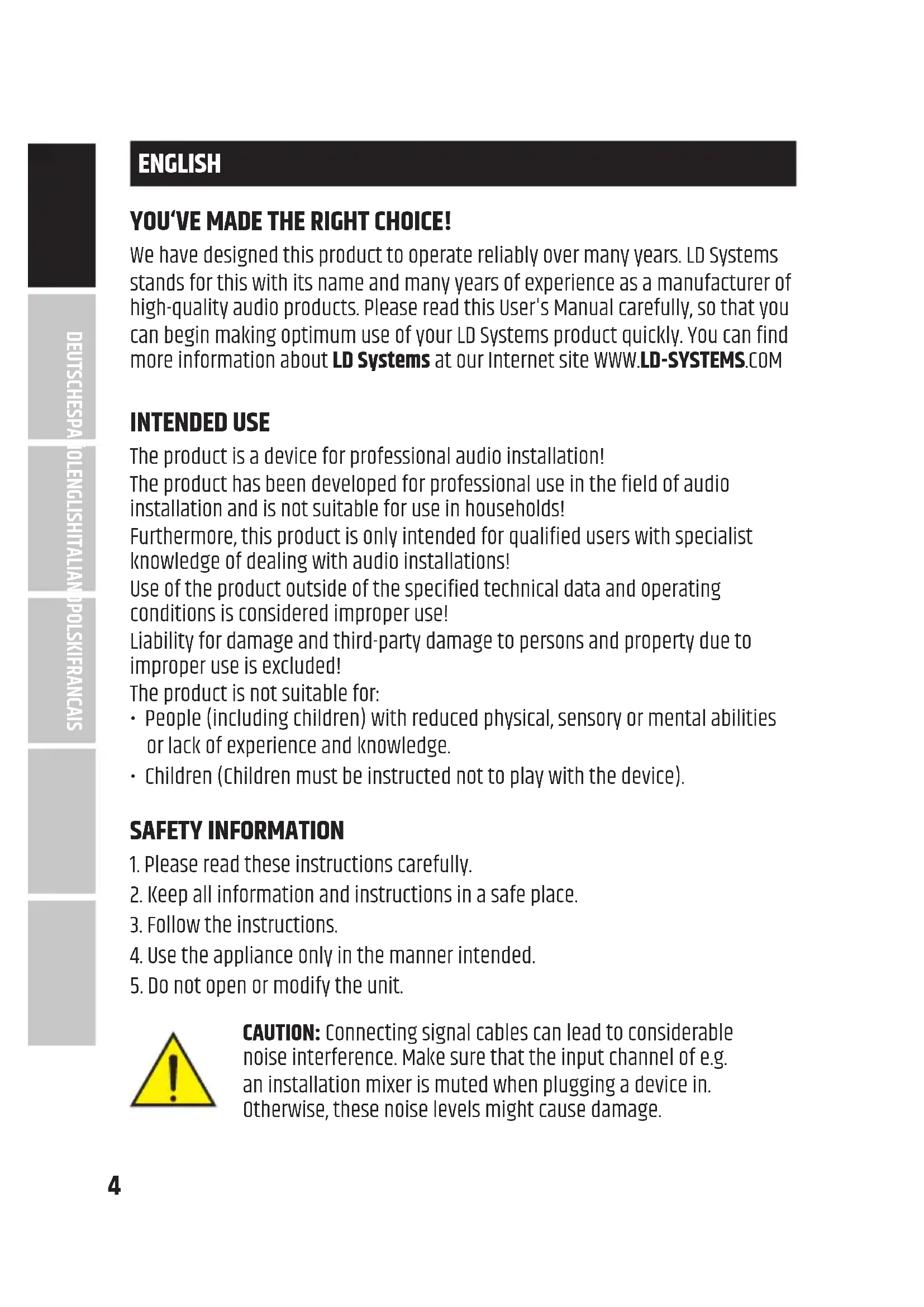

We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User's Manual carefully, so that you can begin making optimum use of your LD Systems product quickly. You can find more information about LD Systems at our Internet site WWW.LD-SYSTEMS.COM

INTENDED USE

The product is a device for professional audio installation!

The product has been developed for professional use in the field of audio installation and is not suitable for use in households!

Furthermore, this product is only intended for qualified users with specialist knowledge of dealing with audio installations!

Use of the product outside of the specified technical data and operating conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to improper use is excluded!

The product is not suitable for:

• People (including children) with reduced physical, sensory or mental abilities or lack of experience and knowledge.
  • Children (Children must be instructed not to play with the device).

SAFETY INFORMATION

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the appliance only in the manner intended.
5. Do not open or modify the unit.

CAUTION: Connecting signal cables can lead to considerable noise interference. Make sure that the input channel of e.g. an installation mixer is muted when plugging a device in. Otherwise, these noise levels might cause damage.

DANGER OF SUFFOCATION! KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE SWALLOWED AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF REACH OF CHILDREN!

INTRODUCTION

The solid LD MIB microphone base has a female XLR connector on the top and a male XLR port on the back. The microphone base is suitable for both dynamic and condenser microphones.

COMPONENTS, CONNECTIONS, DISPLAYS AND CONTROLS

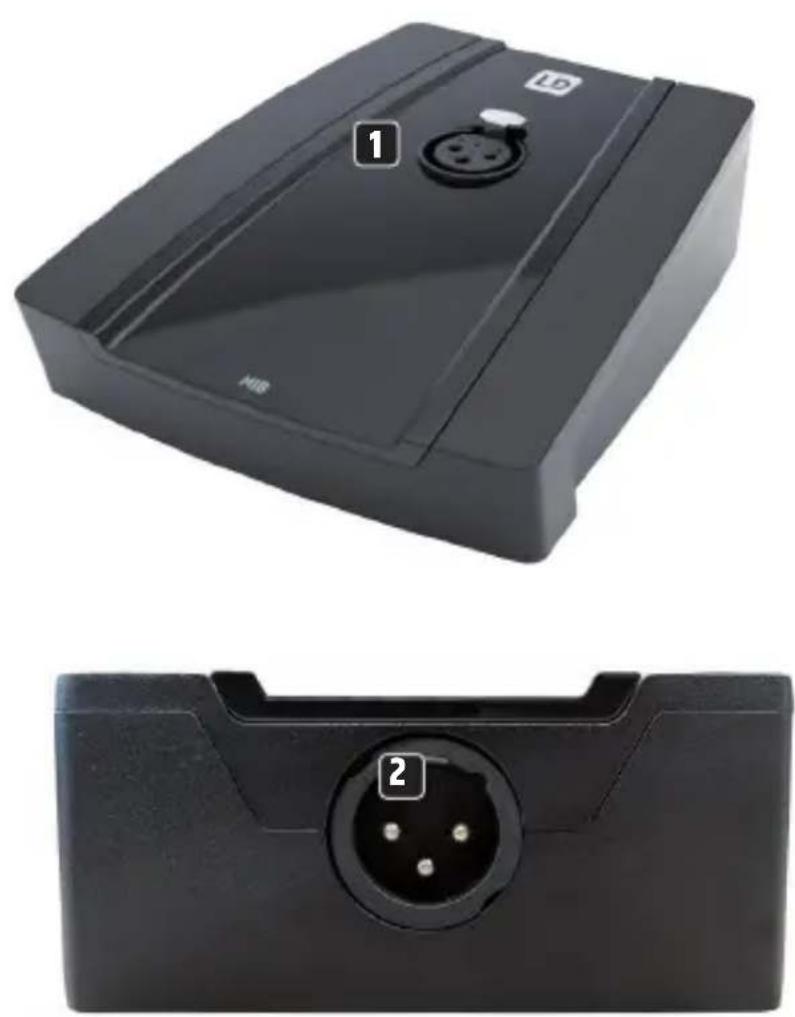

1 Female 3-pin XLR jack for connecting a microphone.
2 Male 3-pole XLR socket for forwarding the microphone signal to an installation mixing console or similar.

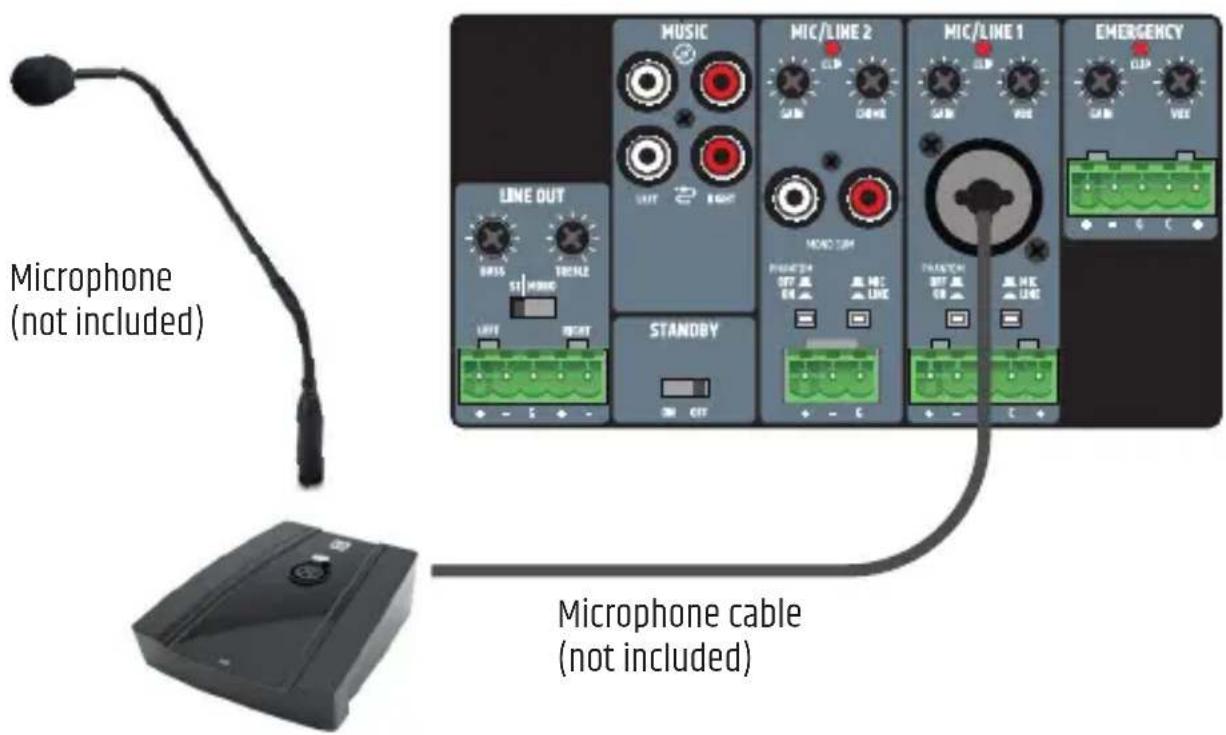

WIRING EXAMPLE

Preamplifier / Mixing amplifier (not Included)

TECHNICAL DATA

Article LDMIB

Product Base for microphone microphone

Frequency response Input = Output

Gain 0 dB

Inputs 1

Input ports 3-Pole XLR female

Outputs 1

Output Ports 3-pole XLR male

Operating temperature 0°C - 40°C

Relative humidity < 85%, non-condensing

Article LDMIB

General

Material Zinc housing, plastic front panel

Colour black

Dimensions (W x H x D) 109.8mm x 38.7mm x 126.2mm (height with rubber feet)

Weight 0.51 kg

DISPOSAL

PACKAGING:

1. Packaging can be disposed of via the usual waste disposal channels.
2. Please separate the packaging according to the waste disposal and materials regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment in its applicable version. WEEE Directive- Waste Electrical and Electronical Equipment. Old devices and batteries do not belong in household waste. The old device or batteries must be disposed of via an approved waste disposal service or a municipal waste disposal facility. Follow the directives in your country!
2. Follow the disposal laws in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the retailer from whom you purchased the product or from the relevant regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach /

Email: [e-mail] / [phone].

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf.

In case of service, please contact your sales partner.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the

following guidelines (where applicable)

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical and

Electronic Equipment

Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 2017(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail]. Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

FOR INDOOR USE ONLY

This symbol indicates electrical equipment designed primarily for indoor use.

Printing errors and mistakes, as well as technical or other changes are reserved!
