USER MANUAL AJ4 PLUS 10057 T.I.P.

GB Operating Instructions 08

Deep spring pump

F Mode d'emploi 15

Close-up of a hand holding a small mechanical component with wires, no visible text or symbols

Abb.2

Close-up of a black cylindrical object with coiled wires and a white filament, no visible text or symbols.

Six triangular warning symbols with exclamation marks, likely indicating a hazard or caution level.

Congratulations for buying your new device from T.I.P.!

Like all our products, this one, too, was developed using the latest technological knowledge. The device was manufactured and assembled on the basis of state-of-the-art pump technology using most reliable electrical or electronic components which ensure a high level of quality and a long life of your new product.

Please read through these operating instructions carefully to make sure that you can fully benefit from all features. Some explanatory illustrations can be found at the end of these operating instructions.

We hope you will enjoy your new device!

Table of contents

1. General safety information.... 1
2. Technical Data 2
3. Range of use....2
4. Scope of delivery 3
5. Installation.... 3
6. Electrical connection 4
7. Putting into operation....4
8. Automation with special accessories .... 5
9. Maintenance and troubleshooting....5
10. Warranty 6
11. How to order spare parts....7
12. Service 7

Annex: Illustrations

1. General safety information

Please read through these operating instructions carefully and make yourself conversant with the control elements and the proper use of this product. We shall not be liable in the case of damage caused as a result of the nonobservance of instructions and provisions of the present operating instructions. Any damage caused as a result of the nonobservance of the instructions and regulations contained in the present operating instructions shall not be covered by the warranty terms. Please keep these operating instructions in a safe place and hand them on together with the device should you ever dispose of it.

Persons not conversant with the contents of these operating instructions must not use this device.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The pump must not be used when people are in the water.

The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Notes and instructions with the following symbols require particular attention:

Any nonobservance of these instructions involves the danger of bodily harm to people and/or damage to property.

Any nonobservance of this instruction bears the risk of an electrical shock which may cause damage to persons or property.

Please inspect the device for damage occurred during transportation. In case of damage, the retailer has to be informed immediately, at the latest within 8 days after the date of purchase.

2. Technical Data

Model	AJ 4 Plus 55/50	AJ 4 Plus 95/40	AJ 4 Plus 100/57
Mains voltage / frequency	230 V ~ 50 Hz	220-240 V~ 50 Hz	220-240 V~ 50 Hz
Nominal performance	800 Watt	900 Watt	1,100 Watt
Protection type	IP68	IPX8	IPX8
Pressure port	39.59 mm (1 1⁄4"), female	39.59 mm (1 1⁄4"), female	39.59 mm (1 1⁄4"), female
Max. flow rate (Qmax)1)	3,300 l/h	5,500 l/h	6,000 l/h
Max. pressure	5.0 bar	4.0 bar	5.7 bar
Max. delivery height (Hmax)1)	50 m	40 m	57 m
Max. submersion depth ∇	20 m	20 m	20 m
MEI2)	≥ 0,40	≥ 0,40	≥ 0,40
Max. size of the solids being pumped	2 mm	2 mm	2 mm
Max. fluid temperature (Tmax)	35 °C	35 °C	35 °C
Max. cut-in frequency in one hour	30, evenly distributed	30, evenly distributed	30, evenly distributed
Length of connection cable	23 m	23 m	23 m
Cable type	H07RN8-F	H07RN8-F	H07RN8-F
Weight (net)	~ 9.2 kg	~ 10.7 kg	~ 11 kg
Dimensions (L x D x H)	9.6 x 9.6 x 55 cm	9,8 x 9,8 x 60 cm	9,8 x 9,8 x 66,5 cm
Item no.	30104	30177	30086

1) The values were determined with free, unreduced outlet.

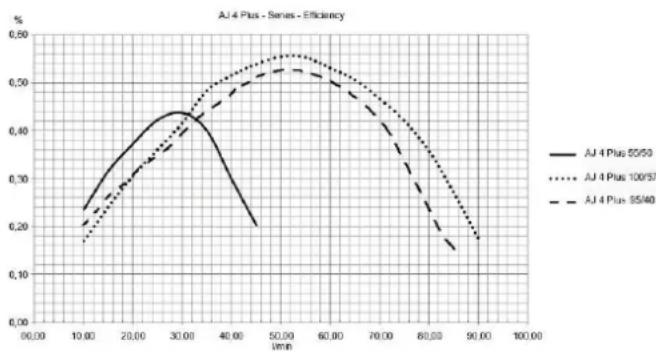

2.1. Information according to directive 2009/125/EG

2) Minimum Efficiency Index" (MEI) is a dimensionless variable for hydraulic pump efficiency at their best operating

point as well as with partial loading and overloading. The MEI reference value for water pumps with the best operating efficiency is ≥ 0.70 . Information on the efficiency reference value can be found under

http://www.europump.org/efficiencycharts. The corresponding reference curves for the AJ series pumps can be found at MEI = 0.40 for Multistage Submersible 2900 rpm.

The operation of this water pump can be more efficient and economic at different operating points, if for example it is controlled by means of a variable speed controller, which adapts the pump operation to the system.

3. Range of use

Deep-well pumps from T.I.P. are specially designed and most efficient submersible pressure pumps for discharging water from great depths. Owing to their compact design and professional technology, these pumps can be used even in narrow bore-hole wells and shafts. These high-quality products with their convincing performance data were developed for various applications involved with irrigation and for feeding on the liquid being discharged under high pressure.

The units are suitable for discharging clean, clear water containing solids up to the maximum size specified in the technical data.

The typical areas of use of a deep-well pumps include: Irrigation of gardens and garden beds, domestic water supply with grey water from wells, cisterns and reservoir tanks, the operation of irrigation systems, cleaning of terraces and sidewalks, discharge of water from great depths water extraction from great depths.

Deep-well pumps from T.I.P. are suitable for permanent or temporary installations.

This product is intended for private use in the home area and not for commercial or industrial purposes or for continuous circulating.

The device is not suitable for use in swimming pools or for the supply of drinking water.

The pump is not suited to discharge saltwater, faeces, inflammable, etching, explosive or other hazardous liquids. Please observe the max. temperature of the liquids to be discharged stated in the technical data.

Inside the pump, lubricants are used which may contaminate the liquids being discharged in case of any improper operation or damage of the device. The lubricants used are biologically degradable and non-hazardous to health.

4. Scope of delivery

The scope of the delivery of this product includes:

One pump with connection cable, one lowering rope, one operating manual.

Please verify that the scope of delivery is complete. Depending on the purpose of the application, additional accessories may be necessary (please refer to the chapters titled "Installation", "Automation with special accessories" and "How to order spare parts").

If possible, keep the packing until the warranty period has expired. Please dispose of the packing materials in an environmental-friendly manner.

5. Installation

5.1. General installation information

During the entire process of installation, the device must not be connected to the electrical mains.

The pump and the entire connection system have to be protected from frost.

Please also note the illustrations which are located in the text and also as an annex at the end of these operating instructions. The figures, which are shown in brackets in the statements below, refer to fig. 5 at the end of the operating instructions.

All connection lines have to be perfectly tight since leaking lines may affect the performance of the pump and cause considerable damage. If required, please use a suitable sealant to make the installation airtight.

When tightening threaded connections, please do not apply excessive force which may cause damage.

When laying the connection pipes, you should make sure that the pump is not exposed to any form of weight, vibration or tension. Moreover, the connection lines must not contain any kinks or an adverse slope.

5.2. Installation of the pressure line

The pressure line conveys the liquids to be discharged from the pump to the point of withdrawal. To avoid dynamic flow losses, one should use a pressure line having at least the same diameter as the pressure port (5) of the pump.

The pressure line to be used for this application should be a suitable flexible hose - for instance, a specifically designed drainage hose.

Rigid pipes have proven to be the ideal pressure line for use in a permanent installation.

The pump is equipped with an integrated check valve (non-return valve). It will prevent liquid from flowing back from the pressure line into the pump after the pump is shut down and protect the unit from being damaged by pressure peaks.

The pressure line is to be installed to the pressure port (5) of the pump.

5.3. Installation of lowering rope

Fig.1

Close-up of a hand adjusting a black cylindrical component with wires, no visible text or symbols

Fig.2

Close-up of a black cylindrical object with white wires attached, possibly a mechanical or electrical component (no visible text or symbols)

Thread the lowering cord supplied as shown in fig. 1, through the three eyes in the upper end of the pump. Then fasten the cord with a double knot (fig. 2). Ensure that the lowering cord is fastened firmly to the pump.

5.4. How to position the pump

To lower or raise the pump, please use a suitable lowering rope, but never the pressure hose or the connection cable.

To lower the pump down into or lift it out of the liquid, one has to use a lowering rope suitable for this purpose. Please use a rope made of stainless steel or synthetic materials such as nylon. Considering the risk of breaking involved, ropes which tend to the formation of rust, weathering, mouldering etc must not be used. The rope does not only have to bear the weight of the pump plus that of the water-filled pressure line and the connection cable, it also has to resist to the strain occurring in operation.

The standard equipment of this model includes a high-grade lowering rope (1).

To fasten the rope to the pump, please use the two eyelets (2) located at the upper part of the unit. Make sure that the pump will move into a vertical position when lifted up with the rope.

The lowering rope, the connection cable (3) and the pressure line have to be tied together at distance intervals of about 2 m using a suitable adhesive tape or cable ties to keep them from getting entangled while the pump is raised or lowered.

Carefully lower the pump with the lowering rope down into liquid to be discharged. Make sure that the unit will not bump or rub against the circumference of the cavity. The unit must be fully immersed in the liquid.

The minimum distance from the ground should be 0.5 m to prevent sludge, sand, stones etc from being sucked in. In order to be sure of this positioning it is advisable to set the pump down on the bottom of the well shaft and to mark this submersion depth on the tensioned cord. Make a second marking 0.5 m below this (i.e. towards the pump). Now draw the pump upwards 50 cm and fasten the device in place at this position whilst observing the second marking. Please note that the maximum submersion depth of the pump in liquid is 20 m..

6. Electrical connection

The unit is equipped with a mains connection cable and a mains plug. It must only be replaced by qualified staff to avoid any danger. Please do not use the mains connection cable to carry the pump, and do not use this cable to pull off the plug from the socket, either. Protect the mains connection cable and mains plug from heat, oil or sharp edges.

The values stated in the technical details have to correspond to the mains voltage. The person responsible for the installation has to make sure that the electrical connection is earthed in compliance with the applicable standards.

The electrical connection has to be equipped with a highly sensitive residual current circuit-breaker (FI switch): = 30 mA (DIN VDE 0100-739).

If extension cables are used, their cross-section must not be smaller than that of rubber-sheathed cables of the H07RN-F (3 x 1,0 mm²) short code. The mains socket and the plug-and-socket elements have to be in splashwater-proof design.

7. Putting into operation

Nobody must be in the water while the pump is running.

The pump must only be operated in the performance range indicated on the type plate.

Dry-running - i.e. operating the pump without discharging water - is to be avoided since the absence of water may cause the pump to run hot. This may cause considerable damage on the device.

Please make sure that the electrical plug connections are in the flood-proof area.

As long as the device is connected to the electrical mains, one must never reach with one's hands into the opening of the pump.

The pump must not run while the pressure port or the pressure line are closed.

GB

Please inspect the pump visually prior to each use. This applies in particular to the mains connection line and the mains plug. Make sure that all screws are firmly tightened, and verify the perfect condition of all connections. A damaged pump must not be used. In any case of damage, the pump has to be inspected by qualified service staff.

If present, open a shut-off device within the pressure line, for instance a water tap. Insert the mains plug into a 230V AC socket. The pump will start to run immediately. Shortly, the pump will start to discharge water. To stop the operation of the pump, please pull the mains plug off the socket.

Dry-running - i.e. the operation of the pump without discharging water - has to be avoided in any case since the absence of water will make the pump run hot. This will cause considerable damage to the unit. The main reason of dry running can usually be found in clogged or leaking intake lines or a lack of liquid to be discharged. In this context, please note that the water level may vary as a result of the withdrawal of water, weathering influences, seasonal changes or other reasons. For this reason it is recommended to install an automatic water level indicator.

The electrical pumps of the T.I.P. AJ 4 Plus series are equipped with an integrated thermal motor protection feature. In the case of overload, the motor will switch off independently and on again after cooling down. For possible causes and their elimination, please refer to the "Maintenance and troubleshooting" section.

8. Automation with special accessories

The present model is capable of rendering the pressure which may be required for automation, should need be. In this context, the term of "automation" means that the liquid being discharged can be used just as if taken from the water mains: Simply by opening or shutting water taps or consumer elements.

For automation, you will need an electronic or mechanic control system which can be installed very quickly and conveniently. As an additional benefit, some of the control systems provide a very effective protection from damage caused by dry-running since they will cut out the pump in the case of lack of water.

Our range of accessories contains some particularly reliable and proven control systems. For detailed information, please refer to www.tip-pumpen.de or to your specialised dealer.

9. Maintenance and troubleshooting

Prior to carrying out any maintenance work, the pump must be separated from the electrical mains. If you fail to separate the unit from mains, there is a risk of an inadvertent start of the pump.

We decline any liability for damage caused by inappropriate repair attempts. Any damage caused by inappropriate repair attempts will avoid all warranty claims.

Observing the conditions of use and the ranges of application of the present device will reduce the risk of possible operational malfunction and contribute to extend the lifetime of your unit. Sand and other abrasive matters contained in the liquid discharged will speed up the process of wearing and tearing and accelerate the drop in performance.

If the unit is operated properly, it will not require any maintenance.

If the water pumped is not sufficiently clean, it may be necessary to clean the intake filter (4) with a steel brush in order to remove the dirt that has accumulated on the outer surface. To do this the pump must be disconnected from the electrical power supply and taken out of the water. If this external cleaning is not sufficient then the stainless steel filter panel (4) can be removed from the pump by loosening the two Philips-head screws (fig. 3). Then the internal side of the intake filter (4) can also be cleaned with a steel brush. The filter panel should then be rinsed with clean water and re-fitted to the pump (fig 4). Any further disassembly and the replacement of parts must only be carried out by the manufacturer or authorized customer support personnel, in order to avoid hazards.

Disassembly Assembly
Fig.3		Fig.4

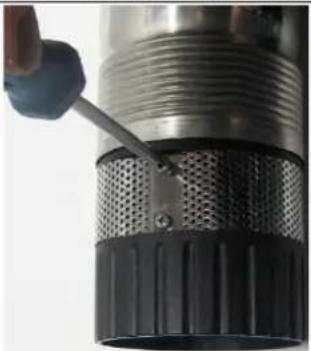

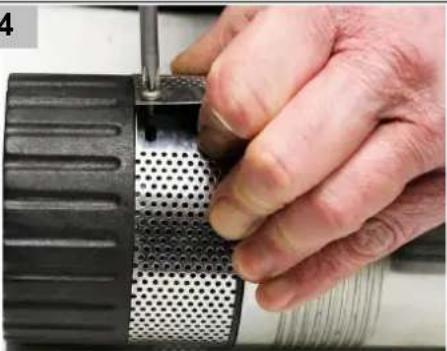

If necessary, it is recommended to clean the intake filter (4) which can be detached from the pump after loosening the appropriate screws. Subsequently, please use a steel brush to clean the inner and outer surface of the intake filter. To conclude the cleaning process, please flush the intake filter with clear water and reattach it to the pump. Cleaning of the hydraulic parts may only be performed by an authorised specialised dealer or customer service. To avoid any hazard, any further disassembly as well as the replacement of parts must only be done by the manufacturer or a by an authorised service provider.

Water left in the pump may freeze in case of frost and thus cause considerable damage. Therefore, the pump must be removed from the liquid being discharged and fully drained when temperatures are below the freezing point of the liquid. Please store the pump in a dry, frost-protected place.

In the case of malfunction, you should first of all check whether it was caused by an operating error or some other reason which cannot be attributed to a defect of the device - for instance a power failure.

The list below shows some possible malfunctions of the device, possible causes and tips on their elimination. All the measures referred to may only be carried out with the pump being separated from the electrical mains. If you yourself feel unable to eliminate any of these malfunctions, please contact the customer service department or your point of sales. Any repair beyond the scope specified below must only be performed by qualified staff.

Please bear in mind that all warranty claims will become void in the case of damage caused by inappropriate repair attempts, and that we decline any liability for any ensuing damage.

MALFUNCTION	POSSIBLE CAUSE	ELIMINATION
1. The pump is not discharging any liquid, the motor is not running.	1. No current.2. Thermal motor protection feature has triggered.3. The capacitor is defective.4. The pump wheel is blocked.	Please use a device complying with GS (German technical supervisory authority) to check for the presence of voltage (safety information to be observed!). Please verify the correct position of the plug.2. Separate the pump from the electrical mains, allow the system to cool down, eliminate cause.3. Please contact the customer service department.4. Eliminate blocking of pump wheel.
2. The motor is running, but the pump is not discharging any liquid.	1. The intake openings are clogged.2. The pressure line is clogged.3. Kinks or similar disturbances in the connection lines.4. Check valve (non-return valve) is blocked or damaged.5. Inlets are not immersed in the liquid to be discharged.6. The pump head of the pump referred to in the technical data is exceeded.	1. Remove possible congestion.2. Remove possible congestion.3. Remove the kinks or other disturbances in the connection lines.4. Eliminate blocking of the check valve (non-return valve) or replace, if damaged.5. Immerse the intake inlets of the intake line into the liquids to be discharged.6. Modify the installation so that the suction height will not exceed the maximum value.
3. The pump stops after a short time of operation because the thermal motor protection feature has triggered.	1. The electrical supply does not correspond to the information given on the type plate.2. Please refer to items 2.1 to 2.5.3. Liquid is too viscous.4. Temperature of the liquid is too high.5. Pump is running dry.	1. Please use a device complying with GS (German technical supervisory authority) to check the voltage of the lines of the connection cord (safety information to be observed!).2. Please refer to items 2.1 to 2.5.3. Pump may not be suitable for this liquid. If feasible, the liquid should be thinned.4. Make sure that the temperature of the liquid being pumped does not exceed the max. admissible value.5. Eliminate causes of dry-running.
4. Intermittent or irregular operation.	1. Please refer to items 2.1 to 2.5.2. Refer to section 3.3.3. Refer to section 3.4.4. Mains voltage out of tolerance.5. Motor is defective.	1. Please refer to items 2.1 to 2.5.2. Refer to section 3.3.3. Refer to section 3.4.4. Make sure that mains voltage matches that indicated on the type plate.5. Please contact the customer service department.
5. Water quantity discharged by pump is inadequate.	1. Please refer to items 2.1 to 2.5.	1. Please refer to items 2.1 to 2.5.

10. Warranty

The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below: Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection.

GB

The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties.

Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty.

Parts being subject to wear and tear, such as the pump wheel (impeller) and mechanical shaft seals are excluded from warranty.

All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts.

In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property.

Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.

The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased.

Please note:

1. Should your device fail to function properly, please verify first whether an operating error or another cause is present which cannot be attributed to a defect of the device.
2. In case you have to take or send in your defective device for repair, please be sure to enclose the following documents:
3. Sales receipt (sales slip).
4. A description of the occurring defect (a description as accurate as possible will expedite the repair work).
5. In case you have to take or send in your defective device for repair, please remove any attached parts which do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.

11. How to order spare parts

The fastest, most simple and cheapest way of ordering spare parts is through the internet. On our www.tip-pumpen.de website you will find a convenient spare part shop where you can order spare parts with just a couple of clicks. In addition, this is also the place where we publish comprehensive information and valuable tips on our products and accessories, introduce new devices and present current trends and innovations in the range of pump technology.

12. Service

In the case of warranty claims or malfunction, please contact your point of sale.

A current operating manual is available as required as a PDF file via e-mail: [e-mail].

For EC countries only

Please do not dispose of electrical appliances in the regular domestic waste!

According to the European Directive 2012/19/EC regarding waste electrical and electronic equipment and the implementation of that directive into national law, electrical devices have to be collected separately and disposed off in an environmental-suitable manner after the end of their life cycle. Should you have any questions, please contact your local waste disposal company.

Chère cliente, cher client,

Close-up of a hand holding a small white object next to a metallic container with a black handle (no visible text or symbols)

Fig.2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols.

Six warning symbols in black triangular shapes, each containing an exclamation mark

Close-up of a hand holding a black cylindrical object with wires, next to a metallic container (no visible text or symbols)

Fig.2

Close-up of a black cylindrical object with white coiled wires wrapped around it, no visible text or symbols.

Close-up of a hand holding a small white object next to a metallic cylindrical device with a black top and coiled wires (no visible text or symbols)

Fig.2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols.

Close-up of a mechanical device with two views (Afb.1 and Afb.2) showing a hand adjusting a black component, no text or symbols present.

Six warning symbols in black triangular shapes, each containing an exclamation mark

Close-up of a hand holding a small mechanical component with wires, no visible text or symbols

Σχέδια 2

Close-up of a black cylindrical object with white coiled wires attached, no visible text or symbols

Seven warning symbols arranged vertically, each containing an exclamation mark inside a triangle

Close-up of a hand holding a small black cylindrical object with white wires, next to a metallic container (no visible text or symbols)

Ábra 2

Close-up of a black cylindrical object with white wavy lines and a central rod, possibly a mechanical or electrical component (no visible text or symbols)

Close-up of a hand holding a black mechanical component, possibly a valve or sensor, with no visible text or symbols.

Rys.2

Close-up of a black cylindrical object with coiled wires wrapped around it, no visible text or symbols.

Obr.1 Obr.2

Close-up of a hand adjusting a black mechanical component with a white cable (no visible text or symbols)

Res.2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols.

Close-up of a hand inserting a black plastic component into a metallic cylindrical container (no text or symbols visible)

Фиг 2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols.

Close-up of a mechanical component with a tool inserted, showing threaded body and perforated base (no text or symbols visible)

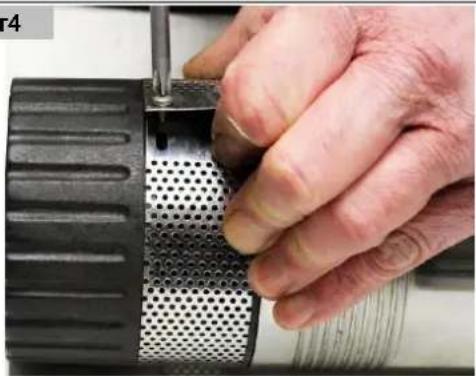

Фиг4

Close-up of a hand using a tool to cut a perforated metal component (no text or symbols visible)

Two-step diagram showing a hand holding a wire and a black plastic container with white tubing, labeled Fig.1 and Fig.2 (no text or symbols on the objects themselves)

Close-up of a hand holding a small white object with a black cylindrical component, next to a metallic container (no visible text or symbols)

Slika 2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols.

Priloženo ispusno uže provedite kao što je prikazano na slici 1 kroz tri ušice na gornjem kraju crpke. Uže zatim učvrstite dvostrukim čvorom (slika 2). Osigurajte da je ispusno uže učvršćeno za crpku.

5.4. Postavljanje pumpe

Za spuštanje ili podizanje crpke se može koristiti samo jedno odgovarajuće uže i nikako potisna cijev ili priključni kabel.

Crpka se u vodu može spustiti ili iz nje podignuti samo uz pomoć jednog odgovarajućeg užeta. Za ovo treba koristiti uže od nehrđajućeg metala ili sintetičkog materijala, na primjer najlona. Takvo uže koje zbog vremenskih prilika, odnosno vlagu rđa, raspada se ili truli – zbog opasnosti od pucanja – ne smije se koristiti. Uže ne treba izdržati samo crpku, vodom napunjenu potisnu cijev i priključni kabel, već i ona opterećenja do kojih dolazi prilikom rada.

Serijski pribor ovog tipa crpke je i jedno uže za spuštanje izvrsne kvalitete (1).

Close-up of a hand inserting a black plastic component into a metallic cylindrical device (no visible text or symbols)

Obr.2

Close-up of a black cylindrical object with white coiled wires attached, possibly a mechanical or electrical component (no visible text or symbols)

Close-up of two-step photo showing a hand holding a wire above a black cylindrical object, labeled Slika 1 and Slika 2 (no text or symbols on the objects themselves)

Close-up of a hand holding a small white object next to a black cylindrical container with coiled wires (no visible text or symbols)

рис.2

Close-up of a black cylindrical object with white wires wrapped around it, no visible text or symbols

Close-up of a hand holding a small black mechanical component with a white cable, next to a metallic cylindrical container (no visible text or symbols)

мал.2

Close-up of a black cylindrical object with white wires attached, possibly a transformer or electrical component (no visible text or symbols)

Seven warning symbols arranged vertically, each containing an exclamation mark inside a triangle

Functional parts / Details

1 Lowering rope

3 Mains connection cable

5 Pressure port

2 Eyelets for connecting the lowering rope

4 Intake filter / Intake openings

F

D – 74915 Waibstadt / Germany

[e-mail]

www.tip-pumpen.de
