Pad W203 - Tablet HAIER - Free user manual and instructions

Product type	Windows PC Touchscreen Tablet
Brand	Haier
Model	Pad W203
Operating system	Windows 8.1
Screen	10.1 inches (estimated)
Processor	Intel® Atom™ (estimated)
RAM memory	2 GB (estimated)
Internal storage	32 GB (estimated)
Front camera	Yes, for photos and videos
Rear camera	Yes, for photos and videos
Ports	USB, microUSB, miniHDMI, headphone/mic jack
Card reader	MicroSD / MicroSDHC
Keyboard	Removable magnetic AZERTY keyboard
Speaker	Integrated
Connectivity	Wi-Fi, Bluetooth (estimated)
Power supply	AC adapter, built-in battery
Dimensions (tablet only)	Approximately 240 x 170 x 9 mm
Weight (tablet only)	Approximately 500 g
Operating temperature	5°C to 35°C
Maximum altitude	2000 m
Maintenance and cleaning	Dry cloth, no chemical products
Safety	Do not expose to humidity, shocks, extreme temperatures
Spare parts and repairability	Haier approved battery and charger, repair by certified technician
General information	CE marking, WEEE directive, use outside tropical areas

Frequently Asked Questions - Pad W203 HAIER

How to turn on and off the Haier Pad W203 tablet?

Press the Power button (②) located on the edge of the tablet. To turn it off completely, hold the button down then select Shut down from the menu.

How to use the magnetic keyboard?

Attach the keyboard via the magnetic port (①). The keyboard is AZERTY. Once connected, you can type and use the integrated touchpad.

How to take a photo with the tablet?

Open the Camera app from the home screen or Start menu. Use the front or rear camera by pressing the switch icon.

How to insert a microSD card?

Locate the MicroSD card slot (⑩) on the edge of the tablet. Insert the card with the contacts facing inward until it clicks.

How to connect the tablet to an external screen?

Use the miniHDMI port (⑦) with an adapter cable to connect the tablet to a TV or monitor.

What safety precautions should be taken?

Do not use the tablet with wet hands, avoid shocks, do not expose it to humidity or extreme temperatures (5-35°C). Use only Haier approved charger and battery.

How to clean the tablet?

Turn off the tablet. Use a dry soft cloth. Never use chemical or abrasive products.

Where to find software updates?

Updates can be downloaded from Haier's official website: www.haier.com. Follow the manufacturer's instructions.

How to create a local user account?

In PC Settings, select Users, then Create a local account. Enter a username and password.

What to do if the tablet stops responding?

Hold the Power button for 10 seconds to force shutdown. Wait a few seconds and turn on again. If the problem persists, contact technical support.

USER MANUAL Pad W203 HAIER

Abstract geometric logo design with blue and gray shapes forming a stylized 'T' shape (no text or symbols)

Tablette tactile W203

Manuel utilisateur

Introduction

Technical diagram of a tablet device with numbered components for identification and assembly reference.

① Volume-/volume+:permetd'abaisser/releverlevolume.

Laptop keyboard diagram with numbered keys and a triangular key labeled 4

Exterior view of a modern laptop with visible screen and keyboard (no text or symbols)

Hand interacting with a tablet displaying a grid of app icons (no readable text or symbols)

Hand interacting with a touchscreen displaying various app icons (no text or symbols visible)

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Agrandirlatailledel'image

Illustration of a hand interacting with a tablet displaying a grid of app icons (no readable text or symbols)

Illustration of a hand pointing upward on a tablet screen with colorful app icons (no readable text)

Illustration of a hand interacting with a touchscreen display showing various app icons (no text or symbols present)

Accueil Partner © 2017 © 2018 © 2019 © 2020 © 2021 © 2022 © 2023 © 2024 © 2025 © 2026 © 2027 © 2028 © 2029 © 2030 © 2031 © 2032 © 2033 © 2034 © 2035 © 2036 © 2037 © 2038 © 2039 © 2040 © 2041 © 2042 © 2043 © 2044 © 2045 © 2046 © 2047 © 2048 © 2049 © 2050 © 2051 © 2052 © 2053 © 2054 © 2055 © 2056 © 2057 © 2058 © 2059 © 2060 © 2061 © 2062 © 2063 © 2064 © 2065 © 2066 © 2067 © 2068 © 2069 © 2070 © 2071 © 2072 © 2073 © 2074 © 2075 © 2076 © 2077 © 2078 © 2079 © 2080 © 2081 © 2082 © 2083 © 2084 © 2085 © 2086 © 2087 © 2088 © 2089 © 2090 © 2091 © 2092 © 2093 © 2094 © 2095 © 2096 © 2097 © 2098 © 2099 © 2100

Computer desktop with open screen, hand gesture overlay, and landscape photo showing a bare tree under cloudy sky (no text or symbols)

(Schéma1)

Thank you for your choosing the new Tablet PC.

This guide serves to enable users to get to know and familiar with our product as soon a

Here we have made a brief introduction to the key layout and definitions in figures and w

Contents

I .PrecautionsbeforeUse18
II.KeyLayoutandDefinitions19
III.KeyDescriptionsandApplications20
IV. Introduction to Desktop 21

1. Windows8.1 StartScreen21

2.ImageSlideApplication21

1. appsIntroduction22

4.CharmMenuColumn24

5.DoubleScreenApplication26

V.BasicOperations27

1. Dormancy, Restart, and Poweroff27
2. Security Management 27

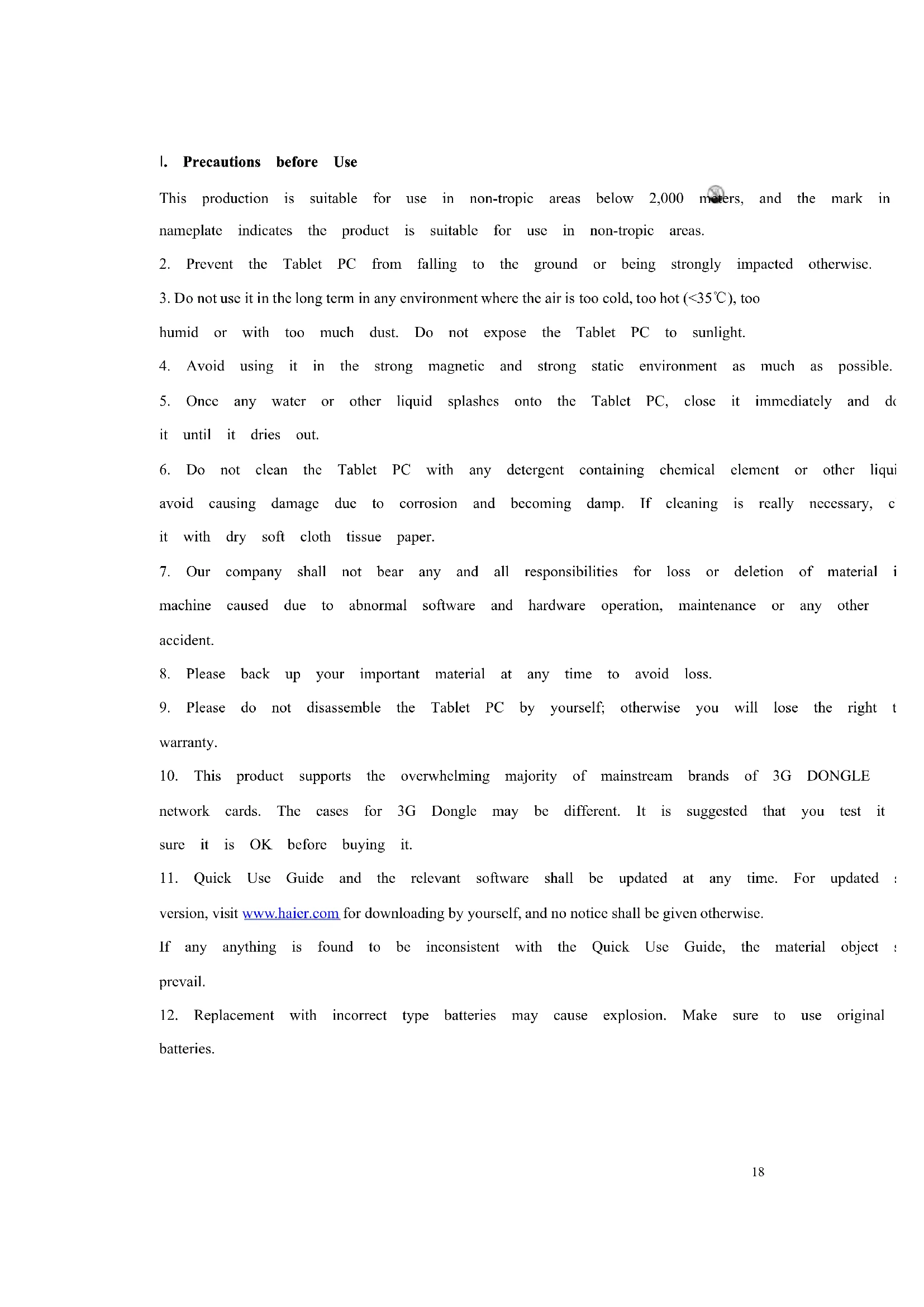

1. Precautions before Use

This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in nameplate indicates the product is suitable for use in non-tropic areas.

1. Prevent the Tablet PC from falling to the ground or being strongly impacted otherwise.
2. Do not use it in the long term in any environment where the air is too cold, too hot ( <35^ ), too

humid or with too much dust. Do not expose the Tablet PC to sunlight.

1. Avoid using it in the strong magnetic and strong static environment as much as possible.
2. Once any water or other liquid splashes onto the Tablet PC, close it immediately and do it until it dries out.
3. Do not clean the Tablet PC with any detergent containing chemical element or other liquid avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, it with dry soft cloth tissue paper.
4. Our company shall not bear any and all responsibilities for loss or deletion of material in machine caused due to abnormal software and hardware operation, maintenance or any other accident.
5. Please back up your important material at any time to avoid loss.
6. Please do not disassemble the Tablet PC by yourself; otherwise you will lose the right warranty.
7. This product supports the overwhelming majority of mainstream brands of 3G DONGLE network cards. The cases for 3G Dongle may be different. It is suggested that you test it sure it is OK before buying it.
8. Quick Use Guide and the relevant software shall be updated at any time. For updated version, visit www.haier.com for downloading by yourself, and no notice shall be given otherwise.
   If any anything is found to be inconsistent with the Quick Use Guide, the material object is prevail.
9. Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries.

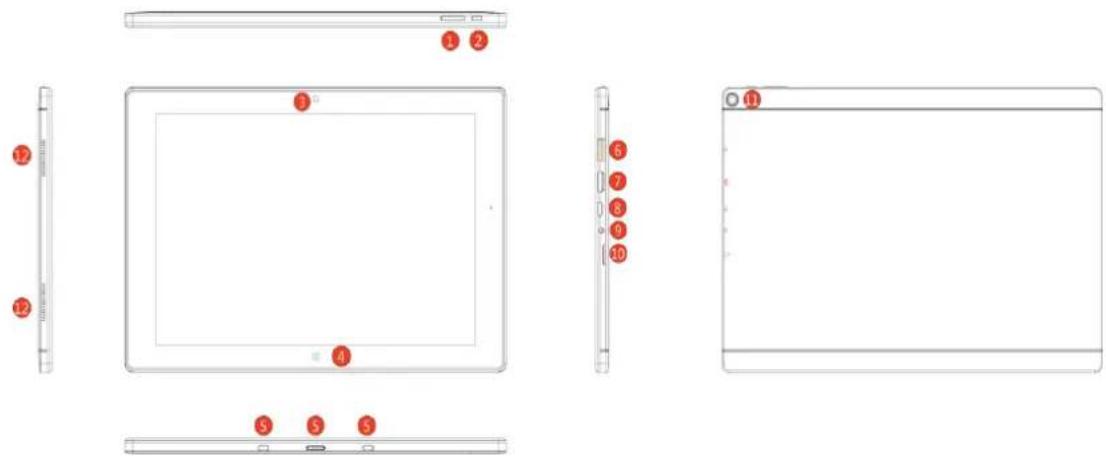

II.KeyLayoutandDefinitions

AllviewID:

Technical diagram of a tablet device with numbered components for identification and assembly reference.

① Sound-/sound+:Lower/raisevolume
② Powerbutton: Pressitdowntostartorclosethetouchscreenpanel. Youcanalsoletthe computertoenterdormancythroughthisbuttonorwakefromthedormancymode.
③ Frontcamera:takephotos,andrecordpictures
④ Windowskey:PressthisbuttontoreturntotheStartscreen.
⑤ Movablebasekeyboardinterface: This interface is magnetic, which is convenient for alignment and firmly linking the TablePCandthekeyboard.
⑥ USBInterface: You can read the datathrough USB.
⑦ MiniHDMIInterface:High-DefinitionMultimediaInterface
⑧ MicroUSBInterface: You can read the datathrough USB.
⑨ Socketforearphoneandmicrophone: ThissocketcantransmittheaudiosignalsofTabletPC toloudspeakerorearphone.
⑩ MicroSDcardslot:Thebuilt-instoragecardreaderslotsupportsMicroSDandMicroSDHC format.
⑪ BackCCDcamera:takephotos,andrecordpictures.
⑫ Loudspeaker: The built-in loudspeaker enables you to hear the sound without having to linking additional device.

III. Descriptionsof Keysys

Attention: Keyboardisoptional, and configure the product according to the specific type of the tablet PC you have bought.

Laptop keyboard diagram with numbered keys and a triangular key labeled 4

① Movablebasekeyboardinterface: Thisinterfaceismagnetic, which is convenient for alignment and firmly linking the TablePCandthekeyboard.

②Keyboardgroup:Thekeyboard groupprovidesfullsizeQWERTYkey andbesttypewritingcomfortability.

③ TouchTablet: Usedtocontrolthe cursorontheTabletPC, withthesame functionasamouse.

④ Base:FoldingbaseofTabletPC.

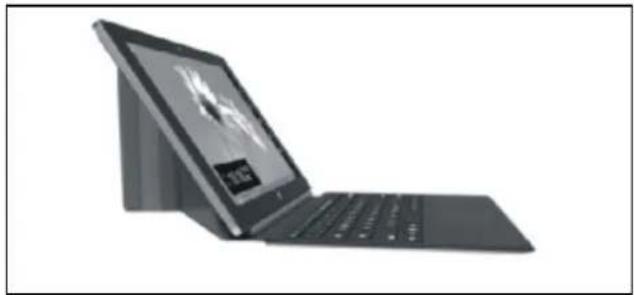

Exterior view of a modern laptop with visible screen and keyboard (no text or symbols)

Useof tabletandkeyboard

VI. Introduction to Desktop

1. Windows8.1 startimage: On the start screen, you can seem many programs fixed in the image. These application programs are displayed in the form of "magnet". As long as you click them, you can easily visit them.

YouneedtologonyourMicrosoftaccountbeforetheapplicationprogramcompletelyruns.

Start Mail Reading List Sky Drive Weather Pacers rally in 2nd half to beat Heat, 90-84 Internet Explorer Maps Desktop Crude Oil ▼ 98.42 -0.09 (-0.09%) Gold ▼ 1,250.60 -1.80 (-0.14%) Silver ▼ 20.24 -0.02 (-0.10%) Finance Photos Ukraine police move on protest camp News

1. Imageslideapplications

SliderorightSlidetoleft

Hand pointing at a colorful digital interface with icons (no readable text or symbols)

Hand interacting with a touchscreen device displaying app icons (no text or symbols visible)

SlidetotherightfromthecleftsideSlidetotheleftfromtherightsideofthe

ofthescreentostarttheapplicationscre

entostartCharmmenucolumn.

programinrunning.

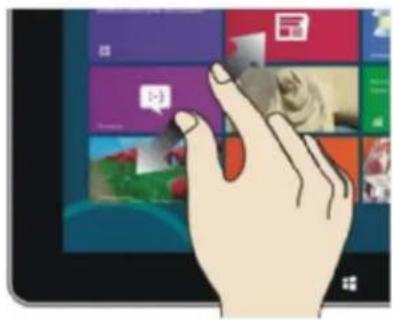

ReduceEnlarge

Illustration of a hand interacting with a keyboard and mouse, no text or symbols present

Illustration of a hand interacting with a tablet displaying a grid of colorful UI elements (no text or symbols visible)

Onthetouchscreen, narrowtwofingers Onthetouchscreen, widentwofingers toreducetheimage. toenlargetheimage.

Slide downward

Illustration of a hand pointing upward on a tablet screen with colorful app icons (no readable text)

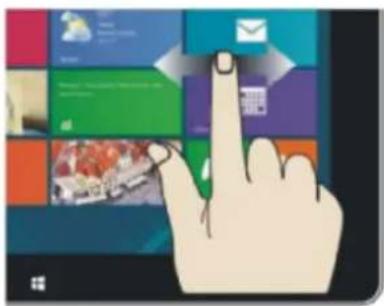

Slidewith finger

Illustration of a hand interacting with a touchscreen displaying various app icons (no text or symbols on the icons themselves)

Instartscreen, slide from the top of the screen. In a short time, slide fingering right is left to view wall application program with the image.

Slideupward

Start

Inthestartscreen, slideupward from the bottom of the screentovisitall application program (APPS) interfaces.

3. IntroductionontoappInterface

Besidestheapplicationprogramsalreadyfixedonthestartscreen,youcanalsostartother applicationprogramsinallapplicationprograms,suchasothersoftwareapplicationprograms attachedtotheTabletPC.

Apps by name Alarms Internet Explorer Recycle Bin 天翼 Calculator Mail Scan Calendar Maps SkyDrive Futuremark Camera Music Skype 3DMark Vantage Mobile P Desktop News Sound Recorder 3DMark06 Finance PC settings Sports Futuremark Website Tencent Food & Drink People Store Help Games Photos Travel Online Result Browser Windows Health & Fitness Reader Video Readme Help+Tips Reading List Weather Support

If you want to fix more application programs on the start interface, see the operation in the figure below,(1)lightlytouch,pressandholdtheapplicationprogrammagnetforaboutonesecondand thenletgo,andselect(2)tofixtothestartscreen.

Apps by name Alarms Internet Explorer Recycle Bin 天翼 Calculator Mail Scan Calendar Maps SkyDrive Camera Music Skype Desktop News Sound Recorder Finance PC settings Sports Food & Drink People Store Games Photos Travel Health & Fitness Reader Video Help+ Tips Reading List Weather CapCOM STREET FIGHTER IV BENCHMARK Futuremark 3DMark Vantage Mobile P 3DMark0G Futurumark Website Tencent Help Online Result Browser Readme Support Urpin from Start Find in Start Customize

Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application programmagnet for about one second and then let it go and run, and select (2) attribute column to cancel the programs such as fixation and deletion and then it can be completed.

Name group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

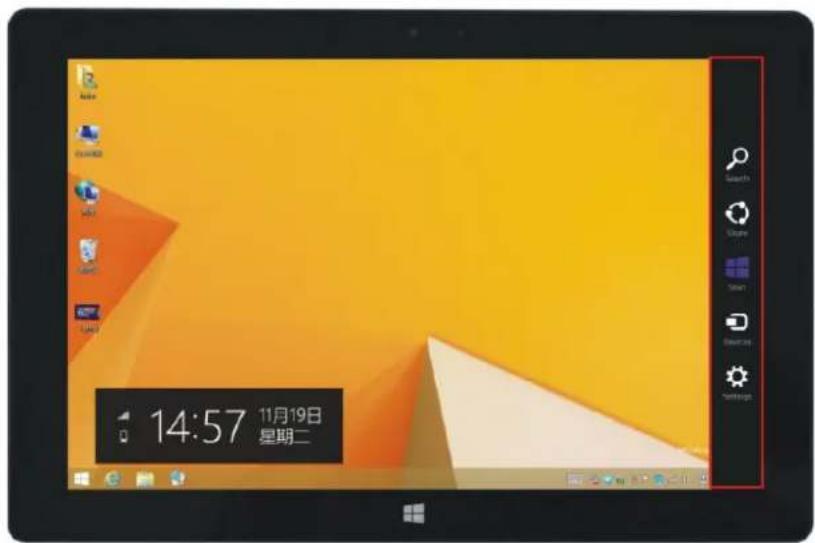

4. Charmmenucolumn

SlideittothelctfromtherightsidcofthescrecentostartCharmmenucolumn,including: Start,Device,Setup,Share,andSearchProgram.

Slide it to the left from the right side of the screen to start Charm menu column, including: Start, Device, Setup, Share, and SearchProgram.

CanletyousearchthefilesandapplicationprogramsintheTabletPC.

Canletyousharetheprogramthroughsocialexchangewebsiteore-mail.

Canreturntothestartscreen.Fromthestartscreen,youcanalsousethisfunctionto returnthecapplicationprogramthatisopenedinthelatest.

Canletyouread, writeandsharefiles, connectexternalscreenorprinterwiththedevice connectedtotheTabletPC.

CanletyousetuptheTablePC.

SearchmenuSharemenu

Screenshot of a desktop computer with visible keyboard, mouse, and desktop icons on the left screen

Start Share 12.7 30% 60% 90% 12.5% Share

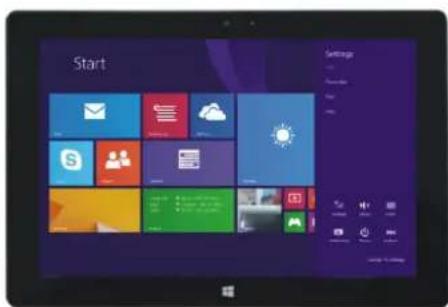

DeviceMenuSetu

Start Devices -... (c) - - + - + - Start

pMenu

Start Settings - Options - Help - S + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

5. Dual-ScreenApplication

Onmycomputerin(Figure1), slideitinward from the left side of the screen, drag it and hold. Let go when seeing double interfaces appear.

In(Figure2), press the partition button on them middle partition line and drag right handle left to partition the display proportion of the doubles screens.

Computer desktop with open screen, calendar, and landscape photo showing a bare tree in a field (no readable text or symbols)

(Figure1)

Switch to a Microsoft account on this PC Many apps and services (like this one) rely on a Microsoft account to sync content and settings across devices. We'll help you set up your Microsoft account now. Sign into each app separately instead (not recommended) Next Cancel

(Figure2)

V. Basic Operations

1. Dormancy, restart and power off

Yellow background with a white triangular shape and tool icons on the right side (no readable text or symbols)

Settings Options Personalize Help Help Mac OS Photo Send Settings Send Change PC settings

Settings You Personalize Help Help OK! (ASP) OK! (ASP) OK! (ASP) OK! (ASP) Additions Remove Additions Change PC Settings

1. Security Management

Userandpasswordsetup

Settings Options Windows Help Help Save PC Settings

PC settings Active Windows PC and desktop Access Help Search and access Primary Time Time and language Use of Access Disable and access

Abstract colorful pattern with layered textures and two side-by-side images (one with a human silhouette, one with purple flowers) — no text or symbols present.

Methodforquicksetup:

Clickthe“Setup”buttonin“Charm”setup, and select “Changecomputersetup”. Select “User” on the left and click “Create local account” in “Your account” on other right side. After inputting the password of Complete Windows LiveId Account, input username, password, confirm password and password prompt.

InformationaboutthemeaningofLogoWEEE(WasteElectricala ndElectronicEquipment):

TheWEEElogoontheproductoronitsboxindicatesthatthisproductmustnotbedisposedofordumpedwithyourotherhouseholdwaste. Youareliabletodisposeofallyourelectroniconorelectricalwasteequipmentbyrelocatingovertothespecifiedcollectionpointforrecyclingofsuchhazardouswaste.Isolatedcollectionandproperrecoveryofyourelectronicandelectricalwasteequipmentatthetimeofdisposalwillallowustohelpconservingnaturalresources.

Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment.

Dispose of electronic waste, such as batteries according to the instructions.

Caution: risk of explosion if battery is replaced by an incorrect type.

For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Information about the meaning of marking CE:

That means that the product answers to essential requirements of the European

Directive 93/68/EEC applicable in the conformity assessment procedures.

This quick start guide and software related thereto may be changed without notice. You could download the latest software on www.haier.com. If this quick start guide does not exactly match the tablet you have before, please always refer to what is stated in the tablet.

Haier

Haier Europe Trading – France

115,123 Avenue Charles de Gaulle

Description: Tablette tactile

EMC directive: EN55022: 2010 + AC: 2011

EN61000-3-2: 2006 + A1: 2009 + A2: 2009

EN61000-3-3:2008

EN55024: 2010

R&TTE directive: EN 62479:2010

ETSI EN 301 489-1 V1.9.2

ETSI EN 301 489-17 V2.2.1

ETSI EN 300 328 V1.7.1

Manufacturer address: Room B4 of Floor 21, No.3 Tower Building, Chinese Technology Research Park, China Technology Exploitation Institute; Gaoxin South first street No.009, Nanshan District, Shenzhen City, Guangdong Province.
