USER MANUAL 47650F HAMILTON BEACH

Visit hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

For questions and other information: hamiltonbeach.com

Black and white image of a Hamilton Beach 1800 blender with digital display and side cups (no visible text or symbols on main body)

2-Way Brewer Cafetière à double usage Cafetera Doble

English 2

Français 17

Español.... 31

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or near children. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.

5. To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.

6. Unplug from outlet when either the coffee maker or clock is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

7. Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

12. Do not place on or near a hot gas or electric burner, or in a heated oven.

13. Use only the carafe provided with the appliance.

14. The carafe is designed for use with this coffeemaker. It must never be used on a range top or in a microwave oven.

15. Do not set a hot carafe on a wet or cold surface.

16. Do not use a cracked carafe or one with a loose or weakened handle.

17. Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.

18. Do not use appliance for other than intended use.

19. WARNING! To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

20. To disconnect, turn any control to the OFF (○) position and then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

21. Be certain carafe lid is securely in place during brew cycle and when pouring coffee. Do not use force when placing lid on carafe.

22. Keep-Hot plate may remain hot after the coffee maker is turned off.

SAVE THESE INSTRUCTION

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce

the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used.

The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

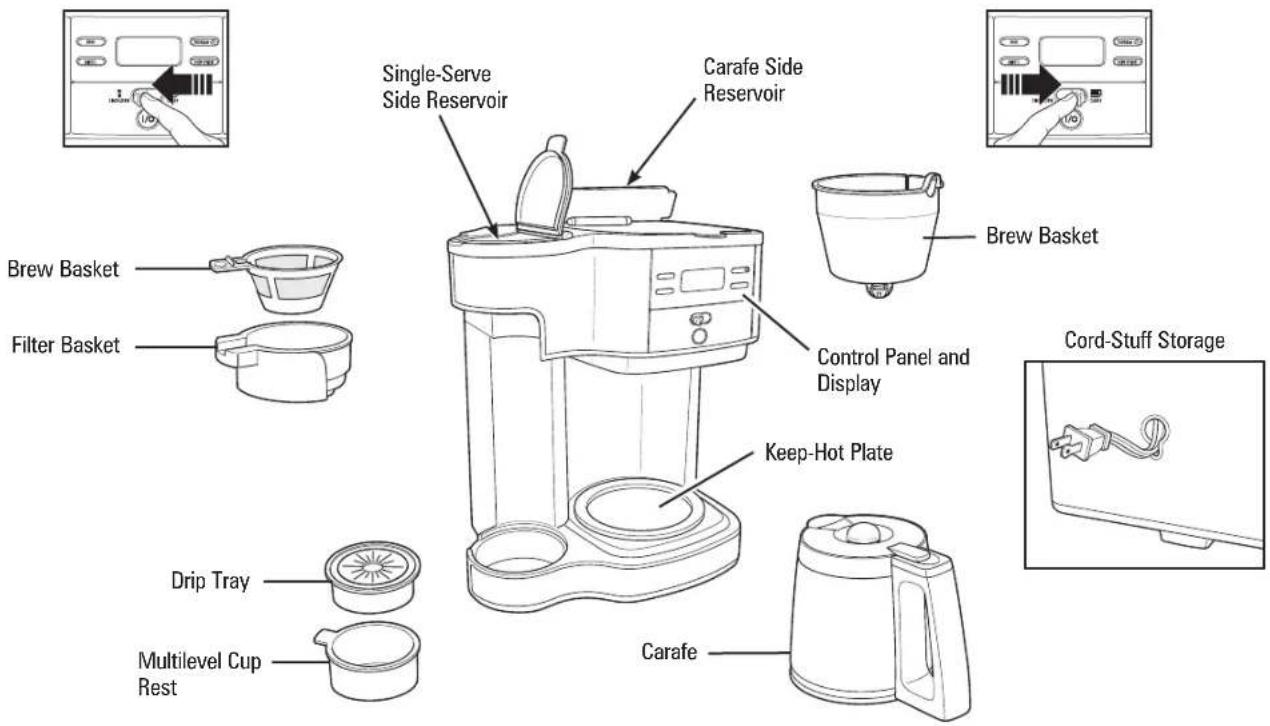

Single-Serve Side Parts and Features
Carafe Side Parts and Features

Single-Serve Side Reservoir Carafe Side Reservoir Brew Basket Filter Basket Control Panel and Display Cord-Stuff Storage Keep-Hot Plate Drip Tray Multilevel Cup Rest Carafe

How to Use Single-Serve Side

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not use more than 14 ounces (414 ml) of water.

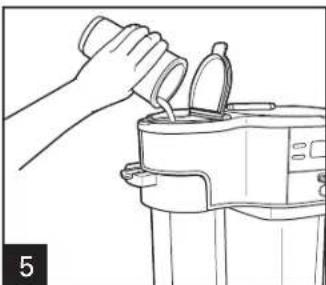

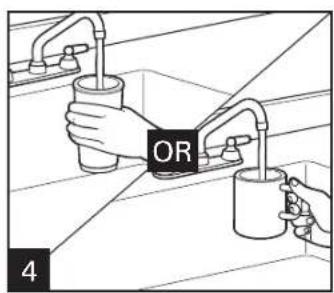

• Fill single-serve reservoir with mug or cup into which the coffee will be brewed.

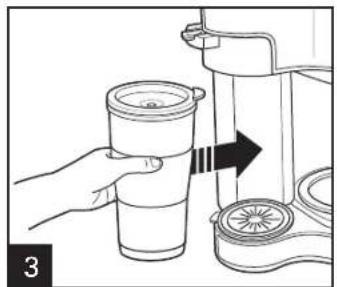

- Fully insert mug or cup under filter basket.

AUTOMATIC SHUTOFF: The coffeemaker will automatically shut off after brew cycle is complete.

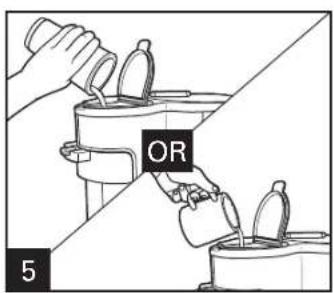

NOTES:

• The unit will only brew on one side at a time.
  • To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees.

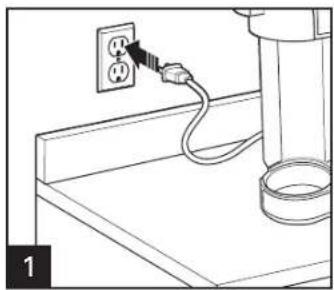

Line drawing of a wall-mounted electrical outlet connected to a cable, with a cylindrical component on the right (no text or symbols)

NEW PROGRAM NEW ITEMS SINGLE-SERIE 1/O 2

OR 3

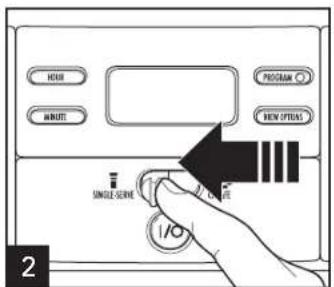

Push lever left to select Single-Serve.

OR 4

OR 5

Diagram showing a hand operating a coffee maker machine with a lid and cup, no text or symbols present

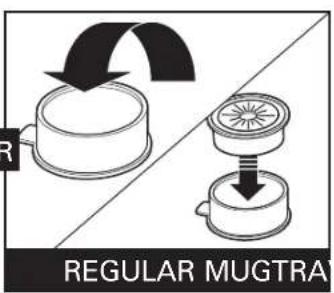

REGULAR MUGTRA

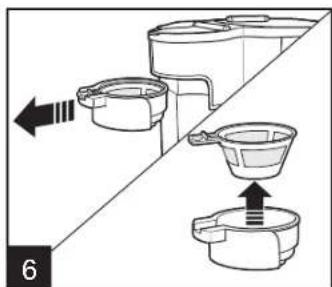

How to Use Single-Serve Side (cont.)

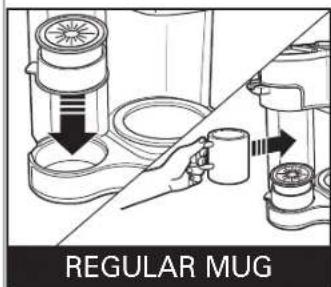

REGULAR MUG

Diagram showing three stages of a kitchen sink with arrows indicating direction (no text or symbols)

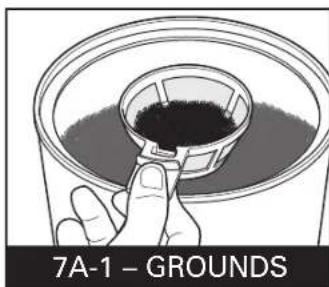

7A-1 - GROUNDS

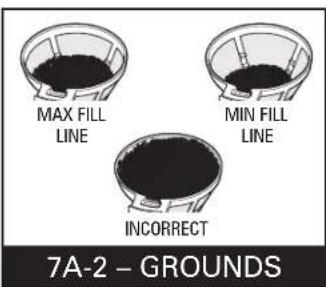

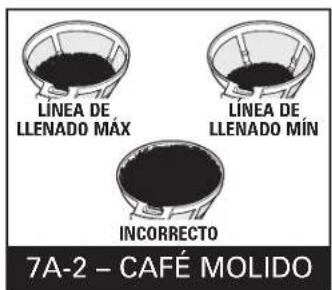

MAX FILL LINE MIN FILL LINE INCORRECT 7A-2 - GROUNDS

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

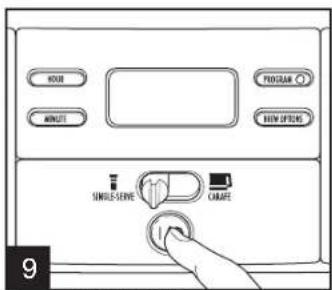

HOUR MINUTE PROGRAM NEW OPTIONS SINGLE-TERE ONLIFE 9

For regular coffee, use a maximum of two level tablespoons of grounds. To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees. WARNING! Keep ground coffee below MAX fill line to prevent overflow.

Single-serve brew basket has two markings: the lower level marking if making 8 oz. (237 ml) of coffee, and the higher level mark if making 14 oz. (414 ml) of coffee. DO NOT fill scoop to top or this will cause overflow.

How to Use Carafe Side

AUTOMATIC SHUTOFF: The coffeemaker will automatically shut off 2 hours after brew cycle is complete.

NOTE: The unit will only brew on one side at a time.

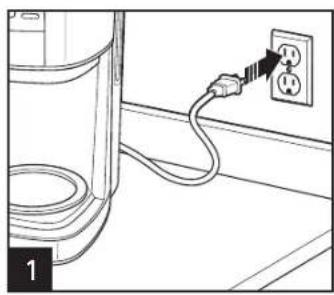

Line drawing of a wall-mounted electrical outlet connected to a battery (no text or symbols)

HOR MINUTE SINCH LIME CREATE I/O PROGRAM NEW OPTIONS 2

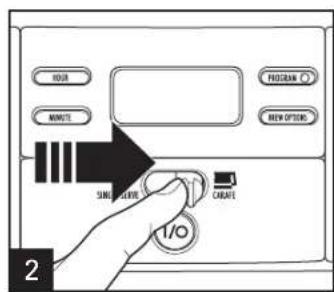

Push lever right to select Carafe.

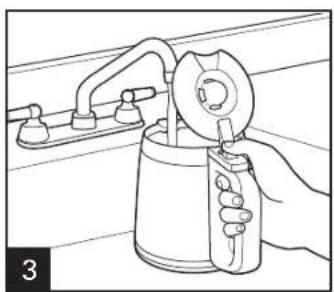

Line drawing of a hand pouring liquid into a cylindrical container on a kitchen sink (no text or symbols)

Line drawing of a mechanical device with a pouring container (no text or symbols)

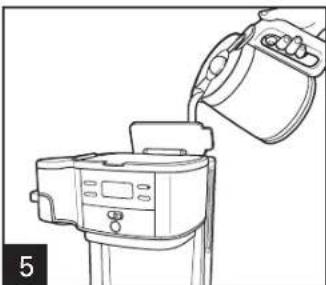

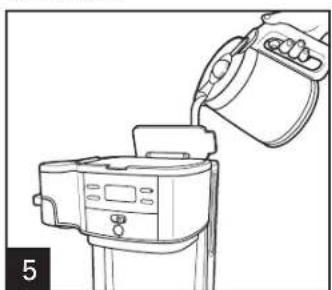

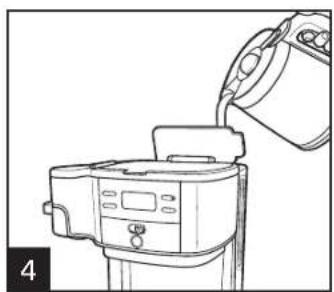

Lift lid and pour water from carafe into reservoir.

NOTE: Do not fill past the 12-cup mark (60 ounces [1.8 L]).

Line drawing of a coffee maker with a kettle and lid, showing the interior and side view (no text or symbols)

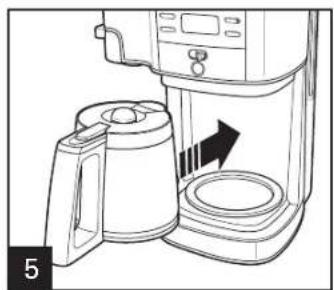

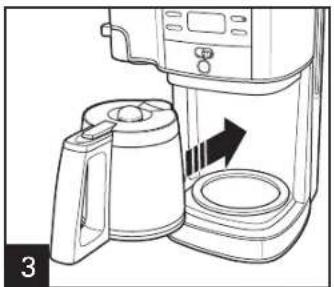

Place carafe, with carafe lid attached, on keep-hot plate.

Line drawing of a hand pouring liquid into a cup on a blender (no text or symbols)

(No text)

Illustration of hands pouring liquid from a cup into a container using a filter (no text or symbols)

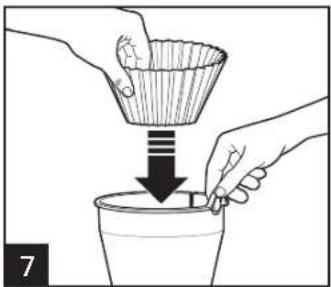

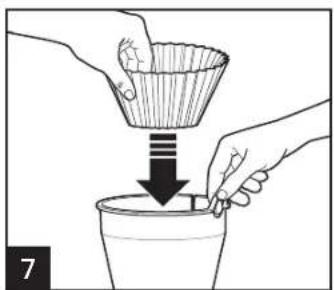

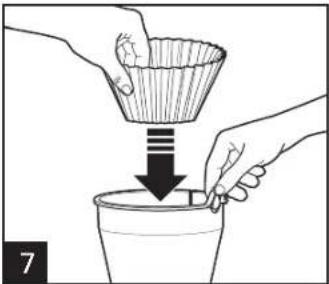

Place a cupcake-style paper filter in brew basket. A permanent filter may also be used.

Illustration of hands using a tool to feed a small container with a dark substance (no text or symbols)

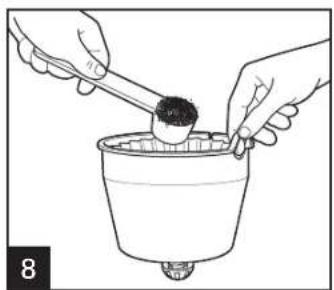

For each cup of coffee being made, place one level Tablespoon (15 ml) of coffee into filter.

How to Use Carafe Side (cont.)

Line drawing of a hand using a blender to press a cup into a bowl (no text or symbols)

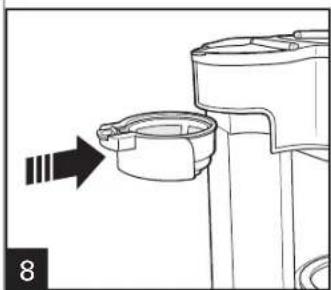

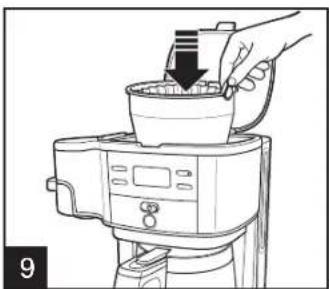

Place brew basket in brew basket well. Ensure brew basket is fully seated.

YOUR MINI SINGLE-SERPE 1/0 PROGRAM OFF 10

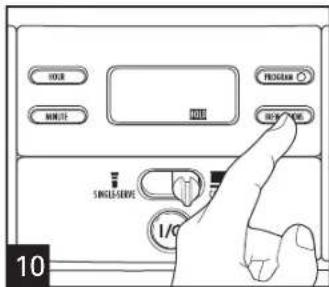

For enhanced full/strong-flavored coffee, press BREW OPTIONS button until BOLD is displayed.

HOLD MINUTE PROGRAM NEW OUTPUTS SINGLE SENSIT CREATE 11

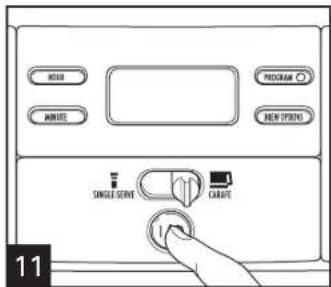

Press I/Q(ON/OFF) button to start. Press I/Q(ON/OFF) button again to turn off.
NOTE: If the coffeemaker is not turned off manually, it will automatically shut off in 2 hours.

To Order Permanent Filter or Other Parts and Accessories: visit hamiltonbeach.com

NOTE: BOLD mode will require additional time to complete a brewing cycle. If Brew Option is not selected, the coffeemaker will automatically brew on the regular/default setting.

Programming (For Either the Single-Serve OR Carafe Side)

NOTE: The unit will only brew on one side at a time.

MAIN PROM MAIN SINGLE-FREE

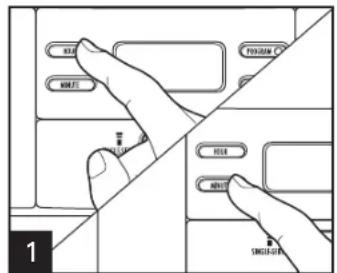

Press HOUR and then MINUTE to set clock.

12:00 AM MAIN MAIN

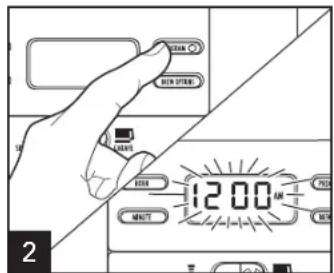

Hold PROGRAM until clock flashes.

600 AM SINGLE-SERVE CABLE I/O 3

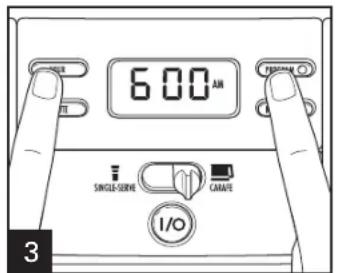

Continue holding PROGRAM button, press HOUR and MINUTE until the desired brewing start time is reached, and then release PROGRAM button.

600 AM SINGLE-SERME

Press PROGRAM to activate automatic brewing. A green LED will illuminate to indicate the unit is programmed.

Tips for Best-Tasting Coffee

• All coffees are made from either arabica beans or robusta beans, or some combination of both. Arabica beans are slightly more expensive, but tend to produce better-tasting coffee.
• Ground coffee will become stale much faster than whole beans. If buying preground coffee, choose a package with the latest expiration date or a smaller quantity.

• If grinding whole beans, set your coffee grinder on a fine/medium grind. This will yield the best-tasting grounds. Try to use freshly ground coffee within about a week of grinding.

• Using a water filter, filtered water, or bottled water will yield better-tasting coffee than tap water.

• Use approximately 1 Tablespoon of grounds for each cup of coffee being made. To avoid overflow, use slightly less grounds (3/4 Tablespoon [11.1 ml]) when brewing decaf or flavored coffees. Also, be aware that using coffee that is ground too finely may also cause the filter basket to overflow.
• Make sure your coffeemaker is clean. See "Care and Cleaning" sections.

Care and Cleaning – Single-Serve Side

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

Line drawing of a white wine maker with a bottle labeled 'WHITE VINEGAR' (no additional text or symbols)

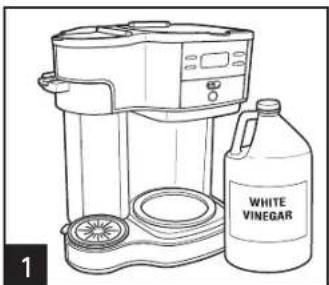

Pour 1/2 cup (118 ml) of plain white vinegar and 1/2 cup (118 ml) of cold water into single-serve side reservoir.

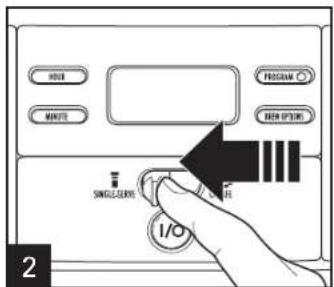

HOLD WRITE SINGLE-SURVE I/O PROGRAM ITEMS ITEMS ITEMS ITEMS 1/0 2

Illustration of a hand pouring liquid into a glass container using a machine (no text or symbols visible)

HUA MINUTE PROGRAM NEW OPTION SINGLE-SERVICE CABLE 1/4

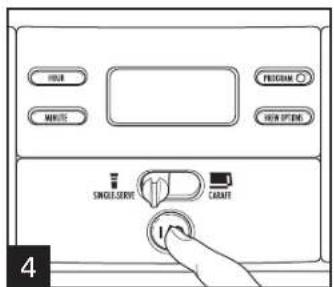

Press I (ON) button. Press O (OFF) button after 30 seconds and wait 30 minutes. Press I (ON) button. Press O (OFF) button when finished.

Line drawing of a hand pouring liquid into a kitchen appliance (no text or symbols)

Run 2–3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.

10

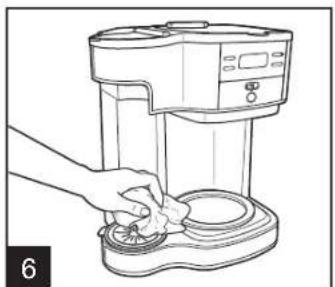

Line drawing of a hand using a blender to clean or adjust the product (no text or symbols present)

Two hand-drawn diagrams of food containers, one with a handle and the other with a lid, labeled 'DISHWASHER-SAFE' below (no other text or symbols)

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

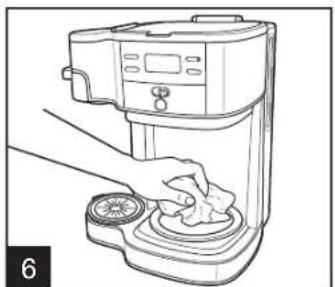

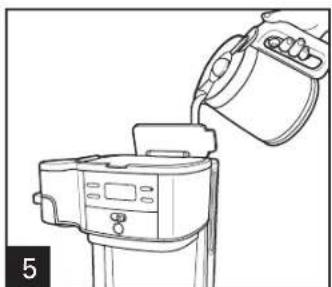

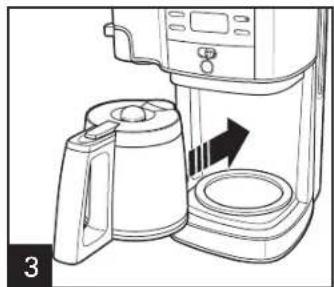

Care and Cleaning – Carafe Side

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

Line drawing of a white vinegar blender with a side view showing its lid and control panel (no text or symbols on the device itself)

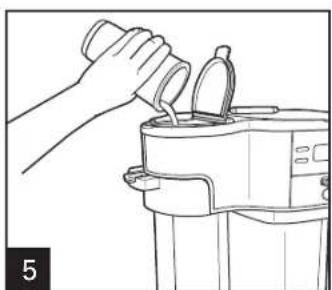

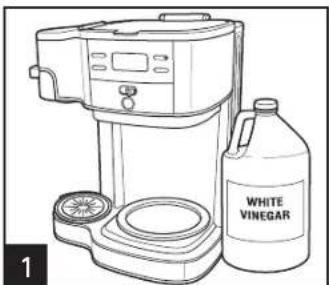

Pour 1 pint (2 cups/473 ml) vinegar into carafe side reservoir.

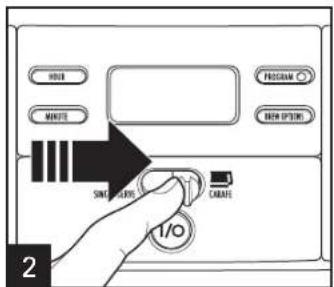

HOLD WRITE SINJER LIME CREATE 1/0 PROGRAM NEW OPTIONS 2

Line drawing of a coffee maker with a kettle and lid, showing the interior and side view (no text or symbols)

HOLD MINUTE PROGRAM NEW OPTIONS SINGLE-SURVE CARATE 4

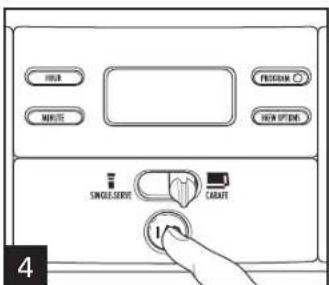

Press I (ON) button. Press O (OFF) button after 30 seconds and wait 30 minutes. Press I (ON) button. Press O (OFF) button when finished.

Line drawing of a kitchen appliance with a bucket pouring liquid from a container (no text or symbols)

Run 2–3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.

Line drawing of a kitchen grater with a hand holding a food item (no text or symbols)

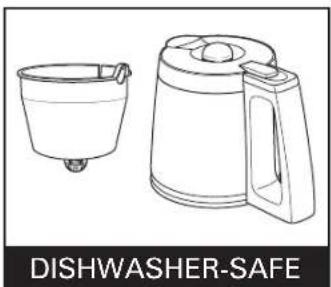

Line drawing of a dishwasher's water dispenser and its empty container (no text or symbols on the devices)

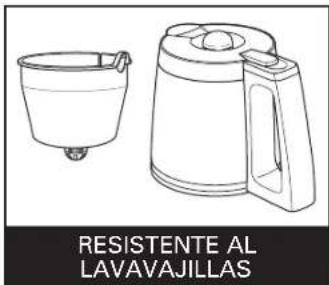

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Troubleshooting (Single-Serve Side)

PROBLEM

Weak coffee.

Coffee overflows from brew basket, travel mug, or regular mug.

Coffee tastes bad.

PROBABLE CAUSE

• Not enough ground coffee used. See "How to Use Single-Serve Side."
• Excessive amount of water in single-serve reservoir. Use travel mug or mug into which coffee will be brewed to fill reservoir. Use slightly less grounds when brewing decaffeinated or flavored coffees. Set coffee grinder to automatic drip grind.
  • Coffeemaker needs cleaning.
• Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled water).

Troubleshooting (Carafe Side)

PROBLEM

Brew basket overflows or coffee brews slowly.

PROBABLE CAUSE

• Excessive amounts of ground coffee.
- Decaffeinated and/or coffee ground too finely can cause overflow. Set coffee grinder to automatic drip grind and use slightly less grounds.
• Coffeemaker needs cleaning.

If using a paper filter:

• Coffee grounds between paper filter and brew basket.
• Paper filter not open and in proper position.
- Rinse brew basket before inserting paper filter so the edges will remain pressed against the sides of the basket.
- Poor-quality paper filter.

Coffee leaks onto base.

- Carafe removed from keep-hot plate for more than 20 seconds during the brewing cycle.

Coffee tastes bad.

• Coffeemaker needs cleaning.
- Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.
- Coffee-to-water ratio unbalanced. Adjust for personal preference.
- Poor coffee quality and freshness.
- Poor water quality (use filtered or bottled water).

Troubleshooting (Carafe Side) (cont.)

PROBLEM

Coffee sediment in cup.	·Use a high-quality, basket-style paper filter instead of optional permanent coffee filter.
Coffee not brewing or unit will not turn on.	·Carafe not positioned on keep-hot plate.·Water reservoir is empty.·Unit is unplugged.·Power outage.·Power surge. Unplug; then plug the unit back in.·Clock requires reset after power outage.
Longer than normal brew time.	·Mineral deposits can build up in the pump of your coffeemaker. Periodic cleaning of the inside of the unit is recommended. More frequent cleaning may be necessary, depending on the hardness of your water. See “Care and Cleaning – Carafe Side” section.NOTE: Do not disassemble the unit.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

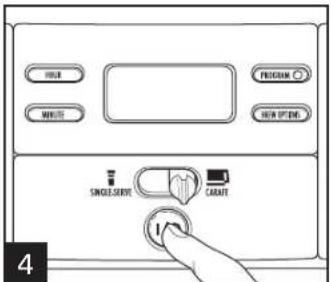

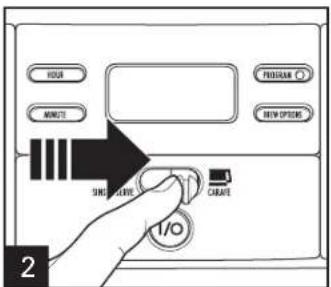

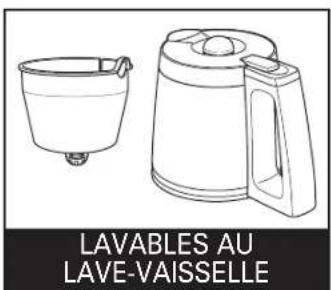

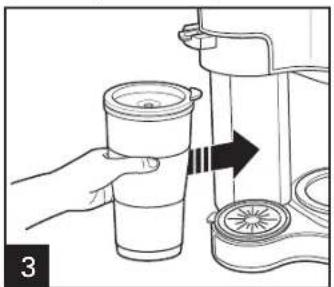

PRÉCAUTIONS IMPORTANTES

Line drawing of an electrical outlet connected to a wall-mounted power plug (no text or symbols)

HORN MINUTE SINGLE START I/O PROGRAM NEW OPTIONS 1/0 2

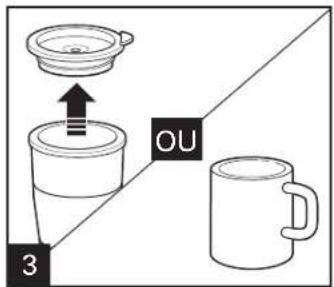

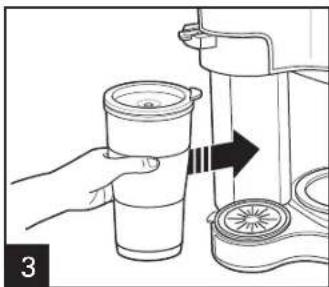

OU 3

Diagram showing a hand holding a cup and a fan next to a cylindrical device with a lid, alongside an open mouth (no text or symbols present)

GRANDE TASSE ORDINAIREC

Diagram showing three steps of a mechanical or fluidic process with arrows indicating direction (no text or symbols)

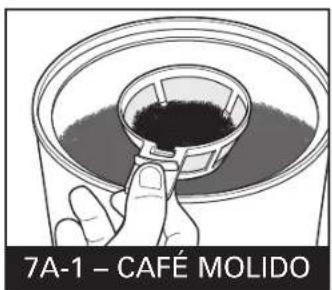

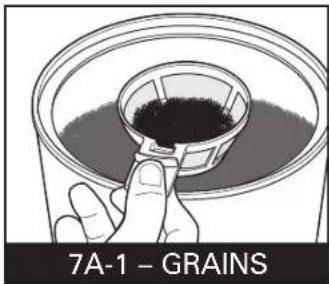

7A-1 - GRAINS

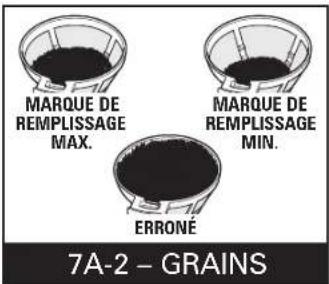

MARQUE DE REMPLISSAGE MAX. MARQUE DE REMPLISSAGE MIN. ERRONÉ 7A-2 - GRAINS

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

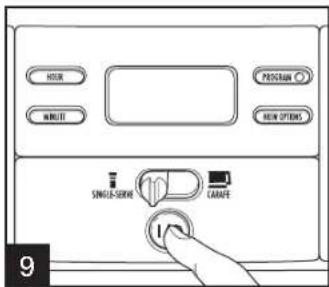

HOLD MINUS PROGRAM NEW ITEMS SINGLE-SERIE CHANGE 9

Line drawing of a wall-mounted electrical outlet connected to a cable, showing wiring and a plug (no text or symbols)

KOR MINUTE SINUTIVE CREATE I/O PROGRAM NEW OPTION

Line drawing of a hand holding a container with a lid, next to a faucet (no text or symbols)

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Line drawing of a coffee maker with a kettle and lid, showing the interior and exterior view (no text or symbols)

Illustration of a hand using a blender to press a cup, no text or symbols present

Illustration of hands pouring liquid from a cup into a bucket (no text or symbols)

Illustration of hands using a tool to clean or brush a small object into a container (no text or symbols)

Line drawing of a hand using a blender to press a cup into a bowl (no text or symbols)

HOLD MINUTE PROGRAM NEW OPTIONS SINGLE-SERVICE CREATE 1/1 11

FULL HOLD SINGLE

Line drawing of a white wine maker with a bottle labeled 'WHITE VINEGAR' beside it (no additional text or symbols)

HORN MINUTE PROGRAM RANK OPTIONS SINTEL-SERVI I/O FL 2

Illustration of a hand pouring liquid into a glass container using a digital device (no text or symbols visible)

HIGH MINI PROGRAM NEW OPTION SINGLE-SHIVE CREATE 4

Line drawing of a hand pouring liquid into a kitchen appliance (no text or symbols)

Line drawing of a hand using a digital kitchen tool to clean or adjust the dish (no text or symbols visible)

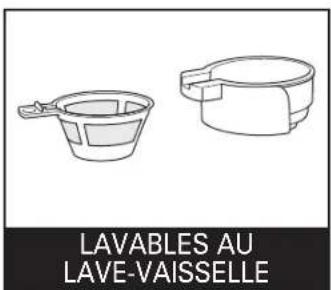

LAVABLES AU LAVE-VAISSELLE

Line drawing of a white vinegar blender with a side view showing its lid and control panel (no text or symbols on the device itself)

HOLD WRITE SINJ. LUTY. CREATE 1/0 PROGRAM NEW OPTIONS 2

Line drawing of a kitchen appliance being poured into a container (no text or symbols)

Line drawing of a kitchen appliance with a hand holding a food item (no text or symbols)

Line drawing of a coffee maker with a lid and side panel, showing the interior and base (no text or symbols)

LAVABLES AU LAVE-VAISSELLE

Line drawing of a wall-mounted electrical outlet connected to a cable, with a cylindrical component on the right (no text or symbols)

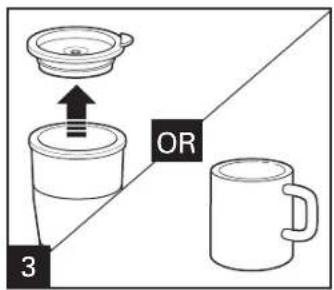

Diagram showing three labeled objects: a lid with upward arrow, a cup with liquid, and a mug, all on a diagonal line.

Illustration of hands using a tap wrench to lift a cup, with no text or symbols present

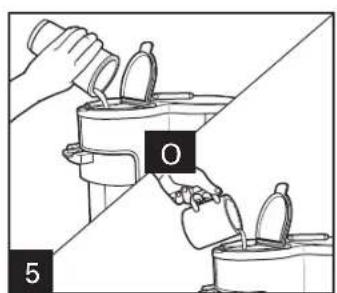

O 5

Illustration of a hand pouring liquid into a container using a digital brush (no text or symbols visible)

TAZA COMÚNTAZA

Diagram showing three different container designs with arrows indicating movement, no text or symbols present

7A-1 - CAFÉ MOLIDO

LINEA DE LLENADO MÁX LINEA DE LLENADO MÍN INCORRECTO 7A-2 - CAFÉ MOLIDO

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

HOUR WHOLE PENSUM NEW OPTIONS SINGLE-SHINE CARAFE 1 9

Line drawing of a wall-mounted electrical outlet connected to a cylindrical cable (no text or symbols)

YOUR MOUNT PROGRAM NEW OPTIONS 1/0 CREATE 2

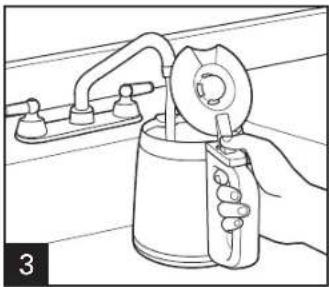

Line drawing of a hand holding a cylindrical container with a handle, against a tiled wall background (no text or symbols)

Line drawing of a kitchen appliance being poured into a container (no text or symbols)

Line drawing of a kitchen setup with a kettle and blender, showing a directional arrow indicating flow or movement (no text or symbols)

Line drawing of a hand pouring liquid into a cup on a blender (no text or symbols)

Illustration of hands pouring liquid from a cup into a container using a filter (no text or symbols)

Illustration of hands using a tool to feed a small container with a dark substance inside (no text or symbols)

Line drawing of a hand using a blender to press a cup into a bowl (no text or symbols)

HORN MINUTE PROGRAM NEW OPTIONS SINGLE-SINATE CALMATE 11

12:00 AM MAIN MAIN

Line drawing of a white wine maker with a bottle labeled 'WHITE VINEGAR' beside it (no text or symbols on the device itself)

INIT WRITE FULLS NEW OPTIONS SINGLE-SERIE I/O 2

Line drawing of a hand pouring liquid into a kitchen appliance (no text or symbols)

Line drawing of a hand using a blender to clean or brush the lid (no text or symbols)

Illustration of a hand pouring liquid into a glass container using a digital mixer (no text or symbols visible)

RESISTENTE AL LAVAVAJILLAS

HOLD WRITE PROGRAM NEW OPTIONS SINGLE-SAVE CABATE 4

Line drawing of a white wine jar with a digital kitchen machine (no text or symbols on the device itself)

Line drawing of a coffee maker with a kettle and lid, showing the interior and side view (no text or symbols)

HIGH MINUTE PROGRAM NEW OPTIONS SINGLE-SERVE CABLE 4

Line drawing of a kitchen appliance being poured into a stand (no text or symbols)

Line drawing of a kitchen blender with a hand holding a food item (no text or symbols)

RESISTENTE AL LAVAVAJILLAS
