DOCK414 - Other computer accessories TARGUS - Free user manual and instructions

Product Type	USB-C Docking Station
Brand	Targus
Model	DOCK414
Connectivity	1x HDMI, 1x USB-C (host), 1x USB-C (peripheral), 3x USB-A, 1x Gigabit Ethernet, 1x SD, 1x microSD
Maximum Video Resolution	4K@30Hz
Power Supply	USB-C PD 100W (adapter not included)
Features	Fast charging BC1.2 on one USB-A port (1.5A), Fast Role Swap (FRS) 3.0
Compatibility	Windows 10, macOS 10.14+, Chrome OS, USB-C hosts with DP Alt Mode
Included Cable	Removable USB-C male-to-male cable (use this cable exclusively)
Dimensions (approx.)	120 x 70 x 20 mm
Weight (approx.)	150 g
Warranty	2 years limited
Care and Cleaning	Clean with a dry, soft cloth
Safety	Compliant with FCC Part 15, CE
General Information	Single 4K HDMI video docking station with card reader and removable USB-C cable

Frequently Asked Questions - DOCK414 TARGUS

How do I connect the docking station to my computer?

Connect the supplied USB-C cable to your computer's USB-C port. The docking station works in Plug and Play mode and will be automatically recognized.

What video resolutions are supported?

The docking station supports HDMI 4K at 30 Hz resolution. Your computer must be USB-C DP Alt Mode compatible.

Can I charge my laptop through the docking station?

Yes, the upstream USB-C port supports Power Delivery up to 100 W. You need to connect a USB-C PD power adapter (not included) to the downstream USB-C port for charging.

Can I use a different USB-C cable than the one supplied?

No, the included removable USB-C cable is specifically designed for the DOCK414. Using a third-party cable may compromise compatibility and performance.

Which operating systems are compatible?

The docking station is compatible with Microsoft Windows 10, macOS 10.14 and later, and Chrome OS.

What to do if a device is not recognized?

Ensure the device is properly inserted. Try another port on the docking station. Check in Device Manager that it appears. Disconnect all devices and reconnect them one by one.

Does the docking station support SD and microSD cards?

Yes, it has an SD card slot and a microSD card slot, both supporting UHS-I (Ultra High Speed).

How to reset a USB port after overcurrent?

Unplug the device, go to Device Manager or the notification in the system tray, then choose the Reset option. You can then reconnect the device.

What is the output power for fast charging on a USB-A port?

One of the USB-A ports supports BC1.2 charging up to 1.5 A when the USB-C power delivery port and the laptop are connected.

Where to find driver updates or technical support?

Visit the Targus support website: targus.com/us/support for the United States, or targus.com/au/support for Australia. You can also contact customer service by email or phone.

USER MANUAL DOCK414 TARGUS

2 Year Limited Warranty: We pride ourselves on the quality of our products. For complete warranty details and a list of our worldwide offices, please visit www.targus.com. Targus product warranty does not cover any device or product that is not manufactured by Targus (including, but not limited to, laptops, smartphones, devices, or any other product that may be used in connection with the Targus product). Australian customers: For complete warranty details see warranty statement enclosed.

Targus is a registered trademark of Targus International LLC in the U.S. and in certain other countries. Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. All logos and registered trademarks are the property of their respective owners. ©2019 Targus, 1211 North Miller Street, Anaheim, CA 92806. All rights reserved.

Product name: Portable USB-C Dock with GbE/HDMI/SD Card Reader PD Pass-thru (Detachable cable)

Model no.: DOCK414

Sku no.: DOCK414USZ

Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable

Introduction

Thank you for your purchase of the Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable.

Contents

• Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable
• User Guide

System Requirements

Hardware

• USB-C host (Thunderbolt 3 host compatible)

Operating System

• Microsoft Windows 10
• Mac OS 10.14+
• Chrome OS

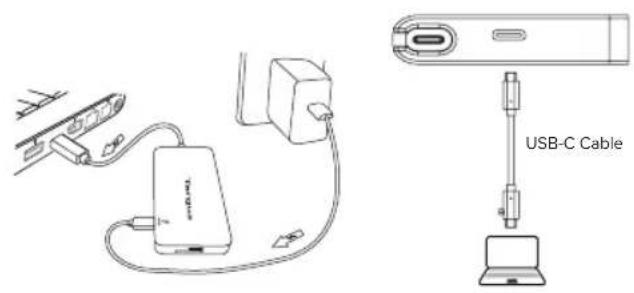

Connecting the Dock to Your Computer

This portable dock is a plug and play device. It will automatically operate when the USB-C connector is attached to a computer/laptop equipped with a USB-C port.

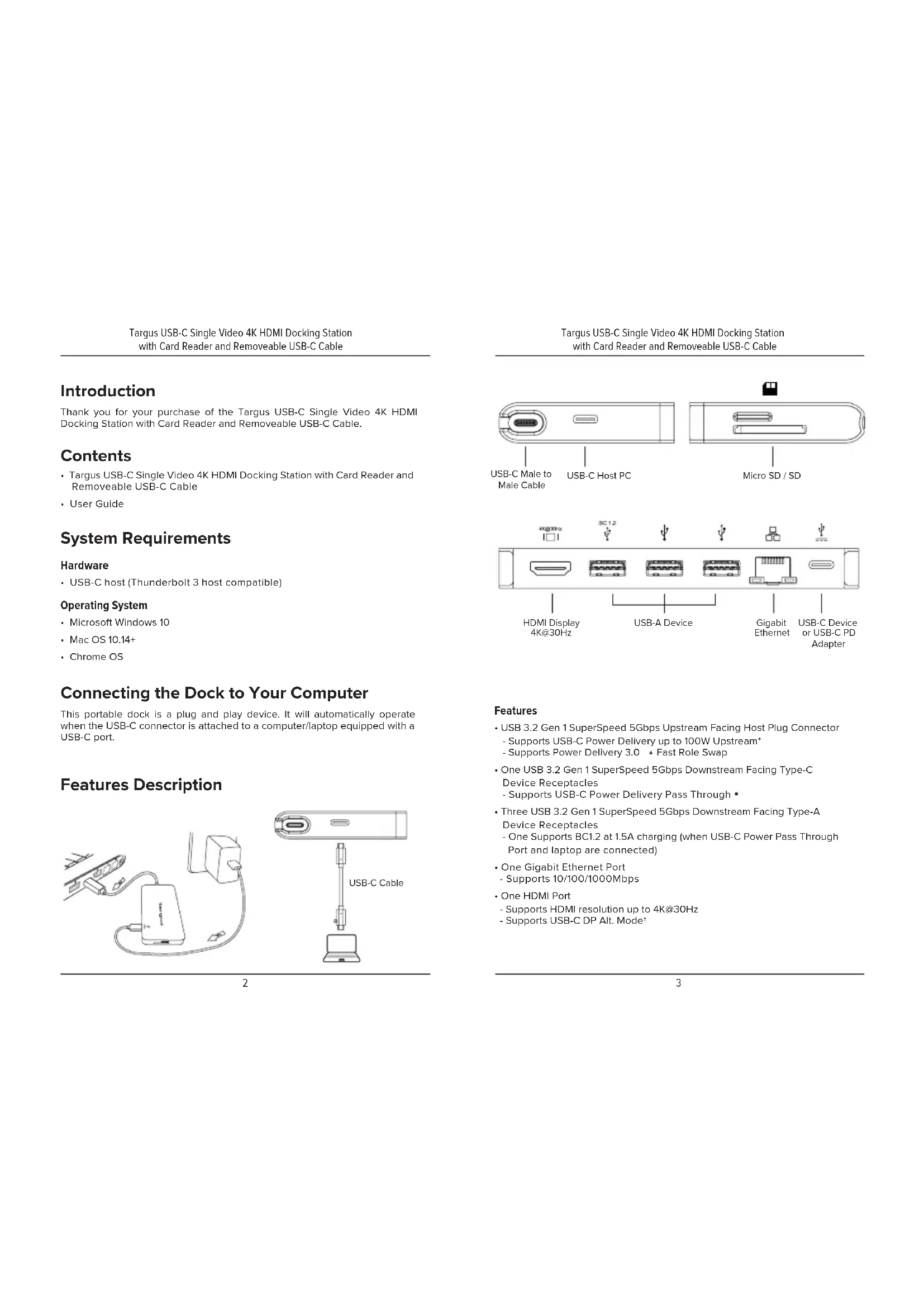

Features Description

USB-C Cable

Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable

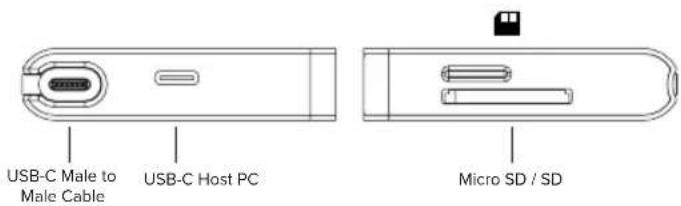

USB-C Male to Male Cable USB-C Host PC Micro SD / SD

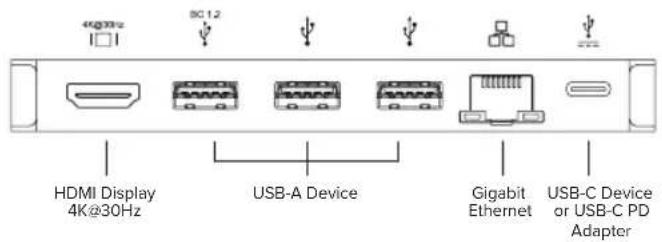

HDMI Display 4K@30Hz DC12 USB-A Device Gigabit Ethernet USB-C Device or USB-C PD Adapter

Features

• USB 3.2 Gen 1 SuperSpeed 5Gbps Upstream Facing Host Plug Connector
- Supports USB-C Power Delivery up to 100W Upstream*
- Supports Power Delivery 3.0 • Fast Role Swap
• One USB 3.2 Gen 1 SuperSpeed 5Gbps Downstream Facing Type-C Device Receptacles
- Supports USB-C Power Delivery Pass Through
• Three USB 3.2 Gen 1 SuperSpeed 5Gbps Downstream Facing Type-A Device Receptacles
- One Supports BC1.2 at 1.5A charging (when USB-C Power Pass Through Port and laptop are connected)
• One Gigabit Ethernet Port - Supports 10/100/1000Mbps
- One HDMI Port - Supports HDMI resolution up to 4K@30Hz - Supports USB-C DP Alt. Mode ^+

Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable

• One SD Card Slot
• Supports Secure Digital v3.0 UHS-I (Ultra High Speed)
  • One Micro SD Card Slot
• Supports Secure Digital v3.0 UHS-I (Ultra High Speed)

*USB-C PD power adapter is not included

* Requires compatible PD3.0 laptops

* Certain HP USB-C Laptops with 12V PD charging profile may not be supported.

^† Requires compatible USB-C DP Alt Mode laptop

Note: Description of the Detached Type-C M to M cable.

The included detachable USB-C Male to Male cable is specifically designed to work with the DOCK414. Compatibility and performance will not be guaranteed if third party USB-C cable is utilized.

Troubleshooting

Device Not Working

• Make sure that the device is fully inserted into the correct port on the portable dock.
• Plug the device into a different port on the portable dock. If it still doesn't work, test the device by connecting it directly to your computer.
• Make sure that the device appears in Device Manager.
• Disconnect all devices from the portable dock and reconnect them, one at a time. Check that each device works before plugging in the next one.
  • Each laptop USB Type-C port is equipped with over-current protection. When a USB device draws more current than the USB Type-C port can supply, the port will shut down.

To re-enable the port, unplug the device and go to Device Manager or to the message in the system tray and choose the Reset option. You can then plug the device back into the portable dock. If a shut down reoccurs, check the power requirements of the device.

Verifying Devices are Installed

You can view the devices installed on the portable dock from the Device Manager window in System Properties.

Right-click My Computer, Properties, then click the Hardware tab, and then the Device Manager button.

Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable

Technical Support

For technical questions, please visit:

US Internet: http://targus.com/us/support

Canada Internet: http://www.targus.com/ca/support

Australia Internet: http://www.targus.com/au/support

Email: [e-mail], Telephone: [phone]

New Zealand Telephone: [phone]

Latin America Email: [e-mail]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. Go to: http://targus.com/us/product_registration

You will need to provide your full name, email address, country of residence and product information.

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Two Year Warranty

We pride ourselves on the quality of our products. For complete warranty details and a list of our worldwide offices, please visit www.targus.com. Targus product warranty does not cover any device or product that is not manufactured by Targus (including, but not limited to, laptops, smartphones, devices, or any other product that may be used in connection with the Targus product). Australian customers: For complete warranty details see warranty statement enclosed.

Targus is a registered trademark of Targus International LLC in the U.S. and in certain other countries. Microsoft, Windows, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. All logos and registered trademarks are the property of their respective owners. ©2019 Targus, 1211 North Miller Street, Anaheim, CA 92806. All rights reserved.

Targus USB-C Single Video 4K HDMI Docking Station

with Card Reader and Removeable USB-C Cable

Targus USB-C Single Video 4K HDMI Docking Station

with Card Reader and Removeable USB-C Cable

FCC Statement Tested to Comply

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Australian and New Zealand consumers only

Thank you for your purchase. Targus warrants to the original purchaser that its products are free from defects in materials and workmanship, during the specified warranty period, and lasts as long as the original purchaser owns the product. The warranty period is stated on the packaging or in the documentation provided with this Targus product. Targus' Limited Product Warranty excludes damage caused by accident, neglect, abuse, misuse, improper care, normal wear and tear, ownership transfer, or alteration. The limited warranty also excludes any product that is not manufactured by Targus (including, without limitation, laptops, smartphones, devices, tablets, or any other non-Targus item) that is used in connection with the Targus product.

In the event that the Targus product has a defect in materials or workmanship Targus will, after receiving a warranty claim and inspecting the product, at its discretion, do one of the following: repair, replace, or refund with the same or a similar product (or part) of no lesser quality and ship it to the original purchaser at Targus' expense. As part of this inspection, proof of purchase will be required. There is no charge for inspection. To make a warranty claim, please contact Targus Australia or New Zealand (see details below), or return the product to the place of purchase. The original purchaser must bear the cost of the delivery to Targus.

Under Australian and/or New Zealand Consumer Laws, in addition to any warranty Targus gives, our products come with guarantees that cannot be excluded. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are entitled to have the products repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

For any warranty question, contact Targus Australia Pty. Ltd. (i) by mail at Suite 2, Level 8, 5 Rider Boulevard, Rhodes NSW 2138, by phone AUS 1800 641 645 or NZ 0800 633 222 or by Email: [e-mail]. For additional information, check out our website at targus.com/au/warranty.

Declaration of Conformity

Hereby, Targus declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2011/65/EU.

Targus USB-C Single Video 4K HDMI Docking Station with Card Reader and Removeable USB-C Cable

Supplier's Declaration of Conformity

Per FCC Part 2 Section 2.1077(a)

Manufacturer/

Responsible Party

Address

Targus International LLC

1211 North Miller Street.

Anaheim, CA 92806 USA

Tel: [phone]

Fax: [phone]

Internet: www.targus.com

Herety declares that the Product

Trade name: Targus

Product name: Portable USB-C Dock with GbE/HDMI/SD Card Reader PD Pass-Thru(Detachable cable)

Model number: DOCK414

Conforms to the following specifications

FCC CFR Title 47 Part 15 Subpart B and ANSI C63.4-2014 standard limits

The test data & results are referred to the test report Number: (WTX19X10070863E)

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Director, Targus International LLC

Function Title

CF Ngoh

Name

24/Oct/2019

Date

Signed for and on behalf of Targus
