Product Type	Hybrid stereo radio with CD player
Brand	Imperial
Model	DABMAN i210 CD
Dimensions (W x H x D)	390 mm x 178 mm x 160 mm
Weight	Approximately 3.64 kg
Power Supply	External mains adapter 100-240 V AC, 50/60 Hz, output 15 V DC 2.4 A
Power Consumption	Max. 36 W in operation, 0.8 W in standby
Display	8.1 cm (3.2 inch) TFT colour display
Speakers	2 x 3-inch speakers, 2 x 15 W, 4 Ω
Reception Bands	DAB/DAB+ (174-240 MHz), FM (87.5-108 MHz)
Internet Radio	Approximately 25,000 stations available via WiFi or Ethernet
Supported Audio Formats	MP3, AAC/AAC+, WMA, Audio CD, MP3 CD
Network Connectivity	WiFi 802.11 b/g/n (2.4 GHz), Ethernet 10/100 Mbps
Bluetooth	Version 4.2, profiles A2DP, AVRCP, HFP
Inputs/Outputs	3.5 mm headphone jack, 3.5 mm AUX IN, 3.5 mm LINE OUT, USB 2.0 port, RJ45 LAN port
CD Player	Slot-in for audio and MP3 CDs
Remote Control	Supplied with CR 2025 battery
Special Features	Radio alarm (2 alarms), equalizer, sleep timer, weather display, Spotify Connect
Operating Temperature	0 °C to 45 °C, relative humidity 20-80 %
Cleaning	Use a dry, soft cloth; do not use liquids or solvents
Safety	Double insulation (Class 2), do not open the casing, use only the supplied adapter

Frequently Asked Questions - DABMAN i210 CD Imperial

How to connect the radio to the WiFi network?

Plug the mains adapter into the back of the radio and then into a 230 V socket. Press the main switch on the back. Follow the on-screen instructions to select the language, then choose 'Yes' to set up the network. Select 'Radio Network' and choose your WiFi from the list. Enter the password using the remote control.

How to listen to DAB or FM radio?

Press the MODE button on the remote control or select DAB or FM from the main menu. On first use, the device automatically starts a station search. Use the ▲▼ buttons to browse the list and press ENTER to select a station.

How to set the alarm on the radio alarm clock?

Press the MENU button, select 'Settings' then 'Alarm'. You can set up to 2 alarms. Activate the alarm, choose the days, time, source (tone, melody, radio, USB) and volume. Confirm with ENTER.

How to use the CD player?

Insert a CD (printed side up) into the slot. The player loads the disc automatically. Select CD mode via MODE or the main menu. Use the navigation keys to choose a track and press ENTER to play. To eject, press the EJECT button.

How to connect a smartphone via Bluetooth?

Activate Bluetooth mode on the radio (via MODE or the menu). The radio enters pairing mode. On your smartphone, enable Bluetooth and select 'DABMAN i210 CD' from the device list. Confirm pairing. A double arrow appears on the screen and a sound confirms the connection.

What to do if the remote control does not work?

Check the battery (CR 2025 type): remove the cover, check polarity and replace if necessary. Point the remote at the sensor on the front of the radio. If the problem persists, move closer to the device.

How to save a favourite radio station?

Select the desired station. Press and hold one of the numbered buttons (1 to 4) on the radio for about 3 seconds, or use the FAV button on the remote: press and hold, then choose a position with ▲▼ and confirm with ENTER.

The radio does not pick up any DAB stations, what to do?

Fully extend the telescopic antenna at the back. Place the radio near a window. Perform a new automatic search via the DAB menu. If the problem persists, check that you are in an area covered by DAB+.

How to safely clean the device?

Always unplug the radio before cleaning. Use a dry, soft cloth. Never use liquids, solvents or abrasive products. Cleaning should not be done by children.

How to reset the radio to factory settings?

Press MENU, go to 'Settings' then 'Restore default settings'. Select 'Yes' to confirm. Note: all your personal settings (stations, alarms) will be erased.

USER MANUAL DABMAN i210 CD Imperial

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric diagram of two concentric squares (no text or symbols)

Schutzklasse II

Yellow triangular warning sign with black exclamation mark symbol

Diagram showing six steps of electronic devices and media: CD, remote control, USB drive, audio/video format, and screen interface.

Yellow triangular warning sign with black exclamation mark symbol

Orange square play button icon with white center and right-pointing triangle (no text or symbols)

Abstract circular design with concentric rings and a dot, no text or symbols present

Näheres unter: www.spotify.com/connect/third-party-licenses. The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-partylicenses

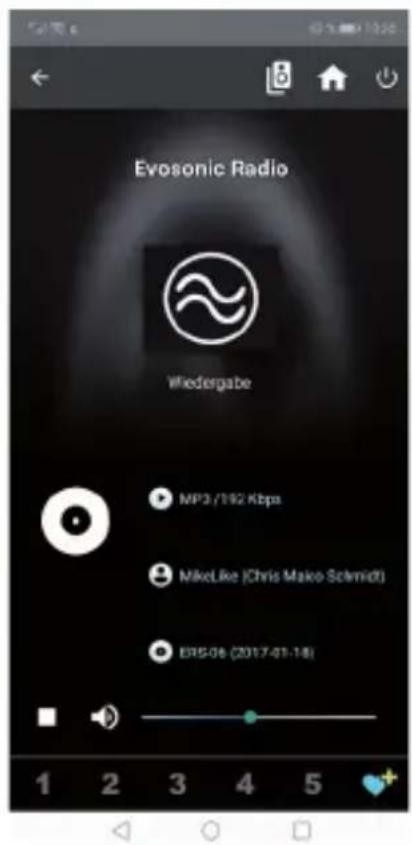

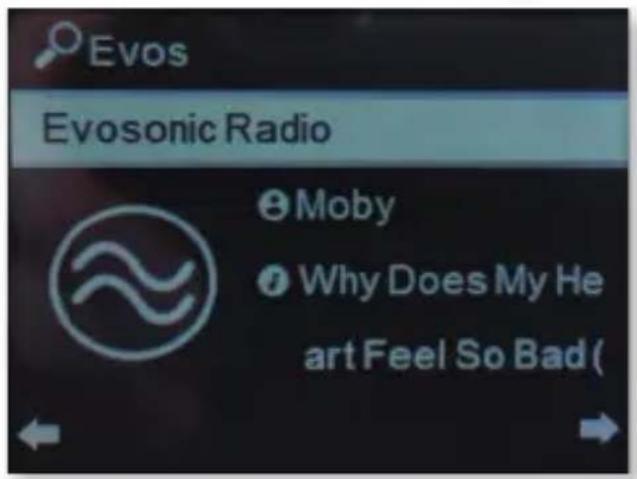

Evos Evosonic Radio ● Moby ● Why Does My He art Feel So Bad (

Icon showing a U-shaped music headset and a play button, no text or symbols present

Air Music Control®

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Bitte beachten Sie:

Recycling symbol composed of three arrows forming a triangle (no text or labels)

Prohibition sign with crossed-out trash bin and black rectangle, indicating no waste or disposal

Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)

Dongguan Yingna Electronic

Technology Co., Ltd

YN36W-1200300VW

Eingang 100 - 240 Volt AC 50 /60 Hz 1,0 A

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g:

HT20 bis 65 Mbps

802.11n

HT40 bis 135 Mbps

Sendeleistung

18,5dBm (Max)

1.2. Proper use according to design 97

2 SAFETY INSTRUCTIONS....98

2.1. Explanation of symbols 98
2.2. Safety Instruction 100
2.3. Operational safety....101
2.4. Connecting the device....102
2.5. Protecting the device against damage.... 103
2.6. Risk of injury 104
2.7. Notes on the radio interface 104
2.8. Handling batteries 105
2.9. Cleaning the device 107
2.10. Legal information....107

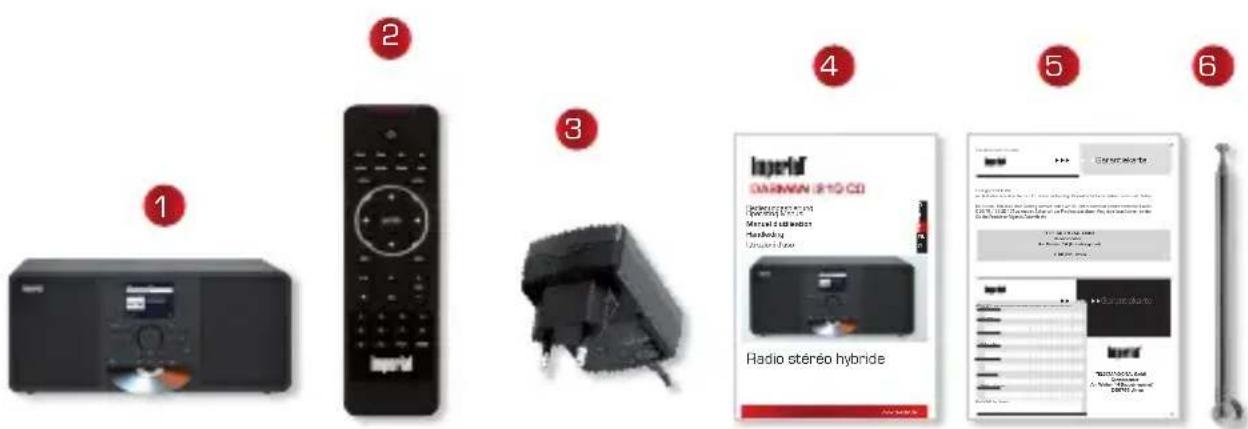

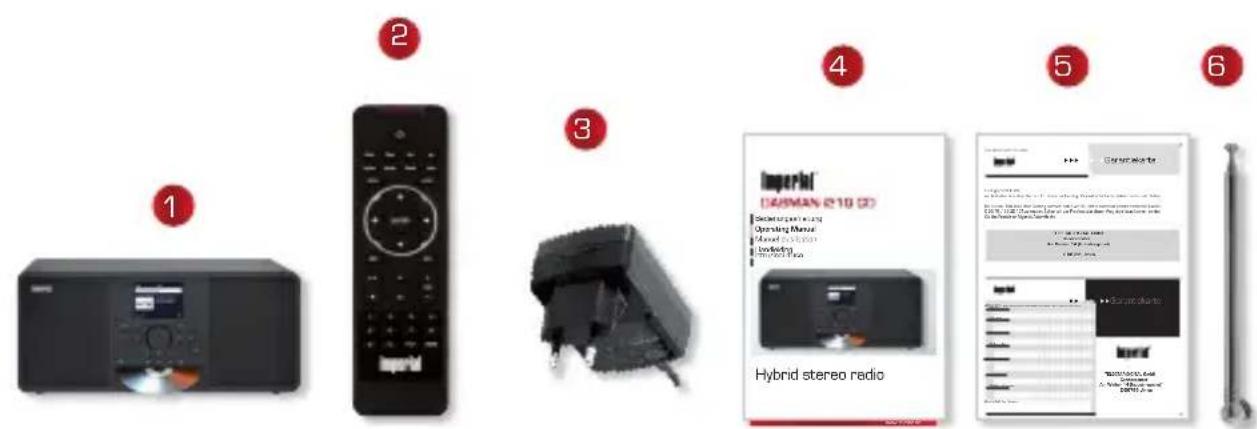

3 SCOPE OF DELIVERY....108

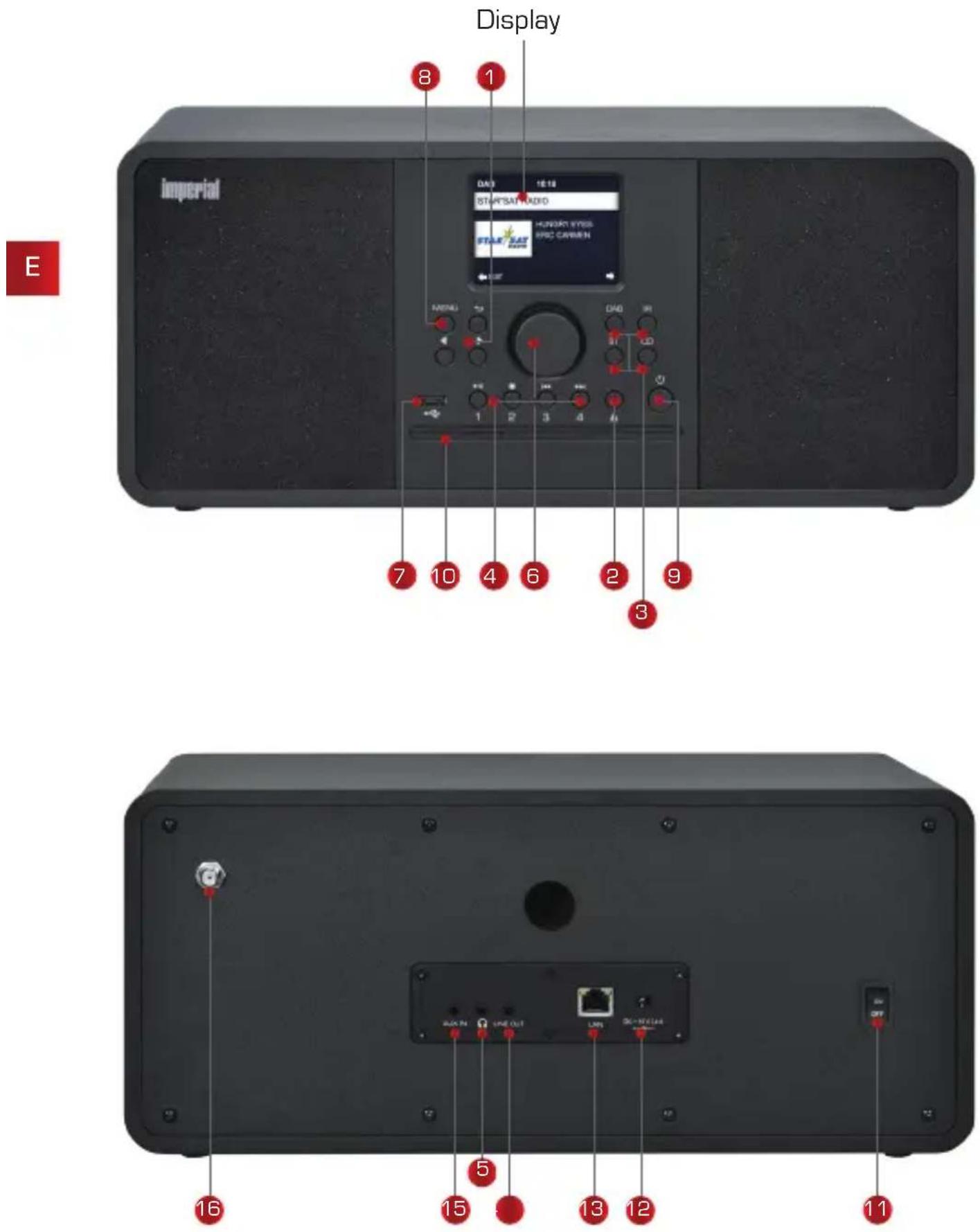

4 OVERVIEW OF CONTROL ELEMENTS....110

4.1. Display overview.... 112

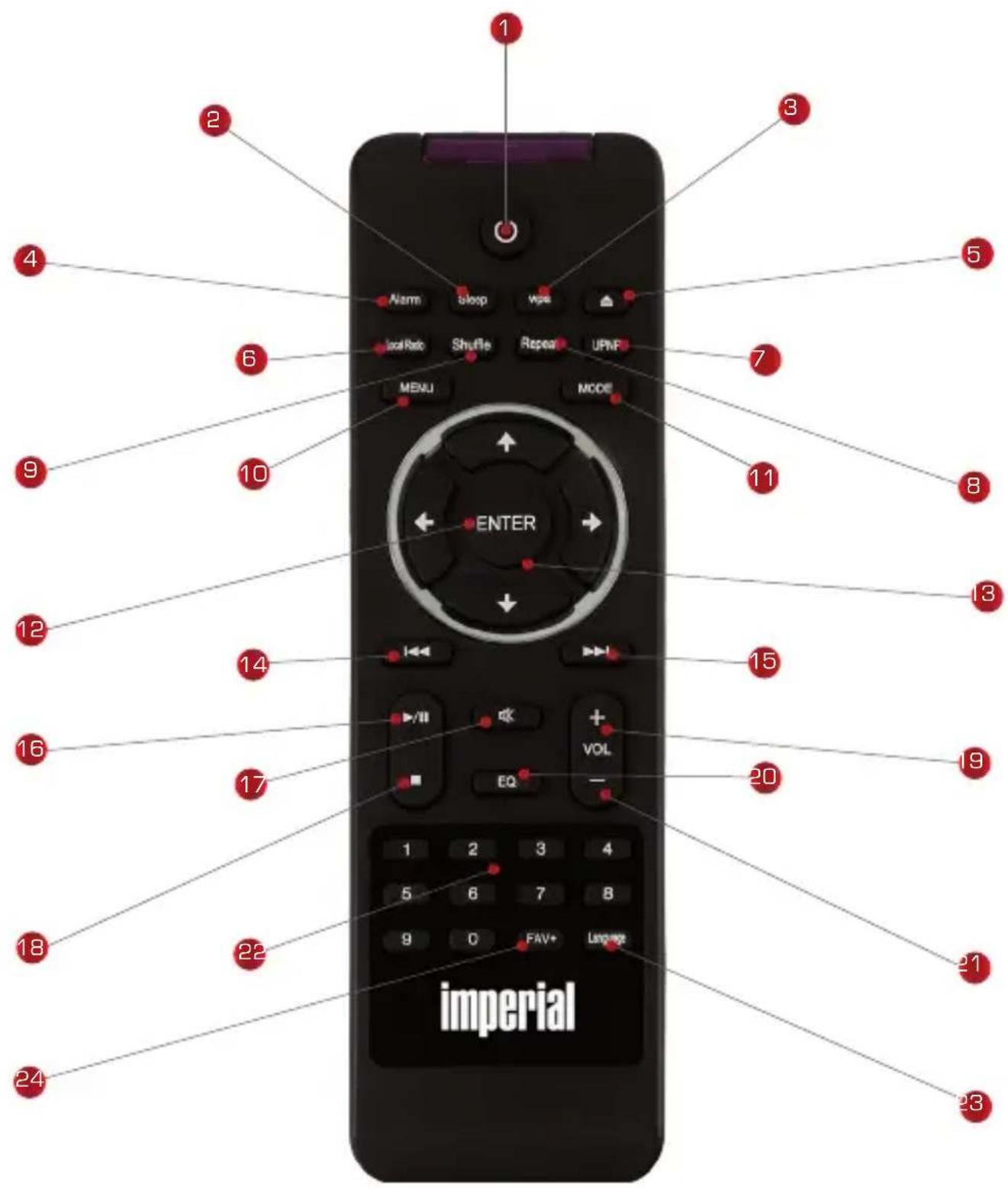

5 REMOTE CONTROL....114

6 INSTALLATION 118

6.1 General operating instructions 118
6.2.Preparing the remote control....118
6.3 Mounting the antenna 119
6.4. Power connection....119
6.5. Network connection 119

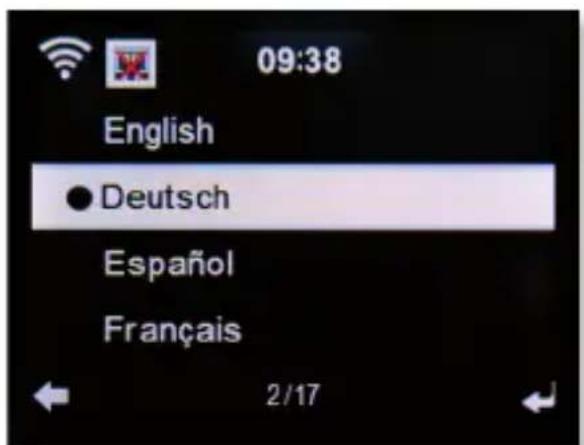

6.6. Language selection 119
6.7 Network check....119
6.8 Network configuration....120
6.8.1 Network selection.... 120

CONTENTS

7 SETTINGS 122

7.1. Settings 122

7.1.1 Time display....122

7.1.2 Manage My MediaU 122

7.1.3. Network.... 123

7.1.3.1. LAN network settings.... 124

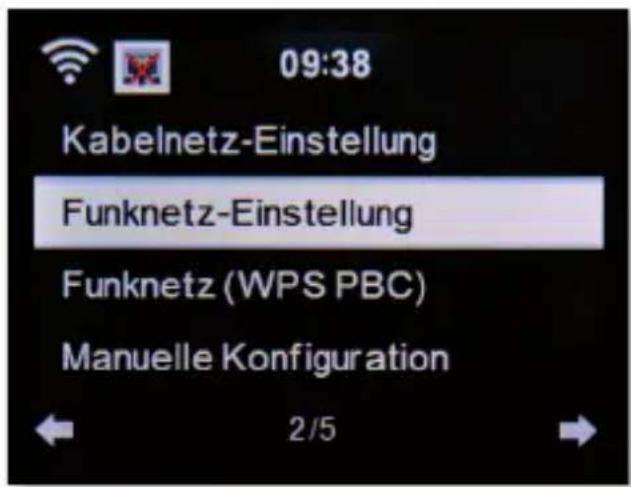

7.1.3.2. Wireless network settings.... 125

7.1.3.3. WIRELESS network (WPS PBC) 125

7.1.3.4. Manual configuration 126

7.1.3.4.1. DHCP 126

7.1.3.5. Network check during startup.... 127

7.1.4. Date & time 128

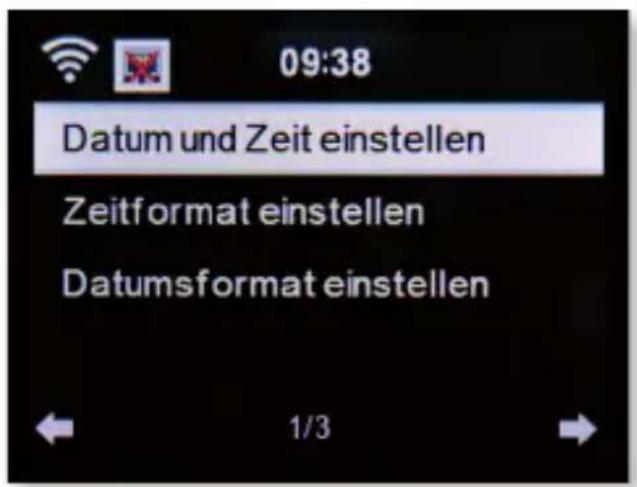

7.1.4.1. Set the date & time.... 128

7.1.4.2. Set the time format.... 129

7.1.4.3. Set the date format.... 129

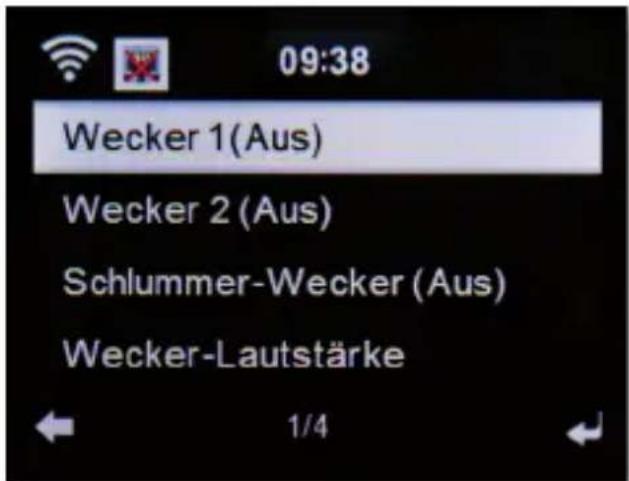

7.1.5. Alarm clock.... 129

7.1.5.1. Snooze Alarm Clock.... 131

7.1.5.2. Alarm clock volume 131

7.1.6. Timer 132

7.1.7. Language.... 132

7.1.8. Dimmer 133

7.1.9. Display 133

7.1.10. Power settings 133

7.1.11.Sleep timer 134

7.1.12. Temporary storage 134

7.1.13. Weather....134

7.1.14.FM settings....136

7.1.14.1. Mode 136

7.1.14.2.Sensitivity 136

CONTENTS

7.1.15. Local stations settings 137
7.1.16. Playback options 138
7.1.17. The device.... 138
7.1.18. Button 139
7.1.19.SMS 139
7.1.20. Equalizer.... 140
7.1.20.1.My EQ....140
7.1.21. Resume playback after switching on.... 141
7.1.22. Software update 141
7.1.23. Reset to factory setting.... 141

8 OPERATION 142

8.1. Local station 142
8.2. Internet radio 142
8.2.1.My favourites....143
8.2.2. Radio station / music....143
8.2.3. Local station....143
8.2.4. Sleep radio....143
8.2.5. Recent stations 144
8.2.6. Service 144

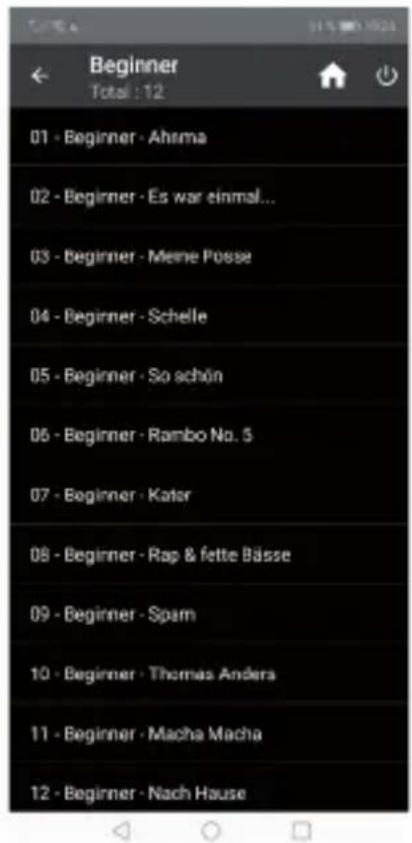

8.3. Media Centre....145
8.3.1. UPnP Playlist 146

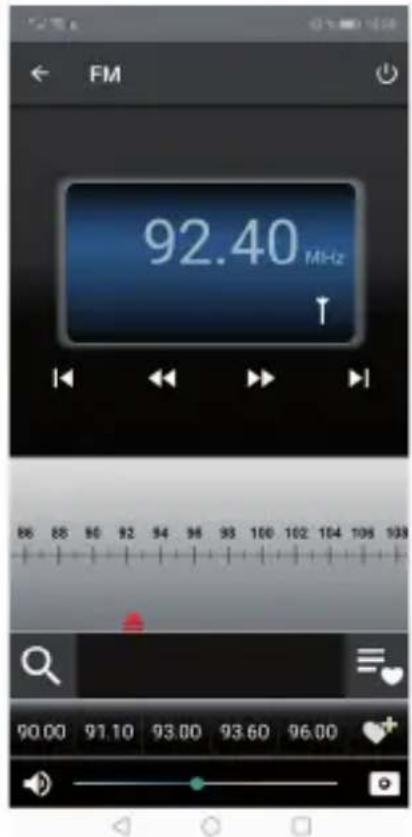

8.4.FM 146

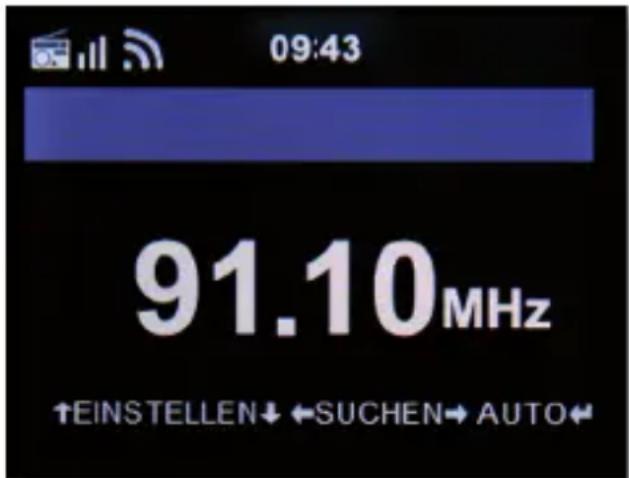

8.4.1.FM station search....147
8.4.2.FM radio operation....148
8.5.DAB 148
8.5.1 DAB station search.... 148
8.5.2. DAB radio operation 149
8.6. Information centre....149
8.6.1 Weather and finances.... 149
8.6.2. System information....150

CONTENTS

8.7.AUX 150
8.8.CD 151
8.9. Bluetooth....151
8.9.1 Establish a Bluetooth connection 152
8.9.2 Playing media via Bluetooth....152
8.10. Spotify Connect.... 152

1. DAILY USE FUNCTIONS ...... 153
   9.1. Volume 153
   9.2. Switching the mode....153
   9.3. Display brightness 153
   9.4. Radio information 153

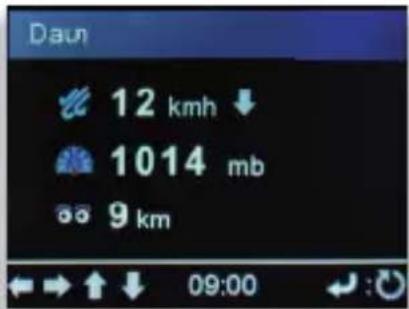

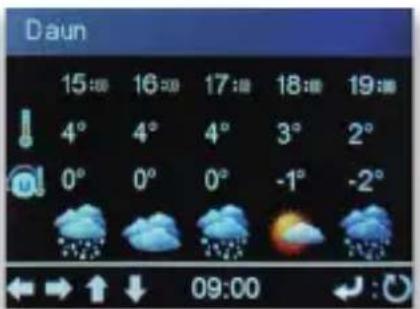

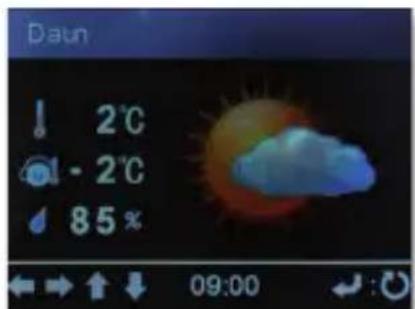

   9.5. Weather information 154
   9.6. Stop and start playback....154
   9.7.Shuffle playback 155
   9.8. Repeat track.... 155
   9.9.Save favourite stations....155
   9.10. Calling up local radio stations.... 156

10 APP CONTROL.... 157
11 TROUBLESHOOTING....161
12 STORAGE 164
13 BRAND INFORMATION 165

14 DISPOSAL INFORMATION.... 166

14.1. DISPOSING OF THE PACKAGING.... 166
14.2. DEVICE DISPOSAL 166
14.3. DISPOSING OF THE BATTERIES 166

15 PROPERTIES AND TECHNICAL DATA.... 167

16 SERVICE AND SUPPORT....171

17 CE LABELLING 172

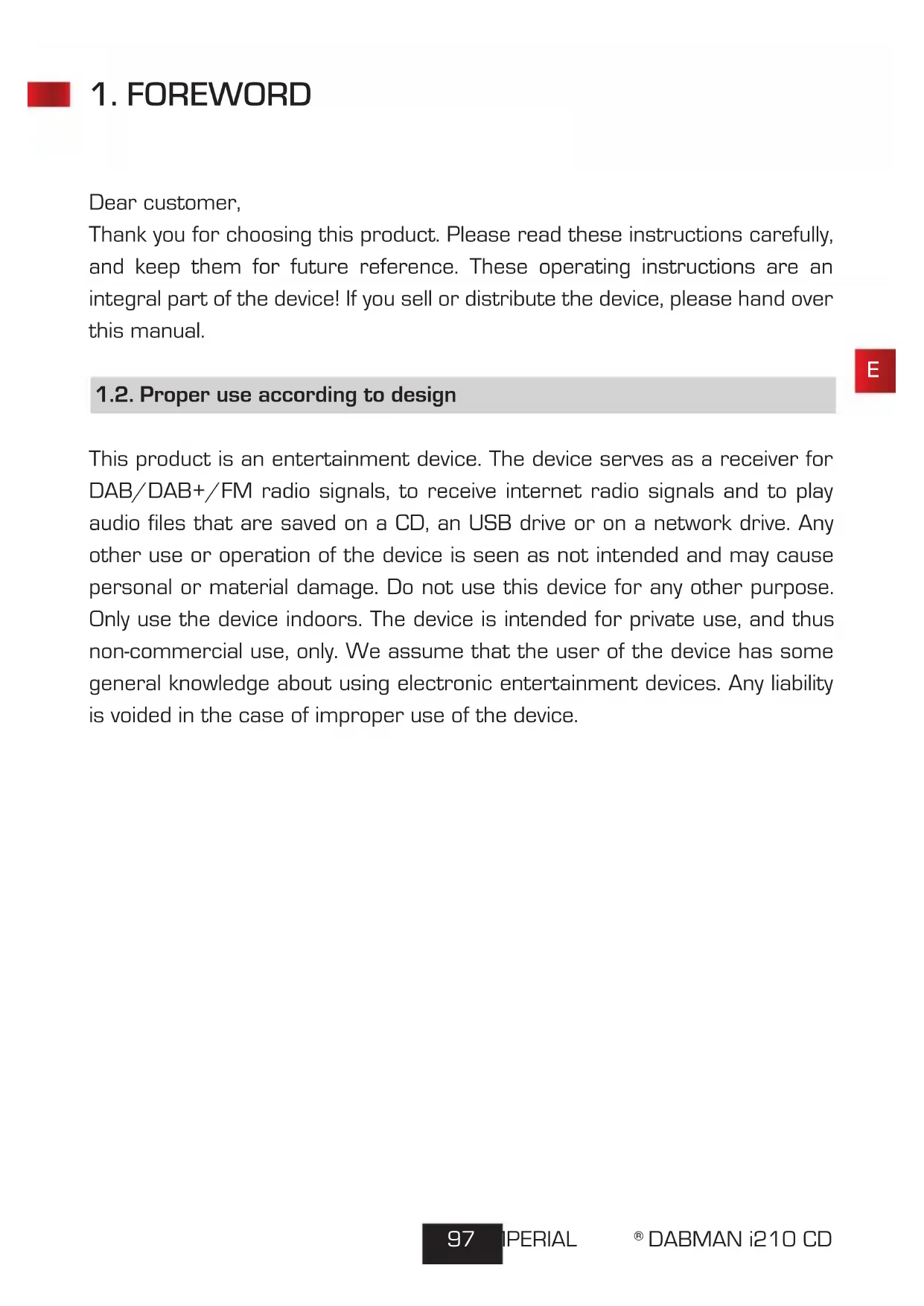

1. FOREWORD

Dear customer,

Thank you for choosing this product. Please read these instructions carefully, and keep them for future reference. These operating instructions are an integral part of the device! If you sell or distribute the device, please hand over this manual.

1.2. Proper use according to design

This product is an entertainment device. The device serves as a receiver for DAB/DAB+/FM radio signals, to receive internet radio signals and to play audio files that are saved on a CD, an USB drive or on a network drive. Any other use or operation of the device is seen as not intended and may cause personal or material damage. Do not use this device for any other purpose. Only use the device indoors. The device is intended for private use, and thus non-commercial use, only. We assume that the user of the device has some general knowledge about using electronic entertainment devices. Any liability is voided in the case of improper use of the device.

2. SAFETY INSTRUCTIONS

2.1. Explanation of symbols

SYMBOL EXPLANATION

E

DANGER!

This signal word describes a hazard with a high level of risk, that may lead to death or severe injury if not followed.

WARNING!

This signal word describes a hazard with a medium level of risk, that may lead to death or severe injury if not properly followed.

ATTENTION!

This signal word describes a hazard with a low level of risk, that may lead to minor or moderate injuries if not properly followed.

NOTE!

This signal word warns against possible material damages and indicates specific instructions to operate the device.

Yellow triangular warning sign with black exclamation mark symbol

This sign warns against danger.

SYMBOL EXPLANATION

Simple geometric diagram of two concentric squares (no text or symbols)

Protection class II

Electric devices with a protection class II have an increased or double insulation at the rated insulation voltage between the active and touchable parts (VDE 0100 component 410, 412.1).

They are usually not connected to the protective conductor. Even if they have electrically conductive surfaces, they are protected against contact with live parts through an increased or double insulation.

C€

Products labelled with this symbol meet the requirements of the guidelines of the European Community.

1

In the case of devices with wooden plugs this symbol marks the plug's polarity. 2 variants are distinguished here

2

Image 1: Outside plus/ Inside minus Image 2: Inside plus / outside minus

Devices with this symbol may only be used indoors in a dry environment.

2.2. Safety Instruction

WARNING!

Inspect the device prior to use.

Should there be any damage or a defect on the device it may not be used.

Risk of injury!

There is a risk of injury for children and persons with reduced physical, sensory or mental capacities (for example partially disabled, older persons with limited physical or mental abilities) or a lack of experience and knowledge.

Store the device in a place that is out of reach for children.
This device may be used by children as of the age of 8 as well as

by persons with reduced physical, sensory
or mental abilities or a lack of experience and/or knowledge, if they are supervised or instructed regarding the safe use of the device and have understood the related risks.

Never allow children to use the device unsupervised.

Risk of choking!

The packaging material is not a toy!
Store the used packaging materials (bags, polystyrene parts etc.) out of reach for children.

Children may not play with the packaging. The packaging foil poses a particular risk of choking.

2.3. Operational safety

DANGER!

Risk of injury!

There is a risk of injuring oneself through electrocution on the live parts. There is a risk of electrocution or fire due to unintentional short circuiting.

Check the device for damages prior to every use. Should you detect visible damages or the device has visible damages, do not use it.
Should you detect a technical or mechanical problem please contact the TELESTAR service.
Only use the power unit that was included! Never use a different power unit.
Never open the casing of the device.
If there is a malfunction, immediately unplug the device from the power supply. To do so, promptly unplug the power unit from the power socket and the device.
Only use replacement parts and accessories that are shipped and approved by us.
Do not physically alter the device and do not use any spare parts or additional devices that were not explicitly approved or shipped by us.
Do not use the device in areas that have a high explosion risk. These include, for example, petrol storage areas, petrol stations, or areas in which solvents are stored or processed.
Do not use the device in areas with air that is polluted with particles (e.g. flour or wood-chip dust).

2. SAFETY INSTRUCTIONS

Performance errors may become apparent in the shape of the device becoming hot or smoke developing from the device or the power unit. Loud or unusual sounds may also be a sign of a malfunction.

In such an event, immediately remove the power unit from the socket.
Only touch the casing of the power unit. Never pull the power unit's plug from the socket. The device may not be used after a malfunction, until a trained person has inspected or repaired it.
If you introduce the device to a cold or warm environment, moisture may develop inside the device. In such an event, wait approximately one hour before using the device.
Should you be gone for a longer period or in the event of a thunderstorm, unplug the device.

Take care to prevent moisture, water or splash water from coming into contact with the device and ensure that receptacles filled with water - e.g. vases - are not placed on or near the power unit.

In the event that foreign objects or liquid should enter the device or power unit, immediately unplug the power unit. Have a qualified specialist inspect the device before using it again. Otherwise there is a risk of electrocution.
Make sure that the device and power unit is not at risk of dripping or splash water and that there are no open flames (e.g. lit candles) near the device or the power unit.
The power unit must never be touched or grabbed with wet or moist hands.

2.4. Connecting the device

Only plug the device into properly installed, earthed and electrically secured power sockets.
Please keep the power source (socket) easily accessible.

2. SAFETY INSTRUCTIONS

Do not bend or squeeze any cables.
Before using the device, check whether the voltage specification on the device corresponds to your local power voltage. The specifications on the power unit must correspond to the local power grid.
Only plug the device into a properly installed grid socket with 220-240 V alternating current, 50-60 Hz.

Place the radio on a solid, even surface.
The device consumes power in standby mode. To fully switch off the device, the power plug must be pulled from the socket or the power unit on the back of the device must be switched off.

2.5. Protecting the device against damage

NOTE!

Unfavourable surrounding conditions, such as moisture, excessive heat or a lack of ventilation may damage the device.
Only use the device in dry rooms. Avoid direct proximity to heat sources, such as radiations, open fires (e.g. from candles), devices with a strong magnetic field, such as loudspeakers. Do not expose the device to extreme conditions, such as direct sunlight, severe humidity, moisture, extremely high or low temperatures, open flames.
Ensure sufficient distance to other objects to prevent the device from being obstructed, so that sufficient air ventilation is guaranteed.
Avoid direct sunlight and places with an exceptional amount of dust.
Do not place any heavy objects on the device or the power unit.
Do not use the device in areas that have a high explosion risk.

2. SAFETY INSTRUCTIONS

These include, for example, petrol storage areas, petrol stations, or areas in which solvents are stored or processed.

Do not use the device in areas with air that is polluted with particles (e.g. flour or wood-chip dust)

2.6. Risk of injury

WARNING!

Excessive sound pressure levels when using ear- or headphones may lead to damaging or loss of hearing. Listening with earphones or headphones at an increased volume over a longer period of time may injure the user. Please check the volume before putting the earphones or headphones in or onto the ears. Set the volume at a lower level and only raise the volume to a point that is still comfortable.

2.7. Notes on the radio interface

The device generates an electro-magnetic field. Please pay attention to any indications in your surroundings that may prohibit or restrict the use of electronic devices. This may be the case in hospitals, petrol stations and patrol depots or airports, for example. If there are such warning signs, promptly unplug the device from the power source. The components contained in the device generate electro-magnetic energy and magnetic fields. These may inhibit medical devices such as a cardiac pacemaker or defibrillator. Therefore, please maintain sufficient and safe distance between the radio and medical devices.

2. SAFETY INSTRUCTIONS

Should you have reason to believe that the radio has caused a disruption of a medical device, immediately switch off and unplug the radio from the power source.

2.8. Handling batteries

Only use the type of battery that was part of the delivery.

DANGER!

Risk of injury!

Never open batteries, short-circuit these or toss them into flames. Never charge these batteries. There is a risk of explosion when charging these batteries.

Make sure to note the polarity! Take care to properly connect the plus (+) and minus (-) poles, to avoid a short circuit.

Only use the batteries specified for this product. Remove batteries from the device if it is not in use for a longer period of time.

Immediately remove drained or leaking batteries from the device. Leaking batteries pose a risk of acid-related injuries. Store new as well as used batteries out of children's reach. Swallowing batteries poses a risk of internal injuries. The battery acid contained inside the batteries may cause injuries if it comes into contact with skin. After accidental swallowing or if there are signs of skin burns, rinse the affected area with sufficient clear water and seek medical attention immediately.

2. SAFETY INSTRUCTIONS

Batteries are not toys!

Always keep new and used batteries away from children. Remove leaking batteries from the device and clean the contact points before inserting new batteries.

E

WARNING!

Yellow triangular warning sign with black exclamation mark symbol

Improper use of batteries may pose a risk of explosion!

Only use batteries of the same type.
Please refrain from combining new and old batteries in one device.
Pay attention to the correct polarisation when inserting batteries.
Never charge these batteries.
Batteries should be stored in a cool and dry place.
Never toss batteries into fire.
If the device is not used for a longer period of time please remove the batteries from the device.
Never expose the batteries to major heat or direct rays of sunlight.
Batteries may not be bent or opened.

Stop using the remote if the battery lid no longer closes properly.

2. SAFETY INSTRUCTIONS

2.9. Cleaning the device

Unplug the device from the socket prior to cleaning. Use a dry, soft cloth to clean the device. Please refrain from using liquids when cleaning the device. Do not use any solvent or cleaning agents, as these may damage the surface or labelling on the device. Children may not clean the device.

2.10. Legal information

The device is intended for use in all countries of the European Union as well as Switzerland, Norway, Liechtenstein and Iceland. The range of radio signals to be received meets all legal regulations of these countries. If the device is to be used in a different country, the laws of that country must be considered and complied with.

3. SCOPE OF DELIVERY

Please remove all parts from the packaging and completely dispose of all packaging materials. Please contact us if one or more of the specified parts are missing:

TELESTAR Service Center

Am Weiher 14

56766 Ulmen

e-mail: [e-mail]

3. SCOPE OF DELIVERY

NR. QUANTITY EXPLANATION

1 1 IMPERIAL

® DABMAN i210 CD

2 1 Remote control

3 1 external power unit

4 1 Instruction manual

5 1 Warranty card

6 1 Telescopic antenna

7 1 AUX connection cable

8 1

Battery for remote control type CR 2025 / 3 V (already inserted in the remote)

4. OVERVIEW OF CONTROL ELEMENTS

Display imperial 8 1 DAO 16.16 START/SAT RADIO HUMAN STEOS SPIC CAVEN NONE 7 10 4 6 2 9 3 1 2 3 4 DAD ST 5 16 5 15 13 12 11

4. OVERVIEW OF CONTROL ELEMENTS

1 Navigation
2 Eject

Ejects an inserted CD.

3 Mode

Here you can switch the operating mode of the device between Internet radio, DAB+, FM, UPnP, AUX, Bluetooth, CD, Streaming and USB.

4 Station memory buttons

In radio mode, switches between the 1.-4. station storage slot.

5 Headphone jack

Insert headphones here to listen to the music played back from the radio through your headphones. If headphones are connected, music playback via the unit's speakers is interrupted.

6 Navigation/ volume / confirm

Use to navigate the menu or select the next station from the station list. Change the volume. Confirm menu selections by pressing this button.

7 USB connection

Connect the device to a USB data carrier such as a USB hard drive or USB stick to play music files from this.

8 Menu button

Opens the unit's menu.

9 Power button on/off

Switch the device on or into standby using this button.

10 CD slot

Insert a CD with the labelled side facing up.

11 Power switch

Switch the device on or off here. The device is disconnected from the power supply unit in position O.

12 Power supply connection

Connect the device to the power supply unit at this socket (included).

4. OVERVIEW OF CONTROL ELEMENTS

13 LAN port

Connect the unit to an existing network using a network cable to use the Internet radio function. (Alternatively, the device can also be connected via W-LAN).

14 LINE OUT

Here you can connect the radio to a HiFi amplifier or to active loud-speakers, to forward the music received from the radio to a sound system.

15 AUX IN

Connect an external audio source here such as an MP3 player, smartphone or tablet with a 3.5mm AUX cinch cable.

16 FM/DAB antenna

4.1. Display overview

MEANING OF THE FUNCTION SYMBOLS

Analogue FM radio reception active.

Symbolises the radio reception strength.

WIFI connection active.

No network connection via network cable.

4. OVERVIEW OF CONTROL ELEMENTS

AUX mode active.

Repeat the music track in the selected folder.

Shuffle play activated.

Repeat for the selected music track active.

Alarm clock activated.

Radio station saved on a storage slot.

USB data carried connected.

Bluetooth mode activated.

5. REMOTE CONTROL

The radio can be controlled using both the device buttons as well as the remote control. The remote control is the more convenient and easier way to operate the device. For this reason, this manual mainly explains how to set up and operate the radio using the included remote control. If the device is connected to a network, you can also control the radio via the AirMusicControl app. This app is available for Android ^® and iOS ^® operating systems. Further information can be found in chapter 10.

E

5. REMOTE CONTROL

1 2 3 4 5 6 Nam Sleep Vise Local Rate Shuffle Repeat UPNR 7 MENU MCOE 9 10 ENTER 11 8 13 12 14 15 16 17 VOL EQ - 20 19 21 22 18 23 24 imperial

5. REMOTE CONTROL

1 Standby button

Switch the device on or off using this button.

2 Sleep

Use these buttons to switch the Sleep Timer of the device on or off.

3 WPS button

Use this button to establish a WIFI connection to your home network. Please also read chapter 7.

4 Alarm clock

Use this button to activate the alarm function.

5 Eject

Eject a CD in the drive with this button.

6 Local radio

7 UPNP

Activate the device's UPNP function. Read chapter 8.3.1 for more related information.

8 Repeat

Use this button to repeat the playback of one or more tracks

9 Shuffle

Activate the shuffle playback option

10 Menu

Activate the device's menu with this button

11 Mode

Switch between different modes.

12 Enter

Confirm an entry or selection with this button

13 Navigate up/down - right/left

You can navigate the menu with these buttons

14 Select previous track / Fast reverse

Use this button to select the previous track or fast rewind.

5. REMOTE CONTROL

15 Select next track / Fast forward

Use this button to select the next track or fast forward.

16 Play

Start or pause playback

17 Mute

Mutes the device's sound.

18 Stop

Stop playback

19 V+ volume

Increases the volume

20 EQ equaliser function

You can activate the equaliser function with this button and change custom sound settings.

21 V-volume

Decreases the volume

22 Number pad

23 Language

Change the menu language with this button.

24 Favourites button

Switches to one of the individually stored favourite stations.

6. INSTALLATION

6.1 General operating instructions

) Switch the the remote affording. the standby
You can increase the volume using the VOL+ button on the remote control.
) You can do the asenthe volume using the VOL+ trol.
) Thuttoresu Uising can be selected the ▼▲ ENTER you can confirm a selection.

6.2. Preparing the remote control

Remove the battery transport lock on the remote control. To do this, pull out the plastic tab on the battery case of the remote control. This establishes the battery contact. To replace the remote control battery, open the battery compartment on the back of the remote control. Unscrew the screw with a suitable Phillips screwdriver. Pull the battery compartment out of the remote control. Remove the battery and insert a new battery of the same type.

Yellow triangular warning sign with black exclamation mark symbol

There is a risk of explosion if not used properly!

Please read the related safety information in Chapter 2.8.

Pay attention to the correct polarity of the battery! Then reinsert the battery compartment and replace the screw.

6. INSTALLATION

6.3 Mounting the antenna

Screw the included antenna into the radio's antenna connector.

6.4. Power connection

Connect the included power supply unit to the corresponding socket on the back of the device. Now plug the power supply unit into a 230V socket. Then pull out the telescopic antenna on the back of the radio to its full length to ensure the best possible reception if you wish to receive terrestrial transmitters via the antenna.

6.5. Network connection

To use the radio's Internet functions, the device must be connected to a network. You can use a cable (LAN) or the integrated WIFI receiver to make a connection. If you are using a LAN cable, connect it to the LAN connector (see image on page 24, point 13).

6.6. Language selection

Turn on the main switch on the back of the unit. The radio will start. Use the buttons on the remote control to select the menu language. Confirm the desired theme language with the ENTER

6.7 Network check

If you want to connect the radio to your home network, confirm the following menu prompt with .With this setting, the radio checks the available networks each time it turns on.

6.8 Network configuration

To connect the radio to your network, confirm the following prompt with Yes. If you do not wish to connect the device to a network, you can skip this menu item by selecting No.

E

6.8.1 Network selection

Select the type of connection you want to connect to the radio. If you have connected a LAN cable, select Cable network; If you want to connect via WIFI, select wireless network. When you select the connection via WIFI (wireless network), all available WIFI networks are displayed. Select the network to be connected to rated these WIFI password. Use the

buttons to choose a character, the button lets you jump further. Confirm yPlease set note that the registration process with the rou-

ter may take a while. You can return to the main menu by pressing the menu button on the unit or on the remote control. The menu is automatically exited after 10 seconds and the last radio mode chosen is switched to. Navigate the main menu using the ▶◀ buttons.

6. INSTALLATION

The device's main menu consists of the following menu items:

Settings	Local stations	Internet radio
Media Centre	FM radio	DAB+ radio
Information Centre	AUX	CD
Bluetooth

Yaroverbuteles. tBenfirenuthtems using the ▶ selection with the button on the remote control or by pushing the ENTER button on the unit.

7. SETTINGS

7.1. Settings

Two interlocking gears on a dark background (no text or symbols)

Pressorthen the remote control or the device and use the

buttons to select the menu item settings. Confirm our choice with the ENTER button buttonremote could be or pressing the ENTER can change individual device settings under this menu item.

7.1.1 Time display

In this menu item you can set the way the device displays time in standby mode, is sent the remote control to select the time display

rbettoitem.tGenfernote selection with the ENTER

bottoms yptlde device. Use the

remote control to select the analog or digital menu item. Confirm the selection viibutthreonthe remote control or by pushing the ENTER

on the device. When analogue is selected, the unit displays an analogue clock in standby mode. A digital clock is shown when digital is selected.

7.1.2 Manage My MediaU

Here you can activate or deactivate the MediaU management function. With MediaU you can create an custom station list and play these stations. To create and activate your station list, you will need to register on:

http://www.mediayou.net/web

7. SETTINGS

One you have logged in, you can register your radio. Enter your radio's MAC address as the serial number. The radio's MAC address can be found in the information centre.

Please also read chapter 8.6.2. In the settings menu, use the ▼▲ the remote control to select the item manage My MediaU. Confirm the select-through with the remote control or by pushing the ENTER

button on the device. Use the remote's button to select the menu item activate to activate this function. Confirm the selection with the ENTER button remote devitrol or by pushing the ENTER

7.1.3. Network

For the device to function as an Internet radio, the network your radio is connected to needs to have the following features:

The network router used must have a DHCP server function so that the device can be assigned an automatic IP address in the network. The UPnP function must be activated in the router of the network in order to be able to transfer media content and recognise devices in the network. If these properties are met in the router, the radio can easily be integrated into the network.

Press the MENU button on the remote control or on the device and use the buttons to select settings in the menu. Confirm our choice with the ENTER button button remote controller or pressing the ENTER

the buttons on the remote control to select the menu item network. Confirm our choice with the button on the remote control or pressing the ENTER button on the device.

Select other details entry with the buttons ▼▲ ENTER.

7.1.3.1. LAN network settings

If you want to integrate the radio into your network with a network cable, you can activate a wired network connection in these settings. Use the ▼▲ buttons on the remote control to select the wired network settings menu itout60 for the these selection with the ENTER

by upshing the device. Activate or deactivate a network connection via a LAN cable by selecting the corresponding menu item. Confirm the selection with that control or by pushing the ENTER button on the device.

NOTE!

The network function via a LAN cable is activated when the device is started from standby mode. If you plug in the network cable when the device is on, switch it off using the power button on the radio or the POWER remote control and then on again.

7. SETTINGS

7.1.3.2. Wireless network settings

If you want to integrate your radio via WIFI into a WIFI network, you can switch the WIFI function on or off in this menu. If the WIFI function is activated, you can make all further settings here to integrate the radio into a wireless network. Use the buttons on the remote control to select WIFI network set-

things andptees theote or confirm by using

on the device.

ENTER

E

Activate or deactivate a network connection via WIFI by selecting the corresponding menu item. Confirm the selection with the ENTER

reptobe control device.pOshieghtbe ENTER

wireless network is activated, the device scans all WIFI networks within range and displays the list. Use the remote control's ▼▲

network you would like to connect to. Enter the WIFI password. Use the ▼▲ buttons lets you snap further, the ▶

C) please note that the registration process may take a while.

7.1.3.3. WIRELESS network (WPS PBC)

WPS is a function on WIFI devices that allows you to establish a network connection at the touch of a button without having to enter a password. This makes it easier to create a connection.

This radio-supported push button configuration can be used if the network button to which a connection is to be established has a WPS

routers offers this directly as a software solution in the operating system). To establish a network connection this way, please proceed as follows.

7. SETTINGS

Use the on the remote control to select WIRELESS network

(WBSnPBC)headpense theconfirm by using

ENTER doutbendavigeuNowtyoksroberWPS

within 120 seconds, or activate the WPS function in the router's user interface. The network connection is now established automatically.

7.1.3.4. Manual configuration

In this section, you can configure the network configuration of the radio yourself to match it with the network settings. This function should only be performed by users with experience in this area. Here you can deactivate the DHCP function to assign a manual IP address to your radio. Use the ▼▲ buttons on the remote control to select the manual configuration and press the button on the device or the next ENTER

item, select the network connection cable network or wireless network that you want to edit manually. Press the button on the remote or confirm voidttheon the device.

7.1.3.4.1. DHCP

DHCP enables connected clients to be integrated into an existing network without manually configuring the network interface. Required information such as IP address, netmask, gateway, name server (DNS) are assigned automatically.

The DHCP function is activated at the factory. If the DHCP function is deactivated, the information required for a network connection must be set manually. You can deactivate the DHCP function in this menu item. Use the ▼▲ buttons on the remote control to select the manual configuration and press the button on the device or confirm with the ENTER

Activate or deactivate the DHCP function in the next step. Press the ENTER button on the remote control or confirm by pressing the ENTER the device.

7. SETTINGS

To manually configure the wireless network settings, you can set the SSID here. A Service Set Identifier (SSID) is a freely selectable name of a WIFI device through which it can be addressed. It is therefore also referred to as the WIFI's (wireless) network name. The factory default name of the radio with which the unit is visible in a WIFI network is DABMAN i210 CD.

Youtoars set then e##mated control Use the ▼▲

to select enter SSID and press the button on the remote or confirm

by using ENTER button device the Usernote control

to select the letters or characters you want to assign to the network name.

Coutfionoeatheermyotelcontrol or confirm

voidtchreon the unit.

7.1.3.4.3. Manage

In this menu item you can select the WIFI network in which the radio is to be registered on the teenote control to select Manage and

press then the remote or confirm by using

ENTER on the

device. Select the WIFI network which you would like to connect the device to

and press the remote control or confirm with the

ENTER

button on the unit.

7.1.3.5. Network check during startup

In this menu item you can determine whether the device should check the network connection to a network access point (network router) each time it is switched on. This automatic check is activated at the factory. It is recommended that you leave this function enabled to ensure that the radio can connection of the network when it is turned on. Use the ▼▲

coherolstvoitseliegt oheamdepreisem check network

the ENTER button on the remote control or confirm by pressing the ENTER button on the device.

7. SETTINGS

Activate or deactivate this function with the buttons of the remote control and confirm by pressing the ENTER button on the device or by pressing the ENTER button on the remote control.

7.1.4. Date & time

Set the time and date in this menu item.

The device is factory-configured to automatically set the time. If the device is connected to the Internet via a network, the time and date are automatically synchronised. It is thus not necessary to set the time.

7.1.4.1. Set the date & time

Use the remote control to select Set date and time and do the then the remote or confirm by using ENTER device. Select the Manual setup menu item and press the ENTER that has not other confirm with ENTER ▼▲ on the device or on the remote control to set the time or date. Please use the buttons to jump to the next or previous field. Using the ENTER button remote cardiocontrol of the ENTER the entry.

7. SETTINGS

7.1.4.2. Set the time format

Change the time format here to set how the time is displayed. You can choose a 12- or 24-hour display. Select the Set Time Format menu item and press the button on the remote control or confirm by pressing the ENTER button on the device. Now change the time display to the desired format and confirm with note control or confirm by pressing the ENTER button on the device.

7.1.4.3. Set the date format

Change the date format here to set how the date is displayed. Select the Set Date Format menu item and press the button on the remote or confirm with the button on the device. Now change the date display to the desired before control with ENTER ENTER button on the unit.

7.1.5. Alarm clock

The device may be used as a radio alarm clock.

You can set up to 2 alarm times in this menu item. You can also set whether the alarm clock will wake you up with a sound, a melody, an Internet radio station, a DAB+ radio station, music via a connected USB data carrier or with a FM station.

To set up an alarm time, proceed as follows:

Use the remote control in the Settings menu to select the

Adaptorclockthandepnese thecontrol or confirm

void but the enter the unit.

Select Alarm clock 1 or Alarm clock 2 and

doutfom dry toreslsvigeloe use the

ENTER

on the remote control. Activate the alarm clock via the On option. Deactivate the alarm clock via the Off option. Once you have activated the alarm, you can set the repeat intervals, the alarm time and type in the following menu.

Repeat:

Here you can choose daily, once, or one or several days of the week.

Time:

Set the time at which the alarm clock is to be triggered here. Use the numeric keypad or the device control or the ▼▲

Source:

Decide which alarm signal you would like to activate here. A sound, melody, Internet radio, FM, DAB/DAB+ or USB. Please note that when selecting FM, DAB/DAB+ or Internet radio, at least one favourite station must be stored for the respective reception mode. If no favourite is stored in the selected reception mode, the empty message appears.

TouttomfirTo setglenetries, save these with the ENTER

thPlease equals the approach to 8. on saving

a favourite station. To stop an alarm, hit the standby button on the remote button. During given that snooze function, press the ENTER

alarm. The alarm will then be paused for 5 minutes. After 5 minutes, the alarm is reactivated.

7.1.5.1. Snooze Alarm Clock

You can set a time after which an alarm will sound. In this menu you can activate this function and define a time period. Use the ▼▲

control in the Settings menu to select the Alarm clock and press the ENTER button on the enritote control or confirm with the ENTER

Selectorthen choose alarm line and confirm with the ENTER

remote control or on the device. Deactivate the function via the off option, or set a period after which the alarm becomes active.

The following times are can be chosen:

5 minutes: Alarm sounds after 5 minutes
10 minutes: Alarm sounds after 10 minutes
20 minutes: Alarm sounds after 20 minutes
30 minutes: Alarm sounds after 30 minutes
60 minutes: Alarm sounds after 60 minutes
90 minutes: Alarm sounds after 90 minutes
120 minutes: Alarm sounds after 120 minutes

7.1.5.2. Alarm clock volume

UnderAlarm Volume, set the volume for the alarm signal. Use the ▼▲ on the remote control in the Settings menu to select the Alarm clock and press the button on the remote control or confirm with the ENTER

button on the unit. Select the Alarm Volume line and press ENTER on the remote control to indicate the ENTER

destiredsvolthe using the control or on the unit.

7. SETTINGS

7.1.6. Timer

You can use the timer to set a time after which the radio triggers an alarm. Use the on the remote control in the settings menu to select the Timer and press the button on the remote or confirm with the button on the device.

Specify the decrease in minutes and seconds using the ▶◀ decrease the time in increments of seconds by pressing incrementally. Press and tool to speed up the time change in both directions.

After confirming the entry with ENTER on the remote control or by pressing the button on the unit, the timer becomes active. An alarm signal sounds after the set time elapses. The timer can be interrupted with the button on the remote control or by pressing the ENTER unit. The timer alarm can also be stopped with these buttons.

7.1.7. Language

Youtcarset the remote language here. Use the ▼▲ control in the Settings menu to select Language in the menu and press the button on the remote control or the ENTER

09:38 English ● Deutsch Español Français 2/17

Use the to select the language and confirm your selection.

7. SETTINGS

7.1.8. Dimmer

You can adapt the brightness of the display by using the dimmer function. The device is factory-set with the highest brightness level. This menu item allows you to support the brightness level. Use the ▼▲

control in the Settings menu to select Dimmer in the menu and press the button on the remote control or the ENTER

Power saving mode:

When the power saving mode is activated, the display is dimmed to the set brightness if the device is not operated within 15 seconds. Select the Power Saving Mode option and confirm your selection. Then use the ▶◀ select the brightness level you want for this mode.

Switching on:

When this menu item is activated, the display is permanently dimmed to the set brightness. Select the Switch on option and confirm your selection. Then us buttons to select the brightness level you want for this mode.

7.1.9. Display

Chutogre the colour display to black and white if needed. Use the ▼▲ on the remote control in the Settings menu to select Display and press the button on the remote control or confirm with the ENTER unit. Change the display colour to monochrome if needed.

7.1.10. Power settings

Whenever the radio is not playing music, the device will automatically turn off. This is the case, for example, if there is no signal in DAB radio mode or if no playback device is connected in AUX mode. Here you can determine whether or after what time the radio should automatically switch from operation to standby mode. You can choose between 5, 15 and 30 minutes.

7. SETTINGS

Using the of the remote control, select the menu item Power settings in the Settings menu and press the ENTER button on the remote control or confirm by pressing the ENTER button on the device. Select a period of time after which you want the unit to automatically switch off. If you do not want the radio to switch off automatically, continue to the Switch off line. To confirm your control with pressing the

ENTER button on the unit.

Please note: This device is factory-set to 15 minutes.

7.1.11. Sleep timer

Using the Sleep Timer function, the device can be switched off automatically after the entire control. Use the buttons ▼▲

select Sleep Timer from the Settings menu and press the ENTER button on the remote control or ENTER button on the unit to confirm. Select Switch off to disable this function or select a preset time. You can select the following times: 15, 30, 60, 90, 120, 150, 180 minutes. Confirm your selection by pressing the ENTER button on the remote or ENTER button on the device.

7.1.12. Temporary storage

Here you can change the buffering time for music playback from the network. An increase in the buffering time can compensate for transmission disruptions of the avoid an impairment of the playback. Use the ▼▲

remote control to select the menu item Buffering in the Settings menu and press than the remote control or the ENTER

device. Select a preset buffering time. Confirm your selection by pressing the button on the device or ENTER

7.1.13. Weather

If the device is connected to the Internet, you can display weather information on the device's screen. In this menu item you can define the location of the displayed weather. In addition, you can set the temperature unit.

7. SETTINGS

The weather information is shown in standby mode. The radio then automatically switches between the weather and current time. Please also read chapter 9.5.

Please note:

For the weather forecast, the device accesses an Internet server on which the weather information is stored. Therefore, the weather data displayed may differ from the actual weather data at your location.

The following settings are available:

Local settings:

Select a location for which you want to display the weather forecast and weather information.

Temperature unit:

Specify which temperature unit is to be used. You can choose between Celsius ( ^0 C) and Fahrenheit ( ^0 F).

Standby display:

Specify here whether the radio should display weather data in standby or not.

Change the settings as follows:

Usetthenenoutscontrol to select the weather menu item

ikethersbingsmoteawardepress the ENTER

but the ortho elevator. Confirm your entry with ENTER

byupressingtleunit,ENTER

ENTER

7. SETTINGS

7.1.14. FM settings

In this menu item you can select between Stereo and Mono for FM radio reception. This setting can be useful when you are receiving an FM station, but the signal is weak and full of interference. In such a case, change the reception to mono to improve the quality. If you select Stereo, the received radio signal is output in stereo quality. If a poor reception leads to signal interference, the radio can automatically switch to mono reception mode. This threshold value, as of which the radio switches to mono mode, can be set in the Sensitivity option.

Which radio stations are to be found during an FM search can be set in the Sensitivity option. We set the control in the Settings

menu to select the FM Setting and press the ENTER button on the remote control or confirm with the ENTER button on the unit.

7.1.14.1. Mode

Select this menu item to switch FM reception from stereo (factory setting) to room the Coefficient control by expressing

the ENTER button on the unit.

7.1.14.2. Sensitivity

Search sensitivity:

Select here which FM stations are to be found during a scan:

The radio shall only receive stations with a strong signal.

The radio shall only receive stations with a standard signal.

Also receive stations with a weak signal.

Conthen reootent conthor by pressing the

ENTER button on the unit.

7. SETTINGS

Stereo sensitivity:

Here you can select the setting to automatically switch the radio to mono mode if the reception quality is not sufficient to achieve optimum stereo.

Comforter yenrotentry with on by pressing the

ENTER button on the unit.

7.1.15. Local stations settings

To make it easier for you to search for stations in your area using Internet radio, you can search for specific radio stations from your region in the device's menu. For this purpose, the location must be communicated to the device. You can enter your location manually or activate an automatic location selection.

With this information, the radio can suggest radio stations to you using the Local Stations function. Please also read chapter 9.9. Use the ▼▲

the remote control in the Settings menu to select Local stations settings and press the button on the remote control or confirm with the ENTER button on the unit.

The following options are available:

Automatic detection

With this selection, the radio automatically detects your location if the radio is connected to the Internet.

Manual setup (country)/(province)/(city)

In these settings you can enter your location manually. You can limit your location setup to only one country and increase the accuracy in the province area. Manual determination (city) is the most precise way to determine the position. Confier your ethnicity passing

the ENTER button on the unit.

7. SETTINGS

Manual setup (US-Zipcode)

In this setting, you can determine the location by entering a postal/zip code. Please note that this function is only available for locations within the USA. Enter else post order using other and confirm your entry with the ENTER button.

7.1.16. Playback options

The settings made here determine the default setting when playing audio files from a USB media. Use the buttons on the remote control in the Settings button to select playback settings and press the ENTER control on the unit. Choose the desired playback setting and confirm the user selection-by pressing the ENTER button by typing the ENTER

7.1.17. The device

The device can communicate with DLNA-enabled devices. For example, it is thus possible to play audio files on a DLNA-enabled mobile device on the radio.

Renaming

Here you can change the name of the device under which the radio is displayers on the Homeie used the select the better you want to use and confirm your entry with the ENTER the better device or the ENTER

AirMusic Control App

This function shows a QR in the display. If you scan this QR Code with a smartphone or tablet, you will be directed to the download page of the AirMusic Control App. Further information about the app can be found in chapter 10.

7. SETTINGS

7.1.18. Button

In this setting, you can assign a function to the button on the device. When you press the button, your chosen function will be carried out. Use the on the remote control in the Settings menu to select button in the memosted press to the ENTER

ENTER button on the unit. Now select the function you want to use for the MODE button from the displayed list. Confirm your entry with ENTER remote control or by pressing the ENTER button on the unit.

7.1.19. SMS

The radio set allows you to activate short message texts (SMS), which were created via the 'AirMusic Control' app, via the radio, or to send them to selected and previously entered phone numbers by pressing a button. You can use this function to set up a maximum of 3 mobile phone numbers to which SMS messages are sent.

Please proceed as follows:

Set SMS function to MODE button

Assign the SMS function to the button. Please also read chapter 7.1.18. Use the buttons on the remote control in the Settings menu to select the SMS libett and press the remote control or confirm with the

button on the unit. To do this, select SMS 1, SMS 2, SMS 3. Enter the mobile phone number(s) (country code and telephone number) which shall receive the notifications, e.g. German country code example: 49170xxxxxxx. Press the ENTER button on the remote control or press the ENTER button on the device.

7. SETTINGS

Set SMS text for message:

Call up the AirMusic Control app on your Smartphone/Tablet or similar and select the 'settings' option there. For information on the AirMusic Control App, refer to chapter 10. On the settings page, you can change or rename the device name of the radio and create and save the corresponding notification via the SMS Settings selection option. Once the notification via the app has been entered and saved, the SMS notification can be started via the MODE button on the radio (optionally via the remote control). Sending the SMS message for Prefs, seconds to send the message

to the phone numbers specified beforehand. The radio's display indicates the transmission of the SMS with a send symbol.

7.1.20. Equalizer

In this section, you can select certain sound presets. In addition, you can optionally one the custom sound presettings. Use the ▼▲

remote control in the Settings menu to select the Equalizer clock and press the button on the remote control or confirm with the ENTER button on

theftomits Selebe areotel poseeolvaid the ▼▲

contloence with the deviceol or the

ENTER

7.1.20.1. My EQ

You can custom set the sound in this area. Select My EQ using the ▼▲bottom theme, clear gate to be high press the ▶

frequency range according to your preferences.

In line B, change the low-frequency range according to your preferences. In line L you can activate or deactivate the Loudness function. Confirm your set-

tongdely perasing control or pressing the on the device.

ENTER

7. SETTINGS

7.1.21. Resume playback after switching on

In this menu item you can determine whether the playback of a music file via a connected USB data carrier should be continued automatically after switching to the same control in the setting menu

tbustect Continue playback after switching on and press the ENTER

doutonremote devitrelSuitable the function

on or off.

7.1.22. Software update

To improve the functions of the device, it may be necessary to update the operating software. The USB interface allows you to update your radio's operating software, which can be downloaded from www.telestar.de if necessary. The software provided on the website must be unpacked. The unpacked file is then transferred to an appropriate storage medium and connected to the radio via the USB port. A description of the exact procedure can be found in the download file.

7.1.23. Reset to factory setting

You can reset all the radio settings you have made to the factory settings. This is useful if you have made changes that have resulted in the device not functioning that really elsewhere in the settings

rbottooselt Reset to factory settings and press the ENTER

rentate onthrel deviceSelectitKethe ENTER

if you want to reset the device, select No if you want to cancel the process.

Please note:

When you activate this function, all menu settings and stored stations will be deleted.

8.1. Local station

Under Local Station the radio stations that you have added via Local Station Setting (chapter 7.1.15) are displayed. Press the MENU button on the remote door tool to set the local Station under

this menu item, a selection of different Internet radio stations is sorted according to regions, which can be called up more easily this way. In this menu item, selectors.cesinfedprojgraentry list using the ▼▲

with ENTER.

8.2. Internet radio

Presence the remote control or on the unit, and use the

buttons to select Internet Radio. Confirm your settings by pressing buttonremthe deviceYou pressing the ENTER

ENTER

select and manage all Internet stations in the Internet radio menu. A wide range of radio stations are available. Your radio has to be connected to a network that is online for this.

8. OPERATION

8.2.1. My favourites

In this menu you can select one of 5 favourite stations that you have saved via the unit's station memory buttons. Alternatively, the radio stations can also be called up via the station memory buttons on the unit or by entering a number directly with the remote control. To save a favourite station, please consult Chapter 9.8.

8.2.2. Radio station / music

Chuteesbetween different radio station lists by using the doutform with the device. Various lists are available here:

Top 20 radio stations
worldwide Radio stations
sorted by genre Radio stations
sorted by country and region
Radio station by recommendation.

Confirm your settings by pressing ENTER on the remote control or pressing the ENTER button on the unit.

8.2.3. Local station

Under this menu item, common Internet radio stations as well as DAB+ radio stations are sorted according to regions and can thus be accessed more easily. The Local Station function is described in chapter 8.1.

8.2.4. Sleep radio

In this area, the radio accesses Internet radio stations with background sounds. You can choose between several soundscapes here. Use the ▼▲touttambochferdewith the ENTER

8. OPERATION

8.2.5. Recent stations

This menu item lists the Internet radio stations that you accessed last.

Note:

The content of the menu sub-item ‘Last heard’ requires that you have already used the Internet radio mode.

8.2.6. Service

This menu item lets search for a specific radio station on the Internet. The name of the radio station must be entered. Select Find station in the Service

rkeytostradevicien with the ENTER

confirm with ENTER.

Use the buttons on the remote control to enter the name of the radio station in the searchbox press rather forward. Confirm

your entry with ENTER.

The radio will now search for all stations that match this entry. Select a sta- toutwith the confirm with the ENTER button on the device.

Alternatively, you can add new radio stations if you know the Internet address.

Please enter the Internet address of the radio provider. You can obtain the URL of the radio stream from the radio station provider. The radio station stream will then be saved under My Favourites. You can enter the streaming URL as follows:

Use the buttons of the remote control to select Service in the Internet radio button, the press control or on the

deviceUBeleaddAcks new station and confirm with ENTER

duttensadodstatifinmwithbe entered. Use the ▼▲

ENTER

8. OPERATION

Use the buttons on the remote control to enter the name of the radio station in the searchbox press rather forward. Confirm your entry with ENTER.

8.3. Media Centre

Press the MENU button on the remote control or on the unit, and use the buttons to select Media Centre. If the DABMAN i210 CD is integrated into a wireless network, the radio can also be used as a media player to play music files from network devices such as PCs or smartphones via UPnP or DLNA. The devices must be integrated into the same home network for this and the corresponding media content must be approved for sharing in the network.

To select the Media Player option, do the following:

Use the to select the source you want to play music from. You can choose between USB (USB data carrier connected to the device's USB port) and UPnP (music files via the UPnP protocol if they are available in the same network as the radio). Select a track you would like to play and confirm with the button to the device press button because the playback. The [Stop] button stops playback.

8. OPERATION

8.3.1. UPnP Playlist

Under UPnP you can create a playlist in which you can individually save music tracks. To add a music track to the playlist proceed as follows:

IonUtPrePumbte, select a track you want to play and press ENTER

doutform.Operses amid brolortblee-remote con-

trol for approx. 3 seconds while the title is playing. A saving symbol will appear.

The selected track is now included in the playlist. To add more songs to the playlist, do the same. You can open the playlist in the My Playlist line of the MedianGeselectrolyv,Playlist and confirm with the ENTER button.

To delete the playlist, proceed as follows:

InboundMediaElectEmpenMyReachiet ▼▲

and presign. To clear the list, switch to the Yes field with the

button. And is so will find let the playlist, ENTER

8.4. FM

FM

Presence the remote control or on the unit, and use the

buttons to select FM. This menu includes all relevant settings for receiving radio stations via FM.

8. OPERATION

8.4.1. FM station search

When the DABMAN i210 CD is switched to FM mode for the first time, a station scan must be performed. An automatic and a manual search function are available for this purpose.

Automatic FM search

After switching to FM, press the ENTER button.

09:43 91.10MHz ↑EINSTELLEN↓←SUCHEN→AUTO←

Confirm the Auto Scan prompt with Yes to start a scan. The device starts the automatic station search and saves all found channels. Please note that the reception sensitivity and the related number of radio stations found depends on the search sensitivity settings. For FM search sensitivity settings, refer to chapter 7.1.14.2.

Manual FM search

You can also search for FM stations manually. To button this, use the ▼▲ son the remote control to increase or decrease the reception frequency step by step in 0.05 MHz increments.

8.4.2. FM radio operation

To access the stored radio stations, press the ▶▶or button. Alternatively, you can also call up the first 5 stored stations using the station memory buttons 1-4 on the unit. If you want to change the assignment of the station memory buttons, press the ◀ or ▶ button to perform a scan for the next receivable station. If necessary, repeat this step until you have found the desired station. Then press the desired station selection button 1-4 (see chapter 4) for approx. 2 seconds. The station is now stored on this button. Please also read chapter 9.8 about saving favourite stations.

8.5. DAB

Press the MENU button on the remote control or on the unit, and use the buttons to select DAB.

8.5.1 DAB station search

In addition to FM, the radio can also play the DAB+ radio, which can be received digitally via an antenna. The first time you switch to DAB mode, the unit starts an automatic station scan to find all the stations that can be received at your location. The station search will start and the display will show the number of stations found so far. Once the scan is complete, the radio will start playing the first DAB station found in the scan.

8. OPERATION

Station selection

In DAB mode, press the ENTER button. The DAB station list will open. Use the buttons on the remote control to navigate to a desired station and press the ENTER button to make your selection. The radio has a favourite memory, in which you can store popular stations as you like. To store a station, switch to the station to be stored as described above. Now press and hold the FAV button to the remote control for approx. 5 seconds. Use the ▼▲

move the station to the desired favourite position and press the OK button to save the station on this position. Alternatively, you can store up to 5 stations on the unit using the station memory buttons 1-4. To do so, switch to a desired station and press and hold one of the 5 station memory buttons for approx. 5 seconds. The station is then stored at the corresponding position. For further information on saving favourite stations, please refer to chapter 9.8.

8.5.2. DAB radio operation

You can do your gatherites list using the FAV

desired number button on the remote control. The first 4 stations in the Favourites list can also be called up using the station memory buttons on the device.

8.6. Information centre

8.6.1 Weather and finances

Press the MENU button on the remote control or on the unit, and use the buttons to select the Information Centre. Current weather and financial information is available in this section. In the Weather Information section, select the country and city for which you want to view the weather forecast. Confirm

you Algactibe byepressing the ENTER

8. OPERATION

The weather information can be shown in standby mode. Use the add the selected weather information to the standby weather display. You can activate the weather display for standby mode as described in chapter 7.1.13 above. Similar to the weather forecast, you can display stock exchange quotations from all over the world under the item Financial Services.

8.6.2. System information

Use this menu to check the details of the connected network. The information includes the MAC address that is required to register your device when you register for mymediaU. (Please also read chapter 7.1.2)

8.7. AUX

You can connect an external music playback device, such as an MP3 player, to the radio. To do so, connect an external device to the back of the radio using a suitable cable and switch on the device. If necessary, press the MODE on the remote control several times during operation until AUX appears in the display below the time or press the menu button and use the ▶ select the AUX menu item. Now you can play music from the external device. The control (previous track, back, stop, play) is done via the connected device, the playback volume can be controlled via the VOL+/VOL- buttons on the radio or via the external device. Please note that you need a suitable cable to connect the external device. On the radio, the AUX IN input is suitable for a 3.5 mm stereo jack plug.

8.8.CD

Abstract circular design with concentric rings and a dot, no text or symbols present

The device has a CD drive with which you can play both audio and MP3 data CDs. To do so, select CD in the menu. Insert a CD into the drive. The device will automatically load the CD. An overview of the audio tracks on the CD is displayed to select a track you want to play and confirm

to the place of the Trask. The

restores play a rock to be so the Eor on the unit (see Chapter 4) to eject the CD.

8.9. Bluetooth

The DABMAN i210 CD can also be connected to an external device (e.g. smartphone/tablet) via Bluetooth. Via the Bluetooth connection, the radio can play media (locally stored MP3 files, streamed music, web radio) on an external device.

The Bluetooth mode is recommended if you are near the radio with a device to be connected and no network connection is available. Select Bluetooth from the menu. A Bluetooth connection must be established before you can send audio files to the radio via Bluetooth.

8.9.1 Establish a Bluetooth connection

If you have selected Bluetooth mode on the radio, it is in pairing mode and will search for Bluetooth devices to connect to. Now activate the Bluetooth function of the external device to be connected (for further details, please refer to the operating manual of that device). Search for "DABMAN i210 CD" in the list of available devices, select it and establish the connection. In the radio display a double arrow appears in the upper left corner of the display. A beep also announces the 'Connection'.

8.9.2 Playing media via Bluetooth

If you have established a Bluetooth connection as described in Chapter 8.9.1, you can play music files stored on an external device via the DABMAN i210 CD.

To do so, proceed as follows:

Start playback of the music on the external device by switching to the corresponding playback function (MP3 player, etc.) or select a track from the respective playlist and start playback.

8.10. Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-partylicenses

9. DAILY USE FUNCTIONS

9.1. Volume

Adjust the volume using the VOL+/VOL- buttons on the remote control or on the device.

9.2. Switching the mode

Press the MODE button on the remote control or on the unit to switch between DAB Radio, FM Radio, AUX, UPnP, Internet Radio and USB modes. Please note that the MODE button calls up the function described above in the factory setting. If you have assigned another function to the MODE button, as described in Chapter 7.1.18., you will need to call up the operating modes using the MENU button.

9.3. Display brightness

Use the DIMMER button on the remote control to change the brightness of the display. Press the DIMMER button to reduce the brightness. Press the button again to increase the brightness.

9.4. Radio information

In the Internet or DAB radio mode, you can call up additional information about the radio station you have tuned to, as long as it broadcasts further information. This additional information can include details on the track and artist of the current music track as well as the name of the current show or information about the broadcast rate. To do this, use the ▶◀ buttons on the device or the remote control.

9. DAILY USE FUNCTIONS

Evos Evosonic Radio ● Moby ● Why Does My He art Feel So Bad (

9.5. Weather information

If the device is in standby mode, you can call up weather information and forecasts via the display. Use the ▶◀ buttons on the device or remote control to switch between the different weather displays.

Dawn ! 2°C - 2°C 85%

Dau 12 kmh ↓ 1014 mb 9 km ←→ ↑ ↓ 09:00

Daun 15:00 16:00 17:00 18:00 19:00 4° 4° 4° 3° 2° 0° 0° 0° -1° -2° ←→ ↑ ↓ 09:00 ←: ○

For general information on presetting the weather information, refer to chapter 7.1.13.

9.6. Stop and start playback

To start playing a song via UPnP or USB, press the ▶/|| button on the remote control. Press the ■ button on the remote control.

9. DAILY USE FUNCTIONS

9.7. Shuffle playback

You can switch on shuffle mode for music files on a USB data carrier. This will play the music files in a random order. Press the SHUFFLE button on the remote control to do so.

This symbol will appear

Present again to stop random playback.

9.8. Repeat track

The Repeat function offers the possibility to automatically repeat one or more tracks on the USB data carrier. Press the REPEAT button on the remote control to do so.

This symbol will appear

In this mode, all songs in the currently selected folder are played on repeat. Press the REPEAT button on the remote control once more. This symbol will

appear

In this mode, only the currently selected track is repeated.

9.9. Save favourite stations

In any reception mode (DAB/FM/Internet), you can store them as favourite stations. Storing stations in the Favourites list can be done as follows:

9. DAILY USE FUNCTIONS

SelectionThetation you want to store and confirm with the ENTER

stations/favourites 1-4 can be assigned via the 1-4 buttons directly on the unit by pressing and holding the respective buttons (1-4) for approx. 3 seconds. A folder symbol appears on the display with an arrow symbol, indicating the save was successful. After the fifth station slot, you only save stations with the button on the remote control:

Select the station from the complete list and press ENTER to confirm the desired format now sees the station

selected for saving is displayed in this list as a free list slot and can be moved to another time list position using the ▼▲ ENTER

the storage and the station is added/attached to the Favourites list. The created Favourites list can be called up in the currently selected mode (DAB, FM, Internet radio) by briefly pressing the FAV

9.10. Calling up local radio stations

You can use the remote control to call up prede-

fined radio stations from your region. Please also read chapter 7.1.15. Press the button on the remote control to access the radio station overview for your region.

Icon of headphones with a U-shaped logo and a play button, no text or symbols present.

Air Music Control®

The radio can be controlled with a smartphone or tablet and a corresponding app. All important functions of the radio can thus be conveniently controlled via a mobile device. You can download the AIR Music Control app for Android and Apple iOS. You can also use the app to play local music files on your smartphone on the radio.

APP FOR ANDROID® DEVICES: APP FOR iOS® DEVICES:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Please note:

This description corresponds to the app as at 02.2019. In the course of updates to the app's software, the app functions or appearance may change! Download the application from the Google Play Store ^® for Android ^® operating systems, or from the itunes Store for iOS ^® operating systems and install the app on your smartphone. Make sure that the radio and your mobile device are registered on the same network.

10. APP CONTROL

Start the app. When starting the app, it automatically detects the radio if it is registered in the same network. The main menu of the app is structured the same way as the radio menu. The icons used in the app are similar to the icons in the radio menu.

Main menu

Start the desired function by tapping on the respective symbol.

Internet radio

In this mode, all typical functions can also be selected during internet radio operation. You can select the station storage slots 1-4 in the lower area.

Evosonic Radio Wiedergabe MP3/192 Kbps MikeLike (Chris Mako Schmidt) ERS-06 (2017-01-18)

Media Centre

In this area, you can connect to media servers in your network. In addition, you can access music files that are stored on a connected USB data carrier.

Beginner Total : 12 01 - Beginner - Ahma 02 - Beginner - Es war einmal... 03 - Beginner - Meme Posse 04 - Beginner - Schelle 05 - Beginner - So schön 06 - Beginner - Rambo No. 5 07 - Beginner - Katar 08 - Beginner - Rap & fette Bässe 09 - Beginner - Spam 10 - Beginner - Thomas Andera 11 - Beginner - Macha Macha 12 - Beginner - Nach Hause

FM radio

In this mode you can operate the FM radio.

FM 92.40 MHz 86 88 90 92 94 96 98 100 102 104 106 108 109 90.00 91.10 93.00 93.60 96.00

10. APP CONTROL

DAB

In this mode you can operate DAB+ radio.

Absolut relax Wiedergabe DAB

◀ ○ □

11. TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE AND REMEDY

Empty display Radio no reacting to operation

Connect the power using the included power unit. Check that the main switch on the back of the device is switched on.

Remote control does not work

Battery is empty or not inserted properly. Please check that the battery has been inserted the right way around. Point the remote control at the device.

DAB+ reception inter- rupted
No stations Run a scan search (see chapter 8.5.1.) Antenna not fully extracted.

Change the radio's location (e.g. near a window), run another scan search.

FM reception interrupted

Antenna not fully extended, pull the FM antenna out to its full length. Change the location of the radio.

11. TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE AND REMEDY

AUX playback does not work	DABMAN i210 CD in the wrong modeChange the mode to AUXCable connection faulty. Check. the cable connection between the radio and the external device
Poor audio quality when playing music	File with low bit rate. Check the audio file.Tip: For MP3 files the bitrate should be 192Kbit/s or higher.

Volume too low Check the volume settings on the DABMAN

i210 CD. Check the volume setting of the paired device on which you are playing the music.

No network connection can be made

Check the WIFI functioning.

Activate the DHCP function of the router to which the radio is to be registered.

There may be an active firewall in the network.

11. TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSE AND REMEDY

No WIFI connection can be made

Check the availability of the WIFI networks. Reduce the distance between the WIFI router and the radio.Make sure that you are using the correct WEP/WPA password when logging on to a WIFI router.

No internet radio station available

Check the network access points. The radio station is currently unavailable. The station's link has been changed or is no longer transmitting.

USB data carrier is not recognised

Make sure that the USB device is formatted as FAT32.

The unit does not play any sound. All other functions are OK.

Headphones are plugged in. Unplug the headphones.

The app does not recognise the radio.

Make sure that your mobile device and the radio are registered on the same network.

12. STORAGE

When not in use, please remove the power unit from the socket, disconnect the radio's cable from the device and store the device in a dry place, protected against dust. If the unit is not in use for a longer period of time, the battery must be removed from the remote control.

13. BRAND INFORMATION

Google Play Store ^® and Android ^® are registered trademarks of Google Inc. itunes Store is a service mark of Apple Inc. IOS ^® is a registered trademark of Cisco in the USA and other countries and is used under license.

Other product and company names mentioned herein are trademarks or registered trademarks of their respective owners.

14. DISPOSAL INFORMATION

14.1. DISPOSING OF THE PACKAGING

The packaging consists exclusively of materials that may be recycled. Please dispose of this according to the 'Dual system'.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

E

14.2. DEVICE DISPOSAL

The symbol on the right of a crossed-out waste bin on wheels indicates that this device is subject to Directive 2012 / 19 / EU. This directive specifies that this device may not be disposed of in normal household waste at the end of its service life but must be taken to specific collection centres, recycling centres or waste disposal companies. This type of disposal is free of charge. Protect the environment and ensure a proper disposal. Further information is available at your local waste collection company or your city or municipal office.

Diagram of a waste bin with crossed lines indicating no waste, and a blank rectangular bar below.

14.3. DISPOSING OF THE BATTERIES

Batteries and power units may not be disposed of with the household waste. The symbol on the right means that you as a consumer are required to separately dispose of all batteries and power units. Suitable collection bins are provided at specialist shops and numerous public facilities. Information about the disposal of old batteries and power units is also available at specialist waste disposal companies and city and municipal offices.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

15. PROPERTIES & TECHNICAL DATA

This type of disposal is free of charge. Protect the environment and ensure a proper disposal.

An additional chemical symbol Pb (lead) or Hg (mercury) beneath the crossed-out waste bin indicates that the battery/ power unit contains a share of more than 0.0005% mercury or 0.004% lead.

INTERNET RADIO

Chip set	Magic M6approx. 25,000 Internet radio stations available
Audio codecs	MP3 (bit rate up to 320 Kbits/s, sampling rate up to 48 KHz)AAC/AAC+ (bit rate up to 320 Kbits/s, sampling rate up to 48 KHz)WMA (bit rate up to 320 Kbits/s, sampling rate up to 48 KHz)

DAB/DAB+/FM

Reception range

DAB band III 174 MHz - 240 MHzFM 87.5 MHz -108 Mhz

DISPLAY

TFT colour display

8.1 cm / 3.2 inch

15. PROPERTIES & TECHNICAL DATA

SOUND

Loudspeaker

2x 3' loudspeakers max.2x15W

CONNECTIONS

Line out

3.5 mm stereo jack socket

Headphones

3.5 mm stereo jack socket

AUX IN

3.5 mm stereo jack socket

LAN

10/100 Mbps (RJ45)

Polarity

Power supply connection

USB plug

USB 2.0 standard

POWER UNIT

Manufacturer

Dongguan Yingna Electronic

Model designation

Technology Co., Ltd

YN36W-1200300VW

Inlet 100 - 240 volt AC 50 /60 Hz 1.0 A

Outlet 15 Volt DC 2,4 A max.

15. PROPERTIES & TECHNICAL DATA

REMOTE CONTROL BATTERY

Type CR 2025 / 3 V

DIMENSIONS AND WEIGHT

Width x height x depth

390 mm x 178 mm x 160 mm

Weight approx. 3.64 kg

OPERATING CONDITIONS

Temperature range 0

^ C - 45^ C

Air humidity

20% - 80% relative air humidity

WIFI INTERFACE

Frequency range

2.412 GHz - 2.4835 GHz

Modulation

CCK, DQPSK, DBPSK,

64-QAM, 16-QAM, QPSK, BPSK,

IEEE standards

IEEE 802.11b/g/n

15. PROPERTIES & TECHNICAL DATA

WIFI INTERFACE

WIFI data rate

802.11b:

802.11g:

802.11n

1, 2, 5.5, 11Mbps

6, 9, 12, 18, 24, 36, 48, 54 Mbps

HT20 bis 65 Mbps

HT40 bis 135 Mbps

Transmitting power 18.5dBm (Max)

BLUETOOTH

Protocol V4.2

A2DP V1.2, AVRCP v1.5, HFP v.1.7,

Profile

AVCTP v1.4, AVDTP v1.2

POWER CONSUMPTION

Standby 0.8 W

Operation max. 36 W

STORAGE CONDITIONS

Store in dry rooms only.

16. SERVICE & SUPPORT

Dear customer!

Thank you for choosing one of our products. Our product meets the legal requirements and has been manufactured under constant quality control. The technical data correspond to the current status at the time of printing. Subject to changes.

The warranty period for the DABMAN i210 CD corresponds to the statutory provisions at the time of purchase. We also offer a HOTLINE telephone service with professional support. Professional specialists are ready to offer their assistance in our service area. Here you can ask any questions you may have about TELESTAR products and get suggestions on troubleshooting.

Our technicians are available Monday- Friday from

08:00 - 16:45 at the following phone number:

02676 / 95 20 101

or by email at: [e-mail]

If the Service Hotline cannot help you, please send your DABMAN i210 CD to the following address, preferably in its original packaging, but definitely packed safely for transport:

TELESTAR - DIGITAL GmbH

Service Center

Your device is CE marked and complies with all necessary EU standards.

TELESTAR DIGITAL GmbH hereby declares

that the DABMAN i210 CD device

complies with the essential requirements and

other relevant provisions

of RoHS Directive 2011/65/EU, RE Directive 2014/53/EU and ErP

Directive 2009/125/EC.

The Declaration of Conformity for this product is available at:

www.telestar.de

Distributor:

All technical data and functions described in this manual reflect the current state at time of printing and may be changed without prior notice.

We are not liable for any misprints or mistakes.

Reproduction and duplications are only permitted with the express permission of TELESTAR-DIGITAL GmbH.

As at: February 2022

imperial®

DABMAN i210 CD

Bedienungsanleitung

Operating Manual

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric diagram of two concentric squares (no text or symbols)

RISQUE DE SUFFOCATION!

Yellow triangular warning sign with black exclamation mark symbol

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

3. CONTENU

Diagram showing six steps of audio equipment including CD, remote control, microphone, audio jack, radio stereo hybride, and screen interface.

NO. QUANTITÉ EXPLICATION

1 1 IMPERIAL

® DABMAN i210 CD

2 1 Télécommande

Yellow triangular warning sign with black exclamation mark symbol

7.1.15. Réglage station locale

Réglage manuel (Pays)/(Province)/(Ville)

8.2.3. Station locale

Green square icon with a white paintbrush symbol (no text or numbers)

Abstract circular design with concentric rings and a dot, no text or symbols present

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-partylicenses

9. FONCTIONS D'USAGE QUOTIDIEN

9.1. Volume sonore

Evos Evosonic Radio Moby Why Does My He art Feel So Bad(

Icon showing a headset with a blue 'U' and a play button, no text or symbols present.

APPLICATION POUR LES APPAREILS ANDROID®:

APPLICATION POUR LES APPAREILS IOS®

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Veuillez noter:

FM 92.40 MHz

10. COMMANDE AU MOYEN DE L'APPLICATION

DAB

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

14.2. ÉLIMINATION DE L'APPAREIL

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

14. INDICATION POUR LA MISE AU REBUT

14.3. ÉLIMINATION DES PILES

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Dongguan Yingna Electronic

Technology Co., Ltd

CONDITIONS D'ENTREPOSAGE

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric diagram of two concentric squares (no text or symbols)

Warning sign with exclamation mark inside a triangle

GEVAAR!

NL

GEVAAR VOOR LETSEL!

Yellow triangular warning sign with black exclamation mark symbol

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

NL

Diagram showing six sequential steps of audio equipment including a CD, remote control, microphone, audio jack, audio file, and audio interface.

NR. AANTAL VERKLARING

1 1 IMPERIAL

® DABMAN i210 CD

2 1 Afstandsbediening

3 1 Externe netstekker

Yellow triangular warning sign with black exclamation mark symbol

Oracle standardized stocks (WPS PBC)

ENTER

daamirgetofbestest@moletu binnen 120 seconden

Weergaven in stand-by

Orange square icon with a white play button symbol (no text or numbers)

Green square icon with a white paintbrush symbol (no text or numbers)

NL

Abstract circular design with concentric rings and a dot, no text or symbols present

https://www.spotify.com/connect/third-partylicenses

9. FUNCTIES VAN HET DAGELIJKSE GEBRUIK

9.1. Geluidsvolume

Evos Evosonic Radio ● Moby ● Why Does My He art Feel So Bad (

NL

Icon showing a U-shaped music headset and a play button, no text or symbols present

APP VOOR ANDROID® APPARATEN: APP VOOR IOS®-APPARATEN

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Denk eraan:

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Diagram of a trash bin with crossed lines indicating no waste, and a blank rectangular area below.

Simple line drawing of a trash bin with no text or symbols

Dongguan Yingna Electronic

Technology Co., Ltd

YN36W-1200300VW

Ingang 100 - 240 Volt AC 50 / 60 Hz 1,0 A

Uitgang 15 Volt DC 2,4 A max.

BATTERIJ AFSTANDSBEDIENING

Type CR 2025 / 3 V

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g:

HT20 bis 65 Mbps

802.11n

HT40 bis 135 Mbps

Zendvermogen

18,5dBm (Max)

OPSLAGOMSTANDIGHEDEN

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric diagram of two concentric squares (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

E-mail: [e-mail]

3. FORNITURA

Diagram showing six sequential steps of audio equipment including CD, remote control, audio jack, radio stereo multifunction, and screen interface.

NUMERO QUANTITÀ SPIEGAZIONE

1 1 IMPERIAL

® DABMAN i210 CD

2 1 Telecomando

Yellow triangular warning sign with black exclamation mark symbol

7.1.3.3. Rete wireless (WPS PBC)

Orange square play button icon with white square and red triangle (no text or symbols)

Green square icon with a white paintbrush symbol (no text or numbers)

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-partylicenses

9. FUNZIONI D'USO QUOTIDIANO

9.1. Volume

Evos Evosonic Radio ● Moby ● Why Does My He art Feel So Bad (

Icon of headphones with a blue 'U' inside and a gray smartphone with a play button (no text or symbols)

IT

APP PER APPARECCHI ANDROID® APP PER IOS®

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

14. AVVERTENZE PER LO SMALTIMENTO

Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)

Dongguan Yingna Electronic

Technology Co., Ltd

Abstract digital network graphic with interconnected nodes on a light blue gradient background (no text or symbols)
