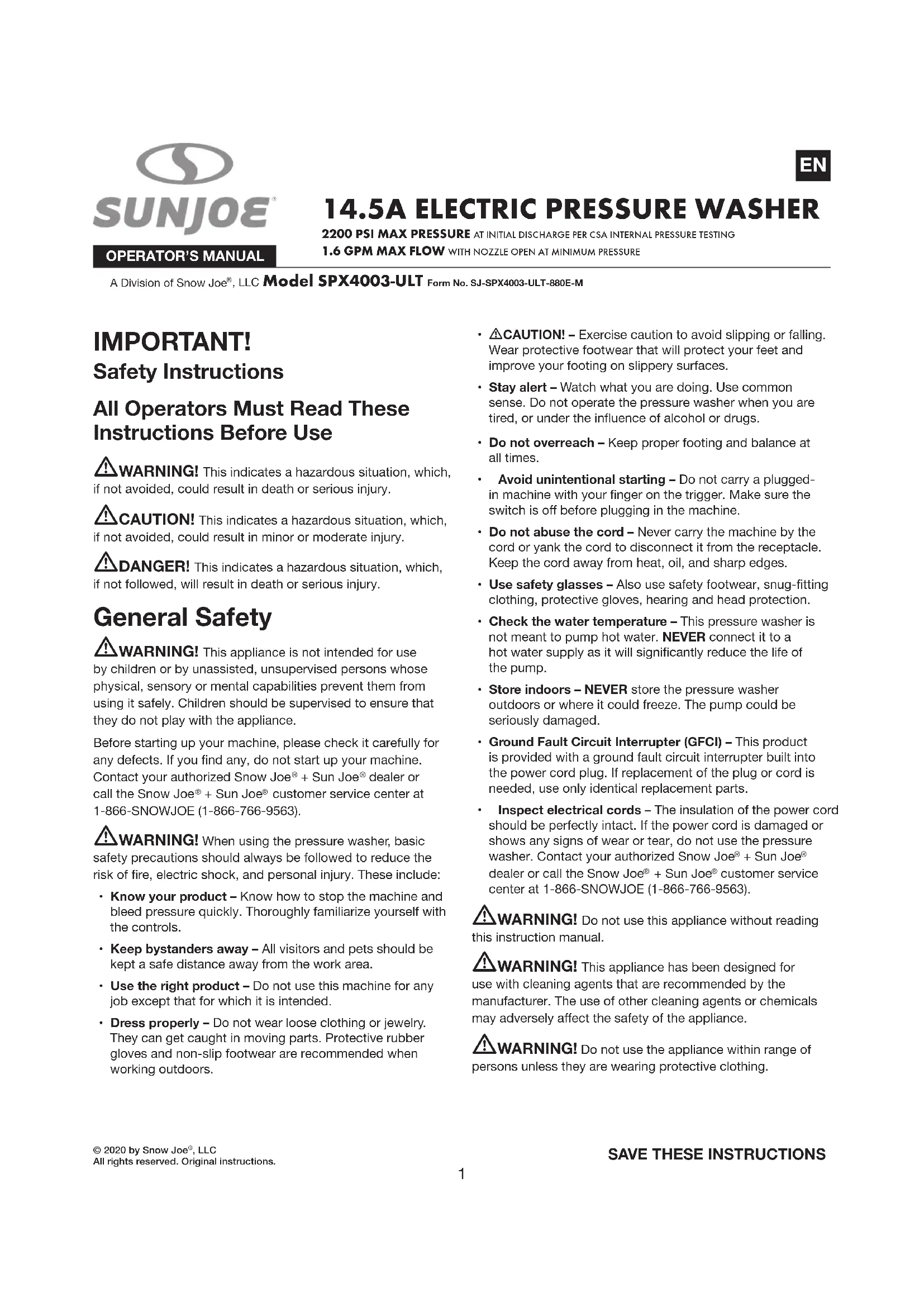

USER MANUAL SPX4003ULT Sun Joe

A Division of Snow Joe®, LLC Model SPX4003-ULT Form No. SJ-SPX4003-ULT-880E-M

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

⚠ WARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
⚠️CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
⚠️DANGER! This indicates a hazardous situation, which, if not followed, will result in death or serious injury.

General Safety

⚠ WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine. Contact your authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

• Know your product – Know how to stop the machine and bleed pressure quickly. Thoroughly familiarize yourself with the controls.
• Keep bystanders away – All visitors and pets should be kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any job except that for which it is intended.

• Dress properly – Do not wear loose clothing or jewelry. They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.

• CAUTION! – Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

• Stay alert – Watch what you are doing. Use common sense. Do not operate the pressure washer when you are tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at all times.
• Avoid unintentional starting – Do not carry a plugged-in machine with your finger on the trigger. Make sure the switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear, snug-fitting clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer outdoors or where it could freeze. The pump could be seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.
• Inspect electrical cords – The insulation of the power cord should be perfectly intact. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! Do not use this appliance without reading this instruction manual.
⚠ WARNING! This appliance has been designed for use with cleaning agents that are recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance.
⚠ WARNING! Do not use the appliance within range of persons unless they are wearing protective clothing.

⚠ WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

• Do not direct the jet at yourself or others in order to clean clothes or footwear.
• Risk of explosion – Do not spray flammable liquids.
• Disconnect the tool – Disconnect from the electrical power supply before performing any maintenance task.
• Keep children away – This high-pressure electric power washer must not be used by children or untrained personnel.
• To ensure appliance safety, use only original replacement parts from the manufacturer or those approved by the manufacturer.

⚠ WARNING! Water that has flowed through backflow preventers is considered to be non-potable.

⚠ WARNING! During cleaning, maintenance or when replacing parts, the machine must be disconnected from its power source by removing the plug from the socket outlet.
⚠ WARNING! High-pressure hoses, fittings, and couplings are important for the safe operation of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer.

- Check for damaged parts – Do not use the appliance if the supply cord or other important parts of the appliance are damaged (e.g. safety devices, high-pressure hoses, trigger gun).

⚠ WARNING! If an extension cord is used, the plug and socket must be of watertight construction.
⚠ WARNING! Inadequate extension cords can be dangerous.

- This high-pressure electric power washer must not be used at temperatures below 32^ (0^) .

⚠ WARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating.

• Power cord connections should be kept dry and off the ground.
• If the power cord is damaged, do not use the appliance. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
• Keep the machine on a stable, flat surface during operation, handling, transportation, and storage. Sudden overturn of the machine can cause bodily injury.
• In the event of an accident or breakdown, switch off the machine immediately. (If contact with detergent occurs, rinse with an abundance of clean water).

Electrical Safety

ATTENTION: If there are problems with the electrical MAINS, short voltage drops may appear when starting the equipment. This can, in turn, influence other equipment (e.g. cause a lamp to blink). If the MAINS-IMPEDANCE Zmax < 0.335 OHM, such disturbances are not expected. (If you require assistance, contact your local supply authority for further information.)

WARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor.

The following should be observed when connecting the high-pressure electric power washer to the electric supply:

• The electric supply connection should be performed by a qualified person.
• The electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to the earth exceeds 30 mA for 30 ms or a device that will interrupt the earth circuit (GFCI).

IMPORTANT: Only use water without any impurities. If there is a risk of running sand into the inlet water (i.e. from your own well), an additional filter should be installed.

Safety Devices

The unloader valve can reduce pressure if it exceeds preset values. The spray gun features a locking device. When the lock is activated, the spray gun cannot be operated.

1. Thermal sensor - A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.

2. Double insulation – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe ^® + Sun Joe ^® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol ☐ (square within a square) may also be marked on the appliance.

3. Ground fault circuit interrupter (GFCI) protection – This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

4. It is not recommended to use an extension cord with this pressure washer. The unit comes standard with a 35 ft GFCI power cord. Using an extension cord may cause a drop in line voltage resulting in loss of power and overheating.

5. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). The appliance plug will fit into a polarized outlet only one way.

If the appliance plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, power cord receptacle, or power cord plug in any way.

Use only extension cords that are intended for outdoor use. These extension cords are identified by marking "Acceptable for use with outdoor appliance; store indoors while not in use". Use only extension cord having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect extension cord from the receptacle before disconnecting the product from the extension cord.

WARNING

Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:

• Do not allow any part of the electric pressure washer to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
• Do not use an extension cord over 25 ft. The pressure washer comes equipped with a 35 ft power cord. Combined cord length must not exceed 60 ft. Any extension cord must be 14-gauge (or heavier) to safely power the pressure washer.
• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

EXTENSION CORD CHART

Cord Length:	25 ft (7.6 m)
Min. Wire Gauge (A.W.G.):	14

⚠ WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands.

1. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.

Table 1. Method of Securing Extension Cord

Cord set Appliance cord

(A) Tie cord as shown

Simple line drawing of a resistor connected in a loop (no text or symbols)

(B) Connect plug and receptacle

1. Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Risk of Electrocution

• Inspect cord before using.
• Do not use if cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
• Keep cord away from heat and sharp edges.
• Do not spray electrical apparatus and wiring.

Risk of Explosion

• Do not spray flammable liquids.
• Do not use acids, bases, solvents, or any flammable material in this product. These substances can cause physical injuries to the operator and irreversible damage to the machine.

Additional Safety Instructions

• High-pressure: keep clear of nozzle.
- Injection hazard: equipment can cause serious injury if the spray penetrates the skin.
- Do not point the gun at anyone or at any part of the body.
• In case of skin penetration, seek medical aid immediately.
- Before servicing, cleaning, or removing any parts, shut off the power and relieve pressure.
- This machine is not suitable for connection to the potable water mains.

Product Description

Purpose

- This high-pressure electric power washer is intended for residential use to clean vehicles, machines, buildings, facades, etc.

Areas of Application

• Never use the machine in potentially explosive areas under any circumstances!
• The operating temperature must be between 32^ (0°C) and 104^ (40°C).
• The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing. To provide the operator with an optimal working position, the machine is equipped with a spray wand and a non-slip handle grip, whose shape and configuration comply with applicable regulations.
• Do not cover or modify the spray wand or the spray nozzle in any way.
• The high-pressure electric power washer is designed to be used with cold or lukewarm water; higher temperatures can damage the pump.
• Do not use water that is dirty, gritty, or contains any chemical products, as these could impair operation and shorten the life of the machine.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.		WARNING! Electrical shock hazard – Do not touch the plug with wet hands.
	SAFETY ALERT – Indicates a precaution, a warning, or a danger.		WARNING! Do not expose the unit to rain or wet conditions. Keep dry.
	WEAR EYE AND HEARING PROTECTION – For protection against injury, wear ear defenders and safety goggles.		To reduce the risk of injury, user must keep all bystanders at least 49 ft (15 m) away.
	Wear safety gloves during use to protect hands.		Wear non-slip footwear that will protect your feet and improve your footing on slippery surfaces.
	Store indoors. Never store the pressure washer outdoors. If the pump freezes, permanent damage may result.		Machine not suitable for connection to the potable water mains.
	Always keep the power cord away from heat sources, oils, or sharp edges. Immediately remove plug from the mains if the cord is damaged, frayed, or entangled.		WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories, or conducting any other maintenance task.
	Sound power level is 96 dB(A).		Double Insulation – When servicing, use only identical replacement parts.

Know Your Electric Pressure Washer

Read the owner's manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

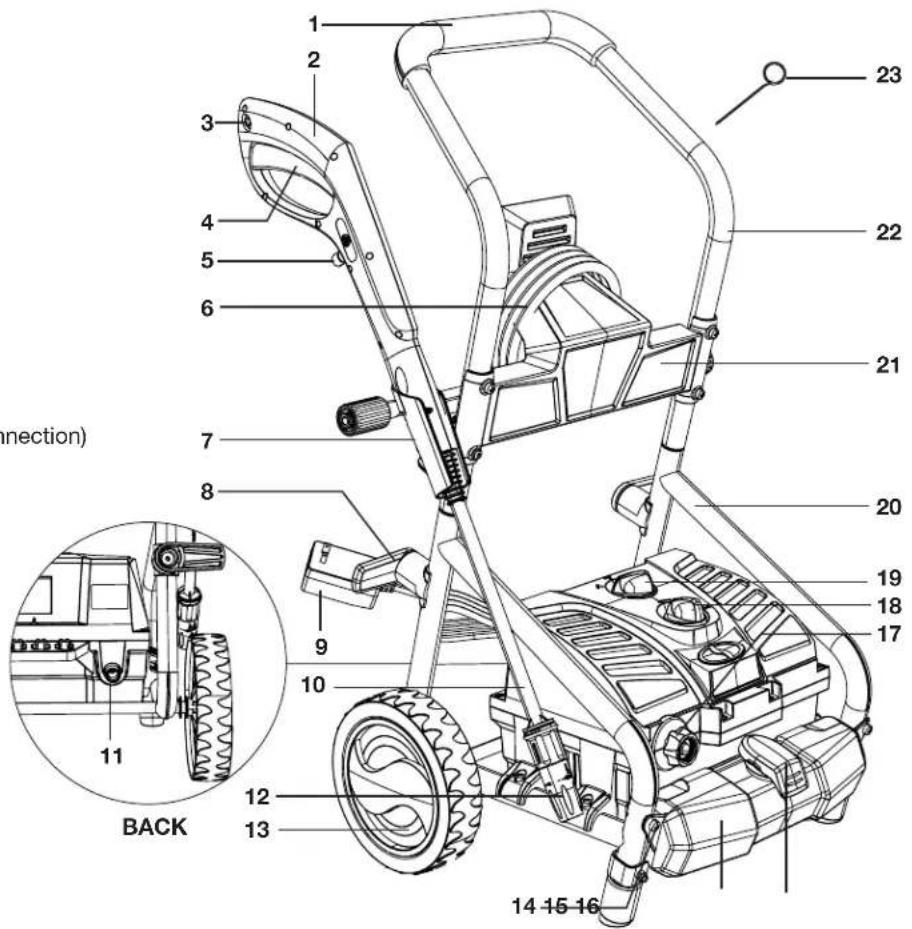

1. Soft grip

2. Trigger gun

3. Safety lock

4. Trigger

5. High-pressure hose connection

6. High-pressure hose

7. Trigger gun holder

8. Cord holder (2)

9. Power cord with GFCI

10. Spray wand

11. Water outlet (high-pressure hose connection)

12. Adjustable nozzle

13. Wheel (2)

14. Detergent tank screw (2)

15. Detergent tank

16. Detergent tank cap

17. Water inlet + Garden hose adapter (female coupler)

18. ON/OFF dial (pressure select technology)

19. Detergent dial

20. Lower handle frame

21. High-pressure hose holder

22. Upper handle frame

23. Needle clean-out tool

24. Wheel + rim brush (SPX-WB1)

25. Utility bristle brush (SPX-UB1)

1 2 3 4 5 6 7 8 9 10 11 BACK 12 13 14 15 16 20 21 22 23 18 19 17

24 25

Technical Data

Motor....14.5A

Rated Voltage....120V \~ 60 Hz

Max Water Inlet Temperature ....104°F/40°C

Max Water Inlet Pressure 0.7 MPa

Detergent Tank Capacity 54.1 fl oz (1.6 l)

Adjustable Spray Nozzle 0° to 45°

High-Pressure Hose Length 20 ft (6 m)

Power Cord Length 35 ft (10.7 m)

Net Weight.... 31 lbs (14 kg)

Max Pressure at initial discharge .... 2200 PSI per CSA internal pressure testing

Rated Pressure under typical load .... Low 1130 PSI High 1650 PSI

Max Flow with nozzle open ....1.6 GPM at minimum pressure

Rated Flow under typical load .... Low 0.82 GPM High 1.1 GPM

Unpacking

Carton Contents

• Upper handle frame
- Lower handle + pressure washer assembly
- Trigger gun
- Adjustable spray wand
- Trigger gun holder
• High-pressure hose
• High-pressure hose holder
- Screw (x3)
- Trigger gun holder
- Nut + bolt
• Garden hose adapter (female coupler)
- Needle clean-out tool
- Wheel + rim brush
- Utility bristle brush
- Manual with registration card

1. Carefully remove the pressure washer and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

Assembly

1. Position the washer as CLOSE as possible to the water supply.
2. The washer must be used on a secure and stable surface in a standing, upright position (Fig. 1).

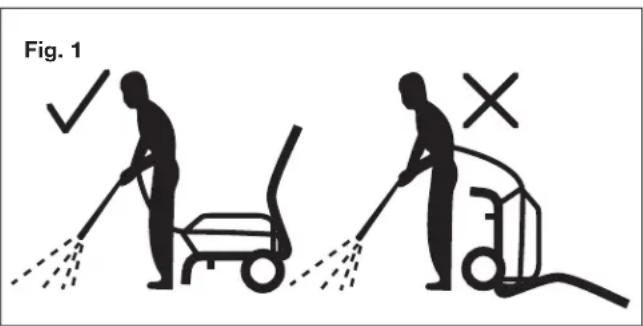

Fig. 1

1. Connect high pressure hose holder to upper handle frame using 3 screws provided, as shown (Fig. 2).

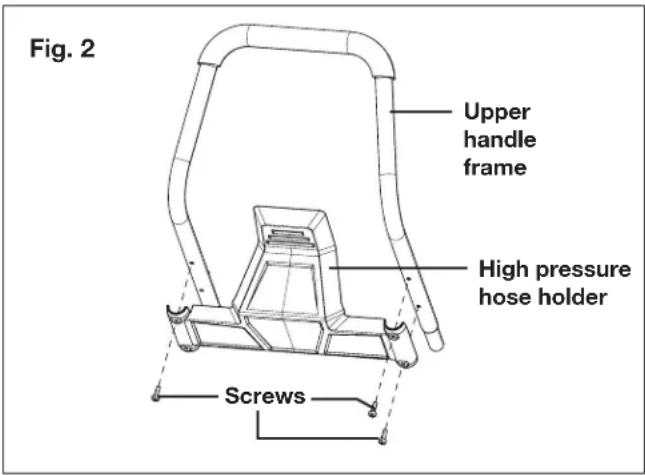

Fig. 2 Upper handle frame High pressure hose holder Screws

1. Connect trigger gun holder to upper handle frame using supplied nut and bolt, as shown. Tighten securely (Fig. 3).

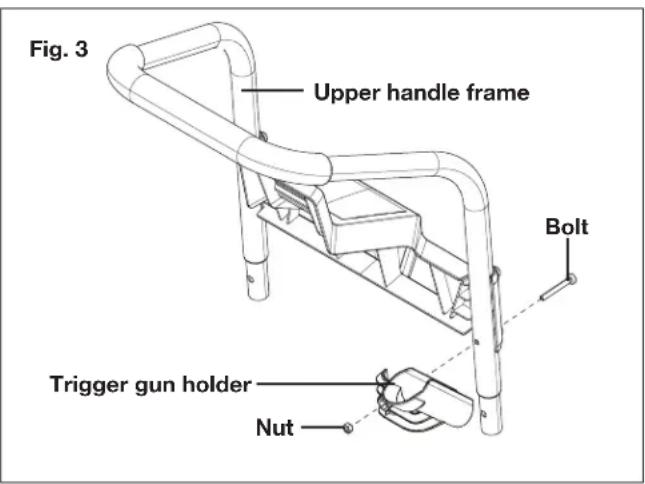

Fig. 3 Upper handle frame Bolt Trigger gun holder Nut

5 Slide the upper handle frame into lower handle then depress the small buttons at the end of the upper handle frame, push and insert into lower handle until it snaps securely into place (Figs. 4 - 5).

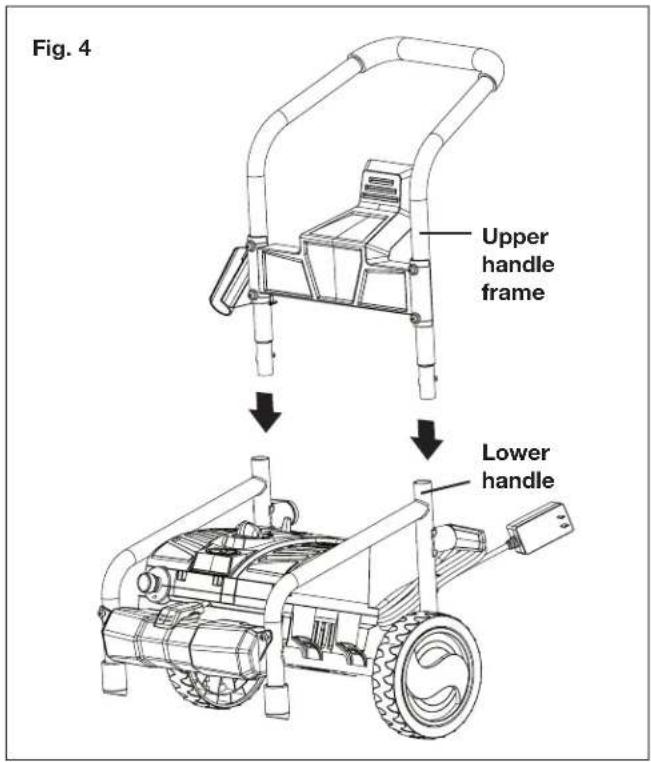

Fig. 4 Upper handle frame Lower handle

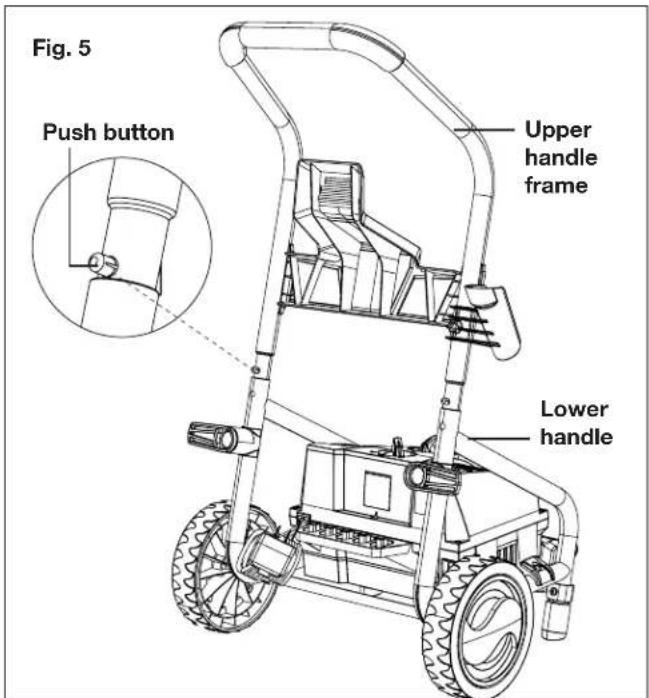

Fig. 5 Push button Upper handle frame Lower handle

1. Connect the high-pressure hose to the water outlet on the washer (Fig. 6).

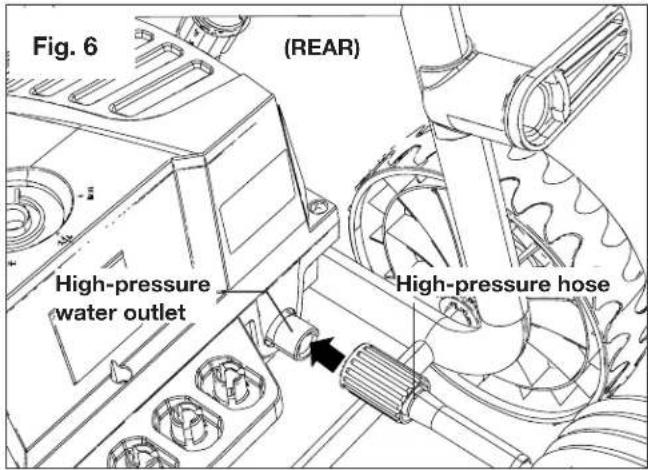

Fig. 6 (REAR) High-pressure water outlet High-pressure hose

1. Fit the spray wand into the gun and rotate it until the two parts are completely locked (Fig. 7).

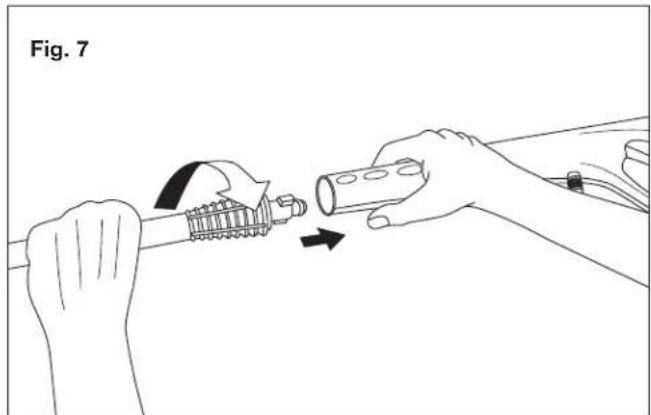

Illustration of hands using a tool to adjust a mechanical component, labeled 'Fig. 7' (no text or symbols on the diagram itself)

1. Connect the high-pressure hose to the trigger gun (Fig. 8).

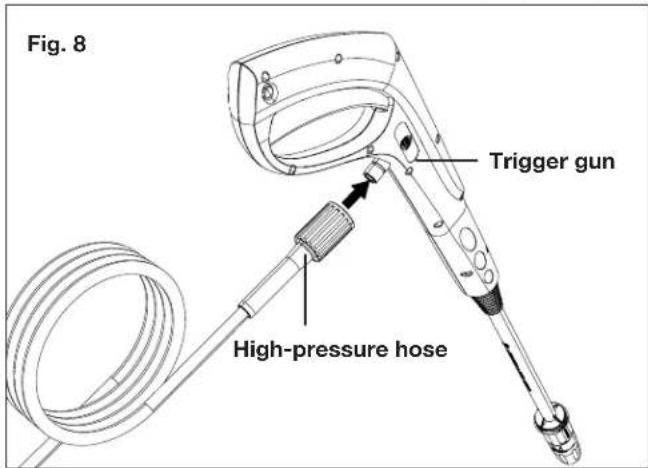

Fig. 8 Trigger gun High-pressure hose

WARNING! Keep hose away from sharp objects.

Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.

1. Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter (Figs. 9 - 10). The garden hose must have an internal diameter of at least 13mm (1/2 in.) and must be reinforced. The water supply must be at least equal to the washer delivery capacity.

NOTE: The machine is not suitable for connection to the potable water main.

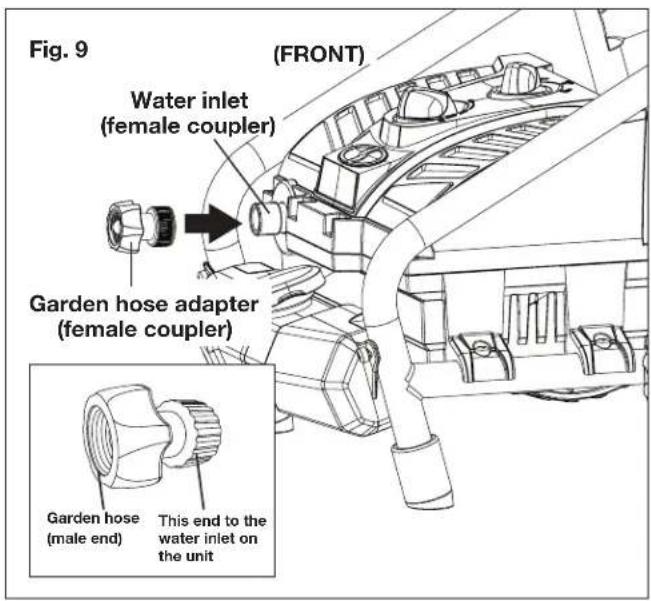

Fig. 9 (FRONT) Water inlet (female coupler) Garden hose adapter (female coupler) Garden hose (male end) This end to the water inlet on the unit

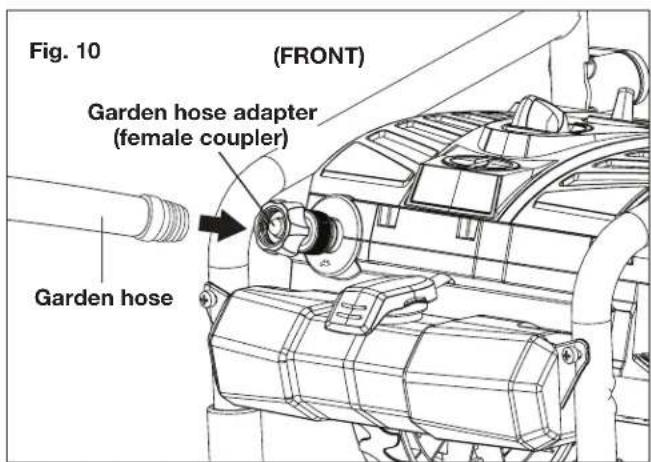

Fig. 10 (FRONT) Garden hose adapter (female coupler) Garden hose

1. Attach garden hose to water supply (Fig. 11).

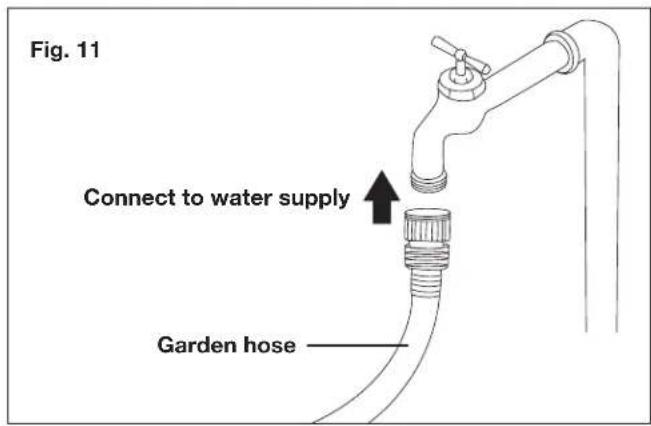

Fig. 11 Connect to water supply Garden hose

WARNING! Do not connect to potable water system.

⚠ WARNING! If connection is made to a potable water system, the system shall be protected against backflow.

WARNING! The intake water temperature must not exceed 104°F/40°C. The water supply must not exceed 0.7 MPa.

⚠️CAUTION! The washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the washer.

⚠️ CAUTION! To prevent damage to the appliance, do not allow it to operate dry. Before starting the appliance, make sure that it has proper and stable supply of water.

1. Make sure the ON/OFF switch (pressure select dial) is set in the STOP (0) position before plugging the unit into the power outlet (Fig. 12).

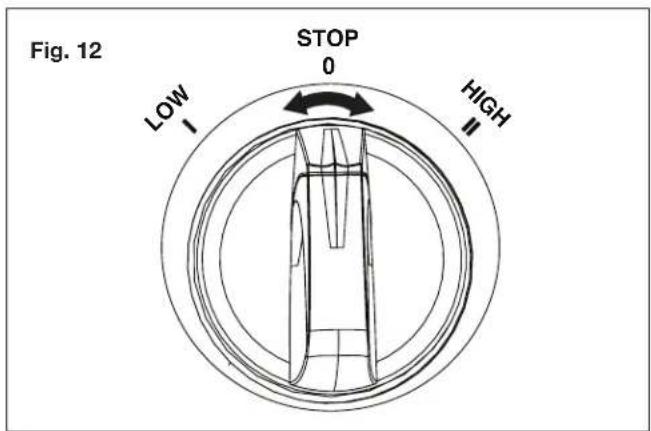

Fig. 12 STOP 0 LOW HIGH

1. Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the pressure washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 13).

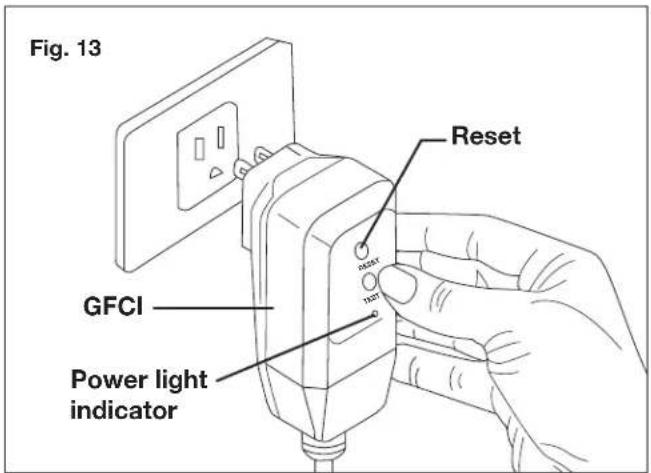

Fig. 13 Reset GFCI Power light indicator

NOTE: The GFCI may need to be reset when first plugged into the electric outlet. Press the "Reset" button until the power light indicator on the GFCI illuminates.

Operation

IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life.

1. Turn the water supply tap on completely.
2. Release the safety lock, then press the trigger for a few seconds until the water flow is steady. Operating the pressure washer in this manner will allow air to escape and discharge residual pressure in the hose (Figs. 14 and 15).

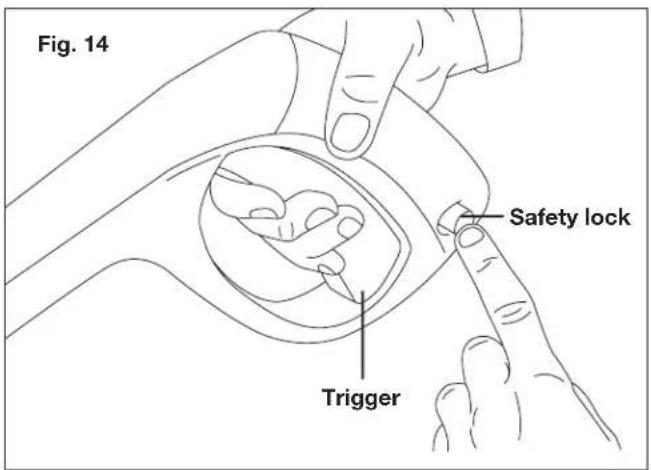

Fig. 14 Safety lock Trigger

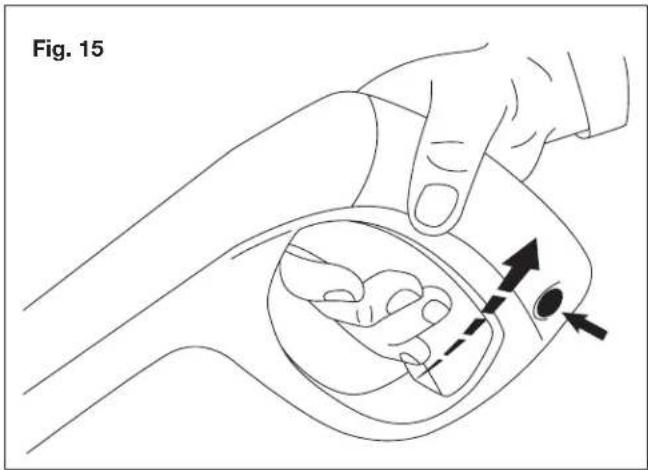

Fig. 15

1. Turn the ON/OFF switch (pressure select dial) to the LOW (I) or HIGH (II) position to start the pressure washer (Fig. 16).

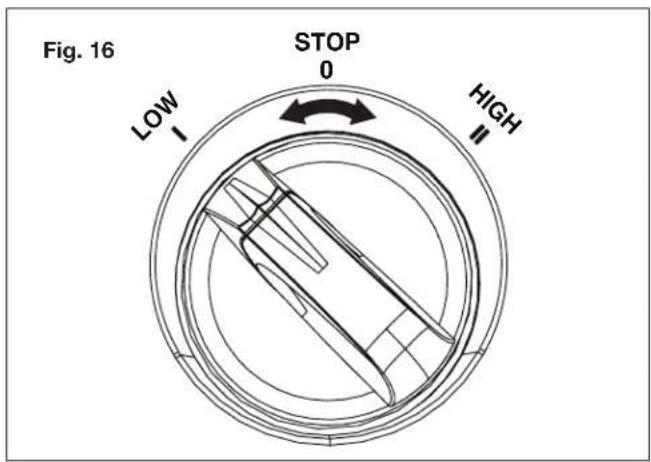

Fig. 16 LOW STOP 0 HIGH

Using the adjustable spray nozzle

WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

1. The spray wand is equipped with an adjustable nozzle.
2. The water pressure can be adjusted to low pressure (-) and high pressure (+) by turning the pressure adjustment knob. The nozzle tip can be adjusted from pencil spray (wide open tip) to fan spray (narrow tip) by turning the nozzle tip adjustment knob (Fig. 17).

NOTE: When using the unit with detergent, the spray nozzle has to be set into low pressure and fan spray. The pressure settings on the spray nozzle are only meant to work with detergent, it will not affect the overall working pressure of the unit.

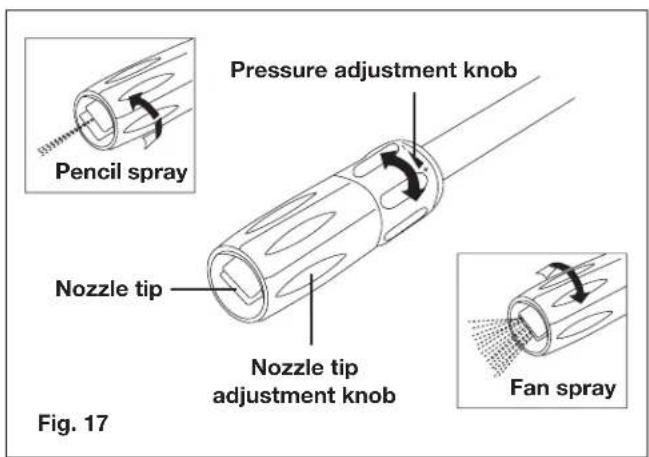

Pencil spray Pressure adjustment knob Nozzle tip Nozzle tip adjustment knob Fan spray Fig. 17

⚠ WARNING! Do not adjust the nozzle while the trigger is squeezed. Failure to do so could result in damage.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks cleaning with detergent allows for more effective dirt removal.

WARNING! To apply detergents, you must use the low pressure setting and the fan spray setting on the spray nozzle. This setting will gently apply the detergent at a pressure equivalent to a low-set garden hose. The high-pressure setting on the spray nozzle is used for rinsing. You cannot apply detergents when working at high pressure setting on the spray nozzle.

The pressure settings on the unit will not affect the using of detergent.

WARNING! Use only detergents specifically designed for use with pressure washers, such as Sun Joe® HOUSE + DECK WASH (SPX-HDC1G), Sun Joe® SNOW FOAM AUTO WASH (SPX-FCS1G), or Sun Joe® HEAVY DUTY CLEANER (SPX-APC1G). DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial grade solutions. These could damage the pressure washer. Many detergents may require mixing prior to use. Prepare the cleaning solution as instructed on the solution bottle.

1. Set the adjustable nozzle to the low-pressure, fan-spray setting (Fig. 18).

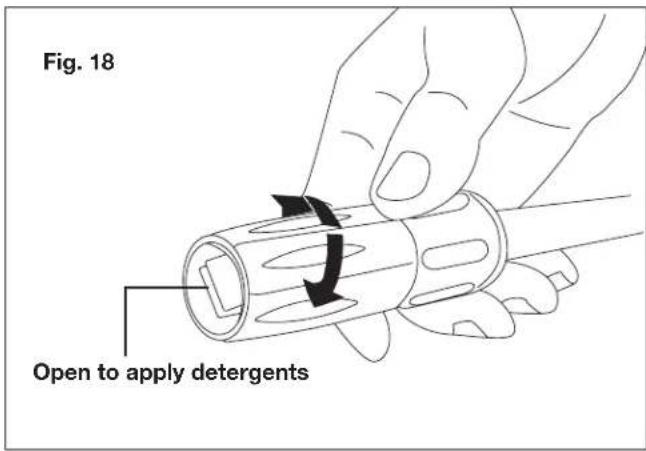

Fig. 18 Open to apply detergents

1. Remove the cap from the detergent tank and fill the tank with detergent (Fig. 19).

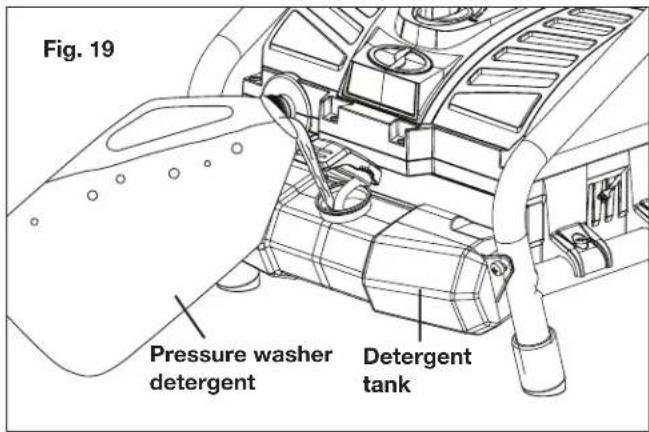

Fig. 19 Pressure washer detergent Detergent tank

1. Turn on the pressure washer. Pull the trigger to operate the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle.

CAUTION! Always test the detergent in an inconspicuous area before use.

1. Turn the detergent dial to adjust the suction volume of the detergent solution (Fig. 20).

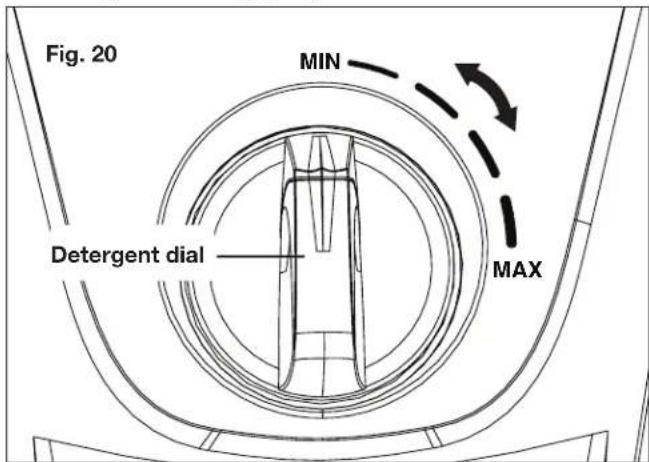

Fig. 20 MIN Detergent dial MAX

1. Apply detergent from the bottom to the top of the dry surface to be cleaned.

NOTE: Wetting the surface first is not recommended as it dilutes the detergent and reduces its cleaning ability.

1. Allow the detergent to remain on the surface for a short time before rinsing. Do not allow the detergent to dry on the surface.

⚠️CAUTION! Damage may occur to painted surfaces if the detergent is allowed to dry on the surface. Wash and rinse a small section at a time. Avoid working on hot surfaces or in direct sunlight.

1. When finished using the pressure washer, you must first drain and rinse the detergent tank. Run the pressure washer in low pressure until all of the soap is drained from the detergent tank.

⚠️CAUTION! Failure to follow these cleaning instructions will cause the injection system to become clogged and inoperable.

IMPORTANT! NEVER USE:

• Bleach, chlorine products, and other corrosive chemicals
• Liquids containing solvents (e.g. paint thinners, gasoline, oils)
  • Tri-sodium phosphate products
• Ammonia products
• Acid-based products

These chemicals will harm the unit and will damage the cleaning surface.

Using the Wheel + Rim Brush

Sun Joe ^® Wheel + rim brush safely cleans painted, topcoat, and delicate surfaces. Compatible with all Sun Joe ^® SPX series pressure washers.

1. Disconnect the spray wand from the trigger gun by pressing it in firmly and twisting clockwise until the 2 locking tabs of the lance can be removed from the slot (Fig. 21).

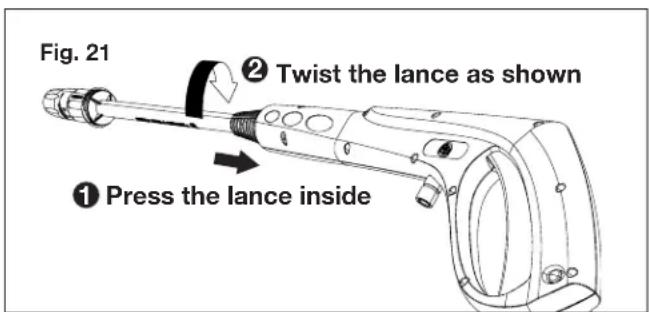

Fig. 21 ② Twist the lance as shown ① Press the lance inside

1. Take the Wheel + rim brush and align the two tabs with the inside of the trigger gun (Fig. 22).

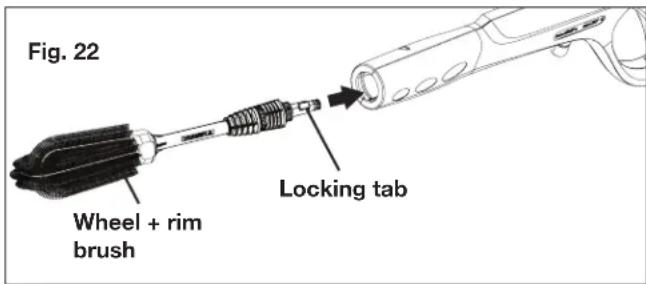

Fig. 22 Wheel + rim brush Locking tab

1. Once aligned, push the Wheel + rim brush into the trigger gun, twist counterclockwise to lock into place.

Using the Utility Bristle Brush

Sun Joe® feather bristle pressure washer Utility bristle brush safely cleans painted, topcoat, and delicate surfaces. Compatible with all Sun Joe® SPX series pressure washers.

1. If not already done, detach your spray wand from your trigger gun (Fig. 21).
2. Take the Utility bristle brush and align the two tabs with the inside of the trigger gun (Fig. 23).

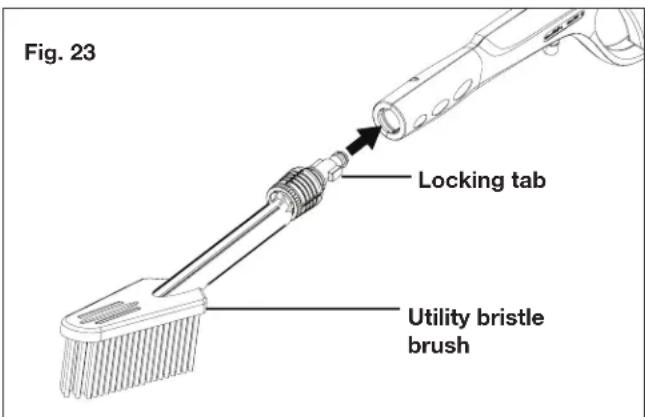

Fig. 23 Locking tab Utility bristle brush

1. Once aligned, push the Utility bristle brush into the trigger gun, twist counterclockwise to lock into place.

Shutting Down

1. Turn the switch to the STOP (0) position and unplug the power cord from the outlet.
2. Turn off the water source.
3. Hold the trigger to release water pressure.
4. Disconnect the garden hose from the water inlet on the unit.
5. Disconnect the high-pressure hose connection on the trigger gun handle.
6. Release the trigger and engage the gun safety lock.

WARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in personal injury due to discharge of high-pressure water.

Taking a Break

If you are taking a break of five minutes or more between cleaning tasks:

1. Engage the gun safety lock (Fig. 14).
2. Turn the switch to the STOP (0) position.
3. Unplug the power cord from the outlet.

Storage

CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32°F (0°C). The pump in this machine is susceptible to permanent damage if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.

• Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions.
• It is important to store this product in a frost-free area.
  • Always empty water from all hoses, the pump, and the detergent bottle(s) before storing.

⚠️CAUTION! The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.

Winterizing + Long-Term Storage

If you must store your pressure washer in a location where the temperature falls below 32^ F ( 0^ C), you can minimize the chance of damage to your machine by utilizing the following procedure:

• Disconnect all water connections.
• Turn on the machine for a few seconds until the remaining water in the pump exits. Turn off immediately.
• Do not allow the high-pressure hose to become kinked.
• Store the machine and accessories in a room that does not reach freezing temperatures.
• Do not store near a furnace or other sources of heat that may dry out the pump seals.
• Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter.

WARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again.

Maintenance

⚠️CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket.

1. To ensure good performance, check and clean the adapter filter (Fig. 24). Remove the filter and rinse with warm water to prevent any foreign matter from clogging the pump (Fig. 25).

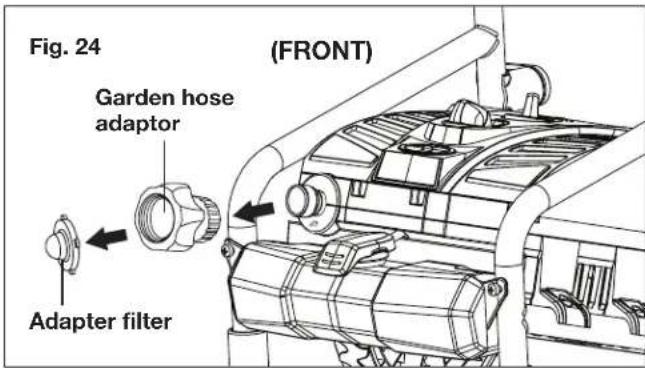

Fig. 24 (GFRONT) Garden hose adaptor Adapter filter

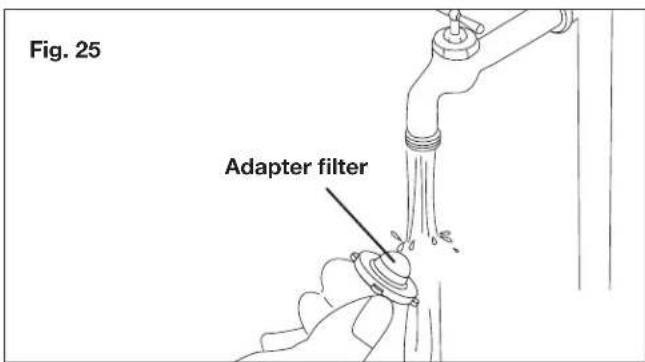

Fig. 25 Adapter filter

1. Clean the nozzle with the needle clean-out tool provided (Fig. 26). Remove the spray wand from the gun; remove any dirt from the nozzle hole and rinse.

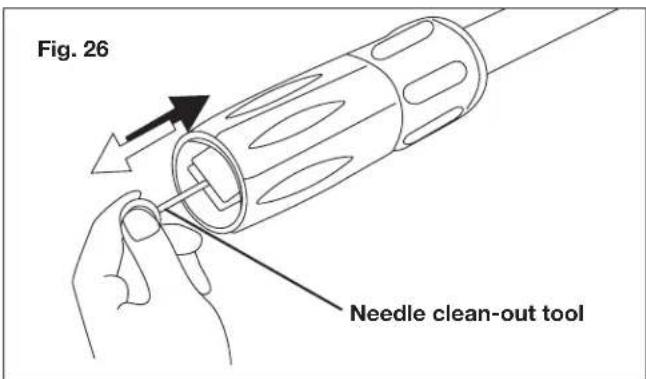

Fig. 26 Needle clean-out tool

1. Remove additional debris by back flushing water through the nozzle and spray wand. To do this, place the end of your garden hose (with water running) to the tip of the nozzle, pushing water and debris out of the back opening of the nozzle and spray wand.

Disposal

Recycling the Washer

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
• Contact your local government agency for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
• When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge.

Service + Support

If your Sun Joe ^® SPX4003-ULT electric pressure washer requires service or maintenance, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Model #: S | P | X | 4 | 0 | 0 | 3 | - | U | L | T | Serial #:

Troubleshooting

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.
  • To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.

Problems	Possible Cause	Possible Solution
Machine refuses to start	Power failure/machine not plugged into a working receptacle.Defective socket.Fuse has blown.Defective extension cord.	Check to make sure machine is plugged into a working outlet.Check the power cord and reset the GFCI.Try a different outlet.Replace fuse. Switch off any other machines that are using the same circuit.Try the unit without an extension cord.
Fluctuating pressure	Pump sucking air.Valves dirty, worn out, or stuck.Pump seals worn out.	Check the hoses and connections are airtight.Clean or replace valves/seals.Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Machine stops	Fuse has blown.Incorrect mains voltage.Thermal sensor activated.Nozzle partially blocked.	Replace fuse. Switch off other machines using the same circuit.Check that the mains voltage corresponds to specification on the model tag.Leave the washer for 5 minutes to cool down.Clean the nozzle.
Fuse blows	Fuse too small.	Install a fuse with a higher amp rating than the amp consumption of the machine. Try the unit without an extension cord.
Machine pulsating	Air in inlet hose.Inadequate supply of mains water.Nozzle partially blocked.Water filter blocked.Hose kinked.	Allow machine to run by holding the trigger until regular working pressure resumes.Check that the water supply corresponds to the specifications required.WARNING! Avoid using long, thin hoses (minimum 1/2 in. diameter).Clean the nozzle.Clean the water inlet filter.Straighten out the hose to remove any kinks/blockages.
Machine often starts and stops by itself	Pump/spray gun is leaking.Trigger mechanism is broken.	Please call Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Machine starts, but no water comes out	Pump/hoses or accessories frozen.No water supply.Water inlet filter blocked.Nozzle blocked.	Wait for pump/hoses or accessories to thaw.Connect inlet water.Clean the water inlet filter.Clean the nozzle.

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories Item Model

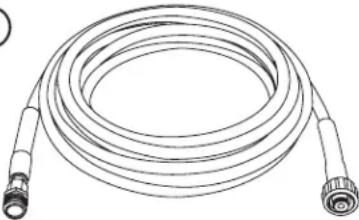

1	25 ft Medium-Duty High Pressure Extension Hose(For SPX Pressure Washer Series)	SPX-25H
2	Solid Brass Universal Quick Connector(Garden Hose to Pressure Washer Adapter)	SPX-UQC
3	Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated CleanerSun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + CleanerSun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser	SPX-HDC1GSPX-FCS1GSPX-APC1G
4	Utility Bristle Brush(For SPX Pressure Washer Series)	SPX-UB1
5	Wheel + Rim Brush(For SPX Pressure Washer Series)	SPX-WB1

Sun Joe's complete line of premium pressure washer accessories and attachments make it easy to get your dirty work done, and also help you get the most out of your model!

SHOP ONLINE now at sunjoe.com

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

14.5 A HIDROLAVADORA ELÉCTRICA

Simple line drawing of a resistor connected in series with two leads (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component, labeled 'Fig. 7' (no text or symbols on the diagram itself)

Simple line drawing of a resistor connected in series with two leads (no text or symbols)

Illustration of hands using a tool to adjust a mechanical component, showing a step with an arrow indicating direction (no text or symbols present)
