Product Type	3-way passive speaker
Brand	Turbosound
Model	Madrid TMS153
Dimensions (H x W x D)	700 x 450 x 450 mm (approx.)
Weight	30 kg (approx.)
Power handling (RMS)	500 W (approx.)
Nominal impedance	8 ohms (approx.)
Frequency response	45 Hz - 20 kHz (approx.)
Power supply	Passive, requires external amplifier
Main functions	Sound reproduction, stage sound reinforcement, fixed installation
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not block ventilation grilles. Avoid exposure to moisture and heat sources. Disconnect if not in use for extended periods.
Spare parts and repairability	Repair by qualified personnel only. Contact after-sales service for spare parts.
General information	Complies with WEEE directive (2012/19/EU). Recycle at an approved collection point. Limited warranty: see music-group.com/warranty.

Frequently Asked Questions - Madrid TMS153 Turbosound

What type of speaker is the Turbosound Madrid TMS153?

The Madrid TMS153 is a 3-way passive speaker, designed for professional sound reinforcement.

What is the recommended amplifier power?

It is recommended to use an amplifier delivering an RMS power between 500 W and 1000 W at 8 ohms.

How do I clean the speaker enclosure?

Use a soft, dry cloth to dust the enclosure. Never use chemical or abrasive products.

Can I use this speaker outdoors?

This model is not specifically designed for outdoor use. Protect it from moisture and weather.

How do I connect the speaker to the amplifier?

Use a speaker cable of sufficient gauge (≥ 2.5 mm²). Connect the speaker to the amplifier output respecting polarity (+/-).

What should I do if the sound is distorted?

Check that the amplifier is not clipping, that the cables are properly connected, and that the speaker is not damaged.

Does the speaker require special maintenance?

Regular dusting of the grilles and checking the connectors is sufficient. If there is a problem, hand the unit over to a professional.

What is the warranty for the Turbosound Madrid TMS153?

The limited warranty is provided by MUSIC Group. See music-group.com/warranty for details.

How do I recycle this product at the end of its life?

Do not dispose of it with household waste. Take it to an approved collection point for waste electrical and electronic equipment (WEEE).

Can I mount the speaker on a pole or stand?

Yes, it has a 35 mm pole mount insert. Make sure the support can bear its weight (approx. 30 kg).

USER MANUAL Madrid TMS153 Turbosound

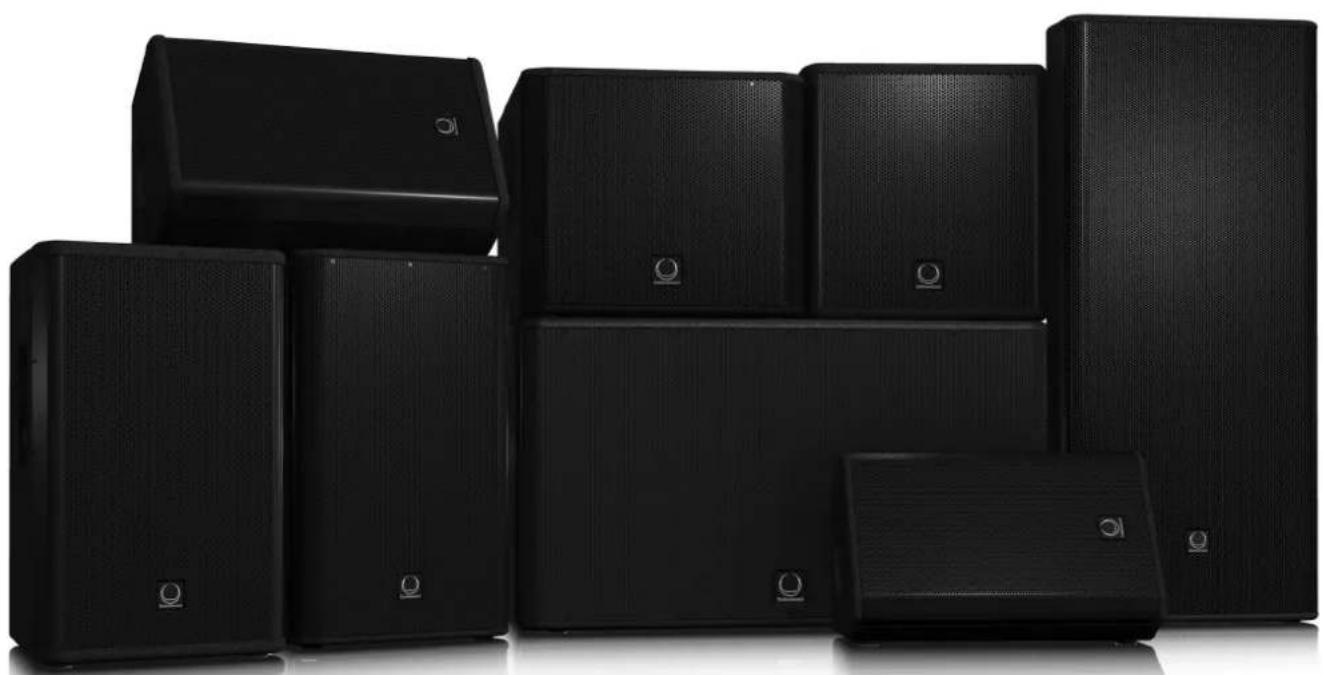

Venue/Madrid TVX/TMS SERIES

TVX122M/TVX152/TVX118B/TMS122M/TMS152/TMS153/TMS118B/TMS218B

Full Range Loudspeakers and Subwoofoers for Portable PA and Installation Applications

Quickstart Guide

TVX:TMS Series Quick Start Guide

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high quality commercially available speaker cables with plugs pre-installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of unsuiled dangerous voltage inside the enclosure voltage that may be sufficient to constitute a risk of shock.

This symbol,whichever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover for the rear section. No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To notuse the risk of fire or electric shock,do not expose this appliance to rain and moisture. The apparatus shall not be exposed to orping or splashing liquids and no objects fied with liquids, such as vases, shall be placed on the apparatus.

Caution These service instructions are for use by qualify ed service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified ed service personnel.

1. Read these instructions.

2. Keep these instructions to the end.

3. Follow all instructions

4. Do not use this apparatus near water.

5. Do not block any ventilation and use a mechanical fan with the manufacturer's instructions.

6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

7. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one side of the blade and one ground-type plug has two blades and a third grounding plug. The wide blade or the third plug are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the plug.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,

moving the carseparatus combination to avoid injury from lip over.

1. Unpig this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to quality of service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to water or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MANSI socket outlet with a protective head.

4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive 2012/9/EU1 and your national law.

This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At this time, your cooperation in the correct disposal of this product will contribute to the efficient client service and/or resources. Your office or warehouse owner can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

LEGAL DISCLAIMER

MUSIC Group accepts no liability for any loss which may be suffered by any person who relies on either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to changes without notice. All trademarks are the property of their respective owners. MIDAS, KLAGK TENIKI, TURBO SOUND, BRHINSER, RUIGRA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd & MUSIC Group IP Ltd 2014 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group a Limited Liability Warranty Service is available online at music group.com/warranty.

LIMITED WARRANTY

BESCHRANKTE GARANTIE

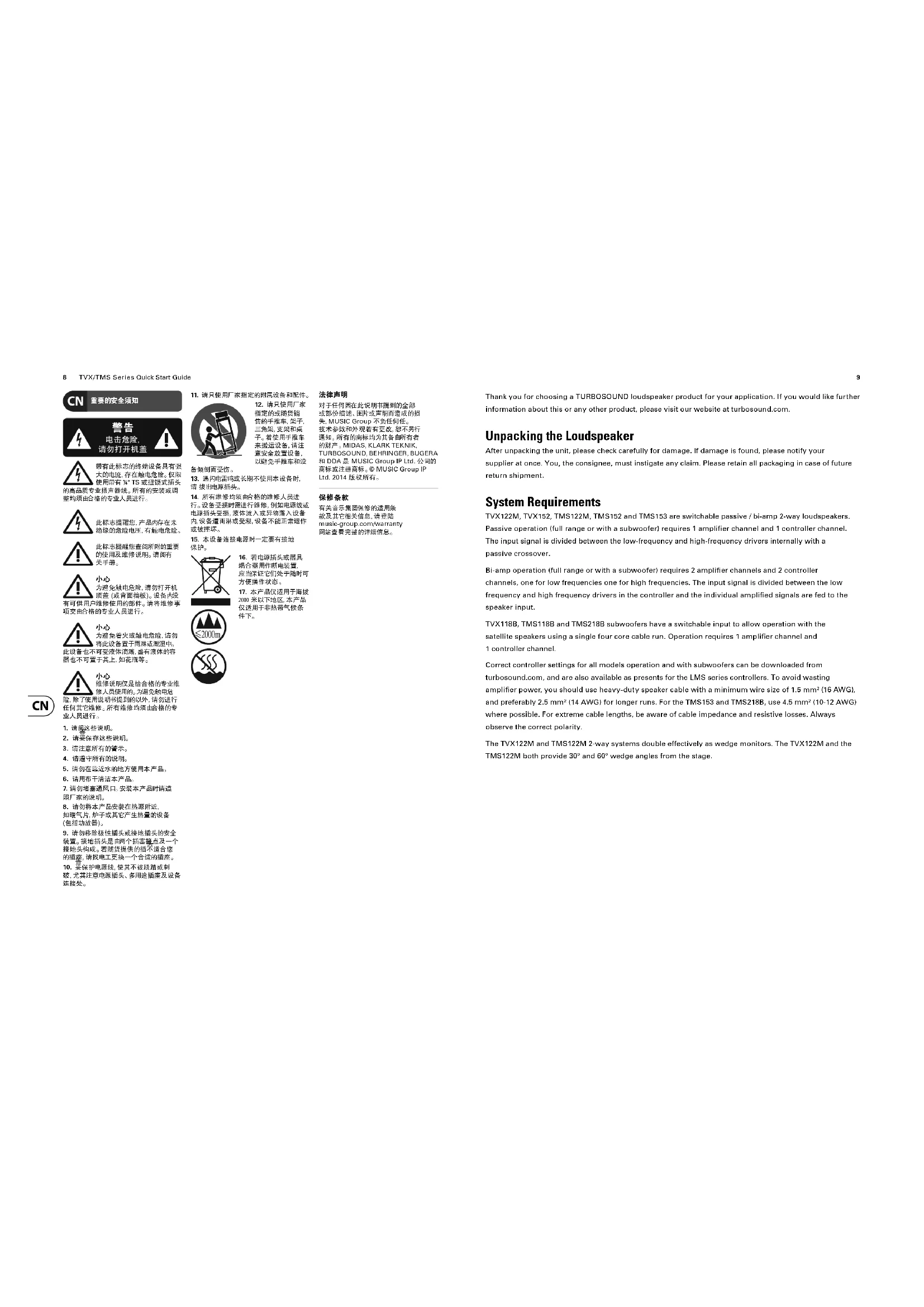

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other product, please visit our website at turbosound.com.

Unpacking the Loudspeaker

After unpacking the unit, please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future return shipment.

System Requirements

TVX122M, TVX152, TMS122M, TMS152 and TMS153 are switchable passive / bi-amp 2-way loudspeakers. Passive operation (full range or with a subwoofer) requires 1 amplifier channel and 1 controller channel. The input signal is divided between the low-frequency and high-frequency drivers internally with a passive crossover.

Bi-amp operation (full range or with a subwoofer) requires 2 amplifier channels and 2 controller channels, one for low frequencies one for high frequencies. The input signal is divided between the low frequency and high frequency drivers in the controller and the individual amplified signals are fed to the speaker input.

TVX118B, TMS118B and TMS218B subwoofer have a switchable input to allow operation with the satellite speakers using a single four core cable run. Operation requires 1 amplifier channel and 1 controller channel.

Correct controller settings for all models operation and with subwoofer can be downloaded from turbosound.com, and are also available as presents for the LMS series controllers. To avoid wasting amplifier power, you should use heavy-duty speaker cable with a minimum wire size of 1.5mm^2 (16 AWG), and preferably 2.5mm^2 (14 AWG) for longer runs. For the TMS153 and TMS218B, use 4.5mm^2 (10-12 AWG) where possible. For extreme cable lengths, be aware of cable impedance and resistive losses. Always observe the correct polarity.

The TVX122M and TMS122M 2-way systems double effectively as wedge monitors. The TVX122M and the TMS122M both provide 30^ and 60^ wedge angles from the stage.

10 TVX/TMS Series Quick Start Guide

Amplifier Considerations

The TVX and TMS series loudspeakers are optimized for use with the TURBOSOUND T series amplifiers with the LMS series controllers. A full range of DSP settings to suit any configuration are provided for download on the TURBOSOUND website. The use of third party amplification and processing is only advised using the matrix of manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TVX and TMS series loudspeaker enclosures should be driven by high quality power amplifiers designed for true professional use. Power amplifiers should be capable of delivering long term broadband power equal to half the loudspeaker's peak power rating at its stated nominal impedance. The use of underpowered amplifiers must be avoided as heavily clipped signals can cause permanent loudspeaker damage. Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound quality and long-term reliability as well as protection from damage.

Neutrik speakON^a NL4 locking input connector(s) are provided, allowing options for input and link, passive, and bi-amp operation.

Model TX12M TX12-TX12B
Motor Power Trip-Up IF-Impuf HF Panoramic IF-Impuf HF Sub
Impedance	RΩ	8Ω	6Ω	8Ω	8Ω	5Ω	4Ω
Minimum Amplifier Power	Continuous RMS	500 W	600 W	40 W	600 W	500 W	40 W
	Peak	2000 W	2800 W	400 W	2800 W	2000 W	400 W

Model		TAS129A			TAS152
Mode		Passive Diap LP Di arro HF Passive Di arro LF Di arro HF
Impedances		BΩ	BΩ	BΩ	BΩ	BΩ	BΩ
Minimum Amplifier Power	Continuous RMS	600 W	800 W	75 W	300 W	800 W	75 W
	Peak	3200 W	3200 W	750 W	3200 W	3200 W	750 W

Material		TMS 183			TMS 184	TMS2188
Micoe	Passive	Biamp LF	Biamp HF	Sub	Sub
Impedance	4 Ω	4 Ω	5 Ω	8 Ω	4 Ω
Minimum Amplifier Power	Conductor RMS	1200 W	1200 W	75 W	600 W	1600 W
	Peak	4800 W	4800 W	750 W	3200 W	6400 W

11

Connections

Models: TVX122M, TVX152, TMS122M, TMS152, TMS153

Mode	Back Panel	Connector	Internal Schematic
Passive	TURBOSOUND	speakON* NL4
		NL4 input/ Link
		NL4 input/ Link
		NL4 input/ Link
		TMS153 only
Bi-Amp	TURBOSOUND	speakON* NL4
		NL4 input/ Link
		NL4 input/ Link
		NL4 input/ Link
		TMS153 only

Models: TVX118B, TMS118B, TMS218B

Mode	Back Panel	Connector	Internal Schematic
Normal Operation 1+1:1	VENUE Turbosound	speakON* NL4	ML4 Input: 2+2 Link NL4 Input: 2+2 Link TM52180 only
4-Wire Single Cable Run Operation 2+1/2:	VENUE Turbosound	speakON* NL4	ML4 Input: 2+2 Link NL4 Input: 2+2 Link TM52180 only

12 TVX/TMS Series Quick Start Guide

Mounting and Fixing

TVX and TMS full-range series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations.

Suspending with Eyebolts

TVX and TMS cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel.

Remove the appropriate countersunk screws and replace them with shoulder eyebolts, which must have a thread length of at least 18mm . Use the rear rigging point to angle the cabinet for optimum room coverage. Cabinets may be hung upside down if required.

IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks.

Walls, floors or ceilings must be capable of safely and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling.

When mounting rigging components on walls, floors or ceilings, ensure that all fixings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker's instructions.

The operation of your speaker cabinet as part of a flow system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualified and certified (by local state or national authorities) personnel prior to any installation or Il ving.

Make sure that speaker cabinets are set up and flown by qualified and certified personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed "Service Information Sheet", assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is fown, the area underneath the speaker is free of human traffic. Do not fly the speaker in areas that can be entered or used by members of the public.

Speakers create a magnetic field, even if not in operation. Therefore, please keep all materials that can be affected by such fields (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres.

14 TVX/TMS Series Quick Start Guide

15

Technical Specifications

TVX122M TVX152 TMS122M TMS152 TMS153

System
Frequency response	85 Hz-20 kHz+3.3 dB55 Hz-20 kHz+10 dB	50 Hz-20 kHz+3.3 dB50 Hz-20 kHz+10 dB	65 Hz-18 kHz-3.3 dB50 Hz-20 kHz+10 dB	55 Hz-20 kHz-3.3 dB45 Hz-20 kHz+10 dB	50 Hz-20 kHz+3.3 dB37 Hz-20 kHz+10 dB
Nominal dispersion	70° H x 70° V@6 dB points	70° H x 70° V@6 dB points	90° H x 50° V@6 dB points	70° H x 50° V@6 dB points	75° H x 50° V@6 dB points
Directivity factor (Ω)	3.4 ± 0.4	10.4	12.8	12.8	12.8	12.8
Directivity index (Ω)	9.7	9.7	10.2	11.1	11.1	11.1
Power handling (IEC)
Passive	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 40 Wcontinuous,160 W peak	500 W continuous,2,000 W peakLF: 500 Wcontinuous,2,000 W peakHF: 40 Wcontinuous,160 W peak	800 W continuous,3,200 W peakLF: 800 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	800 W continuous,3,200 W peakLF: 800 Wcontinuous,3,200 W peakHF: 75 Wcontinuous,300 W peak	1,200 W continuous,4,800 W peakLF: 1,200 Wcontinuous,4,800 W peakHF: 75 Wcontinuous,300 W peak	1,200 W continuous,4,800 W peakLF: 1,200 Wcontinuous,4,800 W peakHF: 75 Wcontinuous,300 W peak
Sensitivity	97 dB 11 W @ 1 m	97 dB 11 W @ 1 m	97 dB 11 W @ 1 m	97 dB 11 W @ 1 m	97 dB 11 W @ 1 m	97 dB 11 m
Maximum SPL
Passive	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	124 dB continuous,130 dB peakLF: 124 dBcontinuous,130 dB peakHF: 122 dBcontinuous,128 dB peak	125 dB continuous,131 dB peakLF: 125 dBcontinuous,131 dB peakHF: 128 dBcontinuous,134 dB peak	126 dB continuous,132 dB peakLF: 126 dBcontinuous,132 dB peakHF: 128 dBcontinuous,134 dB peak	130 dB continuous,136 dB peakLF: 130 dBcontinuous,136 dB peakHF: 128 dBcontinuous,134 dB peak	130 dB continuous,136 dB peakLF: 130 dBcontinuous,136 dB peakHF: 128 dBcontinuous,134 dB peak
Bi-amp
Impedance
Passive	8 Ω	8 Ω	8 Ω	8 Ω	4 Ω	4 Ω
Bi-amp	LF: 8 ΩHF: 8 Ω	LF: 8 ΩHF: 8 Ω	LF: 8 ΩHF: 8 Ω	LF: 8 ΩHF: 8 Ω	LF: 4 ΩHF: 8 Ω	LF: 4 ΩHF: 8 Ω
Crossover type	Passive / Bi-amp,switchable	Passive / Bi-amp,switchable	Passive / Bi-amp,switchable	Passive / Bi-amp,switchable	Passive / Bi-amp,switchable	Passive / Bi-amp,switchable
Components	1 x 12" (316 mm)LF driver1 x 12" (25 mm) HF compression driver	1 x 15" (334 mm)LF driver1 x 15" (25 mm) HF compression driver	1 x 12" (316 mm)LF driver1 x 14" (38 mm) HF compression driver	1 x 15" (334 mm)LF driver1 x 14" (38 mm) HF compression driver	1 x 15" (334 mm)LF driver1 x 14" (38 mm) HF compression driver	1 x 15" (334 mm)LF driver1 x 14" (38 mm) HF compression driver
Enclosure
Connectors	2 x Neutrik speakeON*NL4	2 x Neutrik speakeON*NL4	2 x Neutrik speakeON*NL4	2 x Neutrik speakeON*NL4	2 x Neutrik speakeON*NL4	2 x Neutrik speakeON*NL4
Wiring
Passive	Pins 1/+1 input.Pins 2/+2 link	Pins 1/+1 input.pins 2/+2 link	Pins 1/+1 input.pins 2/+2 link	Pins 1/+1 input.pins 2/+2 link	Pins 1/+1 input.pins 2/+2 link	Pins 1/+1 input.pins 2/+2 link
Bi-amp	Pins 1/+1 LF.Pins 2/+2 HF	Pins 1/+1 LF.pins 2/+2 HF	Pins 1/+1 LF.pins 2/+2 HF	Pins 1/+1 LF.pins 2/+2 HF	Pins 1/+1 LF.pins 2/+2 HF	Pins 1/+1 LF.pins 2/+2 HF
Dimensions (HWD)	634 x 381 x 370 mm(25.0 x 15.0 x 14.6")	701 x 432 x 470 mm(27.6 x 17.0 x 18.5")	566 x 349 x 283 mm(22.3 x 13.7 x 11.1")	718 x 432 x 406 mm(28.2 x 17.0 x 16.0")	1210 x 533 x 508 mm(48.8 x 21.0 x 20.0")	1210 x 533 x 508 mm(48.8 x 21.0 x 20.0")
Net weight	21.1 kg(46.5 lbs)	26.4 kg(58.1 lbs)	26.4 kg(58.1 lbs)	26.4 kg(58.1 lbs)	26.4 kg(58.1 lbs)	26.4 kg(58.1 lbs)
Construction	15 mm (P*) birth plywood	15 mm (P*) birth plywood	15 mm (P*) birth plywood	15 mm (P*) birth plywood	15 mm (P*) birth plywood	15 mm (P*) birth plywood
Finish	Semi matt black paint	Semi matt black paint	Semi matt black paint	Semi matt black paint	Semi matt black paint	Semi matt black paint
Grillie	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel

System	TVX18B	TMS118B	TMS218B
Frequency response	40 Hz - 200 Hz +3 dB	38 Hz - 200 Hz +3 dB	33 Hz - 200 Hz +3 dB
	32 Hz - 200 Hz +3 dB	32 Hz - 200 Hz +3 dB	27 Hz - 200 Hz +3 dB
Nominal dispersion	Half space	Half space	Half space
Power handling (IEC)	600 W continuous, 2,400 W peak	800 W continuous, 3,200 W peak	1,600 W continuous, 6,400 W peak
Sensitivity	97 dB	97 dB	100 dB
Maximum SPL	125 dB continuous, 131 dB peak	126 dB continuous, 132 dB peak	132 dB continuous, 138 dB peak
Impedance	4 Ω	8 Ω	4 Ω
Components	1 x 18" (660 mm LF driver)	1 x 18" (1460 mm LF driver)	2 x 18" (1460 mm LF drivers)
Endurance
Connectors	2 x Neutrik speakON* NL4	2 x Neutrik speakON* NL4	2 x Neutrik speakON* NL4
Wiring
Switch position 1/1- Switch position 2/+2-	Pins 1/1- Input, pins 2/+2- linkPins 1/+1-1-link, pins 2/+2- Input	Pins 1/+1-Input, pins 2/+2- linkPins 1/+1-1-link, pins 2/+2- Input	Pins 1/+1-Input, pins 2/+2- linkPins 1/+1-1-link, pins 2/+2- Input
Dimensions (HWD)	653 x 533 x 700 mm(21.8 x 21.0 x 27.6")	513 x 597 x 750 mm(20.2 x 23.5 x 29.6")	1067 x 602 x 838 mm(42.0 x 23.7 x 33.0")
Net weight	34.8 kg (76.8 lbs)	30.9 kg (97.8 lbs)	32.3 kg (181.4 lbs)
Construction	18 mm (14" birch plywood	18 mm (14" birch plywood	18 mm (14" birch plywood
Finish	Semi-malt black paint Semi-malt black paint	Semi-malt black paint
Grillie	Powder-coated perforated steel	Powder-coated perforated steel	Powder-coated perforated steel
Flying hardware	-	-	-
Accessories
		TPOLEC0 20, 60 cm pole witha 29 mm threadTPOLEC0-20, 90 cm pole witha 29 mm threadTPOLE120 20, 120 cm pole witha 29 mm thread

16 TVX/TMS Series Quick Start Guide

EN

Other important information

Important information

1. Register online. Please register your new MUSIC Group equipment right after you purchase it by visiting turbosand.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty. It applicable.

2. Malfunction. Should your MUSIC Group Authorized Reseller not be located in your vicinity, you may contact the MUSIC Group Authorized Full lister for your country listed under "Support" at turbosound.com. Should your country not be listed, please check if your problem can be dealt with by our "Online Support," which may also be found under "Support" at turbosound.com. Alternatively, please submit an online warranty claim at turbosound.com BEFORE returning the product.

3. Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.

17
