USER MANUAL EX59 Horizon Fitness

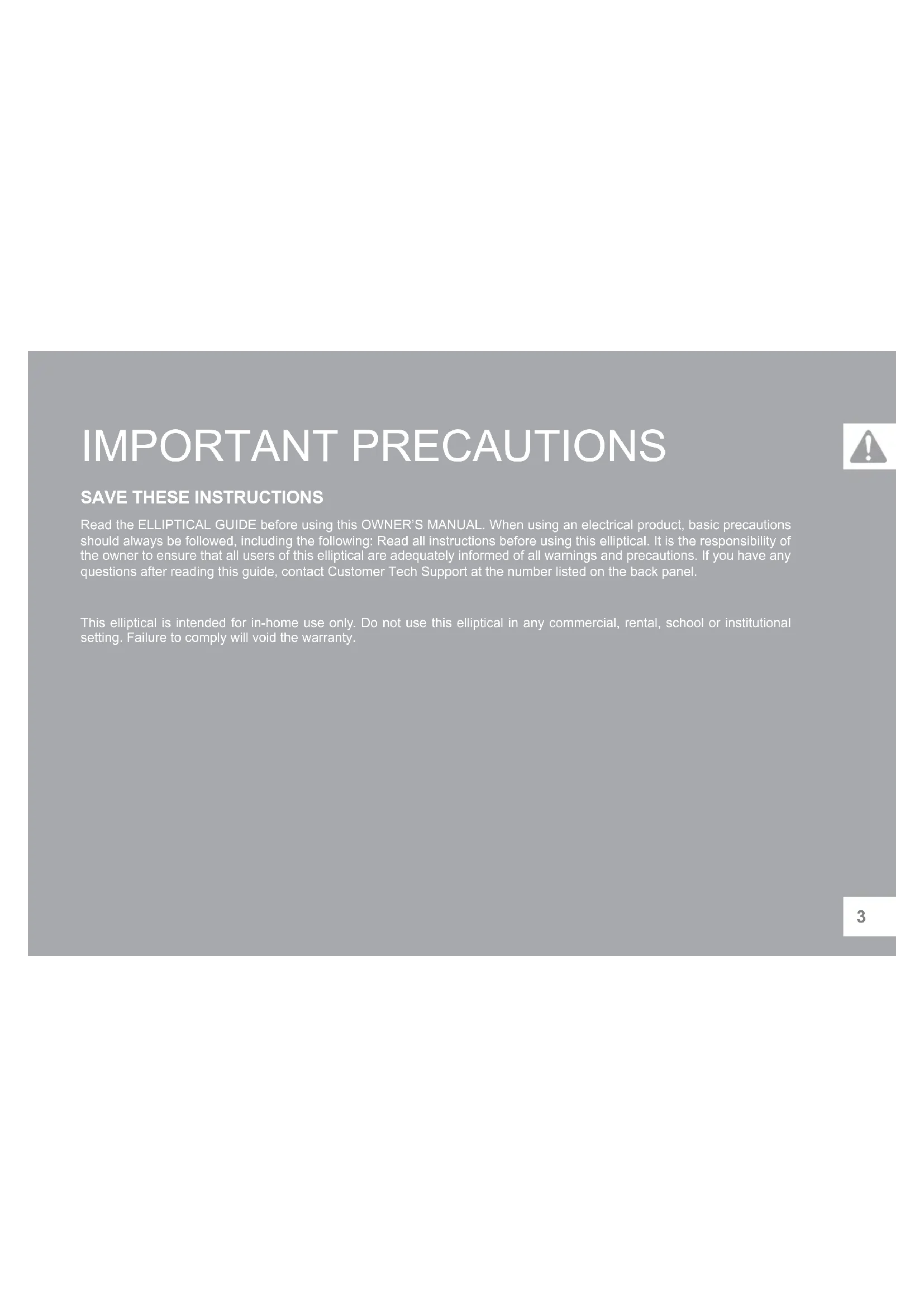

SAVE THESE INSTRUCTIONS

Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this elliptical. It is the responsibility of the owner to ensure that all users of this elliptical are adequately informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back panel. This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.4 TO REDUCE THE RISK OF ELECTRICAL SHOCK: Always unplug the elliptical from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or taking off parts. DANGER

• To reduce the risk of burns, fire, electrical shock or injury to persons:

• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.

• When exercising, always maintain a comfortable pace. Do not sprint above 80 RPMs on this machine.

• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or dismounting the machine.

• Do not turn pedal arms by hand.

• Make sure handlebars are secure before each use.

• Keep the topside of the foot support clean and dry.

• Care should be taken when mounting or dismounting the equipment. Before mounting or dismounting, move the pedal on the mounting or dismounting side to its lowest position and bring the machine to a complete stop.

• Do not wear clothes that might catch on any part of the elliptical.

• Always wear athletic shoes while using this equipment.

• Do not jump on the elliptical.

• At no time should more than one person be on the elliptical while in operation.

• This elliptical should not be used by persons weighing more than the specified user capacity in the OWNER’S MANUAL WARRANTY SECTION. Failure to comply will void the warranty.

• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

• Do not use elliptical in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply will void the warranty.

• To prevent electrical shock, never drop or insert any object into any opening.

• Connect this exercise product to a properly grounded outlet only. WARNING5 TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.

• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.

• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.

• Use the elliptical only as described in the elliptical guide and owner’s manual.

• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)

• The elliptical should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.

• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.

• At NO time should children under the age of 13 or pets be within 10 feet of the machine.

• At NO time should children under the age of 13 use the elliptical.

• Children over the age of 13 or disabled persons should not use the elliptical without adult supervision.

• Never operate the elliptical if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or immersed in water. Contact tech support at the number on the back panel to schedule service.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

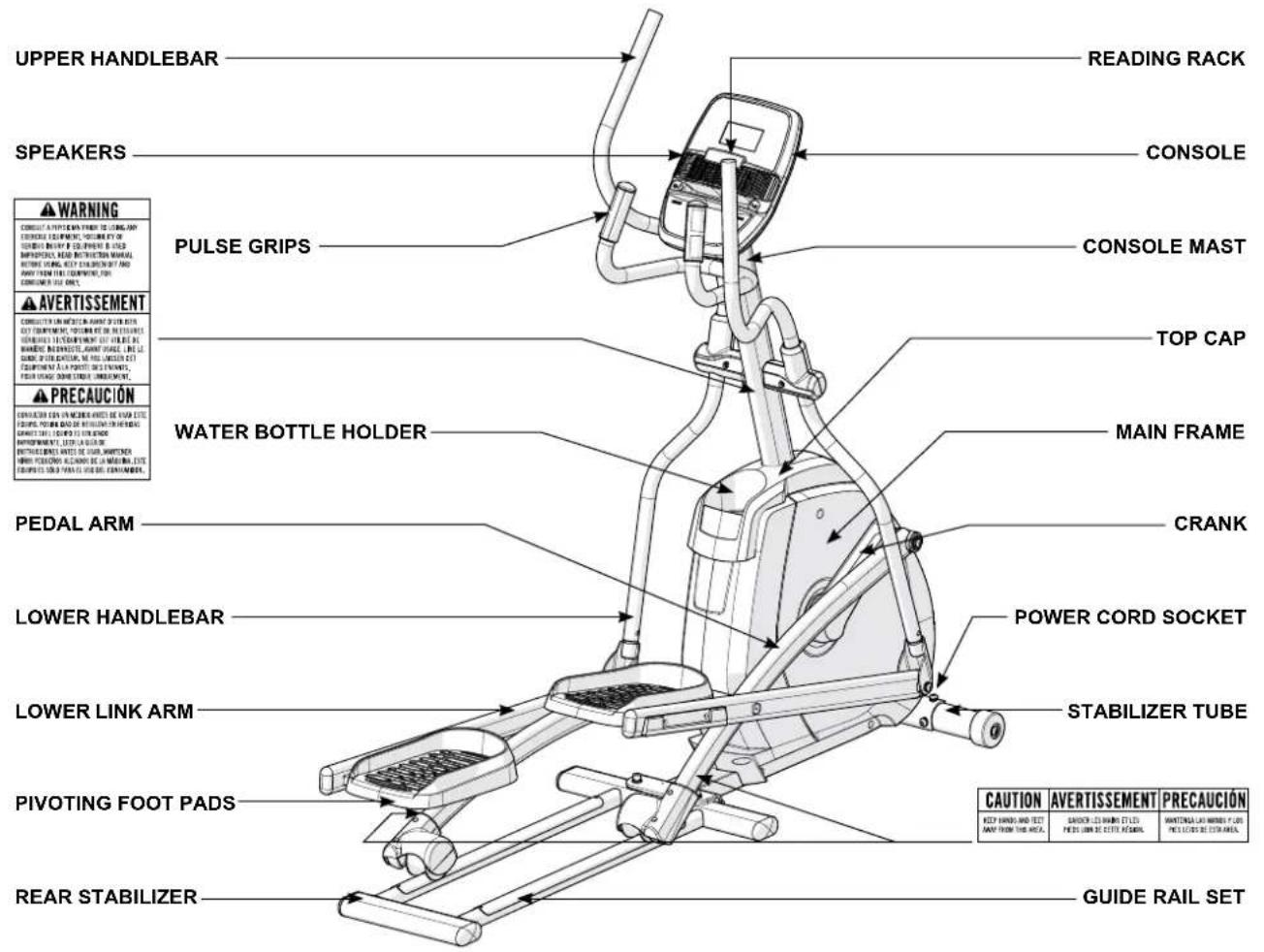

• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service technician It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure. WARNING WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.67 ASSEMBLY There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical, the assembly instructions must be reviewed and corrective actions should be taken. Before proceeding, find your elliptical’s serial number located on a white barcode sticker on the front stabilizer tube and enter it in the space provided below. ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW: » Refer to the SERIAL NUMBER and MODEL NAME when calling for service. WARNING SERIAL NUMBER:

TOOLS REQUIRED: F 8 mm L-Wrench F 13/17 mm Flat Wrench F 5 mm L-Wrench/Screwdriver F Screwdriver (not included) PARTS INCLUDED: F 1 Main Frame F 1 Stabilizer Tube F 1 Guide Rail Set F 1 Console Mast F 2 Pedal Arms F 2 Lower Handlebars F 2 Upper Handlebars F 2 Handlebar Cover Sets F 2 Lower Link Arms With Footpads F 1 Front Top Cap Piece F 1 Rear Top Cap Piece F 1 Console F 1 Audio Adapter Cable F 1 Power Cord F 1 Hardware Kit UNPACKING Unpack the product where you will be using it. Place the elliptical carton on a level flat surface. It is recommended that you place a protective covering on your floor. Never open box when it is on its side. If you have questions or if there are any missing parts, contact Customer Tech Support. Contact information is located on the back panel of this manual. NEED HELP? PRE ASSEMBLY

• It is recommended that two people work together for ease and efficiency while assembling an elliptical.

• During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded. It is recommended you complete the full assembly of your unit before completely tightening any ONE bolt.

• Several parts have been pre-lubricated to aid in assembly and usage. Please do not wipe this off. If you have difficulty, a light application of lithium bike grease is recommended. IMPORTANT NOTES10 ASSEMBLY STEP 1 A Open HARDWARE FOR STEP 1. B Attach the STABILIZER TUBE (1) to the MAIN FRAME (2) using 2 BOLTS (A), 2 SPRING WASHERS (B) and 2 ARC WASHERS (C) on each side.

A Open HARDWARE FOR STEP 2. B Align GUIDE RAIL SET (3) with MAIN FRAME (2) as shown. C Attach the GUIDE RAIL SET (3) to the MAIN FRAME (2) using 4 BOLTS (D), 4 SPRING WASHERS (E) and 4 FLAT WASHERS (F).12

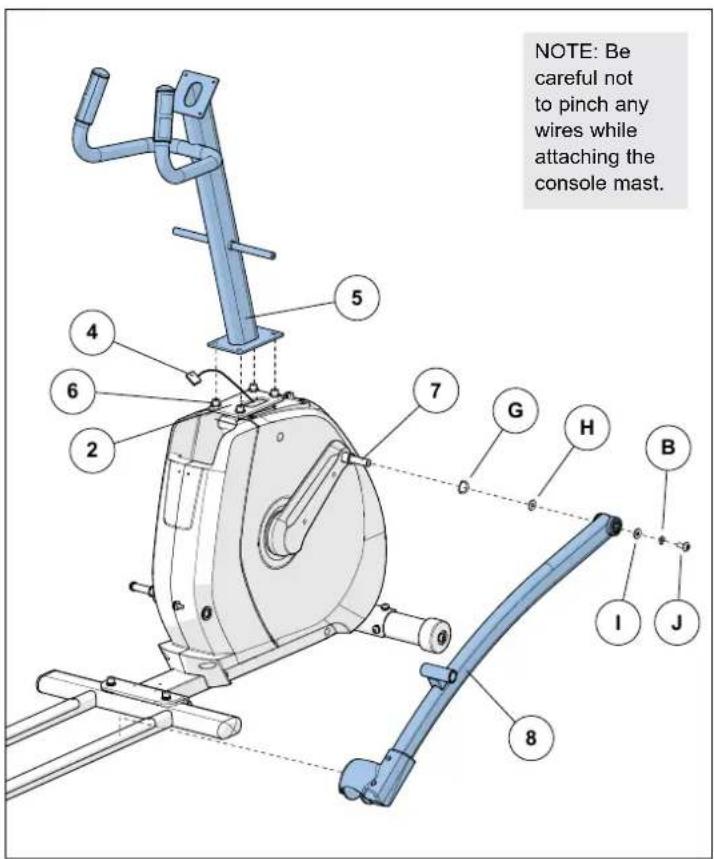

NOTE: Be careful not to pinch any wires while attaching the console mast. ASSEMBLY STEP 3 A Open HARDWARE FOR STEP 3. B Remove PRE-INSTALLED BOLTS AND WASHERS (6) from MAIN FRAME (2). C Carefully pull the CONSOLE CABLE (4) through the CONSOLE MAST (5) using the twist tie located inside the CONSOLE MAST (5). D Attach CONSOLE MAST (5) to MAIN FRAME (2) using PRE-INSTALLED BOLTS AND WASHERS (6). E Slide WAVY WASHER (G) and FLAT WASHER (H) over CRANK (7) followed by PEDAL ARM (8) as shown. Rest pedal arm wheel on guide rail. F Attach the PEDAL ARM (8) to the CRANK (7) using 1 FLAT WASHER (I), 1 SPRING WASHER (B) and 1 BOLT (J). G Repeat steps E–F on the opposite side of the elliptical. HARDWARE FOR STEP 3PART TYPE DESCRIPTION QTYG WAVY WASHER 17.2X22.5X0.5T 2

J BUTTON HEAD BOLT M8X1.25PX20L 2 ASSEMBLY STEP 4

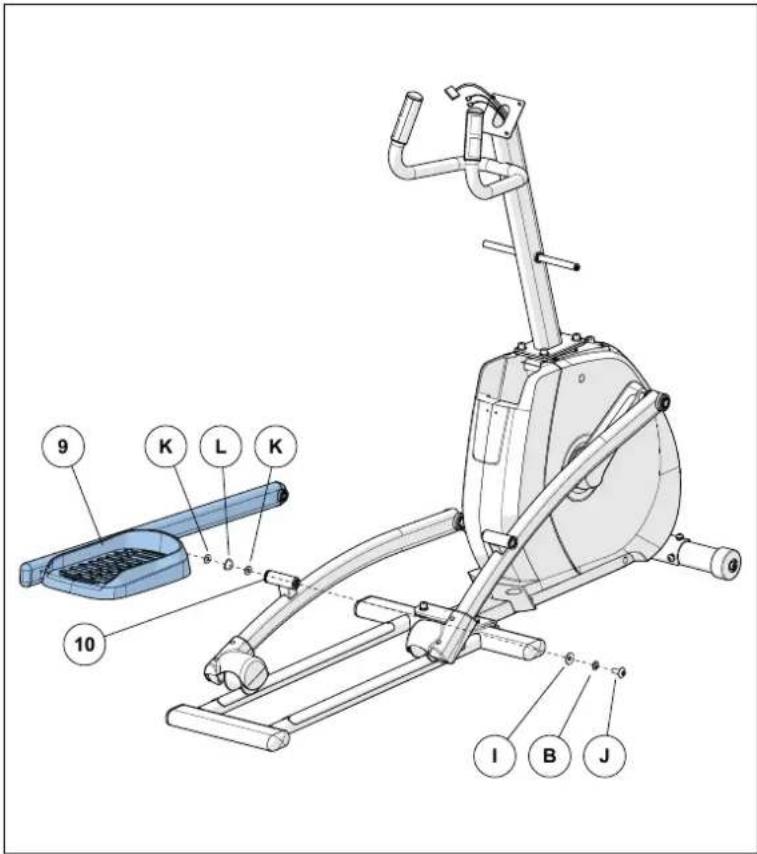

A Open HARDWARE FOR STEP 4. B Slide 1 FLAT WASHER (K), 1 WAVY WASHER (L) and another FLAT WASHER (K) onto the LOWER LINK ARM (9). C Slide the LOWER LINK ARM (9) into the PEDAL ARM BRACKET (10). D Attach the LOWER LINK ARM (9) to the PEDAL ARM BRACKET (10) using 1 FLAT WASHER (I), 1 SPRING WASHER (B) and 1 BOLT (J). E Repeat steps B–D on the opposite side of the elliptical.14

ASSEMBLY STEP 5 A Open HARDWARE FOR STEP 6. B Slide 1 FLAT WASHER (H), 1 WAVY WASHER (G) and 1 FLAT WASHER (H) onto the CONSOLE MAST (5). C Slide LOWER HANDLEBAR (12) onto CONSOLE MAST (5) and attach using 1 FLAT WASHER (I), 1 SPRING WASHER (B) and 1 BOLT (J). D Repeat steps B–C on the other side.

J BUTTON HEAD BOLT M8X1.25PX20L 215

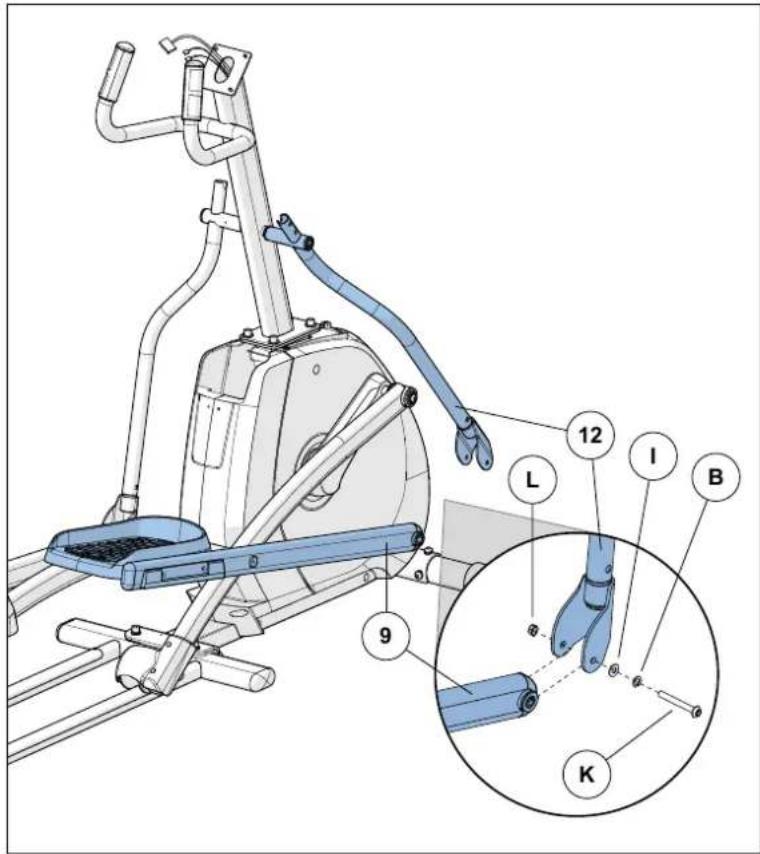

A Open HARDWARE BAG 6. B Slide LOWER LINK ARM (9) into bottom end of LOWER HANDLEBAR (12). C Secure the joint with 1 BOLT (K), 1 SPRING WASHER (B),1 FLAT WASHER (I) and 1 NUT (L). D Repeat steps B–C on the opposite side of the elliptical.16 ASSEMBLY STEP 7

A Open HARDWARE BAG 7. B Slide the right (R) UPPER HANDLEBAR (13) onto the right LOWER HANDLEBAR (12) making sure handlebars are joined together completely. Secure the UPPER HANDLEBAR (13) to the LOWER HANDLEBAR (12) using PRE-ATTACHED SET SCREWS (14). C Slide right (R) HANDLEBAR COVERS (15) over UPPER HANDLEBARS (13) and attach using 1 SCREW (M). D Repeat STEPS B–C on left side. HARDWARE FOR STEP 7PART TYPE DESCRIPTION QTYM SCREW M4X0.7PX8L 4 NOTE: Make sure upper handlebars are as far down as possible. Handlebars can be damaged If not secured correctly.17

ASSEMBLY STEP 8 ASSEMBLY COMPLETE! NOTE: All hardware for this step is pre-installed. A Remove 4 PRE-INSTALLED BOLTS (16) from the CONSOLE (17). B Attach the CONSOLE CABLES (4) to the CONSOLE (17). C Carefully tuck the CONSOLE CABLES (4) into the CONSOLE MAST (5) before attaching the CONSOLE. Attach CONSOLE (17) to CONSOLE MAST (5) using 4 PRE-INSTALLED BOLTS (16). D Slide FRONT TOP CAP PIECE (18) and REAR TOP CAP PIECE (19) over CONSOLE MAST (5) and snap into place. NOTE: Do not to pinch any wires while attaching the console.1819 ELLIPTICAL OPERATION This section explains how to use your elliptical’s console and programming. The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:

H21 CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) LCD DISPLAY WINDOW: time, RPM, distance, watts, calories, heart rate, speed B) ENERGY SAVER INDICATOR: indicates if the machine is in energy saver mode. C) QUICK KEYS: used to reach desired resistance quickly.

KEYS: Used to adjust resistance level and to cycle through selections during program set up. E) ENTER: used to confirm selection. F) START / PAUSE: used to start workout, pause workout, and restart after pause. G) STOP / HOLD TO RESET: used to stop machine and also will reset machine when held down. H) CHANGE DISPLAY: used to change display feedback during workout.

I) SPEAKERS: plays music through speakers when connected to your media player.

J) AUDIO IN JACK: plug your media player into the console using the included audio adaptor cable. K) AUDIO OUT JACK: plug your headphones into the console to use during workout. L) READING RACK: holds reading material. M) STORAGE POCKET: holds personal items, such as a small TV remote, mobile phone or media player.22 DISPLAY WINDOW

• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.

• DISTANCE: Shown as miles. Indicates distance traveled during your workout.

• CALORIES: Total calories burned or remaining for your workout.

• RPM: Revolutions Per Minute.

• WATTS: Displays current user power output

• SPEED: Shown as MPH. Indicates how fast the foot pads is moving.

• HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made with both pulse grips).

• PROGRAM PROFILES: Represents the profile of the program being used.

• ENERGY SAVER: Indicates when machine is in Energy Saver mode to conserve power consumption. speedheart rate calorieswattsdistancetime RPM23

FINISHING YOUR WORKOUT

When your workout is complete, the console will display “workout complete” and beep. Your workout information will stay displayed on the console for 30 seconds and then reset.

TO RESET THE CONSOLE

Hold STOP key for 3 seconds.

TO CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the stop button for 3 seconds. GETTING STARTED

1) Check to make sure no objects are nearby that will hinder

the movement of the elliptical.

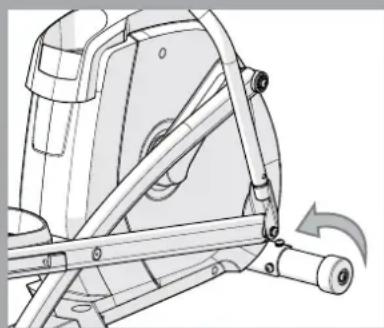

2) Plug in the power cord to power the elliptical ON. (Switch is

located at the bottom-front of the elliptical.)

4) You have the following options to start your workout:

Simply press GO to begin working out. Time, distance and calories will all count up from zero. The resistance level will default to level 1.

to scroll through programs

2) Press ENTER to select your desired program.

4) Press START to begin workout.

NOTE: You can adjust the resistance level during your workout.24 PROGRAM INFORMATION MANUAL: Adjust your resistance level manually during your workout. WEIGHT LOSS: Promotes weight loss by raising and lowering the resistance level, while keeping you in your fat burning zone. Time based program with 10 levels to choose from. WEIGHT LOSS PLUS: Promotes weight loss by raising and lowering the resistance level, while keeping you in your fat burning zone. Time based program with 5 levels to choose from and greater intensity than the weight loss program. INTERVALS: Improves your strength, speed and endurance by raising and lowering the resistance levels through-out your workout to involve both your heart and muscles. Time based program with 10 levels to choose from. INTERVALS PLUS: Improves your strength, speed and endurance by raising and lowering the resistance levels through-out your workout to involve both your heart and muscles. Time based program with 5 levels to choose from and greater intensity than the intervals program. CONSTANT WATTS: User sets a watts level and tries to maintain that level throughout the workout. Resistance will adjust automatically to keep the user at the correct watts level. Time based program. ROLLING: Mimics the feeling of moving up and down hills by gradually increasing and decreasing the resistance. Time based program with 7 levels to choose from. REVERSE TRAIN: Program cues you to pedal forward (F) and backwards (R) for an exciting and challenging workout. RANDOM: Provides even more workout variety by mixing up your resistance levels. Time based program with 7 levels to choose from. CALORIE GOAL: Allows you to set the number of calories you would like to burn. Calorie goal can range from 100- 990 calories. Calories will count down. User inputs weight and sets starting resistance. Calories burned are calculated using weight input with the speed and incline of the workout.25

USING YOUR MEDIA PLAYER

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the left of the console and the

headphone jack on your media player.

2) Use your media player buttons to adjust song settings.

3) Remove the AUDIO ADAPTOR CABLE when not in use.

ENERGY SAVER (STANDBY MODE) This machine has a special feature called Energy Saver™ mode. This mode is NOT automatically activated. When Energy Saver mode is activated, the display will automatically enter standby mode (Energy Saver mode) after 15 minutes of inactivity. This feature saves energy by disabling most power to the machine until a key is pressed on the console. This feature can be turned on or off in the engineering menu. To enter the engineering menu, press and hold the key and key for 3-5 seconds. Use the keys to navigate through the menu to ENG 2. Press ENTER to select. Use keys to select ENRGY SVE ON or OFF. Press and hold STOP for 3-5 seconds to exit ENG 2. Press and hold STOP again for 3-5 seconds to exit the engineering menu.2627

LIMITED HOME-USE WARRANTY28

WEIGHT CAPACITY = 275 lbs (125 kilograms) FRAME • LIFETIME Manufacturer warrants the frame against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.) BRAKE • 1 YEAR Manufacturer warrants the brake for the period specified above from the date of original purchase, so long as the device remains in the possession of the original owner.

ELECTRONICS & PARTS • 2 YEARS

Manufacturer warrants the electronic components, finish and all original parts for the period specified above from the date of original purchase, so long as the device remains in the possession of the original owner. LABOR • 1 YEAR Manufacturer shall cover the labor cost for the repair of the device for the period specified above from the date of the original purchase, so long as the device remains in the possession of the original owner.

EXCLUSIONS AND LIMITATIONS

• The original owner and is not transferable. What IS covered:

• Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty. What IS NOT covered:

• Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

• Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by the Manufacturer.

• Incidental or consequential damages. The Manufacturer is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the equipment.29 SERVICE/RETURNS

• In-home service is available within 150 miles of the nearest authorized Service Provider (Mileage beyond 150 miles from an authorized service center is the responsibility of the consumer).

• All returns must be pre-authorized by the Manufacturer.

• Manufacturer’s obligation under this warranty is limited to replacing or repairing, at the Manufacturer’s option, the same or comparable model.

• Manufacturer may request defective components be returned to the Manufacturer upon completion of warranty service using a prepaid return shipping label. If you have been advised to return parts and did not receive a label, please contact Customer Tech Support.

• Replacement units, parts and electronic components reconditioned to as-new condition by the Manufacturer or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.

• This warranty gives you specific legal rights, and your rights may vary from state to state. The Manufacturer does not provide monetary or other compensation for any such repairs or replacement parts costs, including but not limited to gym membership fees, work time lost, diagnostic visits, maintenance visits or transportation.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by the Manufacturer for coverage.

• Equipment owned or operated outside the US and Canada.

• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.

• Any attempt to repair this equipment creates a risk of injury. The Manufacturer is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and the Manufacturer shall have no liability for any injury to the person or property arising from such repairs.

• If you are out of the Manufacturer’s warranty but have an extended warranty, refer to your extended warranty contract for contact information regarding requests for extended warranty service or repair.30 FRANÇAIS31
