| Product Type | 6-Channel Amplifier |
| Brand | JL Audio |
| Model | XDM6006 |
| Topology | Ultra-fast NexD Class D |
| RMS Power (14.4 V, <1% THD) | 75 W x 6 at 4 Ω, 100 W x 6 at 2 Ω, 150 W x 3 at 8 Ω (bridged), 200 W x 3 at 4 Ω (bridged) |
| RMS Power (12.5 V, <1% THD) | 60 W x 6 at 4 Ω, 90 W x 6 at 2 Ω, 120 W x 3 at 8 Ω (bridged), 180 W x 3 at 4 Ω (bridged) |
| Frequency Response | 12 Hz to 22 kHz (+0, -1 dB) |
| Signal-to-Noise Ratio | >104 dB (A-weighted, referred to rated power) |
| Damping Factor | >150 at 50 Hz / 4 Ω |
| Number of Inputs | 6 (3 stereo pairs, RCA) |
| Input Voltage Range | 200 mV to 4 V RMS |
| Input Type | Balanced-Differential |
| Filters | High-pass or low-pass, 12 dB/octave, 50-500 Hz, per channel pair |
| Power Supply | 12 V DC (negative ground), 50 A fuse recommended |
| Dimensions (L x W x H) | 260 mm x 180 mm x 52 mm |
| Weight | Approximately 2 kg |
| Turn-On Modes | Remote (wired), DC Offset, Signal |
| Remote Level Control | HD-RLC or MHD-RLC (optional) |
| Protections | Overheating, undervoltage, short circuit |
| Recommended Use | Automotive or marine (water resistant) |
| Installation | Professional installation recommended |
Frequently Asked Questions - XDM6006 JL Audio
What is the power of the JL Audio XDM6006 amplifier?
The amplifier delivers 75 W RMS x 6 at 4 Ω at 14.4 V, and up to 200 W RMS x 3 in bridged mode at 4 Ω.
What type of power cable is needed for the XDM6006?
A 4 AWG copper cable is required for power and ground. CCA (copper-clad aluminum) wire is not recommended.
Is the XDM6006 compatible with high-level input signals?
Yes, the inputs are balanced-differential and accept 200 mV to 4 V RMS, allowing use with speaker-level outputs from car radios.
How do I adjust the input sensitivity of the amplifier?
Use an AC voltmeter and a reference sine wave (50 Hz for subwoofer, 1 kHz for full-range). Follow the 9-step procedure in the manual to adjust the Input Sens. potentiometers without distortion.
Can I use automatic turn-on mode?
Yes, the XDM6006 offers three modes: Remote (wired), DC Offset (DC signal detection), and Signal (audio signal detection). The Offset mode is designed for high-level signals.
What types of filters are available on the XDM6006?
Each pair of channels (1/2, 3/4, 5/6) has an active 12 dB/octave filter adjustable from 50 to 500 Hz, with Off, HP (high-pass), or LP (low-pass) modes.
Is the amplifier water resistant?
Yes, it is water resistant but must not be submerged or subjected to high-pressure water jets. If possible, install it in a dry, well-ventilated location.
What should I do if the status light turns red or orange?
The red light indicates overheating (audio output is reduced), orange indicates overcurrent (possible short circuit). Check speaker impedance and connections.
What is the minimum speaker impedance in stereo and bridged mode?
In stereo mode, the minimum impedance is 2 ohms. In bridged mode, it is 4 ohms (8 ohms recommended for optimal power).
Where can I download the full manual for the XDM6006?
The manual is available for free download in PDF format on the notice-facile.com website in several languages.
User questions about XDM6006 JL Audio
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Receiver in PDF format for free! Find your manual XDM6006 - JL Audio and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XDM6006 by JL Audio.
USER MANUAL XDM6006 JL Audio
600W 6-CHANNEL AMPLIFIER
OWNER'S MANUAL MANUEL D'UTILISATION MANUAL DEL PROPIETARIO BEDIENUNGSANLEITUNG MANUALE DEL PROPRIETARIO


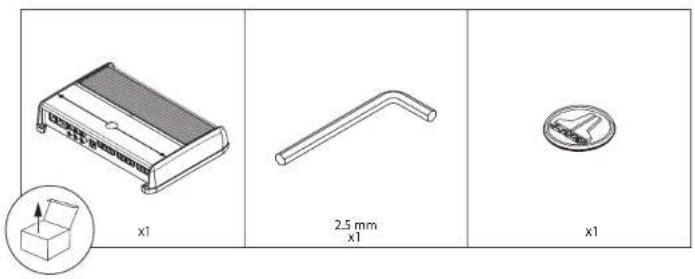

2.5 mm x1 x1 x1


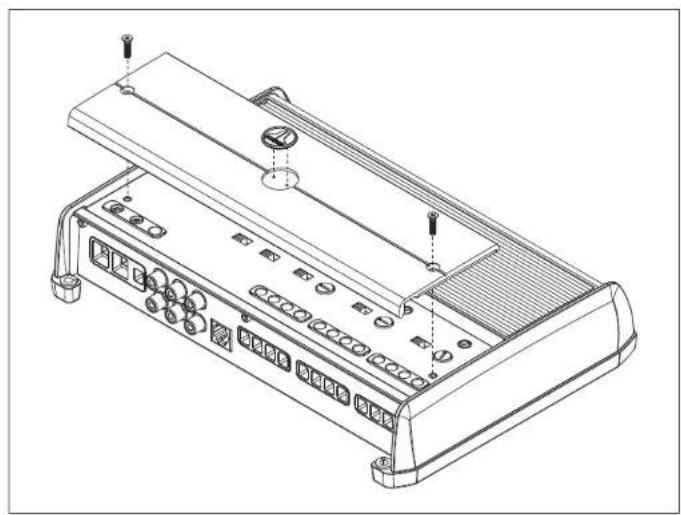

Technical line drawing of a device chassis with ports and connectors (no text or symbols)


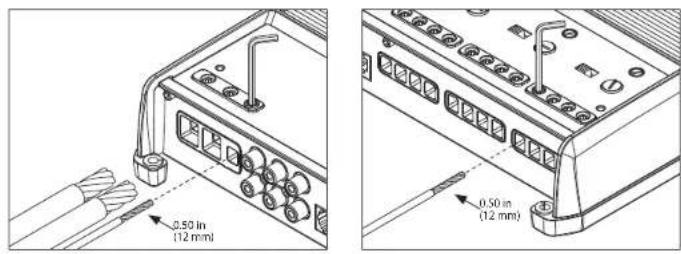

0.50 in (12 mm) 0.50 in (12 mm)INSTALLATION CONSIDERATIONS
• Installation requires appropriate tools and safety equipment. Professional installation is recommended.
• This product is water-resistant. Do not submerge or subject to high-pressure water spray.
- Before installation, turn off the audio system and disconnect the battery system from the audio system.
- When possible, install in a dry, well-ventilated location that does not interfere with factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.
- Do not install in the engine compartment, any areas of extreme heat or where it will be directly exposed to the elements.
- Before cutting or drilling, check for potential obstacles behind mounting surfaces.
- Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges.
SAFETY CONSIDERATIONS
- Only use this product with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft.
- Mount this product securely to prevent damage or injury in severe conditions.
- An appropriate fuse (or circuit breaker) at the main power wire is vital for vehicle/vessel safety and must be installed within 18 inches (45 cm) of the positive battery connection.
- For ABYC and NMEA applications, circuit protection is required within 7 inches (18 cm) of the battery, unless the cable is in an enclosure or conduit.
- Listen to your audio system at levels appropriate for operating conditions and hearing safety.
CONNECTIONS


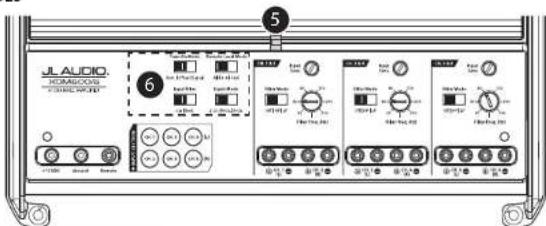

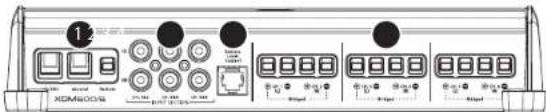

1 XOM600A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80| Connection Description Notes | |||||
| 1 | +12 VDC Positive (=12V) Power Connection | • 4 AWG wire (required)• Install 50A fuse at (+) battery post | |||
| Ground Negative (GND) Ground Connection • 4 AWG wire (required) | |||||
| Remote Positive (=12V) Activation Connection | • 18 - 12 AWG wire capacity• See turn On Mode for more info | ||||
| 2 | CH. 1 Input Left Input Signal, Black RCA | • Accepts 200mV - 4V input voltage• See output mode for more info | |||
| CH. 2 Input Right Input Signal, Red RCA | |||||
| CH. 3 Input Left Input Signal, Black RCA | |||||
| CH. 4 Input Right Input Signal, Red RCA | |||||
| CH. 5 Input Left Input Signal, Black RCA | |||||
| CH. 6 Input Right Input Signal, Red RCA | |||||
| 3 | Remote Level Control | Remote Level Controller Connection (optional)(HD-RLC or WHO-RLC) | • Operates as an attenuator only:Fully counter-clockwise - Level MutedFully clockwise = Level Unaffected | ||
| 4 | CH. 1 (L)Speaker Output | ⊕ | (+) Positive Speaker Output CH | 1&2 Bridged (+) | • Minimum impedance load:Stereo mode ≥2 ohmsBridged mode ≥4 ohms• 16 - 8 AWG wire capacity |
| ⊖ | (-) Negative Speaker Output | ||||
| CH. 2 (R)Speaker Output | ⊕ | (+1 Positive Speaker Output | |||
| ⊖ | (-) Negative Speaker Output CH | H. 1&2 Bridged (-) | |||
| CH. 3 (L)Speaker Output | ⊕ | (+) Positive Speaker Output CH | 3&4 Bridged (+) | ||
| ⊖ | (-) Negative Speaker Output | ||||
| CH. 4 (R)Speaker Output | ⊕ | (+1 Positive Speaker Output | |||
| ⊖ | (-) Negative Speaker Output CH | L. 3&4 Bridged (-) | |||
| CH. 5 (L)Speaker Output | ⊕ | (+) Positive Speaker Output CH | 5&6 Bridged (+) | ||
| ⊖ | (-) Negative Speaker Output | ||||
| CH. 6 (R)Speaker Output | ⊕ | (+1 Positive Speaker Output | |||
| ⊖ | (-) Negative Speaker Output CH | L. 5&6 Bridged (-) | |||
CONTROLS
| 5 | Status LED(indicatesoperating status) | Flashing Green | Amplifier Powering Up, Audio Output Muted |
| Green On | Normal Operation, Active Audio Output | ||
| Red | On-Safe Mode, Over-Temperature Condition, Audio Output ReducedReverts to normal operation when temperature returns to a safe level | ||
| Amber (blue) | On-Safe Mode, Over Current Condition, Audio Output MutedMay exhibit repetitive, audible ticking or thumping noise in the outputInspect for speaker/wire short circuit or low impedance | ||
| LEDs Off | Amplifier Turns Off (unexpectedly), Low-Voltage ConditionOccurs when battery or remote turn-on voltage drops below 10VReverts to normal operation when voltage rises above 11V | ||
| 6 | Turn On Mode(configures activation method) | Remote | +12V Remote Turn-On (Preferred)Controlled by a switched +12V circuit or turn-on output of your source unit/OEM interface |
| Offset | DC Offset Sensing (Automatic)Turns On by detecting the presence of small DC signal in OEM audio outputs and turns Off after the signal is removed | ||
| Signal | Signal Sensing (Automatic)Turns On by detecting full-range OEM audio signals and turns OFF after the signal is removed(within 30 seconds) | ||
| Input Filter(configuresinput filter application) | Car Select for most installations (automotive or marine) | ||
| Boat Select if experiencing interference from high current mechanical switches/devices | |||
| Input Mode(configuresinput signal connections) | 2 Ch. | Select when using CH. 1&2 inputs onlyCH. 3, 5 & 7 will operate with CH. 1 signalCH. 4, 6 & 8 will operate with CH. 2 signal | |
| 4 Ch. | Select when using CH. 1&2 and CH. 3&4 inputsCH. 5 will operate with the sum of CH. 1&3 signalsCH. 6 will operate with the sum of CH. 2&4 signals | ||
| 6 Ch. Select when using all six Inputs | |||
| Remote Level Mode(configures-HD-FLC operation - optional) | All Adjusts level of all channels equally | ||
| 3 - 6 Adjusts level of channels 3, 4, 5, & 6 only | |||
| 5 & 6 Adjusts level of channels 5 & 6 only | |||
CONTROLS


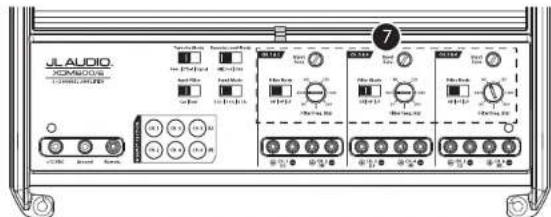

JL AUDIO xomicros 7| Control (Function) Setting Description | |||
| Input Sens.( adjusts each channel pair's input stage) | Variable | Use to match the source unit's output voltage with the inputs of each pair of amplifier channels. See Appendix A for detailed information. | |
| Filter Mode(configure the filter of CH, 1&2) | Off Filter defeated; passes full range of frequencies present at the inputs | ||
| HP | Attenuates frequencies below the CH, 1&2 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| LP | Attenuates frequencies above the CH, 1&2 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| Filter Freq. (Hz)( adjusts filter cutoff frequency) | Variable | Use to adjust the cutoff frequency of channel 1&2's active filter, from 50 Hz - 500 Hz / 12dB per octave | |
| Filter Mode(configure the filter of CH, 3&4) | Off Filter defeated; passes full range of frequencies present at the inputs | ||
| HP | Attenuates frequencies below the CH, 3&4 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| LP | Attenuates frequencies above the CH, 3&4 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| Filter Freq. (Hz)( adjusts filter cutoff frequency) | Variable | Use to adjust the cutoff frequency of channel 3&4's active filter, from 50 Hz - 500 Hz / 12dB per octave | |
| Filter Mode(configure the filter of CH, 5&6) | Off Filter defeated; passes full range of frequencies present at the inputs | ||
| HP | Attenuates frequencies below the CH, 5&6 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| LP | Attenuates frequencies above the CH, 5&6 "Filter Freq. (Hz)" dial, at a rate of 12dB/octave | ||
| Filter Freq. (Hz)( adjusts filter cutoff frequency) | Variable | Use to adjust the cutoff frequency of channel S&6's active filter, from 50 Hz - 500 Hz / 12dB per octave | |
APPENDIX A:
Input Sensitivity Level Setting
Follow the steps below to adjust the input sensitivity of each amplifier
channel pair to achieve overall system balance.
Necessary Equipment
| Digital AC Voltmeter |
| Sine-wave test tone recorded at 0 dBfs reference level in the frequency range to be amplified. |
| Do not use attenuated test tones (-10 dB, -20 dB, etc.). |
| Full range channel/amplifier applications: 1 kHz |
| Subwoofer channel/amplifier applications: 50 Hz |
| Depending on your type of source unit, the sine-wave may be played via a CD, USB thumb drive, portable media player or Bluetooth® audio source. Make sure to disable any FQ/DSP modes on your portable media player during level setting. |
The Nine-Step Procedure
| 1. Disconnect the speaker(s) from the amplifier's speaker output connectors. |
| 2. Turn off all processing (bass/treble, loudness, EQ, etc.) on the source unit, processors (if used), and amplifier. Set the factor control to center position and the subwoofer level control to 3/4 of maximum, if used. |
| 3. Turn all "Input Sens." controls all the way down. |
| 4. Set the source unit volume to 3/4 of full volume. This will allow for reasonable gain overlap with moderate clipping at full volume. |
| 5. Using the chart below, determine the target voltage for input sensitivity adjustment according to the nominal impedance of the speaker system connected to the amplifier outputs. |
| 6. Verify that you have disconnected the speakers before proceeding. Play a track with an appropriate sine wave (within the frequency range to be amplified) at 3/4 source unit volume. |
| 7. Connect the AC voltmeter to the speaker output terminals of the amplifier. If the channel pair is operating in stereo, it is only necessary to measure one channel. If bridged, make sure you test the voltage at the correct terminals (L+ and R-). |
| 8. Increase the "Input Sens." control until the target voltage is observed with the voltmeter. |
| 9. Once you have adjusted each channel section to its maximum low-distortion output level, reconnect the speaker(s). The "Input Sens." controls can now be adjusted downward if the amplifier requires attenuation to achieve the desired system balance. |
| IMPORTANT! |
| • Do not increase any "Input Sens" setting for any amplifier channel or channel pair in the system beyond the maximum level established during this procedure. Doing so will result in audible distortion and possible speaker damage. |
| • It will be necessary to re-adjust the "Input Sens." if any equalizer boost is activated after setting the "Input Sens." with this procedure. This applies to any EQ boost circuit, including source unit tone controls or EQ circuits. EQ cuts will not require re-adjustment. |
| Nominal Impedance | Target AC Voltage | |
| Stereo | Bridged | |
| 8Ω | 17.2 V | 34.6 V |
| 4Ω | 17.3 V | 28.2 V |
| 2Ω | 14.1 V | not recommended |
SPECIFICATIONS
| Amplifier Section | |||
| Amplifier Topology | NexDTM Ultra-High Speed Class D | ||
| Power Supply Type | Unregulated MOSFET Switching | ||
| Minimum Copper Power/GND Wire | 4 AWG(Note: CCA/Copper Clad Aluminum wire is not recommended.) | ||
| Recommended Fuse | 50 A | ||
| Rated RMS Power @ 14.4V, <1% THD+N | 75W x 6 @ 4 Ω 100W x 6 @ 2 Ω | ||
| 150W x 3 @ 8 Ω Bridged 200W x 3 @ 4 Ω Bridged | |||
| Rated RMS Power @ 12.5V, <1% THD+N | 60W x 6 @ 4 Ω 90W x 6 @ 2 Ω | ||
| 120W x 3 @ 8 Ω Bridged 180W x 3 @ 4 Ω Bridged | |||
| Frequency Response | 2 Hz - 22 kHz (+0, -1dB) | ||
| S/N Ratio(A-weighted, 20 Hz - 20 kHz noise bandwidth) | >104 dB (Referred to rated power), >84 dB (Referred to 1W) | ||
| Damping Factor | >150 / 50 Hz @ 4 Ω, >75 / 50 Hz @ 2 Ω | ||
| Input Section | |||
| Number of Inputs 6 | (Three Stereo Pairs) | ||
| Input Type | Differential-Balanced with RCA jack inputs | ||
| Input Voltage Range | 200mV - 4V RMS | ||
| Signal Processing | |||
| Filter Type | CH. 1&2 CH. 3&4 C | I. 5&6 | |
| Active, 12dB/octave, High Pass or Low Pass (50 - 500 Hz), defeatable | |||
| Remote Level Control | HD-RLC or MHD-RLC (optional). Full mute to 0 dB range. | ||
| Dimensions | |||
| L x W x H | 10.23 in. x 7.09 in. x 2.05 in. (260 mm x 180 mm x 52 mm) | ||
CONSIDÉRATIONS RELATIVES À L'INSTALLATION
