Product type	Electric grill
Brand	Tefal
Model	Health Multi Grill CB6A08
Dimensions (L x W x H)	Approximately 40 x 30 x 15 cm
Weight	Approximately 5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Plate material	Non-stick coating
Drip tray capacity	Removable, for fat and juices
Adjustable temperature	Yes, with indicator light
Main functions	Grill, cook, sear
Maintenance and cleaning	Plate and tray washable with soapy water, do not use metal sponge
Safety	Automatic shut-off if element is mispositioned, grounding required
Spare parts and repairability	Cooking plate and drip tray available at approved service center
General information	Household use only, do not use outdoors
First use	Wash the plate, lightly oil, wipe

Frequently Asked Questions - Health Multi Grill CB6A08 TEFAL

How to clean the Health Multi Grill CB6A08?

Let the appliance cool completely. Remove the plate and drip tray. Wash them with warm soapy water using a non-abrasive sponge. Never use scouring powder or metal sponge. Dry thoroughly before reassembling.

Can I use an extension cord?

Yes, provided it has an adequate cross-section (at least 2.5 mm²) and is equipped with a grounding plug. Ensure no one can trip over it.

Why does the indicator light turn on and off during cooking?

This is normal: the light goes off when the selected temperature is reached and comes back on to maintain heat. This ensures even cooking.

What to do in case of a burn?

Immediately run the burned area under cold water for several minutes. If the burn is severe, consult a doctor.

Can I cook food in foil packets on this grill?

No, never insert aluminum foil or cook in papillote. This could damage the plate and the appliance.

The grill emits an odor and smoke during first use. Is this normal?

Yes, it's normal. This is the burning off of manufacturing residues. Ventilate the room and let the appliance heat empty for 10 minutes before first cooking.

Can I use metal utensils on the plate?

No, to preserve the non-stick coating, use only wooden or plastic spatulas.

How to prevent scratching the plate?

Do not use metal sponges or abrasive products. Do not cut food directly on the plate. Store it protected.

Can I leave the appliance plugged in after use?

No, always unplug the appliance after use and when not in use. Never leave it plugged in unattended.

Where to find spare parts?

Cooking plates and drip tray are available at authorized Tefal service centers. Check the Tefal website to find the nearest center.

USER MANUAL Health Multi Grill CB6A08 TEFAL

Black Tefal cooktop with glass lid and side handle, no visible text or symbols on the device itself.

Health Multi Grill

www.tefal.com

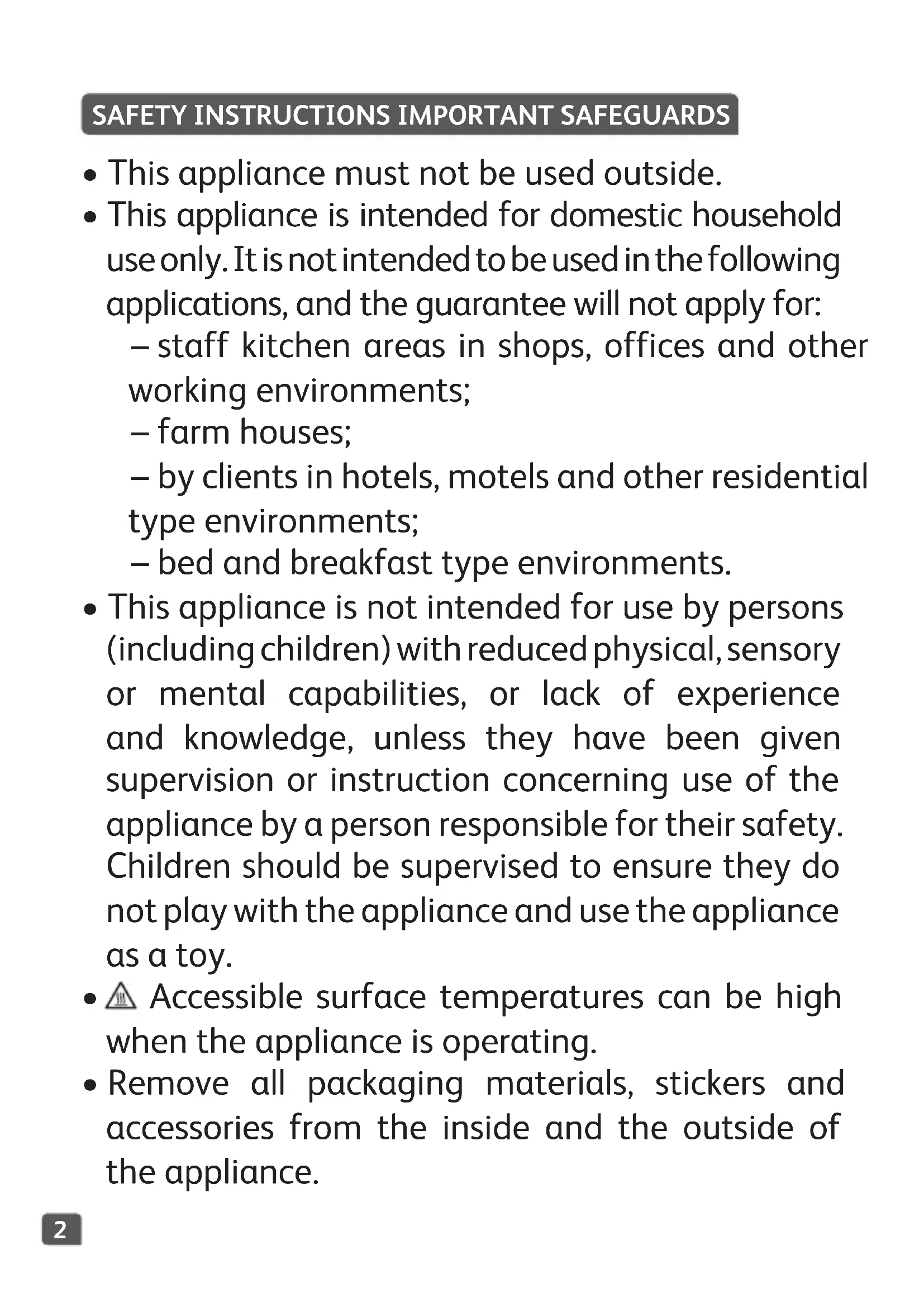

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

• This appliance must not be used outside.
• This appliance is intended for domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

• farm houses;
  – by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance and use the appliance as a toy.

• Accessible surface temperatures can be high when the appliance is operating.

• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

• Fully unwind the power cord.

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
• Any connection error may cause irreversible damage and will invalidate your guarantee.
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.
• Always plug the appliance into a socket outlet with an earth connection.
• If it is necessary to use an extension lead ensure that it is of suitable construction and power rating, with an earth connection; take all necessary precautions to prevent anyone tripping over an extension cord.
• If the power supply cord is damaged, it must be replaced by the manufacturer or its after sales service in order to avoid any danger.

• The power supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Never leave the appliance unattended when in use.

• Never immerse the power cord or control box in water or any other liquid.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- The mobile connector plug must be removed before cleaning the device, and the connector must be dried well before the device is used again.

- You must only use the appropriate mobile plug or mobile connector plug.

Thank you for buying this Tefal appliance.

Tefal has an ongoing policy of research and development and may modify these products without prior notice.

EN

DO

- Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.

- If the appliance is used in the centre of the table, keep it out of the reach of children.

- Make sure the device is placed in a stable position before using it.

- If an accident occurs, rinse the burn immedia-tely with cold water and call a doctor if neces-sary.

- Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

- Always use a wooden or plastic spatula to avoid damaging the cooking plate.

- In order to avoid deterioration of the plate, use it only as it was designed to be used (for example, do not place it in an oven or on a stove, whether it be gas or electric).

- Use only the plate provided with the device or a plate bought at an authorized Service Centre.

- Before first use, wash the plate (see paragraph After Use), pour a small amount of oil on it and dry with a soft cloth.

- Be careful where you place the electric power cord, whether you use an extension or not. Take all the necessary precautions in order not to hinder people from moving around the table, so that nobody gets tangled or trips over the cord.

- Always let the appliance cool down completely before removing cooking plate and grease collector tray for cleaning.

DO NOT

- Never leave the appliance unattended when plugged in or in use.

- To prevent the appliance from overheating, do not place it in a corner or against a wall.

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished fur-niture, etc.) or on a soft surface such as a tea-towel.
• Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.).
• Do not place cooking utensils on the cooking surfaces of the appliance.

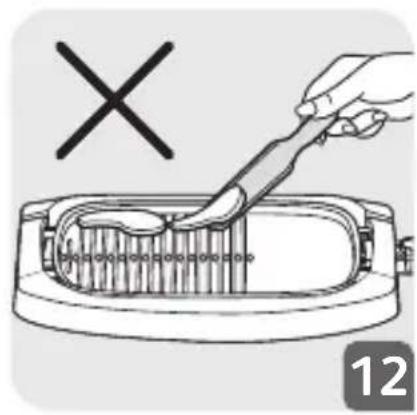

• Never use a knife directly over the plate.
• Do not place the plate on a fragile surface or under water when it is hot.
• Do not move the appliance when in use.
• Do not use aluminium foil or other objects between the plate and the food being cooked.
• Do not cook food in aluminium foil.
• To avoid spoiling your product, do not use flambé recipes in connection with it at any time.
• Do not use metal scourers or scouring powders to avoid damaging the cooking surface.
• Do not remove the grease collector tray during cooking.
• If the grease collector tray gets filled during cooking, let the contents cool before emptying it.

ADVICE / INFORMATION

• For your safety, this appliance conforms to all applicable standards and regulations (Low Vol-tage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...). On first use, there may be a slight odour and a little smoke.
• Do not consume foodstuff that comes into contact with the parts marked with 📄ogo.
• If the electrical box is incorrectly positioned, the safety system will prevent the appliance from working.
• The device will be ready for use once it is preheated.
• During cooking, the indicator light will go on and off indicating that the selected temperature is being maintained.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

SIGURNOSNE UPUTE VAŽNA UPOZORENJA

Diagram of a mechanical device with two screwdrivers and a handle, showing internal components and rotation arrows (no text or symbols)

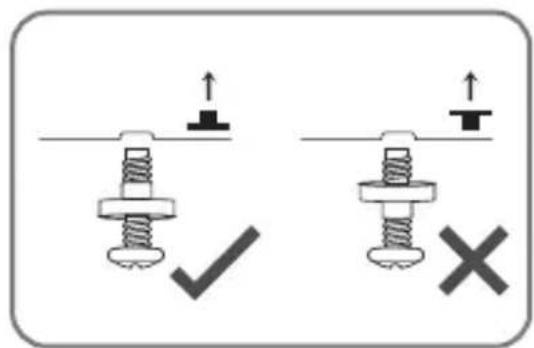

Technical diagram showing two mechanical assembly states with checkmark and cross symbols indicating inspection or failure points.

1

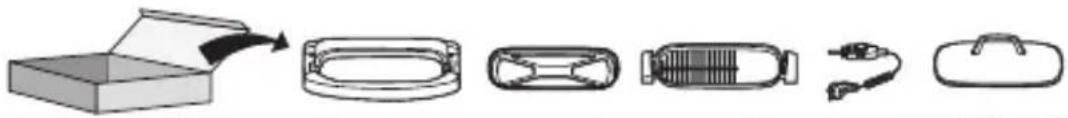

Illustration of a box with an open lid and five different electronic devices, including a battery pack and plug (no text or symbols)

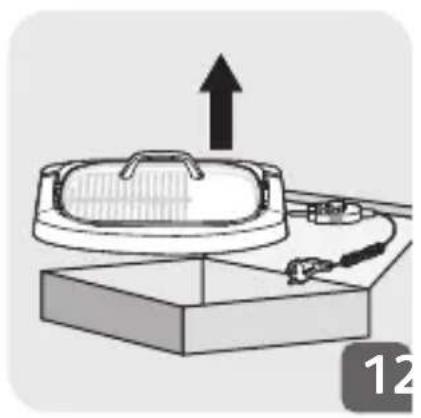

Diagram of a device with an upward arrow and labeled component '12' (no text or symbols on the diagram itself)

Iconographic symbol showing an eye pointing to a document with an 'i' and dot, likely representing information or information.

Diagram illustrating a chemical process with labeled components and a warning symbol

Diagram showing a device with a handle and a downward arrow, no text or symbols present

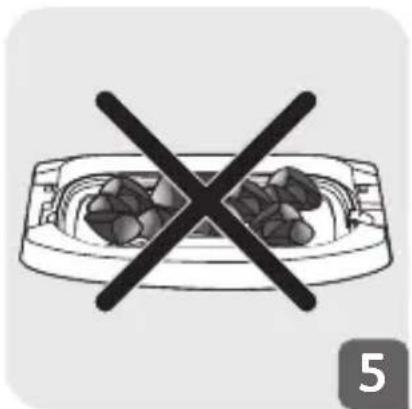

Cross symbol crossed over a tray of coal or coal blocks, no text or symbols present

2

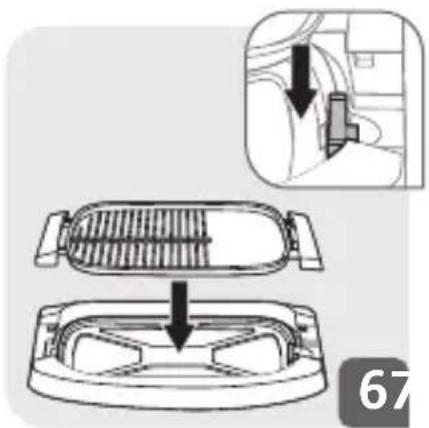

Diagram showing a car interior with a grating and a component inserted, plus an inset view of the gear mechanism (no text or symbols)

Diagram of a cable connector being inserted into a socket (no text or symbols visible)

Diagram showing hand holding electrical socket with a switch, accompanied by an instructional symbol indicating no iron wire being inserted.

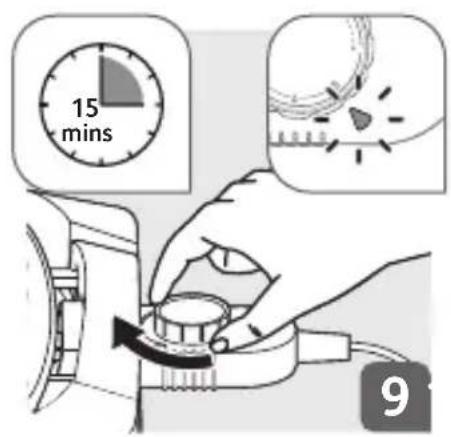

15 mins 9

Safety warning symbol and diagram showing hazard, smoke, and exhaust pipes with warning labels

Diagram showing a hand using a tool to clean or brush inside a grater, with an inset image of a brush and a checkmark indicating inspection.

Illustration of a hand using a tool to clean or brush inside a rectangular device, with no visible text or symbols.

Illustration of a hand holding a cross over a steaming dish with food items, no text or symbols present

Illustration of a cooking pot with steam rising from its lid (no text or symbols)

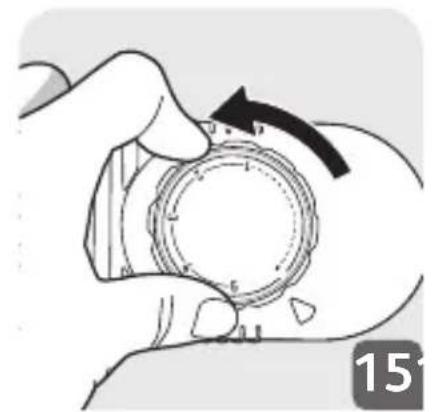

Close-up of a hand holding a circular mechanical component with a curved arrow indicating rotation (no text or symbols)

Hand using a tool to adjust or install an electrical socket (no text or symbols visible)

Diagram of a cable connector with arrows indicating direction (no text or symbols)

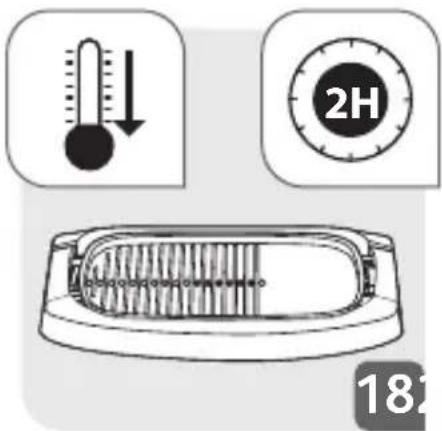

2H 18

Diagram showing three views of a device with internal structure and directional arrows (no text or symbols)

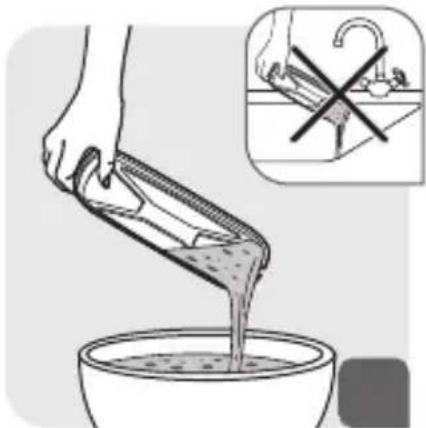

Illustration of a hand pouring liquid into a bowl with a tool, accompanied by an inset showing a hand holding a sink and a crossed-out wrench (no text or symbols present)

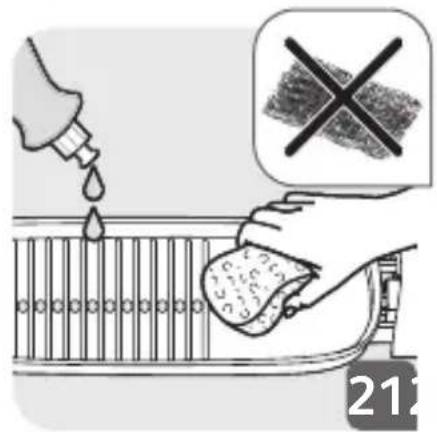

Diagram showing a hand pouring liquid into a car with a magnified inset highlighting a cross symbol, labeled '21'.

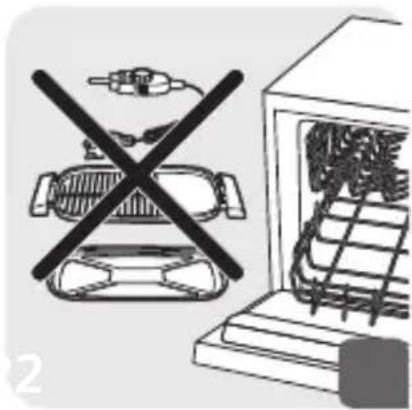

Illustration of a crossed-out robot and a cabinet with a gear, no text or symbols present

Diagram showing a microwave oven with lid and tray, and a close-up of the interior (no text or symbols)
