USER MANUAL Avante TT7101 TEFAL

Illustration of hands operating a 3-well tower on an open box (no text or symbols)

Remove toaster from packaging.

Line drawing of a hand holding a T-fat toaster (no text or symbols on the device itself)

Clean the toaster with a damp cloth.

Diagram showing a hand holding an electrical socket with an arrow indicating clockwise rotation or adjustment.

Plug the toaster into the wall outlet.

Turn dial to maximum browning setting without inserting any bread.

Line drawing of a hand pressing down on a T eater keyboard (no text or symbols)

Press toast lever for 3 sequential toasting sessions to remove "new" smell.

Line drawing of a hand using a T-shirt to press food into a second-trip tower (no text or symbols)

Insert bread.

Select browning level using dial control.

Line drawing of a hand pressing down on a two-tan F-Net tower (no text or symbols)

Press down the left lever to start toasting.

Line drawing of a standard 3-F-tot toaster with two shades of steam (no text or symbols)

The toasting begins.

Le grillage commence.

Illustration of a T-fat toaster with steam rising from its side (no text or symbols)

Toasting chamber automatically lifts toast and lever once toasting cycle is complete.

To remove smaller-sized breads after the toasting cycle.

Illustration of a toaster emitting steam from its side (no text or symbols)

Push down the hi-lift lever (right lever). The hi-lift lever will remain in low position.

Illustration of a hand pressing down on a T-Fat 19 toner tower (no text or symbols visible)

Remove toast. The hi-lift lever stays in low position.

Line drawing of a hand pressing down on a two-tan F-Net tower (no text or symbols)

The hi-lift lever will resume its original position :

- with the next toasting cycle or

- by lifting up on the lever

Press the stop button at any time to stop the toasting cycle.

Toasting chamber automatically lifts toast and lever.

To toast frozen breads, use the Defrost button.

Line drawing of a hand using a T-shirt to press down a single sheet of food (no text or symbols)

Insert frozen bread.

Illustration of a hand pressing down on a T-60L tower (no text or symbols present)

Press down the left lever to start toasting.

Frozen bread will take a little longer to toast as the toaster will automatically defrost the bread before toasting.

Line drawing of a Fast food toaster with two buttons and a handle (no text or symbols)

Toasting chamber automatically lifts toast and lever once toasting cycle is complete.

Insert the bagel as shown, with the cut sides facing in.

Illustration of a hand pressing down on a T-Flat blender with a scroll arrow (no text or symbols)

Press down the left lever to start toasting.

Press the BAGEL button. You cannot use the bagel function and the defrost function at the same time.

Line drawing of a T-shirt with two shades of heat and a control knob (no text or symbols)

The heating elements will turn on.

Your bagel will toast on the cut sides and will be warm on the outside.

Illustration of a toaster with steam rising from the side (no text or symbols)

Toasting chamber automatically lifts bagel and lever once toasting cycle is complete.

Diagram showing a hand holding an electrical socket with a double button, indicating a change or rotation around the socket.

Unplug the toaster from the wall outlet.

Diagram of a portable air conditioner with temperature gauge and pressure gauge, showing digital display and plug connections

Allow the toaster to cool completely, approximately 10 minutes.

Line drawing of a hand holding a T-Ital 20-inch toaster (no text or symbols on the device itself)

Clean the toaster with a damp cloth.

Hand holding a small electronic device with a black arrow pointing to it, no text or symbols visible

Removable crumb tray is provided for easy cleaning.

Hand holding a small electronic device with an arrow pointing to it, no text or symbols present

Replace the crumb tray after cleaning.

Cross-sectional diagram of a device with no visible text or symbols

Do not immerse toaster in water or run water into the toaster.

Pure technical diagram of a vehicle inside a container with no text or symbols

Do not operate toaster under or around any flammable materials.

Line drawing of a toaster with hand holding blade, crossed out by black lines (no text or symbols)

Do not insert objects into the toaster.

Cross-sectional diagram of a building interior with structural framework and window (no text or symbols)

Do not place the toaster in the dishwasher.

Simple line drawing of a backpack with a crossed-out black cross (no text or symbols)

Do not cover toast chambers when in use.

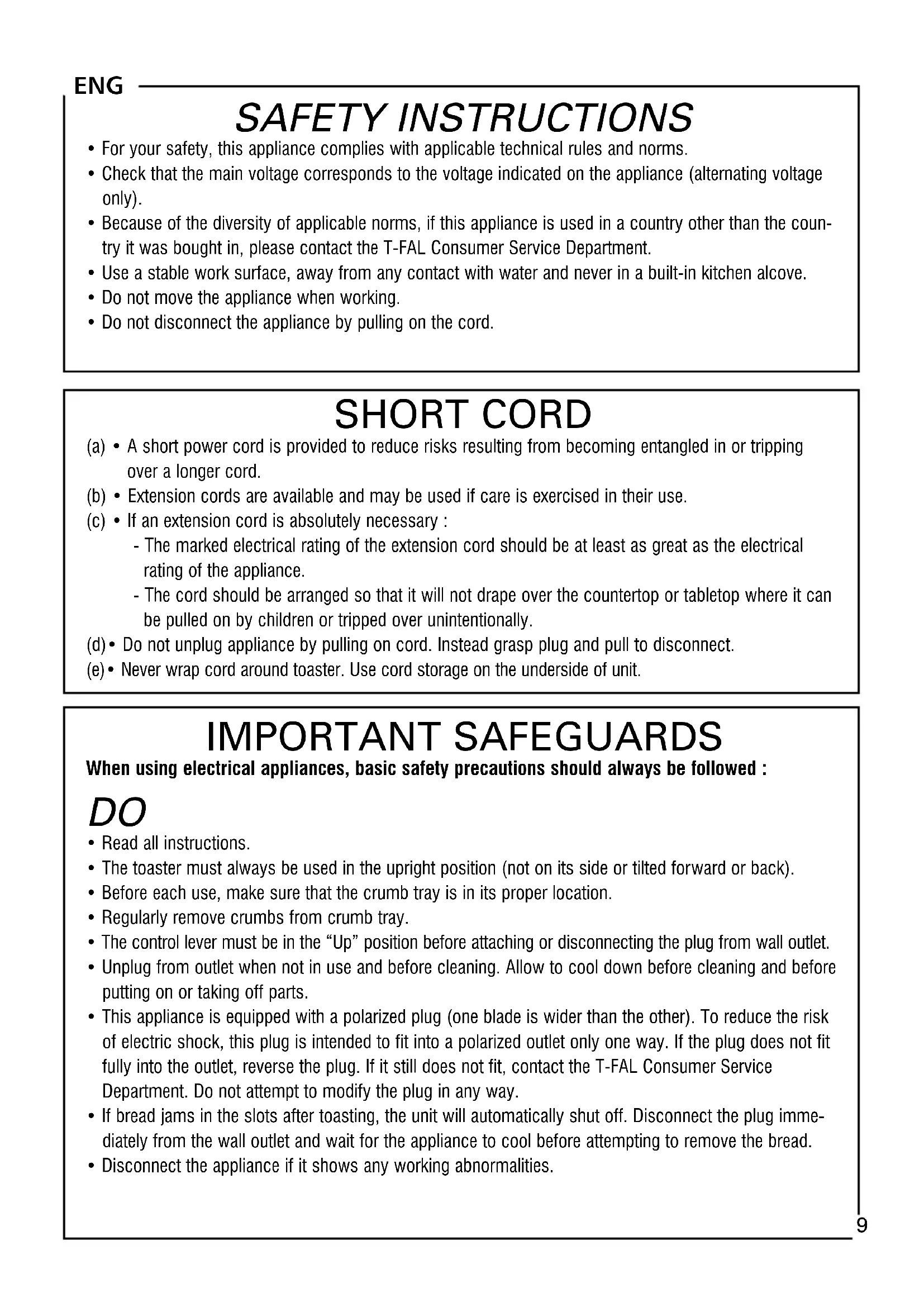

• For your safety, this appliance complies with applicable technical rules and norms.
• Check that the main voltage corresponds to the voltage indicated on the appliance (alternating voltage only).
• Because of the diversity of applicable norms, if this appliance is used in a country other than the country it was bought in, please contact the T-FAL Consumer Service Department.
• Use a stable work surface, away from any contact with water and never in a built-in kitchen alcove.
• Do not move the appliance when working.
• Do not disconnect the appliance by pulling on the cord.

SHORT CORD

(a) • A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
(b) • Extension cords are available and may be used if care is exercised in their use.
(c) • If an extension cord is absolutely necessary :
- The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
- The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
(d) • Do not unplug appliance by pulling on cord. Instead grasp plug and pull to disconnect.
(e) • Never wrap cord around toaster. Use cord storage on the underside of unit.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed :

DO

• Read all instructions.
• The toaster must always be used in the upright position (not on its side or tilted forward or back).
• Before each use, make sure that the crumb tray is in its proper location.
• Regularly remove crumbs from crumb tray.
• The control lever must be in the "Up" position before attaching or disconnecting the plug from wall outlet.
• Unplug from outlet when not in use and before cleaning. Allow to cool down before cleaning and before putting on or taking off parts.
• This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact the T-FAL Consumer Service Department. Do not attempt to modify the plug in any way.
• If bread jams in the slots after toasting, the unit will automatically shut off. Disconnect the plug immediately from the wall outlet and wait for the appliance to cool before attempting to remove the bread.
• Disconnect the appliance if it shows any working abnormalities.

DO NOT

• Do not leave the appliance within the reach of children.
• The appliance is not intended for use by young children or inept persons without close supervision.
• Young children should be supervised to ensure they do not play with the appliance.
• Never leave the toaster unattended during operation, particularly when toasting for the first time or when changing settings.
• Do not use appliance for other than its intended use.
• Do not touch the metal parts or hot surfaces of the appliance when it is working.
• Oversized foods, metal foil packages, or utensils must not be inserted in a toaster as they may cause an electric shock or fire.
• The use of accessory attachments are not recommended by the appliance manufacturer as it may cause injuries.
• To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquids.
• Do not try to toast bread that may melt (with icing) or drip in the toaster and do not toast crusts as this may damage the appliance or cause a fire.
• Do not try to toast very thick slices of bread that could block the toasting mechanism.
• Do not operate any appliance :

- with a damaged cord or plug ;

- after the appliance malfunctions, or has been damaged in any manner. Please contact the T-FAL Consumer Service Department for examination, repair, or adjustment, in order to avoid any risk of danger.

- Do not let the cord hang over the edge of countertop or come in contact with hot surfaces.

- Do not use outdoors. Avoid humid environments.

- Do not place on or near a gas or electric burner or near a heated oven.

- Bread can burn; do not cover this appliance while in use and do not use this appliance near any flammable materials such as curtains, under shelving or wall cupboards, etc. It should be attended when in use.

- Do not put paper towels, cardboard or plastic in, on or under the toaster.

- If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.

- Do not attempt to dislodge food when toaster is plugged in.

- Do not use this appliance as source of heating or drying.

- Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.

This product has been designed for household use only. Any professional use, inappropriate use or failure to comply with the instructions will void the warranty.

SAVE THESE INSTRUCTIONS.

ENVIRONMENTAL PROTECTION

The packaging of your product is made of recyclable materials. Do not throw it out with your usual garbage; take advantage of your local recycling program.

MANUFACTURER'S WARRANTY

www.tefal.com

With a strong commitment to the environment, most of T-fal products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call T-fal consumer service directly at the phone number below for repair options.

Your help to sustain the environment is appreciated!

The Warranty

This product is guaranteed by T-fal for 1 year against any manufacturing defect in materials or workmanship, starting from the initial date of purchase.

The manufacturer's warranty by T-fal is an extra benefit which does not affect consumer's Statutory Rights. The T-fal warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At T-fal's choice, a replacement product may be provided instead of repairing a defective product. T-fal's sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement.

Conditions & Exclusions

The T-fal warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a T-fal authorized service centre. Full address details for each country's authorized service centre are listed on the T-fal website (www.tefal.com) or by calling the appropriate telephone number listed below to request the appropriate postal address.

T-fal shall not be obligated to repair or replace any product which is not accompanied by a valid proof of purchase.

This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow T-fal instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following:

-using the wrong type of water or consumable
-scaling (any de-scaling must be carried out according to the instructions for use);
-ingress of water, dust or insects into the product;
-mechanical damages, overloading
-damages or bad results due to wrong voltage or frequency
-accidents including fire, flood, lightning, etc
-professional or commercial use
-damage to any glass or porcelain ware in the product

ENG

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The T-fal manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one:

a) The T-fal guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.
b) The T-fal guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by T-fal
d) In cases where the product is not repairable in the new country, the T-fal guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This T-fal manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion.

Additional information

Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in T-fal internet site.

CANADA	MEXICO	U.S.A.
GROUPE SEB CANADA345 Passmore AvenueToronto, ONM1V 3N81-800-418-3325	G.S.E.B. MEXICANAS.A. de C.V. Goldsmith 38 Desp.401, Col. Polanco ChapultepecDelegacion Miguel Hildalgo11 560 Mexico D.F(01800) 112 8325	GROUPE SEB USA2121 Eden RoadMillville, NJ 08332800-395-8325
