Product Type	Electric grill plate (Teppan Yaki)
Brand	TECHWOOD
Model	TTP2343
Power supply voltage	220-240 V~ 50 Hz
Power	1800 W
Electrical class	Class I (with grounding)
Standby consumption	0.0 W
Plate coating	High quality non-stick
Adjustable thermostat	Yes, with built-in safety shut-off
Heating indicator light	Yes, turns off when temperature is reached
Recommended preheating	10 minutes before first use; varies according to needs
Included accessories	Power cord with detachable thermostat
Cleaning of exterior surfaces	With a soft, slightly damp cloth
Cleaning of removable parts	Dishwasher or warm soapy water
Plate maintenance	Use a wooden or heat-resistant plastic spatula; avoid metal objects
Safety	Safety thermostat (automatic shut-off in case of overheating); do not immerse
Warranty	24 months
Country of manufacture	PRC (China)
Standards	CE, RoHS, WEEE
Use	Indoor only, domestic use
Food compatibility	Yes (glass/fork symbol)

Frequently Asked Questions - TTP2343 TECHWOOD

How to use the grill plate for the first time?

Before first use, clean all accessories and the plate with soapy water, then dry thoroughly. Heat the grill for 10 minutes without food to remove grease residues and odors. Ventilate the room during this process.

How to clean the plate after use?

Unplug the appliance and let it cool completely. Clean the plate and removable accessories with a sponge and dish soap, or in the dishwasher. Exterior surfaces can be cleaned with a soft, slightly damp cloth. Never immerse the grill.

What to do if the plate does not heat up?

Check that the thermostat plug is properly connected to the appliance and that the knob is set to a position other than 'minimum'. Ensure the wall outlet works. If the problem persists, the safety thermostat may have tripped: unplug the appliance, wait 10-20 seconds, then plug it back in.

Can I use metal utensils?

No, avoid metal, sharp, or pointed utensils. Use a wooden spatula or heat-resistant plastic one to avoid scratching the non-stick coating.

How to adjust the temperature?

Turn the thermostat knob to select the desired temperature. The indicator light turns on during heating and goes off when the temperature is reached. For searing meats, set the thermostat to maximum and preheat fully.

Can the plate be used outdoors?

No, this appliance is designed for indoor use only. Do not use it outdoors or near water (bathtub, shower, etc.).

How to store the appliance?

Make sure the appliance is completely cool and dry. Do not wrap the cord around the appliance to avoid damage. Store it in a cool, dry place out of reach of children.

What does the indicator light mean?

The indicator light shows that the appliance is heating. It turns off when the selected temperature is reached and turns on again if the temperature drops during cooking.

How to avoid burns?

Do not touch hot surfaces during and after use. Use oven mitts if necessary. Keep the appliance out of reach of children and away from flammable materials.

What to do in case of overheating?

If the appliance overheats, the built-in safety thermostat automatically cuts off power (the indicator light goes off). Unplug the appliance, wait 10 to 20 seconds, then plug it back in. The grill will be operational again.

USER MANUAL TTP2343 TECHWOOD

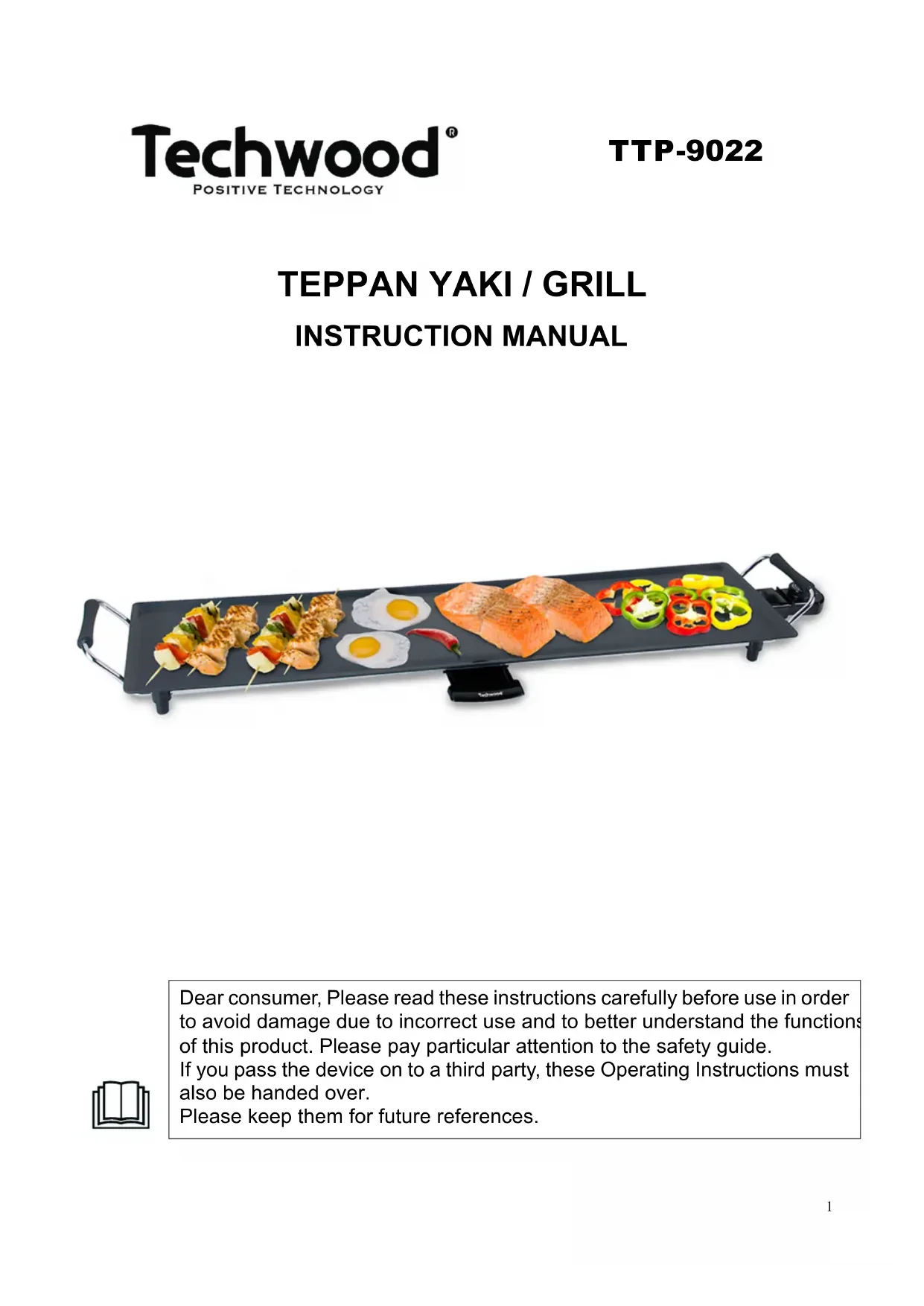

Plated black grater with various skewers, egg paintings, and colorful bell peppers arranged on a white surface (no text or symbols visible)

Black rectangular grater with handles and a small mechanical clamp attached (no text or symbols visible)

CONSEILS PRATIQUES

Line drawing of a plug socket with two pins (no text or symbols)

Plated black grater with various skewers, fried eggs, and colorful bell peppers arranged on a stand (no text or symbols visible)

Dear consumer, Please read these instructions carefully before use in order to avoid damage due to incorrect use and to better understand the functions of this product. Please pay particular attention to the safety guide.

If you pass the device on to a third party, these Operating Instructions must also be handed over.

Please keep them for future references.

IMPORTANT SAFEGUARDS

• Please read these instructions carefully before use.
• Keep present instructions for future references.
• Check that your mains voltage corresponds to that stated on the appliance.
• Only use the appliance for domestic purposes and household or similar applications such as:
  -staff kitchen areas, in shops, offices and other working environments;-by clients in hotels, motels and other residential type environments;
• Environment type like :

- Farm Houses • Bed and Breakfast.

- Only use the appliance in the way indicated in these instructions.

- Never use this unit near bathtub, shower, wash-hand basins or other containers with water.

- Never use this apparatus near water projections.

- Never use this apparatus with the wet hands.

☐ If, unfortunately the apparatus is wet, immediately withdraw the cord of the socket-outlet.

- Inform potential users of these instructions.

- Never leave the appliance unsupervised when in use.

☐ The appliance must be used only for its intended purpose. No responsibility can be taken for any possible damage caused by incorrect use or improper handling.

- Children and persons with disabilities are not always aware of the danger posed by the use of appliances.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
- Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the below paragraph of the manual.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
☐ Caution ! Do not allow small children to play with the foil : THERE IS A DANGER OF SUFFOCATION !
- From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
- Never immerse the appliance in water or any other liquid for any reason whatsoever.
- Never place it into the dishwasher.
- Never use the appliance near hot surfaces.
☐ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly Competent qualified person ^(*) in order to avoid a hazard.
- Disconnect the power source cable before any operation of cleaning of maintenance and accessories assembly.
- Never use the appliance outside and always place it in a dry environment.
- Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
- Never use any other connector than the one provided.
- Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.
- Never wind the cord around the appliance and do not bend it
- Ensure that the power cord does not come into contact with hot parts of this unit.

• Make sure the appliance has cooled down before cleaning and storing it.
  ☐ The temperature of accessible surfaces may be very high when the appliance is operating. Never touch these parts, of apparatus, to avoid burning itself.
  ☐ Make sure the appliance never comes into contact with flammable materials, such as curtains, cloth, etc...& the power cord and plug do not come in contact with water.
  Before cleaning, always unplug the appliance from the power supply and let it cool down.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
  □ Always place the unit on a flat surface. Ensure, also, not to cover the device and not to put anything on it.
  ▪ Always remove the plug from the wall socket when the appliance is not in use.
  ☐ When using an extension lead always make sure that the entire cable is unwound from the reel. Use solely CE approved extension leads. Input power must be at least 16A, 250V, 3000W.
  ☐ Incorrect operation and improper use can damage the appliance and cause injury to the user.
  ☐ This device, designed for home use, complies with standards relating to this type of product.
  ☐ This appliance is only intended for household use.

(*) Competent qualified person : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs.

SPECIAL WARNING FOR BBQ & GRILL

WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

Take care not to scratch the specific coating of the hob because:

o small fragments of this coating could mingle with food o the surface is irreparably damaged.

To avoid this, use a wooden spatula or a heat-resistant plastic model.

The Teppan Yaki Grill is equipped with a high quality non-stick coating. Pass a little oil on the plate before the first use. No fat is needed later.

WARNING :

1. In case of overheating of the device, the thermostat of built-in safety is triggered, causing the device (and indicator light) to turn off automatically.

Action:

o Unplug the device

o Wait 10 to 20 seconds and plug the unit back in. This will be ready for use again.

1. The temperature of the accessible surfaces may be high when the appliance is in use.

GENERAL INFORMATION

The symbol "OPEN BOOK" means a recommendation to read important things contained in the record.

The symbol "BIN" crossed out, abbreviation WEEE (Waste of Electrical and Electronic Equipment) means that at the end of life, it should not be discarded with household waste, but filed to the sorting of the locality. Waste recovery can help preserve our environment.

The symbol "CE" is the guarantee of compliance with harmonized European standards, voluntary, reflecting the essential requirements into technical specifications. These standards are not mandatory

but are guarantees of compliance with essential requirements.

The symbol ROHS (Restriction of use of some Hazardous Substances) on the Environmental Protection, certifies that for each of the five hazardous substances • Lead • Mercury • (hexavalent) chromium • products for protection against flames PBB and PBDE, the peak concentration is equal to or less than 0.1% of the weight of homogeneous material, and 0.01% for the 6th • cadmium.

The symbol "HOT WALL" warns the user that the walls of the unit can become very hot, and to take precautions as required.

The symbol "GLASS / FORK" means that the device is compatible and can come into contact with foodstuffs.

The symbol "TRIMAN" indicates that the consumer is invited to dispose the product as part of a separate collection (eg recycling bin, waste, voluntary intake point).

For more information : http://www.quefairedemesdechets.fr

The symbol "CMIM marking" is the guarantee of compliance with the harmonized Moroccan Standards, optional, which translate the essential requirements into technical specifications. These standards are not mandatory but guarantee compliance with the essential requirements.

BEFORE FIRST USE

- Clean the grill and the accessories (Cf. "Cleaning and care"). It is

recommended to heat up the grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and The unit, might emit light smell. It is however no consequence and will be Briefly.

• Ventilate the room during this period.
• Connect the main plug to a suitable socket
• Set the desired temperature by means of the temperature control OFF/MIN/1/2/3/4/5. The indicator lamp lights up.
• As soon as this temperature is attained, the light goes off then on, indicating that the thermostat maintain the correct temperature.
• Always turn the temperature control OFF/MIN/1/2/3/4/5 to "OFF", to switch off the grill.
• Pull out the mains plug from the socket and pull the plug from the connecting socket.
• Carry the grill only by the handles
• Let the grill cool down outside the reach of the children.

CAUTION: Grill surface is very hot during use.

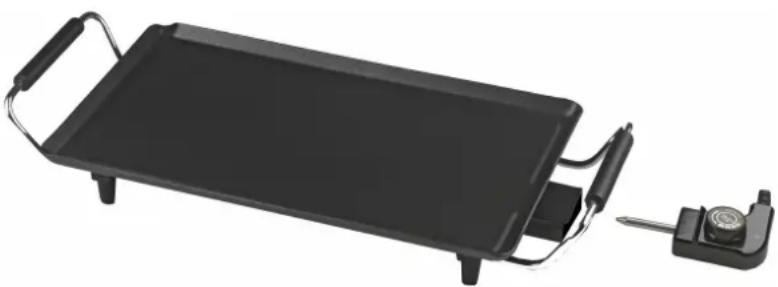

Black rectangular grater with attached electrical plug and side legs (no text or symbols visible)

USE

• Unroll the power cord completely.
• Check that the tension in force in the country where you are, corresponds to that indicated on the apparatus.
• Connect the apparatus in a correct socket-outlet, (and connected to the ground if the unit is Class I), to avoid any danger.
• Disconnect the power source cable before any operation of cleaning of maintenance and accessories assembly.
• Stand the appliance on a table or flat & stable surface.
• The item must not be left unattended when it is connected to main supply.
• The item is not to be used, if it has been dropped or if there are visible signs of damage.
• Never modify the appliance in anyway.
• Insert the plug with thermostat into the appliance (cf "Assembly"), make sure

the thermostat is on its minimum position and put the plug in an earthed power socket.

• Select the cooking temperature using the thermostat knob. The pilot light will come on, indicating that the appliance is heating.
• Preheat the grill to reach the ideal cooking temperature. When the appliance reaches the desired temperature, the pilot light will go out.
• Now put the foodstuffs onto the grilling surface.
• The grilling times vary according to the nature of the foodstuffs and to your personal taste.
• When grilling is finished switch off the grill and disconnect it.

PRACTICAL HINTS

• Frozen food should always be thawed before it is grilled.
• To grill meat, put the thermostat in its maximum position and preheat the grill. For other ingredients, choose the temperature accordingly.
• Never scratch the special non-stick coating. Use a wooden spatula or a heat resistant plastic spatula.

CLEANING AND CARE

• Before cleaning, put the thermostat in its minimum position and make sure that the plug has been removed from the mains supply socket.
• Let the grill to cool down thoroughly and unplug the thermostat from the appliance.
• Never immerse the appliance or the plug in water or any other liquid. However, should there be water on the electric connection, wait until the appliance is completely dry before using it anew.
• Wipe the outer surfaces of the grill with a damp cloth and dry afterwards.
• The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can be washed in hot water with sponge and soft detergent or put in the dishwasher.
• Do not use harsh abrasive cleaners as these might damage the non-stick coating.

STORAGE

-Ensure the unit is completely cool and dry.

-Do not wrap the cord around the appliance, as this will cause damage.-Keep the appliance in a cool, dry place and out of reach from children.

GUARANTEE IN ACCORDANCE WITH REGULATIONS

Before being delivered, all our products are subjected to rigorous checks.

This device is guaranteed for 24 months from the date of purchase of the product by the consumer.

The warranty documents are:

• the invoice and
• the warranty certificate (located on the side or the bottom of the box) stamped and completed.

Without these supporting documents, no free replacement or free repair can be made.

During the warranty period, we take charge, free of charge, for defects in the device or accessories, resulting from a defect in materials or workmanship by repair or replacement.

Services under the legal guarantee do not entail any extension of the guarantee period and do not give the right to a new guarantee.

In the event of a warranty claim, return the complete device to your dealer, in its original packaging, accompanied by proof of purchase.

The breakage of glass or plastic parts is, in all cases, your responsibility.

Wearing parts (for example: motor brushes, hooks, drive belts, spare remote control, spare toothbrushes, saw blades etc.) as well as their cleaning, maintenance or replacement, are not guaranteed. , and are therefore at your expense.

In the event of foreign intervention, the guarantee lapses.

After expiry of the warranty period, repairs can be carried out, against payment, by a specialist dealer or a repair service.

SPECIFICATIONS

Power supply 220-240V\~50Hz

Power 1800W

Norm Class I

Off mode 0.0W

NOTE : The period after which the equipment reaches automatically off mode is 0 minutes.

Made in PRC

The characteristics can change without prior notice.

This unit is equipped with an electrical outlet with earth and must be earthed in an according plug.

Note : In the event of question concerning the earth or electric connection, please consult a qualified personnel.

In the event of short-circuit, earthing reduces the risk of electric shock while making possible the current to be evacuated by the wire of ground.

Line drawing of a plug with two pins (no text or symbols)

CAUTION: In order to minimize the risks of electric shock, In the event of breakdown, not to open the case but to call upon a qualified technician for repairs.

This apparatus satisfied EC directives, it was controlled according to all the European current directives, like: electromagnetic compatibility (EMC) and low tension (LVD).

This apparatus was designed and manufactured in respect of the last safety regulations and technical specifications.

TEPPAN YAKI / PARRILLA

Plated black grater with various skewers, grilled fish, and colorful toppings (no text or symbols visible)

Black rectangular flatboard with handles and a small electrical plug attached (no text or symbols visible)

USAR

Line drawing of a plug with two pins (no text or symbols)

Plated black grater with various skewers, fried eggs, and colorful bell peppers arranged on a white surface (no text or symbols visible)

Black rectangular grater with attached electrical plug and side-mounted switch (no text or symbols visible)

VERWENDEN

Line drawing of a plug with two leads (no text or symbols)

Plated black grater with various skewers, grilled fish, and colorful toppings (no text or symbols visible)

IMPORTANTI MISURE DI SICUREZZA

Black rectangular flatboard with handles and a small mechanical clamp attached (no text or symbols visible)

UTILIZZO

Line drawing of a plug with two leads (no text or symbols)

Plated black grater with various skewers, fried eggs, and colorful bell peppers arranged on a white surface (no text or symbols visible)

BELANGRIJKE VEILIGHEIDSMAATREGELEN

SPECIALE WAARSCHUWING VOOR BBQ & GRILL

Black rectangular flatboard with handles and a small electrical plug attached (no text or symbols visible)

GEBRUIK

Line drawing of a black electrical plug with two leads (no text or symbols)

Plated black grater with various skewers, fried eggs, and colorful bell peppers arranged on a white surface (no text or symbols visible)

ة ماه تانامض

الجاقا

بَلْمَعَدَا تَاتَّيِبُ نَهٍ مَا هَرِ يَغُو

- لثم

. ءعارقىجىي

لاب ظف تجا

.ارابتلا دُظَّف كَأَد

زایهجل ۱۰ مب ختسیا

ومل ا خ لطقطانم

يَفْ لِمْعَدَا ظُطَابِ

قَدْيِبْلَا عَذ

رطالبتملا مقطوئد

هجل 1 مدختنبا

الله الله

زمودا ریشید

"TRIMAN"

Black rectangular flatboard with handles and a small electrical plug attached (no text or symbols visible)

م دختسی

قطا الكلاستف مق

بَلَالْفِيلَا مُحَارَّخَ كَأَتَ
