CAH215067 - Heating Emerio - Free user manual and instructions

Product type	Patio heater
Brand	Emerio
Model	CAH215067
Use	Outdoor (patio, garden)
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W
Protection rating	IP34
Main functions	Heating, Bluetooth speaker, LED lighting (8 modes)
Bluetooth	Version not specified; range approx. 10 m
LED lighting	8 modes (7 fixed colors + 1 multicolor flashing), controlled by remote control
Remote control	Yes, with CR2025 battery included; range 3 m
Dimensions (approx.)	Height approx. 180 cm, base diameter approx. 40 cm
Weight (approx.)	Approx. 8 kg
Material	Steel (body), glass (heating tube)
Safety	Automatic shut-off in case of overheating; tip-over switch
Cleaning	Damp, soft cloth; do not use abrasive cleaners
Included accessories	Remote control, CR2025 battery, user manual
Warranty	2 years
Repairability	Heating element not user-replaceable; repair by professional
Certifications	Complies with European standards

Frequently Asked Questions - CAH215067 Emerio

How to use the Bluetooth function?

After turning on the appliance, activate Bluetooth on your phone and search for the device named "Emerio CAH-215067". Once connected, you can stream your music through the built-in speaker.

What is the range of the remote control?

The remote control works up to 3 meters and must be pointed at the appliance.

How to change the colors of the LED lighting?

Use the remote control: press the "" button to turn on/off, then press the selection button several times to cycle through the 8 lighting modes (7 fixed colors + 1 multicolor flashing mode).

Can the appliance be used in the rain?

The IP34 rating protects against splashes, but it should not be exposed to heavy rain. Store it protected from the weather when not in use.

What to do if the heater turns off by itself?

It's the overheat safety system. Turn off the appliance, unplug it, let it cool down for 10 minutes, then plug it back in. If the problem persists, check that the appliance is on a stable, unobstructed surface.

Can I replace the heating element myself?

No, the heating element is not user-replaceable. Any attempt at repair voids the warranty. Contact a professional.

How to clean the appliance?

Unplug it and wait for it to cool down. Wipe the outside with a soft, damp cloth. Do not use abrasive detergents or chemicals. Never immerse the appliance in water.

What is the power consumption?

The maximum power is 1500 W, or 1.5 kWh. Use a suitable power outlet and avoid extension cords if possible.

Can the appliance be used indoors?

It is designed for outdoor use. Indoors, maintain a distance of at least 1 meter from flammable materials and do not use in a damp room (bathroom, etc.).

How to store the appliance in winter?

Clean it, let it dry completely, then store it in its original packaging or in a dry, dust-free place. Remove the remote control battery if not using for a long time.

USER MANUAL CAH215067 Emerio

Vertical cylindrical device with a textured internal structure, mounted on a base (no visible text or symbols)

Patio heater (EN)

Terrassenheizstrahler (DE)

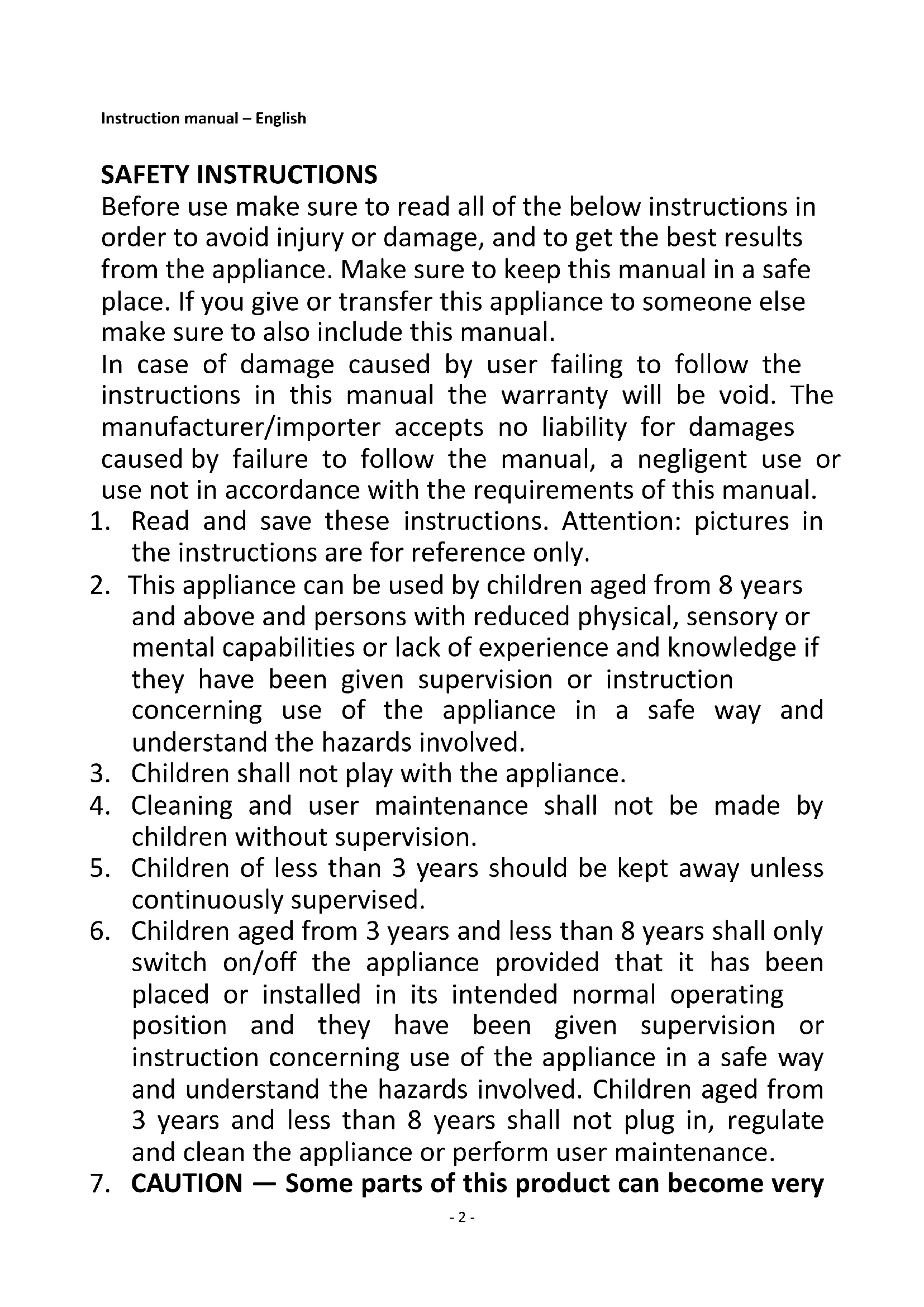

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read and save these instructions. Attention: pictures in the instructions are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. Children of less than 3 years should be kept away unless continuously supervised.
6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
7. CAUTION — Some parts of this product can become very

hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
3. The heater must not be located immediately below a socket-outlet.
4. WARNING: In order to avoid overheating, do not cover the heater.
5. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
6. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
7. Position the appliance at least 1m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
8. Never leave the appliance unattended while in operation. Always unplug the appliance when not in use.
9. Do not replace or attempt to replace the element in this product.
10. This product is suitable for outdoor use only. Do not operate the appliance in direct sunlight, near heat sources, humid environments or in places near water or other liquids such as bathrooms, shower or swimming pool.
11. This product must not be left outdoors exposed to the sun, wind or rain for long periods of time.

12. Do not operate with wet hands or spill water or other liquids on to the appliance, the mains cable or plug. Never use the appliance if the appliance or the cord is damaged. Risk of injury!

13. Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

14. Do not wind the power cable around the unit.
15. Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.
16. To prevent a possible fire, do not block the air vents.
17. Do not use the appliance in areas where petrol, paints or other flammable substances are used or stored.
18. Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.
19. Always ensure the heater is plugged into an earthed plug socket, one that is tested for outdoor use.
20. Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
21. This appliance is not for drying clothes. Keep children and pets at a safe distance from the appliance.
22. Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.
23. Keep unit away from heated surfaces and open flames.
24. To disconnect the appliance, switch off the appliance, and then remove the plug from the power socket. Do not unplug the appliance by pulling the power cable.
25. Always use on a dry, suitably strong, stable, flat and level surface.

PACKAGING

• After unpacking the appliance, check for transport damage and completeness!
- Do not discard the original box! It can be used for storage and dispatch in order to avoid transport damage.
- Dispose of the packing material in a proper manner. Plastic bags should be kept away from children.

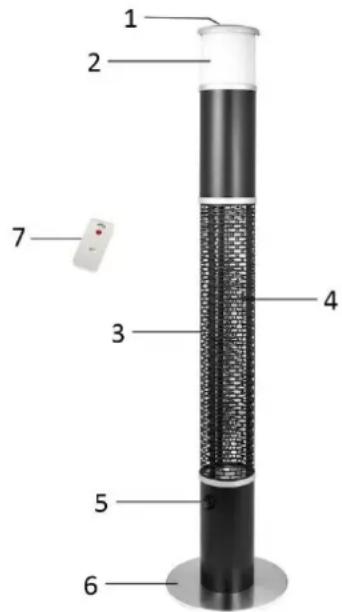

DESCRIPTION OF THE APPLIANCE

1. Bluetooth speaker
2. Led lighting
3. Grille housing
4. Heating element
5. Heating on/off switch
6. Base
7. Lighting remote control

Put the plug into an appropriate power outlet. This appliance has Bluetooth connection, LED lighting, and heating functions, which are separately operated as below introduced.

Bluetooth connection

1. After power connection, the appliance sends out the prompt sound "Bluetooth mate".
2. Open your mobile device, search and connect to the Bluetooth device named as "Emerio CAH-215067". The appliance sends out the prompt sound "Bluetooth connected" after the successful connection.
3. If the Bluetooth connection is disconnected, the appliance will send out the prompt sound "Bluetooth cancelled".
4. With the Bluetooth connection, the speaker in the appliance can play the audio played on the mobile device. You can control the audio by operation on the mobile device.

Note: Once the appliance is successfully paired, the Bluetooth will be connected automatically the next time the appliance and mobile device are switched on.

LED lighting

- This function is operated with the remote control. One piece of CR2025 battery will be provided with the remote control. Before starting to use the remote control, remove the plastic protection from the battery. If you want to change the battery, please refer to the instruction behind the remote control. If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children.

- To turn on or turn off the lighting, press the remote-control button " [Red]".

- To select one of the 8 light modes, press the remote-control button “☐” consecutively. The first seven modes are single lights of different colours; the eighth mode is combined lights flashing in different colours.

These eight modes form a repeated cycle.

Note: When using the remote control, it should be pointed to the appliance within a distance of 3 meters.

Heating

Press the heating on/off switch to the position "I", the heating is on.

Press the heating on/off switch to the position "O", the heating is off.

SAFETY SYSTEM

• The appliance has a safety system which automatically switches the unit off when overheated.
- If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on.
- This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

CLEANING AND MAINTENANCE

• The heater only needs regular cleaning on the outside.
• Before cleaning the appliance, switch it off, remove the plug from the power outlet and let it cool down completely.
• Use a damp soft cloth to wipe the heater housing.
• Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.
• Do not immerse the appliance in water or other liquids.
• When it is not used, cover the appliance and put it in a dry place; you may also pack it into the original packaging to protect it from dust and humidity.

TECHNICAL DATA:

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 1500W

Max. transmitting power: 20 dBm

Frequency range: 2402-2483.5 MHz

IP34

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT RE OR SHORT CIRCUIT.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]
