FN120952.1 - Fan Emerio - Free user manual and instructions

Brand	Emerio
Model	FN120952.1
Product type	Fan with wooden tripod
Supply voltage	220-240 V ~ 50/60 Hz
Power consumption	47 W
Maximum air flow	66.83 m³/min
Service value (SV)	1.42 (m³/min)/W
Sound power level	65.75 dB(A)
Maximum air speed	3.60 m/s
Number of speeds	3 (I, II, III)
Oscillation	Yes (button on motor)
Adjustable tilt	Yes (loosen black buttons)
Adjustable height	Yes (height adjustment tube)
Tripod material	Wood
Protective grilles	Front and rear
Recommended use	Indoor, flat and dry surface
Maintenance	Clean with a damp cloth, vacuum grilles
Safety	Do not immerse, do not use without grilles, unplug before cleaning
Warranty	2 years
Recycling	Compliant with WEEE directive 2012/19/EU

Frequently Asked Questions - FN120952.1 Emerio

How to assemble the fan tripod?

To assemble the tripod, remove the fixing screws and nuts from the support. Attach each wooden leg to the support by aligning the holes and tighten the screws. Open the legs, connect the three metal connecting tubes with the butterfly screws. Finally, adjust the height adjustment tube and tighten the locking button.

How to adjust the fan height?

Loosen the locking button on the adjustment tube, adjust to the desired height, then retighten the button.

How to clean the fan?

Turn off and unplug the appliance. Use a damp cloth to clean the exterior. For the grilles, use a dry brush or vacuum cleaner. Never immerse the fan in water.

What to do if the fan does not work?

Check that the power cord is properly plugged in and that the mains socket works. Make sure the speed switch is not set to '0'. If the problem persists, contact customer service.

Can I use the fan without the front grille?

No, never use the product without its grilles assembled, as this could cause serious injury. The grilles protect against contact with rotating blades.

How to activate oscillation?

Press the oscillation button located on top of the motor to activate oscillation. To stop it, pull the button upward.

What is the noise level of the fan?

The sound power level is 65.75 dB(A), which corresponds to moderate noise.

Can the fan be used outdoors?

No, this appliance is designed for indoor use only. Do not use it outdoors.

How to adjust the fan tilt?

Loosen the two black buttons (large and small) on the motor attachment, tilt the fan head to the desired angle, then retighten the buttons.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard. Do not use the appliance with a damaged cord.

USER MANUAL FN120952.1 Emerio

Exterior view of a vintage desktop fan with a red tripod stand (no text or symbols visible)

Fan with wooden tripod (EN)

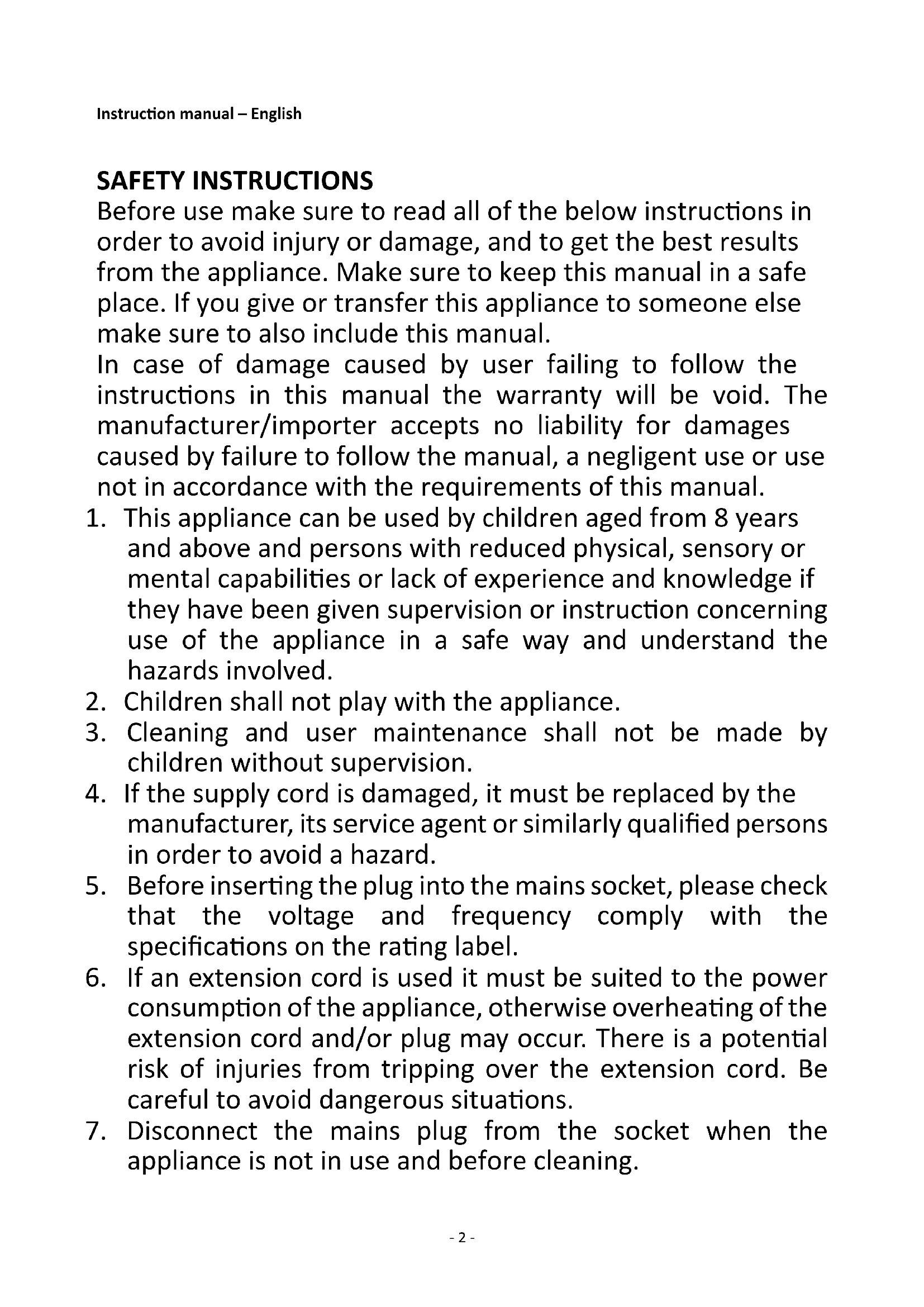

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

7. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

8. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
13. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
14. Never leave the appliance unattended during use.
15. This appliance is not designed for commercial use.
16. Do not use the appliance for other than intended use.
17. Do not wind the cord around the appliance and do not bend it.
18. Keep the appliance away from damp, and protect from splashes.
19. Use the appliance on a flat, dry and heat resistance surface.
20. Do not store or operate the appliance in the open air.
21. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
22. Never put fingers or any other objects through the fan guards when the fan is running.
23. Never operate the product without the fan guards in place, as serious personal injury may result.
24. The appliance must be assembled completely before use.
25. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
26. Do not point the air flow at people for a long time.
27. Ensure that the fan is switched off from the supply mains before removing the guard.

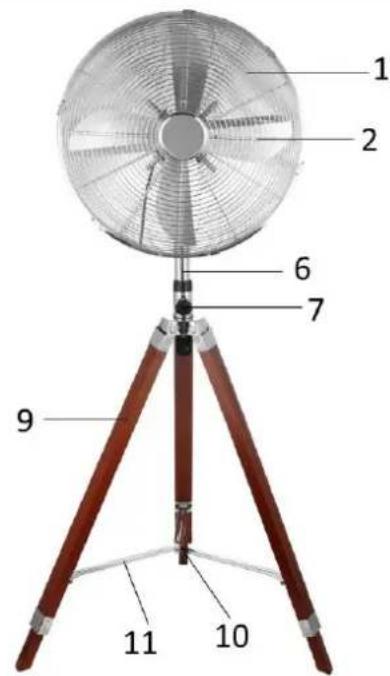

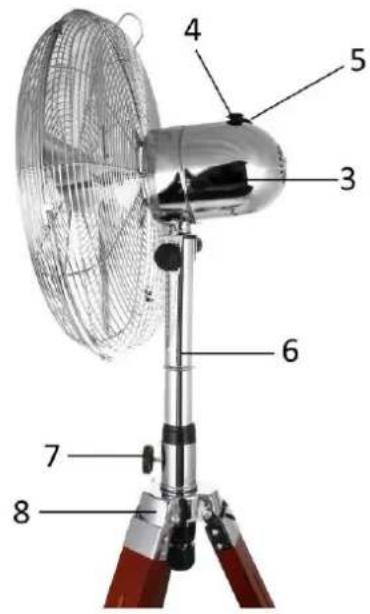

PARTS DESCRIPTION

1. Fan guard
2. Fan blade
3. Motor
4. Oscillation knob
5. Speed switch
6. Height adjustment pipe
7. Fastening knob
8. Tripod holder
9. Tripod leg
10. Butterfly fastening screw
11. Metal link pipe

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Tripod leg assembly
   1) Remove the securing screws and nuts from the tripod holder.
   2) Attach the metal part of the wooden tripod leg to the tripod holder, line up the holes and fit the securing screws all the way through. Take note of the orientation of the leg end.
   3) Fit the nut to the protruding end of the screw and tighten the nut.
   4) Repeat for the other two legs.
   5) Take the butterfly fastening screws out from the small bag.
   6) Open out the legs, connect the three metal link pipes by the butterfly fastening screws.
   7) Adjust the height adjustment pipe to your desired height and tighten the fastening knob.

2. Motor housing assembly

1) Stand the Tripod on the floor.

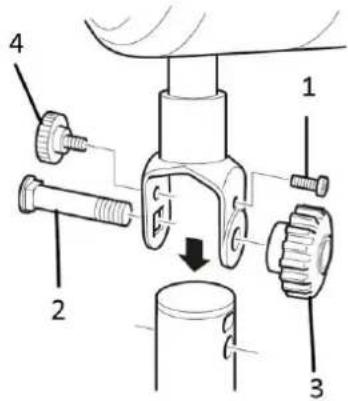

2) Remove the big black knob (3) and mounting bolt (2) from the top of the adjustment pipe. Unscrew the knob

and pull the bolt straight out.

3) Loosen the small screw (1) and small black knob (4) from the bracket on the motor housing.

4) Sit the motor housing on top of the adjustment pipe, insert the mounting bolt (2) through the bracket and the pipe. Note: the Square section under the head of the bolt must be aligned with the square hole in the bracket.

5) Pay attention to screws' position according to the below picture. Tighten the small screw (1) into position and screw in the small black knob (4) but do not tighten. Then, fit the big black knob (3) to the mounting bolt (2).

6) Adjust the tilt angle of the fan head to your desired position and then fully tighten both the small and big black knobs.

1. Fan guards and blade assembly

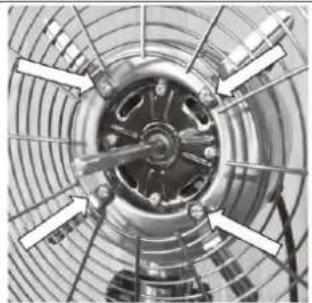

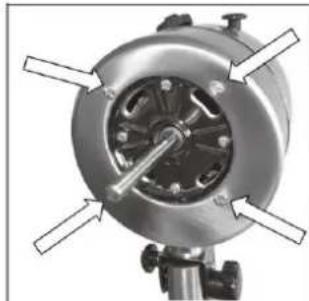

1) To assemble the fan guards and blade, first remove the 4 rear guard fastening screws from the motor. (fig. 1)

2) Fit the rear guard into position (with the handle on the back of the guard at the top) and refit the 4 screws and tighten. (fig. 2)

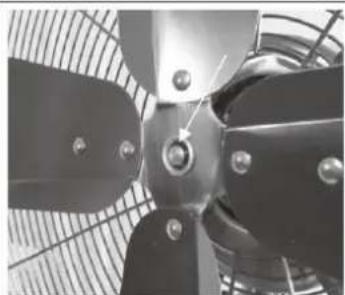

3) Slide the fan blade onto the spindle ensuring the screw is lined up with the "flat" surface on the spindle as shown. (fig. 3)
4) Push on until the end of the spindle is flush with the end of the fan blade hole, then tighten the screw. (fig 4)

Close-up of a mechanical component with a central hub and mounting base (no visible text or symbols)

1

Close-up of a mechanical fan or impeller with visible blades and central hub (no text or symbols)

2

Close-up of a mechanical fan assembly with visible blades and mounting holes (no text or symbols)

3

Close-up of a mechanical fan with visible blades and mounting holes (no text or symbols)

4

Close-up of a curved mechanical component attached to a coiled wire or filament (no text or symbols visible)

Close-up of a wire mesh structure resembling a turbine or turbine blade (no text or symbols visible)

6

7

Close-up of metallic mechanical components with two white arrows pointing to specific features (no text or symbols visible)

8

5) Open up all locking clips on the sides of the front guard. (fig.5)
6) Place the front guard into position by lining up the location plate over the top of the rear guard as shown and push down. (fig.6)
7) Secure the two guards by closing the clips over the outer rim. (fig. 7)
8) Then using the small nut and bolt, fasten the two guards together at the bottom of the guards. (fig.8)

1. Plug the power cord into a suitable socket.
2. Switch on the fan by using the speed switch on the motor housing. "0" = off, "1" = low speed, "II" = medium speed, "III" = high speed.
3. Tilting angles: You can loosen the big and small black knobs on the motor bracket to adjust the fan to your preferred elevation. Then fasten the elevation by tightening the knobs.
4. Oscillation: to make the fan head oscillate, push down the oscillation knob on the top of the motor. To stop the fan head from oscillating, pull up the oscillation knob.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred

during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

EMERIO Switzerland AG

Industriestrasse 47

6300 Zug

Switzerland

ERP information (EN)

Supplier: EMERIO Switzerland AG

Industriestrasse 47

6300 Zug

Switzerland

Declare that the product detailed below:

Information requirements

The mentioned information to identify the FN-120952.1[Fan with wooden tripod]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	66,83	m^3/min
Fan power input	P	47,0	W
Service value	SV	1,42	(m^3/min)/W
Standby power consumption	P_SB	-	W
Fan sound power level	L_WA	65,75	dB(A)
Maximum air velocity	c	3,60	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	EMERIO Switzerland AGIndustriestrasse 476300 ZugSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
