Brand	Emerio
Model	UVC127226.1
Product type	Cordless stick vacuum with handheld function
Power supply	Rechargeable battery 22.2 V, mains adapter 27.0 V 0.5 A
Filter	Washable HEPA filter
Dust container capacity	Approx. 0.5 L (estimation)
Runtime	Approx. 20-30 minutes (estimation)
Charging time	Approx. 4-5 hours (estimation)
Suction modes	Low and High
Wash function	Yes, with water tank and cloth
Included accessories	2-in-1 nozzle (dusting brush/flat suction), water tank, floor brush
Use	Household use only
Maintenance	Washable dust container and filter, washable removable roller brush
Safety	Do not immerse, do not use without filter, unplug before maintenance
Warranty	2 years
Recycling	Do not dispose of with household waste, follow local guidelines

Frequently Asked Questions - UVC127226.1 Emerio

How to charge the vacuum cleaner?

Insert the connector pin into the charging hole of the device, then plug the adapter into a mains socket. During charging, the indicator flashes; when the battery is full, 3 indicators remain lit. Then unplug the adapter.

Can I use the vacuum cleaner while it is charging?

No, the appliance cannot operate during charging. Unplug it before use.

How to use the vacuum cleaner in handheld mode?

Press the release button (R) to remove the vacuum unit from the handle. You can then use the 2-in-1 nozzle for corners or tight spaces.

How to clean the dust container?

Turn off the appliance, remove the handheld vacuum, then press the dust container release button. Empty the container, wash it with warm soapy water, rinse and dry completely before reassembling.

How to clean the HEPA filter?

Turn and remove the filter cover, then gently tap the HEPA filter. Wash the cover and filter with warm soapy water, rinse and dry completely before reassembling.

How to clean the floor brush?

Slide the lock switch outward, remove the roller brush. Remove hair and fibers, then wash the brush under running water with a mild detergent. Dry completely before reassembling.

Can I use the vacuum cleaner to vacuum liquids?

No, never vacuum combustible or flammable liquids. Use the appliance only on dry surfaces.

How to use the water tank for floor washing?

Attach a cloth to the back of the tank, open the lid, fill with water, then close. Place the tank against the floor brush (magnets align). Press the 'OPEN' switch to release water.

What to do if the vacuum cleaner no longer works in upright position?

Check that the handheld vacuum unit is correctly assembled under the upper handle. The appliance will not work in upright position if the unit is not engaged.

How to change the battery?

The battery is not user-replaceable. It is built into the appliance. For any issues, contact after-sales service.

USER MANUAL UVC127226.1 Emerio

Exterior view of a modern vacuum cleaner with blue and silver casing (no text or symbols visible)

Handy vacuum cleaner (EN)

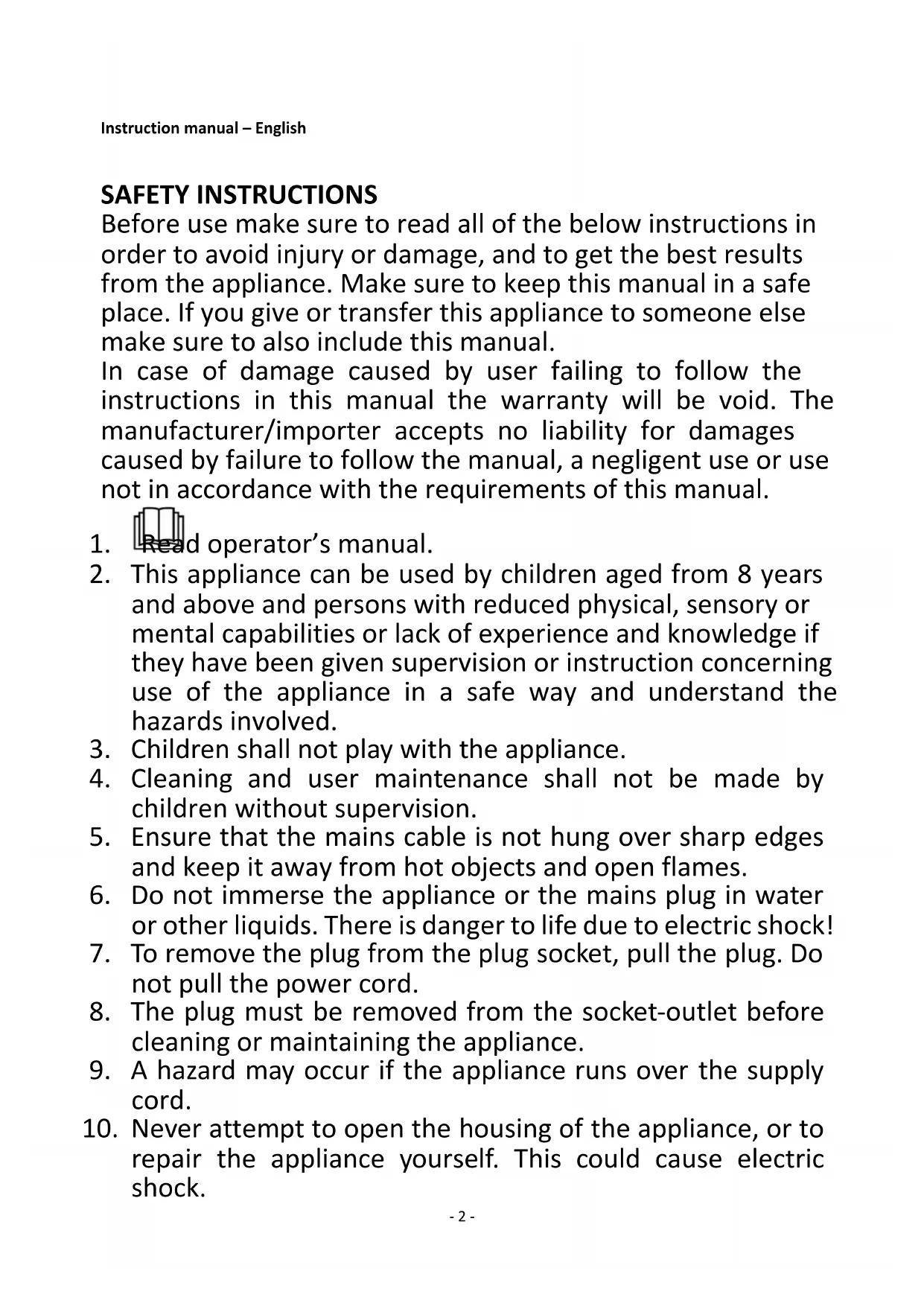

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read operator's manual.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

9. A hazard may occur if the appliance runs over the supply cord.

10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

11. Never leave the appliance unattended during use.

12. This appliance is not designed for commercial use. For household use only.
13. Do not use the appliance for other than intended use.
14. Do not wind the cord around the charger and do not bend it.
15. Close supervision is necessary for any appliance being used by or near children. Do not leave the system unattended while connected. Keep hair, loose clothing, fingers and all parts of body away from opening and moving parts.
16. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
17. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.
18. Use extra care when cleaning on stairs.
19. Do not use the appliance without the dust cup filter in place.
20. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
21. Do not put any objects into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything else that may reduce air flow.
22. Use only on dry surfaces.
23. Important: If the suction opening in the unit is blocked, switch off the appliance and remove the blocking substance before you start the unit again.
24. Do not operate the appliance too close to heaters, radiators or cigarette butts.
25. Before you start vacuuming, make sure to remove large or sharp objects that might damage the dust cup filter.
26. The appliance is only to be used with the power supply unit provided with the appliance.
27. The charger must be removed from the socket before removing the battery.

28. Use the included charger to charge the vacuum cleaner and do not use the charger for other purposes.

29. Do not open the charger.

30. Batteries:

Never attempt to open for any reason.

Do not expose the battery to water.

Do not expose the battery to heat.

Do not store in locations where the temperature may exceed 40^ C.

1. In an emergency situation contact professional help immediately.
2. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
3. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
4. Detachable supply unit

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

1. This appliance contains batteries that are non-replaceable.

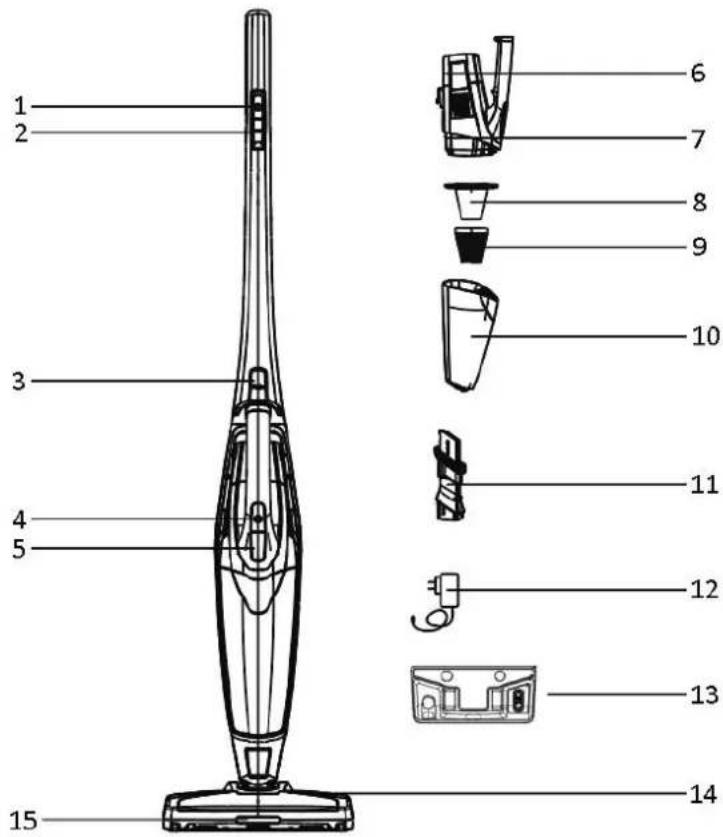

PARTS DESCRIPTION

1. Power switch for upright use
2. Suction power switch
3. Release button for handheld use
4. Power switch for handheld use
5. Dust tank release button
6. Battery pack
7. Main unit
8. HEPA filter
9. Filter cover
10. Dust tank
11. 2 in 1 nozzle
12. Adaptor
13. Water tank
14. Floor brush
15. Floor brush lights (illuminated when the appliance is working)

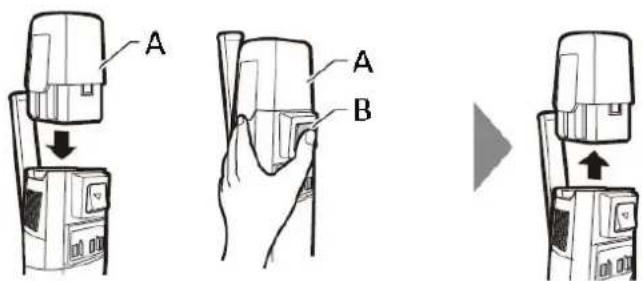

How to detach and attach the battery pack

• To attach the battery pack (A), put it above the handheld cleaner body and press it downwards into its place.
- To detach the battery pack, press the battery lock switch (B) downwards to release the lock, and at the same time pull the battery pack off from the handheld cleaner body.

BEFORE USE

1. Remove all packaging materials and check if all parts have no visible damage.

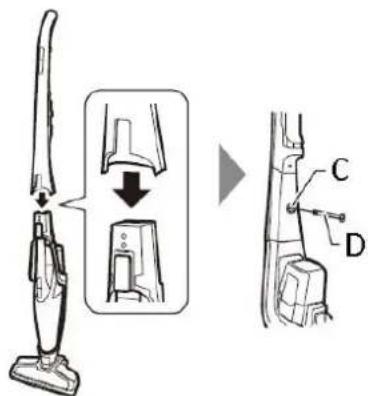

2. Attach the upper handle and press it downwards to the main body. Put the provided screw (D) into the screw hole (C), and tighten it to fix the assembly of the handle.

1. Allow the appliance to charge to full battery before the first use. (See the section "RECHARGING THE APPLIANCE".)

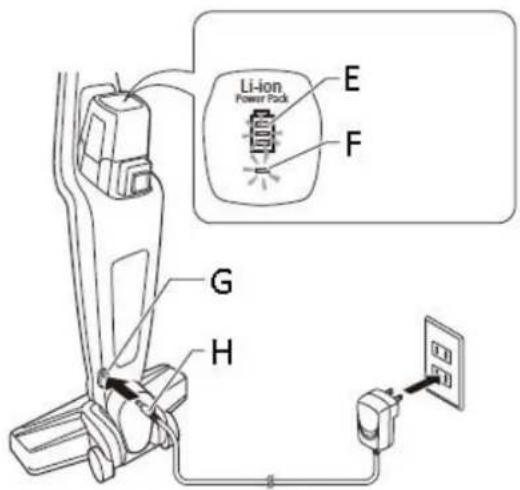

RECHARGING THE APPLIANCE:

On the battery pack, there are battery lights (E) and power light (F) for indication. When operation, the power light and battery light(s) will illuminate.

1. When there is only one pilot light blinking in the process of operation, the appliance needs to be recharged.
2. Insert the connector pin (G) into the charger hole (H) of the appliance, and then plug the adaptor into the power socket. The appliance is in charge.
3. While charging, the pilot light will blink to indicate the appliance is being charged. When the battery is full, the charging will stop automatically and 3 battery lights will be on instead of blinking.
4. After charging, unplug the adaptor first, and then remove the connector pin.

Note:

(1) Do not let the appliance uncharged for a long time, because the inner accumulators may be damaged.
(2) The appliance cannot work during charging.

OPERATION

1. Press the power switch to turn on the appliance.
2. Press the suction power switch to select low or high power level when the appliance is used in upright state.

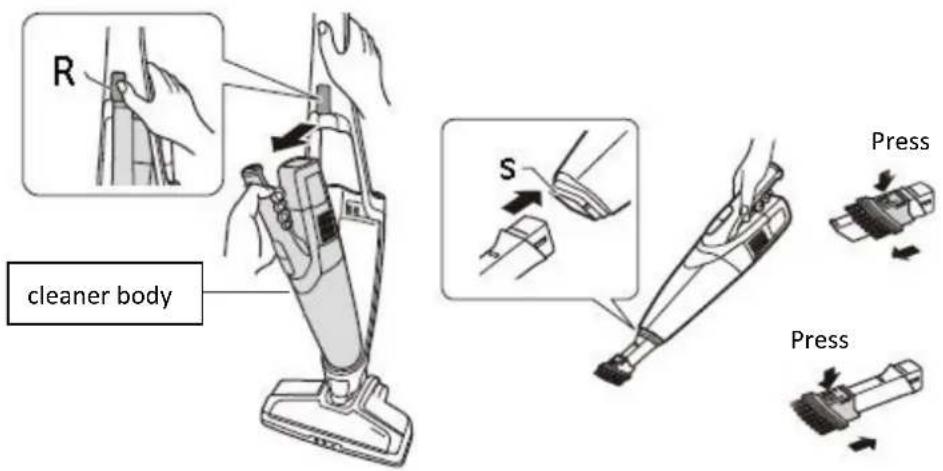

3. The appliance can be used as a handheld vacuum cleaner by pressing the release button (R) to take off the cleaner body. To clean corners or narrow spaces, the 2 in 1 nozzle can be inserted to the suction hole (S) of cleaner body. It can be used as a dusting brush or crevice nozzle. Press the switch and slide the brush forwards or backwards to adjust it.

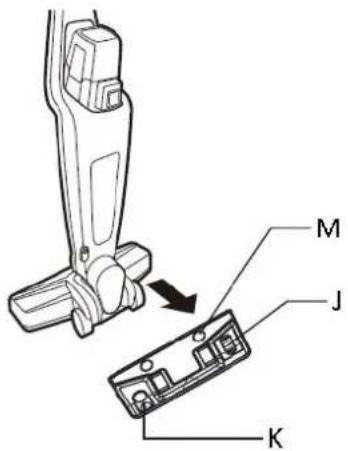

1. The appliance can be used with the water tank and cloth to mop the floor.

1) Make sure the cloth is attached at the back of the water tank. When the water tank switch (J) is at the side "CLOSE", open the water tank lid (K) and fill the water tank with some water, then close it properly.
2) Make the wheel side of the floor brush be close to the magnets (M) on the water tank. The floor brush and water tank will be combined together.
3) Press the water tank switch to the side "CLOSE", the water will not be flown out; press it to the side "OPEN", the water will be flown out.

1. After use, press the power switch to turn off the appliance.

NOTE:

• During use, please pay attention to the dust capacity and empty the dust cup before it is full.
- The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.
- The appliance in upright state will not work, if the handheld cleaner body has not been properly assembled below the upper handle.
• The 2 in 1 nozzle can be stored at the back of handle when it is not in use.

CLEANING AND MAINTENANCE

1. Turn off the appliance and disconnect it with the adaptor before dissembling, assembling or cleaning.
2. Do not immerse the main unit and battery in water or any other liquids.
3. Use only a soft moist cloth to clean the outside of the main unit. Do not allow any kind of liquid to enter the main unit.
4. Do not use aggressive chemicals or abrasives.
5. Do not use the device if the filter is broken or worn out.
6. The unit does not contain parts serviceable by you, do not disassemble it and do not try to repair it yourself.

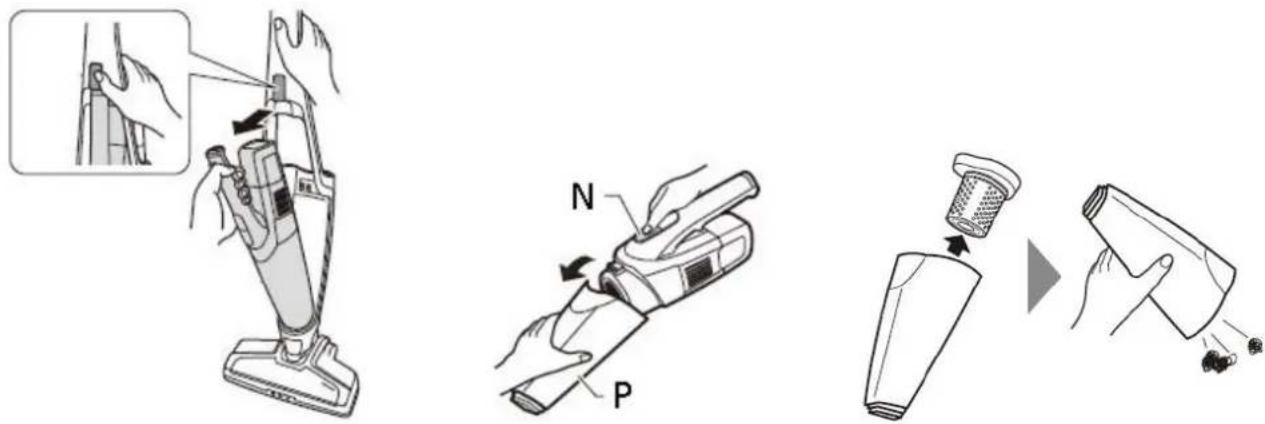

• How to clean the dust cup

1) Turn off the appliance. Take off the handheld vacuum cleaner.
2) Press the dust cup release button (N) to take off the dust cup (P).

3) Take out the dust cup filter.

4) Empty the dust cup.

5) Wash the dust cup in warm soapy water; rinse and dry it completely before reassembly.

• How to clean the dust cup filter

1) Rotate and take off the filter cover (V) from the HEPA filter (U).
2) Gently tap and clear the filter cover and HEPA filter.
3) Wash the filter cover and HEPA filter in warm soapy water; rinse and dry them completely before reassembly.

Illustration of two hands holding a cylindrical container and a perforated cover, with no visible text or symbols.

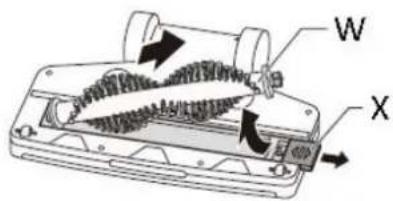

• How to clean the floor brush

1) Move the lock switch (X) outwards, and take out the rolling brush. Remove any dirt (hair and other fibers) tangled around the roller.
2) Wash the brush under running water with mild detergent. Make sure that it is completely dry before replacing it.

Note: When assembling the rolling brush back, do not forget to move the lock switch back to the locked position.

Note: The cloth beneath the water tank can be pulled off for cleaning. Wash and dry it well. Never forget to attach it back before use.

Close-up of a transparent plastic device with a coiled cable or strap, no visible text or symbols

TECHNICAL DATA:

Battery: 22.2V=200mAh 48.84Wh

Adaptor input: 100-240V \~ 50/60Hz, 0.5A

Adaptor output: 27.0V =0.5A

Main unit: 22.2V

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Close-up of a blue plastic electronic device with a transparent cover and internal structure (no visible text or symbols)

TECHNISCHE DATEN

Akku: 22,2V=2200 mAh 48,84 Wh

Close-up of a blue plastic electronic device with a transparent cover and internal striped pattern (no text or symbols visible)

DONNÉES TECHNIQUES

Batterie : 22.2 V = 200 mAh 48,84 Wh

Close-up of a blue plastic electronic device with a transparent cover and textured surface (no visible text or symbols)

SPECIFICHE TECNICHE

Batteria: 22,2 V = 2200 mAh 48,84 Wh
