FH212092.1 - Heating Emerio - Free user manual and instructions

Brand	Emerio
Model	FH212092.1
Product type	Fan heater
Maximum power	2000 W
Minimum power	1000 W
Supply voltage	220-240 V ~ 50 Hz
Heat settings	2 modes (high heat HI / low heat Lo)
Temperature range	6 °C to 35 °C
Timer	1 to 24 hours
Oscillation function	Yes (horizontal rotation)
Remote control	Yes (CR2025 battery included)
Display	LED
Tip-over safety	Yes, automatic shut-off after 20 seconds
Overheat protection	Yes, automatic shut-off
Automatic shut-off	After 12 hours of continuous operation (if timer not set)
Cooling after shut-off	Fan runs for an additional 20 seconds
Safety distance	1 meter from flammable materials
Maintenance	Clean with a damp cloth and vacuum the grilles
Warranty	2 years
Recommended use	Well-insulated rooms or occasional use

Frequently Asked Questions - FH212092.1 Emerio

How to adjust the temperature on the Emerio FH212092.1 fan heater?

Press the + or - buttons to set the desired temperature between 6°C and 35°C. The temperature flashes then the ambient temperature is displayed. The heating turns on when the ambient temperature is 2°C below the set temperature.

How to set the timer?

Press the timer button (clock). '0H' flashes. Use + or - to set the duration from 1 to 24 hours. The timer is displayed then a dot flashes to confirm. The appliance turns off automatically after the set time.

What to do if odor or smoke is emitted during first use?

This is normal during first use. Ensure sufficient ventilation. The odor and smoke disappear after a few moments.

How to clean the heater?

Turn off the appliance, unplug it and let it cool. Clean the housing with a damp cloth (no abrasive detergents). Vacuum the air inlet and outlet grilles with a vacuum cleaner or brush. Never immerse the appliance in water.

Can I use this heater in a bathroom?

No, the appliance must not be used near a bathtub, shower or swimming pool. Do not use it in a bathroom or laundry room. Indoor use only.

How does the overheat protection work?

If the appliance overheats, it turns off automatically. Turn it off, unplug it and let it cool for at least 30 minutes before turning it back on.

How to use the remote control?

Insert a CR2025 battery into the remote control (follow the indications on the back). Use the remote control to control the appliance. Remove the battery if the appliance is not used for a long period.

The appliance turned off while in operation. What to do?

Check if the appliance has tipped over (tip-over protection) or overheated. Wait 30 minutes, then reconnect and turn on again. If the problem persists, contact after-sales service.

What is the power consumption of this appliance?

The maximum power is 2000 W (high heat) and minimum is 1000 W (low heat). Voltage: 220-240 V ~ 50 Hz.

Is this heater suitable for heating a large room?

This fan heater is designed for well-insulated rooms or occasional use. It has a power of 2000 W, suitable for medium-sized spaces. Keep a safety distance of at least 1 meter from flammable materials.

USER MANUAL FH212092.1 Emerio

Exterior view of a modern electric heater with digital display and cooling buttons (no text or symbols visible)

Fan heater (EN)

Heizlüfter (DE)

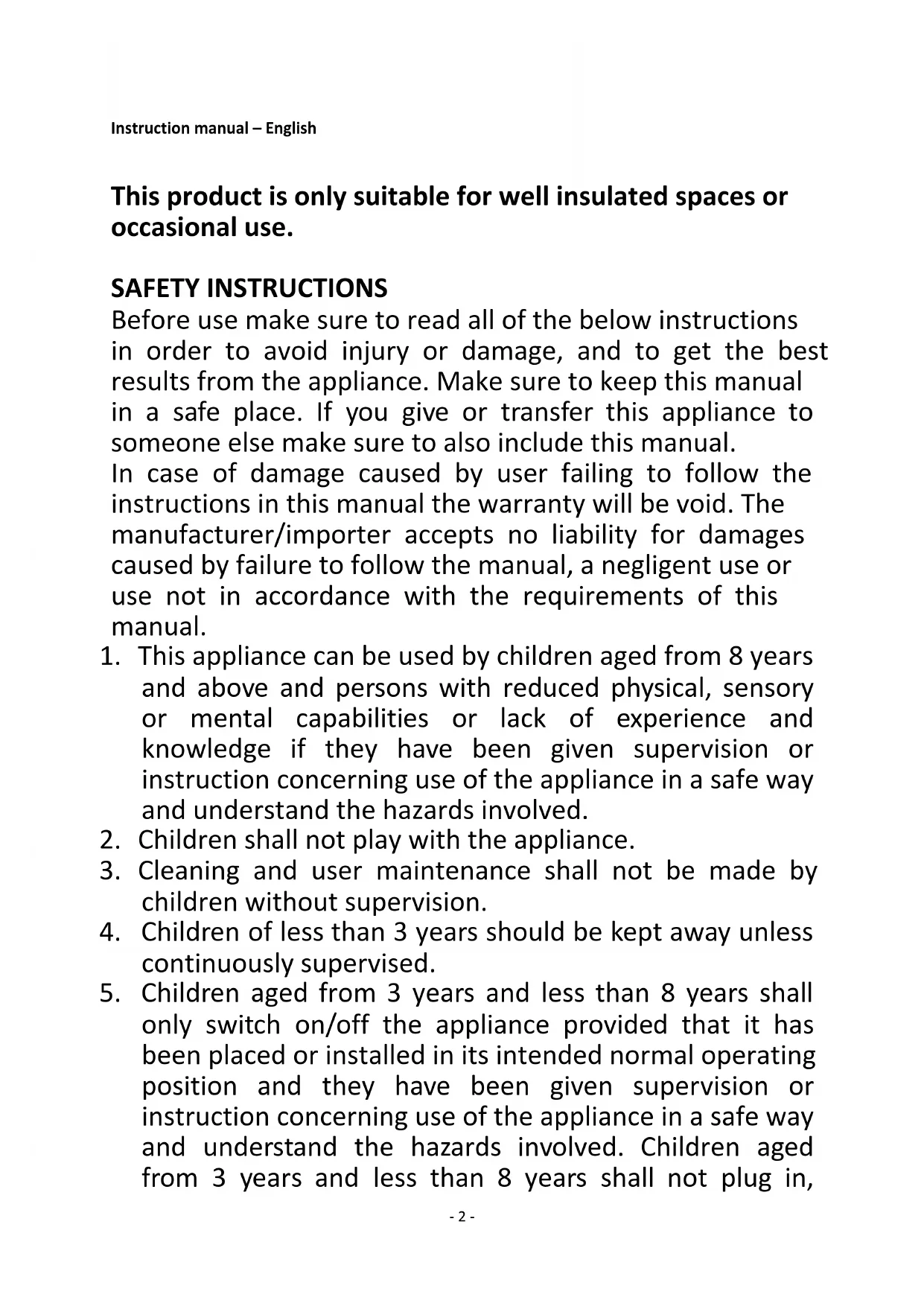

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user maintenance.

1. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. WARNING: In order to avoid overheating, do not cover the heater.

4. Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.

5. The heating appliance must not be placed just below an electrical outlet.

1. Means "DO NOT COVER".

2. Do not use this heater if it has been dropped.

3. Do not use if there are visible signs of damage to the heater.

4. Use this heater on a horizontal and stable surface.

5. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

6. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

7. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

8. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the

extension cord. Be careful to avoid dangerous situations.

1. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

5. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

6. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

7. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

8. Never leave the appliance unattended during use.

9. This appliance is not designed for commercial use. Indoor use only.

10. Do not use the appliance for other than intended use.

11. Do not wind the cord around the appliance and do not bend it.

12. Humidity, dust, hair or other foreign objects should not enter the unit, if so there will be danger of fire and electrical shock.

13. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.

14. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.

15. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.

16. Use the appliance in well-ventilated areas only. This heater is hot when in use, to avoid burns, do not let bare skin touch the hot surfaces.

17. This heating device is not suitable for assembling in vehicles and machines.
18. The rotor guard shall not be disassembled/opened to clean the rotor blades.
19. To avoid the risk of fire or electric shock do not remove the housing.

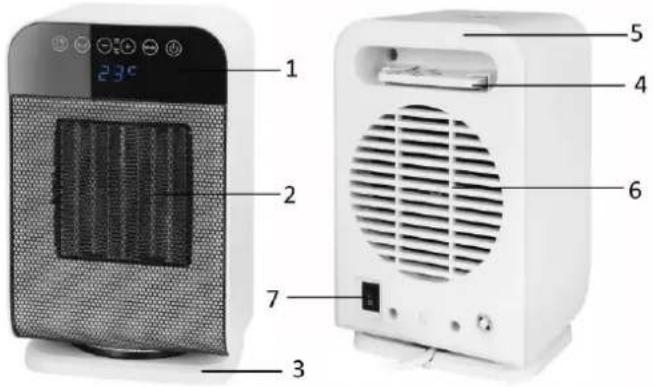

PARTS DESCRIPTION

1. Control panel and LED display
2. Air outlet
3. Base
4. Compartment for remote control & remote control
5. Handle
6. Air inlet

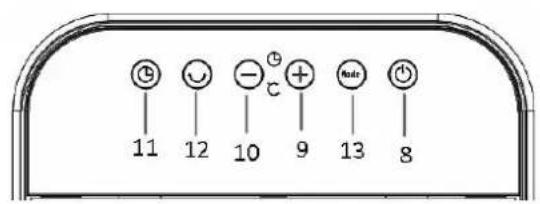

7. Main power switch

8. On/Standby button

9. Temperature / time (+)

10. Temperature / time (-)

11. Timer button

12. Horizontal rotation button

13. Mode button

Remote control

Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children.

Note!

There might be a small amount of smoke and odour when first time of use. This is not harmful and will stop after a short while. Please ensure meanwhile that there is sufficient ventilation.

Operation

Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the main power switch to position "I". A beep sound will be heard and at the meantime, "..." shows in the LED display. Press button "⊕", the appliance begins to work. Room temperature and power icon "Lo" (low heat output) will alternatively appear on the display.

1. Power setting

Press button "Mode" to set high heat mode (2000W) or low heat mode (1000W), the display of "HI" (high) or "Lo" (low) will be on the display accordingly.

2. Temperature setting

Press button “-” or “+” to set the desired temperature. You can choose from 6^ C to 35^ C. When you set your desired temperature, it will flash a few seconds, and then shows the room temperature again.

When you set your desired temperature, the appliance starts to heat when the room temperature is 2^ C below the set temperature and will stop heating as soon as the set temperature is reached.

3. Timer setting

Press button “ ”, “OH” will flash on the display, press button “+” or “-” to set your desired working hour from 1h to 24h. The set working time will flash several times, and then the room temperature will show and a little dot will flash on the display. The timer setting is done. The appliance will shut itself off automatically when the time is up.

Press button “💡”, set the working hour to “OH” to cancel the timer setting.

If do not set the timer, the appliance will be shut down automatically after 12 hours continuously work.

4. Horizontal rotation function

Press button “💡”, the appliance begins to rotate. Press button “💡” again, the rotation will stop. If horizontal rotation function is on, when the room temperature reaches the set temperture and the appliance stops heating, the rotation will stop too; it will start again when the appliance starts to heat. Always switch off the horizontal rotation function before you switch off the appliance.

5. Turn off

Press button “⏻” again to turn off the appliance. The fan will continue to work for another 20 seconds (the display will show countdown from 20 to 0) to protect and enhance the lifespan of the product. Turn off the main power switch and unplug the power cord from the outlet.

SAFETY SYSTEM

• The appliance has a safety system which automatically switches off the unit when overheated.
- If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 30 minutes. Put the plug in the socket and switch on the heater.
- This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power after 20s later if it is put on unstable or uneven surfaces or if it is tilted accidentally.

MAINTENANCE

• The fan heater only needs regular cleaning on the outside.
• Before you clean the unit, turn off the switch. Remove the plug from the socket and wait until the fan heater cools down completely.
• Use a damp cloth to wipe the heater housing and use a vacuum cleaner or a dusting brush to clean the air inlet grille and outlet grille.
• Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.
  • Never immerse the appliance in water!
• If the appliance is not used for an extended period it must be protected against excessive dust and dirt. Please store it in a dry place away from sunlight and dirt.

TECHNICAL DATA

Operating voltage: 2 2 0 -240V \~ 50Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT

DISPOSE OR IN FIRE OR SHORT CIRCUIT.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

ERP information (EN)

Supplier: Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.849	kW	manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	P_min	0.986	kW	manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_max,c	1.849	kW	electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption				fan assisted heat output	N/A
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)-
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0.21	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[no]
				with electronic room temperature control	[yes]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[yes]
				with black bulb sensor	[no]
Contact details	Emerio Switzerland AGOberneuhofstrasse 16340 BaarSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
