FH124239.1 - Heating Emerio - Free user manual and instructions

Product type	Fan heater (forced convection)
Brand	Emerio
Model	FH124239.1
Rated heat output	2000 W
Minimum heat output	1000 W
Supply voltage	220-240 V ~ 50 Hz
Heat settings	2 levels (low and high) + fan only
Temperature control	Adjustable mechanical thermostat
Operating indicator light	Yes
Safety	Overheat protection (automatic shut-off)
Safety distance to flammable materials	Minimum 1 meter
Recommended use	Well-insulated rooms or occasional use
Maintenance	Clean exterior with a dry cloth; do not use detergents
Warranty	2 years
Power cord length	Approximately 1.5 m (estimated)
Weight	Approximately 1.5 kg (estimated)

Frequently Asked Questions - FH124239.1 Emerio

How do I adjust the temperature on the Emerio FH124239.1 heater?

Turn the thermostat knob (located on the unit) to select the desired temperature. The heater automatically stops when the room reaches that temperature and restarts when it drops.

What are the positions of the heat selection knob?

The knob allows you to choose between fan only (cold air), low heat (HOT AIR), and high heat (HOT AIR). Turn it to '0' to turn off.

How do I properly turn off the device to extend its lifespan?

It is recommended to first set it to the fan position for about 120 seconds to cool down the unit, then turn the knob to '0' and unplug the cord.

What to do in case of overheating or automatic shut-off?

Unplug the cord, set all knobs to '0' and let the unit cool down for at least 10 minutes. Then plug it back in and set the temperature again. If the problem persists, contact customer service.

Can I use the heater in a bathroom?

No, the device is not designed for outdoor use, in bathrooms or humid environments. Do not use it near a bathtub, shower, or swimming pool.

How far should I place the heater from curtains or furniture?

Keep a minimum distance of 1 meter between the air outlet and any flammable material (textiles, curtains, etc.) to reduce the risk of fire.

How do I clean the fan heater?

Before cleaning, turn off the device, unplug it, and wait for it to cool down. Use a dry cloth to wipe the housing. Never use detergents, abrasive products, or solvents.

What does the symbol 'DO NOT COVER' on the device mean?

This symbol indicates that covering the heater is prohibited (with clothing, towel, etc.) as it may cause overheating and fire. Always follow this instruction.

Does the device have a warranty?

Yes, Emerio offers a 2-year warranty from the purchase date. Keep your receipt. The warranty does not cover damage due to misuse or unauthorized repairs.

Can I use the heater with an extension cord?

Yes, but the extension cord should be as short as possible and fully unwound. Do not plug other devices into the same power outlet as the heater to avoid overloading.

USER MANUAL FH124239.1 Emerio

Exterior view of a black and teal electric heating unit with control knobs and a mesh grille (no visible text or symbols)

Fan Heater (EN)

Heizlüfter (DE)

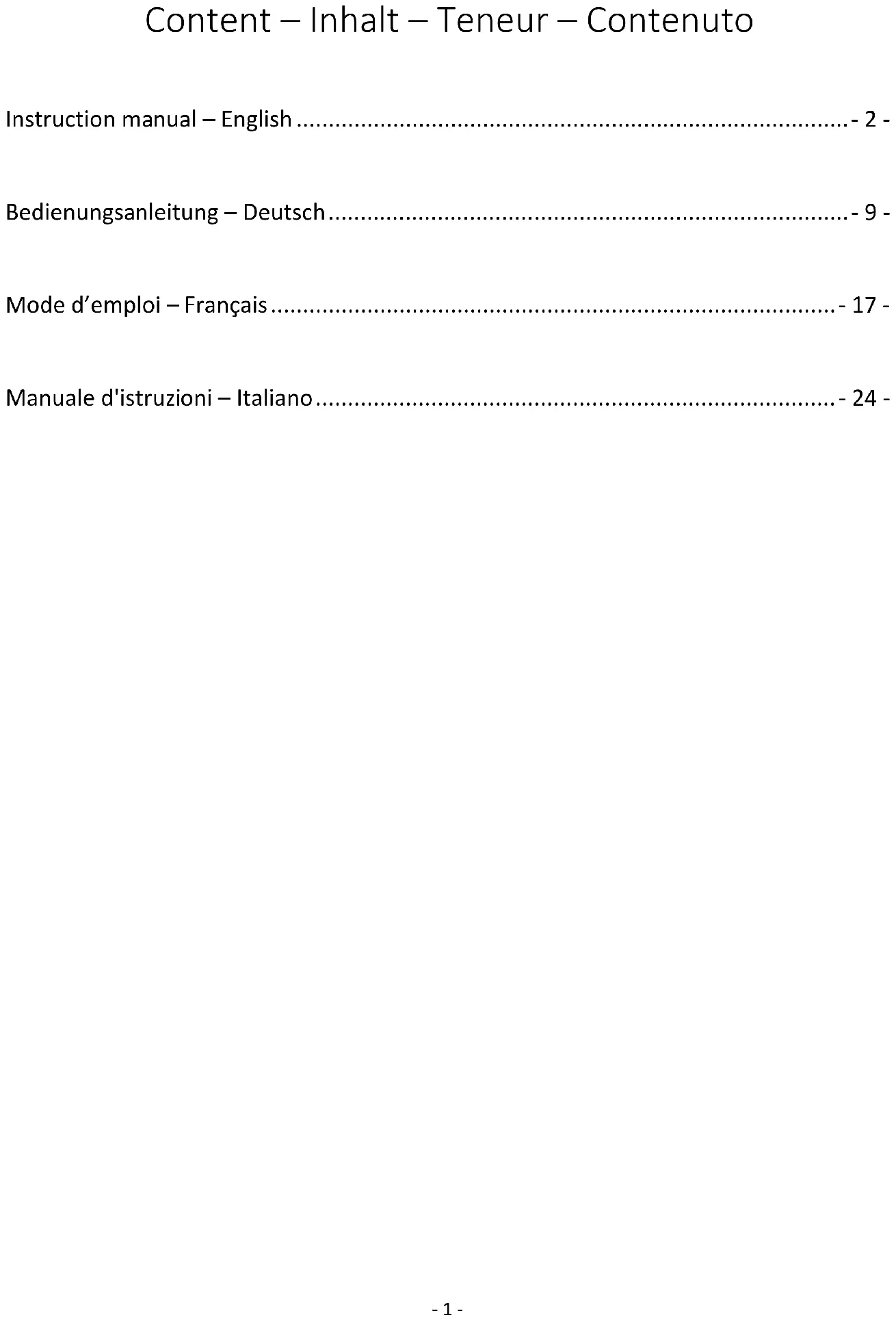

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. WARNING: In order to avoid overheating, do not cover the heater.
9. The heater must not be located immediately below a socket-outlet.
10. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
11. Do not use this heater if it has been dropped.
12. Do not use if there are visible signs of damage to the heater.
13. Use this heater on a horizontal and stable surface.
14. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
15. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

1. Means "DO NOT COVER".

2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
10. Never leave the appliance unattended during use.
11. Do not use the appliance for other than intended use.
12. Do not wind the cord around the appliance and do not bend it.
13. Never use the appliance to dry clothes or any other similar items.
14. The appliance is not suitable for outdoor use in damp weather, in bathrooms or in other wet or damp environments.
15. Do not connect the appliance using an on/off timer or other equipment which can automatically switch the device on.
16. The appliance must not be placed in rooms where flammable liquids or gases are used or stored.
17. If an extension cord is used, it must be as short as possible and always be fully extended.
18. Other appliances must not be connected to the same mains socket with this fan heater.

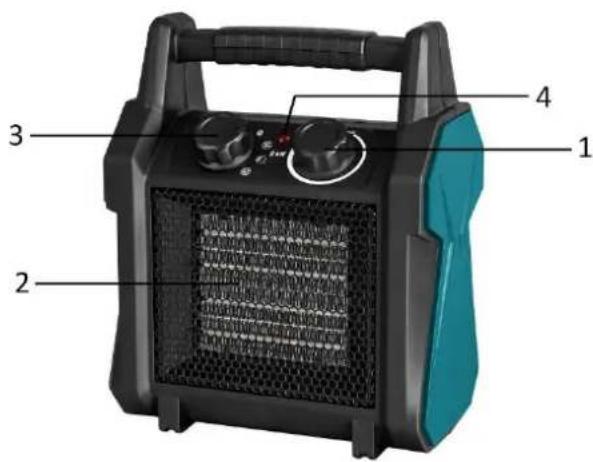

PARTS DESCRIPTION

1. Thermostat control switch
2. Air outlet grille
3. Heat select switch
4. Indicator light

Heat setting:

"0" position - OFF

- Ventilation

- WARM AIR (low heat output)

- WARM AIR (high heat output)

THERMOSTAT

1. Rotate the switch to choose the suitable setting --- Ventilation/ WARM AIR (low heat output)/ WARM AIR (high heat output).
2. Turn the thermostat to choose the temperature, the heater begins to work.
3. The thermostat will turn the heater off when the selected room heating is achieved, and when the temperature drops it will turn on again automatically.

Note:

- To switch off the appliance, it is recommended to turn the heat switch to ventilation setting for about 120 seconds to cool down. After that, please turn the heat switch to "0" position and then unplug the appliance. This can help prolong the lifespan of the appliance.

SAFETY SYSTEM

• The appliance has a safety system which automatically switches the unit off when overheated.
- If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on.

MAINTENANCE

• The fan heater only needs regular cleaning on the outside.
- Before you clean the unit, turn the switch off. Remove the plug form the socket and wait until the fan heater cools down completely.
• Use a dry cloth to wipe the heater housing.
• Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

ERP information (EN)

Supplier: Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	2.0	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_SB	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Emerio Switzerland AGOberneuhofstrasse 16340 BaarSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

THERMOSTAT

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Lieferant: Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Position "0" - ARRÊT

- Ventilation

THERMOSTAT

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Informations ERP (FR)

TERMOSTATO

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
