MO122420.1 - Oven Emerio - Free user manual and instructions

Product type	Multifunction oven
Brand	Emerio
Model	MO122420.1
Power	1500 W
Voltage	220-240 V ~ 50/60 Hz
Heating functions	Convection (top + bottom), top heat only, bottom heat only
Maximum temperature	230 °C
Timer	Yes, with buzzer
Capacity	Approximately 20 L
Included accessories	Rack, baking tray, handle for tray/rack
Safety	Hot surface (caution), automatic shut-off via timer, do not immerse
Care and cleaning	Rack and tray dishwasher safe; housing cleaned with damp cloth; do not immerse
Warranty	2 years
Usage	For domestic and similar use (staff kitchens, hotels, etc.)

Frequently Asked Questions - MO122420.1 Emerio

What are the available cooking functions?

The Emerio MO122420.1 oven offers three cooking modes: top heat only, bottom heat only, and convection (top + bottom).

How to use the oven for the first time?

Before first use, clean the appliance then heat it empty for about 15 minutes using the convection function to remove manufacturing residues.

What is the power and voltage of the oven?

The oven has a power of 1500 W and operates at a voltage of 220-240 V ~ 50/60 Hz.

Is it possible to wash the rack and tray in the dishwasher?

Yes, the rack and tray handle are dishwasher safe. The baking tray can be hand washed in warm soapy water.

What is the maximum temperature of the oven?

The maximum temperature is 230 °C, as indicated in the recommended cooking table.

How to clean the interior of the oven?

Clean the door and interior walls with a damp cloth and dry with a dry cloth. Do not use abrasive detergent. Never immerse the appliance in water.

Does the oven have automatic shut-off?

Yes, the timer allows automatic shut-off: when the time is up, a buzzer sounds and the oven turns off.

What accessories are included with the oven?

The oven comes with a rack, a baking tray, and a handle for safe removal.

What is the capacity of the oven?

The capacity is approximately 20 liters, allowing cooking for 2 to 4 people.

Is the oven suitable for children?

Children 8 years and older may use it under supervision. Do not let children play with the appliance and keep it out of reach of children under 8.

USER MANUAL MO122420.1 Emerio

Exterior view of a black Stand microwave oven with open lid and control knobs (no visible text or symbols)

Multi Oven (EN)

Kleinküche (DE)

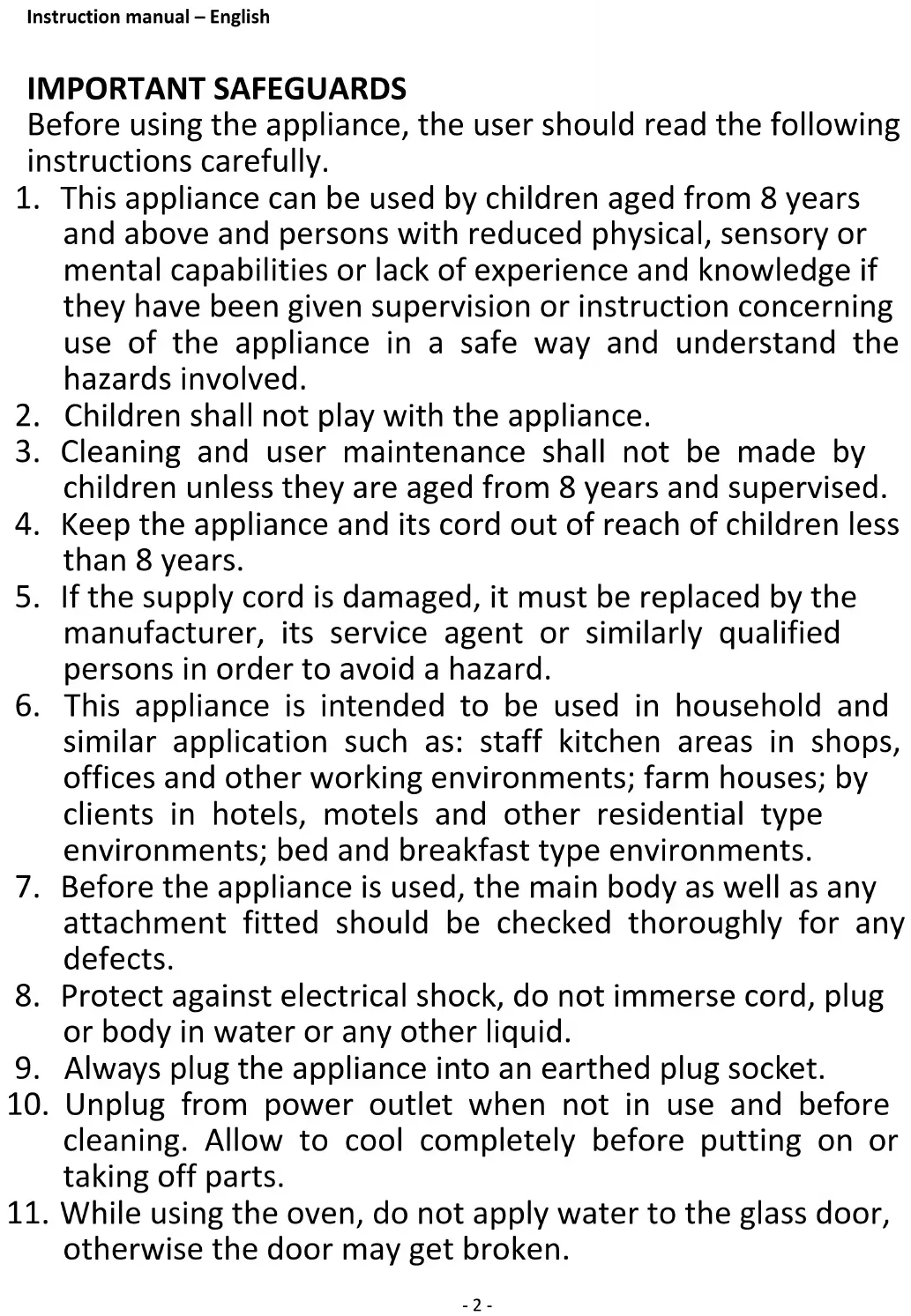

Instruction manual – English ...... - 2 -

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.
8. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.
9. Always plug the appliance into an earthed plug socket.
10. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.

11. While using the oven, do not apply water to the glass door, otherwise the door may get broken.

12. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

13. The use of accessory attachments not recommended by us may cause injuries.

14. Do not use outdoors.

15. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

16. Do not place the appliance on or near heat sources such as a gas or electric burner.

17. Caution must be taking hard when putting in or removing food out from appliance.

18. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

19. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

20. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

21. The oven can't be put into the water or washed with water.

22. The appliance should be stood on a level, stable and clean surface while it is in use.

23. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

24. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

25. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

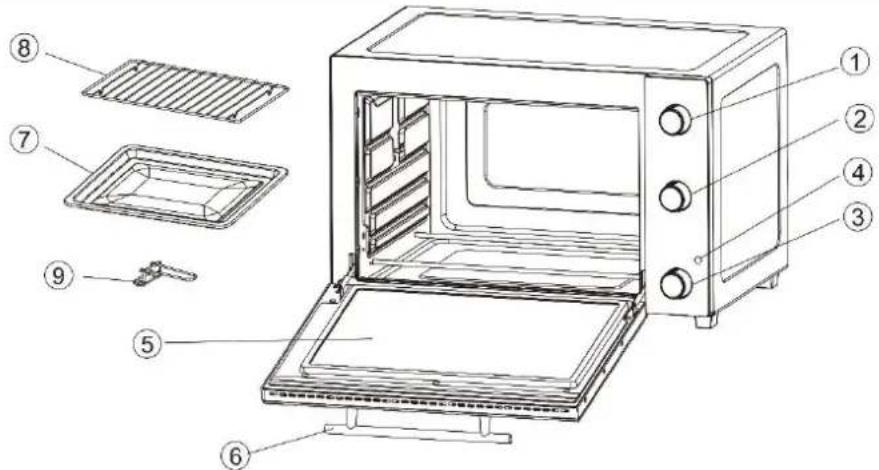

PARTS DESCRIPTION

1. Temperature knob
2. Function knob
3. Timer knob
4. Indicator light
5. Glass door
6. Door handle
7. Baking tray
8. Wire rack
9. Tray handle

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "How to clean" below.
  • Make sure the appliance is unplugged and the timer knob is set at position "Off-0".
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.
3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired rack position according to the food height and type.
4. Close the oven door, and turn the function knob to choose the desired function “☐” (The top element will heat.), “☐” (The bottom element will heat.), or “☐” (Both top and bottom elements heat simultaneously.). Turn the temperature knob to choose the desired temperature.
5. Turn the timer knob to select desired cooking time. The indicator light will be on.
6. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "Off-0".
7. When finished cooking, turn the oven function knob back to position "OFF".

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMP	COOKING TIME
RIB STEAK	230	20-25MIN
T-BONE STEAK	230	20-25MIN
HAMBURGER	230	15-25MIN
PORK CHOPS	230	25-35MIN
LAMB CHOPS	230	30-40MIN
CHICKEN LEGS	230	25-35MIN
FISH FILETS	200	15-25MIN
SALMON STEAKS	200	15-25MIN

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the backing tray evenly.
3. Wire rack should be positioned with the indentations pointing down.
4. The weight of the food which is put on the baking tray/wire rack cannot be over 3.5kg.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven. Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.
2. Let the appliance cool down completely.
3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.
4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.
5. Wash the wire rack and backing tray in hot soapy water. Rinse and dry.
6. Wire rack and tray handle can be cleaned in a dishwasher.

SPECIFICATIONS

Supply Voltage: 220-240V\~50/60Hz

Power consumption: 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands
