USER MANUAL CG124243.1 Emerio

Exterior view of a modern stainless steel grating with black and silver casing (no visible text or symbols)

Multi Grill (EN)

Multi-Grill (DE)

Multigrill (FR)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
   appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. Always plug the appliance into an earthed plug socket.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. Do not use the appliance for other than intended use.

20. Do not wind the cord around the appliance and do not bend it.

21. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

22. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

23. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Always use the product on a flat, stable, heat-resistant surface.
2. The appliance must only be used with both plates properly installed.
3. Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
4. Do not place the product on or near a gas or electric burner, or inside or on top of a heated oven or other heat source.
5. Do not allow the product to touch curtains, wall coverings, clothing, dishtowels, or other flammable materials during its use.
6. Do not touch hot surfaces of the product. Do not move the product while it is plugged in. Allow the product to thoroughly cool before handling it.
7. Do not use the product near water or other liquids.
8. Keep the product and its power cord away from heated surfaces.
9. This product is intended for indoor, non-industrial, non-commercial, household use only as a panini maker and healthy grill. Do not use the item outdoors or for any other purpose.

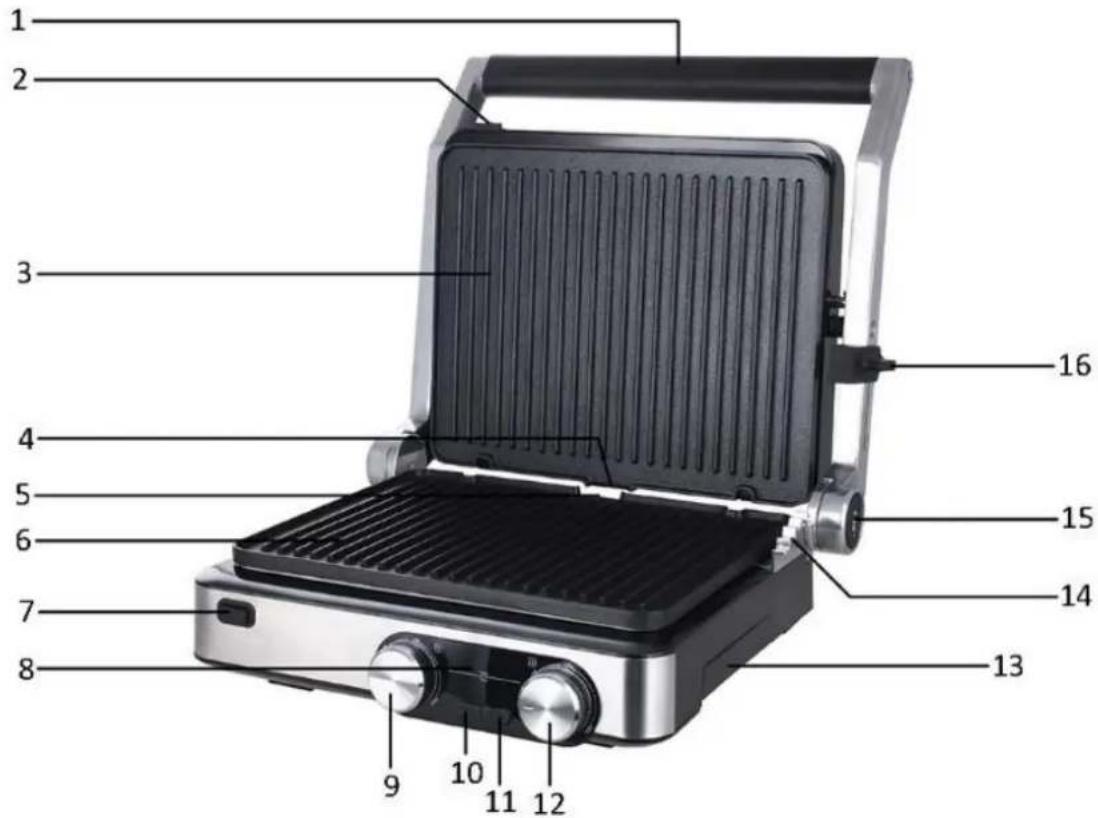

PARTS IDENTIFICATION

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1. Handle
2. Grill plate release button (upper)
3. Removable upper grill plate, nonstick coated
4. Grease run-off (upper)
5. Grease run-off (lower)
6. Removable lower grill plate, nonstick coated
7. Grill plate release button (lower)

8. Led screen – display the time and the temperature

9. Temperature control, lower grill plate

10. Time control, decrease the time
11. Time control, increase the time
12. Temperature control, upper grill plate
13. Grease drip tray
14. Grill lock and end stop
15. Release button for open grilling
16. Slide control for grill lock and end stop

Led screen

A. Temperature display of the lower grill plate
B. Temperature display of the upper grill plate
C. Time display

BEFORE INITIAL USE

1. Remove all packaging.

2. Press the slide control from the mark "Low/Lock" to "Open" to unlock the appliance. Clean it as described in the section "Cleaning and maintenance". Make sure to replace the grease drip tray.

3. Unwind the mains cable completely.

During manufacturing, parts of the product are coated with a thin oil film for their protection. To remove the production residue, run the product for approx. 10 minutes without foodstuffs. Make sure there is sufficient ventilation as a slight odor and some smoke may occur. This is harmless and will disappear shortly.

HOW TO USE

CAUTION: Do not use this product to cook or defrost frozen food. All food must be completely defrosted before cooking.

1. For best results, lightly coat the cooking plates with a little cooking oil or cooking spray. Close the appliance.
2. Plug the appliance into an appropriate electrical outlet.
3. Set the left (lower grill plate) and right (upper grill plate) temperature control to the desired heating level (160-230°C). The Led screen will light up and the digits will start flashing, which indicates the appliance is heating up. As soon as the set temperature is reached, the digits will stop flashing with a beep sound.
4. Open the appliance by pushing the handle all the way up.
5. Lay the food to be grilled onto the lower heating surface without adding extra fat or oil.
6. Close the appliance. If needed you can set a minimum distance between both grilling plates using the slide control for end stop.

Note: During the cooking process, the digits will flash and stay on from time to time. This indicates that the heating element is switched on and off to maintain the correct temperature.

1. Monitor the cooking process now and then. Grill the food for approx. 3-8 minutes. The cooking time depends on the type of food and on your personal taste. The gill items do not need to be turned over as they are cooked with both the upper and lower grill plates.

Notes: The grill items are cooked in their own juices and excessive liquids flow into the grease drip tray. The oil/fat collected in the drip tray must not be re-used.

1. When the food is cooked, use the handle to open the appliance. Remove the food with the help of a plastic heat-resistant spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cooking plates.

Time control and auto shut off function:

Press the time control to set the desired working time (0-90 minutes). Long press for rapid adjustment. The Led screen will show the set time and start to countdown. Once the time turns to “00:00”, the appliance will send out beep sounds and shut off automatically.

If you do not set the time, remember to turn off the appliance manually after using. If not, the appliance will shut off in approx. 60 minutes with no any operations.

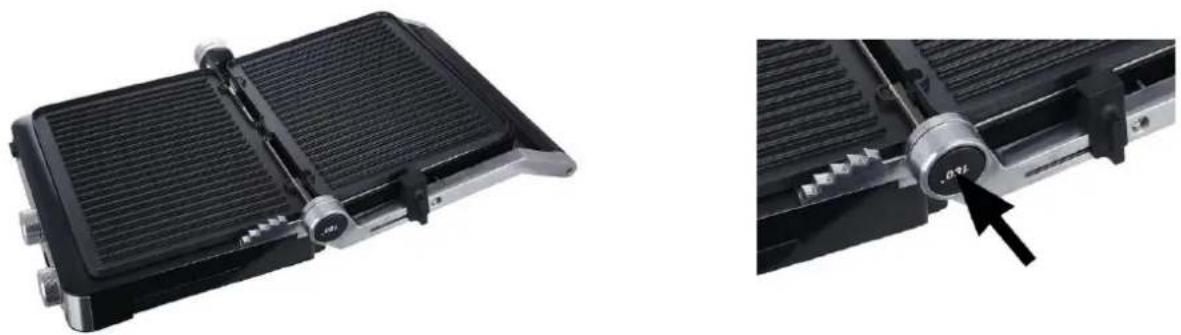

USE AS OPEN GRILL

Use the grill as an open grill to cook steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables.

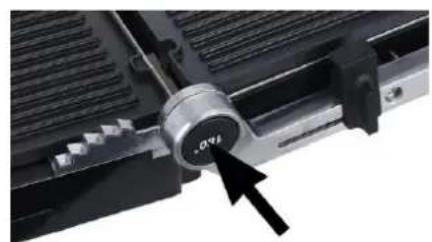

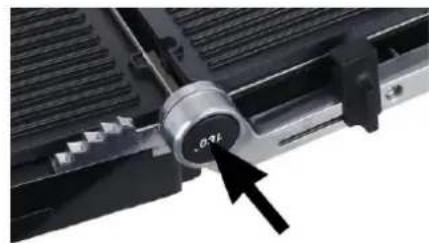

1. Open the upper cover by the handle with one hand while the other hand to press the release button. Let go of the release button as soon as the upper cover has been pushed all the way to the back.
2. For best results, lightly coat the cooking plates with a little cooking oil or cooking spray.
3. Plug the appliance into an appropriate electrical outlet.
4. Set the left (lower grill plate) and right (upper grill plate) temperature control to the desired heating level (160-230°C). The Led screen will light up and the digits will start flashing, which indicates the appliance is heating up. As soon as the set temperature is reached, the digits will stop flashing with a beep sound.
5. Lay the food to be grilled onto the heating surfaces without adding extra fat or oil.
6. Turn over the food after a certain time. Notes: The grill items are cooked in their own juices and excessive liquids flow into the grease drip tray. The oil/fat collected in the drip tray must not be re-used.
7. Remove the food with the help of a plastic heat-resistant spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cooking plates.

WARNING:

• Do not change the grill positions (from closed grill position to open grill position or from open grill position to closed grill position) while the plates are hot. Please choose the grill position before switching on the appliance.
• Always exercise caution when handling the appliance during cooking. To open the appliance grasp the black plastic area of the handle. This part of the handle stays cool to touch while cooking. Do not touch the other parts during or immediately after cooking. Use an oven mitt to prevent burns.
• Allow the appliance to cool down before handling (at least 30 minutes).

CLEANING AND MAINTENANCE

1. Always switch off and unplug the appliance after use. Allow it to cool down before cleaning.
2. Remove the grease drip tray carefully from the appliance (Fig.1) and rinse it with hot water and a neutral dishwashing detergent. The oil inside the tray can be very hot; let it cool down completely before cleaning. The grease drip tray is dishwasher safe.
3. Remove the excess grease with a paper towel before detaching the grill plates. To detach the grill plates, push the respective release buttons on the upper and lower housing. (Fig.2) Clean the grill plates with a soft cloth and hot water.
4. Use a damp cloth and warm water with a little dishwashing detergent to clean the appliance housing. After each cleaning, dry all surfaces thoroughly.
5. Dry the grill plates and especially their electric contacts and reassemble the appliance. The grill plates can only be mounted in their respective positions. First inert the long sides opposite the release buttons into the housing. Then push the other longs sides into the latches so that the release buttons click and the grill plates engage.
6. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.

Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

Close-up of a black electronic device with a metallic handle and internal components (no visible text or symbols)

Fig.1

Close-up of a hand cleaning a mechanical component with a cloth (no visible text or symbols)

Fig.2

Error warning

ER1	The NTC is in short circuit or open circuit.
ER2	Temperature is below 80°C.
ER3	Temperature is above 320°C.

Please send the appliance for repair when the error occurs mentioned above.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please

use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Emerio Switzerland AG

Industriestrasse 47

6300 Zug

Switzerland
