ENERGY STORM GENERATORS

Operating Instructions and Owner's Manual

This Owners Manual is published in ENGLISH, FRENCH and SPANISH

PLEASE READ THIS MANUAL CAREFLLY BEFORE OPERATING YOUR NEW GENERATOR

(CSA-CA)Indicates these Units are both CSA and CARB CERTIFIED 1/12/2015

LIFAN POWER USA LIFAN LIFAN POWER USA

STOP

THANK YOU FOR YOUR PURCHASE PLEASE READ!!!!

DO NOT RETURN THIS PRODUCT TO THE STORE

WE ARE HERE FOR YOU! Call Customer Service Toll-Free 1-866-471-7464 Tech Help-Line Open from 9-5 at 866-471-7464 OPTION 2 or visit us online at www.lifanpowerusa.com

NO DEVUELVA ESTE PRODUCTO A LA TIENDA

NE PAS RETOURNER CE PRODUIT AU MAGASIN

NOUS SOMMES ICI POUR VOUS!

(Unique Idener stamped on engine crankcase)

Date of Purchase ____

Purchase Locaon ____

PLEASE KEEP AND READ THIS MANUAL CAREFULLY BEFORE OPERATING YOURNEWPORTABLEGENERATOR

(-CSA-CA)Indicatesth isunitisCSA (Canadian Compliant)

And CARB Cered (California Compliant)

(E) Indicates this unit is Equipped with Electric Start

PLEASE READTHE FOLLOWINGINSTRUCTIONS!

1. Unit Shipped with "NO OIL" in Engine or where applicable pumps and/or accessories. Check and II with proper oil as outlined in the Owner's Manual for the respective product.
2. For repair under Warranty or quesons concerning Warranty, DO NOT return this product to the Storewhere purchased. Follow the procedures as outlined in the "WARRANTY POLICY" and "WARRANTY REGISTRATION" in the Owner's Manual. For any quesons visit www.lifanpowerusa.comorcall 1-866-471-7464 OPTION 1.
3. Read the "Owner's Manual" prior to operan ganyequipment and familiarize yourself with the proper and safe operaon of th eequipment. If you have any quesons visitwww.lifanpowerusa.comorcall 1-866-471-7464.

Green industrial power plant with control panel and wheels (no visible text or symbols)

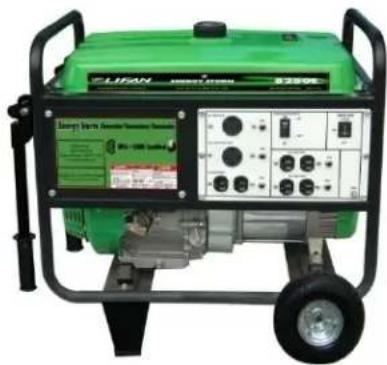

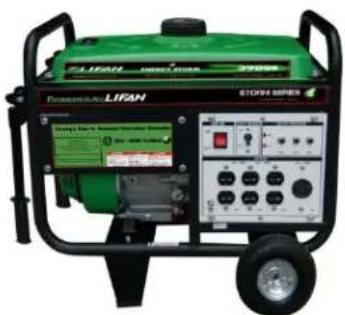

LF3500(E)-CSA-CA

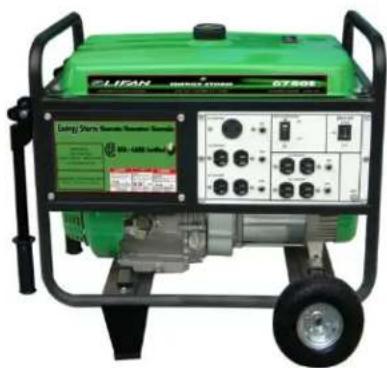

Green portable electricity generator with control panel and wheels (no visible text or symbols)

LF6500(E)-CSA-CA

Green portable electricity generator with control panel and wheels (no visible text or symbols)

LF8000(E)-CSA-CA

(CSA-CA)Indicate this unit is CSA (Canadian Compliant) And CARB Cered (California Compliant)

(E) Indicates this unit is equipped with Electric Start

Table of Contents

Preface 4

Product Specicaons 5

Safety Instrucons 6

Controls and Features 9

Voltage Regulator Switch 11

PRE-OPERATINGINSTRUCTIONS 12

Assembly 14

Baery Specicaons 15

GeneratorSetup 16

Operaon of Generator 19

Storing the Unit 23

Maintenance 24

Troubleshoong/General Safety 29

Generator Waage ReferenceWorksheet 32

Limited Warranty Policy 35

Wiring Diagrams 39

Spanish Version 44

French Version 64

LIFAN POWER USA LIFAN LIFAN POWER USA

Preface

Thank you for choosing LIFAN Power USA for your Power Equipment Needs.LIFAN Power USA prides itself on providing quality products at aordable pricing, creang the "Best Equipment Value on Today's Market!"

All LIFAN Power USA products are manufactured utilizing the latest technology. Built with quality components, your new Power Equipment Product will give you years of dependable service. Your unit, along with all of LIFAN Power USA products are designed, engineered, and manufactured with LIFAN's Industrial Grade Gasoline Engine.

This Owner's Manual will provide you with all of your needed informaon for your new Power Equipment Product, including Safe Operaon and Main tenance of your unit. Please read this Owner's Manual completely and carefully prior to operaon. Keep this Owner's Manual for assistance in the future, such as proper main tenance schedules and ps to prolong the life and effective use of your unit. If you require assistance, please visit our website (www.lifanpowerusa.com) or call toll free 866-471-7464 OPTION 2.

This Owner's Manual contains informaon with respect to the newest products at the me of publicaon. Due to revision and modicaons, the informaon noted in the Owner's Manual might vary from the actual status. This Owner's Manual is subject to change without noce. The copyright of this Owner's Manual belongs to EquipSource, LLC. Any group or individual is forbidden to reprint or copy any of this Owner's Manual without the written consent of EquipSource, LLC.

FOR ALL WARRANTY AND SERVICE RELATED ISSUES/QUESTIONS DO NOT RETURN YOUR UNIT TO THE STORE OR DEALER WHERE THE ITEM WAS PURCHASED.

FOR SERVICE VISIT LIFAN POWER USA'S WEBSITE (WWW.LIFANPOWERUSA.COM) OR CALL 1-866-471-7464 OPTION 2. WE WILL BE HAPPY TO HANDLE YOUR WARRANTY ISSUE OR DIRECT YOU TO THE NEAREST "AUTHORIZED SERVICE CENTER."

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

ENERGY STORM PORTABLEGENERATORS

ModelSize	3500-CSA-CA	3500E-CSA-CA	6500-CSA-CA	6500E-CSA-CA	8000E-CSA-CA
Voltage	120 / AC	120/240V AC &	120/240V AC &	120/240V AC &	120/240V AC &
AC SurgeOutput ^1	3500Watts	3500Watts	6500Was	6500Watts	8000Was
Rated ACOutput ^2	3000Was	3000Watts	6000Was	6000Was	7000Was
Maximum ACAmperage	26amps @120V	26amps @120V	40\5amps @120V	45amps @120V	62amps @120V
ACCycle	60Hertz	60Hertz	60Hertz	60Hertz	60Hertz
Regulaon	AVR ^3	AVR ^3	AVR ^3	AVR ^3	AVR ^3
On/OFF - E-Start Switch	On/O	On/O/Start	On/O	On/O/Start .	On/O/Start
120V 20amp ACReceptacle	3ea.	3ea.	4ea.	4ea.	4ea.
120 / 30amp ACReceptacle	1ea.	1ea.	1ea.	1ea.	1ea.
120/240 AC 4 prong Receptacle	N/A	N/A	N/A	N/A	1 ea
CircuitProtecon	Master CircuitBreaker	Master CircuitBreaker	Master CircuitBreaker	Master CircuitBreaker	Master
Individual Circuit Protectors	1 ea. 20a - 1 ea. 30a	1ea. 20a - 1 ea. 30a	4 ea. 20a - 1 ea. 30a	4 ea. 20a - 1 ea. 30a	4ea. 20a - 2 ea. 30a

ENGINE

Manufacturer	LIFAN	LIFAN	LIFAN	LIFAN	LIFAN
Model	LF168F2M13111Rec oil	LF1682 FD 'IL3111	LF188FN13111	LF188FDM13111	LF190FDM13111
Maximum Horsepower(MHP)	6.5MHP	6.5MHP	13MHP	13MHP	15MHP
EngineDisplacement	196cc	196cc	388cc	388cc	420cc
StarngSystem	Recoil	Recoil (Recoil & Electric)^4	Recoil	Recoil &Electric	Recoil &Electric
Fuel TankCapacity	4Gallons	4Gallons	6.5Gallons	6.5Gallons	6.5Gallons
Fuel TankMaterial	Rust PreventaveCoatedSteel	Rust PreventaveCoatedSteel	Rust PreventaveCoatedSteel	Rust PreventaveCoatedSteel	Rust PreventaveCoatedSteel
FuelGauge	Yes	Yes	Yes	Yes	Yes
Run Time (@ 50%Load)	12hours	12hours	10hours	10hours	8hours
Sound Level (@ 7m or23)	65decibels	65decibels	75decibels	75decibels	75decibels
EngineType	4'StrokeOHV	4'StrokeOHV	4'StrokeOHV	4'StrokeOHV	4'StrokeOHV
FuelType	Automove GradeUnleadedGasoline	Automove GradeUnleadedGasoline	Automove GradeUnleadedGasoline	Automove GradeUnleadedGasoline	Automove GradeUnleadedGasoline
FuelCompliance	10% EthanolMix	10% EthanolMix	10% EthanolMix	10% EthanolMix	10% EthanolMix
Oil Type &Amount	SAE 10w30w20oz	SAE 10w30w20oz	SAE 10w30w32oz	SAE 10w30w32oz	SAE 10w30w32oz
Low Oil ShutoProtecon	Yes	Yes	Yes	Yes	Yes
CARBCered	(‘CA )ModelsOnly	(‘CA )ModelsOnly	(‘CA )ModelsOnly	(‘CA )ModelOnly	(‘CA )Model Only

ACCESSORIES

Spark PlugWrench	1 ea.	1 ea.	1 ea.	1 ea.	1 ea.
Mobility/Wheel Kit	N/A	All Models	All Models	All Models	All Models
Baery (noncluded)	Not Included	See Baery Chart	Not Included	See Baery Chart	See Baery Chart
Comments ^1 = Temporary Power available for no more than 10 seconds ^2 = Power Available for ConnuousOperaon ^3 = Automac VoltageRegulation ^4 = Only (E) Models have Recoil & ElectricStart

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

SAFETY RULES

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

For your safety read this manual carefully. Becomefamiliar with the proper operaon, care, and maintenance of your Lifan generator.

The safety and alert symbol (A) is used with a signal word (CAUTION, DANGER, WARNING), a pictorial and/or safety message to alert you to hazards. CAUTION indicates a hazard which, if not avoided could be harmful

And might result in minor or moderate injury.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

WARNING!

Running generator emits carbon monoxide an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea or death!

ONLY operate generator outdoors.

Exhaust gas must be prevented from entering conned areas

Direct exhaust window from , doors, ventilation and

Do not operate generator inside or under any buildings.

Operang this ingielerator the compartment of a

Recreational vehicle will likely result in death

Do not use this generator within the generator compartment of a recreational vehicle!

isgeneratordoesnotmeetU.S.CoastGuardRegulation CFR-183andshouldnotbeusedonmarineapplications. eofthisgeneratoronmarineapplicationscouldresultin uryordeath.

A

WARNING!

Rapid recoil of starter cord (kickback) may pull hand and arm forward toward engine at a rapid rate. Breaks bones, bruises, and Fractures may result.

• When starting engine, pull cord slowly until Tension is felt, then pull rapidly to avoid kickback.
• Never start or stop engine with electrical Devices plugged in and turned on. Doing so is hazardous and will damage generator.

Generator produces powerful voltage! Only diversified electrician Connect hookups. Failure to isolate Generator from electrical grid can result in death to utility workers as well as Others.

• When using generator as backup power, notify Utility company. Use approved transfer equipment to isolate generator from electric utility.
• Do Not operate generator while exposed to Rain or other wet conditions.
  • Do not handle generator when in contact with water.
  • Do not contact bare wires or receptacles.
• Inspect all electrical cords for damage and Discontinue from use any damaged or excessively worn cords.
• Do not allow unqualified persons to operate or service generator.

Hazard Symbols and Meanings

Explosion

Fire

ElectricalShoc

ToxicFumes

Hot surface or1ms

Kickback

POWERED BY

LIFAN

CSA-CA-EPA CERTIFIED

ENERGY STORM SERIES

WARNING!

Fuel and its vapors are extremely lammable and explosive.

Fire or explosion can cause severe burns or death.

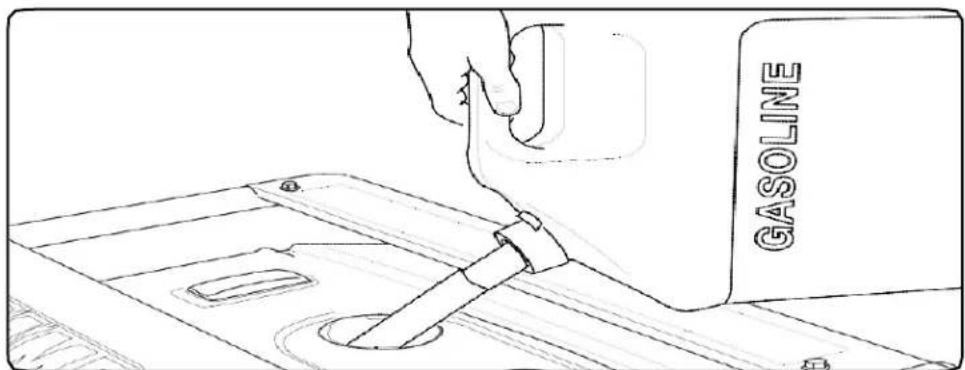

WHEN ADDING OR DRAINING FUEL

• Turn generator o and let it cool for at least three minutes before removing fuel cap. Loosen cap slowly in order to relieve pressure in the fuel tank.
  • Fill or drain fuel tank outdoors. Do not excessively inhale fuel vapors.
• Keep away from open ames or sparks and other sources of ignition.
• Do NOT smoke while lling fuel tank.
• Do NOT overll tank. Allow space for fuel expansion.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport generator with the fuel valve in the o posion.
• Repair generator with the fuel tank empty or the fuel valve in the o posion.
- Disconnect spark plug wire before transport or service.

WHEN STORING FUEL OR EQUIPMENT CONTAINING FUEL

- Store away from furnaces, stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

WHEN STARTINGE EQUIPMENT

• Ensure spark plug, muer, air cleaner, and fuel cap are inplace.
• Do NOT crank engine with spark plug removed.
  • If fuels spills, wait unl it evaporates before starng engine.

WHEN OPERATING EQUIPMENT

• Do not choke carburetor to stop engine.
- Do not p engine or equipment at an angle, which causes fuel to spill.
• This generator is not for use in marineapplicaons.

CAUTION!

Excessively high operang speeds (engine revoluons) increase the risk of injury and damageto the generator. Excessively low speeds impose a heavy load and will damage generator.

• Do NOT adjust engine speed governor. Generator supplies correct voltage and frequency at designated speed.
• Modifying generator in any way may be dangerous and will void warranty.

WARNING!

While engine is running temperature may exceed 150^ F ( 65^ C). Server burns may occur.

Exhaust heat/gasses can ignite combustibles, structures or damage fuel tank causing a ire.

• Do NOT touch hot surfaces and do avoid exhaust gasses.
- Allow generator to cool before touching.
- Keep at least 7 . (183cm) clearance on all sides of generator including overhead clear.
• Reeve exhaust heat may damage fuel tank causing re.
- Code of Federal Regulaon (CFR) Title 36 Parks, Forests, and Public Property require equipment powered by an internal combustion engine to have a spark arrester, maintained in working order, complying to USDA Forest service standard 5100-1 corlater revision. In the state of Californiaa spark arrester is required under section 4442 of the California Public resources code.

WARNING!

Unintentional sparking can result in ire or electrical shock.

WHEN TESTING FOR ENGINE SPARK

• Do NOT check for spark with the spark plugre moved.
  • Use approved spark plug tester.

WHEN REPAIRING OR ADJUSTING GENERATOR

- Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact sparkplug.

CAUTION!

Improper use and care of this generator will cause damage and shorten its lifespan. Failure to follow these actions will void all warranties.

• Use generators only for appropriate and designated purposes.
• The dealer or customer helpline (1-866-471-7464) can instruct you on intended uses.
- Generator must be placed on a level surface.
- Do NOT expose generator to extreme conditions. Excessive dust, moisture, and corrosive vapors will damage unit.
• Cooling slots must be kept clear of debris.
- Do not connect improperly operang devices togenerator.
- Shut o generator and take to a qualified service center if the generator fails to operate properly.

LIFAN POWER USA LIFAN LIFAN POWER USA

Controls andFeatures

Read this Owner's Manual completely and carefully before Operang Generator.

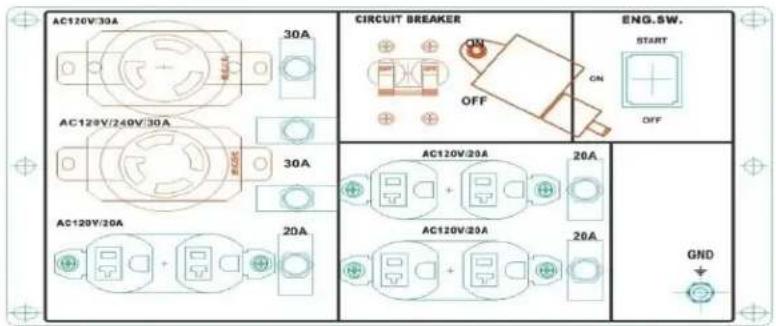

AC120V/30A 30A CIRCUIT BREAKER ON OFF ENG.SW. START OFF AC120V/240V/30A 30A AC120V/20A 20A AC120V/20A 20A GND

LF8000E CSA-CA

Energy Storm Generator/Generatur/Generator Distributed by: Lifan Power USA Customer Service 1-868-471-7464 www.lifanpowerusa.com EPA - CARB Certified Equipped with Low Oil Warning System Automatically shot of engine when all level gets low DANGER A DANGER DANGER

AC120V/30A 30A CIRCUIT BREAKER ON OFF ENG.SW. START 20A AC120V/30A 20A AC120V/20A 20A AC120V/20A 20A GND

LF6500 and LF6500E CSA-CA

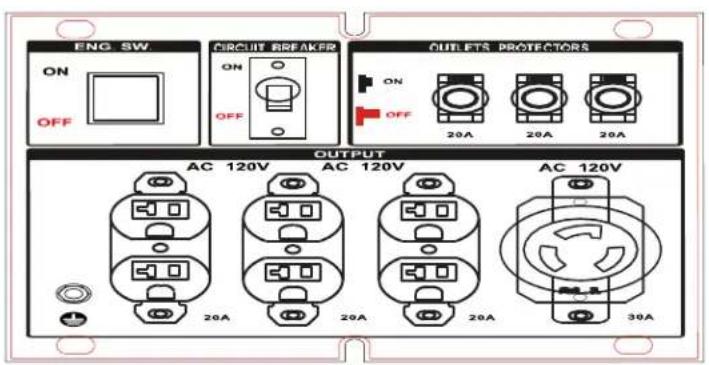

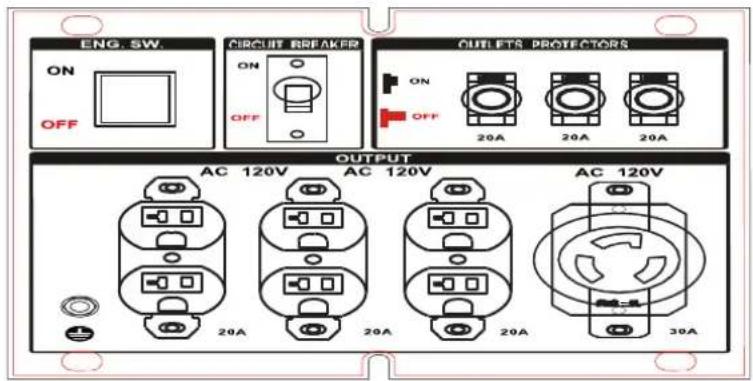

ENG. SW ON OFF CIRCUIT BISFAKER ON OFF OUTLETS PROTECTORS ON OFF 20A 20A 20A OUTPUT AC 120V AC 120V AC 120V 20A 20A 20A 30A

LF3500 and LF3500E CSA-CA

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

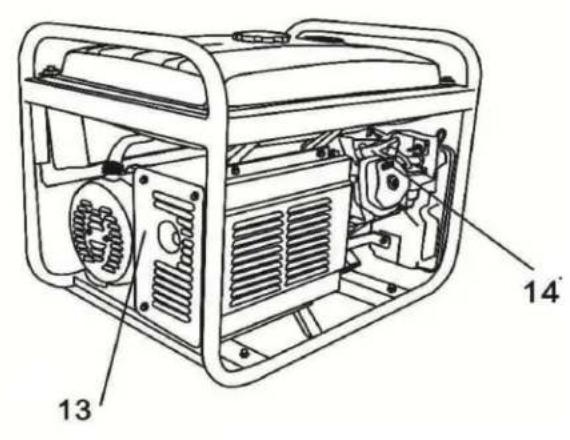

Technical diagram of a portable power supply unit with numbered components for identification

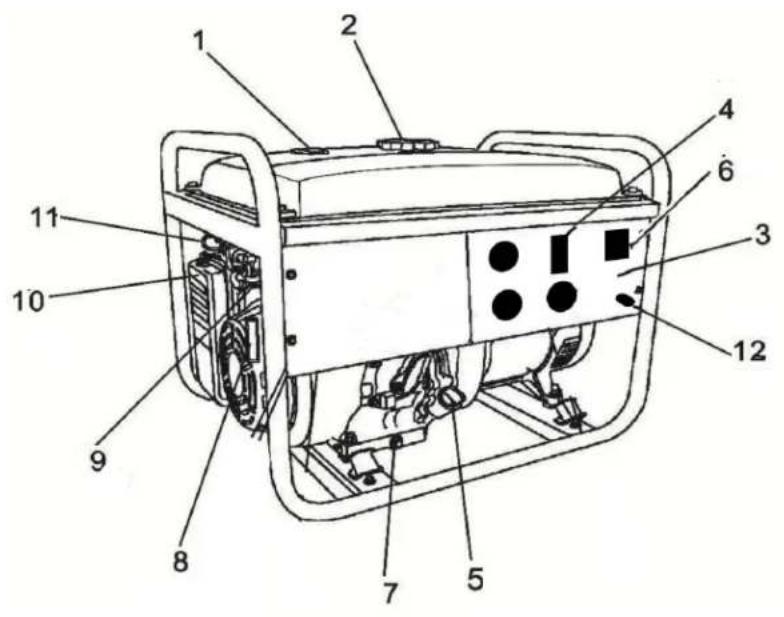

Technical diagram of a portable gas generator with labeled components 13 and 14

Legend

1. Fuel Level Sensor – Displays Current Fuel Level
2. Fuel Tank Cap – Vented Fuel Cap Must be Properly Installed at all mes during Operaon
3. Receptacle Panel – See Product Specicaons for Individual Model
4. Double Pole Circuit Breaker (AC) – Protects Receptacles & Generator from Overload

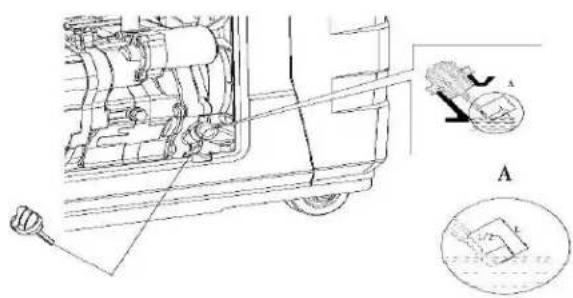

5. Crankcase Oil Dipsck/Oil Fill Hole Cap – Check/Fill Engine Oil
6. On/O Switch – Rocker Style; Set to "ON" to start Engine & "OFF" to Shut O Engine; Key Switch Model: Turn to "START" to Crank Engine & "OFF" to Shut O Engine
7. Crankcase Oil Drain Plug – Remove to Drain Oil from Crankcase
8. Recoil Starng Handle – Pull Handle to Rotate Engine for Starng
9. Fuel Cock (Valve) – Turn to "OFF" to Terminate Fuel Delivery to Engine

10. Air Cleaner – Check Maintenance Schedule for Service Intervals

11. Choke –

5000 Was & 8000 Was Model: Before starng cold generator, pull the chokepin outward from generator to acvate the choke lever. Aer allowing generator to run for a few seconds, push pin inward toward generator.

3500 Was & 4000 Was Model: Before starng cold generator, rotate the choke lever to the le unl resistance is felt. Aer starng the generator, rotate the choke lever to the right to disengage.

1. Earth Grounding Stud – Always connect generator to an Earth Grounding Source. Consult Local Energy Jurisdiction for Code Requirements in your area.

2. Muer & Muer Hood – Exhaust muer emits combuston gas from engine and lowers the noise level of the generator

3. Valve Cover – Cover for Overhead Valves designed to be removed periodically for valve adjustments.

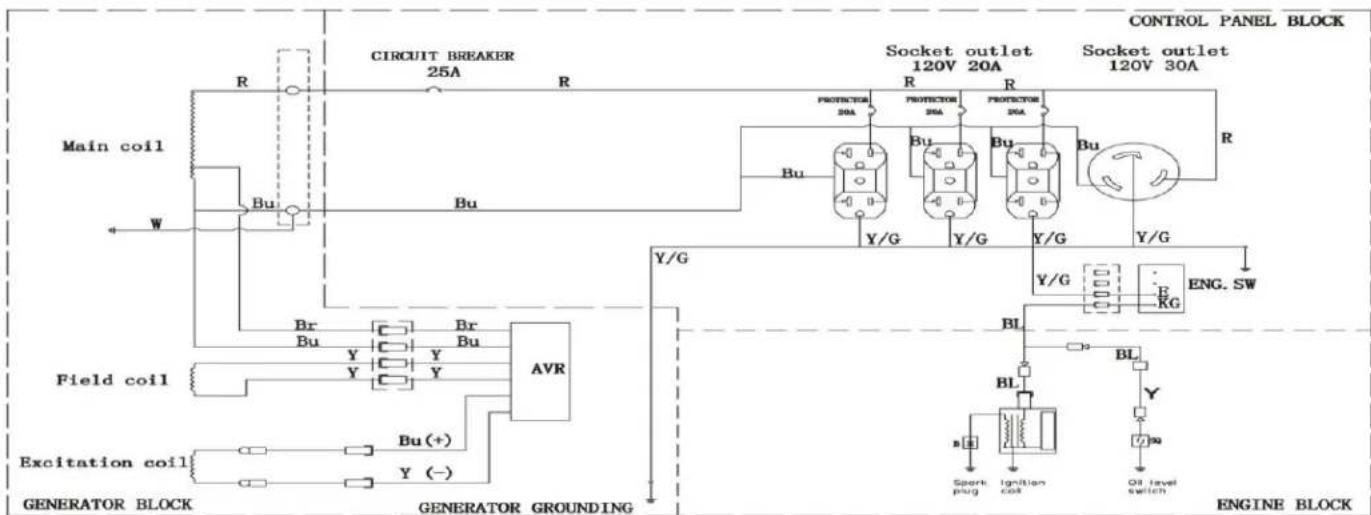

Voltage Regulator

LIFAN POWER USA AUTOMATIC VOLTAGE REGULATOR "Constant Quality and Quantity of Voltage" All Lifan Power USA ProSeries and EnergyStorm Generators are equipped with Automatic Voltage Regulators to ensure maximum protection for your appliances as well as your generator. By regulating the level of voltage in an alternating current (AC) system to a narrower range of output, the AVR protects any parts of your systems that might be damaged by surges or drops in voltage or power, particularly during the start-up of your appliances when the maximum voltage and power are required. The AVR ensures a constant quality and quantity of voltage is supplied to protect the appliances and system. "Your Best "Value" on Today's Equipment Market"

All Energy Storm Generators are equipped with AVR to get maximum performance and power from your unit.

PreOperangInstrucons: Assembly

Your LIFAN Power USA generator is packaged without fuel and oil. Some assembly is required before operang your LIFAN Power USA Generator.

For further assistance in assembling your generator please visit our website (www.lifanpowerusa.com) or call 1-866-471-7464 opon 2, b between the hours of 9am-5pm Monday-Friday.

BOXCONTENT:

• Generator

• Accessory Kit
  ○ 1 ea. ---Spark Plug RemovalTool
  o 1ea. --Nema14-30 Male Twist Lock Plug

• Owner's Manual and Warranty Card

• WheelKit (All 6500W & 8000W Models; Only3500 W/Electric Start Models)
• 2ea. - Never-Go-Flat Foam Filled Wheels
  ○ 2 ea. --- Heavy Duty Leg Supports (Shipped Stored Under FuelTank)
  ○ 1 ea. --Axle
  ○ 2 ea. ---Folding Handle
  ○ Hardware Bag

UNPACKING THEGENERATOR:

1. Set the Carton on a Flat, Rigid Surface.
2. Remove All Contents from Carton EXCEPT Generator.
3. Open Box Completely by Cung Each Corner from Top toBoom.
4. Leave Generator on the Remainder of the box unl Wheel Kit is installed.
5. Locate all Box Contents and Place them Beside the Generator. (Some Items maybe Packed within the voids of the Generator itself)

Pre-Operang Instrucons: Assembly

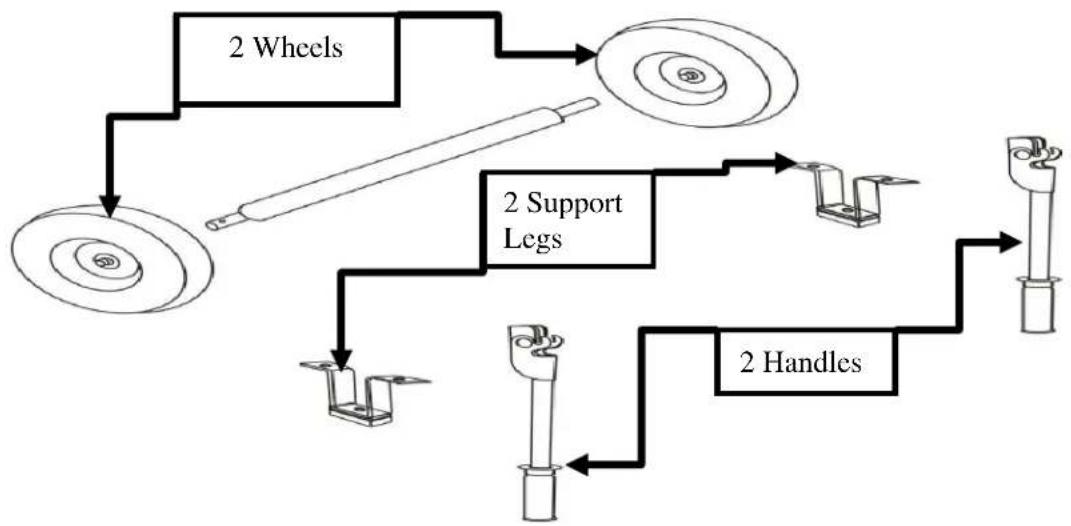

WHEEL KITINSTALLATION:

The Following Tools are needed to Install Wheel Kit:

• Safety Glasses
  • 8mm-14mmWrench Set
  • 8mm-14mmRatchet& Socket Set
  • 17mm Ratchet & Socket

Wheel Kit InstallaonDirecons:

NOTE: Install Wheel Kit BEFORE Filling the Generator with Fuel or Oil. Never Tip a Unit that contains Fuel or Oil.

1. Tip Generator so Engine End isup.
2. Slide Axle through both Mounng Brackets.
3. Place a Wheel on both Sides as shown in "Assembly Diagram."
4. Securely Tighten Wheel nuts with the 17mmSocket.
5. Tip the Alternator End of the Generator up.
6. Place the Support Legs under the Frame Brace as shown in "Assembly Diagram."
7. Secure with the provided Cap Screws and Hex Nuts. Securely ghtenusing 12mm Ratchet and Socket.

Pre-OperangInstrucons: Assembly

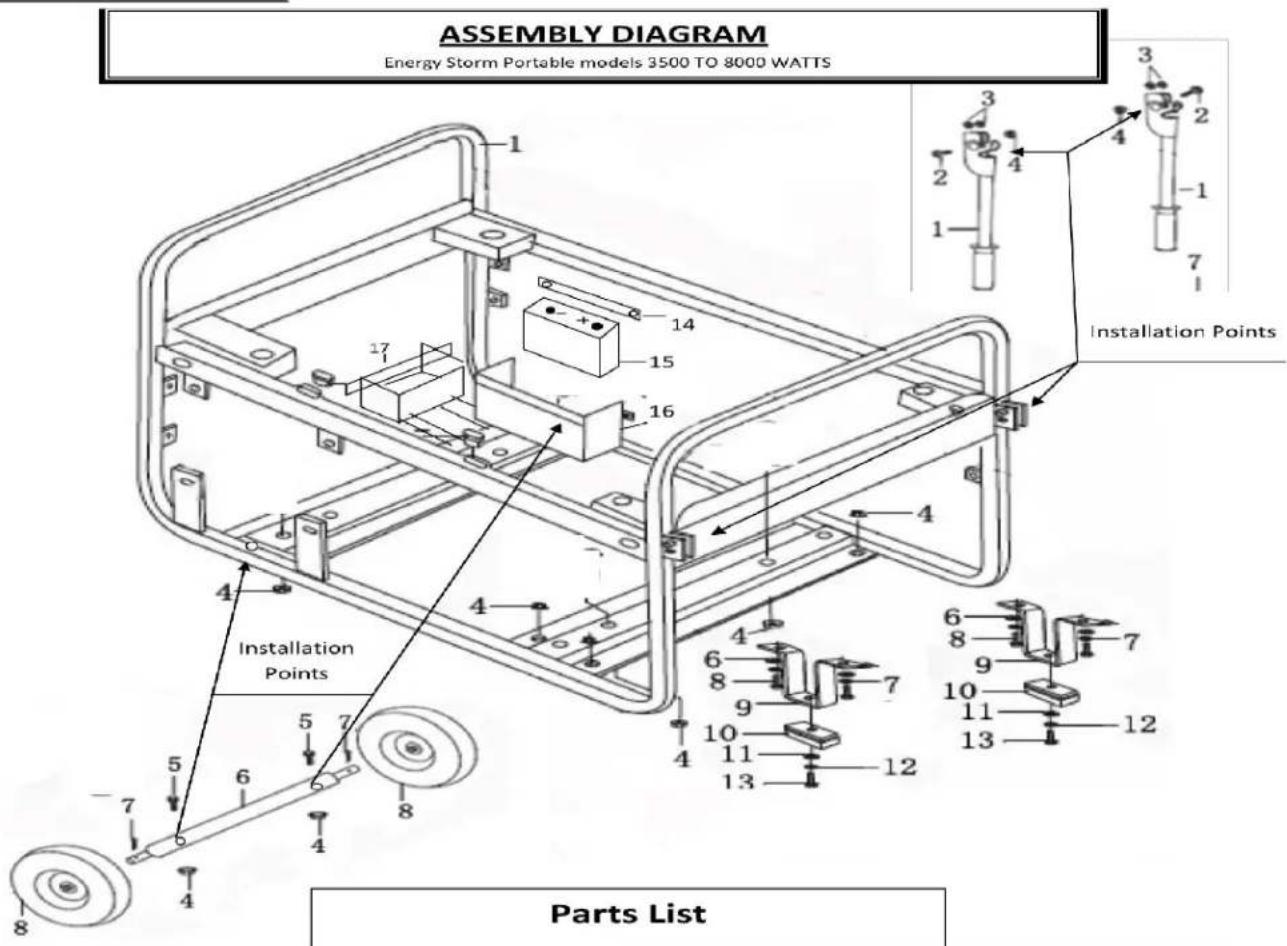

ASSEMBLY DIAGRAM Energy Storm Portable models 3500 TO 8000 WATTS 1 2 3 4 1 2 3 4 -1 7 1 14 15 16 17 4 Installation Points 4 Installation Points 6 8 7 9 10 11 12 13 14 15 16 5 6 7 8 Parts List

1.	Handle	2 pcs.	9	Front Leg	2 pcs
2.	Flange bolt 8mm × 45mm	2 pcs.	10	Leg Skid Pad	2 pcs
3.	Nylon Washers.8mm	4 pcs.	11	Flat washer 6mm	2 pcs
4.	Nut M8	12 pcs	12	Spring washer 6mm	2 pcs
5.	Flange bolt 8mm × 60mm	2 pcs	13	Flange bolt 6mm × 16mm	2 pcs
6.	Axle	1 pc.	14	Battery hold down strap	1 pcs
7.	Cotter Pin	2 pcs	15	12 volt Battery (not included)	1 pc.
8.	Tire & Wheel Assembly	2 pcs	16	Battery Box 5000- 8000 watt models
			17	Battery Box 3500 watt models

CAUTION! Assemble generator before adding fuel or oil.

POWERED BY

LIFAN

CSA-CA-EPA CERTIFIED

ENERGY STORM SERIES

Pre-OperangInstrucons: Baery Specicaons

(Electric Start (E) Models Only)

The Baery is NOT included with your Energy Storm Generator. These units require an Acid Cell Baery. This baery is used in many applicaons, such as lawnmowers, ATV's, motorcycles, etc. and can be found at many retailers and dealers including where you purchased this Power Equipment Product. Use the “Baery Specicaons” chart below to aain the specicaons of the necessary baery. Or, use the “CrossReferenceModels” chart below to match up with the manufacturer's model number with the brand baery available at your local retailer.

BATTERYSPECIFICATIONS
Generator Model	Length( inch)	Width( inch)	Amp(hr s)	DCVoltage (Volts)
ES3500	5.25in	3in	10	12V
ES6500	5.3125in	3.1875in	12	12V
ES8000E	5.3125in	3.1875in	12	12V

CROSS REFERENCEMODELS
GeneratorModel	Manufacturer	ModelNumber
ES3500	SuperStart®	CB9B
ES6500	Excide®	12N12A-4A-1
ES8000E	Excide®	12N12A-4A-1

Note:(-CA)or (E)Modelshave same Ba erySpecificaons

	Warning
Follow all the baery manufactures' warningsforproper installing of your baery in order topreventdamage to personnel orequipment.

Technical line drawing of a battery with mounting bracket and side connectors (no text or symbols)

1. Baery leads consist of a Red (hot) lead that connects to the(+) baery post and is connected to the (+) terminal on the starter solenoid and a Black lead which is connected to the(-) nega ve baeryterm inal and the framemounn g bolt.
2. Connect the Red (hot) terminal to the baery.
3. Connect the Black (negave) terminal to thebaery.

Pre-OperangInstrucons: GeneratorSetup

CAUTION: Any aempt to start the generator before it has been properly serviced may result in engine failure and void warranty.

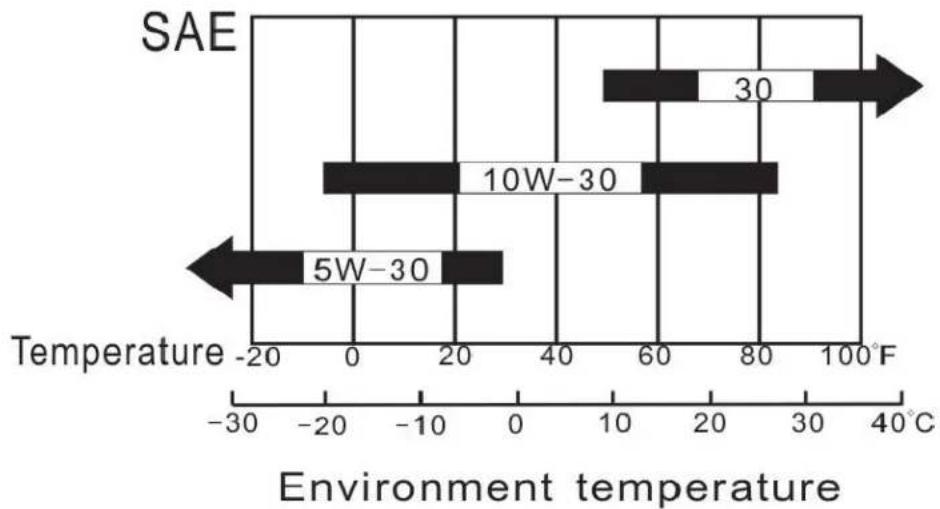

ADD ENGINE OIL: Refer to the diagrams below.

1. Place generator on level surface.
2. Clean area around Oil Hole Dipsck/Plug & Unscrew Oil Hole Dipsck/Plug.
3. Fill with appropriate type and amount. Refer to Chart below for recommended oil type based on Environmentaltemperature.
   NOTE: Refer to "Product Specicaons" secon for universal recommended oil type and oil amount.
4. Replace Oil Hole Dipsck/Plug and ghten securely.

Technical diagram showing engine components and a mechanical assembly with labeled parts A and B

Pre-Operang Instrucons: Generator Setup

(Continued)

WARNING!

Fuel and its vapors are extremely lammable and explosive.

Fire or explosion can cause severe burns or death.

WHEN ADDINGFUEL

• Turn generator off and let it cool for a minimum of three minutes before removing fuel cap. Turn and remove capslowly in order to relieve residual tank pressure.
  • Always ll the fuel tank with the unit outdoors.
  • DO NOT overll tank. Allow room for fuel expansion.
• Keep fuel away from sparks, open ames, heat, pilot lights, and other ignition sources.

ADD FUEL: Refer to Controls and Features secon for diagrams.

1. Clean area around fuel cap, then remove fuel cap.
2. Pour fresh, clean regular automove grade unleaded fuel with a minimum octane range of 85 into fuel tank. Do NOT mix fuel with oil. Fuel must have ethanol blend of 10% or less. Pay close aenon to the storage requirements of these fuels. Do NOT overll fuel tank.
3. Install the fuel cap. Rotate the fuel cap clockwise until it is in its locked position. Wipe away any spilled fuel.

GASOLINE

Pre-Operang Instrucons: Generator Setup

CAUTION:

Alcohol-blended fuels (gasohol, ethanol, or methanol) will aract moisture, which leads to separaon and form aon of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be treated with a fuel stabilizer or drained if the generator will not be started for thirty (30) days. If using a fuel stabilizer, follow the manufacturer's recommended instrucons for use. Always use stabilizer with a full tank of gasoline.

Always drain old fuel and use fresh fuel before next use. If you do not use a fuel stabilizer, the fuel system must be drained and cleaned. Drain the fuel tank and start the engine, allowing it to run until all fuel lines and carburetor are drained of fuel.

Before restarng the carburetor the oat bowl must be removed and cleaned of any debris.

NEVER use chemical solvents or cleaners in the fuel tank or damage may occur.

CHECK AIR CLEANERELEMENT:

Refer to "Air Cleaner Maintenance" in the Maintenance secon of this Owner's Manual to ensure Air Cleaner Element is in operable condion.

GROUNDING THE GENERATOR:

Refer to Controls and Features secon.

Connect the Ground Terminal on the generator to an acceptable source of electrical ground, such as a copper-grounding stake, using copper electrical wire with a minimum diameter of 16 gauges.

Operaon ofGenerator

HOW TO USE YOURGENERATOR

WARNING!

Running generator gives off carbon monoxide gas. It is odorless, colorless, and highly toxic. Breathing carbon monoxide gas can leads to fainting, nausea or may result in death.

• Only operate generator outdoors.
• Prevent exhaust gas from entering, through windows doors or ventilation intakes, any confined areas.
- DO NOT operate generator inside any enclosed or roofed areas. This includes the generator compartment of any recreational vehicle (RV).

STARTING THE ENGINE: Refer to the Controls and Featuressecon.

CAUTION!

Never start or shut off the generator with electrical loads connected and in the operational mode (on switch activated). Starting or shutting off the generator with electrical loads activated may result in damage to the generator.

1. Unplug all electrical loads from the generator.
2. Make sure the generator is in a level posion.
3. Open the fuel cock by turning the fuel cock to the "ON" posion.
4. For cold engine starts only: Pull the choke pin to the engaged posion per the instrucon label on the generator main frame.

PULL START (RECOIL) ONLYMODELS:

1. Place the On/O switch in the "ON" (I) posion.
2. Grasp starter handle and pull slowly until resistance is felt. Then pull the cord rapidly with a full arm stroke. Allow the rope to return slowly. Do NOT allow the rope to snap back against housing.
3. Once the engine runs for 3-5 seconds, push the choke pin in to disengage.

Operaon ofGenerator

HOW TO USE YOUR GENERATOR

ELECTRICT START MODELS:

1. For Electric Start Models, using provided key, turn the key switch to the "ON" posion, for models with the rocker switch start, push the rocker switch to the "ON" posion. Hold key switch in the "START" posion or the rocker switch unl engine starts or for NO MORE than 10 engine rotaons. If the engine does NOT start, wait 15 seconds and repeat starng procedures.

2. Once the engine runs for 3-5 seconds, push the choke pin in to disengage.

NOTE (all models): If generator does not start within FIVE pulls, check the crank case oil level. The engines “Low Oil Alarm System” may be acvated and preventing the engine from starng.

CONNECTING ELECTRICALLOADS:

1. Ensure engine is started before plugging in any electrical appliance.
2. Plug in desired 120 Volt loads to the 120 VoltU-Ground and 240 Volt loads to the 240 Volt receptacles on the LF8000E model. Always plug appliances into the generator with appliance in its "OFF" posion.
3. Do NOT connect 240 Volt loads to the 120 Volt receptacles.
4. Only connects single-phase 60 Hertz loads.
5. DO NOT OVERLOAD THE GENERATOR. FOLLOW THE PROVIDED "GENERATOR WATTAGE REFERENCE WORKSHEET" TO DETERMINE THE RUNNING AND STARTING WATTAGE OF YOUR EQUIPMENT REFER TO THE PRODUCT SPECIFICATIONS TO ENSURE YOUR GENERATOR WILL OPERATE THE DESIRED EQUIPMENT.

NOTE: Use the running and starng waage provided by the equipment manufacturer if available. If not available, use provided "Generator Waage Reference Worksheet."

Operaon of Generator

HOW TO USE YOUR GENERATOR

LOW OIL ALARMSYSTEM:

This model is equipped with a Low Oil Alert System designed to avoid engine damage from insucient oil in the crankcase. The Low Oil Alarm System will stop the engine automacally before the oil level in the crankcase drops below safe operang levels.

STOPPING THE GENERATOR:

Refer to Controls and Features secon for diagram.

EMERGENCY SHUTDOWN

1. Turn the Fuel Valve to "OFF" posion

NORMAL SHUTDOWN

1. Unplug all electrical loads or turn the main breaker to the "OFF" posion.
2. In order to stabilize internal equipment temperatures, allow the engine to run for 3-5 minutes under no load.
3. If the generator will not be in use for more than 7 days, turn the fuel valve to the "OFF" posion and allow the unit to run until the fuel in the carburetor is used and the engine shuts itself o.
4. Turn the ignition switch to the "OFF" posion.
5. Allow unit to cool to ambient temperature before storage or transportaon.
6. Always transport the generator with the fuel valve in the "OFF" posion. Failureto do so will result in damage to the engine.

LIFAN POWER USA LIFAN LIFAN POWER USA

Operaon of Generator

HOW TO USE YOUR GENERATOR

USAGE IN HIGH ALTITUDE REGIONS:

In regions with high altitude e, the standard carburetor produces overly dense combinations of fuel and air, which result in decreased engine performance and increased fuel consumption. To maintain high engine performance at high altitudes, install a high altitude carburetor main spray nozzle and re-adjust the adjusng screw for idle speed. For usage in regions with an altitude of over 4,527ft (1380m), contact your dealer to replace the standard carburetor and make needed adjustments in advance. Even with a proper high altitude carburetor spray nozzle installed in the engine, the power output of the engine will drop about 3.5% with every 1000ft (305m) increase in altitude. If the standard carburetor jets are not replaced and adjusted for usage in high altitude de, the increased altitude de eect will be even more severe.

NOTE: Usage of the generator in regions with lower altud e than the high altud e carburetor spray nozzle is applicable, may result in decrease of engine performance. The engine may become over heated and over-lean combination of fuel and air produced may cause severe damage to the engine.

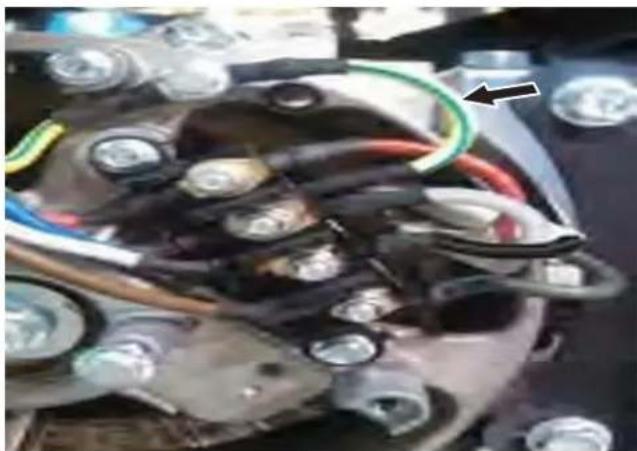

TRANSFER SWITCH CONNECTIONS - Only allow Professional Electricians

The Lifan EnergyStorm generator is wired with the neutral bonded to ground. If you are connecng your generator to a transfer switch, the electrician must rst determine what type transfer switch is being used. Transfer switches for this equipment are either two-pole or three- pole types.

A two-pole transfer switch will not switch the neutral from the generator to the service panel. That means the generator will be grounded to the service panel. To use the generator with two-pole transfer switches, the electrician will need to change the neutral from bonded to oang.

This is done by removing the jumper wire that connects the alternator ground to the alternator neutral. Remove the jumper wire and reghten the connecons. Keep the jumper wire with the owner's manual in case it is needed for future use when not connected to a transfer switch.

Close-up of an automotive engine bay with visible wiring and components (no text or symbols)

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

Storing the Unit

STORAGE

Before long term storage of your power equipment product, typically 30 days or more, perform the following:

1. Set the fuel cock (valve) to the "OFF" posion.
2. Let the unit connue to run unl it stops itself, burning all of the fuel in the fuel system.
3. Turn the ignition switch to the "OFF" posion.
4. Drain the engine oil in accordance with the "Oil Change Procedures" in this Owner's Manual's Maintenance secon. Do NOT re-II with oil unl ready to use again.
5. Remove the Spark Plug in accordance with the "Spark Plug Maintenance" in the Owner's Manual's Maintenance secon. Spray a lubricant, such as WD40®, into the Spark Plug hole to lubricate the top of the piston and walls of the cylinder. Replace the Spark Plug.
6. Pull starter rope unl resistance is felt. This will place the valves in the closed posion.
7. Add the recommended amount of fuel stabilizer, in accordance with the amount recommended by the manufacturer of the fuel stabilizer, to the unused gasoline le in the fuel tank.
8. Place the unit in a clean, dry, and secure locaon.
9. Coverwith "LIFAN WaterProof Generator Cover," Item Number LF100-69600 not included) or canvas/vinyl tarpaulin. Do NOT operate unit with cover installed.
   10.

MAINTENANCE SCHEDULE
PROCEDURE	TIME
Engine Oil Check	Each Use
Replace Engine Oil	After Each 40 Hours of Use (For Initial Break in – After First (1st) 10 Hours of Use
Air Cleaner Filter Check	Each Use
Air Cleaner Filter Replacement	When Needed or After Every 50 Hours of Use
Air Cleaner Wash	When Needed
Spark Plug	When necessary or within 100 hrs. of run time
Valve Clearance	Check & Re-adjust annually or after 300 Hours of Use
Fuel Tank	Replace Every 3 Years Based on Condion

Maintenance

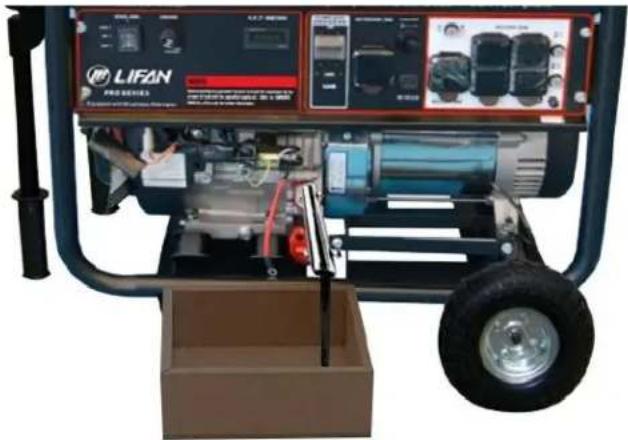

OIL CHANGE PROCEDURES: Refer to Controls and Feature secon for diagram. Periodic Maintenance of your engine oil should be performed aer each 40 hoursof use of you Power Equipment Product. Check your engine oil level prior to each use.

1. Start your engine and let it warm up to get the oil warm and thinner. Turn the engine On/OFF switch to the "OFF" posion. Turn Fuel Valve to the "OFF" posion.
2. Remove the oil cap/dipsck by turning counter clockwise. Remove the oil drain plug located below the oil cap/dipsck ulizing the appropriate tools.

USE CAUTION: THE OIL MAY BEHOT.

1. Drain the engine oil into an approved receptacle and discard in accordance with all Federal and State Regulaons. Never dump the used engine oil on the ground or into drains, only discard in an approved manner. Check with your local authorities to determine the regulaons in your area.

Exterior view of a LIFAN PRO-DERIES electric vehicle with visible control panel and wheels (no readable text or symbols)

Maintenance

WARNING! AVOID SPLASHING OF HOT OIL; IT CAN BURN YOU AND CAUSE SEVERE INJURY.

1. After oil is completely drained, replace oil drain plug and ghten with appropriate tools. Replace oil with the proper oil for your product. Refer to the Pre-Operan g Instru con : Generator Setup secon fo r exact ll requirements.

Always use your dipsck to check the oil level and only ll to the full mark on the dipsck. Never overll the engine as this can cause damage to the unit and void warranty.

1. Replace the dipsck/oil cap on the engine.
2. Shake generator to ensure the oat in the Oil Alert System is free.

PROPER MAINTENANCE OF THE UNIT WILL INCREASE THE LIFE OF YOUR PRODUCT. THE OIL MUST BE CHANGED ON A REGULAR BASIS FOR PROPER OPERATION, AND RELIABILITY AND TO ALSO MAINTAIN THE WARRANTY ON THIS PRODUCT.

AIR CLEANER MAINTENANCE:

1. Remove the clip (item 9 in "Air Cleaner A" below) or the wing nut (item 7 in "AirCleaner B" below) to remove and check the air lter element.
2. For Sponge Type Air Filters, wash with soap and water when contaminated. Squeeze excess liquid from air liter element, and allow the air liter element to dry. Lubricate with a few drops of oil. For Paper Type Air Filters, replace with the correct Air Filter for your unit. They are available at your dealer or from LIFAN Power USA. Order your liter by calling toll free 866-471-7464.

Simple line drawing of a container with a lid and a handle, no text or symbols present

Simple line drawing of a hand holding a circular object (no text or symbols)

LIFAN POWER USA LIFAN LIFAN POWER USA

Maintenance

1. Re-Install the air I ter element into the air I ters housing.

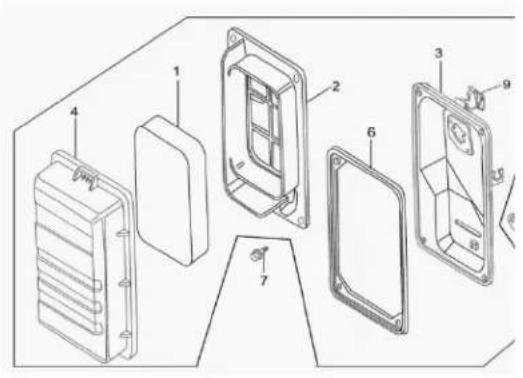

Exploded view diagram of a device showing numbered components for assembly or maintenance reference.

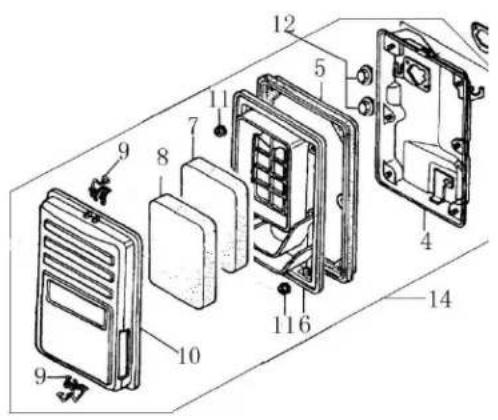

Air Cleaner A Air Cleaner

Technical diagram of a device's internal components with numbered parts for identification

Maintenance

SPARK PLUG MAINTENANCE:

1. Remove Spark Plug Cap (refer to "Spark Plug Cap Removal" gure below.)
2. Remove Spark Plug with socket and handle supplied with your unit (refer to "Spark Plug Removal" gure below.)
3. Clean any carbon build-up around the Spark Plug.
4. Check the Spark Plug Gap and adjust if necessary. 0.30-inch gap.
5. Lubricate the threads of the Spark Plug with an -seize compound or engine oil.
6. Re-install the Spark Plug and Spark Plug Cap.

Simple line drawing of a robot with a thought bubble showing a mechanical component (no text or symbols)

Spark Plug Cap Removal

Close-up of mechanical components with no visible text or symbols

Close-up of a black mechanical component with metallic ends and a handle (no visible text or symbols)

Spark Plug Removal

SPARK PLUG SPARK PLUG CAP

FUEL SYSTEM MAINTENANCE:

NOTE: Periodically you can get sediment or trash in your Carburetor Bowl. Use the following procedures to clean:

1. Turn the fuel cock (valve) to the "OFF" Posion.
2. Remove the carburetor bowl by removing the moung bolt located at the boom of the bowl.
3. Dump out the old fuel and sediment into an approved container and clean carburetor bowl thoroughly.

LIFAN POWER USA LIFAN LIFAN POWER USA

Maintenance

FUEL SYSTEM MAINTENANCE (connued):

1. Fit a new rubber washer into place and re-aac h fuel bowl to the carburetor.

diagram below) and either dean orreplace the fuel I ter element. Re-assemble the fuel I ter element (refer to "Fuel Filter Element Assembly" diagram below.)

Illustration of a hand holding a small mechanical component with multiple parts stacked vertically (no text or symbols)

Illustration of a hand holding a valve with internal components, no text or symbols present

Fuel Filter Element Removal Fuel Filter Element Assembly

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

Troubleshoong

IF THE ENGINE WILL NOTSTART:

1. Check to ensure switches are in the "ON" posion. (Both unit and engine)
2. Check engine oil level. Your unit possesses a Low Oil Alarm System that will not allow your engine to start if the oil is below safe operang levels. This featureis installed to increase the life of your engine and prevent engine damage. If oil level is low, ll to the full mark on dipsck. Refer to the Product Specicaons for exact oil type and amounts.
3. Check the fuel level to insure adequate fuel. Add fuel if necessary.
4. Remove and inspect the spark plug for cleanliness and proper electrode gap. If needed, clean or replace the spark plug. Refer to Spark Plug Maintenance in the Maintenance secon of the Owner's Manual for proper procedure.
5. If your unit will sill NOT start after performing the above checks, call our customer hotline at LIFAN Power USA Toll Free 1-866-471-7464 OPTION 2.

NOTE: Periodically on the initial start-up or after the unit has been stored for a long period of me, the o at for the "Low Oil Alarm System" will s ck to the boo m of your oil pan. Locate thetwo (2) wires to the Low Oil Sensor Diode (refer to gure on the right) located on the side of the engine block. Unplug these wires and, only aer e nsuring the engine is full of oil, start the engine and allow running unl warm (normally 20minutes, as this will heat the oil and release the o at on the Low Oil Alert System). Then re-plug the wires to the terminals on the Low Oil Alarm SendingUni

UNIT DOES NOT PROVIDE ELECTRICAL CURRENT:

Diagram showing four labeled mechanical components with numbered parts, likely illustrating a sequence or assembly.

1. Plug in a small appliance or tool to test.
   1.On 2.0/Tripped 3.On 4.0
2. Check if the AC (or DC) Circuit Breaker is in the "ON" posion. If no t, place in "ON" posion. If equipped with a GFCI receptacle, re-set GFCI Breaker by pushing in the reset buon in th e middle of the GFCI's face plate (this must be done with the engine running).
3. If your unit sll do es NOT produce electricity after performing the previous checks, call LIFAN Power USA at 1-866-471-7464, OPTION 2.

UNIT DOES NOT PROVIDE ELECTRICAL CURRENT (connued):

1. If your unit sll do es NOT produce electricity after performing the previous checks, call LIFAN Power USA at 1-866-471-7464 OPTION 2.

LIFAN POWER USA LIFAN LIFAN POWER USA

Generator Safety

1. Never operate gasoline engine powered products in any enclosed spaces, as they product deadly Carbon Monoxide Poisonous Gases.
2. Never hook a generator directly to your home circuit without the proper installaon by a Licensed Electrician and without the proper power transfer devices.
3. Do NOT operate your power equipment in inclement weather such as rain, snow, and/or sleet.
4. Do NOT operate your power equipment within ve (5) feet of any ammable materials.
5. When refueling the power equipment never smoke or refuel near any flame or ignition devices. Never refuel while the unit is running. If during the refueling process some fuel is spilled, always completely clean the fuel and allow sufficient drying me prior to re-staring the unit. Gasoline vapors ignite easily and are very dangerous.
6. Do NOT parallel connect this model. Generator cannot be combined with other electric wires or mulple socket boxes.
7. Do NOT lengthen the exhaust pipe or vent it with any extension.
8. Use SJ or SJO type extension cords if necessary.
9. Do not use extension cords exceeding: 16 Gauge, 200 or 10 Gauge, 330.
10. NEVER ALLOW CHILDREN OR ANIMALS TO BE NEAR THIS EQUIPMENT DURING OPERATION. ONLY QUALIFIED PERSONS SHOULD OPERATE THIS EQUIPMENT. FOLLOW ALL GUIDELINES CONTAINED IN THIS OWNER'S MANUAL FOR THE SAFE OPERATION OF THIS EQUIPMENT.

DANGER Using a generator inside CAN KILL YOU IN MINUTES Generator exhaust contains carbon monoxide. This is a poison that you cannot see or smell. NEVER use inside a home or garage, EVEN IF doors and windows are open. Only us OUTSIDE and far away from windows, doors, and vents Avoid other generator hazards, READ MANUAL BEFORE USE

CONVERTING AMPS OR HORSEPOWER INTO WATTS

Was = Amps x Volts

Running Was* = Horsepower x 932** (for motors)

- Add a 10% correcon factor to your totals to help overcome this uncertainty.

If your customer plans to operate devices that use electric motors, list both the starng and running requirements of each.

- Starng requirements of some devices maybe significantly higher than their running requirements. This higher demand must be considered when esmang your power needs. Some small, universal motors — which do not draw a heavy starng load (drills, small saws, blenders, etc.) — require very lile extra current for starng.

MOTOR/DEVICE	STARTINGWATTS	RUNNINGWATTS
Motor A	2,600	850
Motor B	1,300	600
Motor C	1,000	750

NO ELECTRIC MOTORS

If your list does not include any devices that use electric motors, simply add the power (running) requirements of all the items on your list to obtain the maximum power needed.

DEVICE	WATTS
Electric Skillet	1,500
Light	100
Heang Pad	65
Total:	1,665

LIFAN POWER USA LIFAN LIFAN POWER USA

LIMITED WARRANTY POLICY

This warranty is limited to the following Lifan Power and Storm Series products that are distributed by the EquipSource LLC, dba LIFAN POWER USA, located at 2205 Industrial Park Road, Van Buren, AR 72956. Eecve date is 1-1-2015.

LENGTH OF WARRANTY
	Residential Use**			Commercial/Rental***
PRODUCTS COVERED	1^st Year	2^nd Year	3^rd Year	Warranty not to exceed 300 hrs. Or terms listed below.
Water Pumps	Full unit parts and labor	Full unit parts only	Engine: parts only	Full unit: 12 months parts and labor
Generators/Inverter Generators	Full unit parts and labor	Full unit parts only	Engine: parts only	Full unit: 12 months parts and labor
Pressure Washer's	Full unit parts and labor	Full unit parts only	Engine: parts only	Full unit: 12 months parts and labor
Gasoline Engines	Full unit parts and labor	Full unit parts only	Engine: parts only	Full unit: 12 months parts and labor

** Residenal Use is dened as items that are for personal use.
*** Commercial/Rental use is denied as any usage for income producing or other business related uses.

In order to qualify for the limited warranty the product(s) must be purchased in North America from an authorized EquipSource, LLF d/b/a Lifan Power USA dealer or a dealer authorized by EquipSource to sell Lifan products. This warranty is non-transferable and applies only to the original purchaser. The supplied "Warranty Registraon Card" must be completed and on le with American Warranty Service (at the supplied address), at the me that any warranty claim is made. The "Warranty Registraon Card" must be submitted with a receipt of purchase which clearly states the date of purchase and where the purchase was made.

During the warranty period (stated above) EquipSource, LLC and/or American Warranty Service will repair or replace, at its' opon, any part that is proven to be defective in material or workmanship under normal usage. Repairs and/or replacement will be made without charge for parts or labor. All parts found to be defective must be returned to EquipSource or American Warranty Service at our direcon. Upon recepon of the parts a judgment as to the validity of the warranty claim will be determined. All parts replaced under warranty or any replacement of the complete unit will be considered part of the original product and replacement of any product, and any warranty on those parts or replacement unit will coincide with the original warranty.

To obtain Warranty Service, call our Customer Service Hotline at 1-866-471-7464 and press 2 for Warranty Service at which me you will be transferred to the technicians at American Warranty Service. In lieu of this you may call directly to American Warranty Service at 888-926-4313 to be directly connected to a repair specialist. If your issue cannot be resolved through consultaon with our customer service representatives, you will be directed to an Independent Service Center of your choice nearest your locaon. Any manufacture's Defects of your product will be repaired or replaced at no charge to you per our commitment. If the issue with your unit is not a Manufacture's Defect, you will be advised to make payment to the Service Center upon diagnosis of repairs which are not covered under the Manufacturer's Warranty Policy. In this case the end user is responsible for all shipping and handling charges associated with the exchange and as stated above the warranty will coincide with the date of the original purchased unit.

This warranty is not valid for products or parts aected or damaged by accident, collision, normal wear, fuel contaminaon, abuse, neglect, misuse, alteraon and/or unsuitable use or unauthorized parts replacement. Mower decks and blades are specially not warranted for impact or abrasive damage. Warranty becomes void if the customer fails to install, maintain, and/or operate the product in accordance with the instrucons and recommended actions of Lifan set forth in the owner's manual. EquipSource, LLC disclaims any responsibility for time loss or loss of usage of the product, transportaon, commercial loss, or any other incidental or consequential damage. Prior to any warranty service an approval code must be issued to the service center in order for the warranty claim to be valid. Any implied warranties are limited to the duraon of this written limited warranty. This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state.

OWNER'S RESPONSIBILITY

To ensure trouble free warranty coverage it is important that you register your Lifan generator by phone at 1-866-471-7464, or by lling out and returning to Lifan Power USA the warranty registraon card supplied with your generator. Registering your product

This conrms your warranty coverage and provides a direct link between you and Lifan Power USA if we nd it necessary to contact you.

Your receipt for purchase including date, model and serial number must be maintained and registered to receive service from an Authorized Service Dealer for warranty service. Proof of purchase rests solely with you, the original purchaser.

You must demonstrate reasonable care and use, and follow preventive maintenance, storage, fuel and oil usage as prescribed in the operator's manual for your Lifan Power unit. For the warranty assistance from a Lifan Authorized Service Dealer nearest to you, call Lifan's automated phone at 1-866-471-4764 Opon 2. Should you require assistance or have quesons concerning Lifan Power USA Warranty Statement, you can contact us through the web at www.lifanpowerusa.com or call toll free 1-866-471-7464.

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

EXCLUSIONS

• Lifan Power Equipment that ulize non-Lifan replacement parts.
• Failure to perform "Periodic Maintenance" as required and specied in the supplied "Owner's Manual."
  • Costs of normal maintenance and adjustments.
• Failures caused by any contaminated fuels, oils, or lack of proper oil levels.
• Repairs or diagnoses performed by individuals other than Lifan authorized dealers not authorized in wring by Lifan.
• Failures due to normal wear and tear, accident, misuse, abuse, negligence or improper use.
• Damage related to any animal infestaon to include rodent and/or insect infestaon.
• Products that are modified or altered in a manner not authorized in wring by Lifan.
• Failure due to misapplicaon.
• Telephone, cellular phone, facsimile, internet access, or other communicaon expenses.
• Expenses related to "customer instrucon" or troublesomeong where no manufacturing defect is found.
  • Overnight freight or special shipping costs for replacement part(s).
  • Overme, holiday or emergency labor.
  • Starng batteries, fuses, light bulbs and engine uids.

- As withall mechanical devices, the Lifan engines need periodic part(s) service and replacement to perform as designed. This warranty will not cover repair when normal use has exhausted the life of a part(s) or engine.

- Failures caused by any external cause or act of God, including but not limited to, collision, the, vandalism, riot, war, re, freezing, lightning, earth-quake, windstorm, hail, water, ood, tornado, or hurricane or any occurrence outside of normal use and activity.

- Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

DISCLAIMER OF IMPLIED WARRANTIES

This limited warranty is in lieu of all other expressed or implied warranes, including any warranty of the unit's tness for any parcular use and any implied warranty of MERCHANTABILITY otherwise applicable to Lifan Power Equipment and its aliated companies shall not be liable for any special, incidental or consequential damage, including lost prots. There are no warranes extended other thanas provided herein. This limited warranty may be modified only by Lifan Power USA. Any implied warranes allowed by law shall be limited in duraon to the terms of the express warranty provided herein. Some states do not allow limitations on how long an implied warranty lasts, so the above limitaon may not apply to you. Some states do not allow the exclusion or limitaon of incidental or consequential damages, so the above limitaon may not apply to you. This warranty gives you specic legal rights. You also have other rights from state to state. Lifan's ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT AS STATED ABOVE. IN NO EVENT SHALL Lifan BELIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF Lifan's NEGLIGENCE. Some states do not allow the exclusion or limitaon of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specic legal rights and you may also have other rights from state to state.

OWNER'S WARRANTY RESPONSIBILITIES:

As the outdoor equipment owner, you are responsible for performance of the required maintenance listed in your owner's manual. EquipSource, LLC d/b/a Lifan Power USA recommends that you retain all receipts covering maintenance on your outdoor equipment. Lifan Power USA will not deny your warranty coverage based solely on your lack of receipts for service however, the condition of the equipment upon arrival at the service center will determine the warrantable nature of the product.

As the outdoor equipment owner, you should however be aware that Lifan Power USA may deny your warranty coverage if your outdoor equipment or a part has failed due to abuse, neglect, or improper maintenance or unapproved modicaons.

If you have any quesons regarding your warranty rights and responsibilities, you should contact Lifan Power USA or American Warranty Service Representave at 1-866-471-7464 Opon 2 Warranty and Service or at the following address Lifan Power USA, 2205 Industrial Park Road, Van Buren, AR 72956 or by contactng us through www.lifanpowerusa.com.

This warranty specifically excludes the use of any Lifan Power Equipment or Storm Series power equipment as the "Sole Source of Power" for "o the power grid applicaons" and this warranty will become null and void for units used for this purpose and manner. This warranty specially excludes the use of any Lifan Power Equipment or Storm Series power equipment for the purpose of powering Life Support devices, Life Support appliances, Medical devices, and/or Medical appliances. EquipSource, LLC will not be held responsible for any damage due to the use of any Lifan or Storm Series power equipment for these purposes.

LIFAN POWER USA LIFAN LIFAN POWER USA

APPENDIX

LIFAN POWER USA LIFAN LIFAN POWER USA

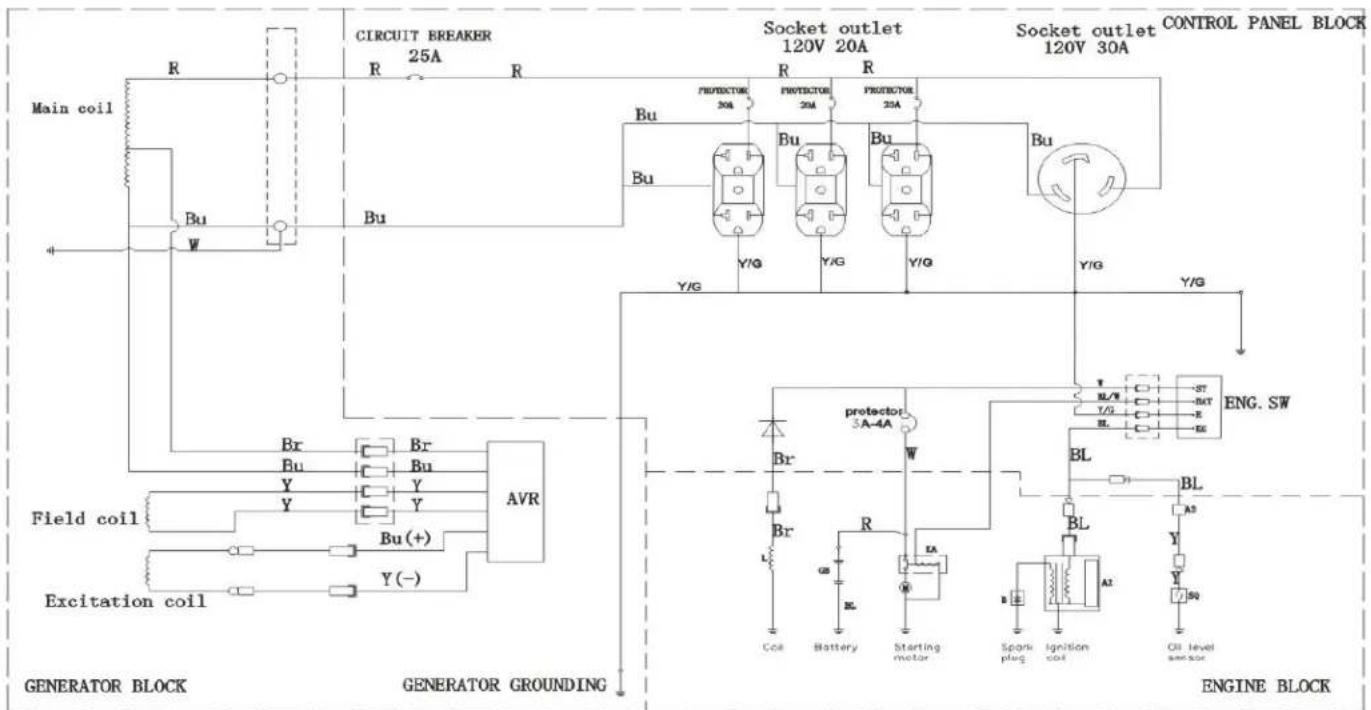

Wiring Diagram LF3500 & LF3500E

BNG. 0Y					KISS
	BG	S	RAY	ST	BL	Black	R	Red
GFP	○	○			Y	Yellow	V	White
GM					BU	Blue	Br	Brown
START					G	Green

CIRCUIT BREAKER 25A R R Main coil Bu W Bu AVR Field coil Excitation coil Generator BLOCK GENERATOR GROUNDING Socket outlet 120V 20A Socket outlet 120V 30A CONTROL PANEL BLOCK Y/G Y/G Y/G Y/G GENE R BLOCK protector 3A-4A BL BL BL Starting motor Spark plug Ignition coil Oil level sensor Eng. SW Br Bu Y Y Y Y Y Y BR Br L Coa Battery Starting motor B A2 Y Y Y BR R AL Bal Bal Bal Bal

	ED	E	BAT	ST
OFF	◎	◎
ON
START			◎	◎

BL	Black	K	Red
Y	Yellow	F	White
BU	Blue	Br	Brown
G	Green

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

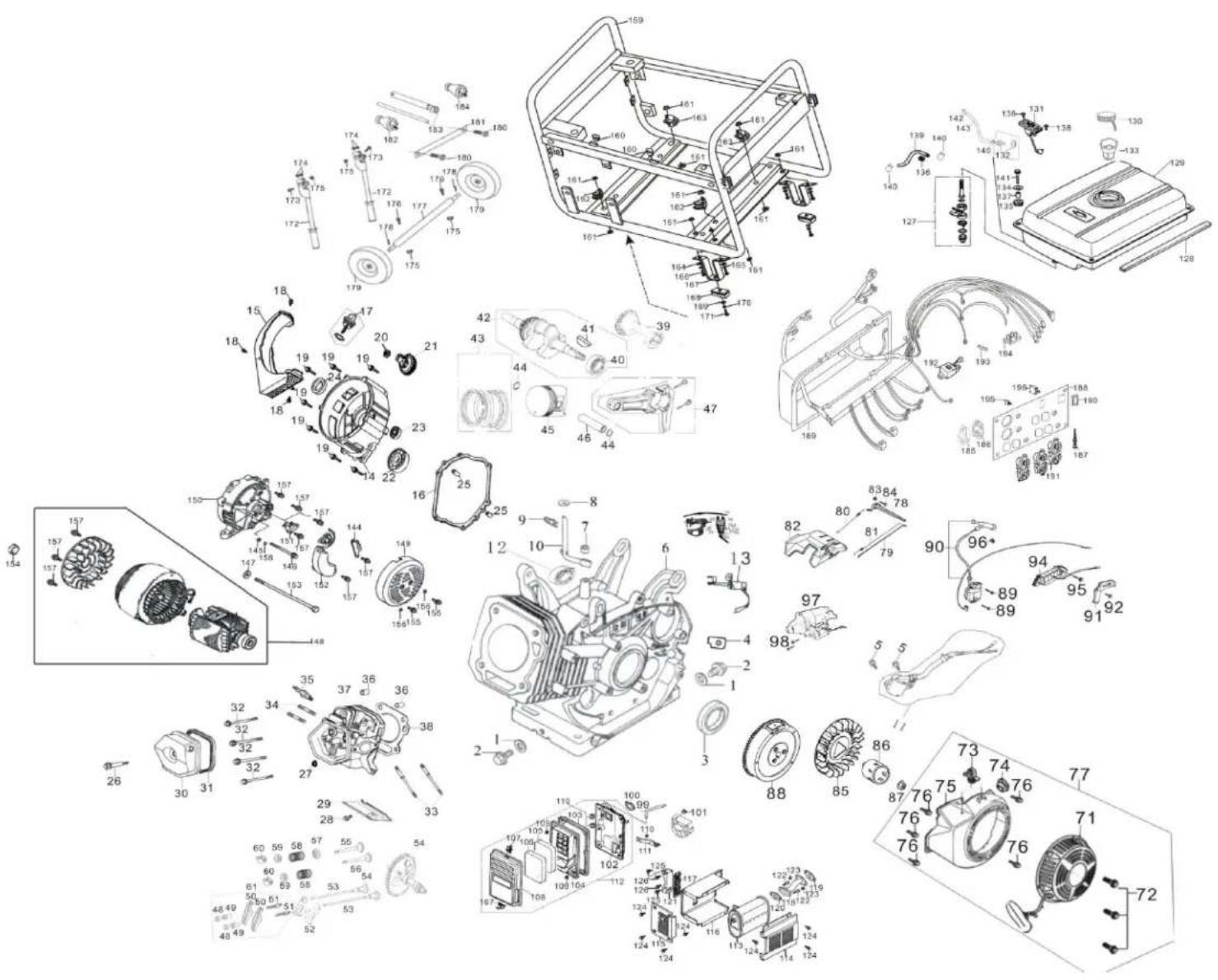

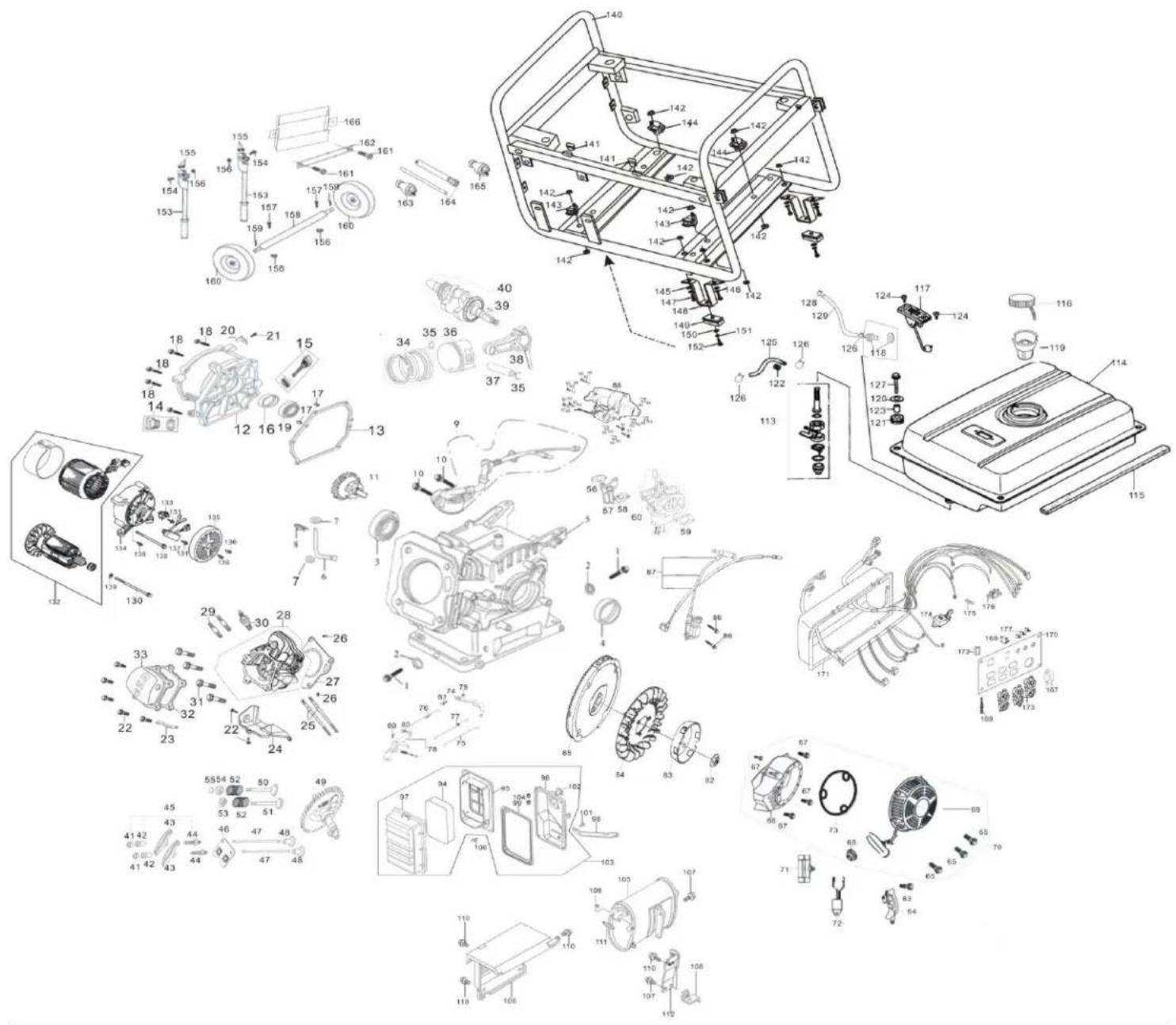

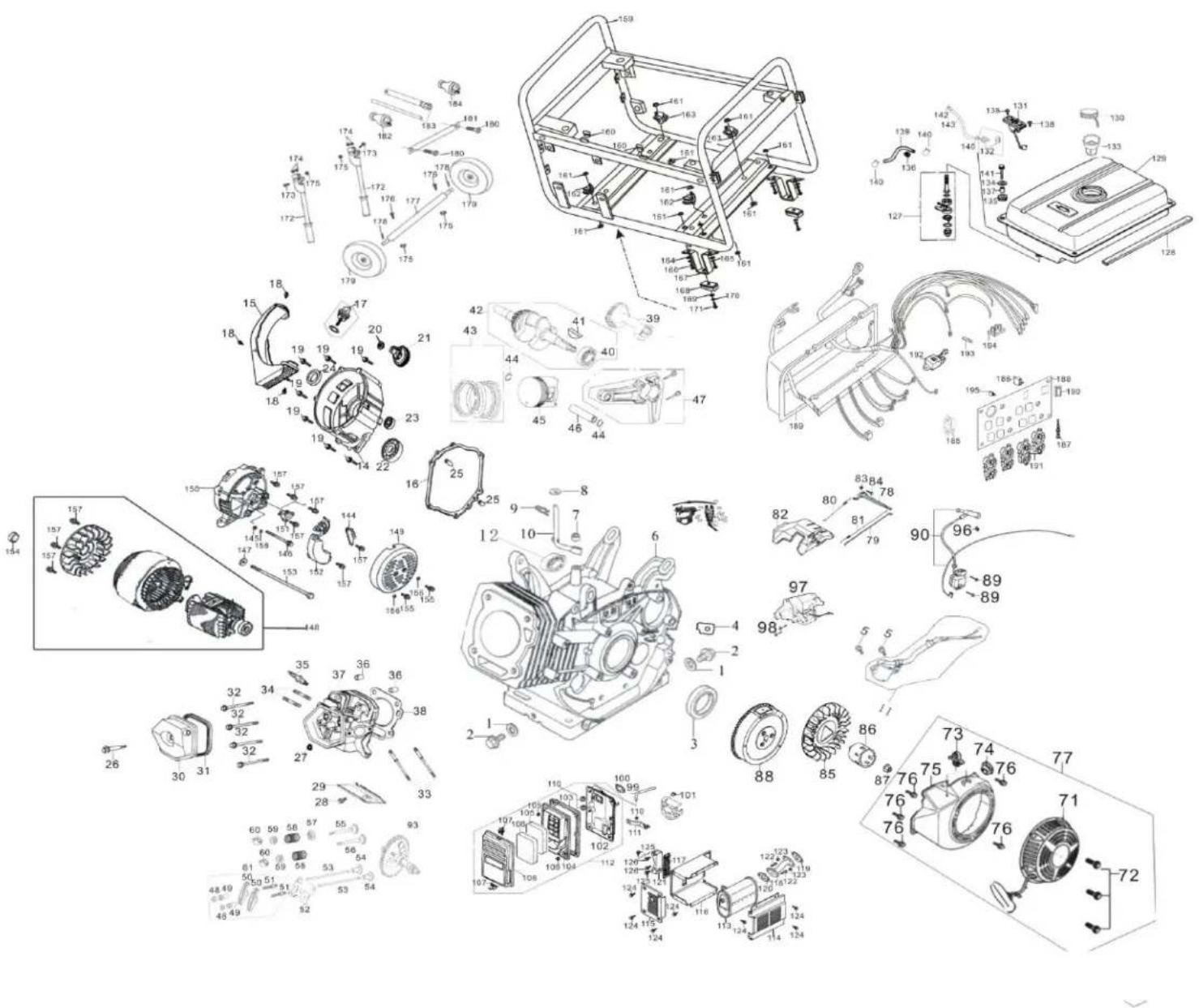

Engine Exploded View & Parts

Exploded view diagram of a mechanical assembly with numbered components and exploded views

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

Part	Code	Description	q'ty
1	11115-A0710-0001	Drain plug M10X15	2
2	11116-A0710-0001	Washer	2
3	T910-0001	Bearing 6205	1
4	11120-A0710-0002	Oil seal, crankshaft	1
5	11110-A0611-0001	Crankcase	1
6	26111-A0710-0001	Regulating sway bar	1
7	26113-A0710-0001	Washer	2
8	26112-A0710-0001	Split pin	1
9	27400-A0710-0002	Oil sensor	1
10	T152-0004	Bolt M6×14	2
11	25100-A0710-0004	Driven gear assy, regulator	1
12	11211-B9130-0001	Crankcase cover	1
13	11114-A0710-0001	Gasket, crankcase	1
14	15610-A0710-0001	Oil plug with Seal	1
15	15510-A0710-0001	Dipstick with seal	1
16	11120-A0710-0001	Oil seal , crankshaft	1
17	11113-A0710-0001	Set pin Φ8×14	2
18	T151-0001	Bolt M8×32	6
19	T910-0001	Bearing 6205	1
20	11216-B9130-0001	Dust plate	1
21	T151-0002	Bolt M6×12	1
22	T152-0019	Bolt M6×12	6
23	19143-A0710-0001	Air duck	1
24	19121-A0721-0001	Lead wind cover	1
25	17218-A0710-0001	Stud M6×96	2
26	12117-A0710-0001	Set pin Φ10×16	2
27	12120-A0720-0001	Gasket, cylinder head	1
28	12100-A0721-0004	Cylinder head Assy	1
29	18214-A0710-0001	Stud M8×34	2
30	27100-A0710-0001	Spark plug F6TC	1
31	12118-A0710-0001	Bolt	4
32	12212-A0721-0001	Gasket, cylinder head cover	1
33	12200-A0721-0001	Cylinder head cover Assy	1
34	13400-A0730-0001	Piston ring assy	1
35	13313-A0710-0001	Piston pin circlip	2
36	13311-A0720-0004	Piston	1
37	13312-A0710-0001	Piston pin	1
38	13120-A0710-0001	Shank	1
39	13112-A0710-0001	Woodruff key	1
40	13110-A0720-0002	Crankshaft assy	1
41	14314-A0710-0001	Lock nut	2
42	14312-A0710-0001	Sleeve	2
43	14311-A0710-0001	Valve rocker	2
44	14313-A0710-0001	Adjusting bolt for valve gap	2
45	14310-A0710-0001	Valve rocker assy	2
46	14220-A0710-0001	Pusher guide	1
47	14210-A0710-0001	Pusher	2
48	14315-A0720-0001	Tappet	2
49	14100-A0720-0005	Camshaft Assy	1
50	14412-A0710-0001	Exhaust valve	1
51	14411-A0710-0001	Intake valve	1
52	14414-A0710-0001	Valve spring	2
53	14413-A0710-0001	Spring seat, intake valve	1
54	14415-A0710-0001	Spring seat, exhaust valve	1
55	14416-A0710-0001	Cap	1
56	17219-A0710-0001	Inlet gasket	1
57	16120-A0710-0001	Connecting block	1
58	16113-A0710-0001	Carburetor gasket	1
59	17113-A0710-0001	Air cleaner gasket	1
60	16100-B9130-0001	Carburetor Assy	1
61	16244-A0720-0001	Main nozzle	1
62	16243-A0720-0001	Main je	1
63	T152-0033	Bolt M6×22	1
64	19300-A0710-0001	Crankcase side plate assy	1
65	T210-0005	Bolt M5×8	3
66	19211-A0714-0025	Fan hood assy	1
67	T152-0019	Bolt M6×12	4
68	19219-B9130-0001	Fan hood latex stop up	1
69	23200-A0710-0047	Recoil starter	1
70	23100-B9140-0030	Recoil starter assy	1
71	19313-A0710-0001	Plastic clip	1
72	27500-A0710-0001	Diode	1
73	23260-A0710-0001	Recoil spacer combination	1
74	26114-A0710-0001	Regulating arm	1
75	26115-A0710-0001	Pulling rod	1
76	26117-A0710-0001	Back spring	1
77	26118-A0710-0001	Fine regulating spring	1
78	26200-B9130-0001	Regulating mount	1
79	T152-0019	Nut M6	1
80	T152-0019	Bolt M6×12	2
81	26116-A0710-0001	Lock bolt	1
82	23317-A0710-0001	Nut M14×1.5	1
83	23316-A0710-0002	Starting flange	1
84	19111-A0710-0001	Flywheel fan	1
85	23300-A0714-0001	Flywheel	1
86	T152-0034	Screw M6×25	2
87	27200-A0710-0001	Ignition coil unit	1
88	24100-A0714-0001	Starting motor Assy	1
89	T411-0017	Washer, M4	9
90	T311-0002	Nut, M6	2
91	T151-0008	Bolt, M8×35	2
92	T411-0005	Spring washer, 4	9
93	T210-0006	Screw, M4×14	7
94	17124-B9130-0002	Filter element	1
95	17125-B9130-0002	Retainer, filter element	1
96	17114-B9130-0002	Air cleaner case	1
97	17112-B9130-0002	Air cleaner cover	1
98	17233-B9130-0001	Air cleaner stay	1
99	17129-B9130-0001	Gasket	1
100	17117-A1310-0001	Bolt	4
101	T152-0019	Bolt M6×12	1
102	17140-B9130-0001	Hinge	2
103	17100-B9130-0006	Air cleaner Assy	1
104	T314-0001	Nut M6	2
105	18100-BC160-0005	Muffler liner	1
106	18130-B9130-0001	Muffler guard	1
107	T151-0005	Flange bolt M8×16	2
108	18150-B9130-0001	Muffler stay .	1
109	T310-0001	Nut M8	1
110	T152-0019	Flange bolt M6×12	6
111	18215-A0710-0001	Exhaust pipe gasket	2
112	18160-B9130-0001	Supporting plate	1
113	16640-B9130-0002	Fuel cock assy	1
114	16510-B9130-0073	Fuel tank	1
115	16912-B9130-0001	Stripe, fuel tank	1
116	16400-A0410-0002	Fuel filler cap comp.	1
117	16560-B9130-0001	Oil indicator assy	1
118	16557-A0710-0001		1
119	16610-A0710-0003	Fuel filler assy	1
120	16546-B9130-0001	Washer	4
121	16911-B9130-0001	Cushion	4
122	16626-BC130-0001	Vitta restrict	1
123	16914-B9130-0001	Bush	4
124	T211-0002	Screw M5×12	2
125	16621-BC130-0004	Outlet pipe (Φ8.5×Φ4.5×180)	1
126	16622-A0710-0002	Tube clip	3
127	T151-0003	Bolt M6×22 (Flange)	4
128	16622-A0710-0003	Tube clip	1
129	11513-B9130-0002	Vent pipe	1
130	31125-BC160-0001	Bolt M8×215	1
131	31153-B9130-0001	Bolt M5×12	3
132	31100-BB130-0025	Stator & rotor Assy	1
133	31130-B9130-0001	Brush Assy	1
131	31151-B9130-0001	Generator stay	1
135	31152-B9130-0002	Generator end cover	1
136	T152-0027	Bolt M5×50	2
137	31140-B9130-0001	Voltage regulator	1
138	31112-BF130-0001	Flange bolt M6×164	4
139	31126-B9130-0001	Plain washer	1
140	32100-BB140-0116	Frame	1
141	32412-B9130-0001	Rubber pad, frame	2
142	T311-0001	Nut M8	10
143	32420-B9130-0001	Cushion, frame A	2
144	32450-B9130-0001	Cushion, frame B	2
145	T411-0001	Plain washer	4
146	T441-0001	Plain washer	4
147	T151-0006	Flange bolt M8×25	4
148	32231-BB140-0006	Bracket	2
149	31523-BF140-0001	Bracket cushion	2
150	T411-0002	Plain washerΦ6	2
151	T441-0002	Plain washerΦ6	2
152	T151-0005	Flange bolt M8×16	2
153	32417-BC130-0001	Armrest	2
154	32139-BB140-0001	Flange bolt	2
155	31161-B9130-0001	Handle gasket	4
156	T311-0001	Nut M8	4
157	T151-0006	Flange bolt M8×25	8
158	31311-B9130-0002	Wheel axel,	1
159	31352-B9130-0002	Split pin	2
160	45420-B9130-0019	Wheel kit	2
161	T152-0019	Flange bolt M6×12	2
162	32433-B9140-0002	Battery box cover	1
163	31224-B9130-0006	Plug (30A)	2
164	92230-B9130-0001	Sparking plug wrench(short)	1
165	31247-B9130-0001	Plug	1
166	32416-BB140-0001	Battery box	1
167	31223-B9130-0010	3-prong twisted	1
168	31221-B9130-0054	Circuit protector,	1
169	31222-B9130-0001	Earth terminal set	1
170	31211-B9130-0131	Control panel front cover	1
171	31200-BG140-0141	Control panel back cover	1
172	31225-B9140-0001	gnition switch	1
173	31223-B9130-0008	3-prong twisted	4
174	35368-G1211-0001	Current transformer	1
175	31276-B9130-0001	Fuse case	3
176	31280-BC130-0001	Bridge ballast	1
177	31218-B9130-0002	protector	5

LIFAN POWER USA LIFAN LIFAN POWER USA

Wiring Diagram LF6500 & LF6500E

CIRCUIT BREAKER 50A Main coil W Fuel controlling coil Field coil Excitation coil GENERATOR BLOCK GENERATOR GROUNDING Socket outlet 120V 20A Socket outlet 120V 30A CONTROL PANEL BLOCK PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A Y/G Y/G Y/G Y/G Y/G Y/G Y/G Y/G Y/G Bu G/W ENG. SW G/W Fuel enclosed valve Engine Block

	A1	B	C	D
DWP
ON

WIND
SL.	Willach	N	Sweet
V	Willaue	M	White
BRJ	Willow	By	Brownes
G	Brownes

CIRCUIT BREAKER 50A Main coil Fuel controlling coil Field coil Excitation coil Generator Block Generator GROUNDING Socket outlet 120V 20A Socket outlet 120V 30A CONTROL PANEL BLOCK PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PROTECTION 20A PULSE 5A-EA BR Br AVR G/W Bu G/W G/W GENE BLOCK ENGINE BLOCK

1. SW

	E2	E	MT	DT	∅	PS
GFP	∅	∅			∅	∅
BR
START			∅	∅

WIRE

BL	Black	S	Red
Y	Yellow	W	White
SU	Blue	Br	Brown
G	Green

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

Engine Exploded View & Parts

Exploded view diagram of a mechanical assembly with numbered components and exploded views

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

Part	Code	Description	q'ty
1	11116-A0810-0001	Washer	2
2	11115-A0810-0001	Drain plug	2
3	11120-A1010-0001	Oil seal, crankshaft Assy (一)	1
4	11117-A0810-0001	Seal	1
5	T152-0004	Bolt M6×14	2
6	11110-A1110-0005	Crankcase	1
7	11130-A1010-0001	Oil seal, regulating sway bar	1
8	26113-A0810-0001	Washer	2
9	26112-A0810-0001	Split pin	1
10	26111-A1010-0001	Regulating sway bar	1
11	27400-A0810-0002	Oil sensor Assy	1
12	T910-0005	Bearing 6202	1
14	11211-BF130-0001	Crankcase cover	1
15	11220-BF130-0001	Guard, crankcase cover Assy	1
16	11114-A1010-0001	Gasket, crankcase	1
17	15510-BC130-0001	Dipstick	1
18	31153-BC130-0002	Bolt M5×14	3
19	T151-0013	Bolt M8×40	7
20	25118-A0810-0001	Washer, driven gear	1
21	25100-A1210-0001	Driven gear set, regulator assy	1
22	T910-0003	Bearing 6207	1
23	T910-0005	Bearing 6202	1
24	11120-A1010-0001	Oil seal , crankshaft assy (一)	1
25	11113-A0810-0001	Set pinΦ8×12	2
26	12220-A0810-0001	Bolt Assy	1
27	14420-A0810-0001	Seal Assy	1
28	T152-0019	Bolt:M6×12	1
29	19121-A1010-0001	Lead wind cover (一)	1
30	12200-A0810-0001	Cylinder head cover Assy	1
31	12212-A0810-0001	Gasket, cylinder head cover	1
32	12118-A0810-0001	Bolt	4
33	17218-BF130-0001	Stud M6×M8×106	2
34	18214-A0710-0001	Stud M8×34	2
35	27100-A0710-0001	Spark plug Assy	1
36	12117-A0810-0001	Set pin	2
37	12100-A1110-0001	Cylinder head Assy	1
38	12120-A1110-0004	Gasket, cylinder head Assy	1
39	13116-A1210-0001	Balancing shaft	1
40	T910-0003	Bearing 6207	1
41	13112-A0710-0001	Wood ruff key	1
42	13110-A1010-0002	Crankshaft assy	1
43	13400-A1110-0005	Piston ring set	1
44	13313-A1010-0001	Piston pin circlip	2
45	13311-A1110-0005	Piston	1
46	13312-A1010-0001	Piston pin	1
47	13120-A1010-0001	Connecting rod assy	1
48	14314-A0710-0001	Lock nut	2
49	14312-A0710-0001	Sleeve	2
50	14311-A0810-0001	Valve rocker	2
51	14313-A0710-0001	Adjusting bolt for valve gap	2
52	14220-A0810-0002	Pusher guide	1
53	14210-A1010-0001	Pusher	2
54	14315-A0810-0001	Tappet	2
55	14412-A1110-0001	Exhaust valve	1
56	14411-A1110-0001	Intake valve	1
57	14417-A0810-0001	Spring retainer, exhaust valve	1
58	14414-A0810-0001	Valve spring	2
59	14413-A1010-0001	Spring seat, exhaust valve	2
60	14418-A1010-0001	Valve lock clamp	4
61	14310-A0810-0001	Valve rocker assy	1
62	17219-A1010-0001	Inlet gasket	1
63	16120-BG130-0001	Float needle	1
64	16113-A1110-0001	Carburetor gasket	1
65	16100-BG130-0004	Carburetor Assy	1
66	16800-BC130-0001	Manual choke Assy	1
67	16244-BJ130-0001	Main nozzle	1
68	16243-A1210-0001	Main jet	1
69	17113-A0810-0003	Gasket, air cleaner	1
70	16840-BC130-0001	Check valve Assy	1
71	23200-A1010-0014	Recoil starter assy	1
72	T152-0036	Bolt M6×8	3
73	16845-BC130-0001	Friction spring	2
74	19219-B9130-0001	Fan hood latex stop up	1
75	19211-BF130-0020	Fan hood assy	1
76	T152-0019	Bolt M6×12	5
77	23100-BF130-0062	Recoil starter assy	1
78	26114-G1110-0001	Regulating arm	1
79	26115-A1010-0001	Pulling rod	1
80	26117-A1010-0001	Back spring	1
81	26118-A1010-0001	Fine regulating spring	1
82	26200-BF130-0001	Regulating frame assy	1
83	T311-0002	Nut M6	1
84	26116-A0710-0001	Lock bolt	1
85	19111-A1210-0001	Flywheel fan	1
86	23316-A1010-0002	Starting flange	1
87	23317-A0810-0002	Nut M16×1.5	1
88	23300-A1114-0001	Flywheel	1
89	T152-0034	Bolt M6×25	2
90	27200-A1110-0001	Ignition coil uni	1
93	14100-A1110-0004	Camshaft assy	1
96	19316-A0810-0002	Cable tie	1
97	24100-A1014-0001	Starting motor Assy	1
98	T151-0013	Bolt, M8×40	2
99	19143-BC130-0001	Waste pipe	1
100	17223-BC130-0001	Boot, vent pipe	1
101	17113-A0810-0003	Gasket, air cleaner	1
102	17114-BC130-0002	Air cleaner base	1
103	17129-BC130-0001	Gasket	1
104	17125-BC130-0001	Retainer, filter element	1
105	17126-A2110-0001	Filter(二)	1
106	17124-B9130-0002	Filter(一)	1
107	17140-BC130-0001	Hinge	1
108	17112-BC130-0001	Air cleaner cover	1
109	T314-0006	Nut M5	6
110	T314-0001	Nut M6	3
111	17233-BC130-0001	Air cleaner stay	1
112	17100-BC130-0004	Air cleaner Assy	1
113	18100-BJ130-0001	Muffler assy	1
114	18130-BC130-0001	Muffler Outer hood assy	1
115	18230-BC130-0001	Muffler hood (一)	1
116	18240-BJ130-0001	Muffler hood (二)	1
117	18162-BC130-0001	Muffler stay airproof	1
118	18117-BF130-0001	Exhaust pipe	1
119	18217-BC130-0001	Gasket, exhaust pipe	1
120	18215-BC130-0001	Gasket, outlet	1
121	18161-BC130-0001	Muffler stay assy	1
122	T151-0016	Flange bolt M8×25	2
123	T310-0001	Nut M8	2
124	T152-0019	Flange bolt M6×12	7
125	T151-0014	Flange bolt M8×12	2
126	T151-0005	螺栓 M8×16	2
127	16640-B9130-0002	Fuel cock assy	1
128	16510-BC130-0081	Fuel tank	1
129	16912-BC130-0001	Stripe, fuel tank	1
130	16400-A0410-0002	Fuel filler cap comp.	1
131	16560-B9130-0001	Oil indicator assy	1
132	16557-A0710-0001	Air outlet joint	1
133	16610-A0710-0003	Fuel filler assy	1
134	16546-B9130-0001	Washer	4
135	16911-B9130-0001	Cushion	4
136	16626-BC130-0001	Vitta restrict	1
137	16914-B9130-0001	Bush	4
138	T211-0002	Screw M5×12	2
139	16621-BC130-0004	Outlet pipe (Φ8.5×Φ4.5×180)	1
140	16622-A0710-0002	Tube clip	3
141	T151-0003	Bolt M6×22 (Flange)	4
142	16622-A0710-0003	Tube clip	1
143	11513-A0710-0002	Vent pipe	1
144	31154-BC130-0002	Connecting plate	1
145	T411-0002	Washer 6mm	4
146	31112-BG130-0001	Bolt M6×179	4
147	31126-BC130-0001	Plain washer	1
148	31100-BG130-0037	Stator & rotor Assy	1
149	31152-BC130-0003	Generator end cover	1
150	31151-BC130-0001	Generator stay	1
151	31130-BC130-0001	Brush Assy	1
152	31140-BC130-0001	Voltage regulator assy	1
153	31125-BG130-0001	Bolt M10×285	1
154	11312-BC130-0001	Plug, sump	1
155	31153-A0410-0001	Bolt M5×10	2
156	31511-A1713-0001	Red washer 5mm	2
157	31153-BC130-0002	Screw M5×14	7
158	T441-0002	Spring washer 6mm	4
159	32100-BG140-0133	Frame	1
160	32412-B9130-0001	Rubber pad, frame	2
161	T311-0001	Nut M8	10
162	32420-BC130-0001	Cushion, frame A	2
163	32450-BC130-0001	Cushion, frame B	2
164	T411-0001	Plain washer	4
165	T441-0001	Plain washer	4
166	T151-0006	Flange bolt M8×25	4
167	32231-BB140-0003	Bracket	2
168	31523-BF140-0001	Bracket cushion	2
169	T411-0002	Plain washerΦ6	2
170	T441-0002	Plain washerΦ6	2
171	T151-0005	Flange bolt M8×16	2
172	32417-BC130-0001	Armrest	2
173	32139-BB140-0001	Flange bolt	2
174	31161-B9130-0001	Handle gasket	4
175	T311-0001	Nut M8	4
176	T151-0006	Flange bolt M8×25	8
177	31311-BC130-0002	Wheel axel,	1
178	31352-B9130-0002	Split pin	2
179	45420-B9130-0019	Wheel kit	2
180	T152-0019	Flange bolt M6×12	2
181	32433-BG140-0001	Battery box cover	1
182	31224-B9130-0006	Plug (30A)	2
183	92230-B9130-0001	Sparking plug wrench(short)	1
184	31224-B9130-0032	Plug	1
185	31223-B9130-0010	3-prong twisted	1
186	31221-B9130-0054	Circuit protector,	1

LIFAN POWER USA LIFAN LIFAN POWER USA

187	31222-B9130-0001	Earth terminal set	1
188	31211-B9130-0014	Control panel front cover	1
189	31200-BG140-0141	Control panel back cover	1
190	31225-B9140-0001	gnition switch	1
191	31223-B9130-0008	3-prong twisted	4
192	35368-G1211-0001	Current transformer	1
193	31276-B9130-0001	Fuse case	3
194	31280-BC130-0001	Bridge ballast	1
195	31218-B9130-0002	protector	5

LIFAN POWER USA LIFAN LIFAN POWER USA

Wiring Diagram LF8000E

CONTROL PANEL BLOCK 120V 120V 120V/240V BREAKER 29A BL PROTECTOR 20A PROTECTOR 20A W BL PROTECTOR 20A W R BU PROTECTOR 20A BU R BU R BL MAIN COIL 1 W R Bu BRAKER 29A BRU FUSE Br Y/G Y/G Y/G Y/G Y/G Y/G Y/G FUSE BR Field coil G W G AVR Bu Bu Bu R(+) Excitation coil W(-) Fuel solenoid valve Coil Battery Starting motor Spark plug Ignition coil Oil level switch GENRATOR BLOCK GENERATOR GROUNDING ENGINE BLOCK

ENGL ST

	IG	E	BAT	ST	G	FS
OFF
ON
START

TRE

BL	Black	K	Red
Y	Yellow	W	White
BU	Blue	Br	Brown
G	Green

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

LIFAN POWER USA LIFAN LIFAN POWER USA

Engine Exploded View & Parts

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

POWERED BY LIFAN CSA-CA-EPA CERTIFIED ENERGY STORM SERIES

Part	Code	Description	q' ly
1	11116-A0810-0001	Washer	2
2	11115-A0810-0001	Drain plug	2
3	11120-A1010-0001	Oil seal, crankshaft Assy (一)	1
4	11117-A0810-0001	Seal	1
5	T152-0004	Bolt M6×14	2
6	11110-A1214-0005	Crankcase	1
7	11130-A1010-0001	Oil seal, regulating sway bar	1
8	26113-A0810-0001	Washer	2
9	26112-A0810-0001	Split pin	1
10	26111-A1010-0001	Regulating sway bar	1
11	27400-A0810-0002	Oil sensor Assy	1
12	T910-0005	Bearing 6202	1
13	26500-G1110-0001	Electromagnet	1
14	11211-BF130-0001	Crankcase cover	1
15	11220-BF130-0001	Guard, crankcase cover Assy	1
16	11114-A1010-0001	Gasket, crankcase	1
17	15510-BC130-0001	Dipstick	1
18	31153-BC130-0002	Bolt M5×14	3
19	T151-0013	Bolt M8×40	7
20	25118-A0810-0001	Washer, driven gear	1
21	25100-A1210-0001	Driven gear set, regulator assy	1
22	T910-0003	Bearing 6207	1
23	T910-0005	Bearing 6202	1
24	11120-A1010-0001	Oil seal , crankshaft assy (一)	1
25	11113-A0810-0001	Set pinΦ8×12	2
26	12220-A0810-0001	Bolt Assy	1
27	14420-A0810-0001	Seal Assy	1
28	T152-0019	Bolt:M6×12	1
29	19121-A1010-0001	Lead wind cover (一)	1
30	12200-A0810-0001	Cylinder head cover Assy	1
31	12212-A0810-0001	Gasket, cylinder head cover	1
32	12118-A0810-0001	Bolt	4
33	17218-BF130-0001	Stud M6×M8×106	2
34	18214-A0710-0001	Stud M8×34	2
35	27100-A0710-0001	Spark plug Assy	1
36	12117-A0810-0001	Set pin	2
37	12100-A1210-0002	Cylinder head Assy	1
38	12120-A1210-0001	Gasket, cylinder head Assy	1
39	13116-A1210-0001	Balancing shaft	1
40	T910-0003	Bearing 6207	1
41	13112-A0710-0001	Wood ruff key	1
42	13110-A1210-0002	Crankshaft assy	1
43	13400-A1210-0003	Piston ring set	1
41	13313-A1010-0001	Piston pin circlip	2
45	13311-A1210-0004	Piston	1
46	13312-A1010-0001	Piston pin	1
47	13120-A1210-0001	Connecting rod assy	1
48	14314-A0710-0001	Lock nut	2
49	14312-A0710-0001	Sleeve	2
50	14311-A0810-0001	Valve rocker	2
51	14313-A0710-0001	Adjusting bolt for valve gap	2
52	14220-A0810-0002	Pusher guide	1
53	14210-A1010-0001	Pusher	2
54	14315-A0810-0001	Tappet	2
55	14412-A1210-0001	Exhaust valve	1
56	14411-A1010-0003	Intake valve	1
57	14417-A0810-0001	Spring retainer, exhaust valve	1
58	14414-A0810-0001	Valve spring	2
59	14413-A1010-0001	Spring seat, exhaust valve	2
60	14418-A1010-0001	Valve lock clamp	4
61	14310-A0810-0001	Valve rocker assy	1
62	17219-A1010-0001	Inlet gasket	1
63	16120-BG130-0001	Float needle	1
64	16113-A1110-0001	Carburetor gasket	1
65	16100-BJ130-0001	Carburetor Assy	1
66	16800-BC130-0001	Manual choke Assy	1
67	16244-BJ130-0001	Main nozzle	1
68	16243-A1210-0001	Main jet	1
69	17113-A0810-0003	Gasket, air cleaner	1
70	16840-BC130-0001	Check valve Assy	1
71	23200-A1010-0014	Recoil starter assy	1
72	T152-0036	Bolt M6×8	3
73	16845-BC130-0001	Friction spring	2
74	19219-B9130-0001	Fan hood latex stop up	1
75	19211-BF130-0020	Fan hood assy	1
76	T152-0019	Bolt M6×12	5
77	23100-BF130-0062	Recoil starter assy	1
78	26114-G1110-0001	Regulating arm	1
79	26115-A1010-0001	Pulling rod	1
80	26117-A1010-0001	Back spring	1
81	26118-A1010-0001	Fine regulating spring	1
82	26200-BF130-0001	Regulating frame assy	1
83	T311-0002	Nut M6	1
84	26116-A0710-0001	Lock bolt	1
85	19111-A1210-0001	Flywheel fan	1
86	23316-A1010-0002	Starting flange	1
87	23317-A0810-0002	Nut M16×1.5	1
88	23300-A1114-0001	Flywheel	1
89	T152-0034	Bolt M6×25	2
90	27200-A1110-0001	Ignition coil uni	1
91	24145-A1014-0001	Clamper, cord	1
92	T152-0019	Bolt M6×12	1
93	14100-A1210-0002	Camshaft assy	1
94	24130-A0714-0001	Charge coil	1
95	T152-0011	Bolt M6×28	2
96	19316-A0810-0002	Cable tie	1
97	24100-A1014-0001	Starting motor Assy	1
98	T151-0013	Bolt, M8×40	2
99	19143-BC130-0001	Waste pipe	1
100	17223-BC130-0001	Boot, vent pipe	1
101	17113-A0810-0003	Gasket, air cleaner	1
102	17114-BC130-0002	Air cleaner base	1
103	17129-BC130-0001	Gasket	1
104	17125-BC130-0001	Retainer, filter element	1
105	17126-A2110-0001	Filter(一)	1
106	17124-B9130-0002	Filter(一)	1
107	17140-BC130-0001	Hinge	1
108	17112-BC130-0001	Air cleaner cover	1
109	T314-0006	Nut M5	6
110	T314-0001	Nut M6	3
111	17233-BC130-0001	Air cleaner stay	1
112	17100-BC130-0004	Air cleaner Assy	1
113	18100-BJ1Y1-0005	Muffler assy	1
114	18130-BC130-0001	Muffler Outer hood assy	1
115	18230-BC130-0001	Muffler hood (一)	1
116	18240-BJ1Y1-0001	Muffler hood (二)	1
117	18162-BC130-0001	Muffler stay airproof	1
118	18117-BF130-0001	Exhaust pipe	1
119	18217-BC130-0001	Gasket, exhaust pipe	1
120	18215-BC130-0001	Gasket, outlet	1
121	18161-BC130-0001	Muffler stay assy	1
122	T151-0016	Flange bolt M8×25	2
123	T310-0001	Nut M8	2
124	T152-0019	Flange bolt M6×12	7
125	T151-0014	Flange bolt M8×12	2
126	T151-0005	螺栓 M8×16	2
127	16640-B9130-0002	Fuel cock assy	1
128	16510-BC130-0081	Fuel tank	1
129	16912-BC130-0001	Stripe, fuel tank	1
130	16400-A0410-0002	Fuel filler cap comp.	1
131	16560-B9130-0001	Oil indicator assy	1
132	16557-A0710-0001	Air outlet joint	1
133	16610-A0710-0003	Fuel filler assy	1
134	16546-B9130-0001	Washer	4
135	16911-B9130-0001	Cushion	4
136	16626-BC130-0001	Vitta restrict	1
137	16914-B9130-0001	Bush	4
138	T211-0002	Screw M5×12	2
139	16621-BC130-0004	Outlet pipe (Φ8.5×Φ4.5×180)	1
140	16622-A0710-0002	Tube clip	3
141	T151-0003	Bolt M6×22 (Flange)	4
142	16622-A0710-0003	Tube clip	1
143	11513-A0710-0002	Vent pipe	1
144	31154-BC130-0002	Connecting plate	1
145	T411-0002	Washer 6mm	4
146	31112-BJ1Y1-0001	Bolt M6×179	4
147	31126-BC130-0001	Plain washer	1
148	31100-BJ1Y1-0017	Stator & rotor Assy	1
149	31152-BC130-0003	Generator end cover	1
150	31151-BC130-0001	Generator stay	1
151	31130-BC130-0001	Brush Assy	1
152	31140-BC130-0001	Voltage regulator assy	1
153	31125-BJ1Y1-0001	Bolt M10×285	1
154	11312-BC130-0001	Plug, sump	1
155	31153-A0410-0001	Bolt M5×10	2
156	31511-A1713-0001	Red washer 5mm	2
157	31153-BC130-0002	Screw M5×14	7
158	T441-0002	Spring washer 6mm	4
159	32100-BJ1Y2-0048	Frame	1
160	32412-B9130-0001	Rubber pad, frame	2
161	T311-0001	Nut M8	10
162	32420-BC130-0001	Cushion, frame A	2
163	32450-BC130-0001	Cushion, frame B	2
164	T411-0001	Plain washer	4
165	T441-0001	Plain washer	4
166	T151-0006	Flange bolt M8×25	4
167	32231-BB140-0003	Bracket	2
168	31523-BF140-0001	Bracket cushion	2
169	T411-0002	Plain washerΦ6	2
170	T441-0002	Plain washerΦ6	2
171	T151-0005	Flange bolt M8×16	2
172	32417-BC130-0001	Armrest	2
173	32139-BB140-0001	Flange bolt	2
174	31161-B9130-0001	Handle gasket	4
175	T311-0001	Nut M8	4
176	T151-0006	Flange bolt M8×25	8
177	31311-BC130-0002	Wheel axel,	1
178	31352-B9130-0002	Split pin	2
179	45420-B9130-0019	Wheel kit	2
180	T152-0019	Flange bolt M6×12	2
181	32433-BG140-0001	Battery box cover	1

LIFAN POWER USA LIFAN LIFAN POWER USA

182	31224-B9130-0006	Plug (30A)	2
183	92230-B9130-0001	Sparking plug wrench(short)	1
184	31224-B9130-0032	Plug	1
185	31223-B9130-0010	3-prong twisted	1
186	31223-B9130-0007	4-prong twisted socket	1
187	31222-B9130-0001	Earth terminal set	1
188	31211-B9130-0014	Control panel front cover	1
189	31251	Control panel back cover	1
190	31225-B9140-0001	gnition switch	1
191	31223-B9130-0008	3-prong twisted	3
192	35368-G1211-0001	Current transformer	1
193	31276-B9130-0001	Fuse case	3
194	31280-BC130-0001	Bridge ballast	1
195	31218	protector	5
196	31221-B9130-0054	Circuit protector,	1

Please Read this Owner's Manual Carefully before Operang Your New Generator.

This Owner's Manual includes the operaon and maintenance of the LF3500 CSA-CA, LF3500E CSA-CA, LF6500 CSA-CA and LF6500ECSA-CA LF8000E CSA-CA

Thank you for purchasing our Energy Storm generator!

All informaon in this publicaon is based on the latest product informaon available at the me of approval for prinng. We reserve the right to make changes at anyme without noce and without incurring any obligaon. The copyright of this manual belongs to EquipSource, LLC. No parts of this publicaon may be reproduced without the wrien permission of EquipSource, LLC. This manual should be considered a permanent part of the generator and should remain with it if is resold.

For Product Support and Service Please us at www.lifanpowerusa.com Or Call Toll Free 1-866-471-7464

LIFAN POWER USA LIFAN LIFAN POWER USA

FRENCH

TABLE DES MATIERES

Preface.... p.2

Speci ^t 1cations ...... p.3

Green LiAN portable electricity generator with control panel and wheels (no visible text or symbols)

LF3500(E)-CSA-CA

Green portable electricity generator with control panel and wheels (no visible text or symbols)

LF6500(E)-CSA-CA

CANYI Seats Temporary Generation Power Supply 100-1000kW Fuel Cell

LF8000(E)-CSA-CA

(CSA-CA)Indicatesth isunitisCSA (Canadian Compliant) And CARB Cered (California Compliant)

(E) Indicates this unit is equipped with Electric Start

SPÉCIFICATIONS

GÉNÉRATRICE PORTABLES ENERGY STORM

:

Voltage :

Débit de pointe*:

Débit maximal**:

Débit nominal***:

Batterie (non comprise):

1 ch.

S.O.

1 ch.

1 ch.

AC120V/30A 30A CIRCUIT BREAKER ON OFF ENG.SW. START OFF AC120V/240V/30A 30A AC120V/20A 20A AC120V/29A 20A AC120V/29A 20A GND

LF8000E CSA-CA

Energy Storm Generator/Generatuer/Generador Distributed by: Litan Power USA Customer Service 1-866-471-7464 www.litanpowerusa.com EPA - CARB Certified Equipped with Low Oil Warning System Automatically shoots all engine when oil might get out DANGER A DANGER DANGER

AC120V/30A 30A CIRCUIT BREAKER IENQ.SW. START ON OFF AC120V/20A 20A AC120V/20A 20A AC120V/20A 20A GND

LF6500 and LF6500E CSA-CA

ENG. SW. ON OFF CIRCUIT BREAKER ON OFF OUTLETS PROTECTORS ON OFF 20A 20A 20A OUTPUT AC 120V AC 120V AC 120V 20A 20A 20A 30A

LF3500 and LF3500E CSA-CA

Technical diagram of a device's internal components with numbered parts for identification

ENTRETIEN DES BOUGIES D'ALLUMAGE

Technical diagram of a mechanical assembly with numbered components for identification

ENTRETIEN DU SYSTÈME D'ALIMENTATION EN CARBURANT

Illustration of two hands holding a small object with a magnified inset showing internal components (no text or symbols)

LIFAN Power USA is proud to offer it's extensive line of LIFAN Power Equipment!!!! LIFAN Power USA is the sole distribution for LIFAN Power Equipment in the United States. LIFAN's unmatched investment in research and development ensures quality engines, generators, pressure washers, and water pumps at an extraordinary value. LIFAN continues to be an innovator and presently holds over 3,000 patents. Product performance has earned LIFAN the reputation of dependability and value in all their international markets.

LIFAN has been manufacturing and selling innovative and value driven products worldwide for over 15 years. LIFAN is distributed in over 100 countries. LIFAN is the largest privately owned company in China with sales over One-Billion Dollars annually and 14,000 employees. As the largest engine manufacturer in China, LIFAN builds more than five million small engines each year. This worldwide presence has been made possible by producing equipment that is durable, reliable, and rugged for any market.

LIFAN Power USA prides itself in standing behind all LIFAN products with our comprehensive warranty policy. LIFAN Power USA continues to offer the highest level or service and support in the industry. With proven performance and unmatched value, LIFAN Power Equipment will always keep you running.

All information in this publication is based on the latest product information available at the time of approval for printing. EquipSource, LLC reserves the right to make changes at any time without notice and without incurring any obligation. The copyright of this document belongs to EquipSource, LLC. No parts of this publication may be reproduced without the written permission of EquipSource, LLC.

For additional product information of any LIFAN Power Equipment, please visit us at our website - www.lifanpowerusa.com.

LIFAN POWER USA 2205 Industrial Park Rd. Van Buren, AR 72956 www.lifanpowerusa.com 866-471-7464

POWERED BY

LIFAN

CSA-CA-EPA CERTIFIED

ENERGY STORM SERIES
