ST109724.3 - Toaster Emerio - Free user manual and instructions

Product type	Sandwich toaster (toastie maker)
Brand	Emerio
Model	ST109724.3
Power supply	220-240 V ~ 50/60 Hz
Power	650 W
Number of sandwiches	2 (two slots)
Plate coating	Non-stick
Indicator lights	Red power light, green ready light (preheat)
Handle and lock	Insulated handle with locking latch
Housing material	Heat-resistant plastic
Dimensions (approx.)	25 × 10 × 10 cm
Weight (approx.)	1.5 kg
Cord length	Approx. 80 cm
Cleaning	Soft damp cloth; do not immerse
Maintenance	Wipe crumbs with a soft brush
Safety	Automatic shut-off not specified; do not leave unattended
Warranty	2 years
Use	Household use only
Included accessories	None (appliance only)
Repairability	Spare parts not provided; contact after-sales service

Frequently Asked Questions - ST109724.3 Emerio

What type of bread to use with the Emerio ST109724.3?

Use standard sliced bread, preferably of standard size (about 10x10 cm). Bread that is too thick may prevent the appliance from closing.

Should you butter the bread before toasting?

Yes, it is recommended to butter the outer sides of the bread to achieve a crispy toast and prevent the bread from sticking.

How long does it take to toast a sandwich?

Generally, allow 2 to 4 minutes depending on thickness and filling. The green light indicates that the temperature has been reached.

Can I use metal utensils to remove the sandwich?

No, never use metal or sharp utensils as they would damage the non-stick coating. Use a plastic or wooden spatula.

How to clean the appliance?

Unplug the appliance and let it cool completely. Clean the plates with a soft damp cloth. Never immerse the appliance in water.

What to do if the appliance smokes on first use?

This is normal. The first heating may emit a slight smoke and odor due to the protective coating on the heating elements. Ventilate the room.

Does the appliance turn off automatically?

The manual does not mention automatic shut-off. It is important to monitor the appliance during use and unplug after use.

Can I toast foods other than bread?

The appliance is designed for sandwiches. You can add cheese, ham, pineapple, etc. Avoid overly liquid foods.

How to know if the appliance is ready to use?

The green light turns on when the cooking temperature is reached. The red light indicates that the appliance is powered on.

Where can I get spare parts?

Contact Emerio after-sales service at the numbers indicated in the manual. Spare parts are not sold separately in stores.

USER MANUAL ST109724.3 Emerio

Sandwich toaster (EN)

Sandwichtoaster (DE)

Grille-Sandwichs (FR)

Smörgåsgrill (SE)

Sandwich toaster (NL)

Toster do kanapek (PL)

Tostadora de Sandwiches (ES)

Content - Inhalt - Teneur - Innehäll - Inhoud - Trešć - Contenido
Instruction manual - English. 2
Bedienungsanleitung - German. 6
Mode d'emploi - French. 11
Bruksanvisning - Swedish. 16
Gebruiksaanwijzing - Dutch. 21
Instrukcja obsfugi - Polish 26
Manual de Instrucciones - Spanish. 31

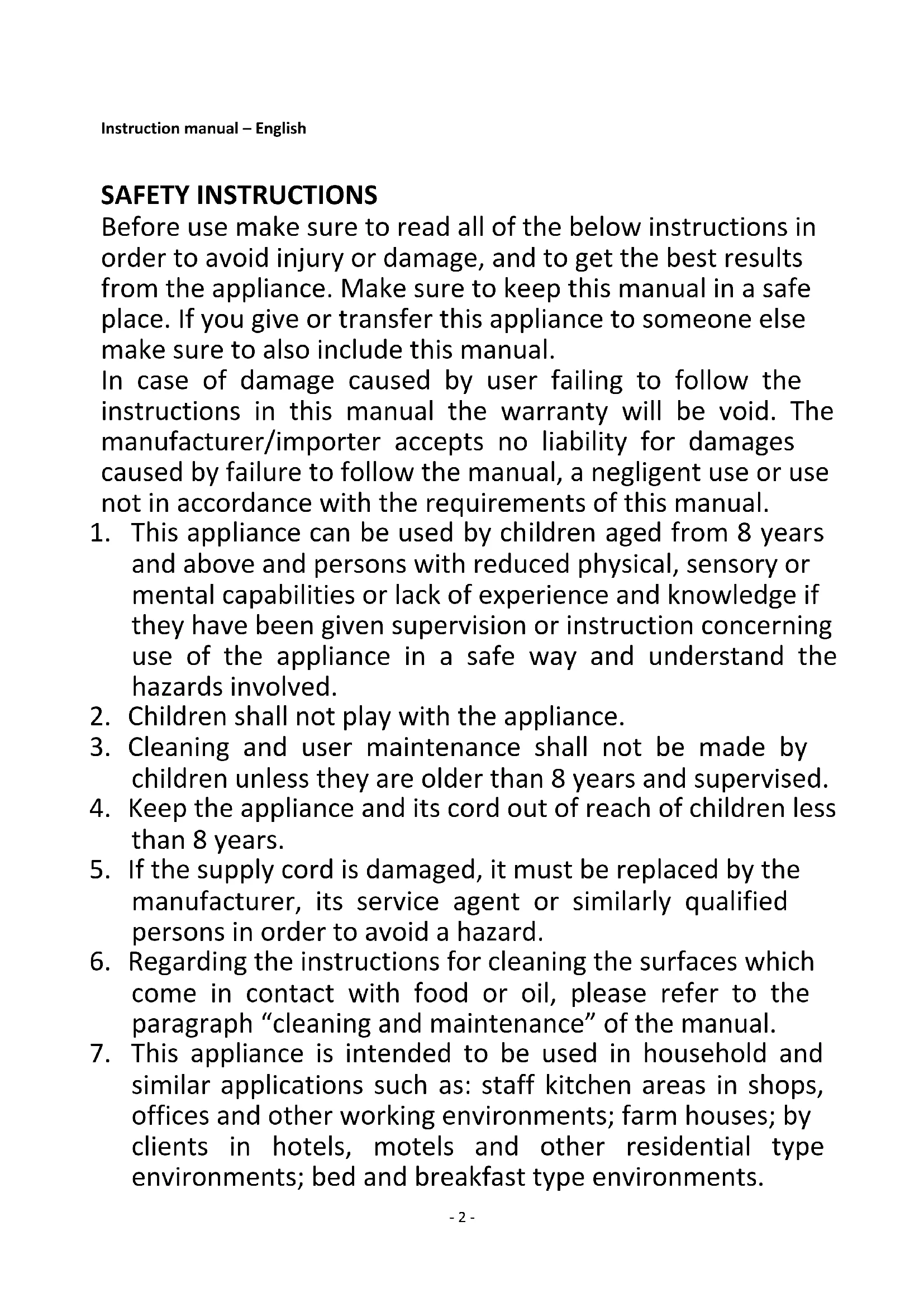

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.

7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

8. Incorrect operation and handling can lead to malfunction of the appliance and injuries to the user.

9. This appliance is neither suitable for commercial use nor for use in the open air.
10. Before inserting the plug into the mains socket, please check that the current and power supply comply with the specifications on the type plate.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. Do not use the appliance if the mains cable or plug shows signs of damage, if the appliance has fallen on the floor or has otherwise been damage. In such cases take the appliance to a specialist for checking and repair if necessary.
15. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
16. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
17. Never leave the appliance unattended during use.
18. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
19. This appliance is not designed for commercial use.
20. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
   5.Catch

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

NOTE: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety or your appliance.

OPERATING INSTRUCTIONS

1. Connect the appliance to an appropriate socket. The red power light will glow to indicate when the appliance is switched on.
2. The green control light will turn off during heating. Once the temperature is reached, then the green control light will turn on. This means the appliance is ready for use.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards.
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance making sure the catch is engaged.
8. Caution: If the slices of bread have too much filling on them, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 2-4 minutes) open the appliance and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently.
12. When the control light illuminates again you can repeat the toasting process as described above.
13. After completion of the toasting process disconnect the mains plug immediately. With the appliance open allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin tasting.
2. Lay the buttered side facing outwards.
3. All kinds of spiced butters and lards can be used.
4. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
5. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V ~ 50-60Hz

Power: 650W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service
