ST109562.13 - Croque monsieur clip Emerio - Free user manual and instructions

Product type	Toastie maker (sandwich toaster)
Brand	Emerio
Model	ST109562.13
Power supply	220-240 V ~ 50/60 Hz, 900 W
Dimensions (approx.)	25 x 10 x 10 cm
Weight (approx.)	1 kg
Plate material	Non-stick coating (Teflon)
Indicator lights	Red power indicator, green temperature control indicator
Cooking temperature	Thermostatic control (automatic switching)
Cooking time	Approximately 2 to 4 minutes per sandwich
Capacity	2 slices of bread (one sandwich)
Handle	With safety lock
Maintenance and cleaning	Clean with a soft damp cloth after cooling; do not immerse, do not use abrasive cleaners or metal objects
Electrical safety	Grounded plug; keep out of reach of children under 8 years; do not use with an external timer
Heat protection	Hot surfaces: do not touch during use
Warranty period	2 years from date of purchase
Repairability	Repair at HEMA store; power cord replaceable only by a professional
Recycling	Appliance subject to WEEE directive 2012/19/EU: do not dispose of with household waste

Frequently Asked Questions - ST109562.13 Emerio

How to prepare a toastie with this appliance?

Plug in the appliance, wait until the green light turns off (preheating). Place the buttered bread slices with the buttered side facing outward on the lower plate, add the filling, close and lock. Let cook for 2 to 4 minutes until the green light comes back on. Remove with a wood or plastic spatula.

Why do the red and green lights turn on?

The red light indicates that the appliance is powered. The green light indicates that the plates are heating; it turns off when cooking temperature is reached and turns on again when the thermostat maintains the temperature.

Can I use metal utensils to remove the sandwich?

No, never use metal utensils (knives, metal spatulas) as they would damage the non-stick coating. Use only wood or heat-resistant plastic.

How to clean the non-stick plates?

Unplug the appliance and let it cool completely. Clean the plates with a soft damp cloth. For crumbs, use a very soft brush. Never immerse the appliance in water and do not use abrasive cleaners.

What to do if the power cord is damaged?

Do not replace the cord yourself. Return the appliance to a HEMA store or entrust it to a qualified professional to avoid any risk of electric shock.

Can the appliance be used by children?

Yes, but only under supervision and from age 8, after receiving instructions. Children must not play with the appliance. Cleaning by a child aged 8 or older must be supervised. Keep the appliance and its cord out of reach of children under 8 years.

How to recycle the appliance at the end of its life?

This appliance is marked with the selective sorting symbol (WEEE). Do not dispose of it with household waste. Take it to a recycling center or to your HEMA store for recycling in accordance with directive 2012/19/EU.

What is the warranty period and how to activate it?

The warranty is 2 years from the date of purchase. Keep your receipt. For a claim, present the appliance and proof of purchase at a HEMA store. The warranty does not cover normal wear, external damage, or incorrect use.

Can I prepare other foods than sandwiches?

The appliance is designed only for toasting sandwiches (sandwich bread). Do not use other foods that could damage the coating or cause overflow. Follow the filling tips in the manual: cheese, ham, pineapple, tomatoes, etc.

What to do if the sandwich is too thick and the appliance does not close?

Never force the lock. Remove some filling to reduce thickness. If the bread is too loaded, the appliance may not close properly and the sandwich will not cook evenly.

USER MANUAL ST109562.13 Emerio

Instructions for use

Sandwich toaster 900W

Gebrauchsanleitung

Sandwichtoaster 900W

Instruction manual – English ...... - 14 -

Diagram showing two types of household appliances: a flat box with labeled parts and a waffle-shaped appliance with labeled parts.

1. Attention, surface chaude.

Diagram showing two types of household appliances: a flat box with labeled parts and a waffle-shaped appliance with labeled parts.

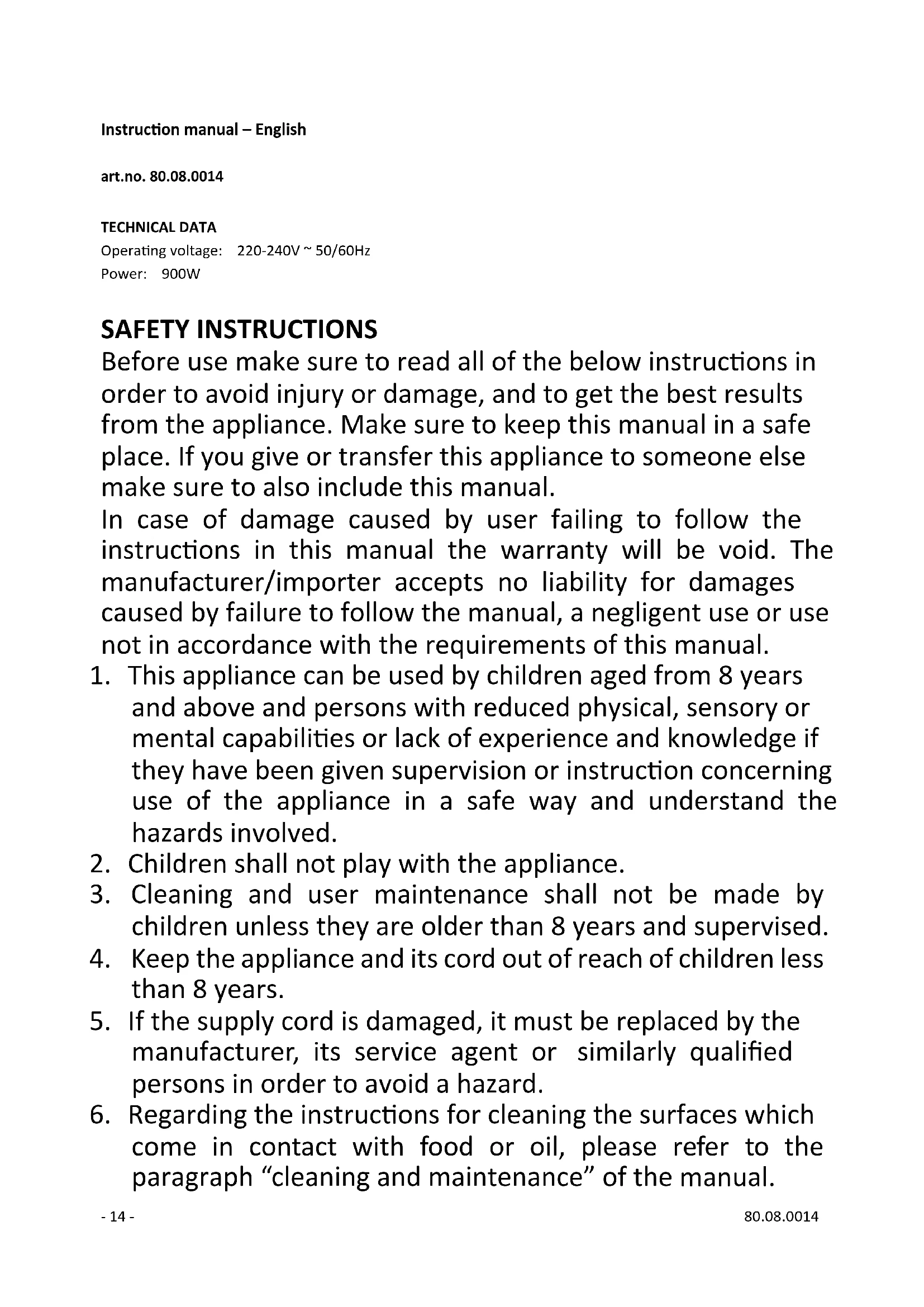

Instruction manual – English

art.no. 80.08.0014

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 900W

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
10. Always plug the appliance into an earthed plug socket.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use the appliance for other than intended use.
21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

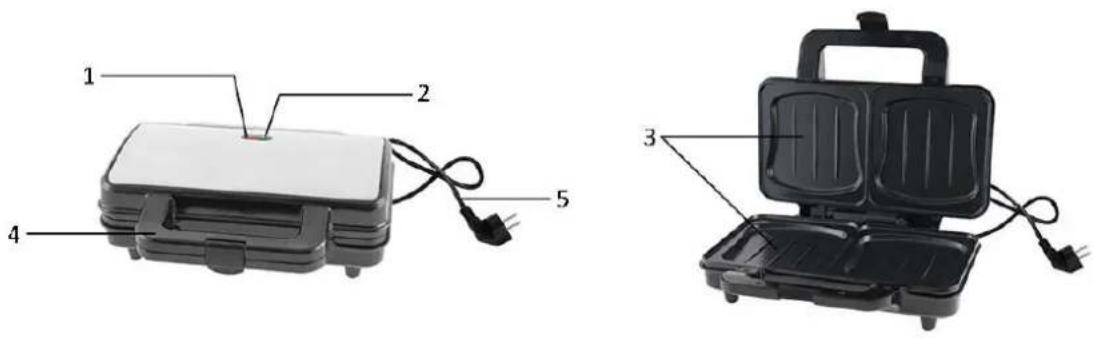

PARTS DESCRIPTION

Diagram showing two types of household appliances: a flat box with labeled parts and a waffle-shaped appliance with labeled parts.

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
5. Power cord and plug

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

USE

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.
2. As soon as the appliance has heated up, the green control light goes off.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich according to the instructions under "Tips for tasty sandwiches".
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards.
6. Close the appliance, making sure that the catch is engaged.

Caution:

- If the slices of bread have too much filling on, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.

1. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
2. After completion of the toasting process (approx. 2-4 minutes) open the catch and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
3. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.
4. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.

Caution:

- Do not immerse the appliance in water or other liquids. There is a danger of electric shock!

RECYCLING

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

QUALITY

Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer.

SECURITY

This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem.

FAULTS AND REPAIRS

If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself.

For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself.

WARRANTY

The warranty period is 2 years from the date of purchase. Always keep your receipt in a safe place. It's handy if you take a picture of the receipt and save it somewhere. Then you will always have an easy-to-read receipt in your possession.

WARRANTY CONDITIONS

HEMA quality guarantee

HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or consumer rights and apply in all countries where there are HEMA branches.

Warranty claims

If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product.

Invalidation of warranty

The warranty on this article is invalidated if the fault or defect is caused by:

a) normal wear and tear
b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.)
c) improper or inappropriate use
d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA

The above list does not exclude other possible reasons for defects not being covered by the warranty.

Added confidence when choosing a HEMA product

You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase).

1 November 2019

HEMA BV

PO Box 37110

1030 AC Amsterdam

The Netherlands

These warranty conditions apply without prejudice to the customer's statutory rights or any other claims by the customer.
