Freerider - Lawn mower Mountain Buggy - Free user manual and instructions

Product type	Stroller accessory convertible into scooter
Brand	Mountain Buggy
Model	Freerider
Minimum age	Over 2 years
Maximum user weight (attached mode)	20 kg
Maximum user weight (scooter mode)	50 kg
Assembly	By an adult only
Safety	Stroller brakes, attachments, automatic locking button
Required equipment in scooter mode	Helmet and flat-soled shoes
Cleaning	Brush, soft non-abrasive cloth, rinse with clear water after sand/snow, dry
Wear parts	Handlebar foam not covered by warranty
Warranty	1 year, 2 years if registered within 30 days, extension possible
Product registration	mountainbuggy.com/register
Support	mountainbuggy.com/support
Chassis maintenance	Rinse to remove salt and sand, dry
Usage	On flat paved surface, away from vehicles, avoid grates and bumps
Repairability	Immediately replace worn or broken parts

Frequently Asked Questions - Freerider Mountain Buggy

What are the usage modes of the Freerider?

The Freerider can be used as a skateboard attached to a stroller or as an independent scooter. In attached mode, max weight is 20 kg; in scooter mode, 50 kg.

From what age can my child use the Freerider?

The Freerider is suitable for children over 2 years old. Ensure the child is able to handle the handlebar in scooter mode.

How to attach the Freerider to my stroller?

Attach the bracket to the stroller, check the stroller brakes, then attach the Freerider ensuring the red button returns to the center position to lock. The straps must be tight.

What safety equipment is necessary in scooter mode?

Always wear a helmet and flat-soled shoes. Adult supervision is required at all times.

How to maintain and clean the Freerider?

Brush the wheels and chassis to remove dirt. Clean with a non-abrasive cleaning product and a soft cloth. After rides in sand or snow, rinse with clear water and dry systematically.

What is the warranty of the Freerider?

Warranty 1 year against material and manufacturing defects. If you register the product online within 30 days, you get 1 additional year. A one-year extension can be purchased within 30 days of purchase.

Where can I use the Freerider?

On flat paved surfaces, sidewalks or sports areas. Avoid roads, highways, traffic, and surfaces with grates or sudden bumps.

What to do if a part is worn or broken?

Immediately replace worn or broken parts. Visit mountainbuggy.com/support for after-sales service contact information.

Is the handlebar adjustable?

The manual does not mention handlebar adjustment. The handlebar is likely fixed. Check the product or contact support.

How to register my product for warranty?

Go to mountainbuggy.com/register within 30 days of purchase to get an additional year of warranty.

USER MANUAL Freerider Mountain Buggy

freerider™ and connector instructions

contents

• contents 2
  • introduction 3
• using freerider ^TM as a stroller board 6
• storing freerider ^TM when not in use 24
• freerider ™ with newborn accessories 26
• using freerider ™ as a scooter 30
  · care information I EN 33
  nettoyage et entretien I FR 36
  Pflegeinformationen I DE 42
  ·limpieza y cuidado I ES 50

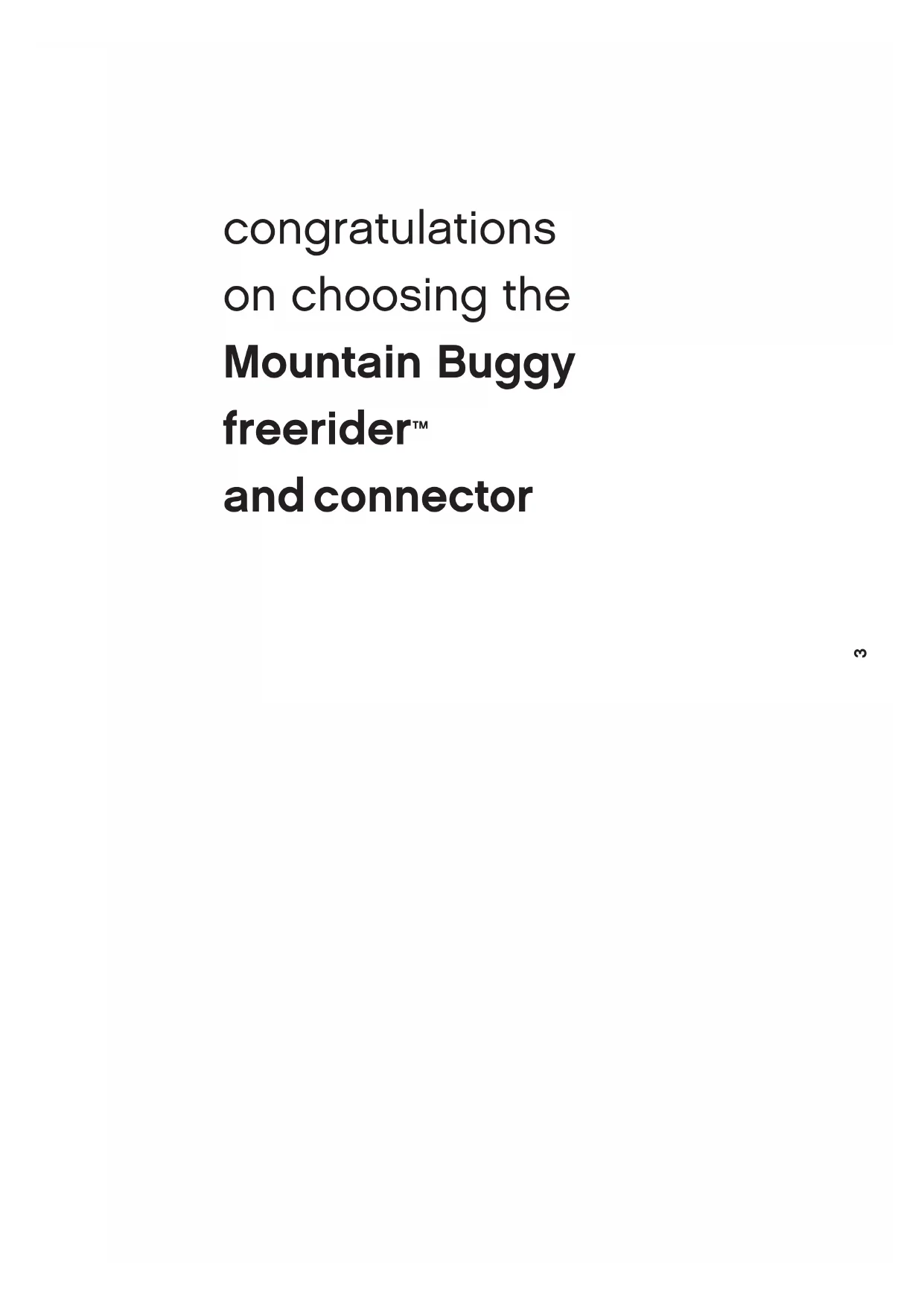

congratulations on choosing the Mountain Buggy freerider™ and connector

IMPORTANT:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

care information

Check the freerider™ and connector before use. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (mountainbuggy.com/support).

• Brush dirt off frame and wheels regularly.
• Clean with a non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
• Always dry the frame if wet.
• Improper care will void any warranties. do not use the freerider if deterioration is detected or suspected.

For warranty information visit

mountainbuggy.com/warranty

warranty

All of our products have a one year warranty from date of purchase against defects in material and workmanship.*

Additionally, when you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.

Once registered, you can further extend the warranty to 3 years by purchasing the extended warranty option within 30 days of purchase.

Please register your product

purchase online now at

mountainbuggy.com/register

*you may be entitled to other terms and rights in some countries.

WARNING:

using freerider™ as a stroller board

max load: 20kg / 44lbs

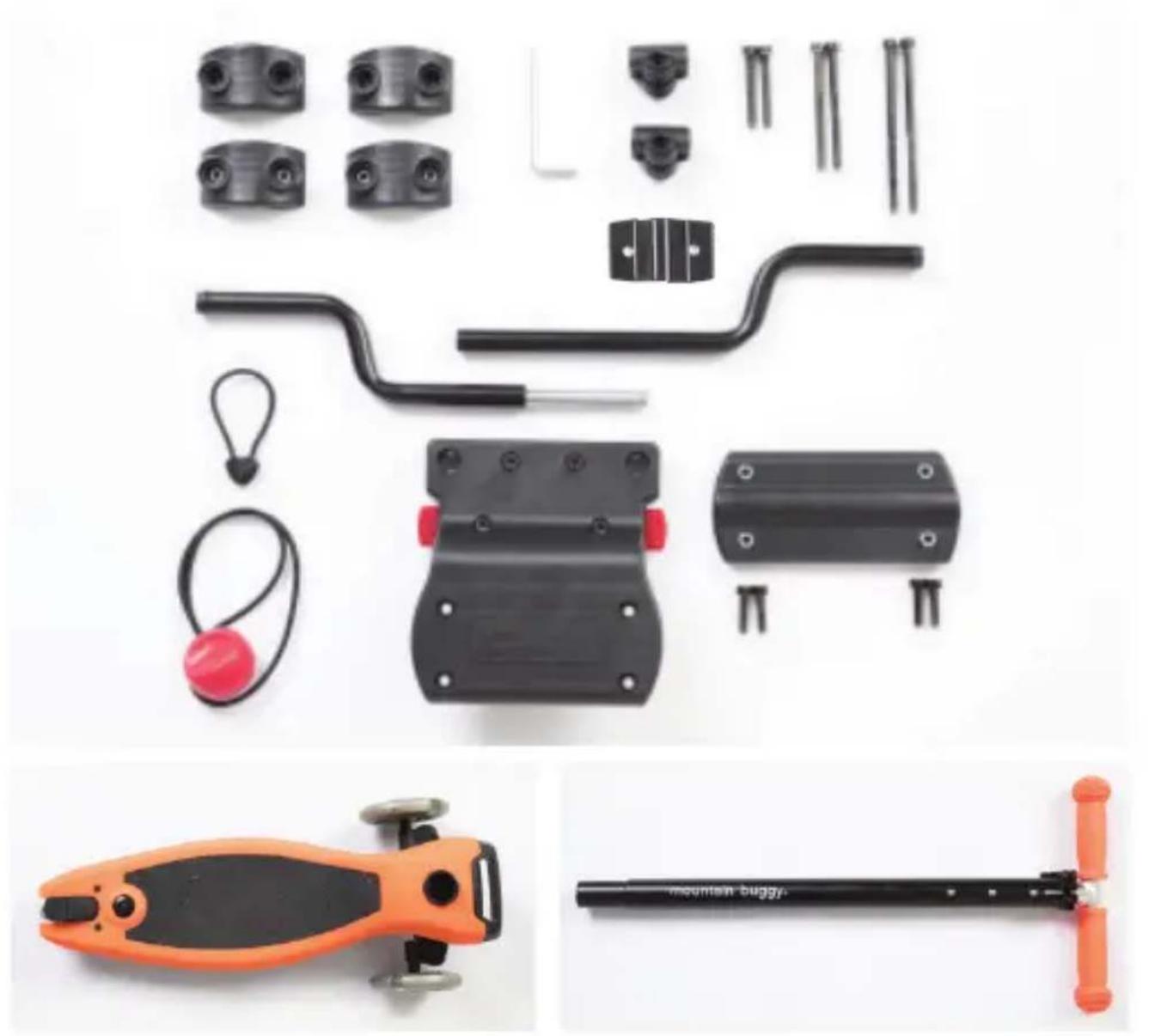

what's in the box?

configuration guide

configuration 1

Mountain Buggy:

nano, MB mini, swift,

urban jungle, +one, terrain

p. 10

configuration 2

Mountain Buggy:

cosmopolitan

phil&teds:

smart (2016+) ,mod

p. 11

Baby Jogger:

City Mini

Britax:

B-ready

configuration 3

Mountain Buggy:

nano duo

p. 12

configuration 4

Mountain Buggy:

duet

Baby Jogger:

City Mini GT, City Versa,

City Elite

p. 13

configuration 5

phil&teds: navigator (2014+), sport (2015+)

p.14

configuration 6

phil&teds: dash (2015+) ,voyager

p. 15

Bugaboo: Cameleon3

configuration 7

Baby Jogger: City Select

p. 16

Quinny: Buzz, Moodd

Bugaboo: Buffalo

configuration 8

Britax: Steelcraft StriderPLUS

p. 17

Bugaboo: Fox

dot, sport, dash, voyager (2019+) requires additional connector purchase

bar configuration 1

Mountain Buggy: nano, MB mini,

swift, urban jungle, +one, terrain

urban jungle shown in image

bar configuration 2

Mountain Buggy: cosmopolitan

phil&teds:smart (2016 + ) mod

Britax: B-Ready

Baby Jogger: City Mini

cosmopolitan shown in image

bar configuration 3

bar configuration 4

Mountain Buggy: duet

Baby Jogger: City Elite,

City Mini GT, City Versa

duet shown in image

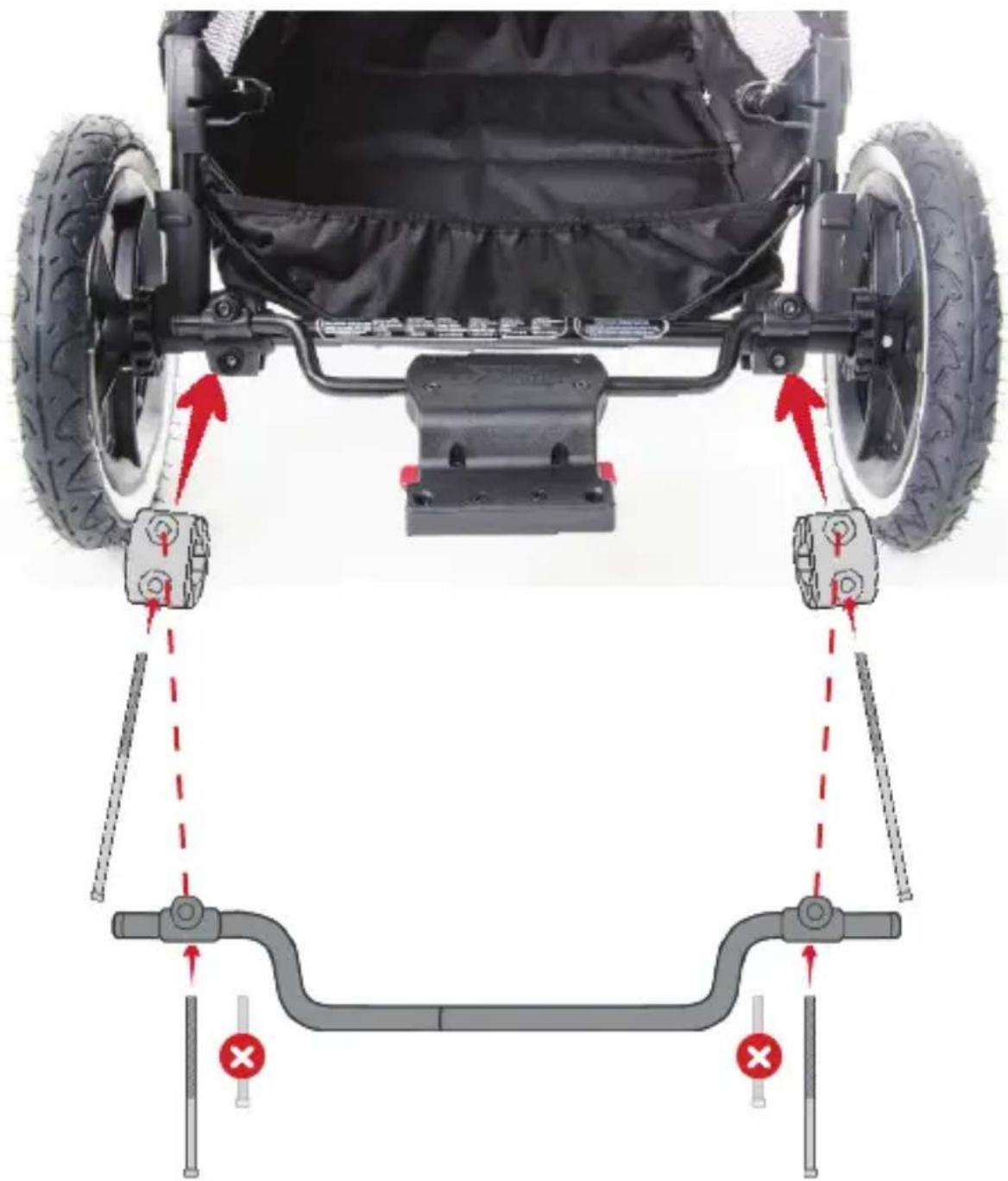

bar configuration 5

phil&teds: navigator (2014+),

sport (2015+)

sport shown in image

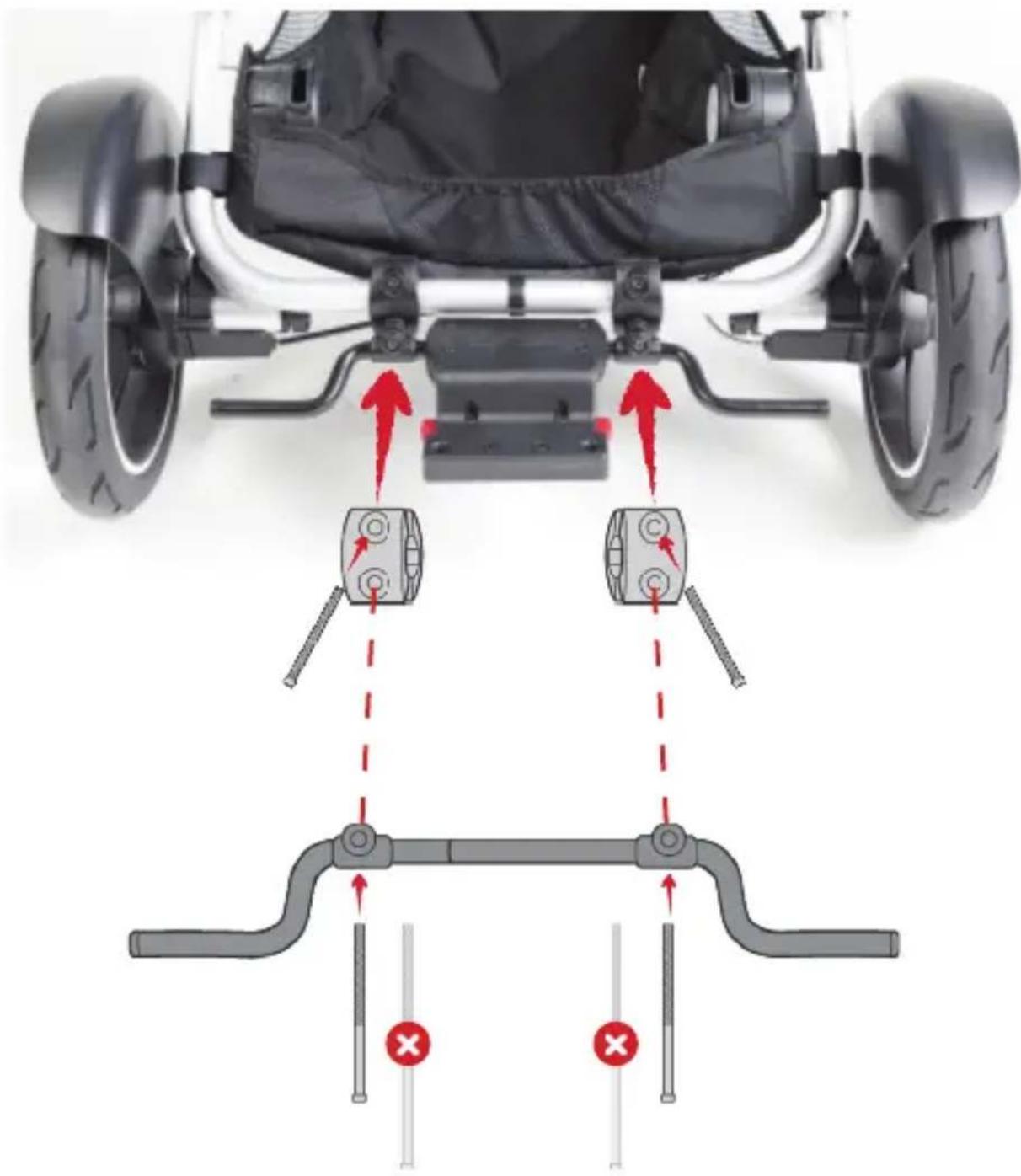

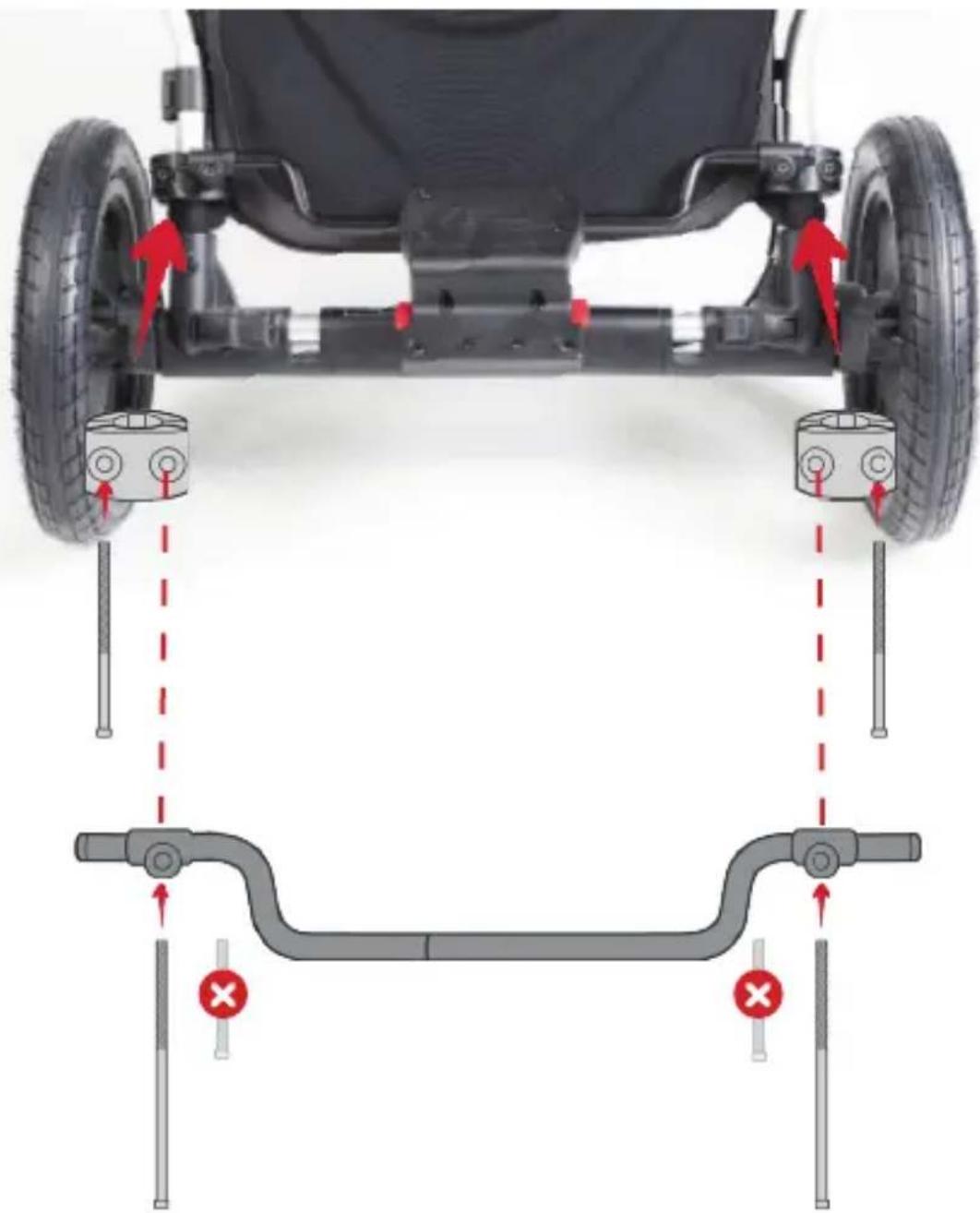

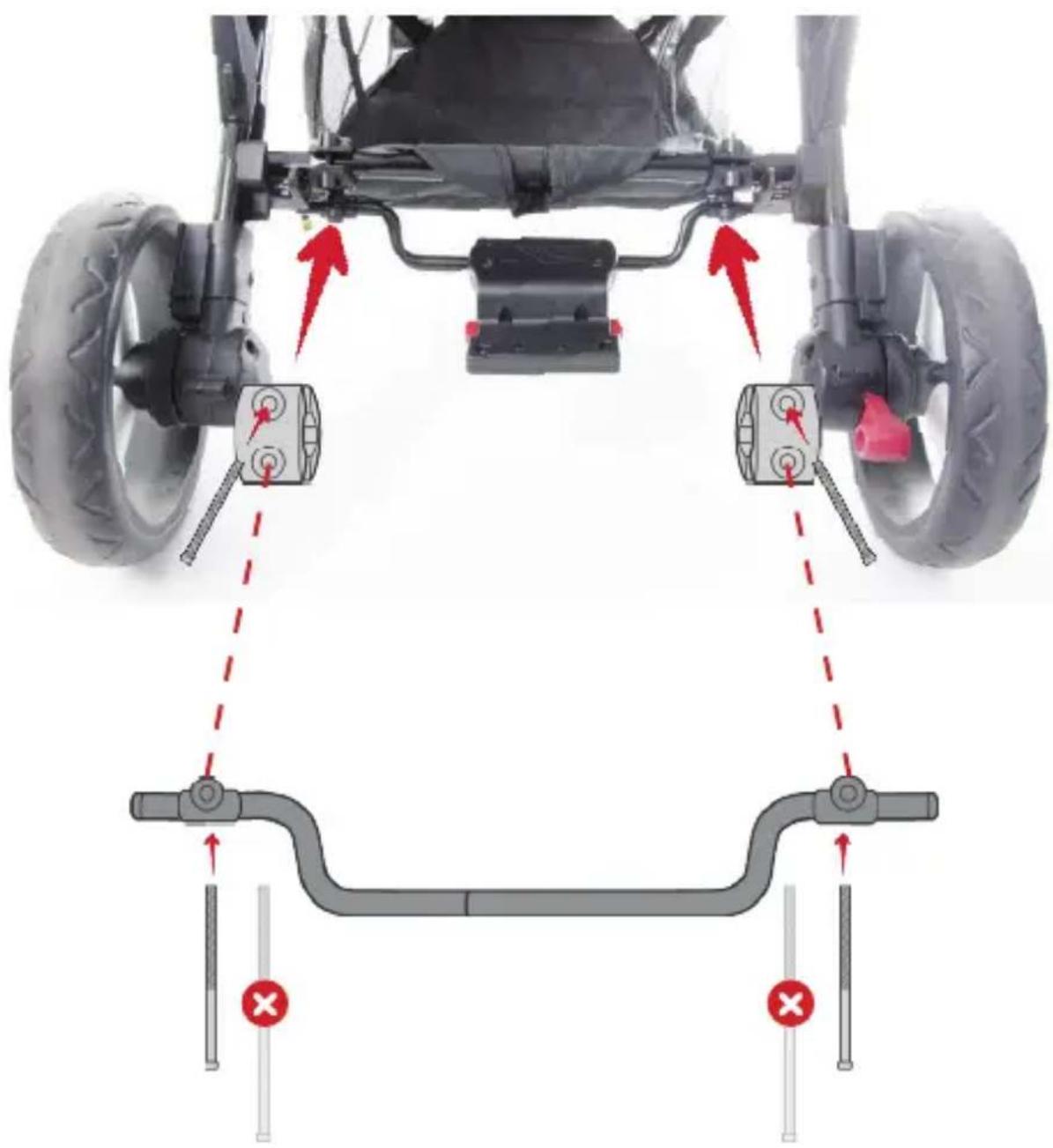

bar configuration 6

phil&teds: voyager, dash (2015+)

Bugaboo: Cameleon3

dash shown in image

bar configuration 7

Baby Jogger: City Select

Quinny: Buzz, Moodd

Bugaboo: Buffalo

City Select shown in image

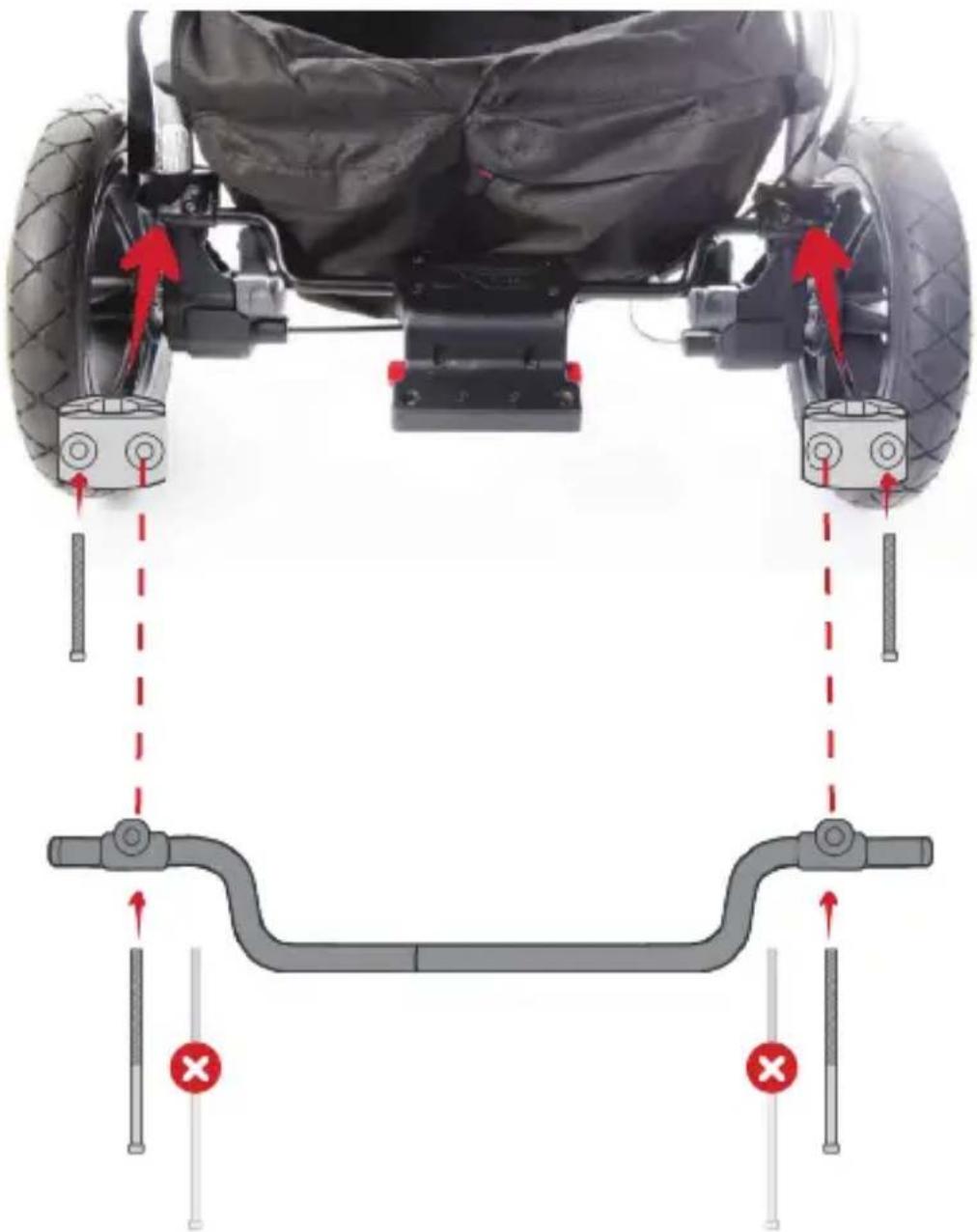

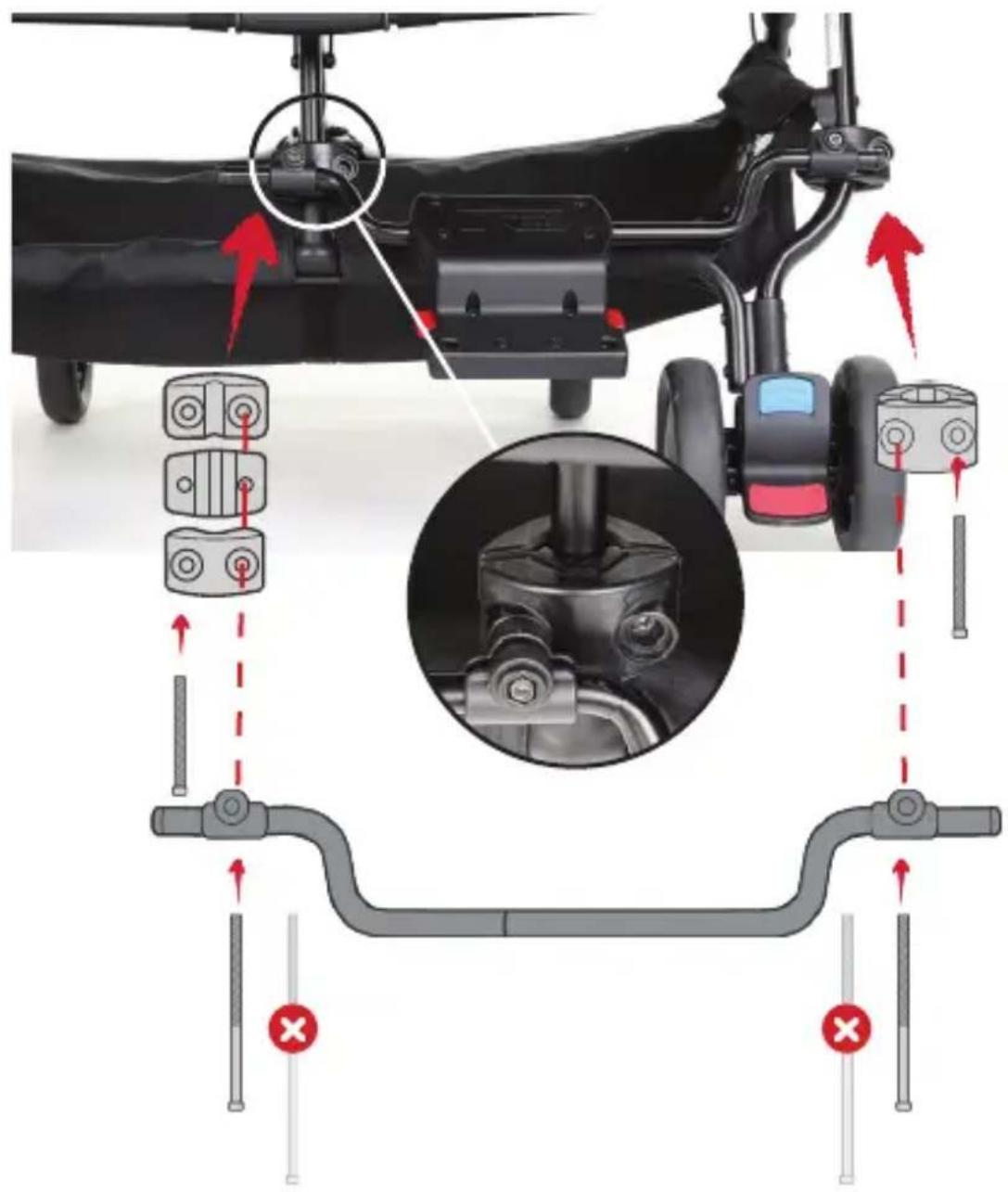

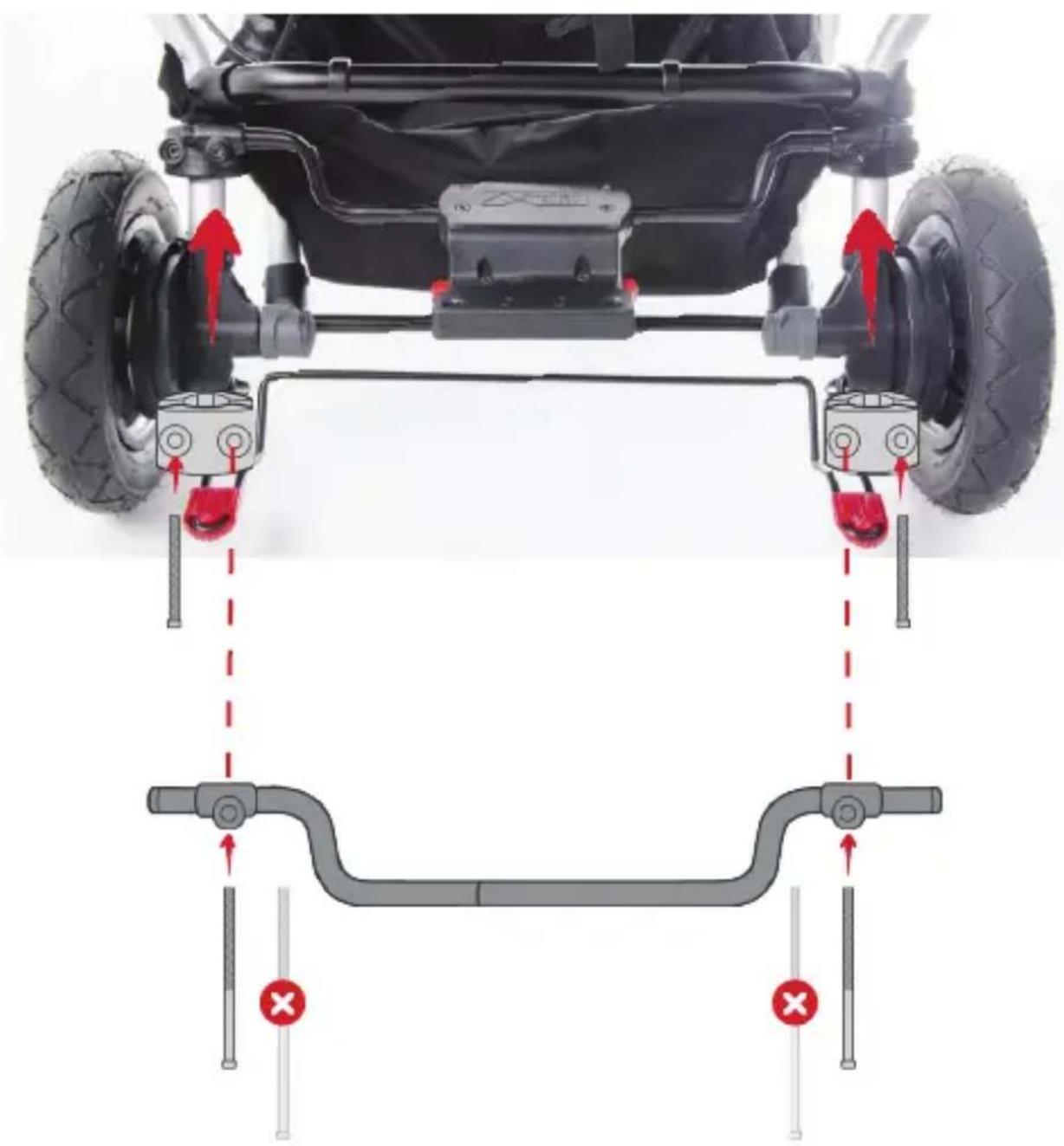

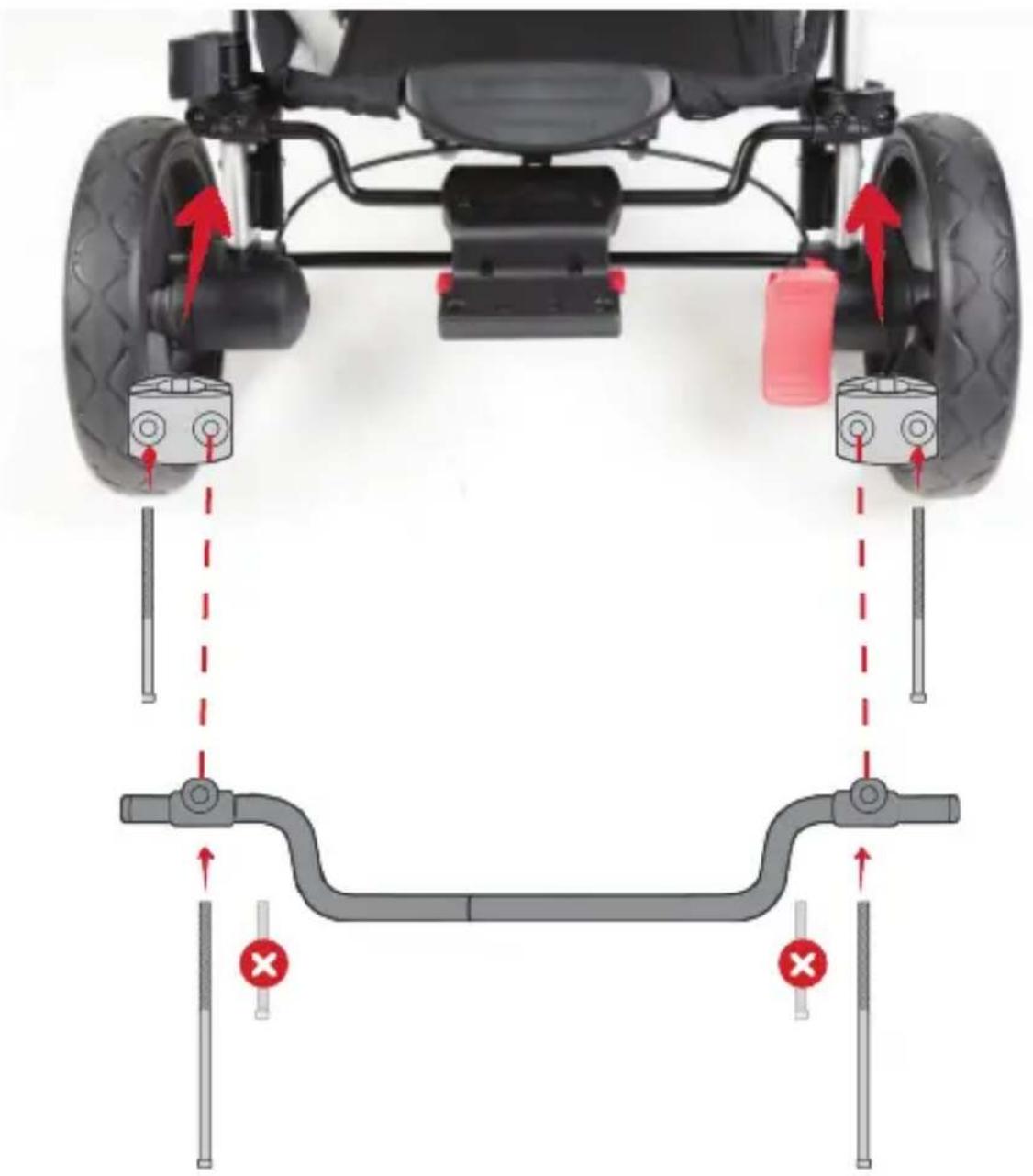

bar configuration 8

Britax: Steelcraft StriderPLUS

Bugaboo: Fox

Steelcraft StriderPLUS shown in image

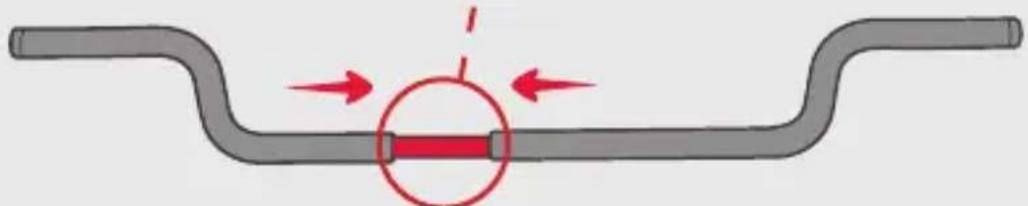

connector bar width

A

*Mountain Buggy: nano, MB mini, swift, cosmopolitan, nano duo. phil&teds: navigator (2014+), sport (2015+) , smart (2016+) , mod. Britax: B-Ready, Steelcraft StriderPLUS. Baby Jogger: City Elite, City Mini GT, City Versa. Bugaboo: Buffalo, Fox

B

*Mountain Buggy: urban jungle, +one, terrain, duet Baby Jogger: City Select, City Mini Quinny: Buzz, Moodd

C

*phil&teds: dash (2015+), voyager
Bugaboo: Cameleon3
(bar hangs upside-down from clamps)

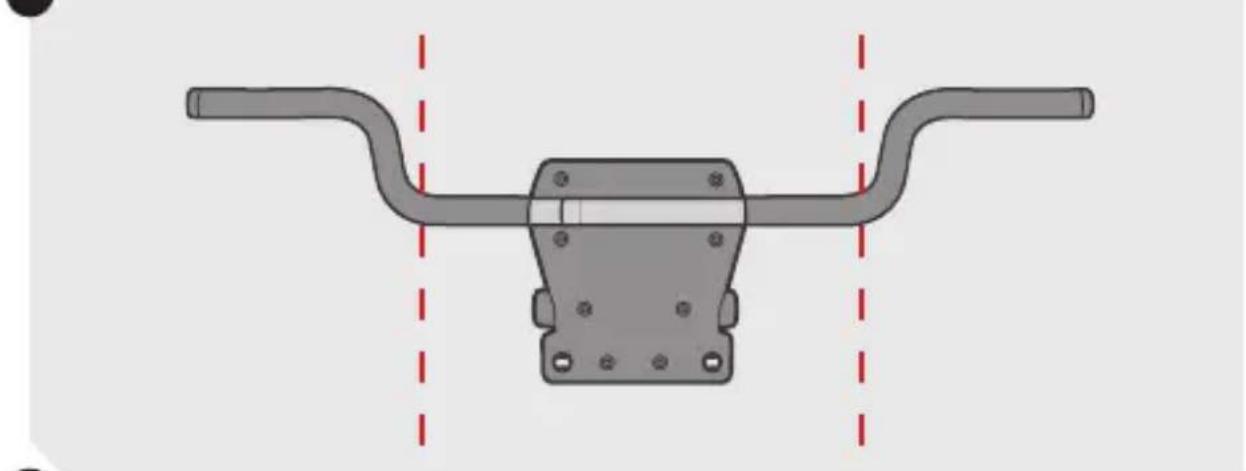

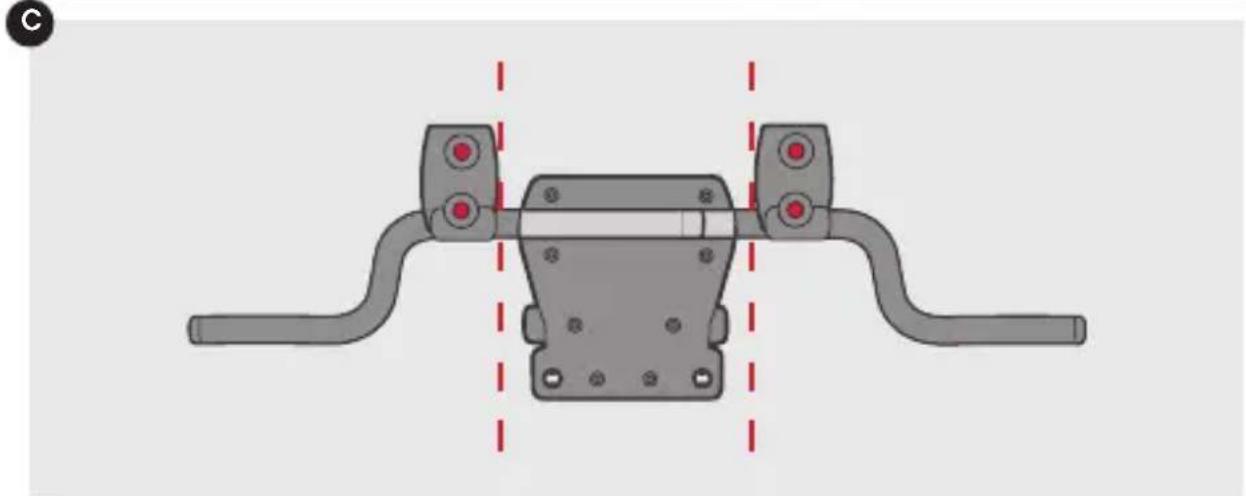

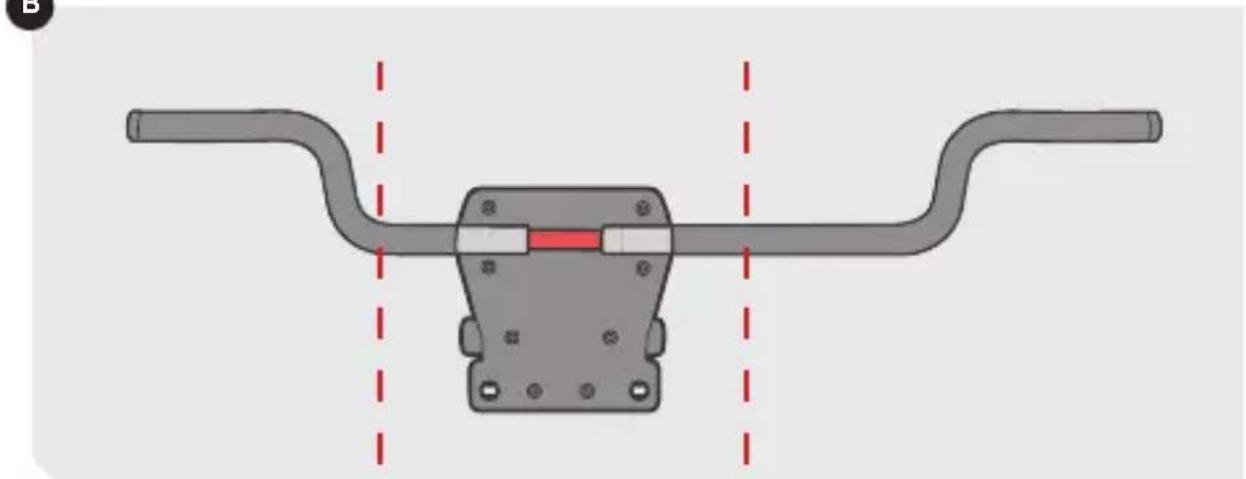

connector position

A

B

C

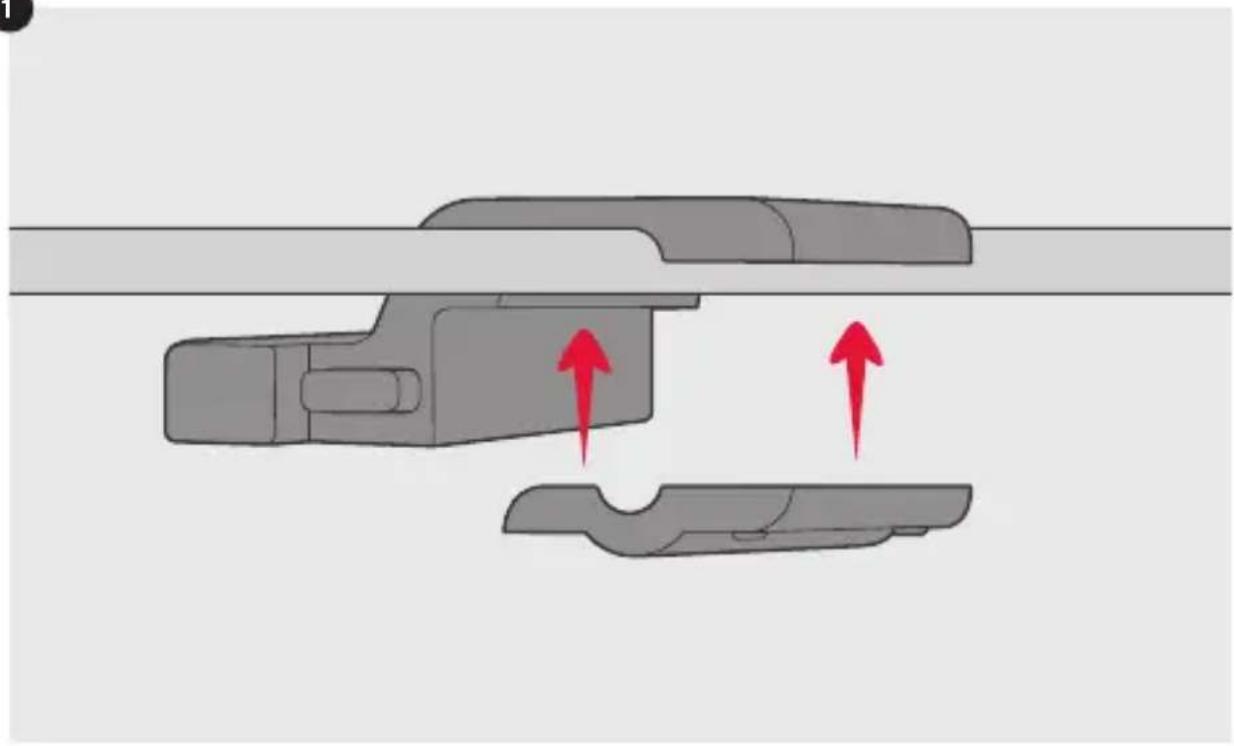

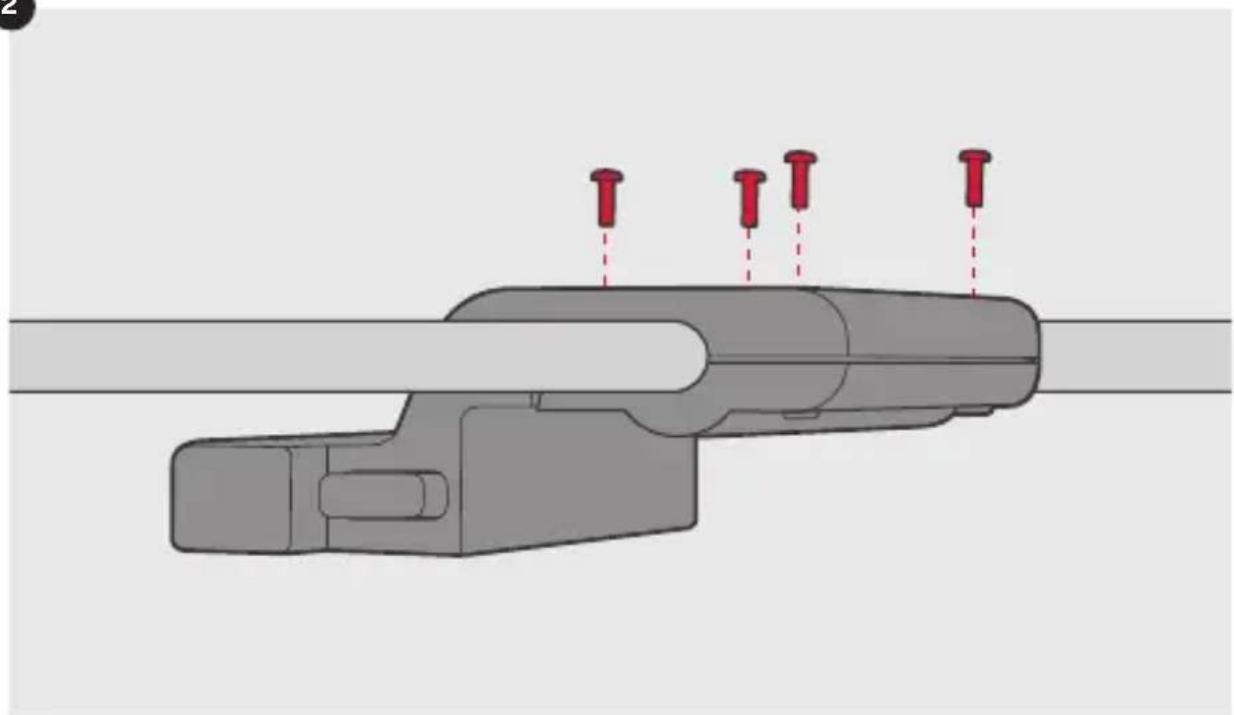

connector attachment

1

2

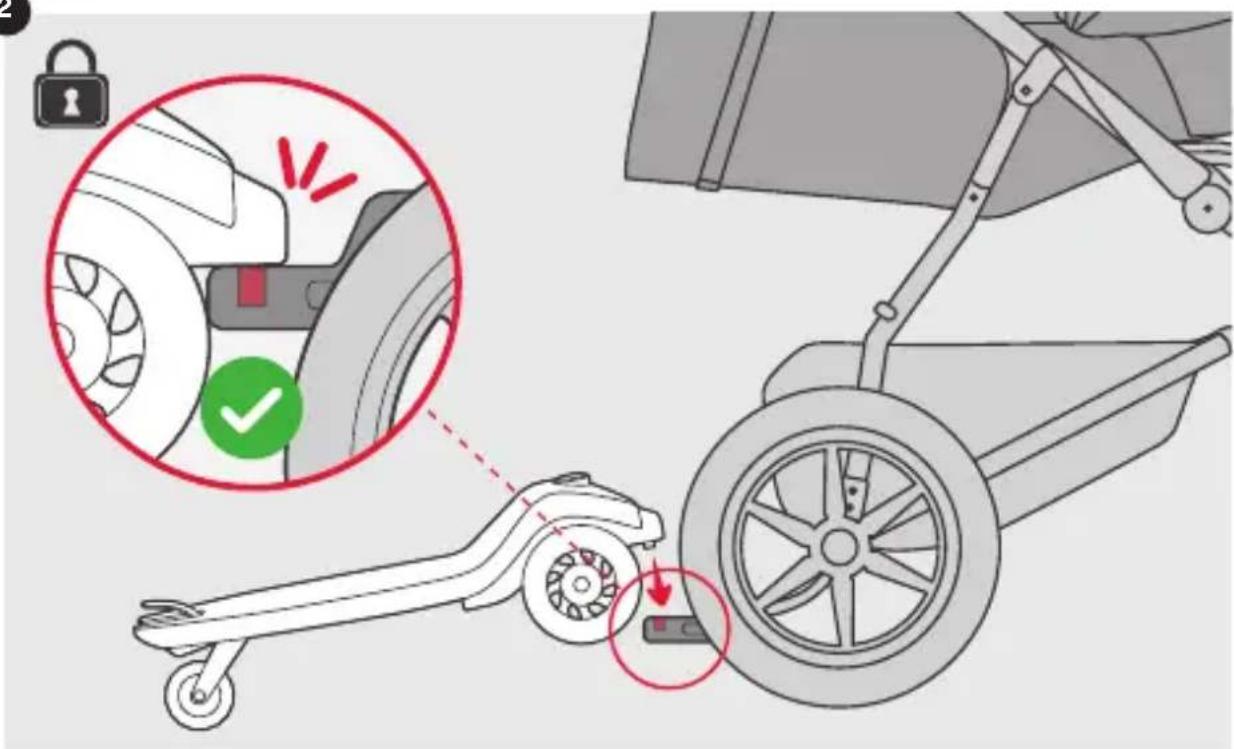

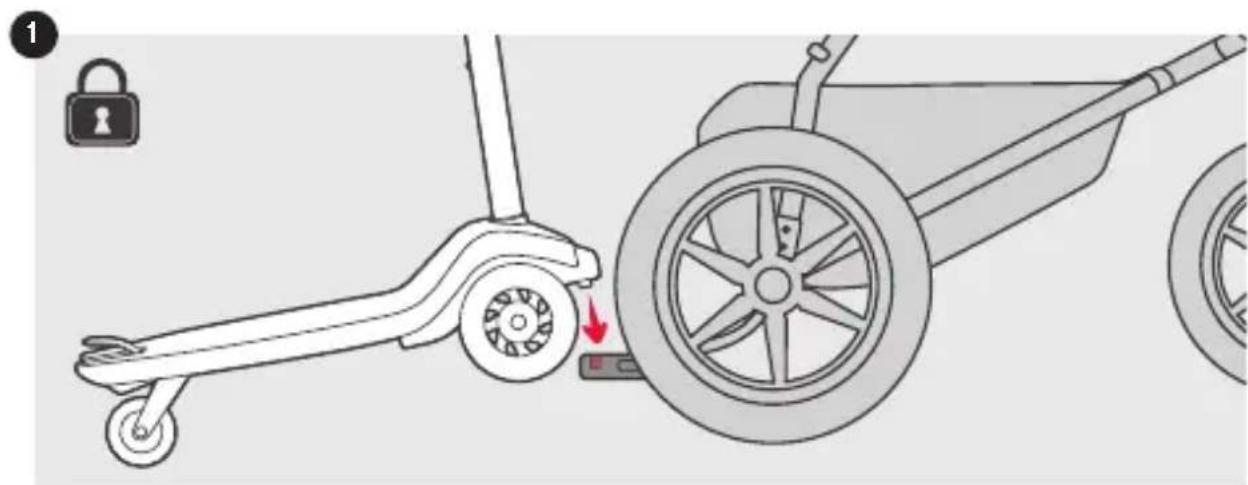

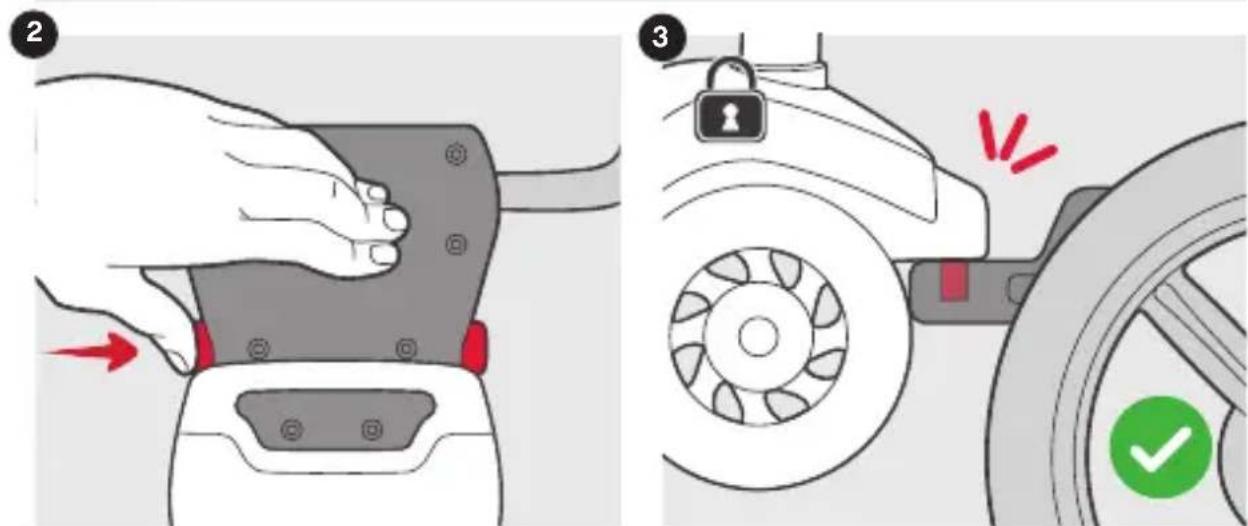

connecting freerider

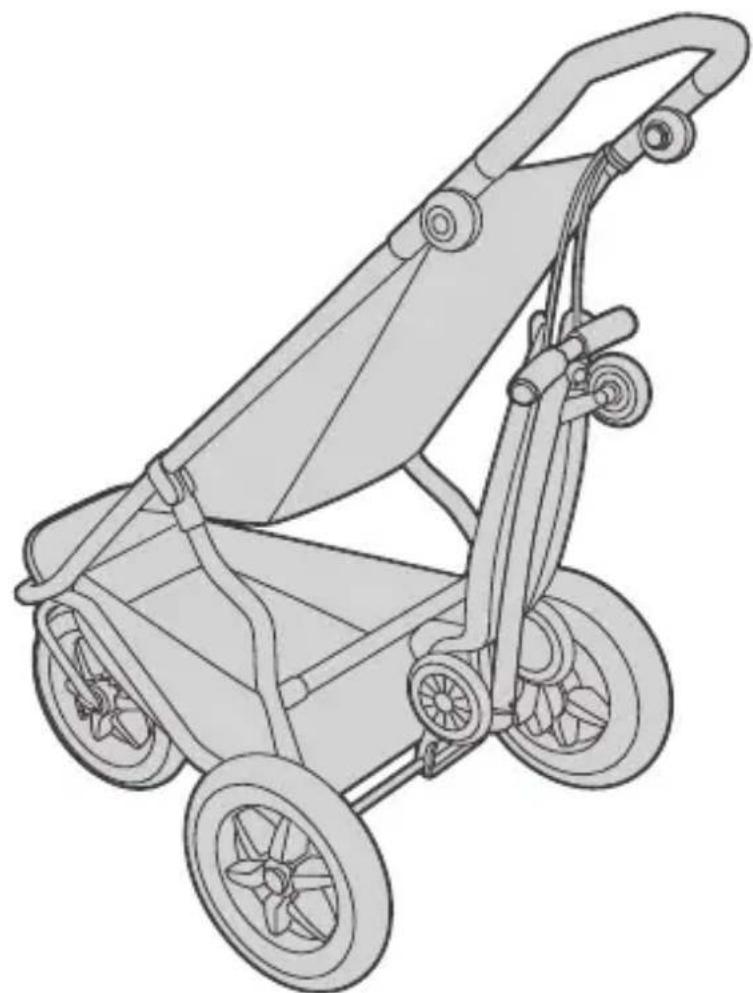

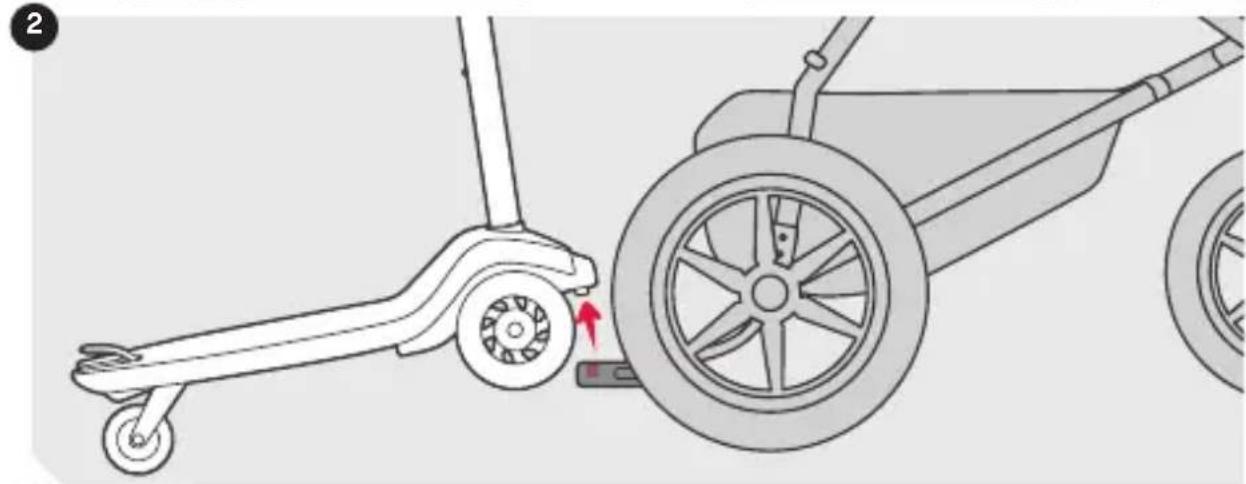

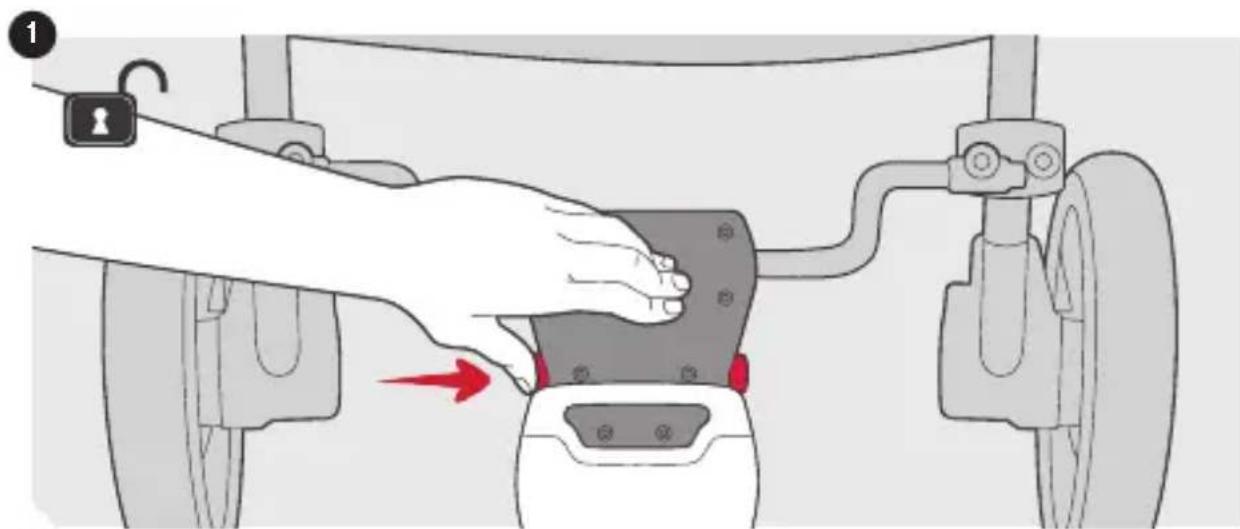

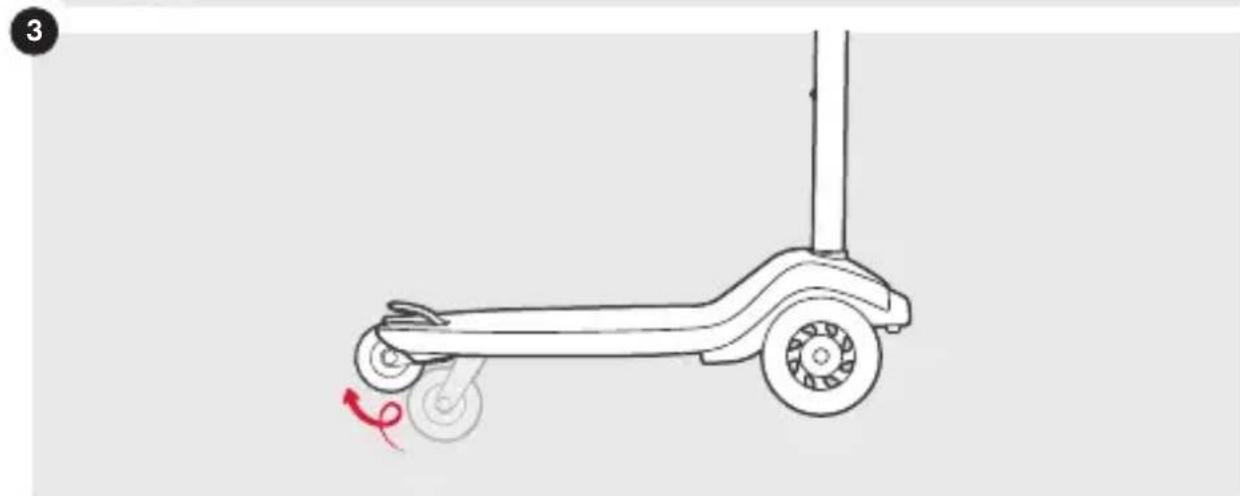

disconnecting freerider

B

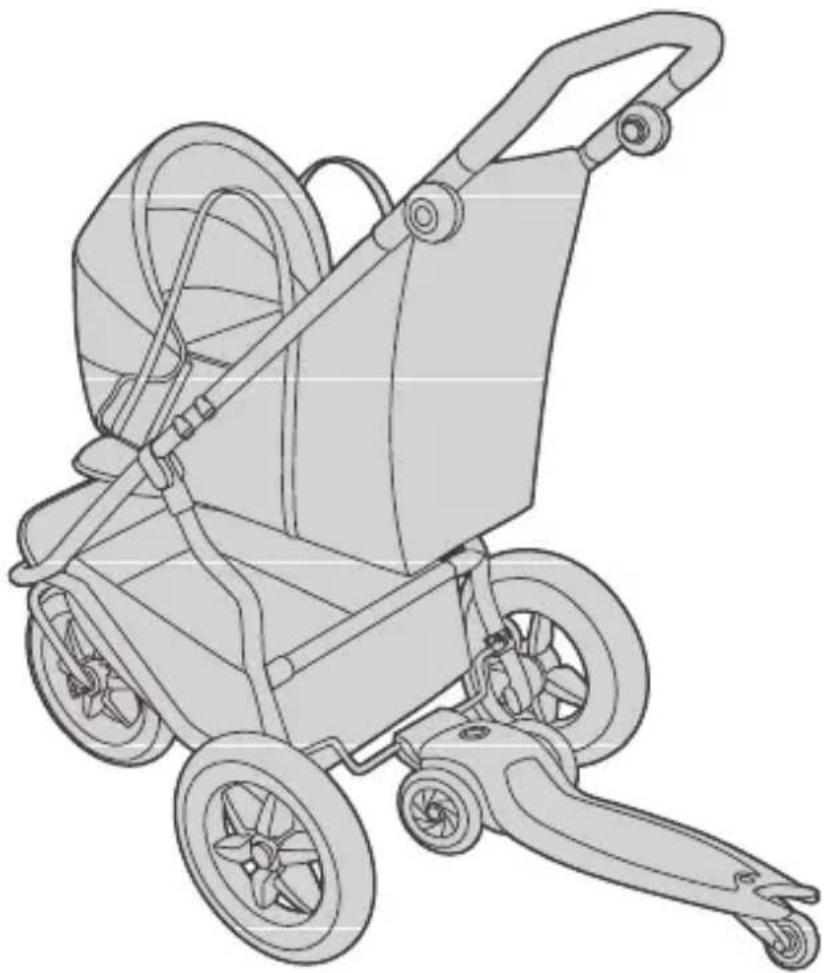

using toggles for

freerider™ storage

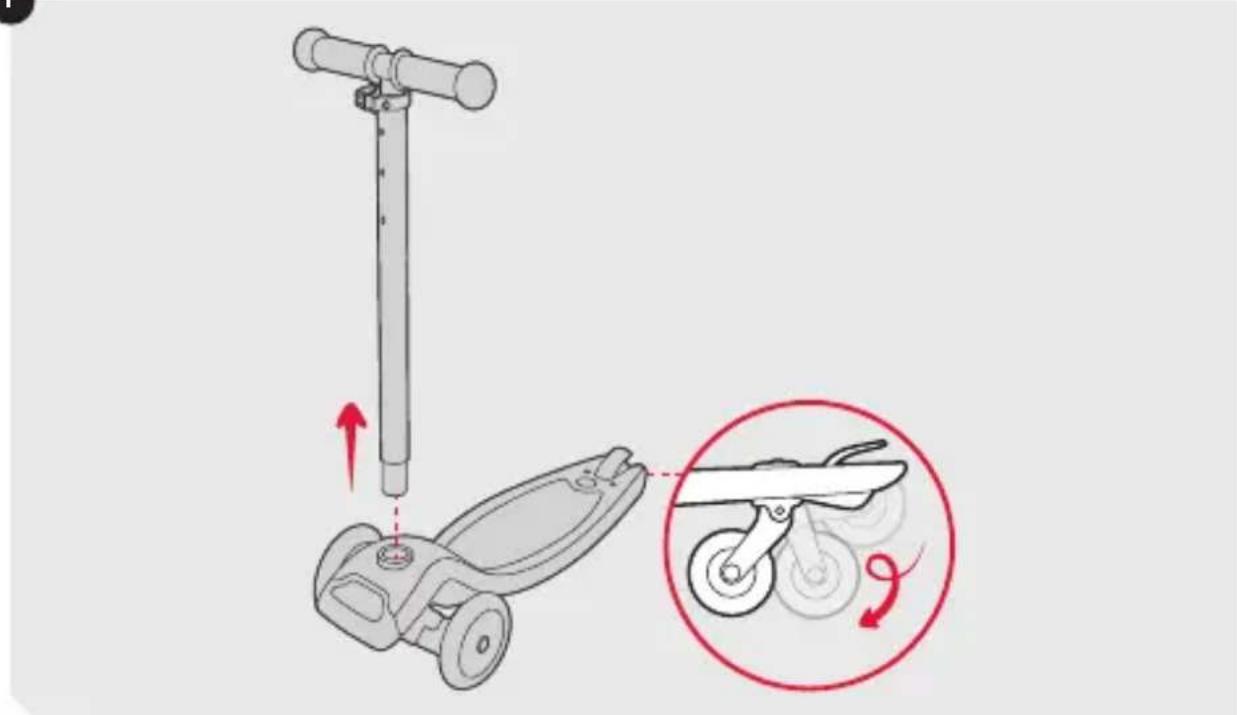

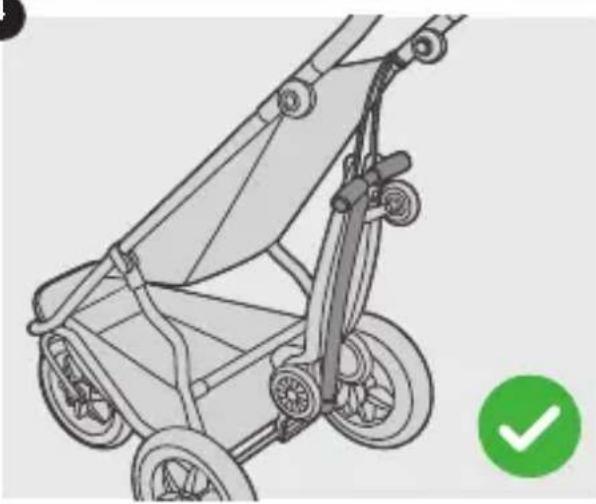

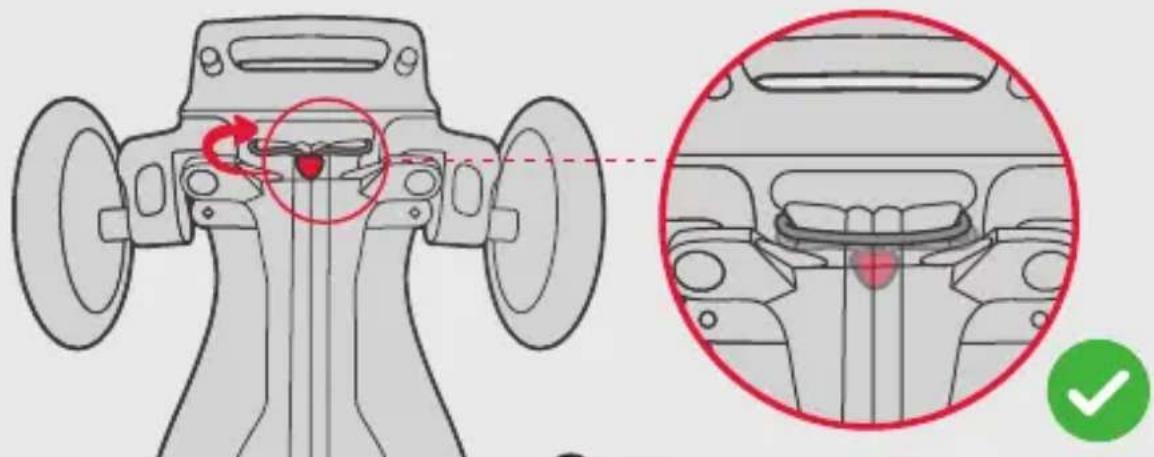

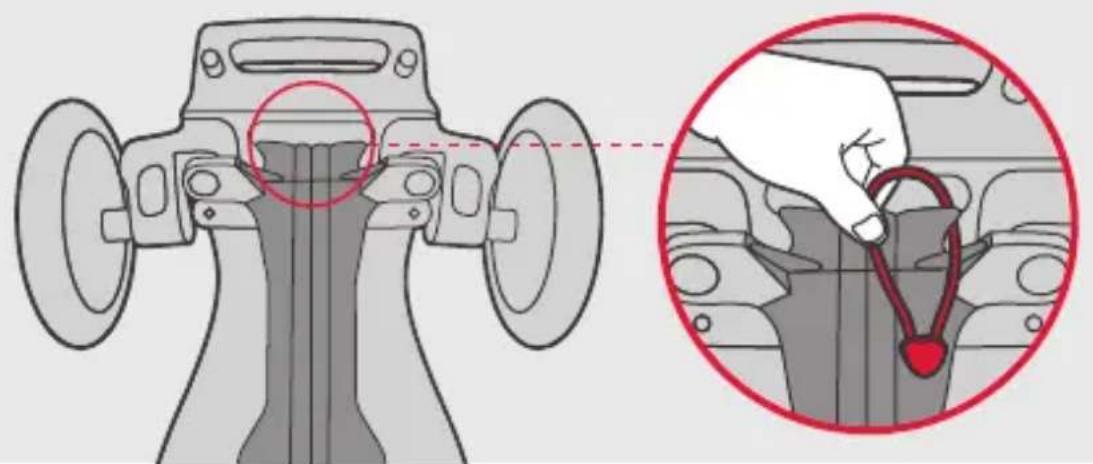

using toggles

1
2

3

4

using freeriderTM

with newborn accessories

1

2

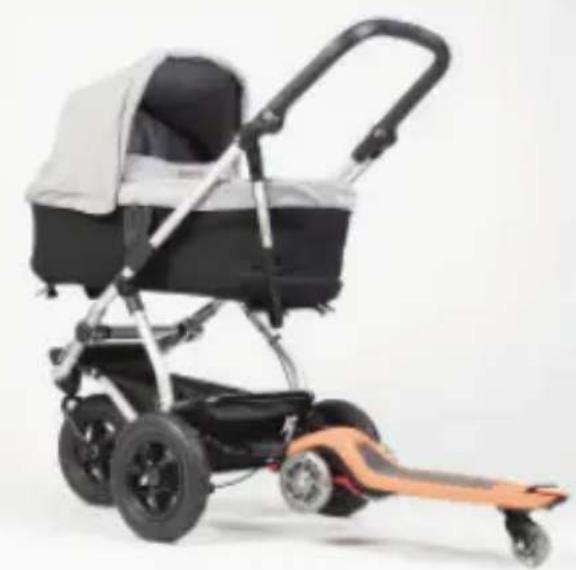

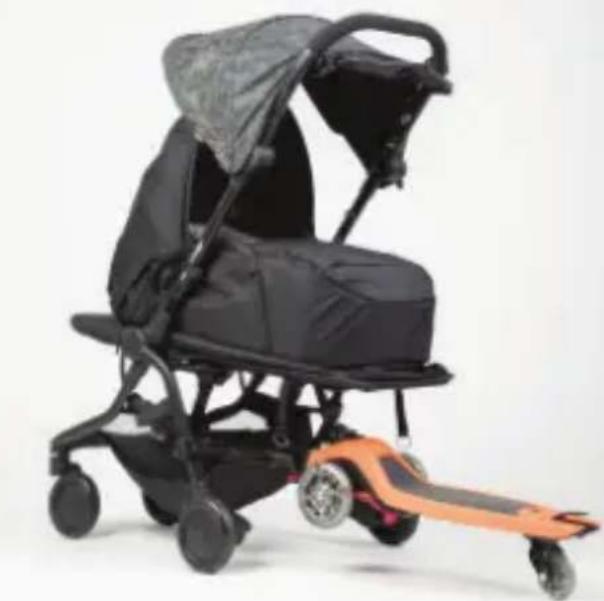

freerider™ with bassinets

A

*Mountain Buggy swift with carrycot plus shown in image

B

*Mountain Buggy nano with cocoon shown in image

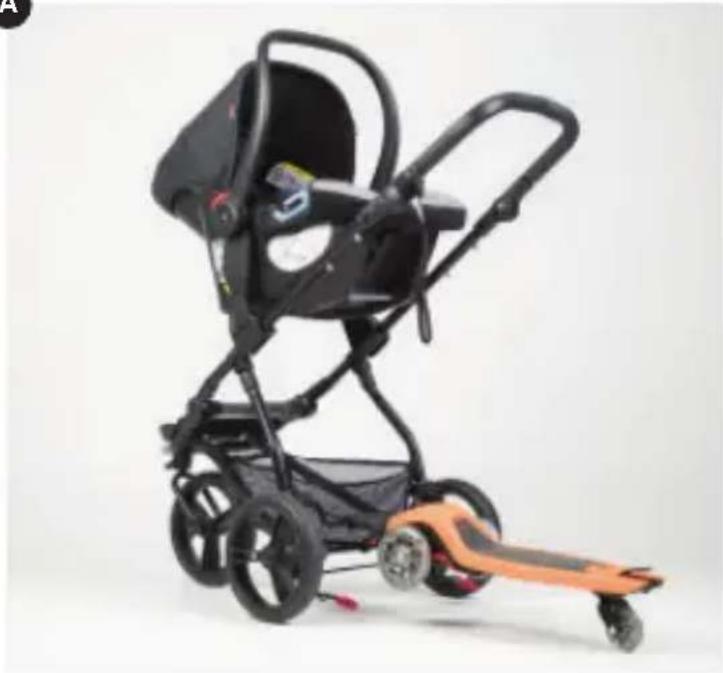

freerider™ with capsules

A

*Mountain Buggy mini with protect shown in image

D

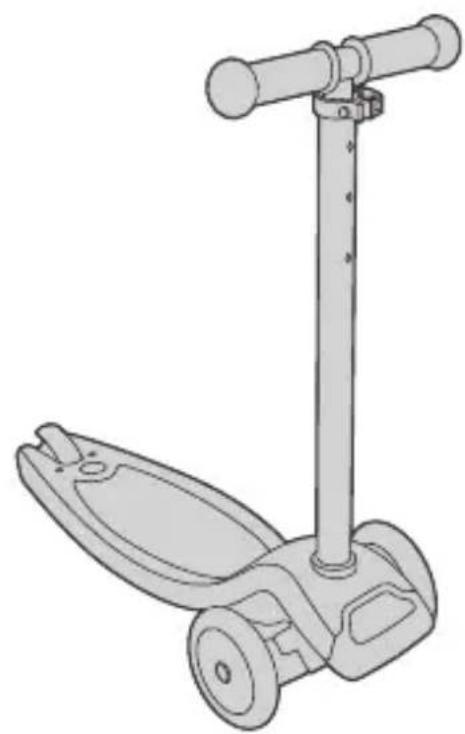

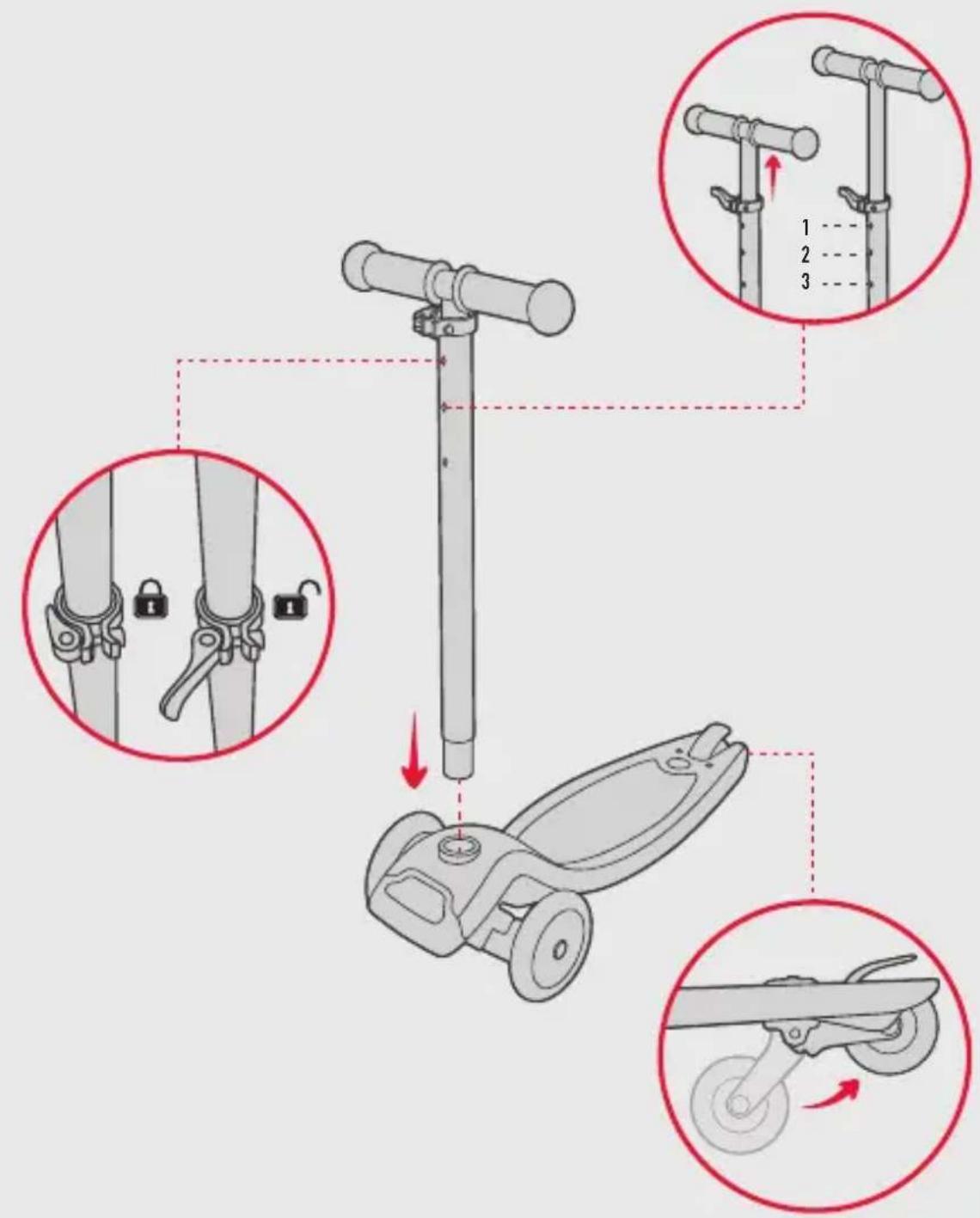

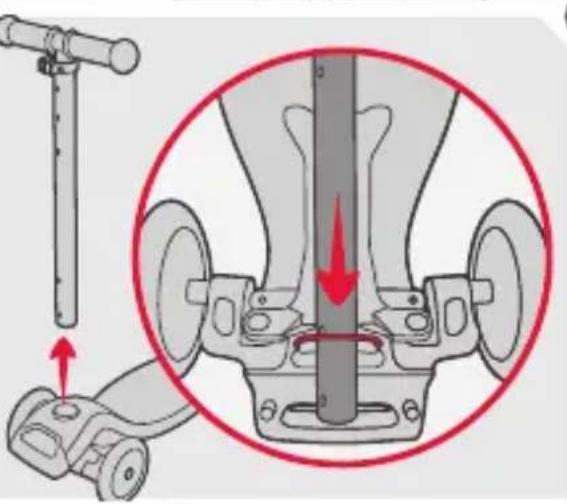

using freerider™ as a scooter

max load: 50kg / 110lbs (in scooter mode only)

1

WARNING

as a stroller board

• Intended for children from 2 years, to a maximum of 20kg / 44lbs. Always check your buggy brake functionality after attaching the connector to your buggy. Always check the freerider™ is securely mounted to your connector before use.
• Check fasteners are tight before attaching the freerider™. Ensure the red button springs back into position automatically to lock your connector. The connector is intended for the freerider™ only.

3

WARNING

as a scooter

• Intended for children from 2 years, to a maximum of 50kg / 110lbs . Make sure child can maintain grip on the handle bar. The freerider™ is not designed for tricks.

• Adult supervision required at all times. - The product must be assembled by an adult. - The product must be used with caution, since skill is required to avoid falls or collisions causing injury to the user or third parties.

• Always wear safety equipment such as a helmet when riding in scooter mode. • Not to be used in traffic, on roads or highways – safe riding areas may include sidewalks, sports fields and yards. • Ride on smooth, paved surfaces away from motor vehicles. Avoid sharp bumps, drainage grates and sudden surface changes.
• Check all locking devices are engaged before every ride. - Replace worn or broken parts immediately.
• Always wear flat footwear when riding the freerider™.
• Failure to use common sense and heed the above warnings presents and enhances risks of serious injury.
