USER MANUAL Aida 80 LED SM Link EICO

There are four soft touch buttons on this version and a variable colour led (green min. speed, red max. speed). > One button for turning the lights on and off. > One button for turning on at 2nd speed and for turning the motor off. N.B. If this button is kept depressed for more than three seconds, the automatic function is activated to turn the hood off function after 10 minutes, the led flashes slowly . > Two buttons + and - for increasing and reducing the motor speed. At the 4th motor speed (intense) the led flashes quickly and after 5 minutes the 2nd speed is automatically set.EN - 20 RADIO CONTROL ATTENTION: The hoods with the standard remote control are already configured. For optional and/or replacement remote controls it is necessary to start the activation process:

1. Press and hold the + button on the hood, (while it is off) until the LED starts flashing

2. When flashing, press on / off light on the remote control within 1 minute.

Control buttons: > One button for turning the lights on and off. > One button for turning on at 2nd speed and for turning the motor off. > Two buttons + and - for increasing and decreasing the motor speed. At the 4th motor speed (intense) the led flashes and after 5 minutes the 2nd speed is automatically set. > A TIMER button for turning the motor off after 10 minutes.

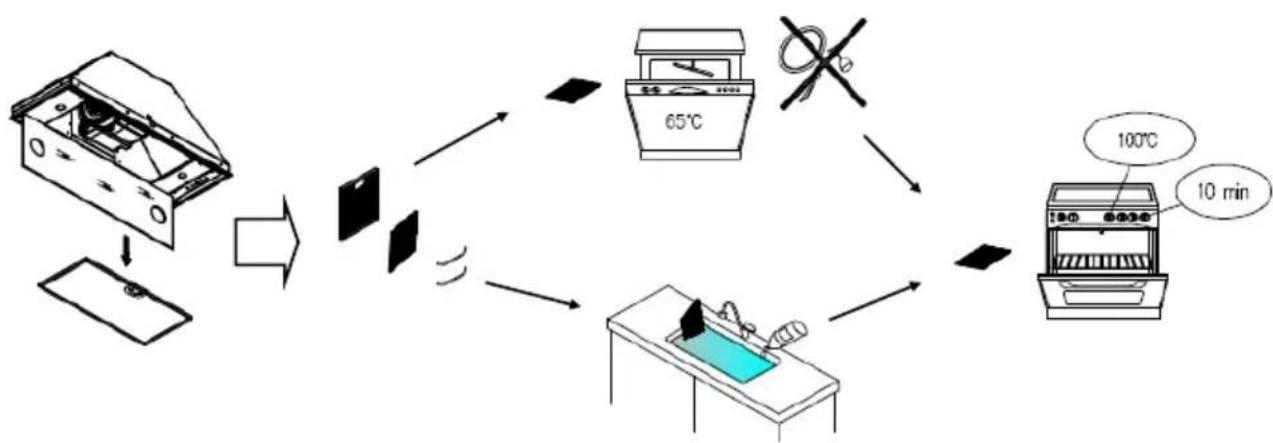

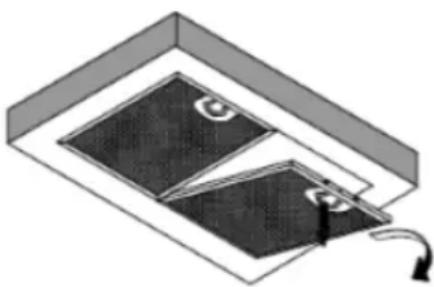

Before beginning any sort of cleaning or maintenance work, turn power off to the hood by turning the main switch to 0 (OFF). Changing the light bulbs LED spotlight replacement should only be carried out by qualified technicians using only original spare parts. Cleaning the metal filters: The metal filters fitted in the hood should be washed every 2-3 months, de- pending on how much the hood is used, using hot water and a liquid detergent that is not too aggressive. The metal filters can be removed by the special handle, unhooking the front part of the filter and pulling it downwards Carbon filters If the hood is used with an internal recycle filtering system, then active carbon filters must be used. The active car- bon in the filters traps the cooking smells. To remove and change the filters, refer to fig. POLYESTER carbon filters cannot be reused or washed and must be periodically changed (every 4 months if the hood is used for 2 hours every day). Saturate filters could be a fire hazard. Depending on the hood model, the carbon filters are round or rectangular. LONG LIFE carbon filter can be cleaned and reactivated. The filter should be cleaned every other month if used nor- mally. The filter is best cleaned in a dishwasher at the highest temperature using normal washer detergent. The filter should be washed on its own to prevent particles of food from fastening in it and then causing an unpleasant smell later on. To reactivate the carbon the filter should be dried in the oven. Chose upper/ lower heat and maximum 100 ° C and try the filter for 10 minutes. When the filter has cooled down, put it back in the hood.EN - 21 The filter must be changed when it no longer absorbs the cooking smells sufficiently.

Condensation in the hood Induction or glass ceramic hobs heat food up very quickly, creating cooking steam before the glass or steel surface of the hood has heated up, which causes condensation on the hood that then drips. Another cause for condensation could be that the fume pipe is not the size we recommend (see INSTALLATION). The steam that remains inside the hood while it is cooling down condensates and drips. Therefore it is advisable to turn the hood on ten minutes before starting to cook and when you have finished, leave it on so that all the fumes in the pipe are expelled. Furthermore, it is important to clean the filters frequently and if they are worn they should be replaced (see CLEAN- ING THE METAL FILTERS). Cleaning the hood The surfaces of the hood should be cleaned frequently, to avoid the risk of having to remove built up and encrusted deposits and stains. For the painted or copper plated hoods just use a soft cloth with warm water and a neutral detergent. Do not pour the detergent directly onto the hood or use powdery or abrasive products For the stainless steel hood, use special products and cloths for satin finish stainless steel (not abrasive, corrosive detergents or detergents containing chloride), ensuring to clean in the same direction as the satin finish. Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause oxidation and polymerisation.

The manufacturer accepts no responsibility for damage to the surface of the hood due to failure to respect these instructions.DE - 22
