IMUDC - Barbecue Napoleon - Free user manual and instructions

Brand	Napoleon
Model	IMUDC
Product Type	Outdoor storage cabinet
Use	Outdoor, for kitchen island
Height	889 mm (35")
Depth	610 mm (24")
Width	610 mm (24")
Door Material	Stainless steel
Door Type	Reversible (left or right opening)
Features	Outdoor storage, adjustable leveling feet
Assembly	Shipped fully assembled
Load Capacity	Not specified (estimated up to 50 kg)
Leveling Feet	Yes, adjustable
Punched Panels	No (unless used with other modules)
Grill Compatibility	Not directly, but can be integrated into a modular island with a built-in grill
Recommended Care	Clean with a soft cloth and soapy water
Warranty	Consult the full manual

Frequently Asked Questions - IMUDC Napoleon

What is the height of the IMUDC cabinet?

The height is 889 mm (35 inches).

Is this cabinet delivered assembled?

Yes, the IMUDC cabinet is shipped fully assembled.

Is the door of the IMUDC cabinet reversible?

Yes, the door is reversible and can open left or right depending on your installation.

Can I use this cabinet directly next to a built-in grill?

Yes, but respect safety distances. If the cabinet is adjacent to a grill, ensure the door opening does not interfere with controls.

How much weight can the cabinet support?

The supported weight is not specified, but it is designed for standard storage. For heavy loads, consult the manual.

How to clean the IMUDC cabinet?

Use a soft cloth and soapy water. Avoid abrasive cleaners.

Can I install a sink or side burner above this cabinet?

No, this is not recommended. Use an IM-2DC cabinet with a false drawer for this type of installation.

What is the minimum clearance required behind the cabinet?

A minimum clearance of 6" (150 mm) is required between the back of the cabinet and adjacent structures for ventilation.

Can this cabinet be used with corner transition pieces?

Yes, it can be used with IM-45T transition pieces, but check the recommendations for adjacent modules.

Where can I find the full manual for the IMUDC cabinet?

The full manual is available on notice-facile.com for free download.

USER MANUAL IMUDC Napoleon

OASIS MODULAR CABINET PLANNING GUIDE

Napoleon Group of Companies

214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8

Phone: [phone] Fax: [phone]

www.napoleongrills.com

Customer Solutions: 1-866-820-8686 or [e-mail]

RETAIN THIS MANUAL FOR FUTURE REFERENCE.

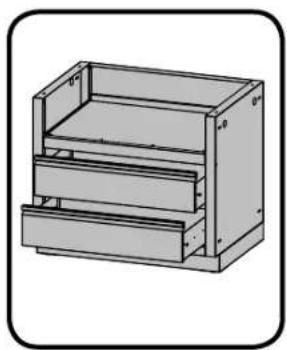

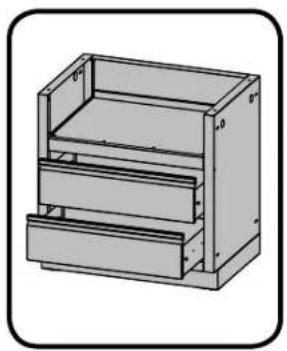

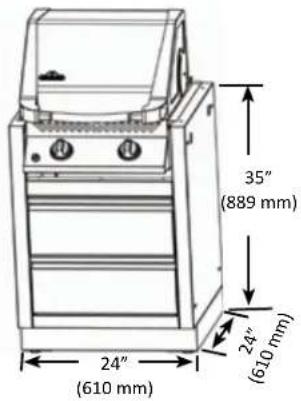

IM-UGC300 245/300 UNDER GRILL CABINET

• under grill cabinet required for BISZ300 or BISB245 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
- adjustable leveling feet
• shipped fully assembled

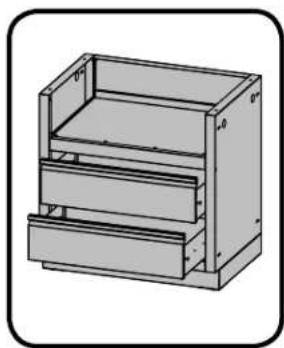

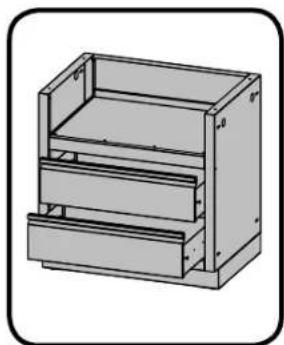

IM-UGC485 485 UNDER GRILL CABINET

• under grill cabinet required for BILEX485 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
• adjustable leveling feet
• shipped fully assembled

IM-UGC500 500 UNDER GRILL CABINET

• under grill cabinet required for BIP500 / BIPRO500 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
• adjustable leveling feet
• shipped fully assembled

IM-UGC600 600 UNDER GRILL CABINET

• under grill cabinet required for BIPT600 / BIPRO600 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
- adjustable leveling feet
• shipped fully assembled

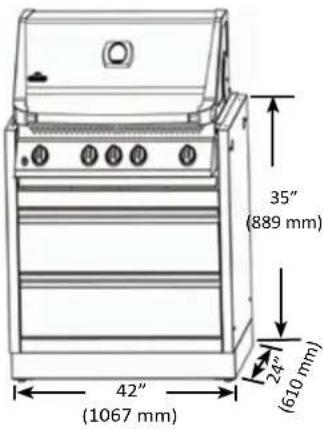

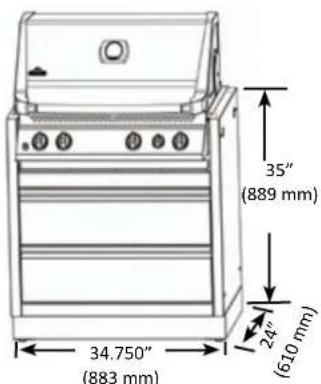

IM-UGC605 605 UNDER GRILL CABINET

• under grill cabinet required for BILEX605 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
• adjustable leveling feet
• shipped fully assembled

IM-UGC665 665 UNDER GRILL CABINET

• under grill cabinet required for BIPRO665 units
• grill head not included
  • 2 drawers on roller slides
• rear and side panels have removable knockouts for gas piping
  • stainless steel drawer fronts
• adjustable leveling feet
  • shipped fully assembled

www.napoleongrills.com

IM-UGC730 730 UNDER GRILL CABINET

• under grill cabinet required for BILEX730 units
- grill head not included
• 2 drawers on roller slides
- rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
• adjustable leveling feet
• shipped fully assembled

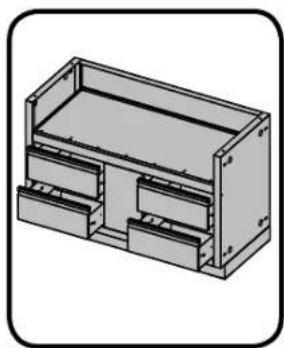

IM-UGC825 825 UNDER GRILL CABINET

• under grill cabinet required for BIPRO825 units
- grill head not included
• 4 drawers on roller slides
• rear and side panels have removable knockouts for gas piping
• stainless steel drawer fronts
- adjustable leveling feet
• shipped fully assembled

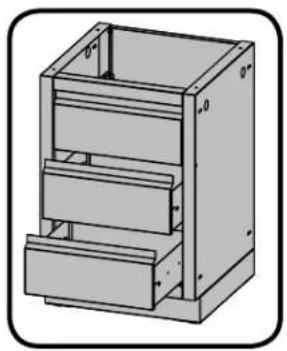

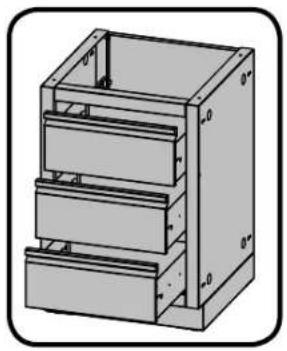

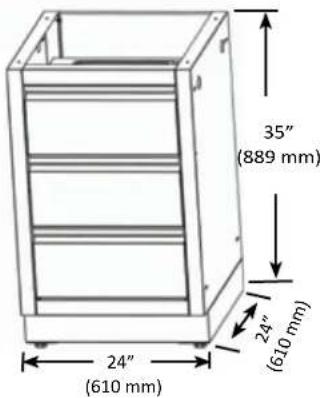

IM-3DC 3 DRAWER CABINET

• 3 drawers on roller slides
• stainless steel drawer fronts
- adjustable leveling feet
- shipped fully assembled

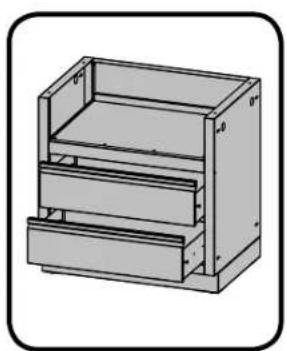

IM-2DC 2 DRAWER CABINET

• 2 drawers on roller slides
• stainless steel drawer fronts
• adjustable leveling feet
• top drawer is a false drawer
- use this when installing a sink or side burner above the cabinet
• shipped fully assembled

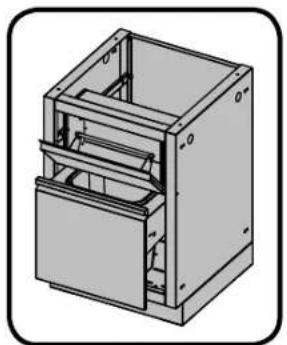

IM-WDC WASTE DRAWER W/PAPER TOWEL HOLDER

• 1 waste drawer on roller slides
• sturdy removable waste bucket
• top level enclosed paper towel holder
• stainless steel drawer fronts
• adjustable leveling feet
- cannot be used under optional side burner or sink
• shipped fully assembled

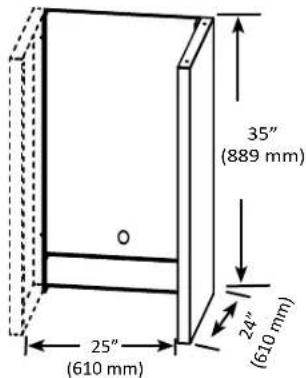

IM-FEP FRIDGE CABINET END

• do not place directly beside barbecue
- cannot be used under optional side burner or sink
- a minimum gap of 6"(150mm) is required between the rear of the cabinet and adjacent structures
- adjustable leveling feet
• Napoleon model NFR055ORSS.

IM-FMP FRIDGE CABINET MIDDLE

• do not place directly beside barbecue
- cannot be used under optional side burner or sink
- a minimum gap of 6"(150mm) is required between the rear of the cabinet and adjacent structures
• Napoleon model NFR055ORSS.

IM-UTC PROPANE TANK CABINET

• propane tank storage cabinet
• stainless steel door front
• universal door, right or left opening
- pullout shelf for easy propane tank installation
- adjustable leveling feet
- shipped fully assembled

IM-UDC UNIVERSAL DOOR CABINET

• reversible door, left or right opening
- stainless steel door
• excellent outdoor storage
• adjustable leveling feet
- shipped fully assembled

IM-WSF WALL SPACER

• painted panels
• maintain required offset for installations fit against wall of house or landscaping (for lid to open)
• clearance to combustibles must be maintained according to the rating plate on the grill
  • block off gap between cabinet and house

IM-45T 45 DEGREE TRANSITION

• painted transition panels to join 2 cabinets at 45 degree angle.
  • can be doubled up to create 90 degree transition
• if a transition is used directly beside a grill, an IM-2DC (2 drawer module must be used on the other side of the transition (other drawer/door modules may interfere with the grill control panel).)

www.napoleongrills.com

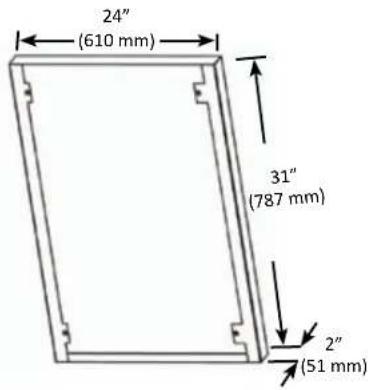

IM-CEP END PANEL

• painted end panel
• used at the end of run of cabinets to cover knock-outs and mounting holes

IM-IBA ICE BUCKET HOLDER

• stainless steel tray
• fits on top of standard drawer
• holds standard stainless steel serving trays large to small combinations

PLANNING YOUR NAPOLEON MODULAR OUTDOOR ISLAND

The Napoleon Outdoor Modular Island series has been developed with versatility in mind. The cabinets can be assembled in virtually any combination to suit your individual needs. They can be assembled against a house wall or as a standalone island, becoming the focal point of your backyard. With multifunction and storage capabilities, your backyard island can be transformed into an outdoor kitchen, placing the host in the center of the action when entertaining guests.

The cabinets are designed to be easy to assemble and install for either the home owner or private contractor. All cabinets are 35" (889 mm) tall by 24" (610 mm) deep. All cabinets are 24" (610 mm) wide except for the BUILT-IN grill cabinets whose width correspond to the width of the unit it was designed for. The temperature control is located at the back of the fridge. The cabinet has a removable panel which allows access to the temperature control. Ensure that there is access to the panel when the cabinet is installed. Each cabinet has 4 leveling feet for adjustment on even surfaces. The 2 drawer cabinets are made to fit the Napoleon BUILT-IN series of grills only, available in several different sizes. BUILT-IN grills come in several different sizes. Refer to the installation manuals that come with the grill head for proper installation and operating instructions.

The BUILT-IN series of grills can be ordered in your choice of propane or natural gas configuration. Natural gas is an obvious selection for many people that already have it available in their home. All gas modifications or installations must be done by a qualified gas installer. Knockouts are present in the side and rear panels for easy piping and installation. For those who order a propane grill, a propane tank cabinet is available.

The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall, or freestanding in an island configuration. Ensure there is adequate ventilation behind the fridge cabinet – a minimum gap of 6" (150mm) is required between the back of the cabinet and adjacent structures. Never block the vents located on the back of the cabinet. Failure to do so can result in the fridge overheating. An optional 4" (102 mm) spacer panel must be purchased and installed when placing an island against a wall to allow clearance for the grill lid to open. The spacer also provides closure for the cabinet to prevent debris or rodents from entering behind the cabinets. A powdercoated, 2" (51 mm) wide end panel can be purchased to cover the knockouts and mounting holes in the outside panels in a run of cabinets, giving a more finished look.

When utilizing 45° and 90° transitions in your design, modules on either side of the transition need to be chosen carefully. If doors or drawers are used on either side of the transition, they will interfere with each other when opened. If a drawer module is placed next to a grill, the control panel on the grill will prevent the top drawer from opening. The same applies to the paper towel/garbage module. Door modules can be used with 45° transitions, but the control panel will prevent the door from fully opening and may damage the door. The best module for this application is the 2 drawer module (false drawer at the top).

Optional built-in sideburner kits are available through your Napoleon Gas Grill dealer. These sideburner kits are an excellent complement to the BUILT-IN series of grills. We recommend that the sideburner kit be installed over top of the IM-2DC cabinet. It has the false drawer front at the top of the cabinet which allows clearance for the sideburner valve and hose routing. The IM-2DC cabinet also provides the necessary clearance for those who would like to install a sink in their outdoor kitchen.

Countertops must be ordered and supplied locally by the homeowner. The countertop material must be NON-COMBUSTIBLE if a grill is to be installed into it. They can be ordered in advance by drawing out the floorplan of how the cabinets will be situated and adding up the width measurements, allowing 1-2 inches (25 mm-51 mm) of countertop overhang. Most countertop manufacturers are willing to come and take measurements after assembly of the cabinets is complete to ensure a perfect fit.

The built-in grillhead comes with stainless steel brackets and hardware that allow the unit to rest on the countertop above the corresponding island cabinet for that unit. Granite or Corian are excellent choices of countertop materials. In order for the drip pan to slide in and out properly, the grill head must be supported by a countertop with a thickness between 1/2 " (13mm) and 11/2 " (38mm).

Decorative countertops made of ceramic tile set on top of cement tiling board can be made to match your surrounding backyard furniture colors.

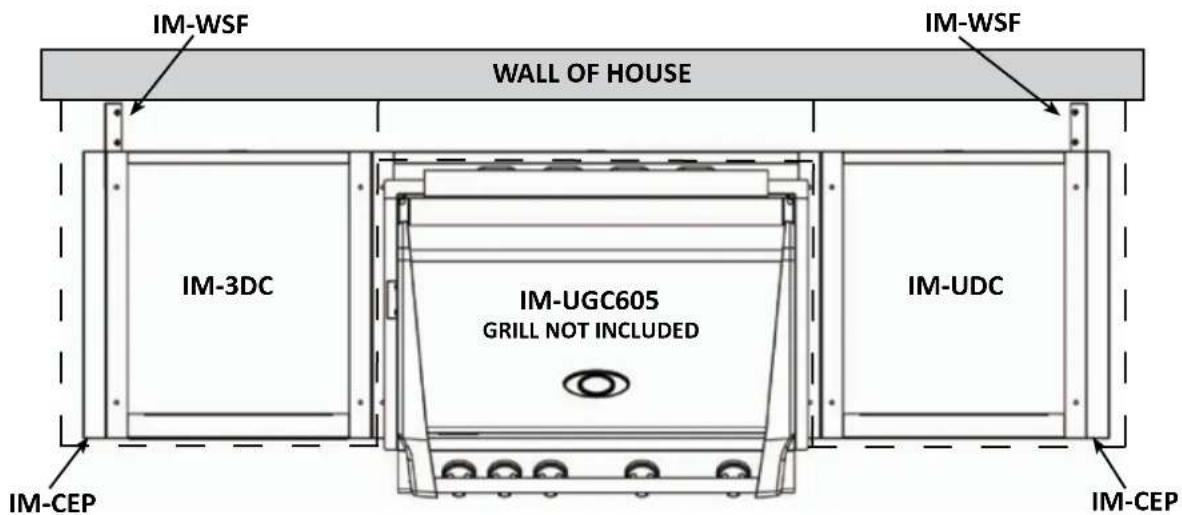

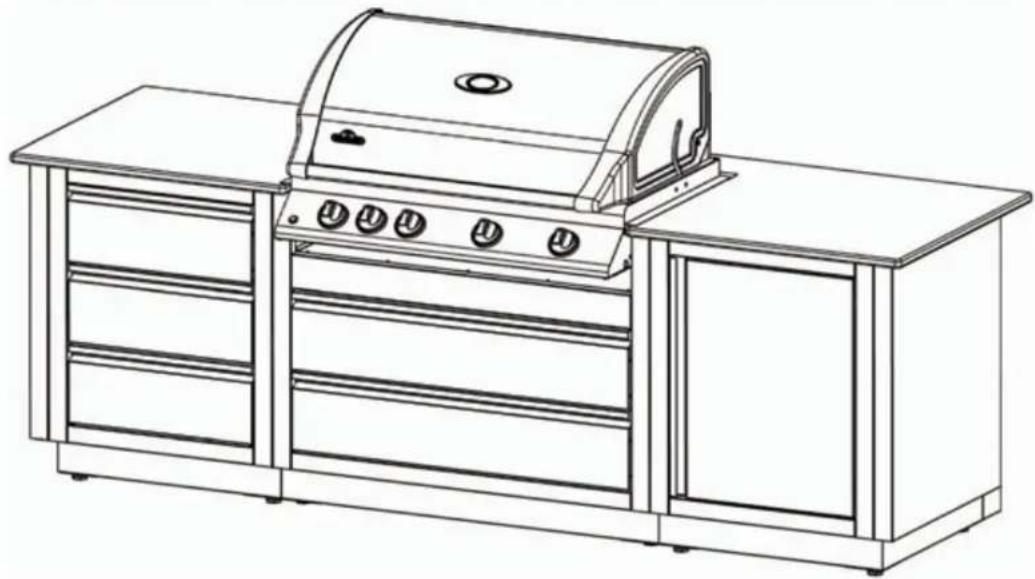

EXAMPLE 1: 605 BUILT-IN ISLAND AGAINST NON-COMBUSTIBLE WALL

The above example is shown built against a non-combustible house wall. Below, the dashed line represents the perimeter of the countertop (not supplied). It has the IM-WSF kit in 2 places which stands the unit of from the wall the required 4" (102 mm) to create clearance for opening the lid of the grill. The WSF (wall spacer kit) does not provide enough offset to allow the unit to be placed against a combustible wall. The clearance marked on the rating plate of the grill still needs to be maintained. The kit extends from the countertop to the patio or deck surface, blocking off the area behind the island, preventing debris from entering behind the cabinet. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

* *	MODULE DESCRIPION QTY SUBSTITUTE DESCRIPTION QTY
	IM-UGC605-CN UNDER UNIT CABINET 605 1
	BILEX605RB-N LEX 605 BUILTIN NATURAL 1 BILEX605RB-P LEX 605 BUILTIN PROPANE 1
	IM-UDC-CN	SINGLE DOOR CABINET	1	IM-UTC-CN	PROPANE TANK CABINET	1
	IM-3DC-CN	THREE DRAWER CABINET	1
	IM-CEP-CN	CABINET END PANEL	2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit.

www.napoleongrills.com

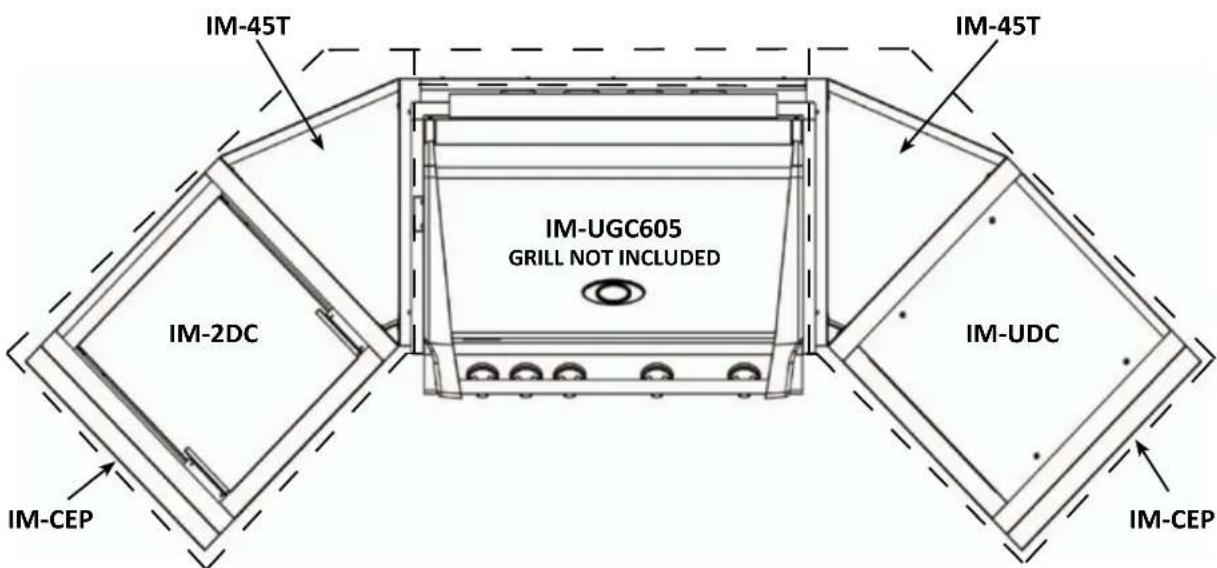

EXAMPLE 2: 605 BUILT-IN ANGLED ISLAND

EN

The above example is shown built as a stand alone island. Below, the dashed line represents the perimeter of the countertop (not supplied). The unit is angled by applying the IM-45T kit on either side of the unit which rotates the side cabinets at a 45° angle. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

MODULE DESCRIPTION QTY SUBSTITUTE DESCRIPTION QTY
IM-UGC605-CN UNDER UNIT CABINET 605 1
BILEX605RB-N LEX 605 BUILTIN NATURAL 1 BILEX605RB-P		LEX 605	BUILTIN PROPANE 1
IM-UDC-CN	SINGLE DOOR CABINET	1	IM-UTC-CN	PROPANE TANK CABINET	1
IM-2DC-CN	TWO DRAWER CABINET	1
IM-45T-CN	45 DEGREE PANEL KIT	2
IM-CEP-CN	CABINET END PANEL	2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit.

www.napoleongrills.com

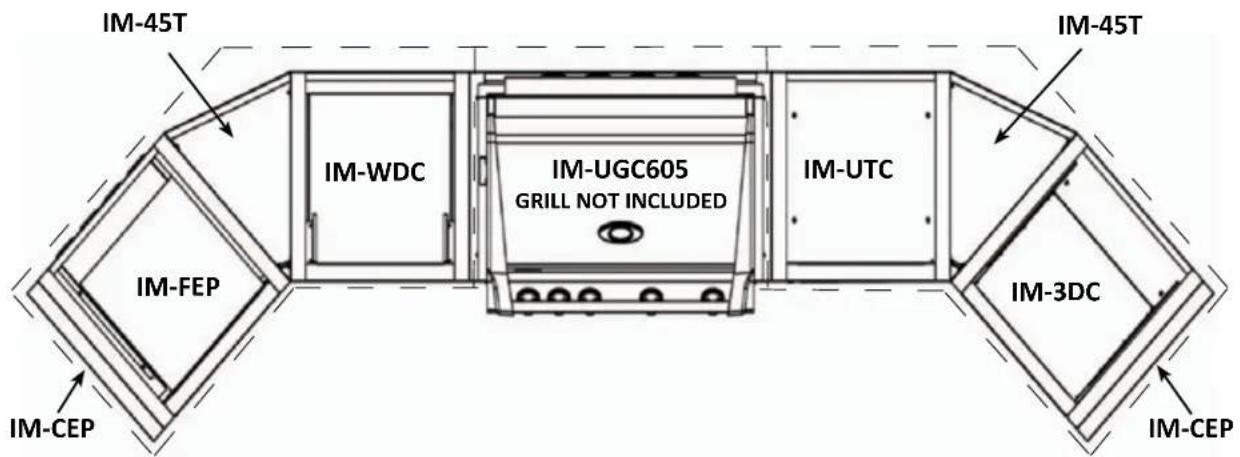

EXAMPLE 3: 605 BUILT-IN ANGLED ISLAND

The above example is shown built as a stand alone island. Below, the dashed line represents the perimeter of the countertop (not supplied). The unit is angled by applying the IM-45T kit between the cabinets which rotates the side cabinets at a 45° angle. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

* *	MODULE DESCRIPTION QTY SUBSTITUTE DESCRIPTION QTY
	IM-UGC605-CN UNDER UNIT CABINET 605 1
	BILEX605RB-P LEX 605 BUILTIN PROPANE 1 BILEX605RB-N LEX 605 BUILTIN NATURAL 1
	IM-UTC-CN	PROPANE TANK CABINET	1	IM-UDC-CN	SINGLE DOOR CABINET	1
	IM-FEP-CN	FRIDGE CABINET END	1	IM-3DC-CN	THREE DRAWER CABINET	1
	IM-3DC-CN	THREE DRAWER CABINET	1	IM-FEP-CN	FRIDGE CABINET END	1
	IM-WDC-CN	WASTE DRAWER CABINET	1
	IM-45T-CN	45 DEGREE PANEL KIT	2
	IM-CEP-CN	CABINET END PANEL	2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit. Napoleon model NFR055ORSS.

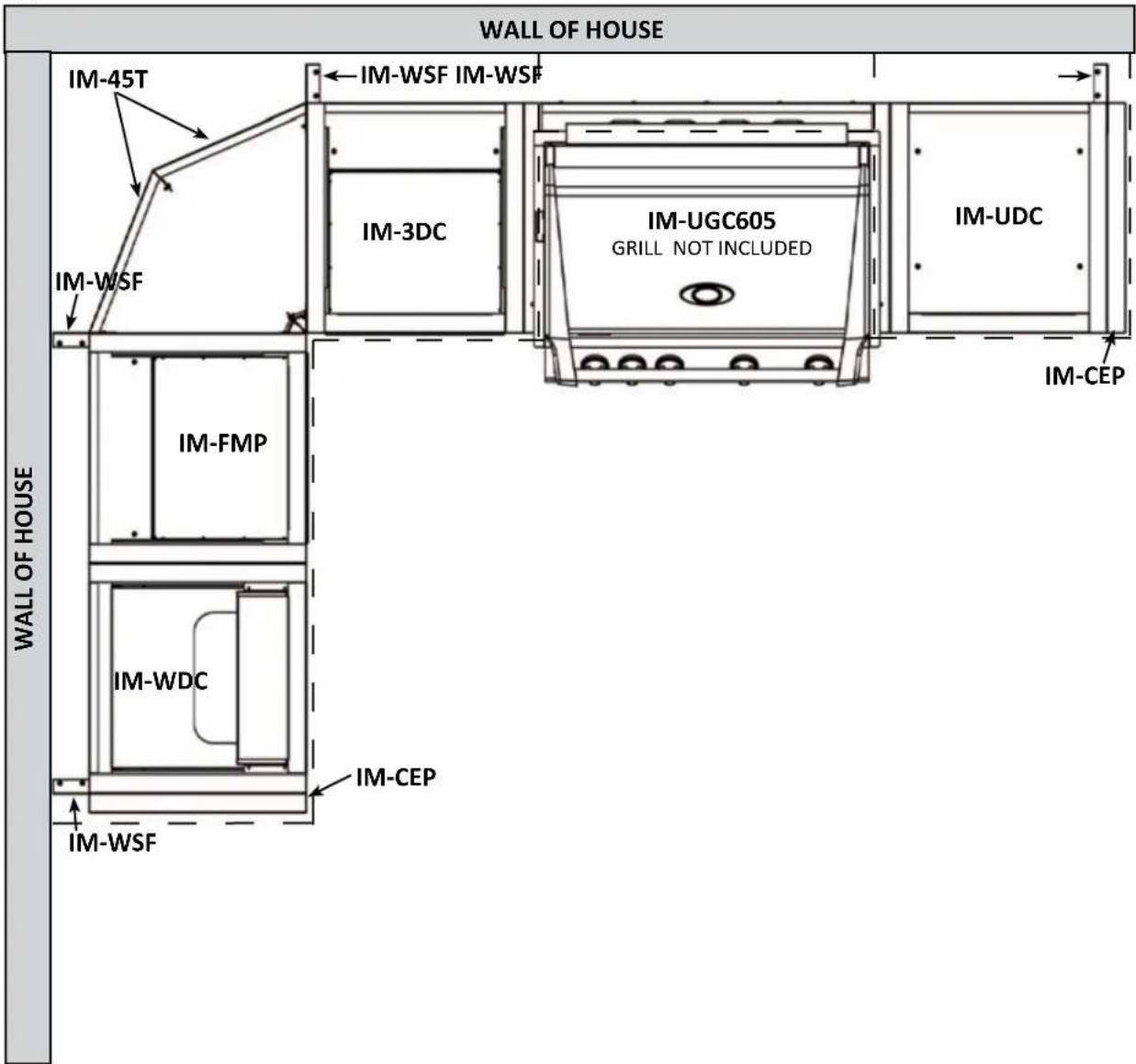

EXAMPLE 4: 605 BUILT-IN 90° ISLAND AGAINST NON-COMBUSTIBLE WALL

The following example is shown built against a non-combustible house wall. Below, the dashed line represents the perimeter of the countertop (not supplied). It has the IM-WSF kit in 4 places, which stands the unit of from the wall the required 4" (102 mm) to create clearance for opening the lid of the grill. The WSF (wall spacer kit) does not provide enough offset to allow the unit to be placed against a combustible wall. The clearance marked on the rating plate of the grill still needs to be maintained.

The kit extends from the countertop to the patio or deck surface blocking off the area behind the island, preventing debris from entering behind the cabinet. The 90° bend in the cabinet is created by attaching together 2 IM-45T kits, which also lend support to the countertop. Also shown is the IM-CEP, end panel, which creates a finished look to the ends of the assembled cabinets by covering the exposed knockouts and mounting holes.

MODULE DESCRIPTION QTY SUBSTITUTE DESCRIPTION QTY
IM-UGC605-CN UN	DER UNIT CABINET 605 1
BILEX605RB-N LEX	605 BUILTIN NATURAL 1 BILEX605RB-P	LEX 605	BUILTIN PROPANE 1
IM-3DC-CN	THREE DRAWER CABINET	1
IM-FMP-CN	FRIDGE CABINET MIDDLE	1	IM-3DC-CN	THREE DRAWER CABINET
IM-UTC-CN	SINGLE DOOR CABINET	1	IM-UTC-CN	PROPANE TANK CABINET
IM-WDC-CN	WASTE DRAWER CABINET	1	IM-FEP-CN	FRIDGE CABINET END
IM-WSF-CN	WALL STANDOFF KIT	4
IM-45T-CN	45 DEGREE PANEL KIT	2
IM-CEP-CN	CABINET END PANEL	2

*Other grill heads can also be substituted. Ensure the under grill cabinet corresponds to the unit. Napoleon model NFR055ORSS.

PLANNING PAGE

EN

PLANNING PAGE
