VPIBKV122 - Freezer Veripart - Free user manual and instructions

Brand	Veripart
Model	VPIBKV122
Product type	Freezer
Net capacity	181 L
Freezing capacity	2 kg/24h
Climate class	N/ST (ambient temperature 16°C to 38°C)
Supply voltage	220-240 V ~ 50 Hz
Rated current	0.75 A
Power consumption	100 W
Refrigerant	R600a (29 g)
Insulating agent	Cyclopentane
Built-in compatibility	Yes (built-in refrigerator)
Door reversal	Possible (reversible hinges)
Interior lighting	LED, max 2 W
Door alarm	Yes (after 90 seconds)
Operating modes	Smart, Super, User adjustment
Cleaning and maintenance	Clean with warm water and mild soap; do not use abrasive products
Warranty	2 years
After-sales service	www.coolblue.be/fr/service-client

Frequently Asked Questions - VPIBKV122 Veripart

How to adjust the temperature of the freezer?

Press the Mode button to select the user mode, then use the Adjust button to change the setting. A lower number corresponds to a lower temperature. In Smart mode, the appliance adjusts automatically.

What to do if the appliance does not cool at all?

Check that the appliance is on (hold the Adjust button for 5 seconds), that the plug is properly inserted, that the socket is powered, and that the fuse has not blown. Make sure the ambient temperature is above 16°C.

How to defrost the freezer?

Do not use mechanical or electrical devices (hair dryer, pan) to defrost. The appliance defrosts automatically. In case of excessive frost, check the door closure, seal, and temperature setting.

Why is there water inside or on the floor?

Water at the back is normal during defrosting. If it runs inside, check that products are not blocking the drain. Clean the water drain if it is clogged.

What to do if there is a strange odor?

Discard spoiled food, clean the interior with warm water and mild soap, and wrap odorous foods in airtight containers.

How to reverse the door opening direction?

Unscrew the top hinge, remove the door, unscrew the bottom hinge. Replace the handle on the opposite side, move the hinge cover and the bottom pin. Reassemble the door by following the reverse steps. Wait 4 hours before reconnecting.

What is the maximum freezing capacity?

The freezing capacity is 2 kg per 24 hours. Do not freeze a larger amount at once.

How to save energy with this freezer?

Do not open the door too often, do not set too low a temperature, ensure good ventilation (2 cm space around), thaw frozen food in the fresh compartment, and replace the door seal if necessary.

What to do if there is unusual noise?

Check that the appliance is stable and level. Adjust the leveling feet. Ensure it is not in contact with the wall or other objects.

How to clean the interior of the freezer?

Unplug the appliance. Remove the accessories and clean them with a soft cloth and warm soapy water. Wipe dry thoroughly. Do not use abrasive products or solvents.

USER MANUAL VPIBKV122 Veripart

Fridge freezer combination

1.1 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Illustration showing a hand installing or adjusting a shelf panel while the interior view shows a multi-tiered rack with two upward arrows (no text or symbols)

3.1 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Simple line drawing of a mechanical setup with a rotating shaft and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Diagram of a door with four buttons and an arrow pointing to the door (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing bolted components (no text or symbols)

Sequence of mechanical bracket assembly steps showing pin alignment and mounting (no text or symbols)

Simple line drawing of a mechanical setup with a rotating shaft and base, no text or symbols present.

Diagram of a document with arrows indicating rotational movement (no text or symbols)

4. GEBRUIK

Z

1.1 Safety warnings and regulations 35
1.2 Safety instructions: Installation 36
1.3 Safety instructions: use 38

2. PRODUCT FEATURES 39

3. INSTALLATION 41

3.1 Reversing the direction in which the door opens 43

4. USE 46

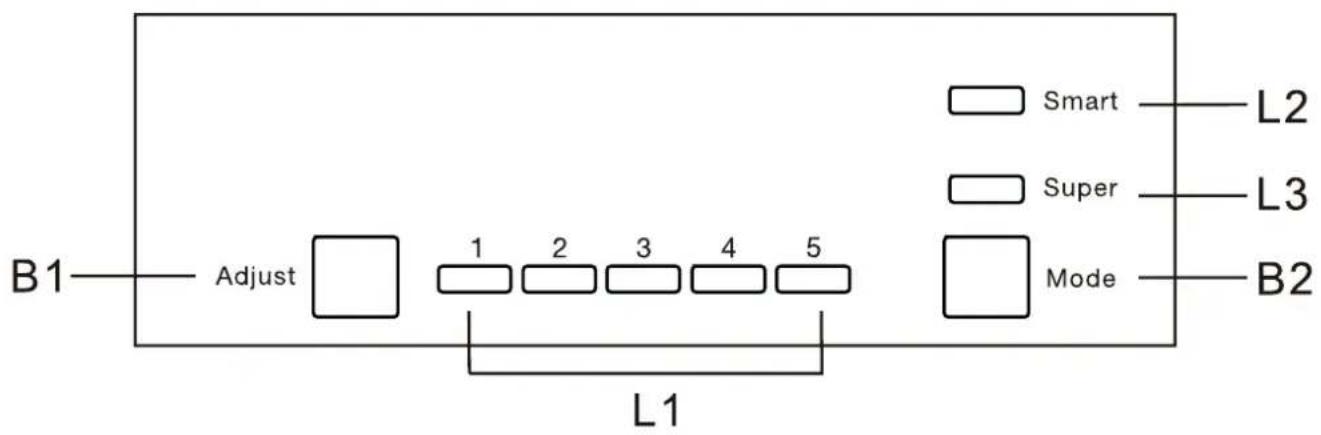

4.1 Control Panel Overview 46
4.2 Temperature settings 47
4.3 Tips for daily use 48

4.4 Saving energy 50

5. CLEANING AND MAINTENANCE

6. TROUBLESHOOTING

7. TAKING OUT OF SERVICE

8. SAFE DISPOSAL

51

53

56

57

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials.
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE!

You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at:

www.coolblue.nl/en/customer-service

1. SAFETY:

1.1 SAFETY WARNINGS AND REGULATIONS

!WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your refrigerator.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance. (Only in cases where the cooling circuit is freely accessible).
• Do not place electrical appliances in the food storage compartments of the refrigerator (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• When positioning the appliance, ensure that the power cable is not stuck or damaged.
• Do not use an extension lead or socket for this appliance.

CAUTION!

• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• It is dangerous for people other than authorised technicians to carry out maintenance or repairs with cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.

! ATTENTION!

• This appliance is suitable for freezing food.
- This appliance is intended for domestic use and similar applications such as:
- staff kitchens in shops, offices and other work environments;
- farms and guests in hotels, motels, B&B and other residential environments;
- catering and similar non-retail applications.
- It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.
- Food storage times recommended by the food manufacturer must be observed.
- Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.

1.2 SAFETY INSTRUCTIONS: INSTALLATION

DANGER!

Risk of fire / flammable materials.

! CAUTION!

• The appliance is heavy. Take care when handling and wear protective gloves and closed footwear.
• It is dangerous for persons other than authorised service technicians to carry out maintenance on electrical components (plug, power cable, compressor, etc.) or to carry out repairs with the cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• If you detect any damage to the appliance or the power cable, do not connect the appliance but contact the service department (see contact details on page 40).

• The power cable must be attached behind the appliance and must not be exposed or loose.

• Make sure that the power cable of the installed appliance is always easily accessible.

• This appliance requires a standard 220-240V 50Hz socket with 2-pole earthing. The power cable of this appliance is equipped with a 2-pole plug suitable for standard wall sockets with earthing to minimise the risk of electric shocks.
• On first installation (or after turning the door) wait at least four hours before connecting the appliance to the power. This allows the oil to flow back into the compressor.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• Incorrect use of the earthed plug may cause an electric shock.
• This appliance is intended for use as a built-in refrigerator.
• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.
• This appliance is not suitable for use with an inverter.
• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• Do not install this appliance in spaces that are too damp or too cold.
• Do not expose the appliance to rain.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m ^3 . The amount of refrigerant contained in the appliance can be found on the type plate.
• The lamp supplied with this appliance is only for use in this appliance and is not intended for other applications.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table below.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range N and ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN	From +10°C to +32°C
N	From +16°C to +32°C
ST	From +16°C to +38°C
T	From +16°C to +43°C

1.3 SAFETY INSTRUCTIONS: USE

! CAUTION!

Observe the following instructions to avoid food contamination:

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance will not be used for several months, first switch it off (press the Adjust button for 5 seconds), unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

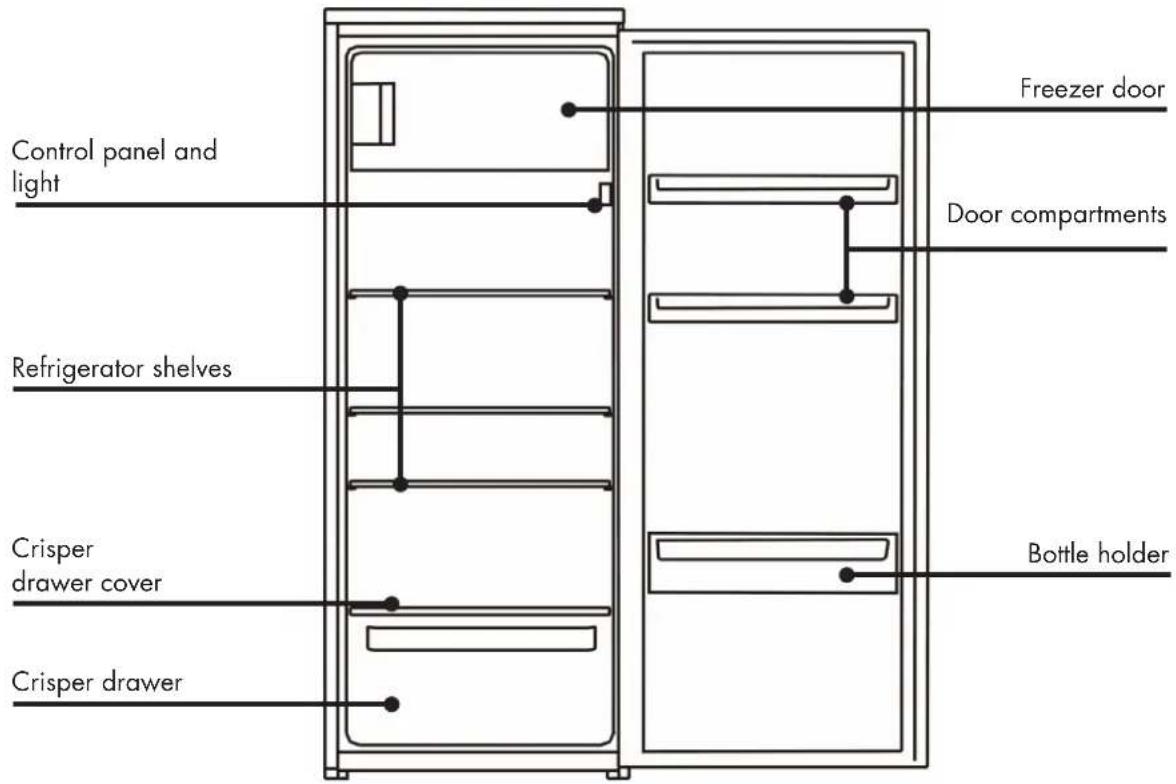

Freezer door Control panel and light Door compartments Refrigerator shelves Bottle holder Crisper drawer cover Crisper drawer

≥38mm ≥560mm ≥550mm 1220-1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

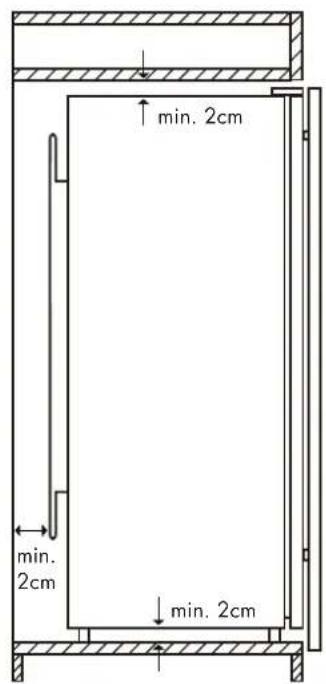

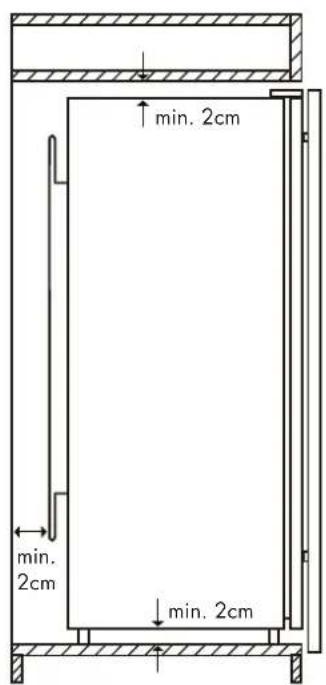

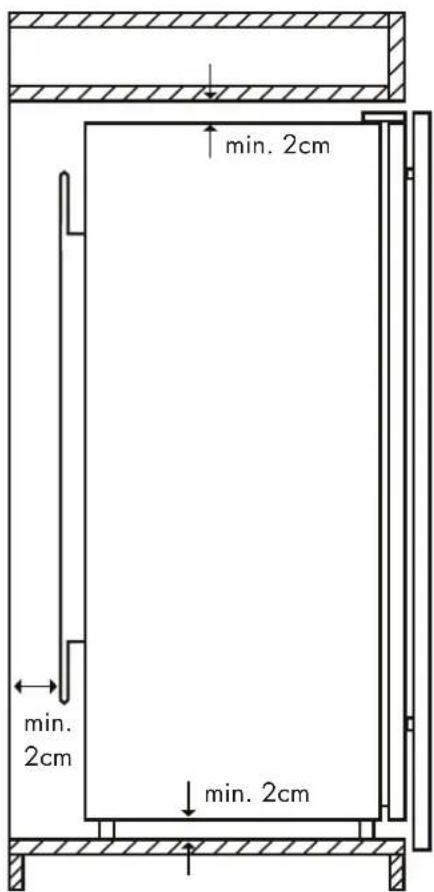

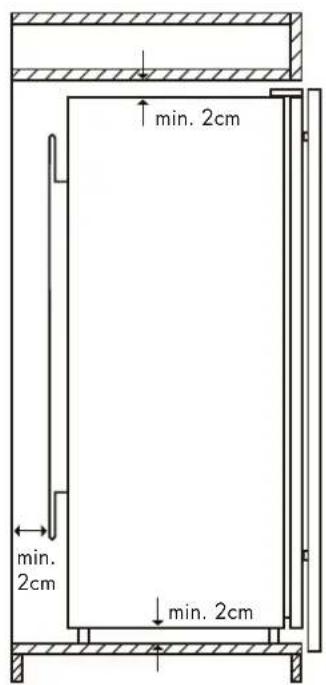

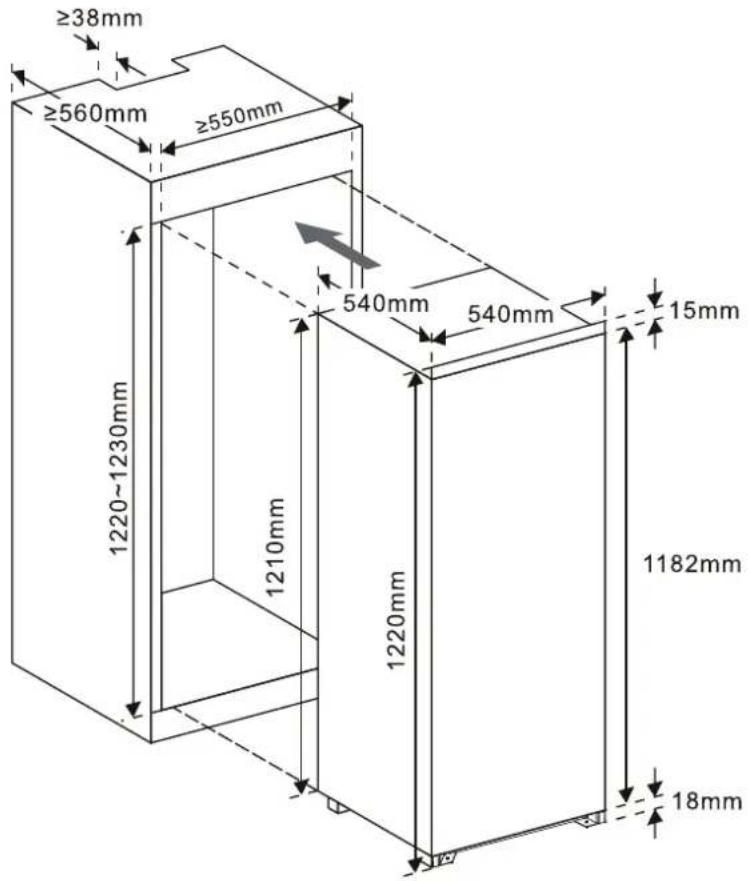

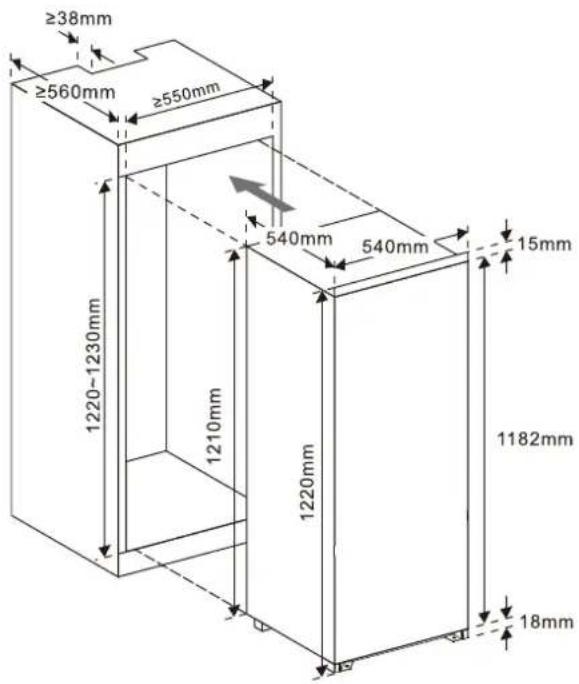

• Figure 1. Required space for enclosure • Figure 2. Air circulation
Figures 1 and 2 illustrate the space required for the appliance.

Does not contain freon

The freon-free refrigerant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Guarantee

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en/customer-service. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link www.eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

VERIPART CONTACT DETAILS
Address:	Weena 664, 3012 CN, Rotterdam
Website www.coolblue.nl/en/customer-service

3. INSTALLATION

Before installing and assembling the refrigerator, read the safety information (Chapter 1) carefully and the installation guide supplied separately.

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Installation Guide

Please read the installation guide carefully before installing the appliance.

3. Wait

Wait four hours before connecting the appliance so the oil can flow back to the compressor.

4. Clean

Clean the interior and all internal accessories with lukewarm water and some neutral soap before first use to remove the typical smell of a brand new appliance. Dry everything carefully. Do not use solvents or abrasive powders; these will damage the coating

5. Location

The location where you place your appliance should be well ventilated and the air should not be too warm. Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so that as to guarantee the cooling effect and save on energy consumption. Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

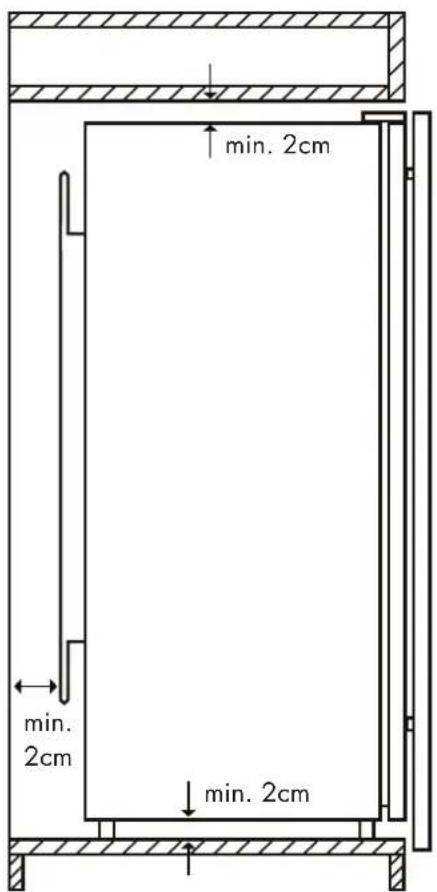

6. Heat dissipation area

During operation, the appliance emits heat to the environment. Therefore there must be at least 2 centimetres clearance on the top, at least 2 centimetres on both sides and at least 2 centimetres on the back of the fridge. (see also page 39).

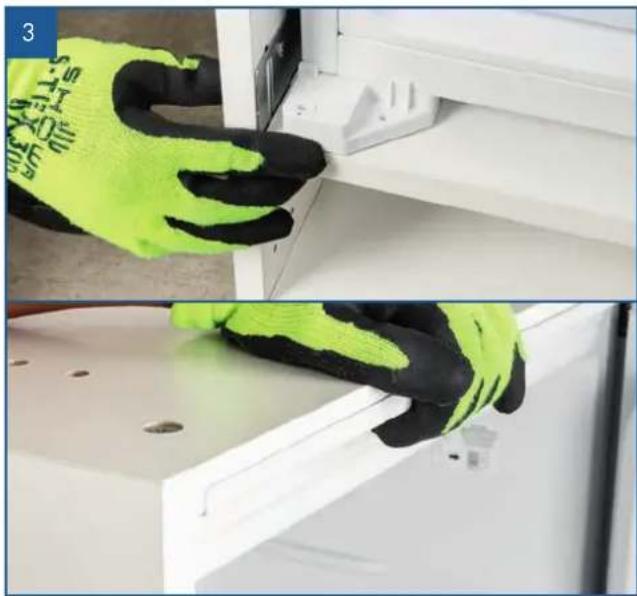

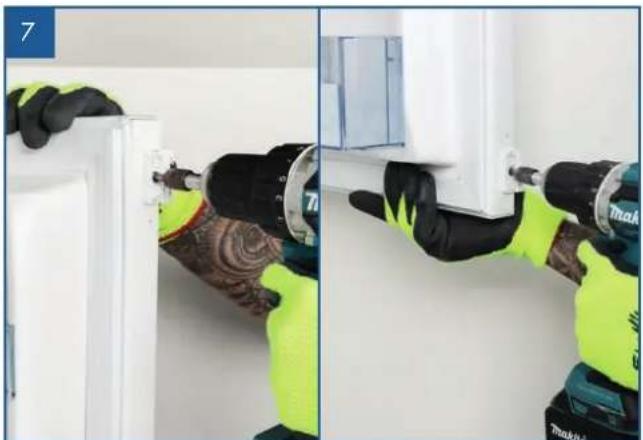

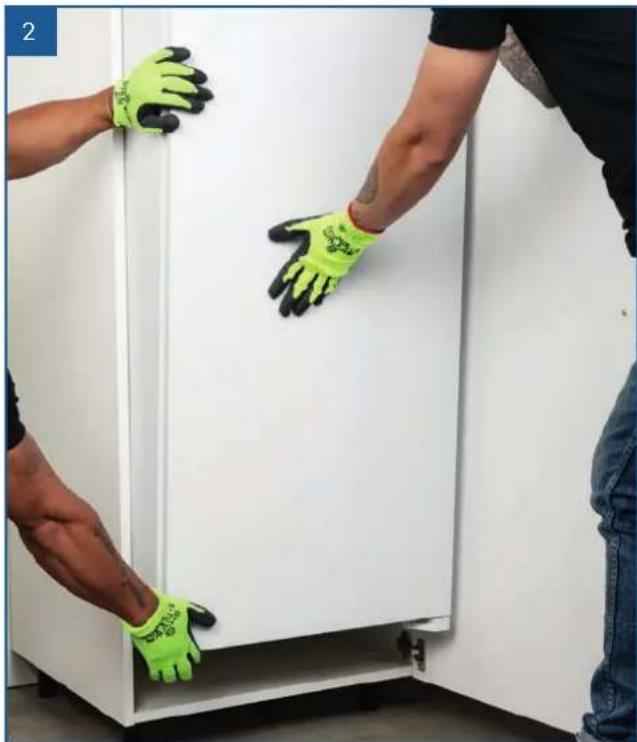

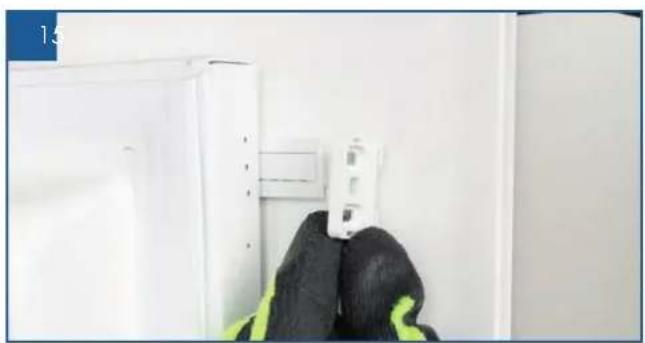

7. Installation of the appliance

• This appliance is intended for use as a built-in refrigerator.
• Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. The appliance must be earthed. The power cable is supplied with a contact for this purpose. If the socket is not earthed, connect the appliance to a separate earth according to current regulations and consult a qualified electrician..

8. Mounting accessories

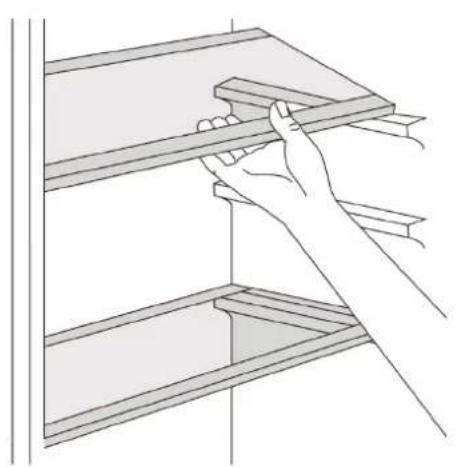

- Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

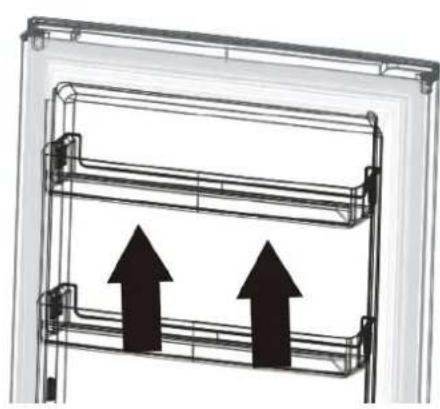

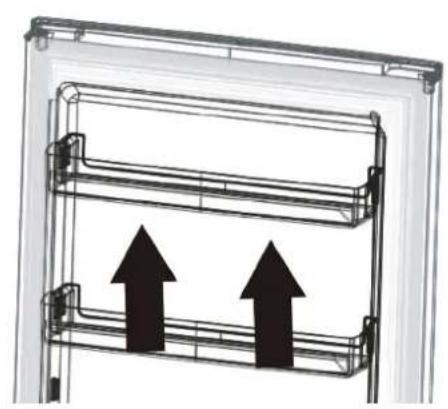

- Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

Line drawing of a hand holding a shelf with a wooden plank (no text or symbols)

Diagram of a refrigerator interior with two upward-pointing arrows indicating ventilation or airflow direction (no text or symbols present)

3.1 REVERSING THE DIRECTION IN WHICH THE DOOR OPENS

To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.

Keep all removed parts to remount the door later.

Do not lay the appliance down flat. This can damage the cooling system. If you need to tilt the appliance, wait four hours before connecting the appliance so that the oil can flow back to the compressor.

Necessary tools:

Line drawing of a screwdriver with no text or symbols

• Crosshead screwdriver

Line drawing of a screwdriver with no text or symbols

- Flat head screwdriver

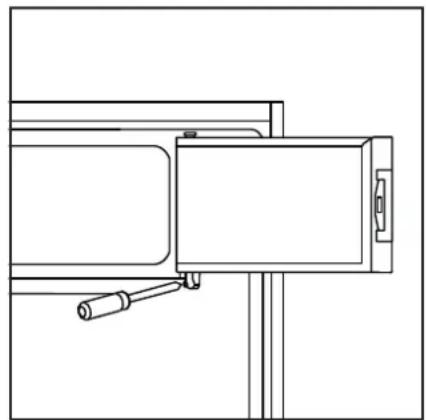

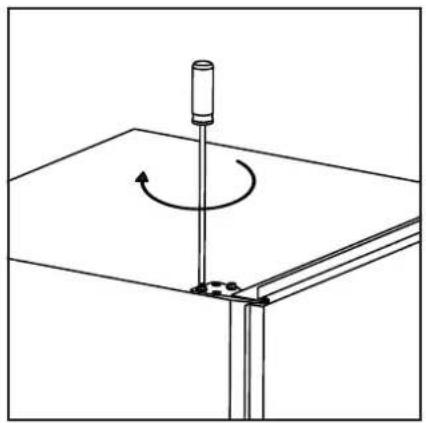

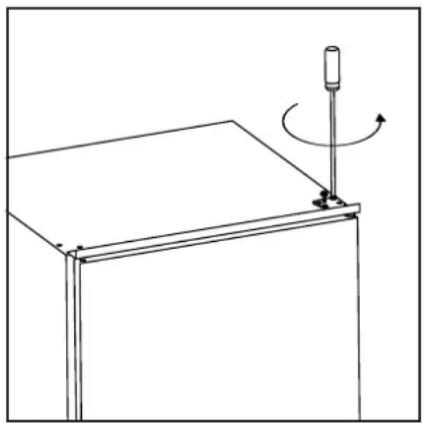

1. Unscrew the top hinge. Then lift the door out of the hinge and lay it on a soft surface to avoid scratches..

Simple line drawing of a mechanical setup with a rotating component and a curved arrow indicating rotation (no text or symbols)

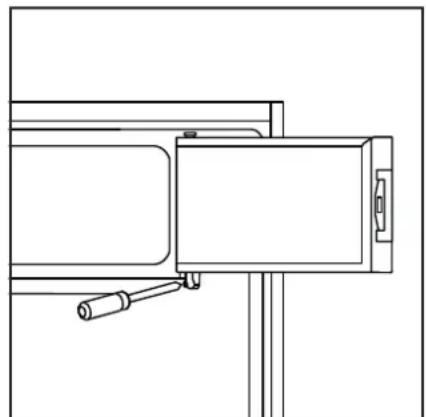

1. Unscrew the bottom hinge of the freezer door. Then dismantle the door.

Technical line drawing of a mechanical assembly with no visible text or symbols

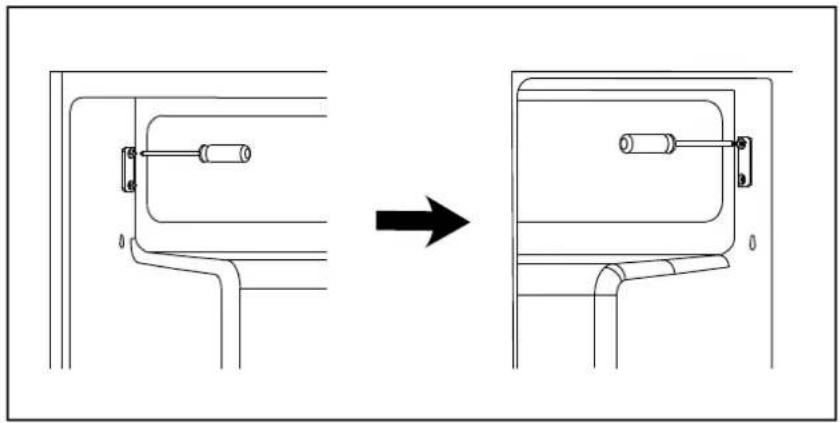

1. Move the handle from the left-hand side to the right-hand side of the door.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

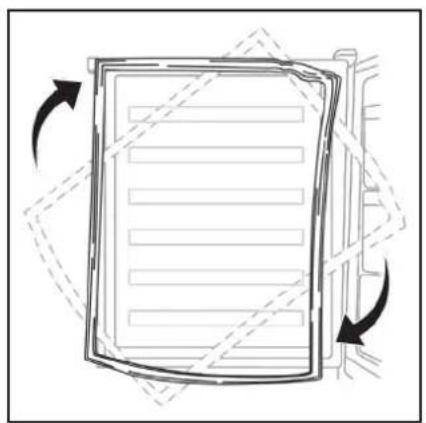

1. Move the hinge cover from the left-hand side to the right-hand side of the door.

Diagram of a door with multiple windows and a scroll wheel, showing no text or symbols

1. Rotate the freezer door and place the hinge on the left-hand side. Close the door with the handle.

Technical line drawing of a mechanical assembly with no visible text or symbols

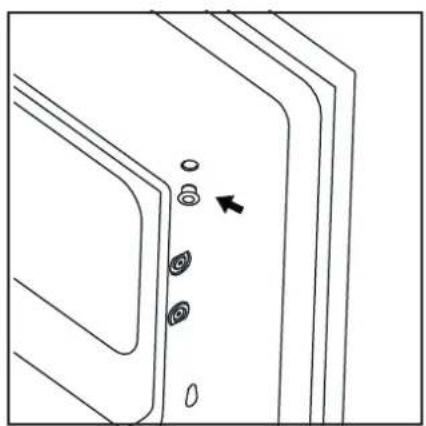

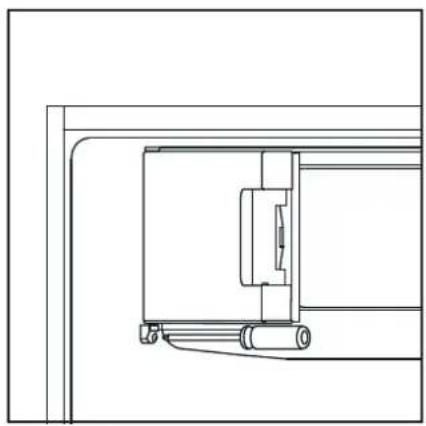

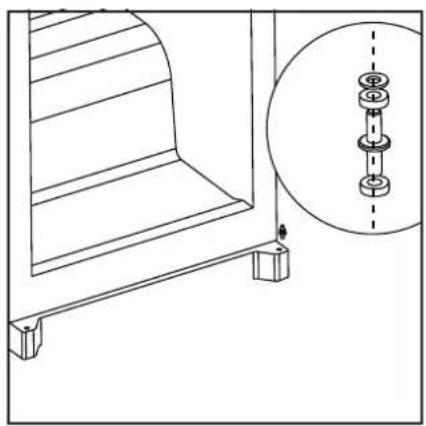

1. Move the bottom hinge pin from the right-hand side to the left-hand side.

Technical line drawing of a mechanical assembly with a circular inset showing three bolts (no text or symbols)

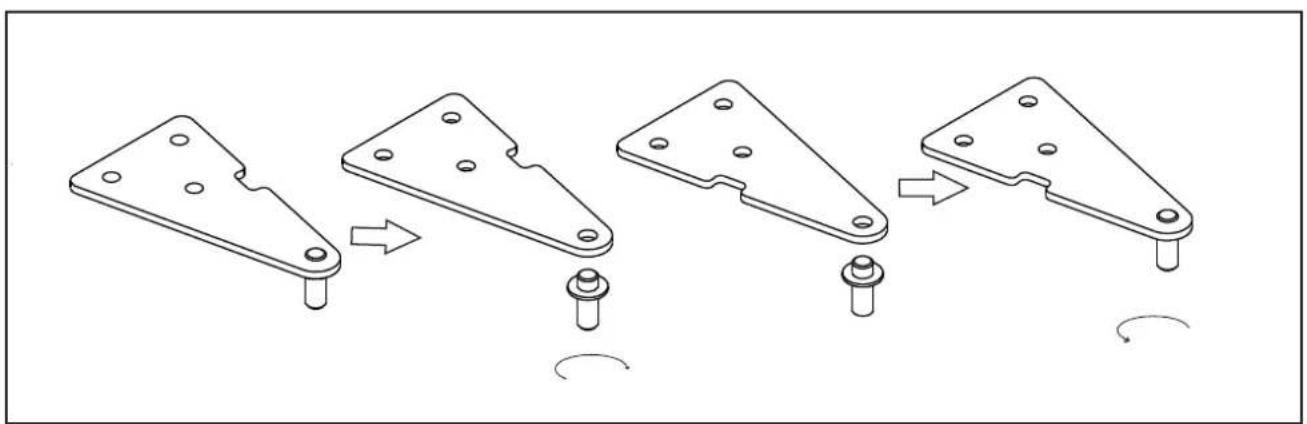

1. Unscrew the top hinge pin from the hinge. Then turn the hinge and screw in the hinge pin again.

Technical line drawing of four mechanical bracket components with mounting holes and a central bolt, shown in sequential steps (no text or symbols)

1. Install the door and then attach the top hinge on the left-hand side. Make sure that the door is aligned horizontally and vertically so that the gasket. closes on all sides before tightening the top hinge. If necessary, use a tensioner to tighten the hinge.

Simple line drawing of a mechanical setup with a rotating shaft and base, no text or symbols present.

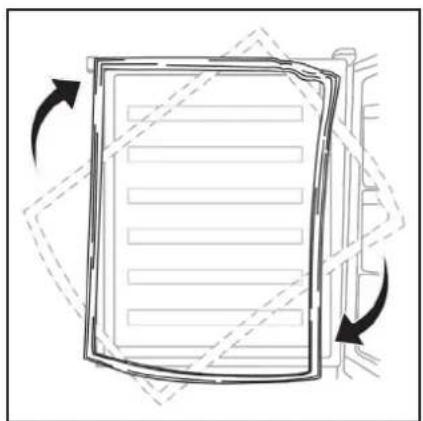

1. Remove the door gaskets from the fridge and freezer, rotate and re-attach them.

Diagram of a document with arrows indicating rotational movement around it, no text or symbols present

4. USE

Carefully review the safety information (Section 1) before you start using the appliance.

4.1 CONTROL PANEL OVERVIEW

B1 Adjust 1 2 3 4 5 L1 Smart —— L2 Super —— L3 Mode —— B2

Buttons

• B1 - Press this button to set the freezer compartment setting in cycles from 1, 2, 3, 4 to 5.
  • B2 - Press this button to set the mode: Smart, Super and user setting.

Lamp indicators

•L1 - The freezer compartment setting.
•L2 - Light on when Smart mode is selected.
•L3 - Light on when Super mode is selected.

4.2 TEMPERATURE SETTINGS

1. Press the Mode button (B2) to select the user setting.
2. Press the Adjust button (B1) to adjust the setting of the fridge. A lower setting means a lower temperature.
3. This refrigerator is suitable for freezing food.

Smart-mode

Press the Mode button (B2) to select Smart mode. The appliance functions automatically according to the ambient temperature around the appliance.

Super-mode

Press the Mode button (B2) to select the Super mode. The appliance runs to make the freezer compartment as cold as possible. After 54 hours, the originally set temperature is automatically restored.

Turning off the appliance

Press and hold the Adjust button (B1) for 5 seconds and the appliance will switch off. Press the button again for 5 seconds to turn the appliance on.

Door alarm

The alarm goes off if the door remains open for 90 seconds; it stops when the door is closed.

Ambient temperature

TThe internal temperature of the appliance may vary due to the ambient temperature, the amount of products stored and the frequency with which the door is opened.

Under normal conditions we recommend setting the temperature to 3 - 4. In summer, when the ambient temperature is high, we recommend setting the temperature to 4 - 5.

In winter, when the ambient temperature is low, we recommend setting the appliance to 2 - 3.

4.3 TIPS FOR DAILY USE

Compartments

• Due to the circulation of cold air in the appliance, the temperature in each part of the appliance is different. Therefore, different types of food should be placed in different places.
• Do not place the food close together as this hinders air circulation.
• Divide different food into several compartments according to the table below

REFRIGERATOR COM-PARTMENTS	TYPE OF FOOD
Door compartments in the refrigerator compartment	Food with natural preservatives such as jam, juice, drink, spices. Do not store any products with a limited shelf life here.
Crisper drawer	Place fruit, herbs and vegetables separately in the crisper drawer.Do not put bananas, onions, potatoes or garlic in the refrigerator.
Refrigerator shelf - centre	Dairy products, eggs.
Refrigerator shelf - top	Food that does not require preparation such as ready meals, fine meats, leftovers.

Cooling food

• Always refer to the expiry date of the products to know how long they can be stored.
• Pack food in resealable plastic bags, especially if it has a strong taste, and place on the glass shelves above the crisper drawer. Store food only one or at most two days in this way.
• Store raw meat and fish in appropriate food containers in the refrigerator so that it does not leak or come into contact with other foods.
• Do not place hot food or hot plastic parts in the appliance. Make sure it has cooled to room temperature before putting it in the appliance.

• Cooked food that has cooled sufficiently must be covered and can then be placed on any shelf.

• Do not place foods containing a lot of water too close to the back wall of the refrigerator to prevent them from freezing to the inner wall.

• It is best to clean and dry food before storing it in the appliance. It is advisable to store food in sealed packaging in the appliance. This prevents evaporation of water, which keeps fruit and vegetables fresh and also prevents odours.

Freezing food

• The freezer compartment is suitable for freezing fresh food and storing frozen food for a long time.
• The maximum amount of food that can be frozen in 24 hours is for this refrigerator: 2 kg.
• The freezing process takes 24 hours. Do not add any other food to freeze during this period.
• Only freeze fresh and thoroughly cleaned foods.
• Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.
• Pack the food in aluminum foil or freezer bags and make sure the packets are airtight.
• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.
• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.
• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.

Storing frozen food

On first use or after a long period of downtime. Run the appliance for at least two hours at the higher positions before putting products in the freezer compartment.

4.4 SAVING ENERGY

• The most efficient use of energy is ensured in the configuration with the drawers in the lower part of the appliance and with the shelves evenly distributed. The position of the door trays does not affect energy consumption.
• Do not open the door or leave it open more often than necessary.
• Do not set the temperature too high to save energy unless the characteristics of the food require it.
• If the ambient temperature is high, the temperature control is set to a low temperature and the appliance is fully filled, the compressor can be on continuously, causing ice to form on the evaporator. In this case, set the temperature control to a higher temperature to enable automatic defrosting to save energy.
• Ensure proper ventilation. Do not cover the vents or holes.
• Place frozen food in the fresh food compartment to defrost: the low temperature of the frozen food helps to cool the fresh food and thus saves energy.
• Replace the door gasket in good time to prevent poor door closing.

! ATTENTION!

• The manufacturer's storage recommendations must be strictly followed. Please refer to the respective instructions.
• Do not keep the door open for too long; this can cause a sharp increase in temperature in the compartments of the appliance.
• Frozen food may not be refrozen after thawing.

5. CLEANING AND MAINTENANCE

Before cleaning the appliance, carefully review the safety information (Section 1).

For hygienic reasons, the inside of the appliance, including accessories, should be cleaned regularly.

! CAUTION!

• Remove the plug from the socket before cleaning.
• Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not put your hands in the bottom of the fridge as the sharp metal corners can cause scratches.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.

! ATTENTION!

- The electrical parts of the appliance may only be cleaned with a dry cloth.

Interior and exterior cleaning

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly. The fresh food compartment is preferably cleaned monthly.
• Remove all shelves, fruit and vegetable compartment, bottle racks, cover plate, drawers, etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, first switch it off (press the Adjust button for 5 seconds), unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below.

! ATTENTION!

• Before solving the problem, switch off the power supply.
• If the following descriptions do not solve your problem, please contact our customer service: www.coolblue.nl/en/customer-service
• Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all	- Thermostat is off.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than 16 °C, such as a balcony, garage or storage room.	- Press the Adjust button for 5 seconds to turn the appliance on.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 16°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
Abnormal noise	- The appliance is not stable/level.- The appliance is in contact with the wall or other objects.	- Readjust the appliance's adjusting legs.- Move the appliance slightly.
Strange smell in the refrigerator	- Maybe spoiled food?- Do you need to clean the fridge?- Have you packed food with a strong smell?	- Throw away spoiled food.- Clean the refrigerator.- Pack food with a strong smell.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Check whether something is stopping the door from closing. Remove or move possible obstacles- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
Poor cooling efficiency	- Hot food has been placed inside the appliance. - The door does not close properly. - The appliance is in direct sunlight or near a stove or heater. - The appliance is built into a cabinet with little space around it. - The temperature in the appliance is set too high.	- Cool hot food before putting it in the appliance. - Check the door and door rubbers and see if the door is blocked. - Place the appliance further away from the heat source. - Ensure sufficient distance to ensure proper ventilation. - Set the appropriate temperature.
There is too much frost and ice.	- The door is not closed properly. - The door gasket is deformed or dirty. - The products are not packed correctly. - The temperature is set incorrectly. - The appliance is fully loaded and set to the lowest temperature. - The set temperature in the appliance is too low and the ambient temperature is too high.	- Check whether something is stopping the door from closing. Remove or move possible obstacles. - As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service. - Pack the products better. - Please refer to Section 4. - Set a higher temperature. Please refer to Section 4. - Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly. - Many products are placed at the same time. - The room temperature is too high. - The food placed in the appliance was too hot. - The door is not closed properly.	- Please refer to Section 4. - Wait a few hours and then check the temperature again. - Please refer to Section 4. - Allow food to cool to room temperature before storing. - See the previous section.
The lamp does not work.	- The lamp is broken. - The lamp is in the standby position.	- Please contact our customer service (or visit the nearest Coolblue shop). - Close and open the door.

7. TAKING OUT OF SERVICE

Switching off and storage

If the appliance will not be used for several months, first switch it off (press the Adjust button for 5 seconds) and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.
- Clean the inside thoroughly and carefully wipe everything dry with a soft cloth. To prevent the formation of odours and moulds, leave the door open: block it.
- Clean the door gasket groove with soap and water and carefully wipe everything dry with a soft cloth.
- Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
- Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
- The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

! CAUTION!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

Creative Commons recycling symbol with recycling arrow, no text or numbers present

The materials used in this appliance marked with this symbol are recyclable.

This marking indicates that this product should not be disposed of via household waste throughout the EU. In order to prevent damage to the environment or human health as a result of uncontrolled waste, it must be processed responsibly so that raw materials can be reused sustainably. Use the existing collection systems or contact the shop where you purchased the product if you want to dispose of the used product. There, the product is recycled in an environmentally friendly way.

• Old cooling appliances still have value. Responsible disposal ensures that valuable raw materials can be recycled. Of course, the appliance may not be disposed of with (domestic) residual waste, but it must be collected or returned to the environmental station of your municipal waste processing company.
• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.
• Information on how to dispose of old appliances and packaging correctly can be found at your local municipal waste processing company.

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

Made in China

FR - NOTICE D'UTILISATION

RÉFRIGÉRATEUR ENCASTRABLE

VPIBKV122

veripart

FR

TABLE DES MATIÈRES

AVANT-PROPOS

61

1. SÉCURITÉ 63

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Line drawing of a hand holding a shelf with a wooden plank (no text or symbols)

Diagram of a refrigerator interior with two upward-pointing arrows indicating ventilation or airflow direction (no text or symbols present)

3.1 INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a screwdriver with a pointed tip (no text or symbols)

- Tournevis cruciforme

Line drawing of a screwdriver with no text or symbols

- Tournevis plat

Simple line drawing of a mechanical setup with a rotating component and a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Diagram of a door with multiple windows and a scroll wheel, showing no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing three bolts (no text or symbols)

©

4. UTILISATION

PROBLÈME CAUSE POSSIBLE SOLUTIONS

Creative Commons recycling symbol with recycling icon, crossed-out trash bin, and blank sign

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Line drawing of a hand holding a shelf with a wooden plank (no text or symbols)

Diagram of a refrigerator interior with two upward-pointing arrows indicating ventilation or airflow direction (no text or symbols present)

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Simple line drawing of a mechanical setup with a rotating component and a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Diagram of a door with multiple windows and a scroll wheel, showing no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing three bolts (no text or symbols)

Technical line drawing of a mechanical bracket assembly showing four sequential steps with bolt holes and a central screw (no text or symbols)

Simple line drawing of a mechanical setup with a rotating shaft and base, no text or symbols present.

Diagram of a document with arrows indicating rotational movement (no text or symbols)

4. BENUTZUNG

Built-in Refrigerator

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Person wearing green gloves installing or adjusting a white cabinet (no text or symbols visible)

Two-panel photo showing gloved hands cleaning a white appliance; no text or symbols visible.

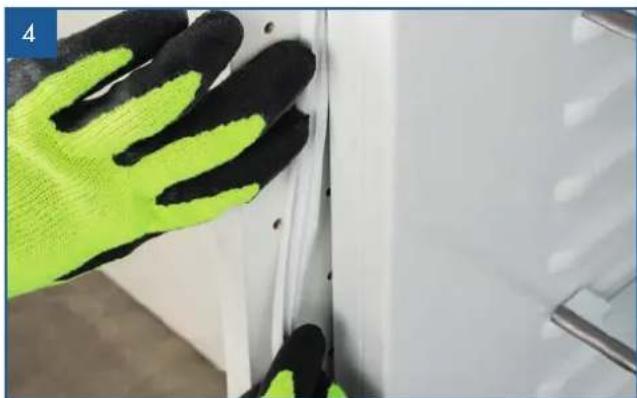

Close-up of a gloved hand holding a white door, with another hand partially visible (no text or symbols)

Technical line drawing of a screw with a cross mark, crossed out by two diagonal lines (no text or symbols)

Illustration of a screw with a cross mark and a blue checkmark (no text or symbols)

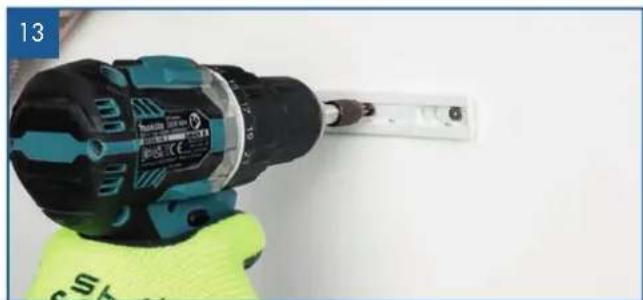

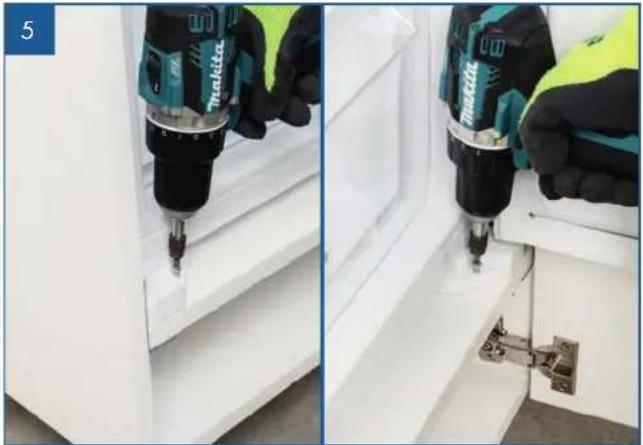

Two-panel photo showing a person using a Moka electric drill into a white plastic door, with no visible text or symbols.

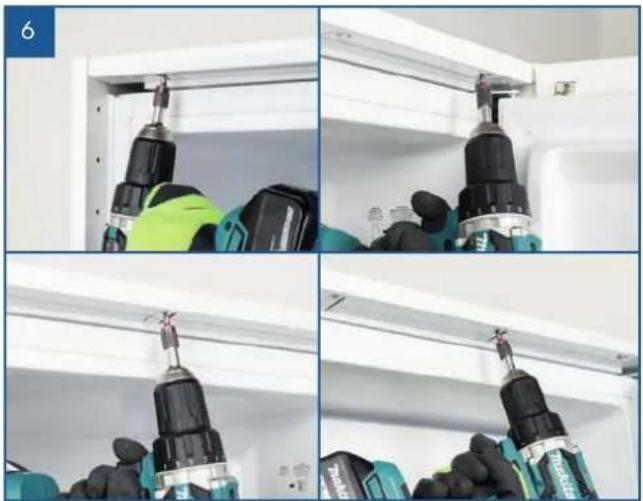

Four-panel photo showing a person using a power tool in a white rack, with no visible text or symbols.

Two-panel photo showing hands using a tool to adjust or install a white cabinet panel, no visible text or symbols

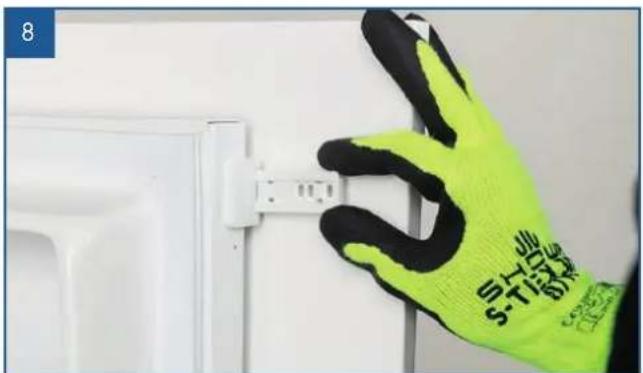

Hand in yellow glove installing a white electrical component on a door (no text or symbols visible)

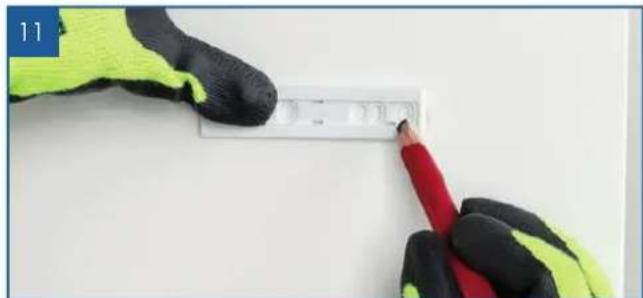

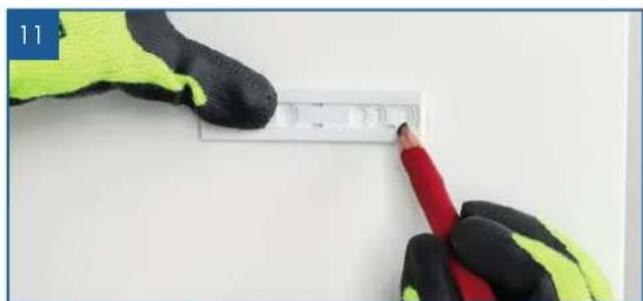

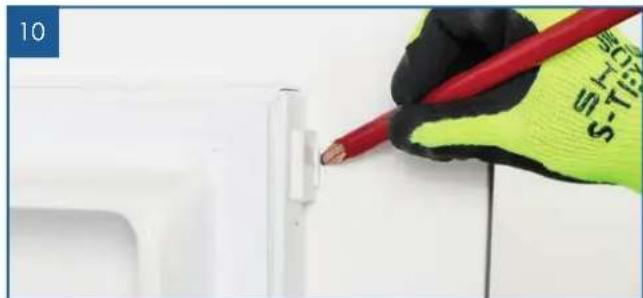

Close-up of a hand holding a red pencil next to a white electrical outlet (no text or symbols visible)

Close-up of gloved hands holding a white rectangular object with red pencil, no visible text or symbols

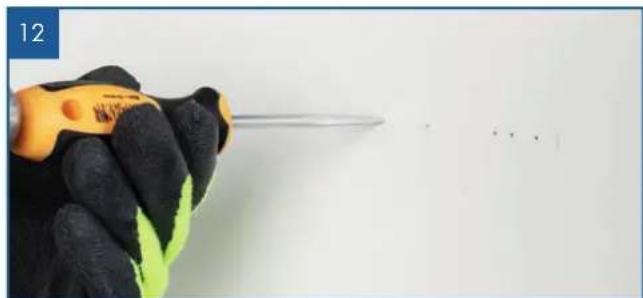

Close-up of a gloved hand holding a screwdriver against a plain white background (no text or symbols visible)

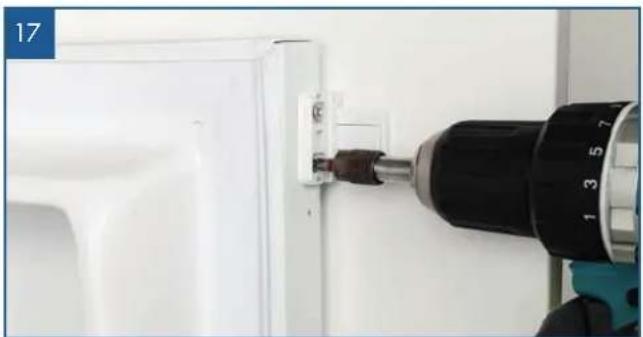

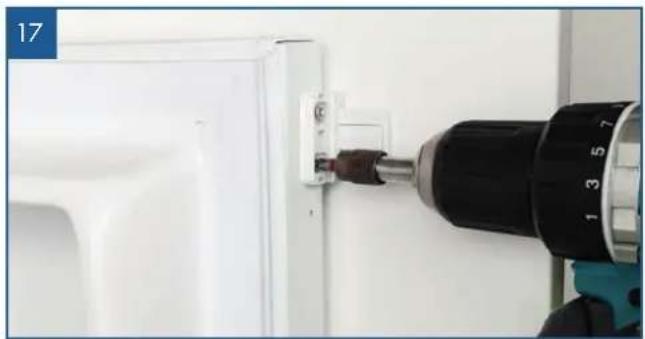

Close-up of a power drill with a screwdriver inserted into a terminal block, wearing a green glove (no visible text or symbols)

Close-up of gloved hands holding a small tool, no visible text or symbols

Interior view of a white appliance cabinet with a black cloth hanging from the side (no visible text or symbols)

Close-up of a hand cleaning a white wall-mounted electrical socket with a blue arrow indicating a component (no text or symbols visible)

Close-up of a hand using a drill bit to press down a white door panel (no visible text or symbols)

Close-up of gloved hands installing or adjusting a white electrical component on a wall (no visible text or symbols)

INSTALLATION GUIDE BUILT-IN REFRIGERATOR

VPIBKK122 - VPIBKV122

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE!

- You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V. Customer service can be reached at: www.coolblue.nl/en/customer-service

1. PACKAGE CONTENTS

Assembly kit

2x guides

15x short screws

2x guide caps

2x long screws

2x sliding rails

1x rubber gasket

2x sliding rail caps

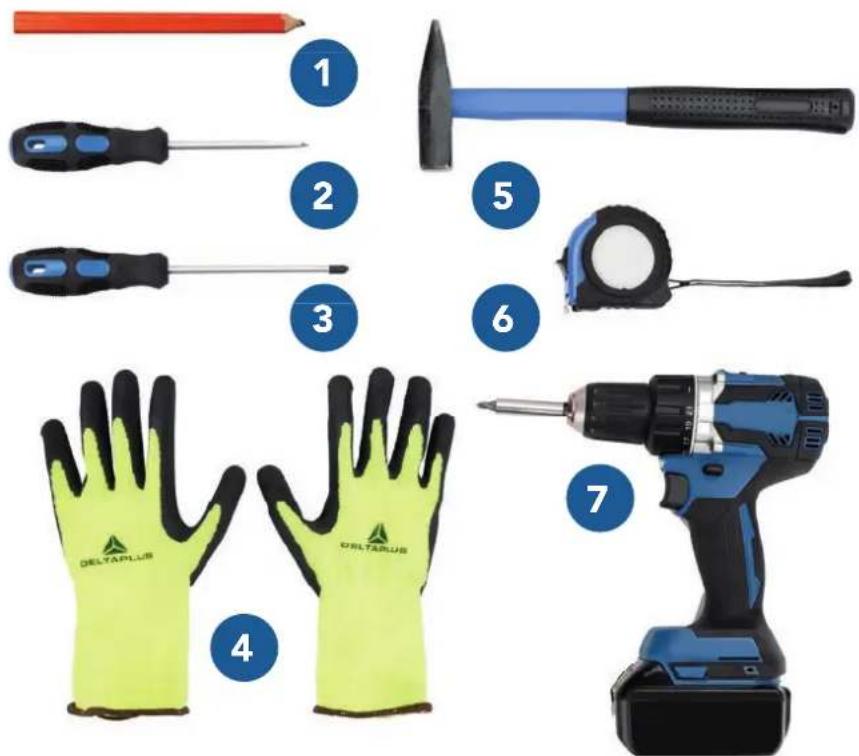

2. NECESSARY TOOLS

1. Pencil marker
2. Bradawl
3. Crosshead screwdriver
4. Gloves
5. Hammer
6. Tape measure
7. Cordless drill and screwdriver
8. Second person

45 minutes 2 people

1 2 3 5 6 7 4 DELTAPLUS DELTAPLUS

3. LOCATION

The location where you place your appliance should be well ventilated and the air should not be too warm. Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so that as to guarantee the cooling effect and save on energy consumption. Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Heat dissipation area

During operation, the appliance emits heat to the environment. Therefore there must be at least 2 centimeter clearance on the top and bottom, at least 2 centimeter on both sides and at least 2 centimeter on the back of the fridge.

1. Pull the plug behind your refrigerator along in the direction of the socket, but do not plug it into the socket yet.
2. Place the refrigerator in the cabinet in the right place. Please note:

Lift the appliance at the bottom, not by the door.

Do this with two people.

1. Put the spacers at the bottom of the fridge against the edge of the cabinet.

Make sure the profile at the top falls over the edge of the cabinet.

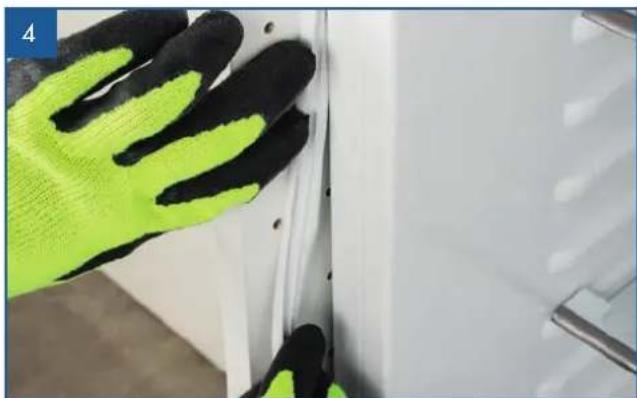

1. Place the cover strip provided between the wall and refrigerator and ensure that it is properly secured and closes the space.

Person wearing green gloves installing or adjusting a white cabinet (no text or symbols visible)

Two-panel photo showing gloved hands cleaning a white appliance; no text or symbols visible.

Close-up of gloved hands cleaning a white wall, wearing a bright green glove (no text or symbols visible)

1. First screw the bottom of the fridge to the cabinet (at two points). Use the long screws for this.

Technical drawing of a screw with a cross mark on its head, crossed out by two diagonal lines (no text or symbols)

Illustration of a screw with a cross mark and a blue checkmark (no text or symbols)

1. Then screw the top of the fridge to the cabinet (at four points).

In the next steps, you attach the door of the refrigerator to the cabinet door.

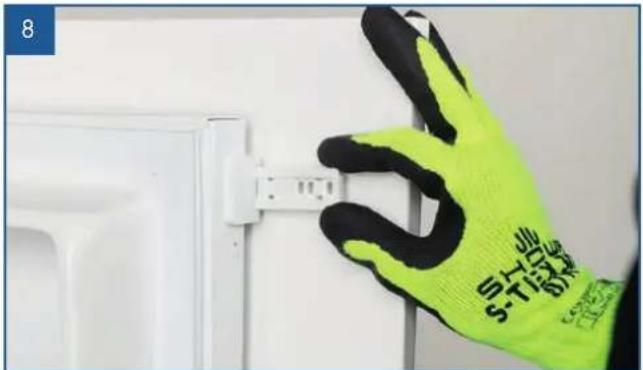

1. Screw the guides temporarily to the refrigerator. Note: secure with one screw in the middle hole. (In step 15, the guides must be released again)

2. Slide the guide into the sliding rail.

Two-panel photo showing a person using a Moka robotic drill into a white appliance, with no visible text or symbols.

Four-panel photo showing a person using a power tool in a white rack, with no visible text or symbols.

Two-panel photo showing hands using a tool to adjust or install a white appliance into a cabinet (no text or symbols visible)

Person in bright yellow glove installing or adjusting a white electrical component (no visible text or symbols)

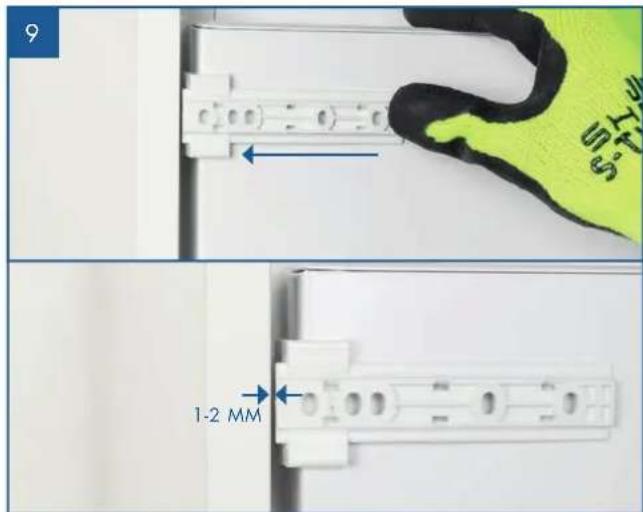

1. Close the door and slide the sliding rail against the inside of the cabinet.

Keep 1 to 2 mm clearance between the sliding rail and the cabinet.

1. Open the fridge door and place it against the cabinet door (without moving the sliding rail). Now mark off the position of the sliding rail with the pencil.

2. Now mark the screw holes of the sliding rail on the door.

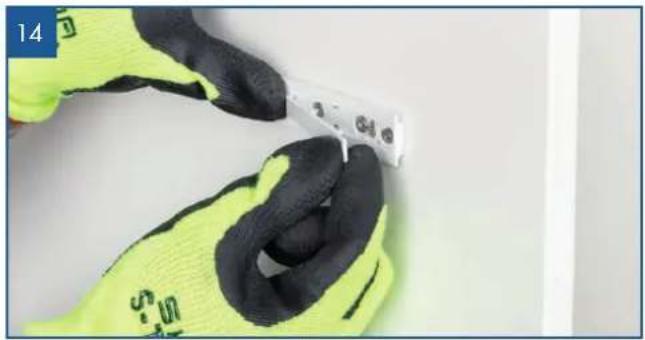

3. Create pilot holes using the bradawl.

4. Then screw the sliding rail to the door panel.

9 1-2 MM

Close-up of a hand holding a red pencil next to a white electrical outlet (no text or symbols visible)

Close-up of gloved hands holding a white rectangular object with red and black markings, no visible text or symbols

Close-up of a gloved hand holding a screwdriver against a plain white background (no text or symbols visible)

Close-up of a power drill putter with a screwdriver, wearing a green glove (no visible text or symbols)

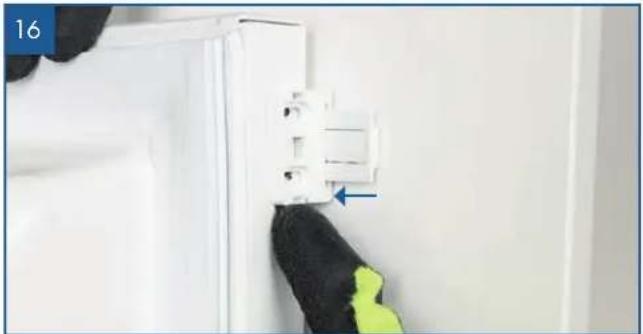

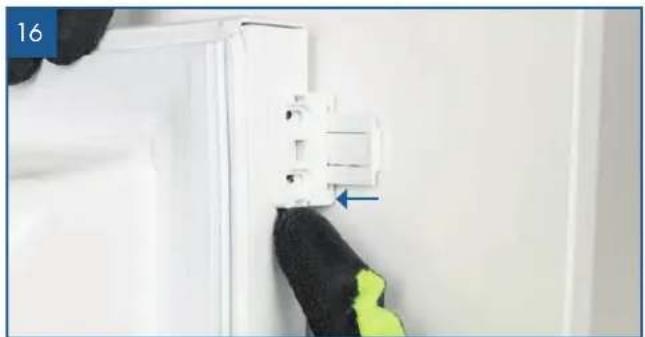

1. Mount the sliding rail cap.

2. Dismantle the guide of the refrigerator door.

3. Slide the guide onto the sliding rail of the cabinet door, and slide it against the side of the fridge door.

4. Screw the guides to the fridge door, screw them hand tight. Now test if the fridge door closes properly and draws a vacuum. If this is not the case, you can make the door close properly by adjusting the guides. Then screw the guides firmly.

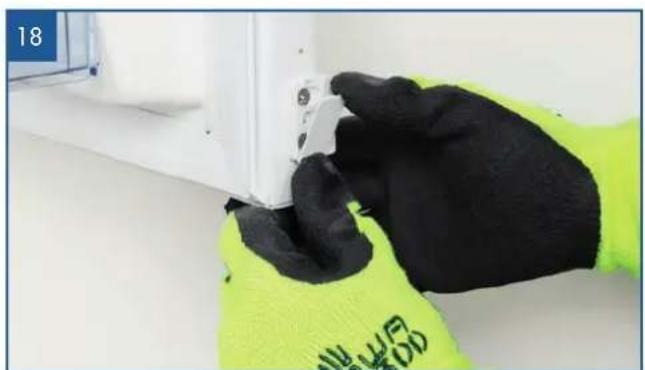

5. Then mount the guide caps.

Wait at least four hours before putting the plug into the socket; this allows the oil to flow back to the compressor.

Close-up of gloved hands holding a small tool, no visible text or symbols

Interior view of a kitchen appliance with white cabinet and black gloves, no visible text or symbols

Close-up of a hand holding a white electrical outlet with a blue arrow pointing to it, against a plain wall (no text or symbols visible)

Close-up of a white refrigerator with a black drill bit being inserted, no visible text or symbols

Close-up of a gloved hand in bright yellow glove adjusting a white electrical component (no visible text or symbols)

GUIDE D'INSTALLATION RÉFRIGÉRATEUR ENCASTRABLE

VPIBKK122 - VPIBKV122

AVANT-PROPOS

Simple line drawing of a rectangular object with three vertical slots, no text or symbols present.

2 x vis longue

2 x rail

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Person wearing green gloves installing or adjusting a white cabinet (no text or symbols visible)

Two-panel photo showing gloved hands cleaning a white appliance; top panel shows hand holding a white shelf, bottom panel shows hand adjusting a white panel with a power outlet (no text or symbols visible)

Close-up of a gloved hand holding a white wall corner, no visible text or symbols

Simple line drawing of a screw with a cross mark, crossed out by two diagonal lines (no text or symbols)

Illustration of a screw with a cross symbol and a blue checkmark (no text or labels)

Two-panel photo showing a person using a Moka drill press to lift a white plastic door, with no visible text or symbols.

Four-panel photo showing a person using a power tool in a white rack, with no visible text or symbols.

Two-panel photo showing hands using a power tool to install or install a white appliance (no text or symbols visible)

Hand in yellow glove installing a white electrical plug into a refrigerator (no text or symbols visible)

Close-up of a hand holding a red pencil next to a white electrical outlet (no text or symbols visible)

Close-up of gloved hands holding a white rectangular object with a red pencil, no visible text or symbols

Close-up of a gloved hand holding a screwdriver against a plain white background (no text or symbols visible)

Close-up of a power drill putter with a green and black body, no visible text or symbols on the tool or background.

Close-up of gloved hands holding a small white tool, no visible text or symbols

Interior view of a kitchen appliance with white cabinet and black fabric, no visible text or symbols

Close-up of a hand holding a white plastic door clip with a blue arrow pointing to it, against a plain wall (no text or symbols visible)

Close-up of a hand operating a drill bit on a white appliance door, no visible text or symbols

Close-up of gloved hands installing or adjusting a white panel on a wall, wearing a bright yellow glove (no visible text or symbols)

≥38mm ≥560mm ≥550mm 1220~1230mm 1210mm 1220mm 540mm 540mm 15mm 1182mm 18mm

Person wearing green gloves installing or adjusting a white cabinet (no text or symbols visible)

Close-up of gloved hands installing or adjusting a white shelf panel, no visible text or symbols

Close-up of a gloved hand installing or adjusting a white door panel, with no visible text or symbols.

Simple line drawing of a screw with a cross mark, crossed out by two diagonal lines (no text or symbols)

Illustration of a screw with a cross symbol and a blue checkmark (no text or labels)

Two-panel photo showing a person using a Moka robotic drill into a white appliance, with no visible text or symbols.

Four-panel photo showing a person using a power tool in a white rack, with no visible text or symbols.

Two-panel photo showing hands using a power tool to install or install a white appliance (no text or symbols visible)

Hand in yellow glove installing a white electrical socket on a door (no text or symbols visible)

Close-up of a hand using a red pencil to mark a white electrical outlet (no text or symbols visible)

Close-up of gloved hands installing a white rectangular object on a white surface, with a red pencil inserted (no text or symbols visible)

Close-up of a hand holding a screwdriver against a plain white background (no text or symbols visible)

Close-up of a power drill putter with a tool, held in a green glove (no visible text or symbols)

Close-up of gloved hands holding a small tool, no visible text or symbols

Interior view of a white appliance cabinet with a black cloth hanging from the side (no visible text or symbols)

Close-up of a hand cleaning a white wall-mounted device with a blue arrow pointing to a component (no text or symbols visible)

Close-up of a hand using a drill bit to press down a white door panel (no visible text or symbols)

Close-up of a gloved hand holding a white electrical connector, wearing a bright yellow glove (no visible text or symbols)
